mp-999549/WN2/anharm

Space group: P-6m2 (187)
Link: Materials Project
Download: mp-999549.tar.gz

Harmonic properties

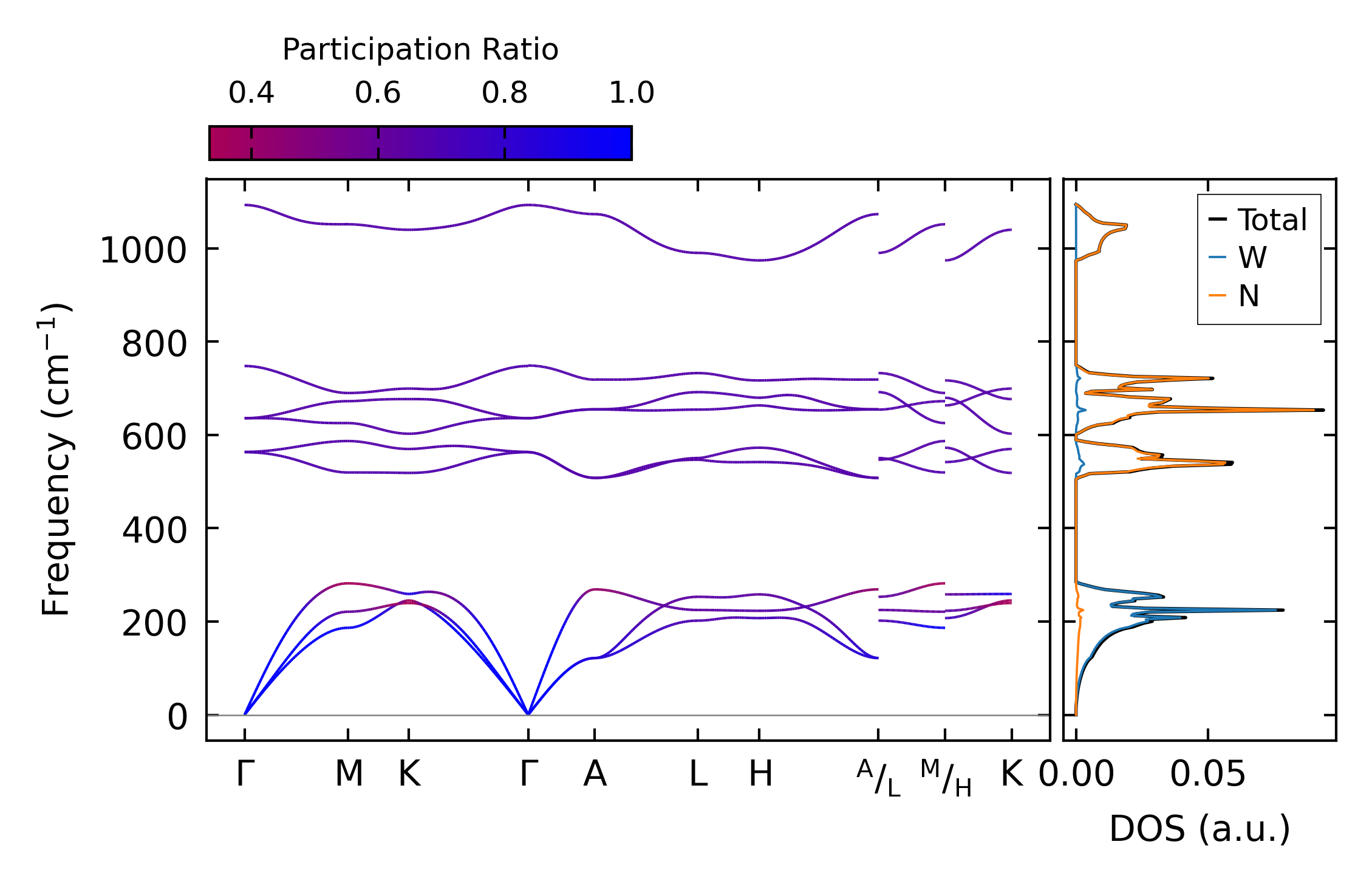

../../_images/fig_bandos_pr783.png — (a) Phonon dispersion with participation ratio and DOS

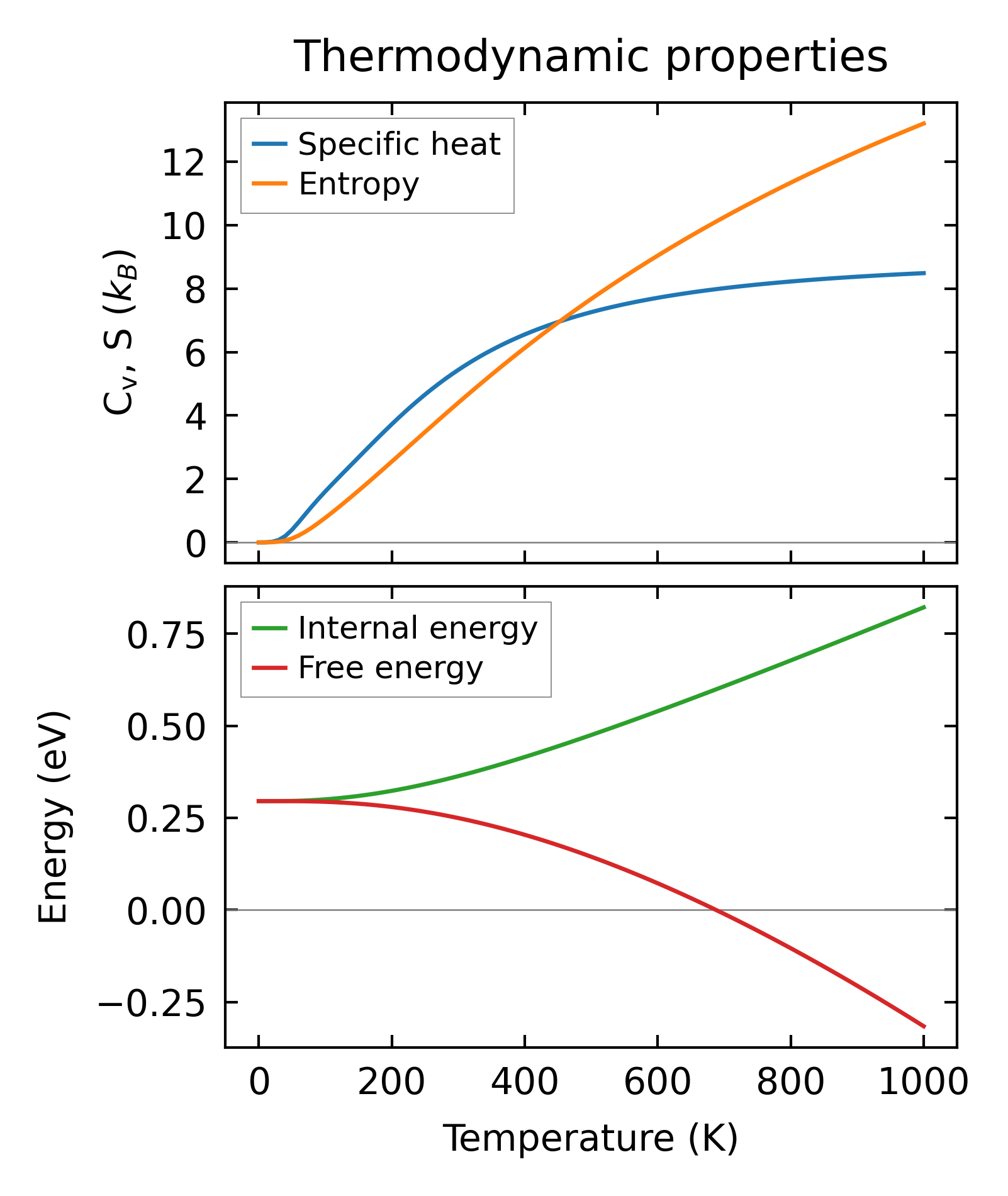

../../_images/fig_thermo783.png — (b) Thermodynamic properties

Grüneisen parameters

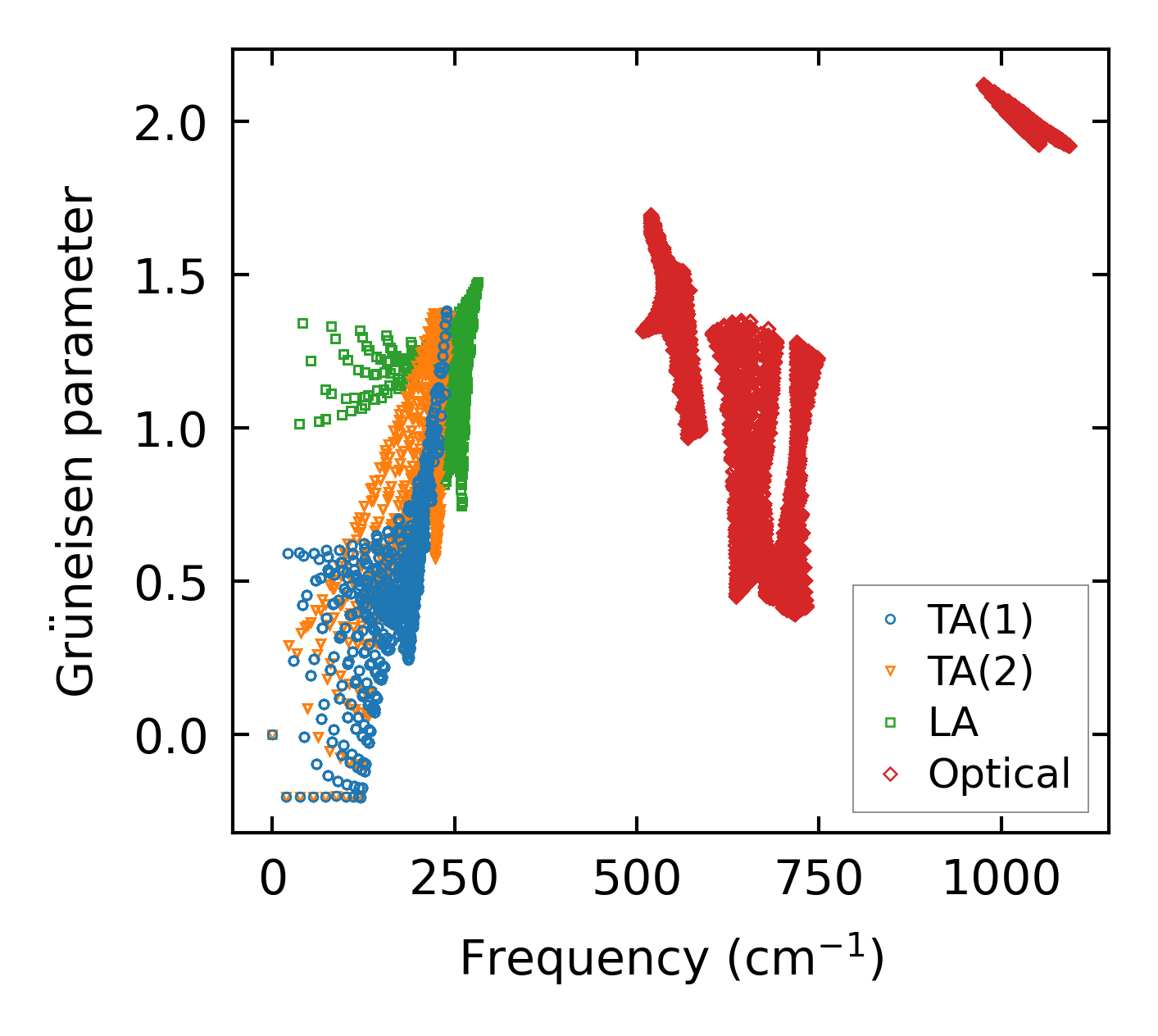

../../_images/fig_gru_all533.png — (a) Grüneisen parameters

../../_images/fig_gruneisen533.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 26x26x19, supercell: 4x4x3

../../_images/fig_kappa1038.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size540.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

../../_images/fig_lifetime531.png — (a) Phonon lifetime due to phonon-phonon scattering

../../_images/fig_scat_rates530.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

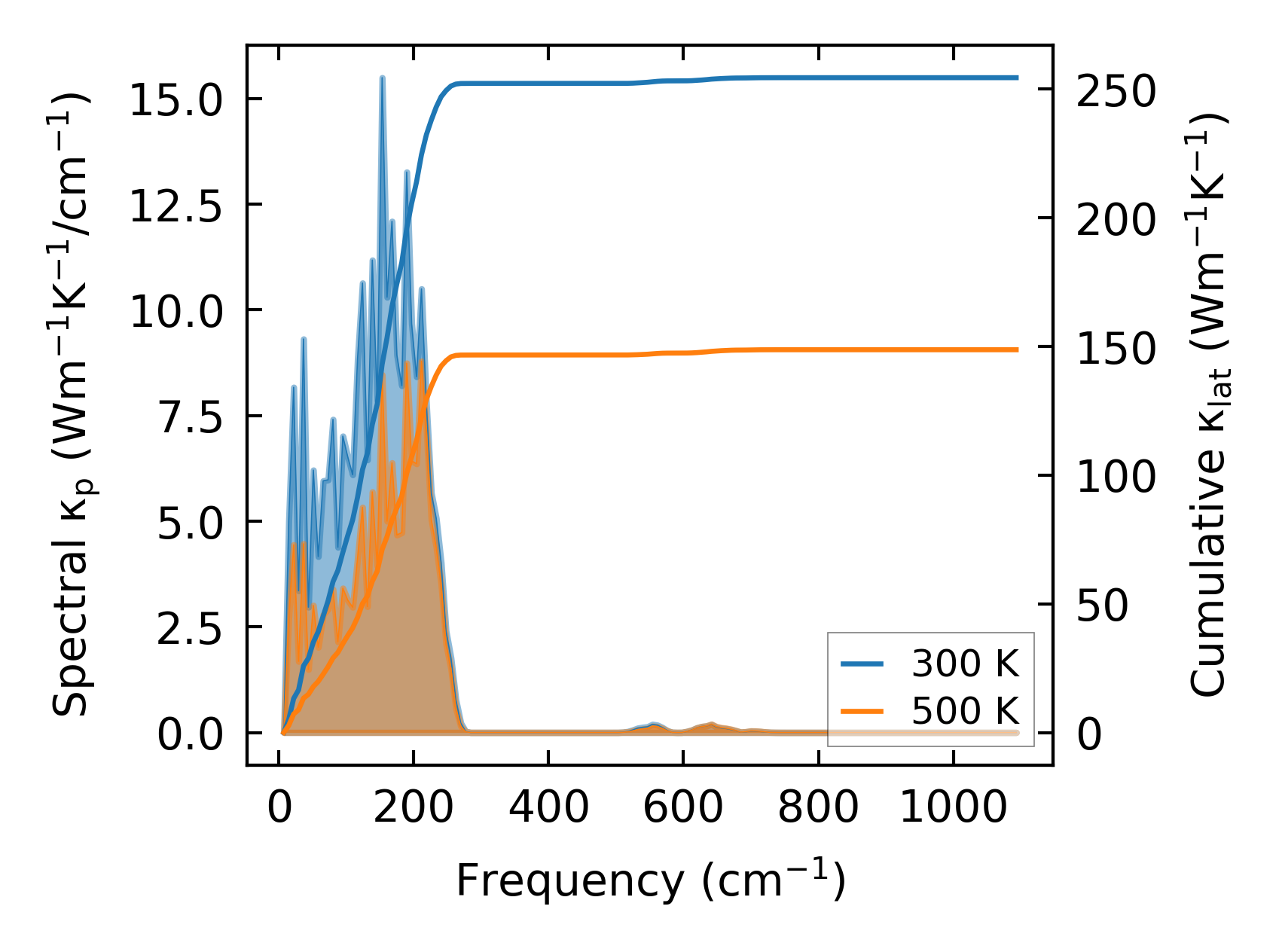

../../_images/fig_cumu_frequency531.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

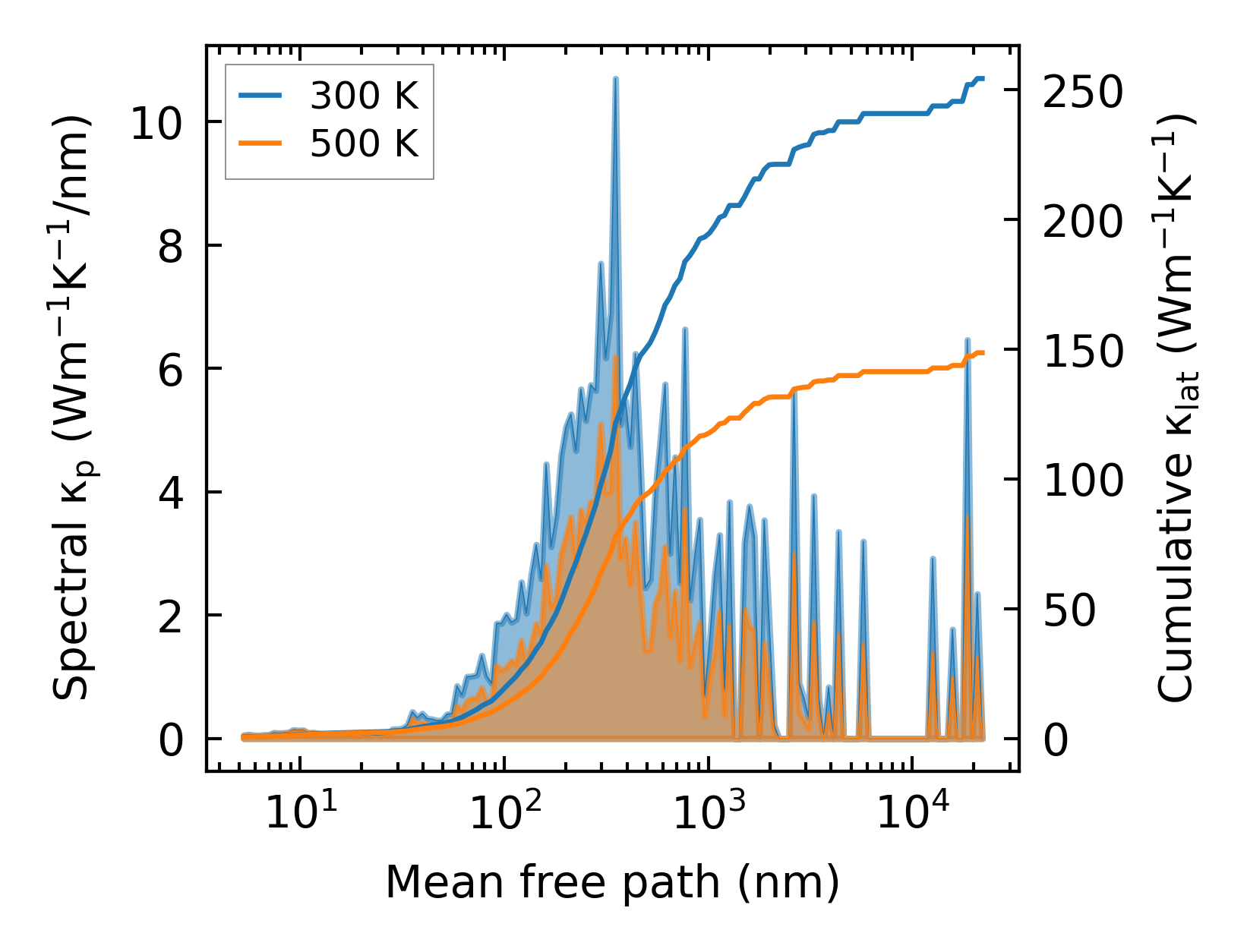

../../_images/fig_cumu_mfp531.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

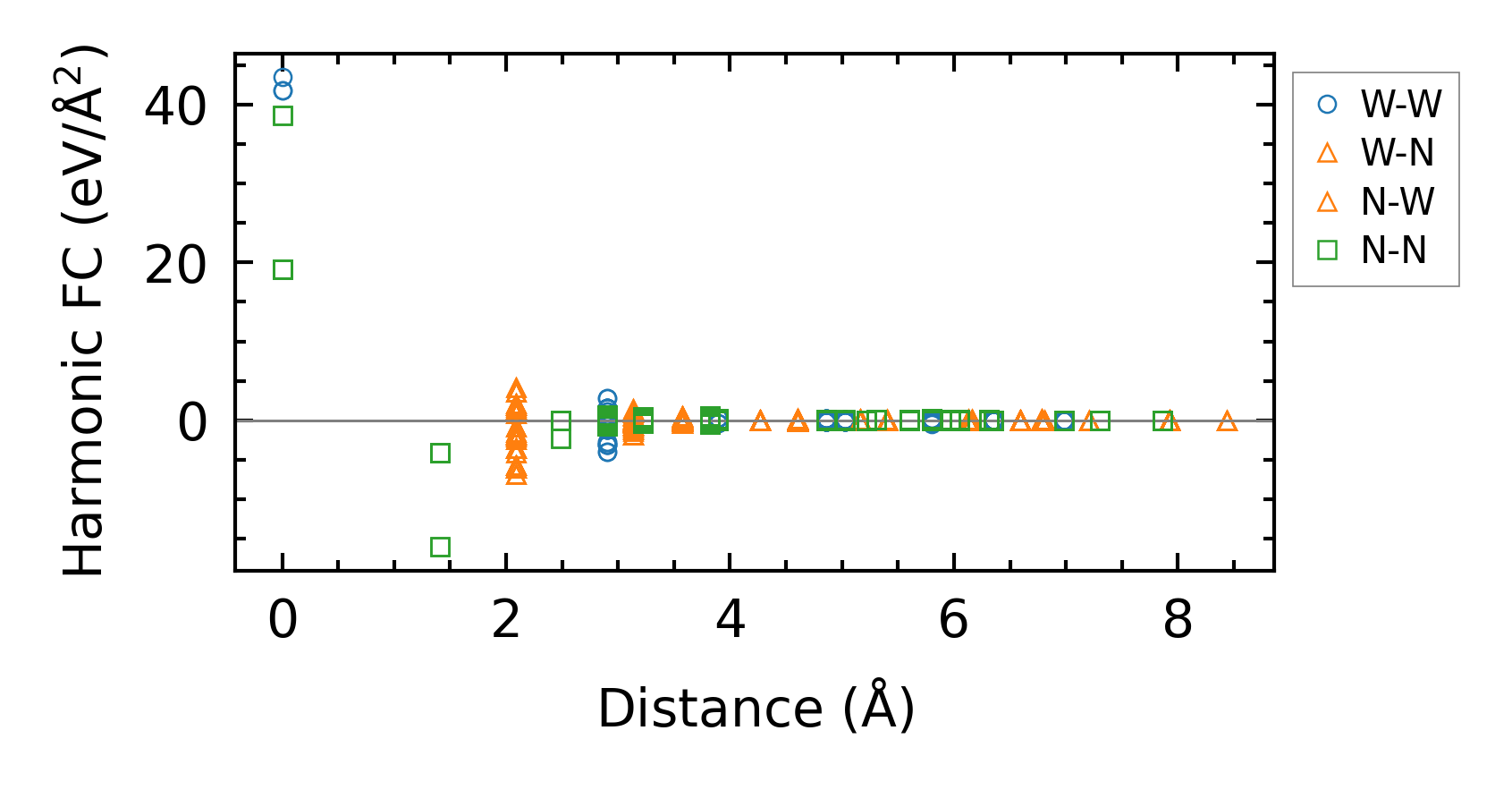

../../_images/fig_fc2684.png — (a) Force constants w.r.t atomic distance

Summary

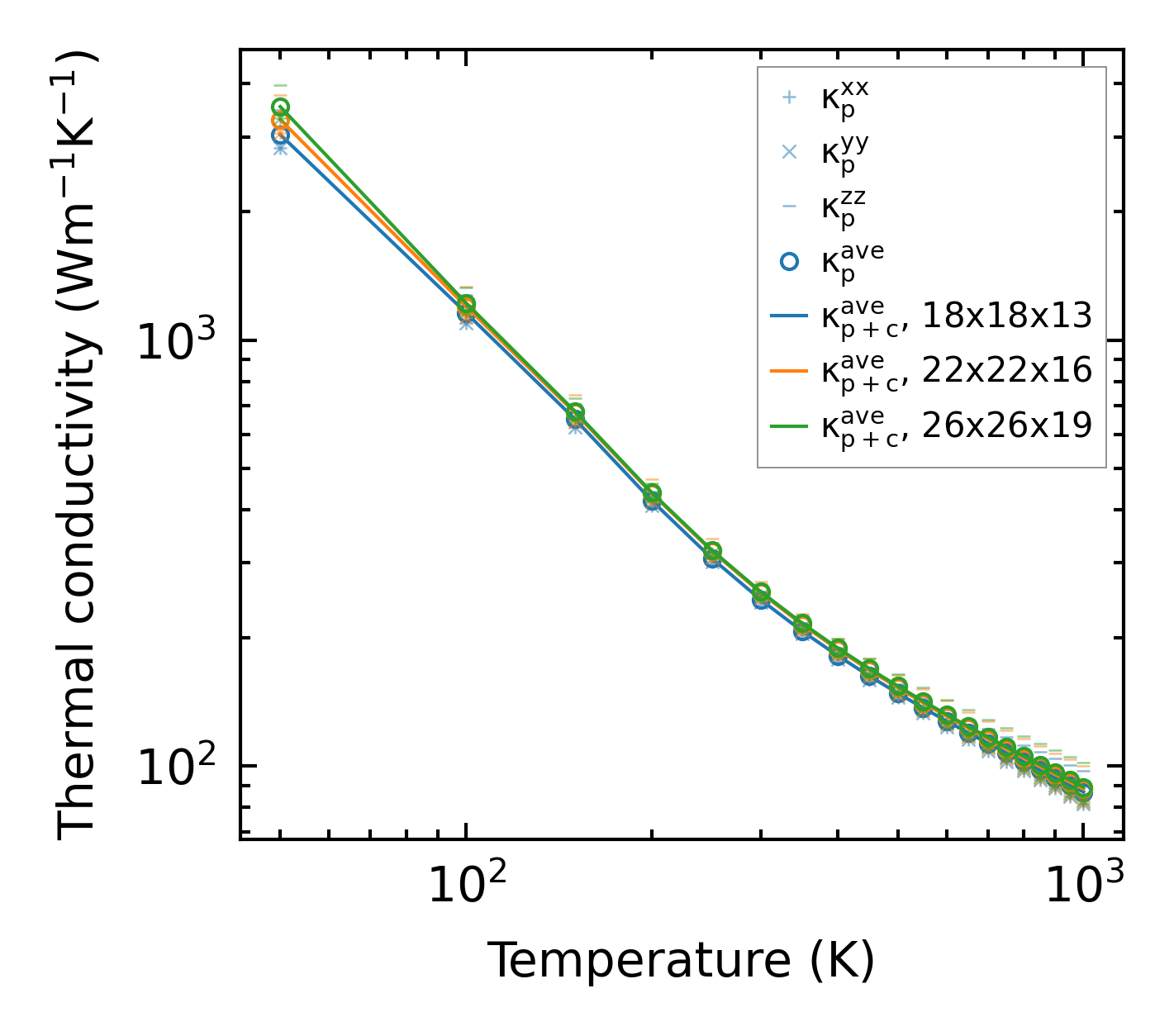

../../_images/fig_kappa1039.png — (a) Temperature-dependent lattice thermal conductivity

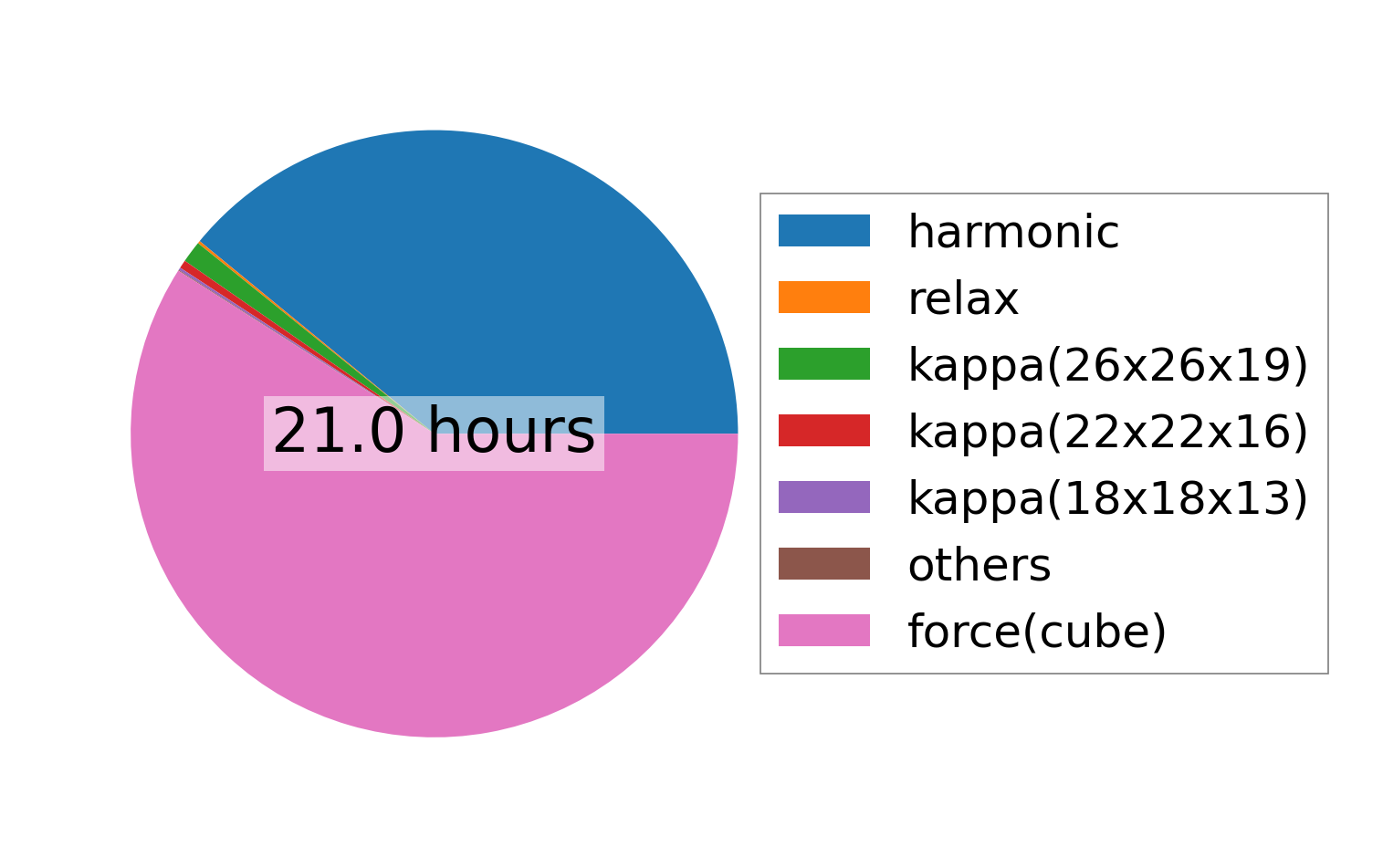

../../_images/fig_times1178.png — (b) Computation time
