mp-999455/NaSmS2/anharm

Space group: R-3m (166)
Link: Materials Project
Download: mp-999455.tar.gz

Harmonic properties

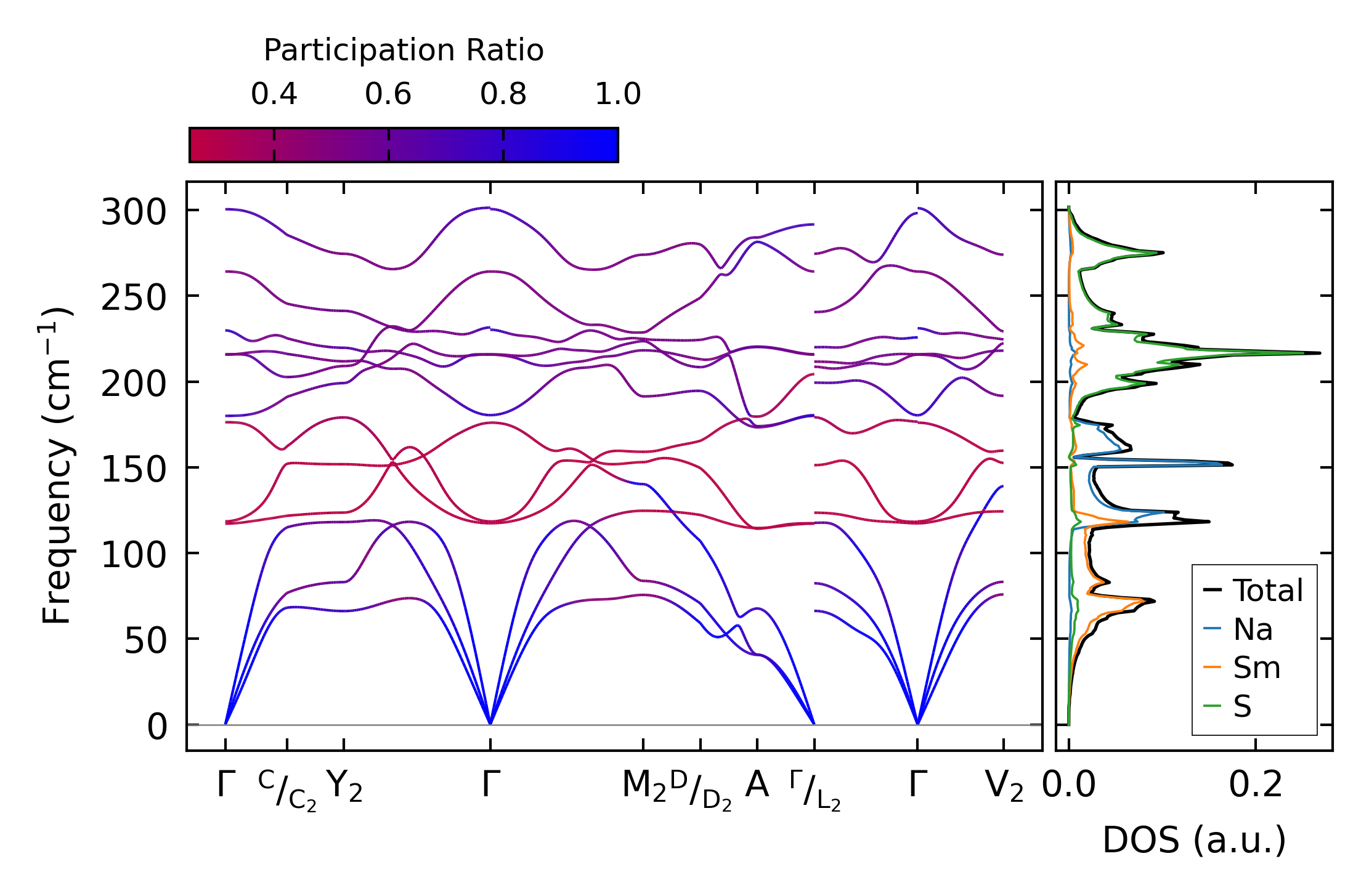

../../_images/fig_bandos_pr772.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo772.png — (b) Thermodynamic properties

Grüneisen parameters

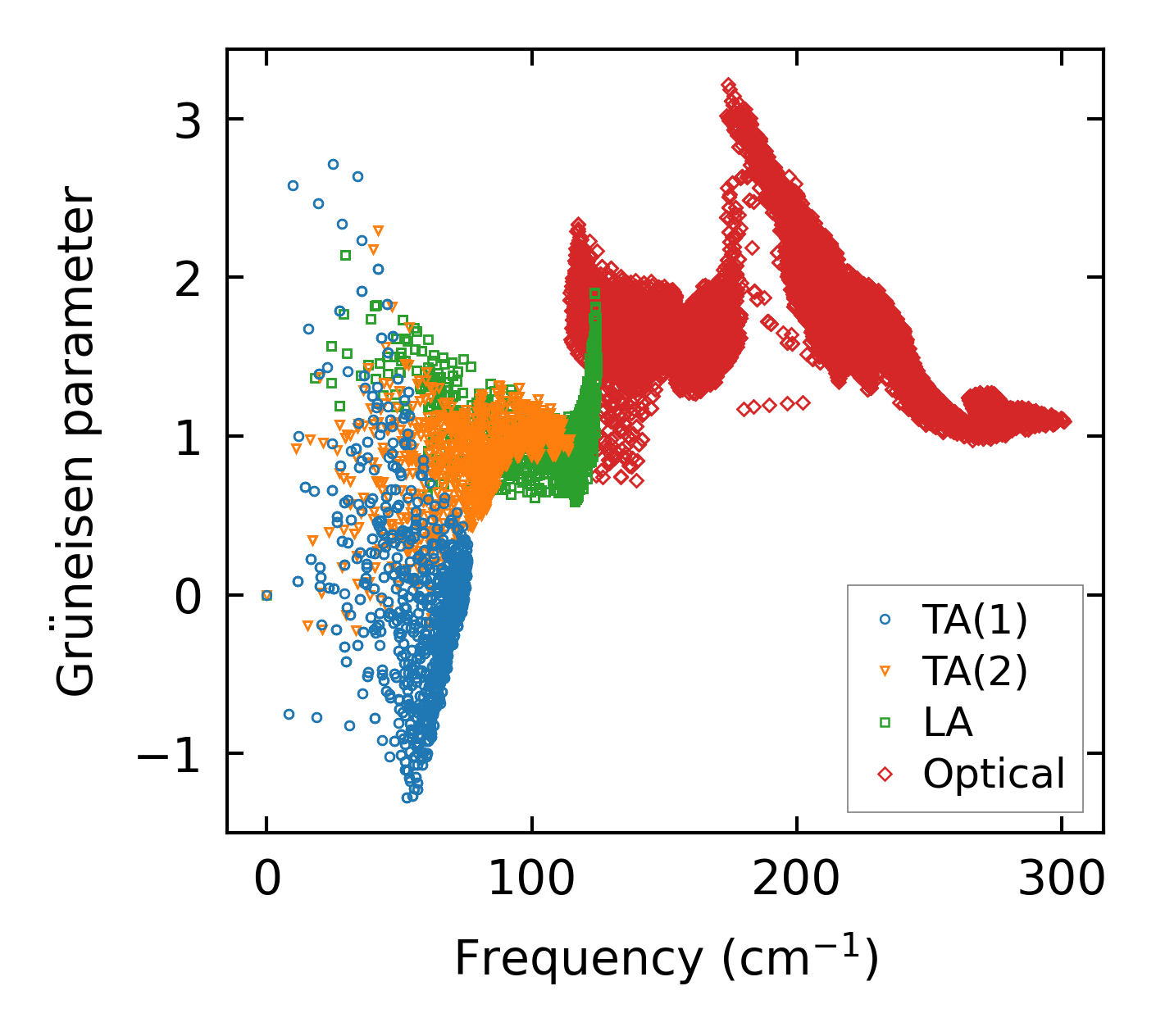

../../_images/fig_gru_all523.png — (a) Grüneisen parameters

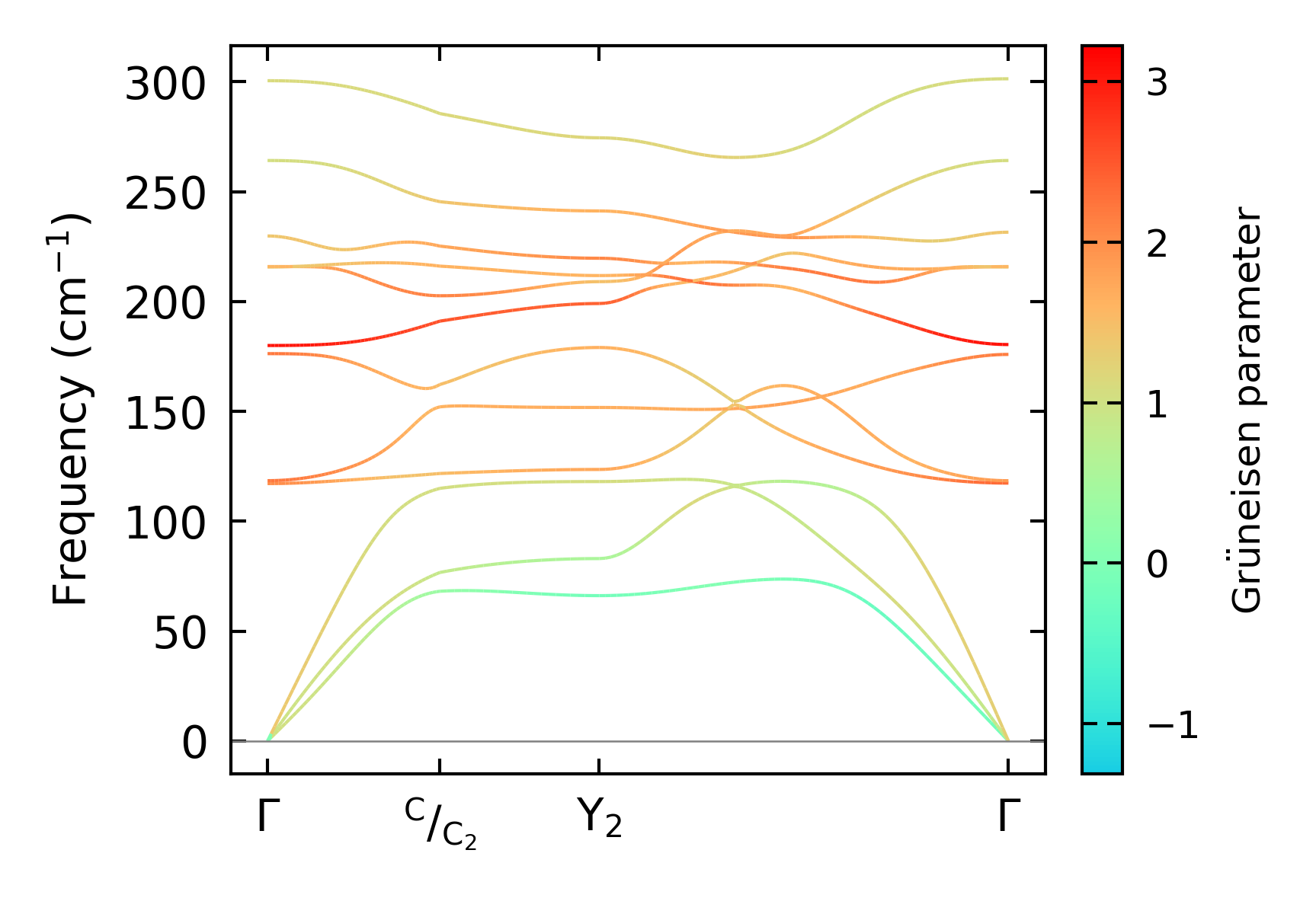

../../_images/fig_gruneisen523.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 19x19x11, supercell: 2x4x2

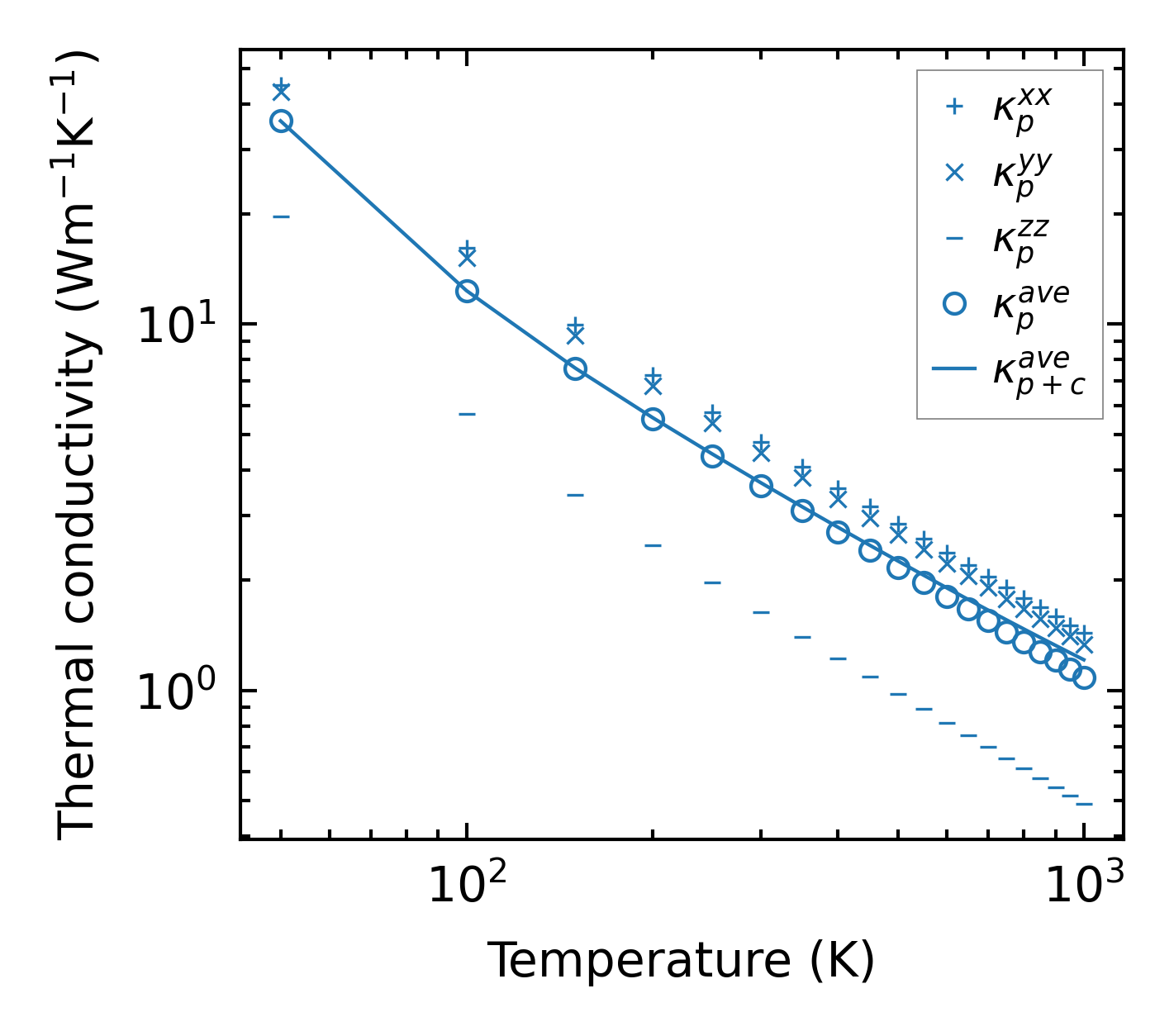

../../_images/fig_kappa1019.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size530.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

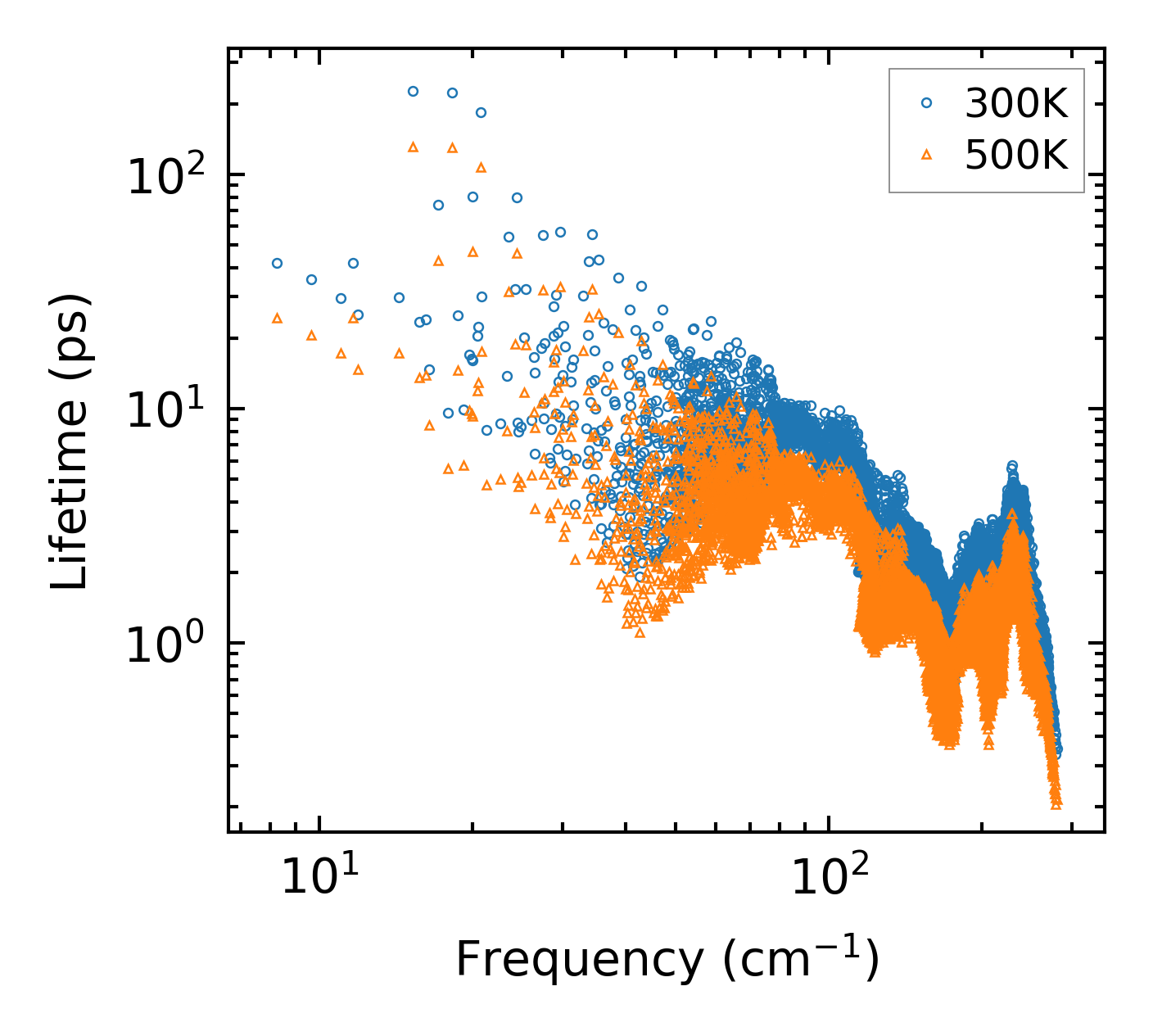

../../_images/fig_lifetime521.png — (a) Phonon lifetime due to phonon-phonon scattering

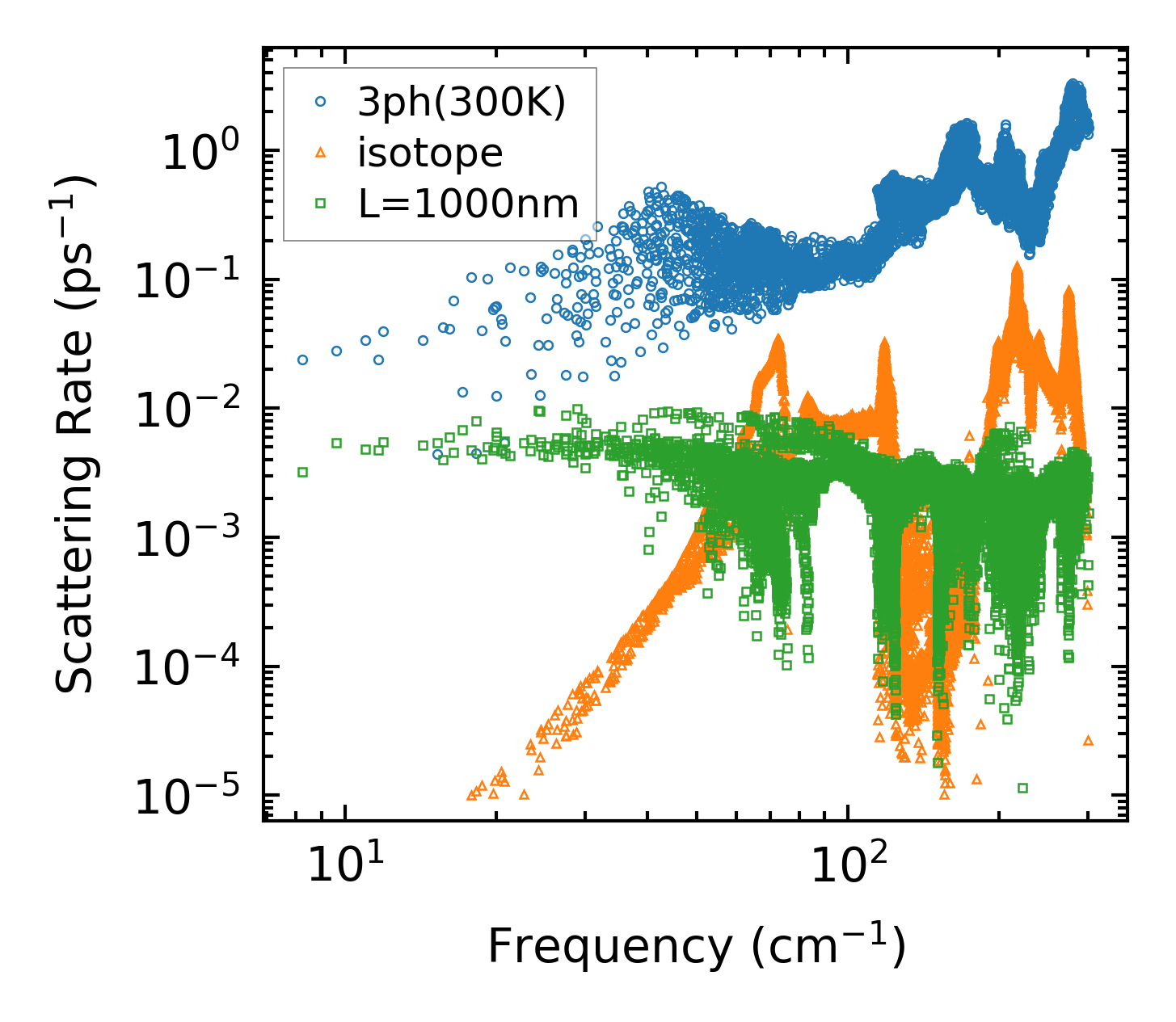

../../_images/fig_scat_rates520.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

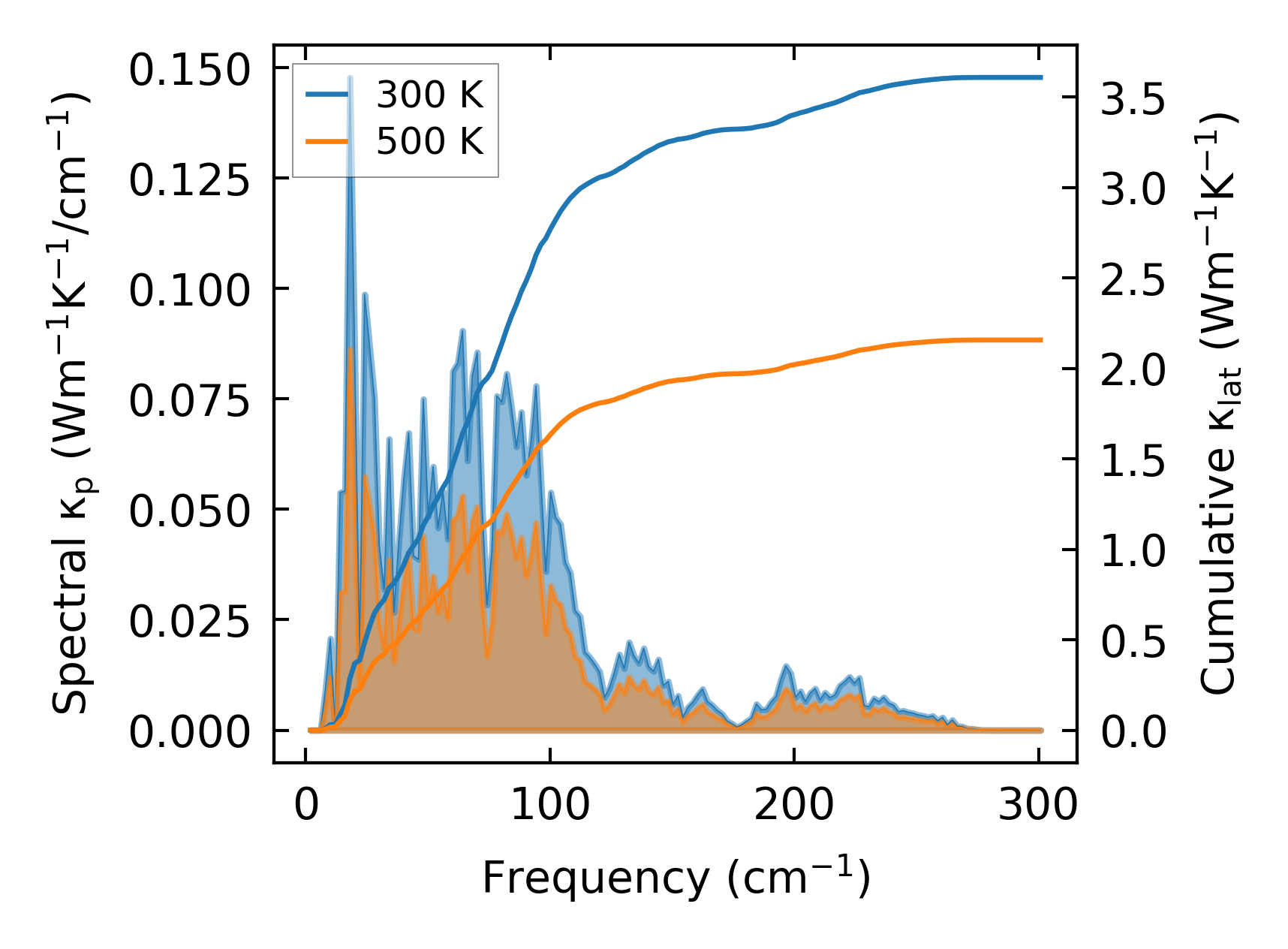

../../_images/fig_cumu_frequency521.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

../../_images/fig_cumu_mfp521.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

../../_images/fig_fc2673.png — (a) Force constants w.r.t atomic distance

Summary

../../_images/fig_kappa1020.png — (a) Temperature-dependent lattice thermal conductivity

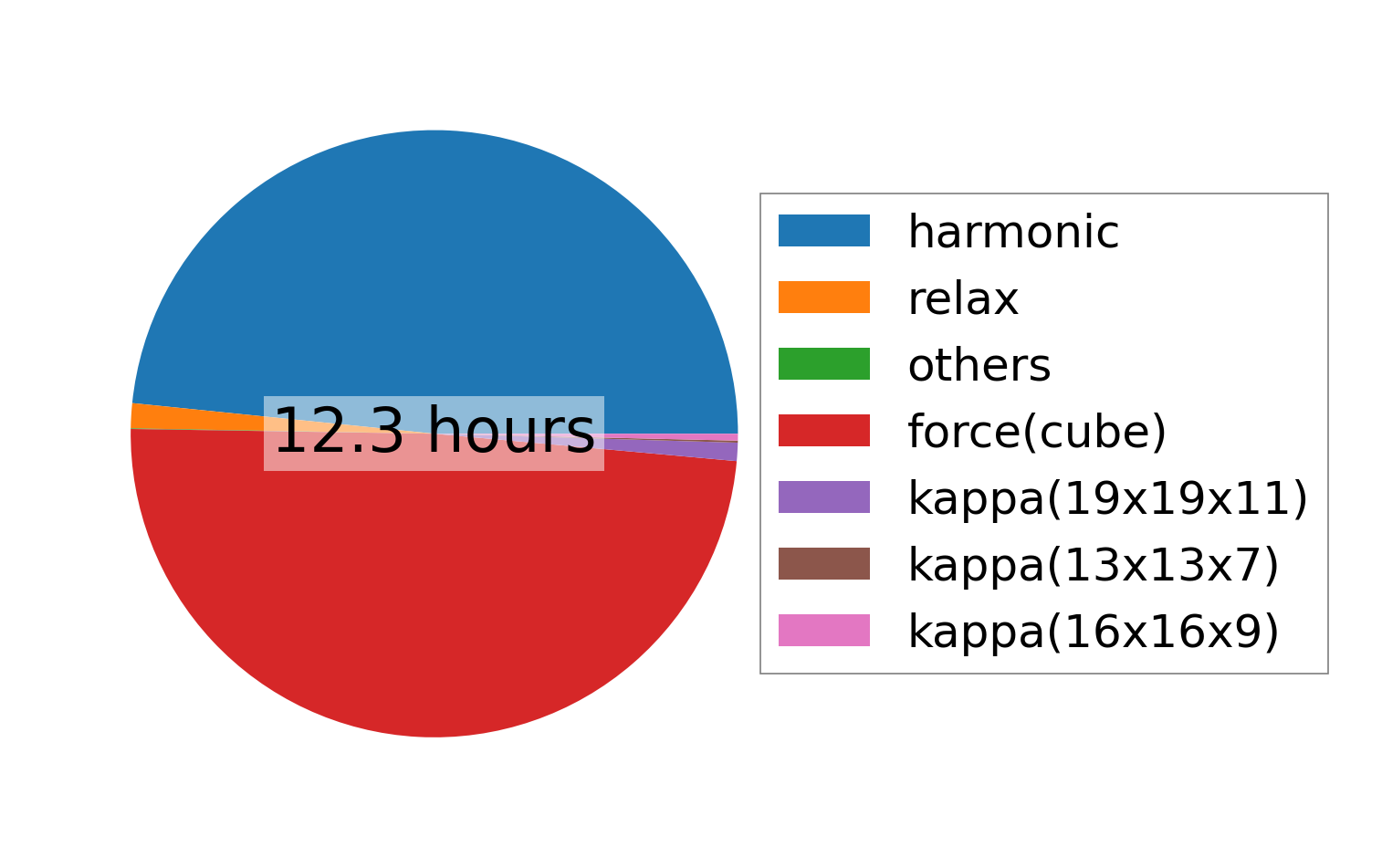

../../_images/fig_times1167.png — (b) Computation time
