mp-999200/Si/anharm

Space group: I4/mmm (139)
Link: Materials Project
Download: mp-999200.tar.gz

Harmonic properties

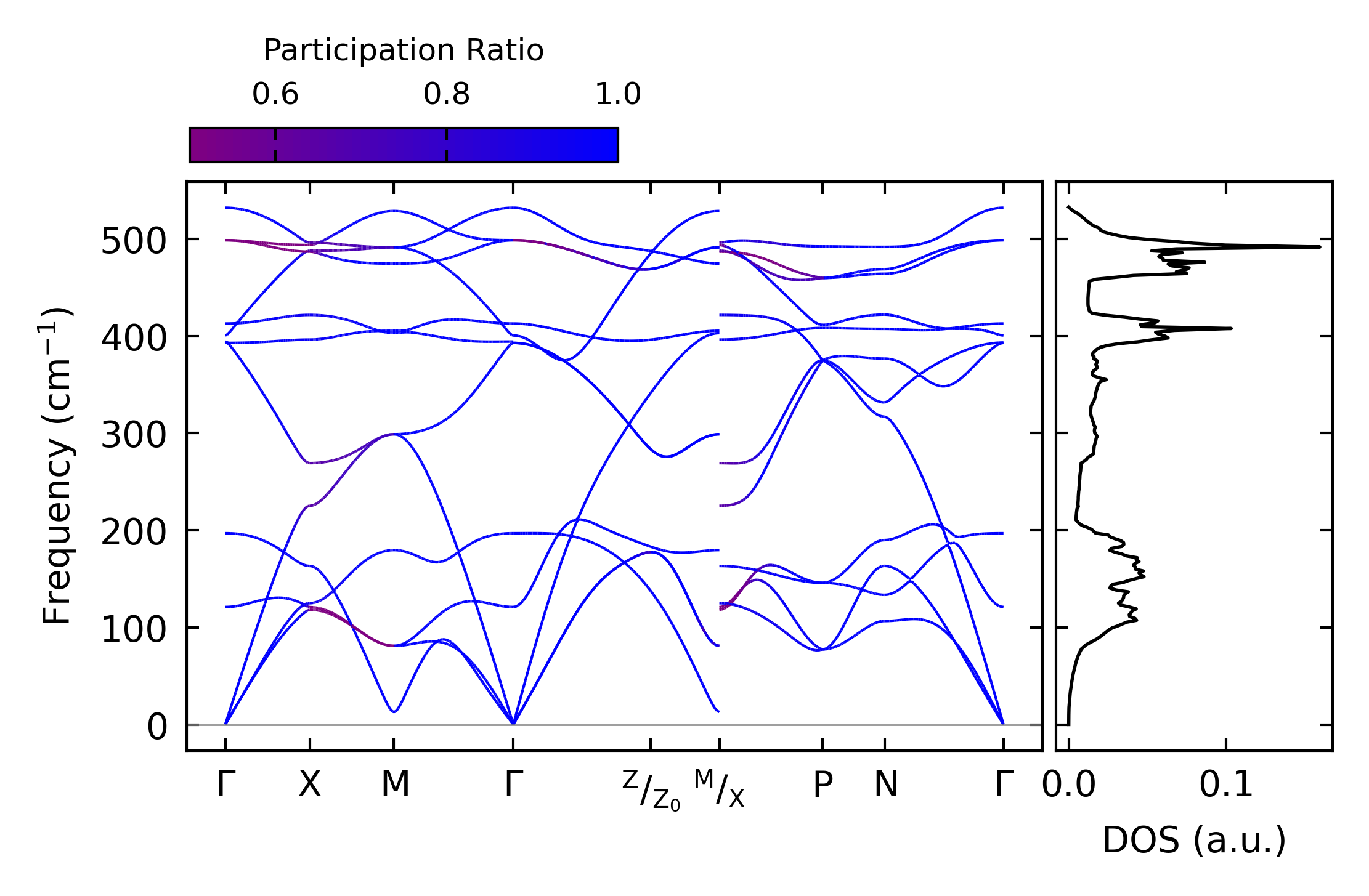

../../_images/fig_bandos_pr762.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo762.png — (b) Thermodynamic properties

Grüneisen parameters

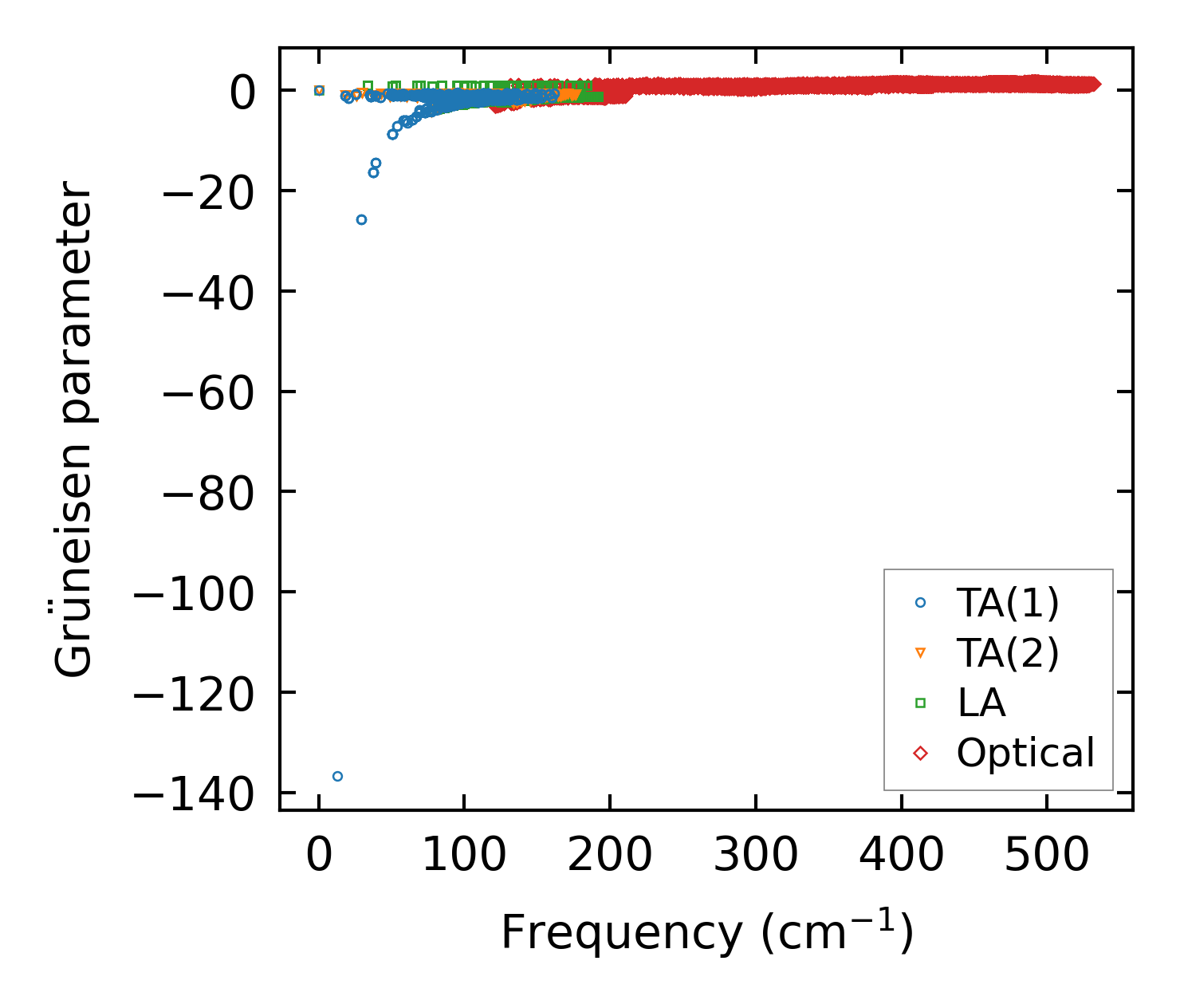

../../_images/fig_gru_all515.png — (a) Grüneisen parameters

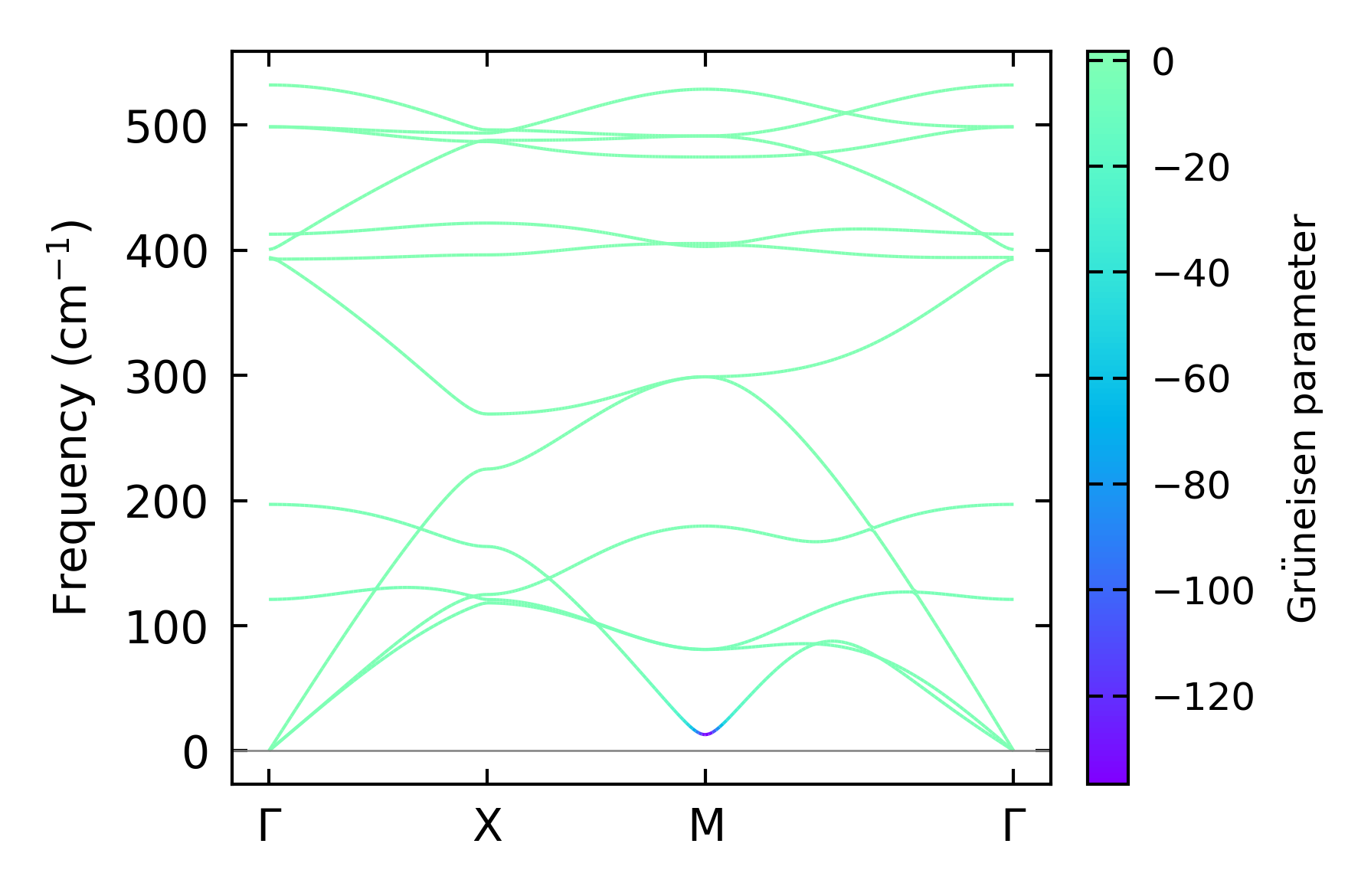

../../_images/fig_gruneisen515.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon — q-mesh: 16x16x16, supercell: 2x2x4

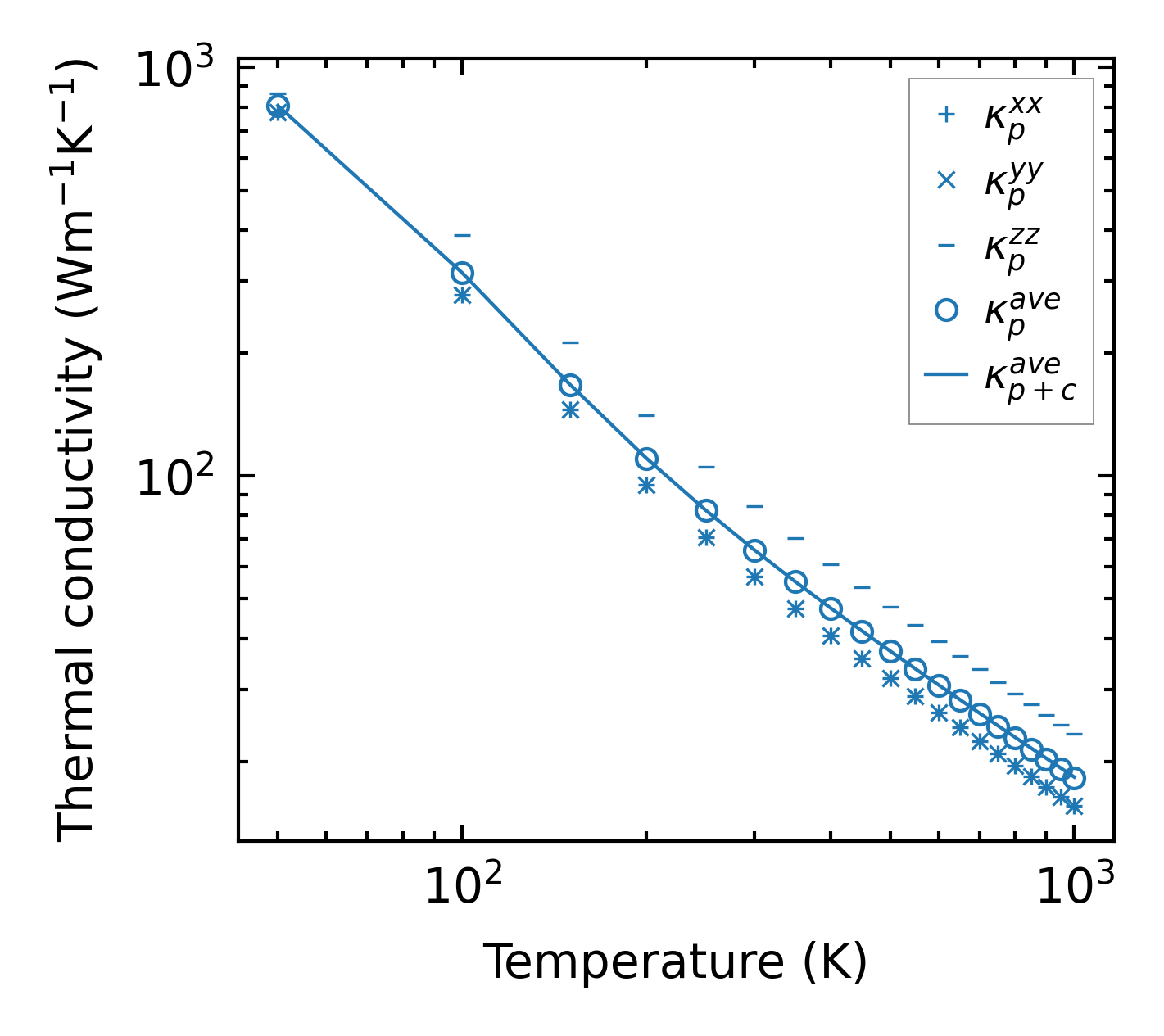

../../_images/fig_kappa1003.png — (a) Temperature-dependent lattice thermal conductivity

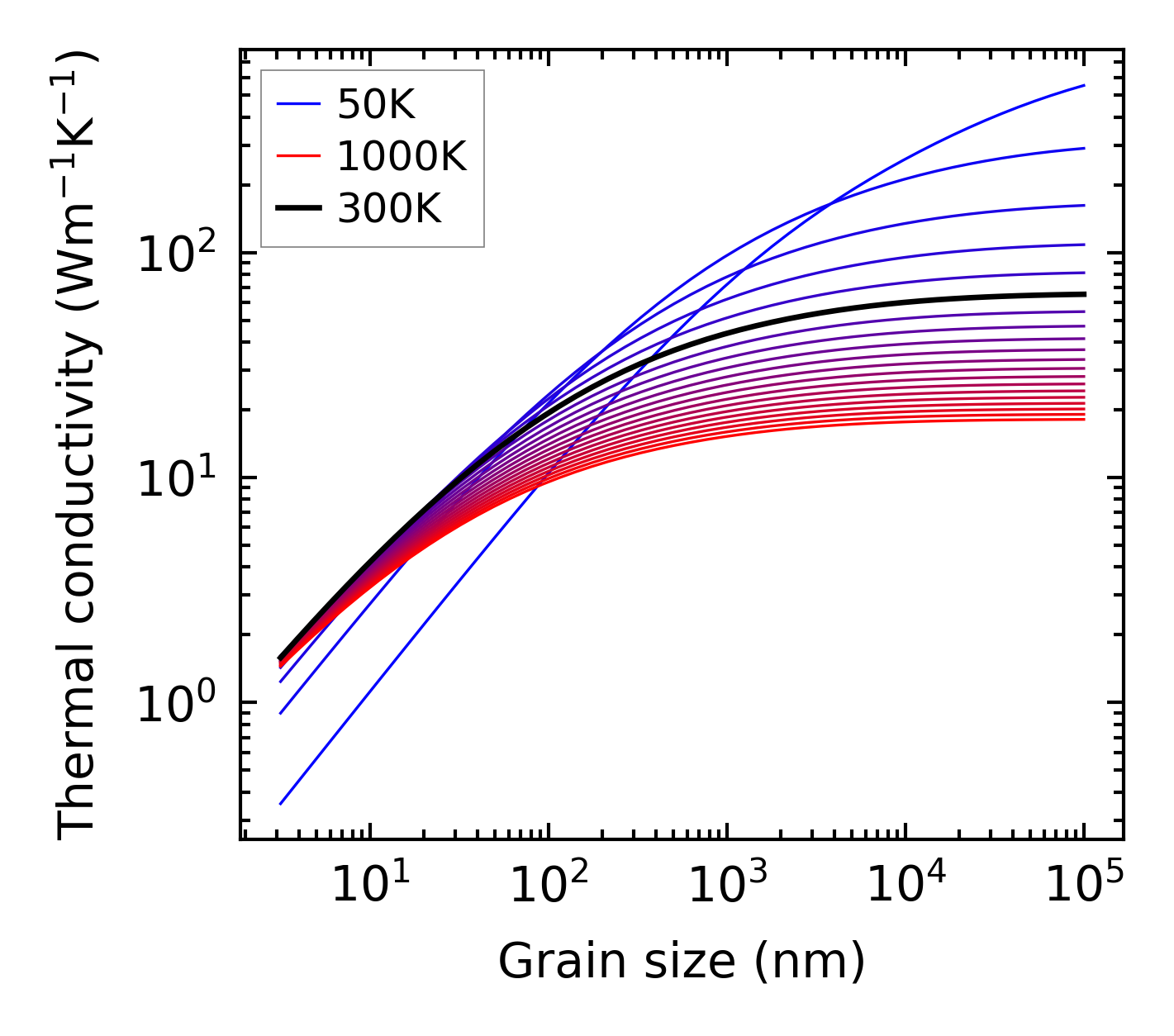

../../_images/fig_kappa_vs_grain_size522.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

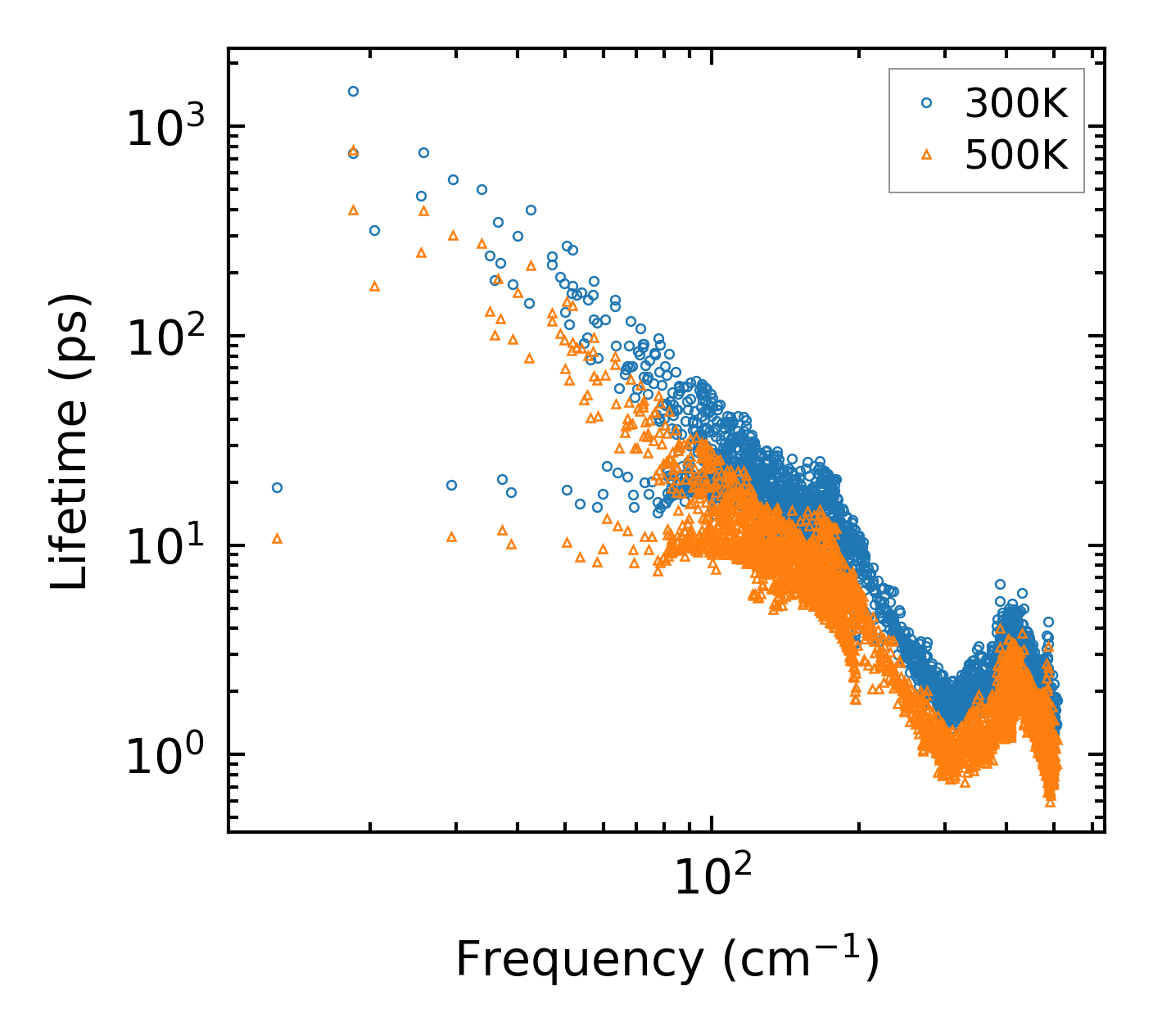

../../_images/fig_lifetime513.png — (a) Phonon lifetime due to phonon-phonon scattering

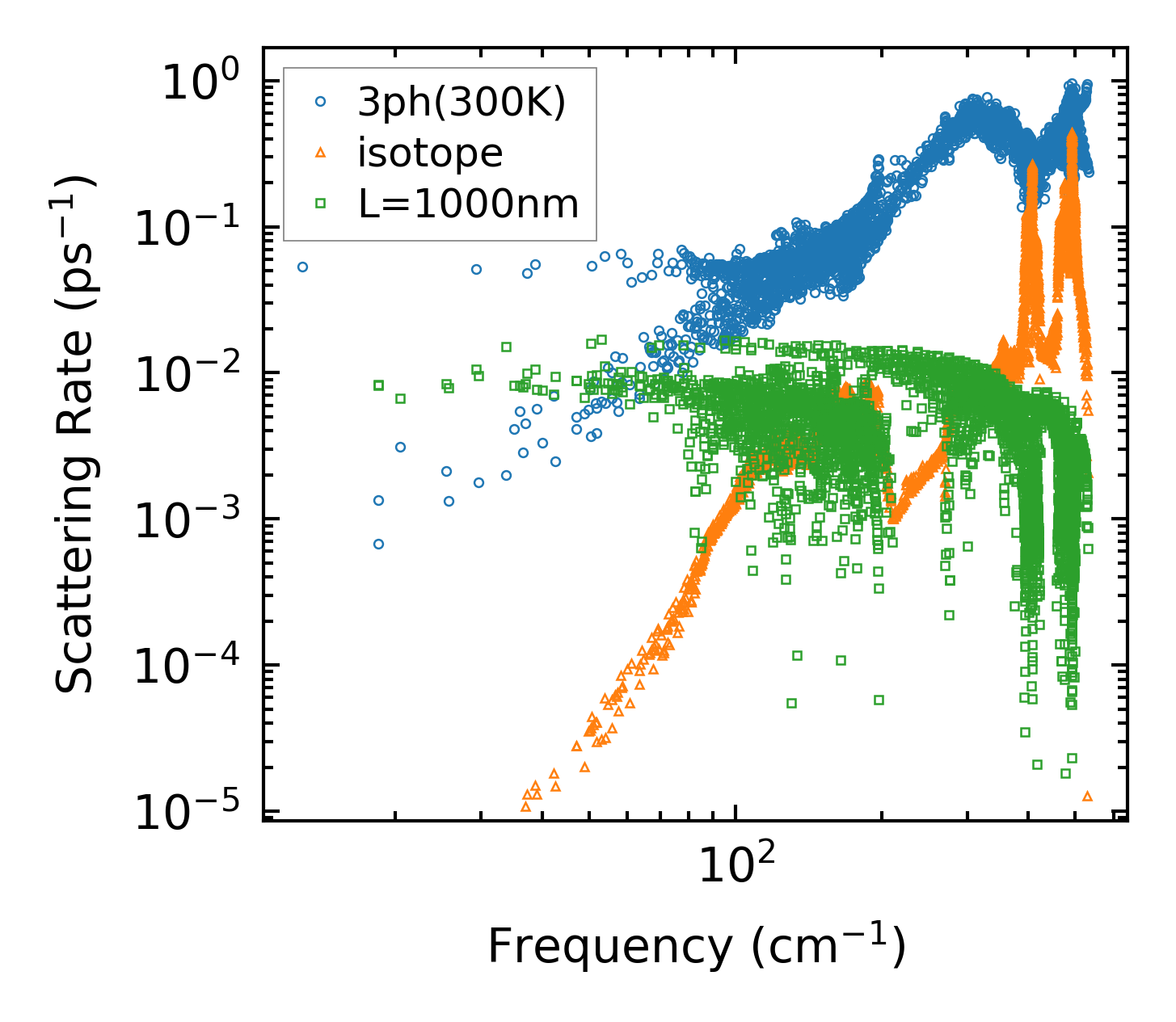

../../_images/fig_scat_rates512.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

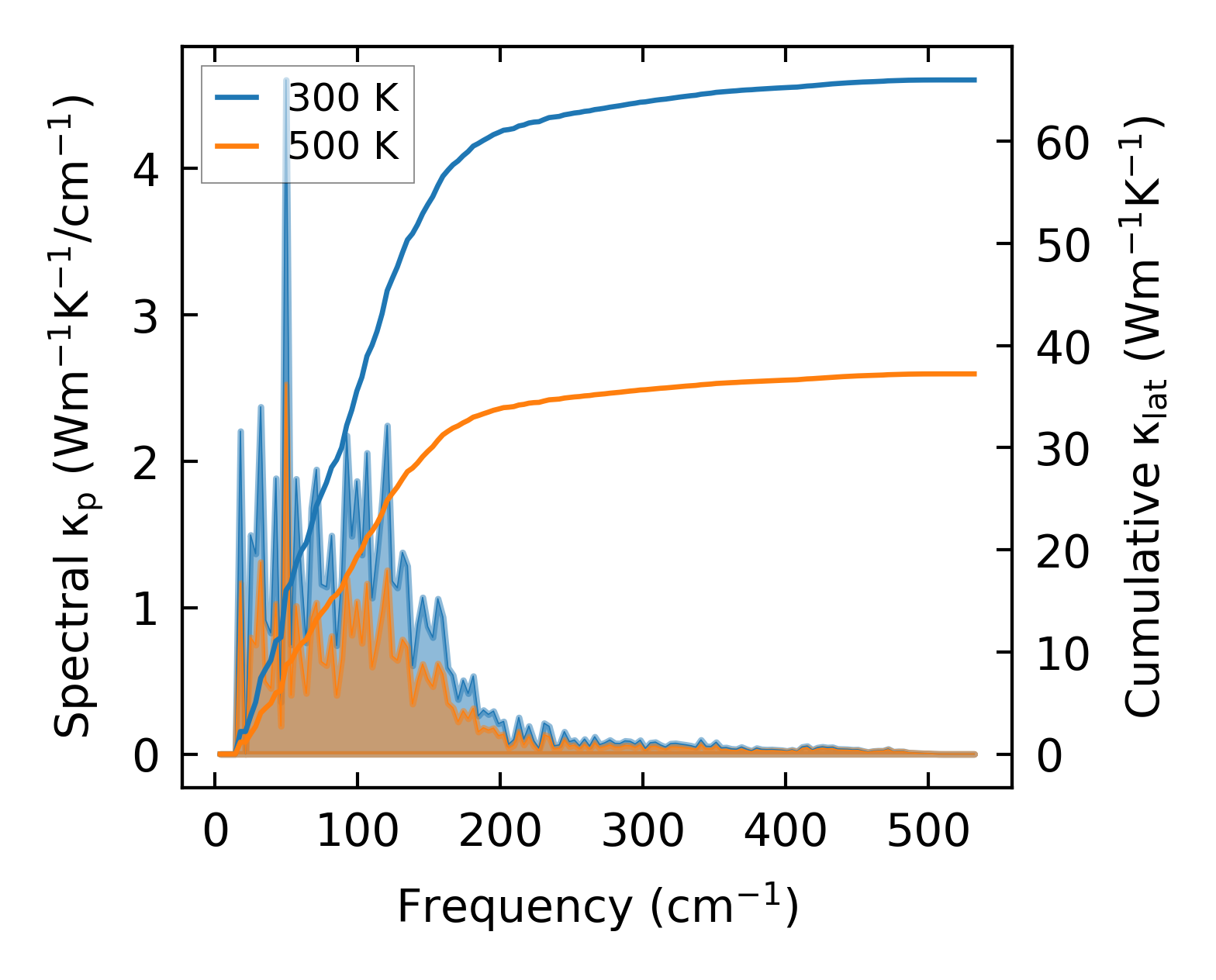

../../_images/fig_cumu_frequency513.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

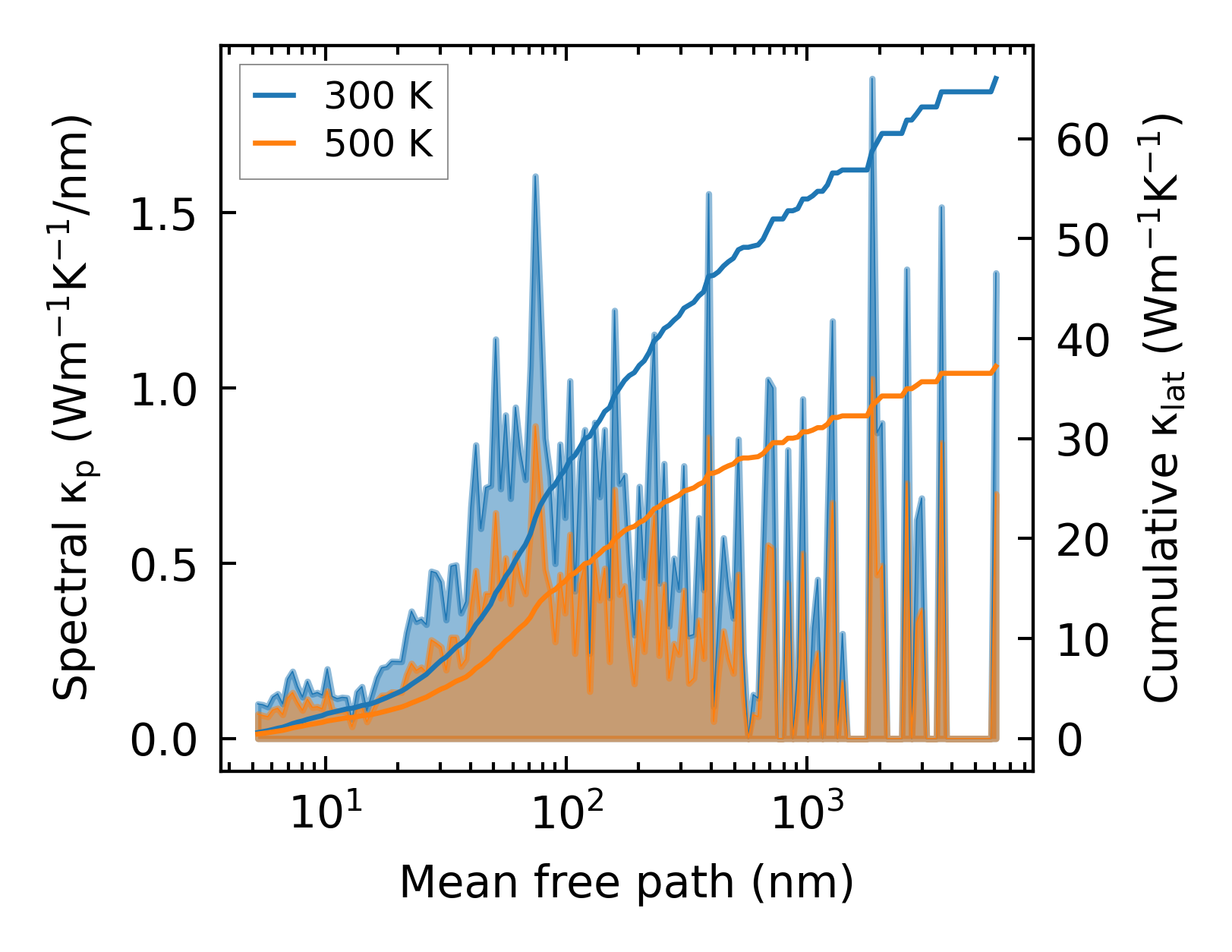

../../_images/fig_cumu_mfp513.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

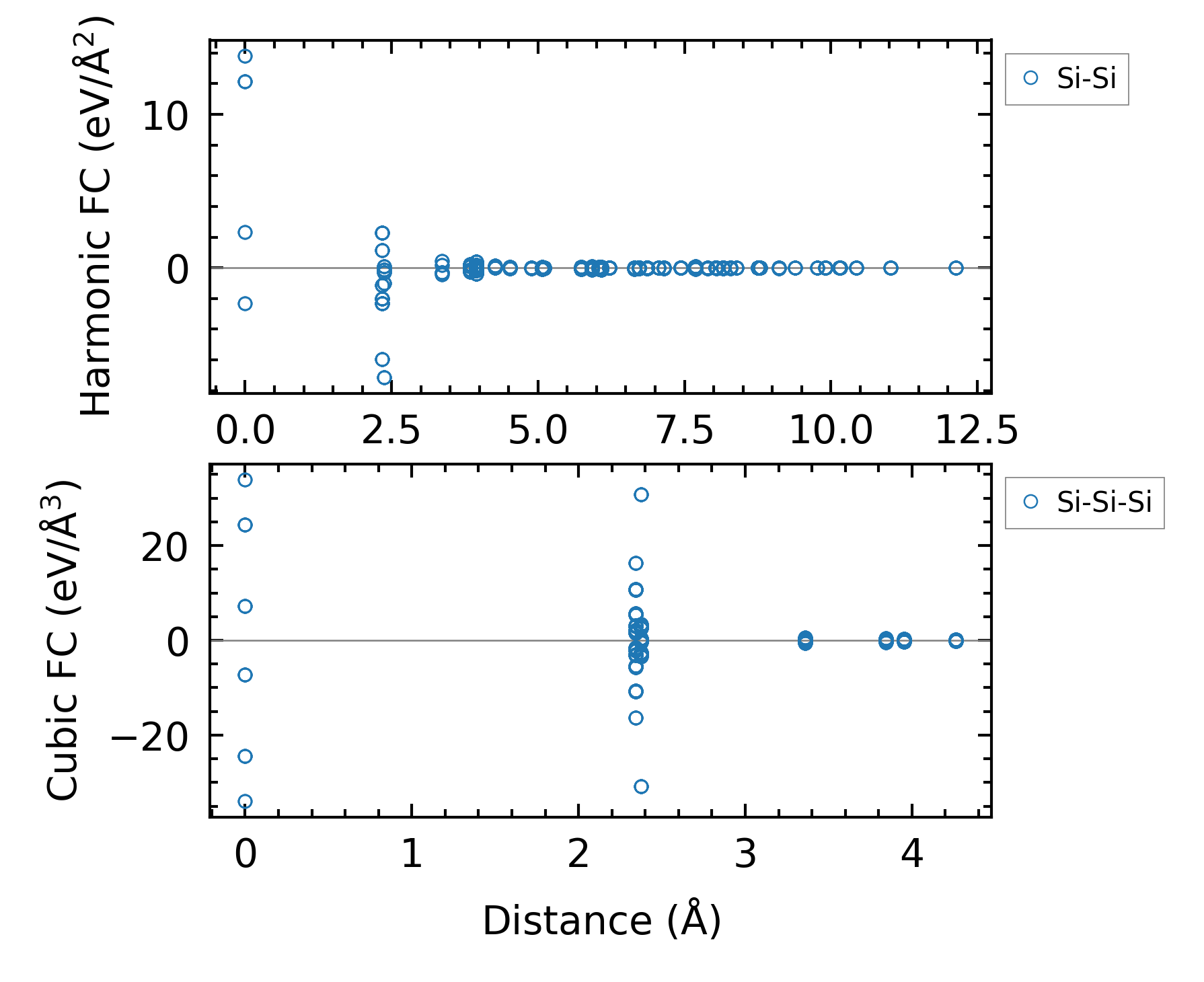

../../_images/fig_fc397.png — (a) Force constants w.r.t atomic distance

Summary

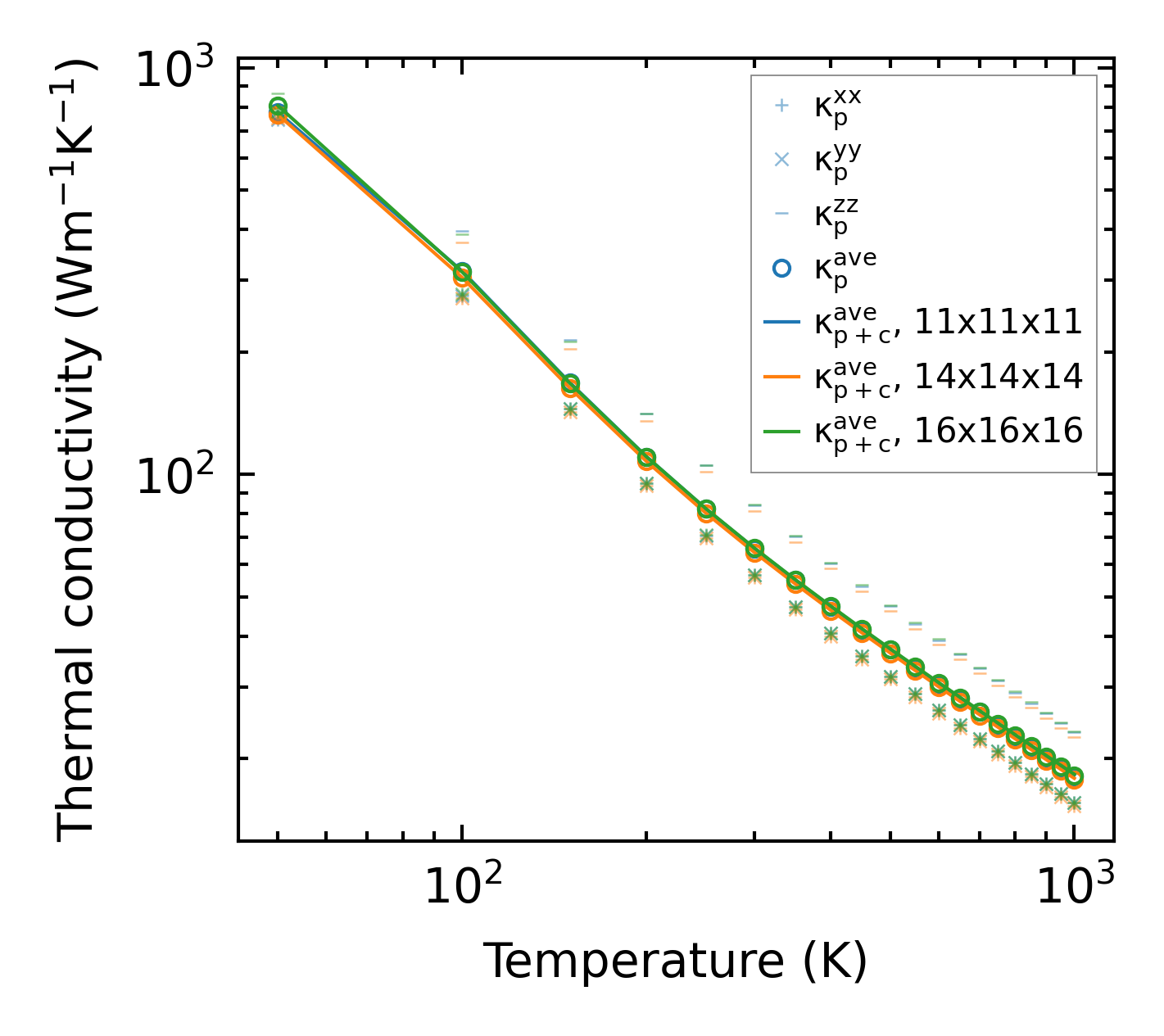

../../_images/fig_kappa1004.png — (a) Temperature-dependent lattice thermal conductivity

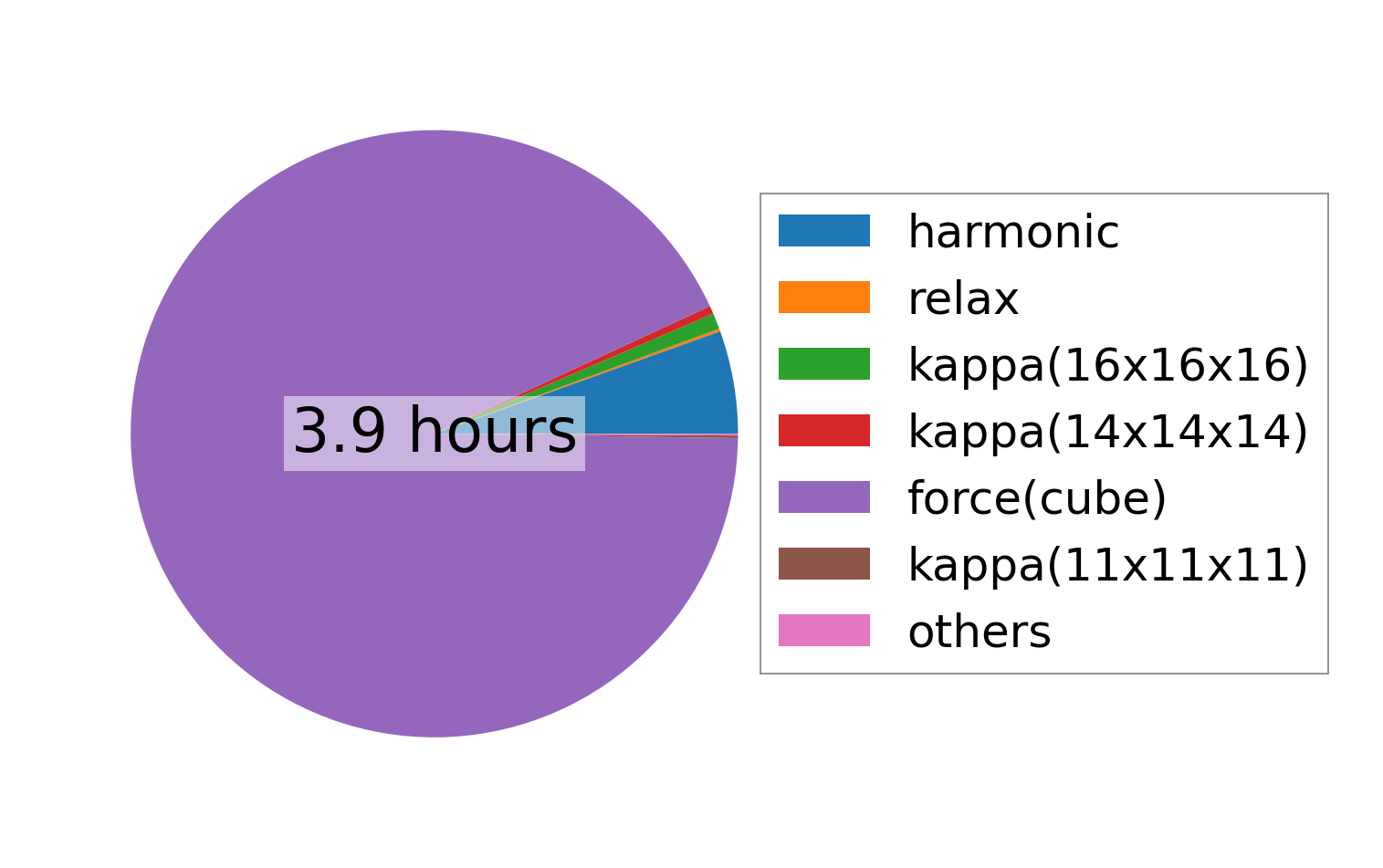

../../_images/fig_times1153.png — (b) Computation time
