mp-999265/RbYS2/anharm

Space group: R-3m (166)
Link: Materials Project
Download: mp-999265.tar.gz

Harmonic properties

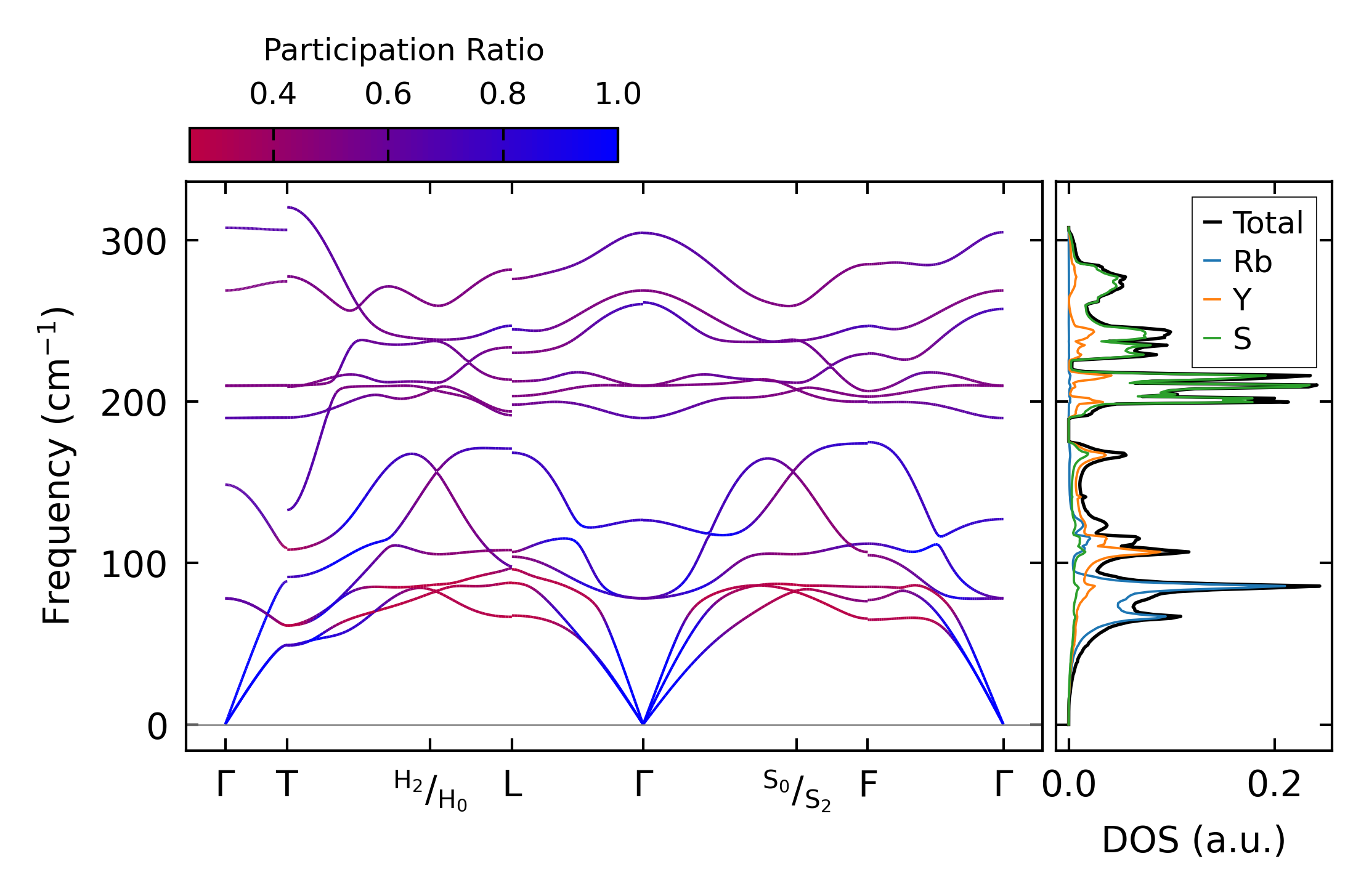

../../_images/fig_bandos_pr763.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo763.png — (b) Thermodynamic properties

Grüneisen parameters

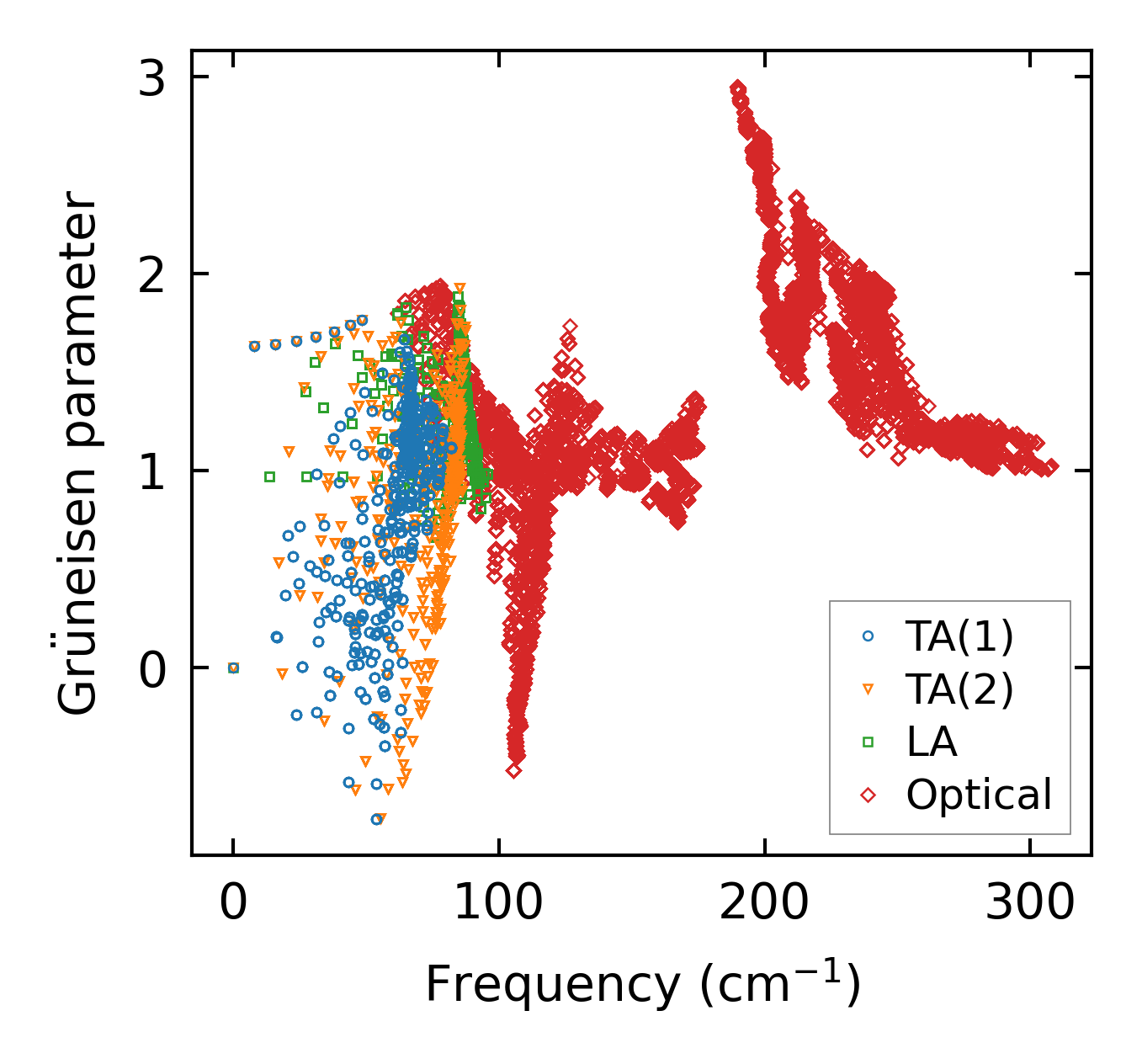

../../_images/fig_gru_all516.png — (a) Grüneisen parameters

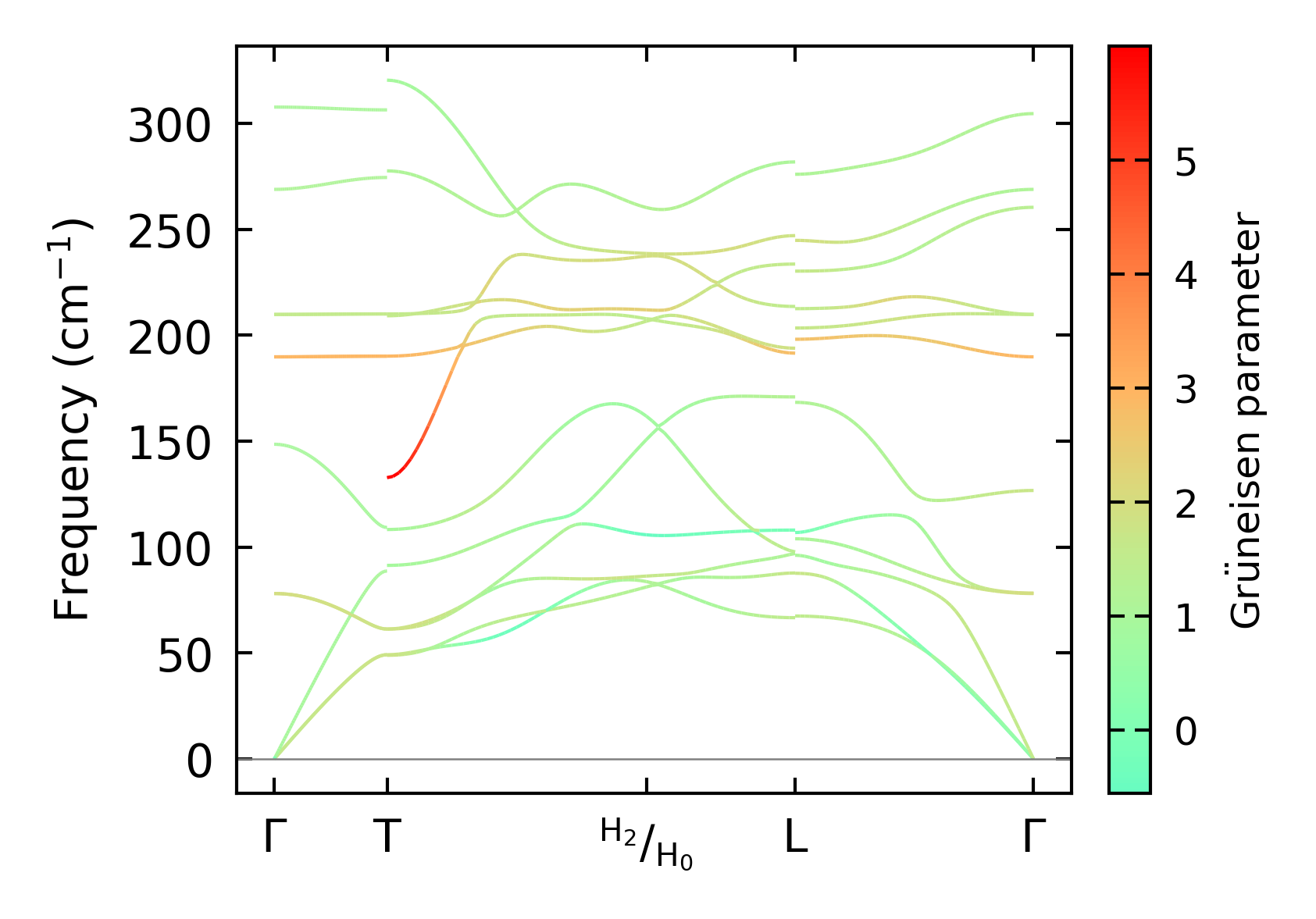

../../_images/fig_gruneisen516.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 15x15x15, supercell: 3x3x1

../../_images/fig_kappa1005.png — (a) Temperature-dependent lattice thermal conductivity

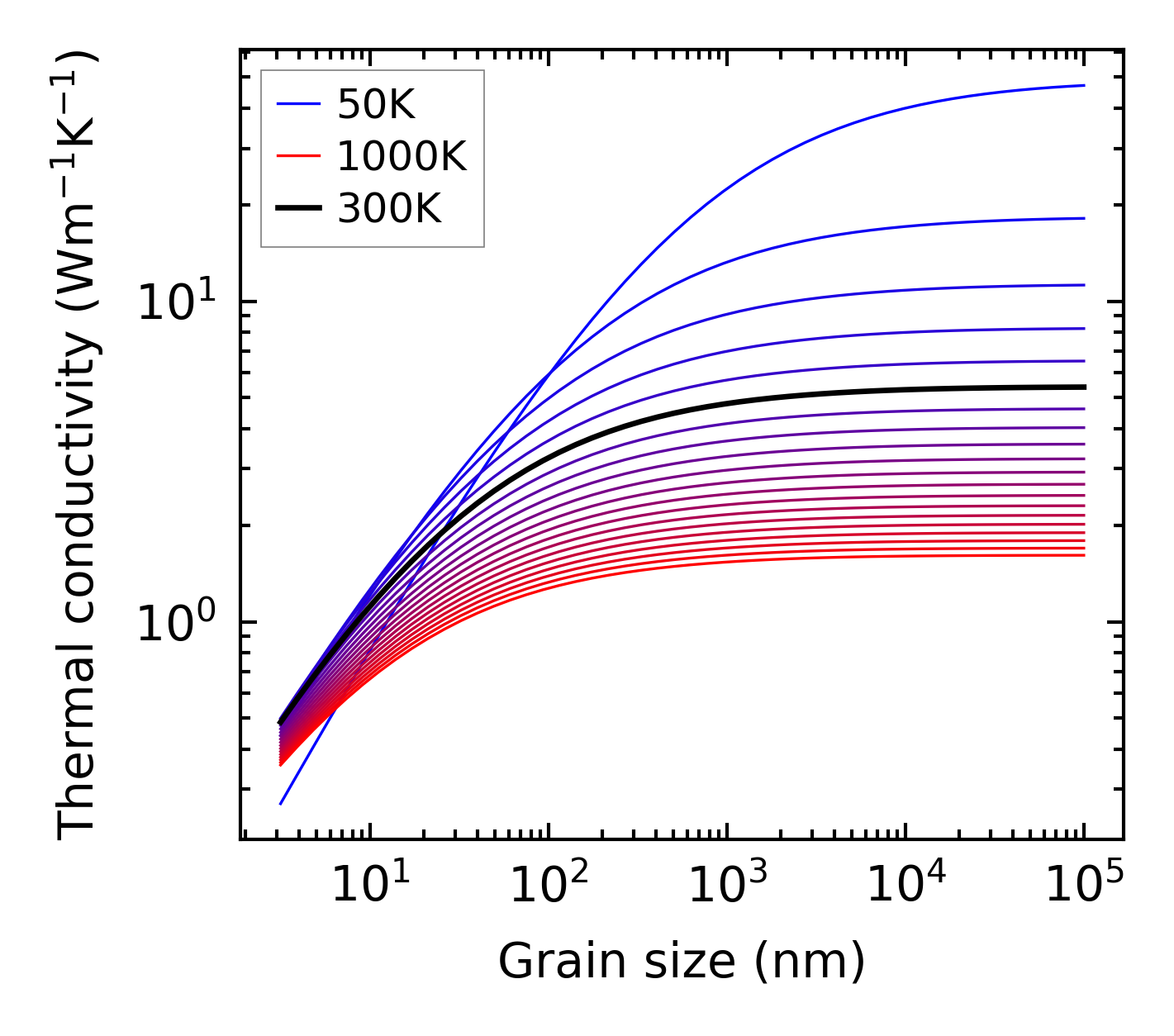

../../_images/fig_kappa_vs_grain_size523.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

../../_images/fig_lifetime514.png — (a) Phonon lifetime due to phonon-phonon scattering

../../_images/fig_scat_rates513.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

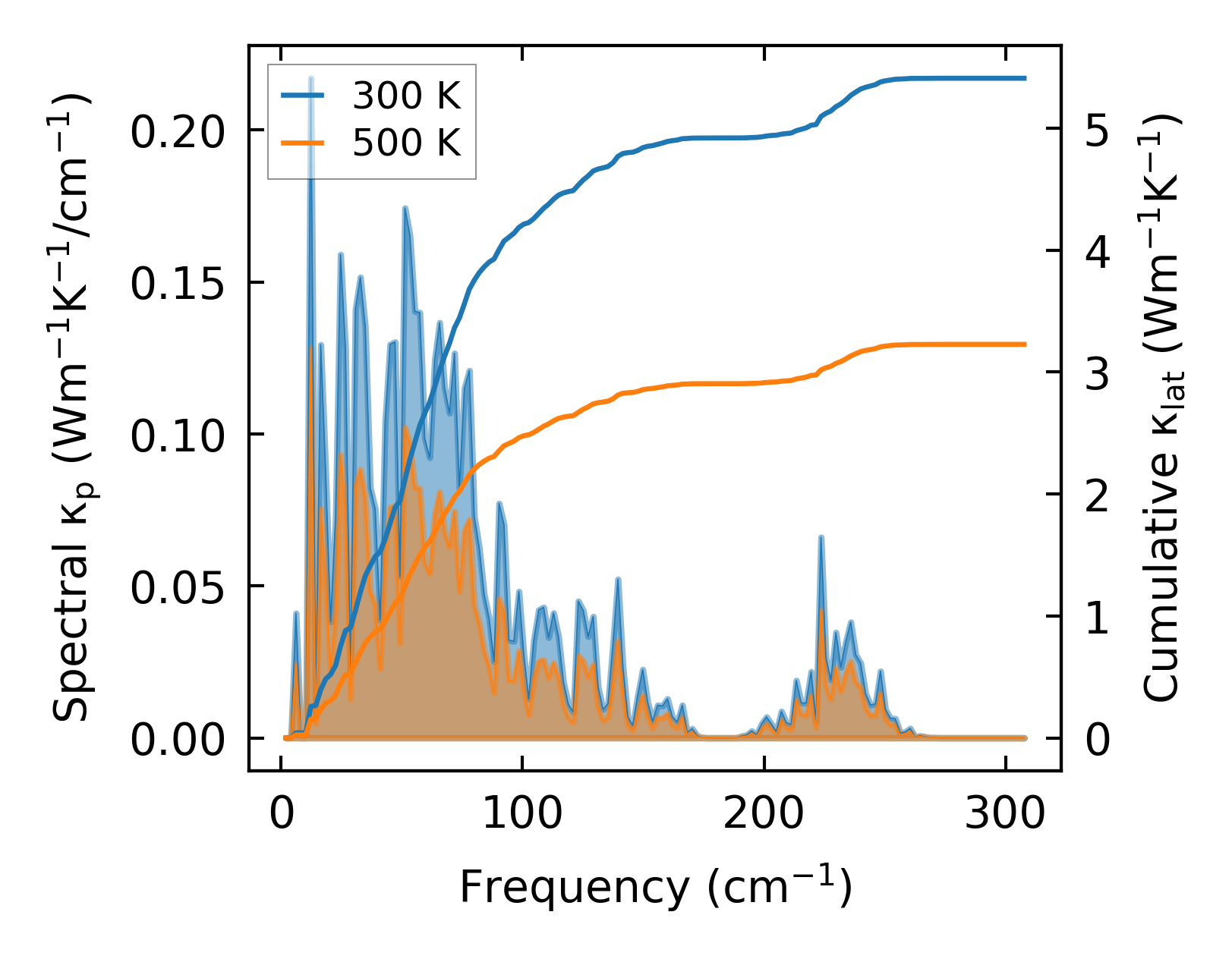

../../_images/fig_cumu_frequency514.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

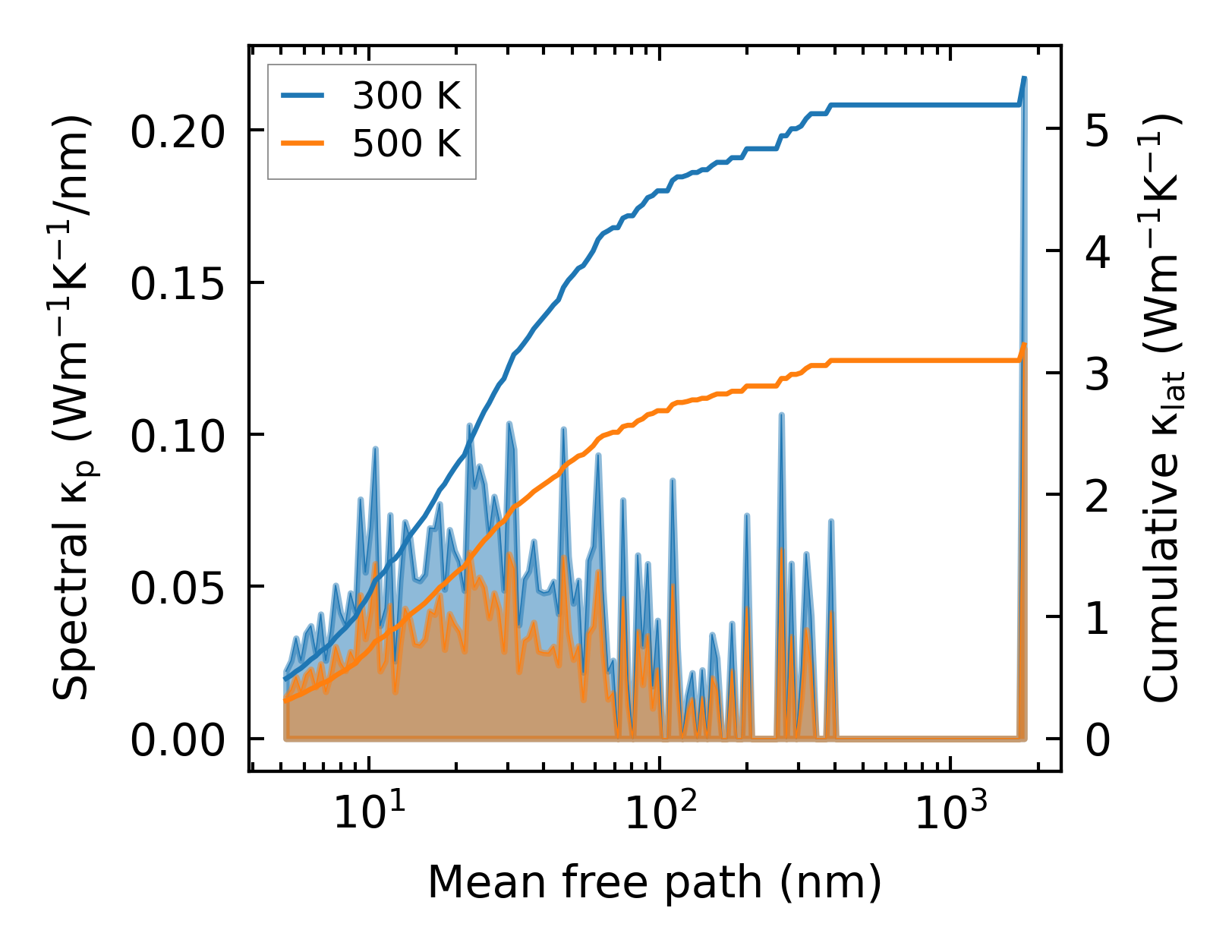

../../_images/fig_cumu_mfp514.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

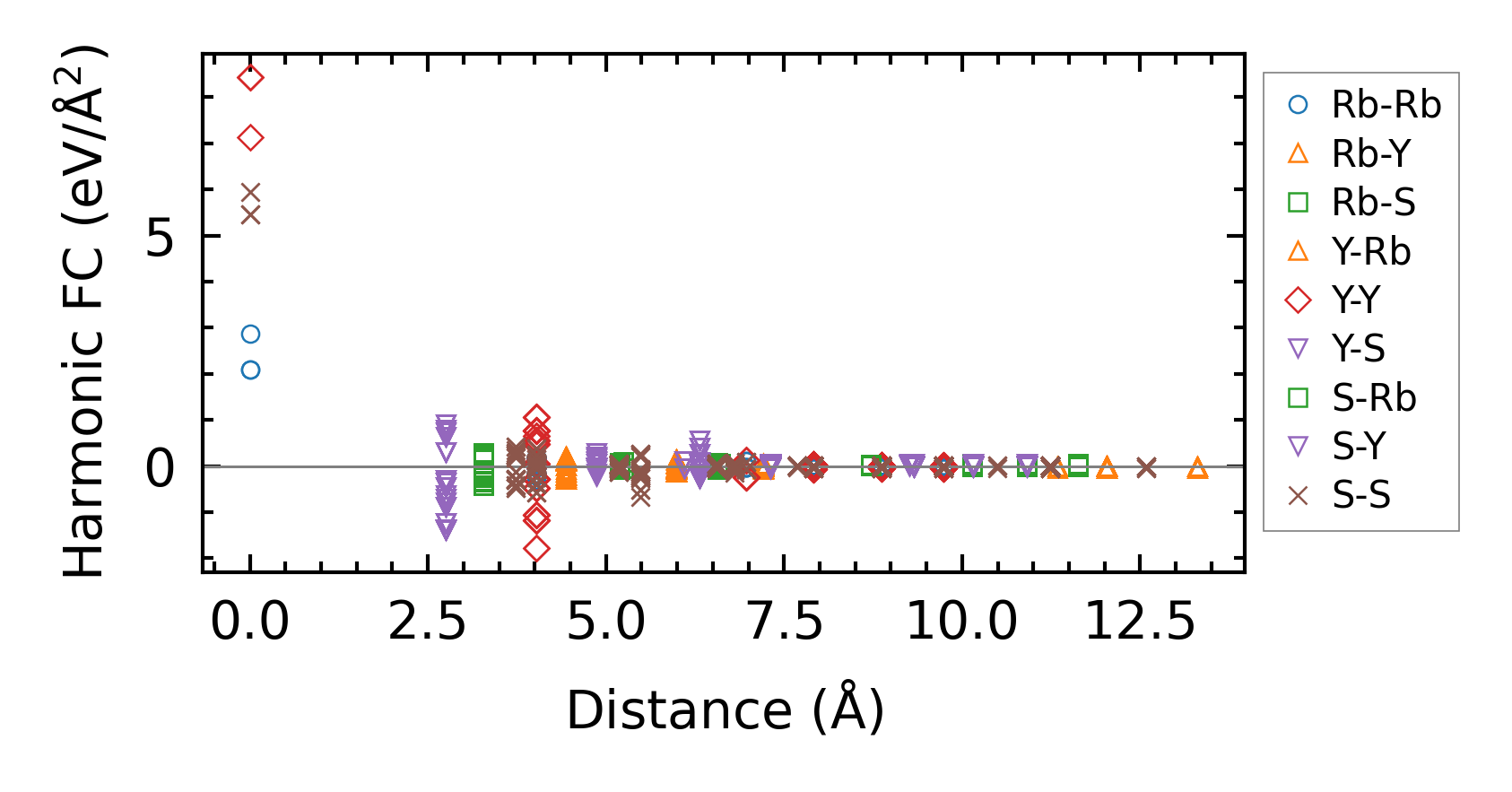

../../_images/fig_fc2665.png — (a) Force constants w.r.t atomic distance

Summary

../../_images/fig_kappa1006.png — (a) Temperature-dependent lattice thermal conductivity

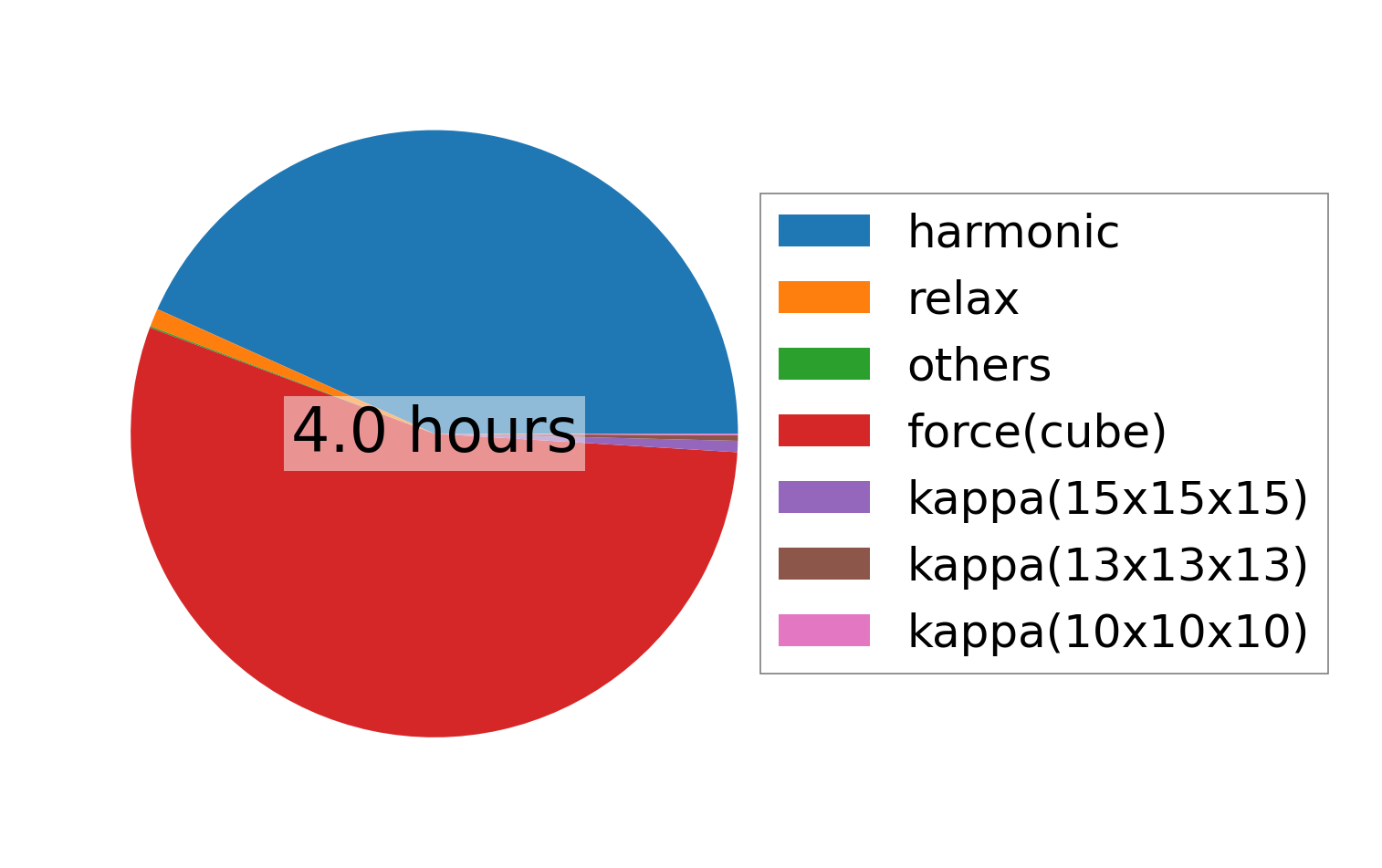

../../_images/fig_times1154.png — (b) Computation time
