mp-769971/BaGa4O7/anharm

Space group: C2/c (15)
Link: Materials Project
Download: mp-769971.tar.gz

Harmonic properties

../../_images/fig_bandos_pr2701.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo2701.png — (b) Thermodynamic properties

Grüneisen parameters

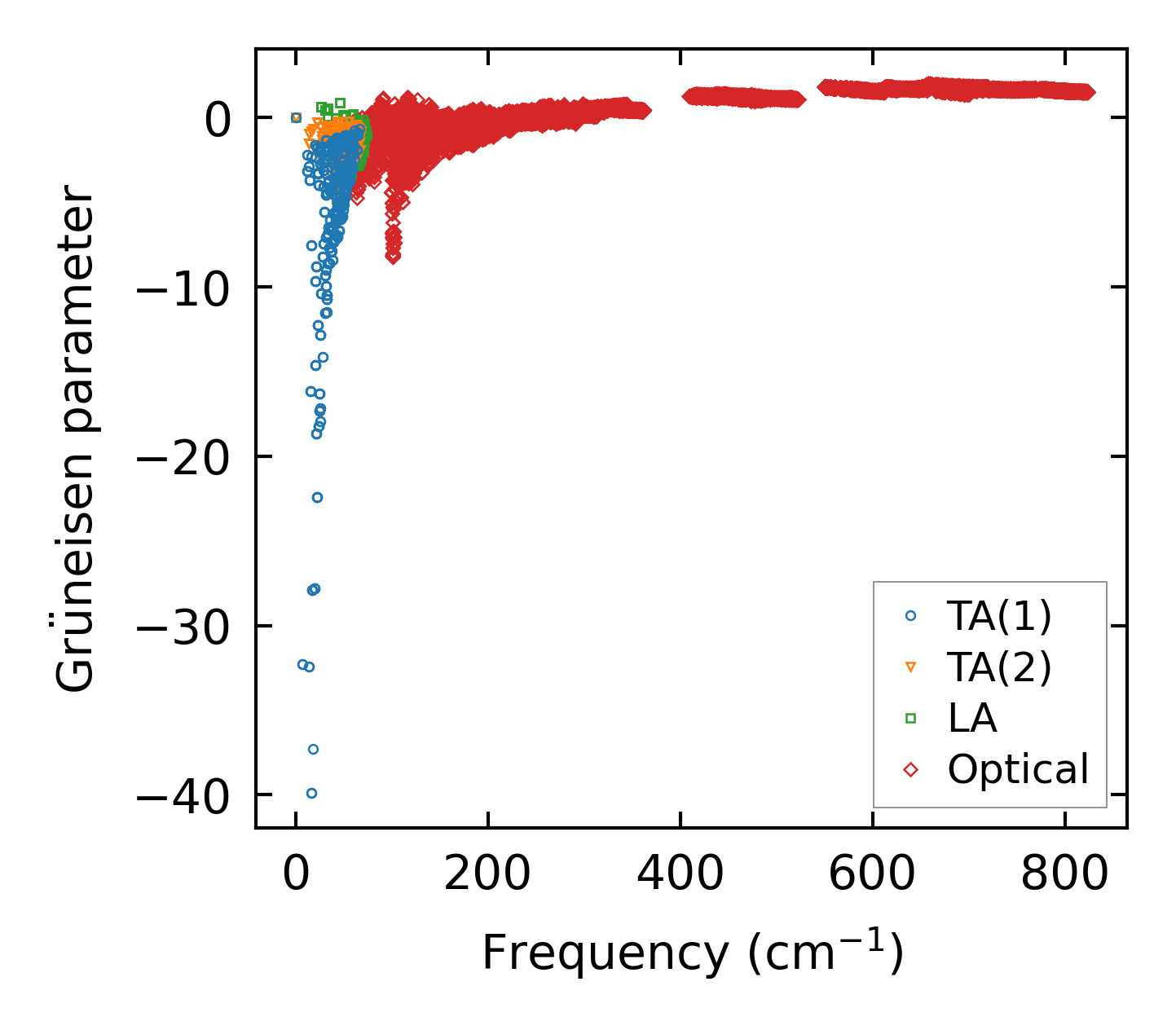

../../_images/fig_gru_all1364.png — (a) Grüneisen parameters

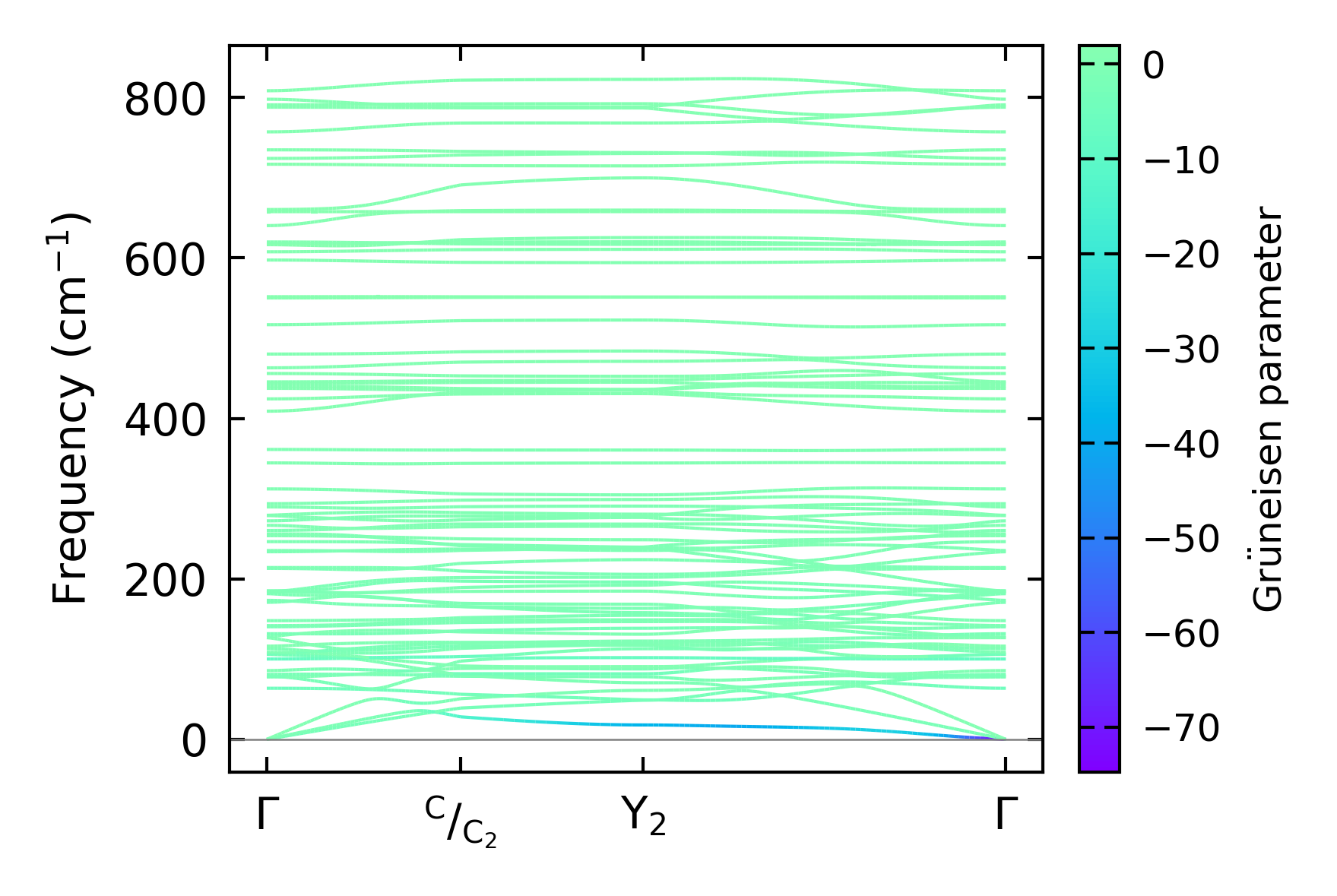

../../_images/fig_gruneisen1364.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 8x8x12, supercell: 1x1x2

../../_images/fig_kappa2629.png — (a) Temperature-dependent lattice thermal conductivity

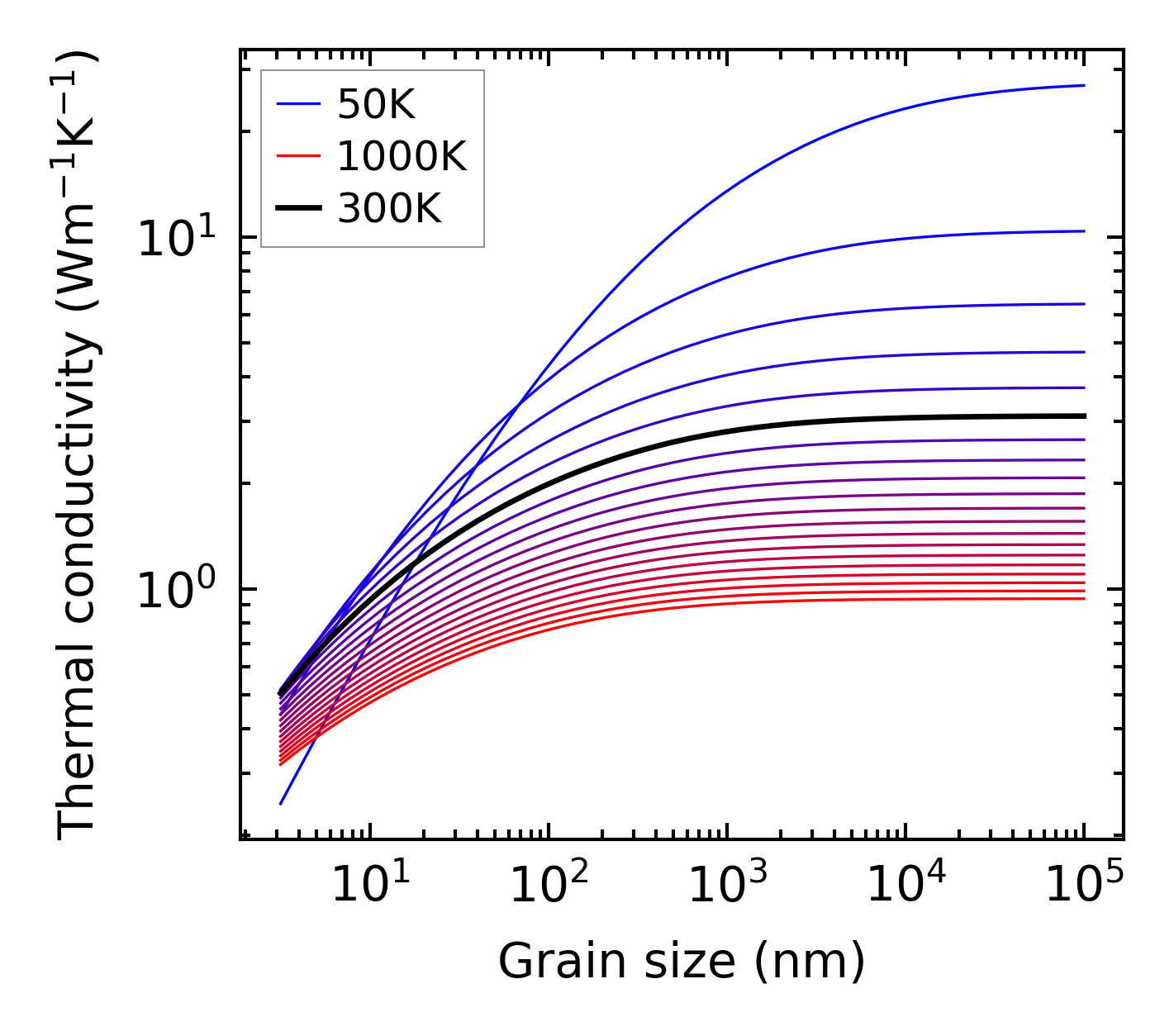

../../_images/fig_kappa_vs_grain_size1380.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

../../_images/fig_lifetime1354.png — (a) Phonon lifetime due to phonon-phonon scattering

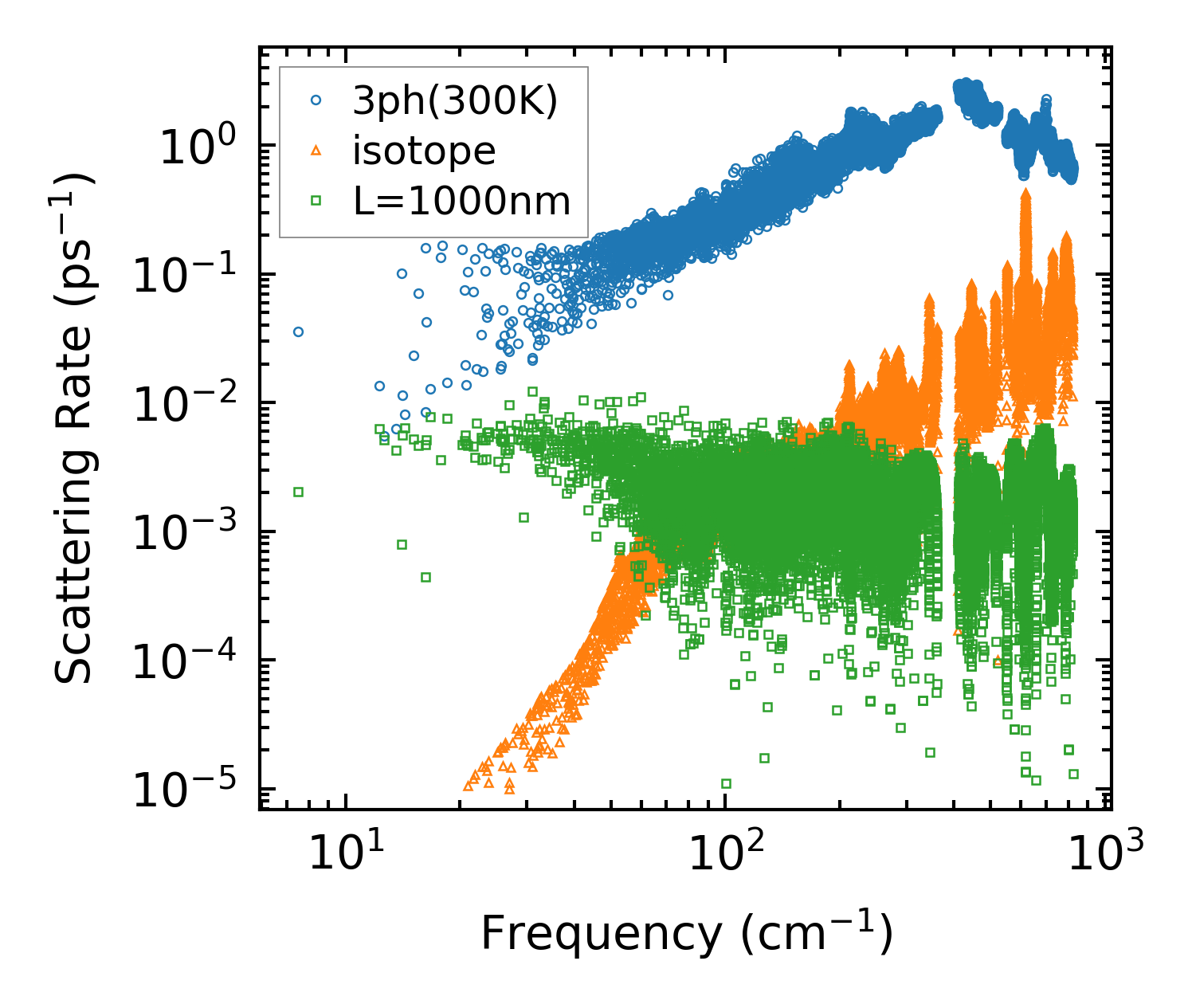

../../_images/fig_scat_rates1353.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

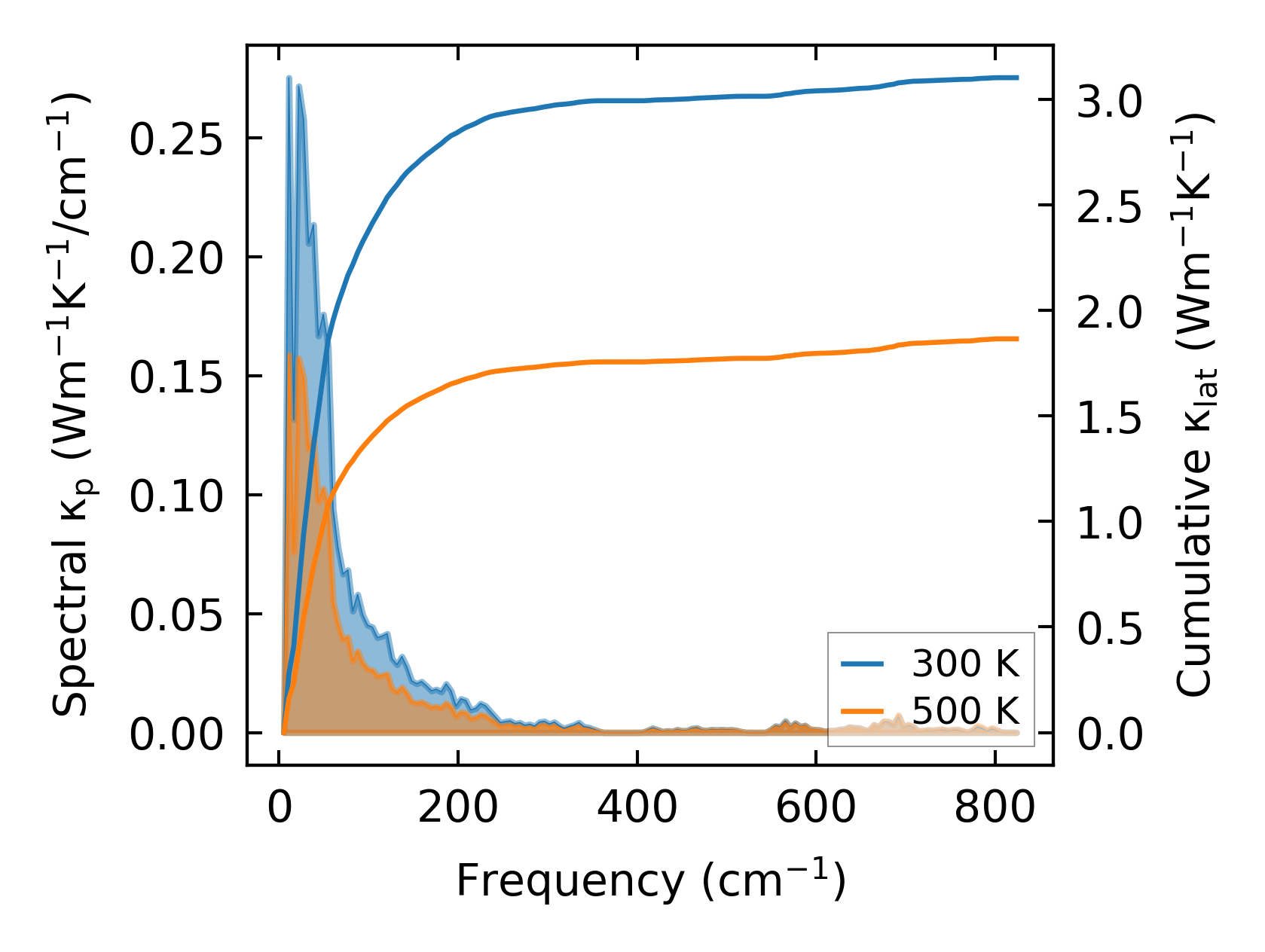

../../_images/fig_cumu_frequency1354.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

../../_images/fig_cumu_mfp1354.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

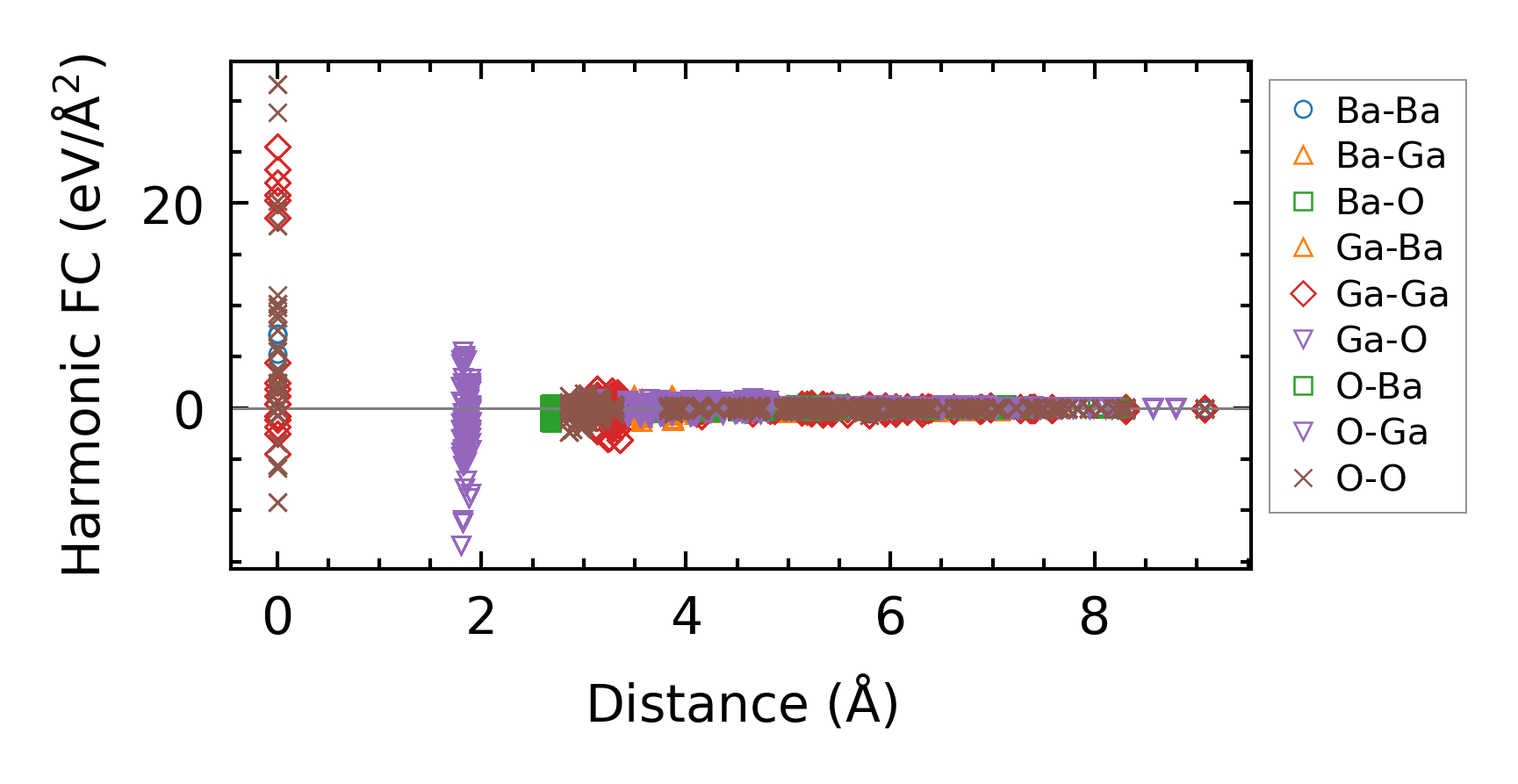

../../_images/fig_fc22522.png — (a) Force constants w.r.t atomic distance

Summary

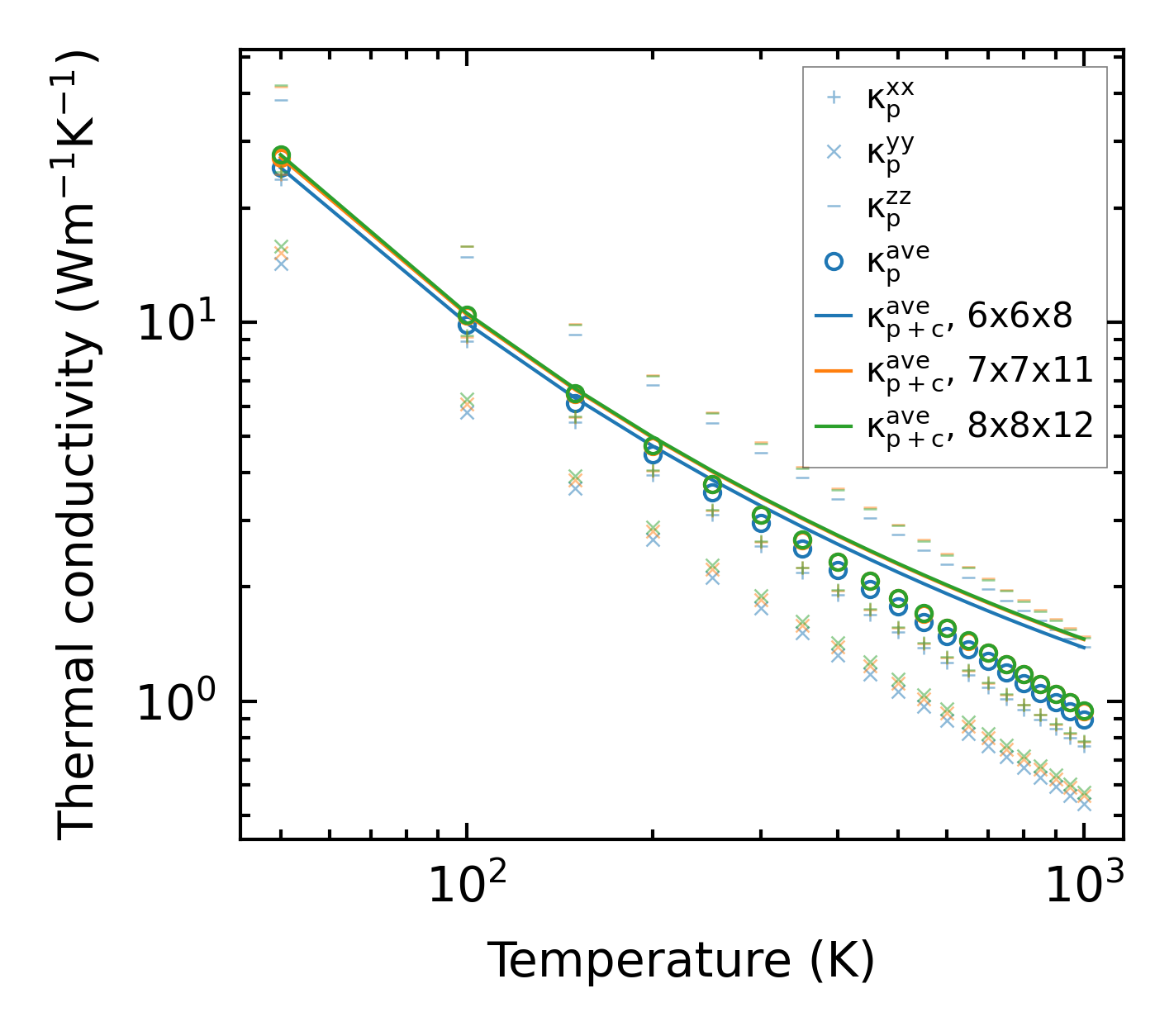

../../_images/fig_kappa2630.png — (a) Temperature-dependent lattice thermal conductivity

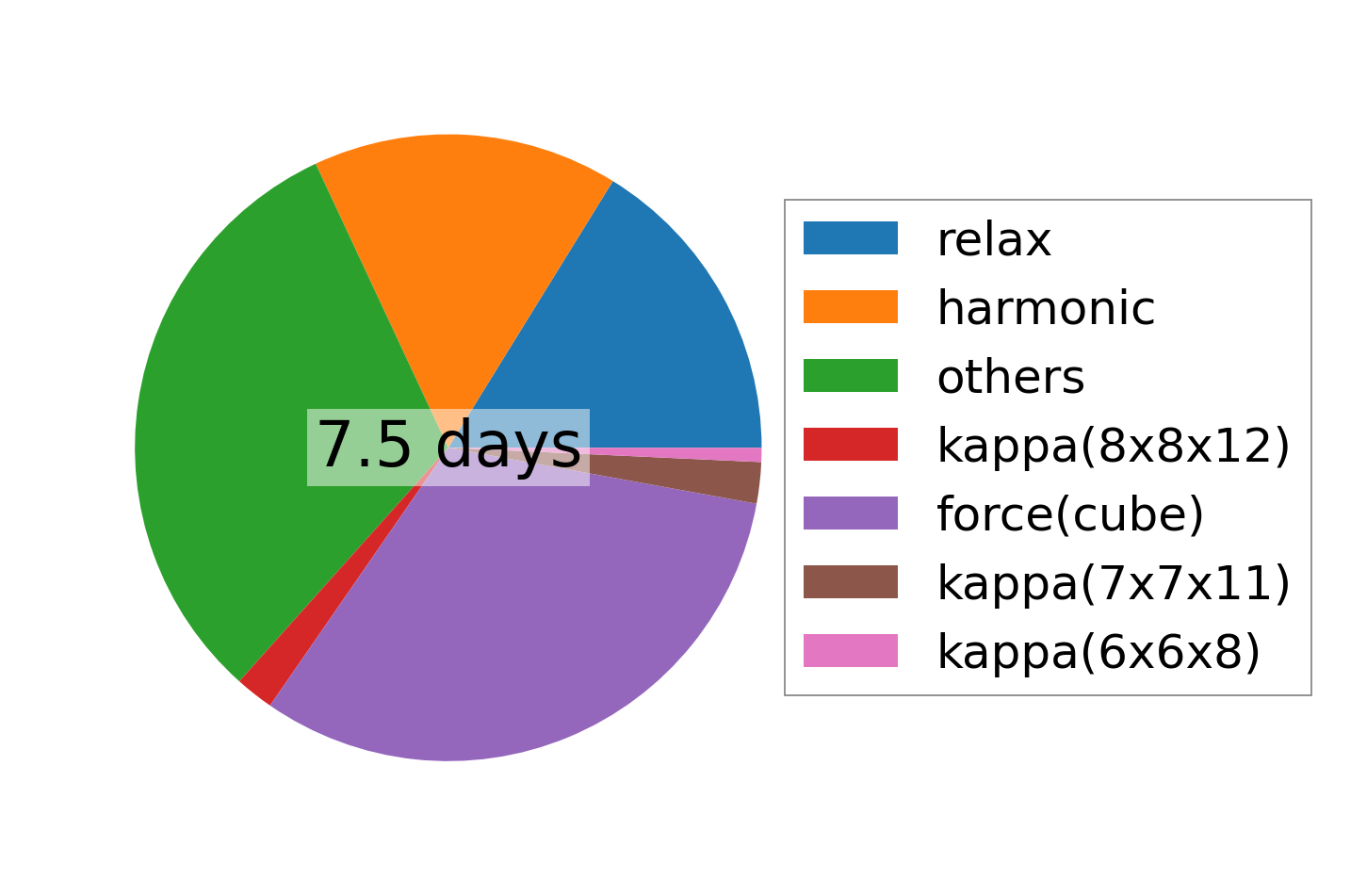

../../_images/fig_times4497.png — (b) Computation time
