mp-769321/ZnSeO4/anharm

Space group: Imma (74)
Link: Materials Project
Download: mp-769321.tar.gz

Harmonic properties

../../_images/fig_bandos_pr2670.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo2670.png — (b) Thermodynamic properties

Grüneisen parameters

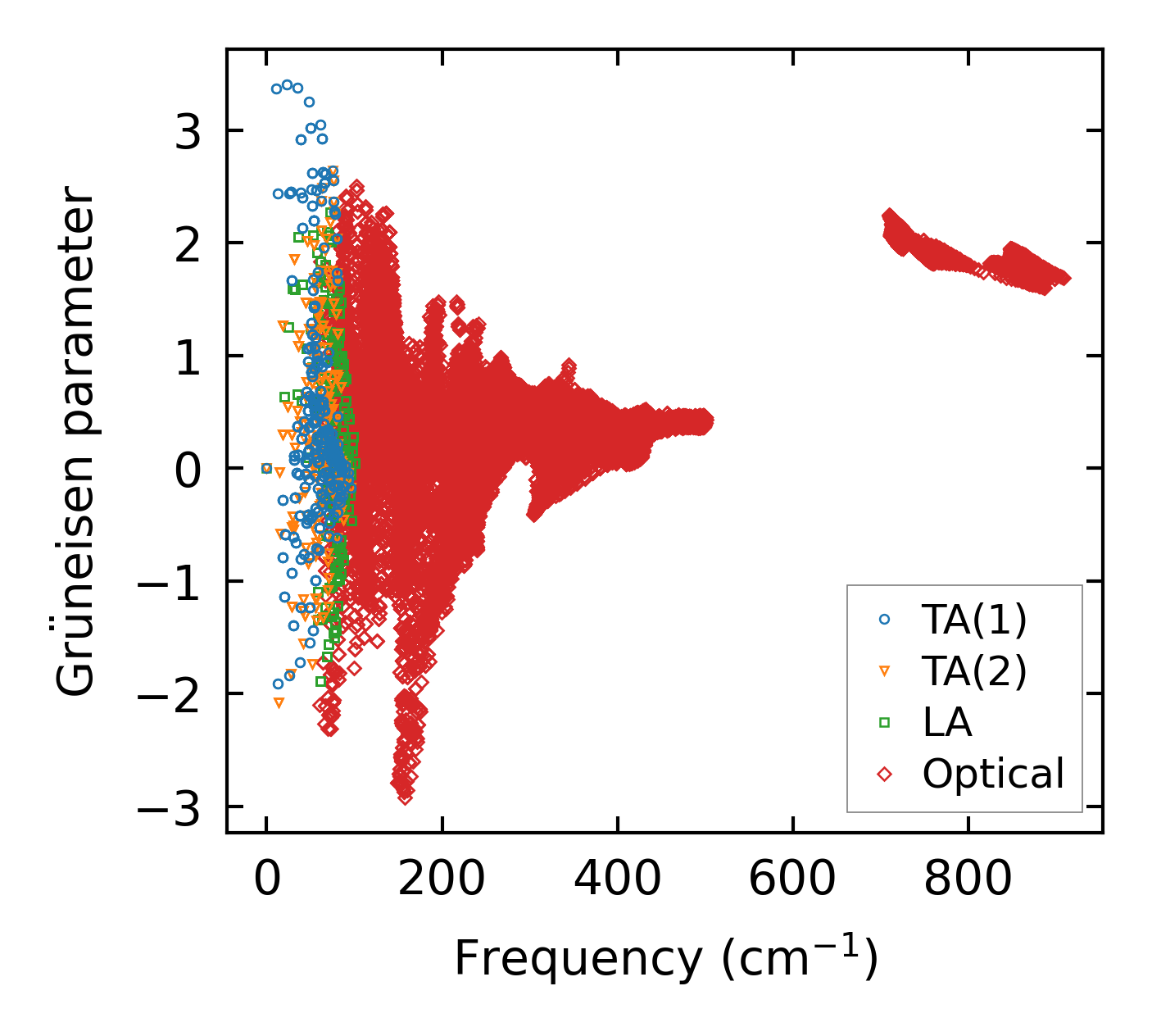

../../_images/fig_gru_all1352.png — (a) Grüneisen parameters

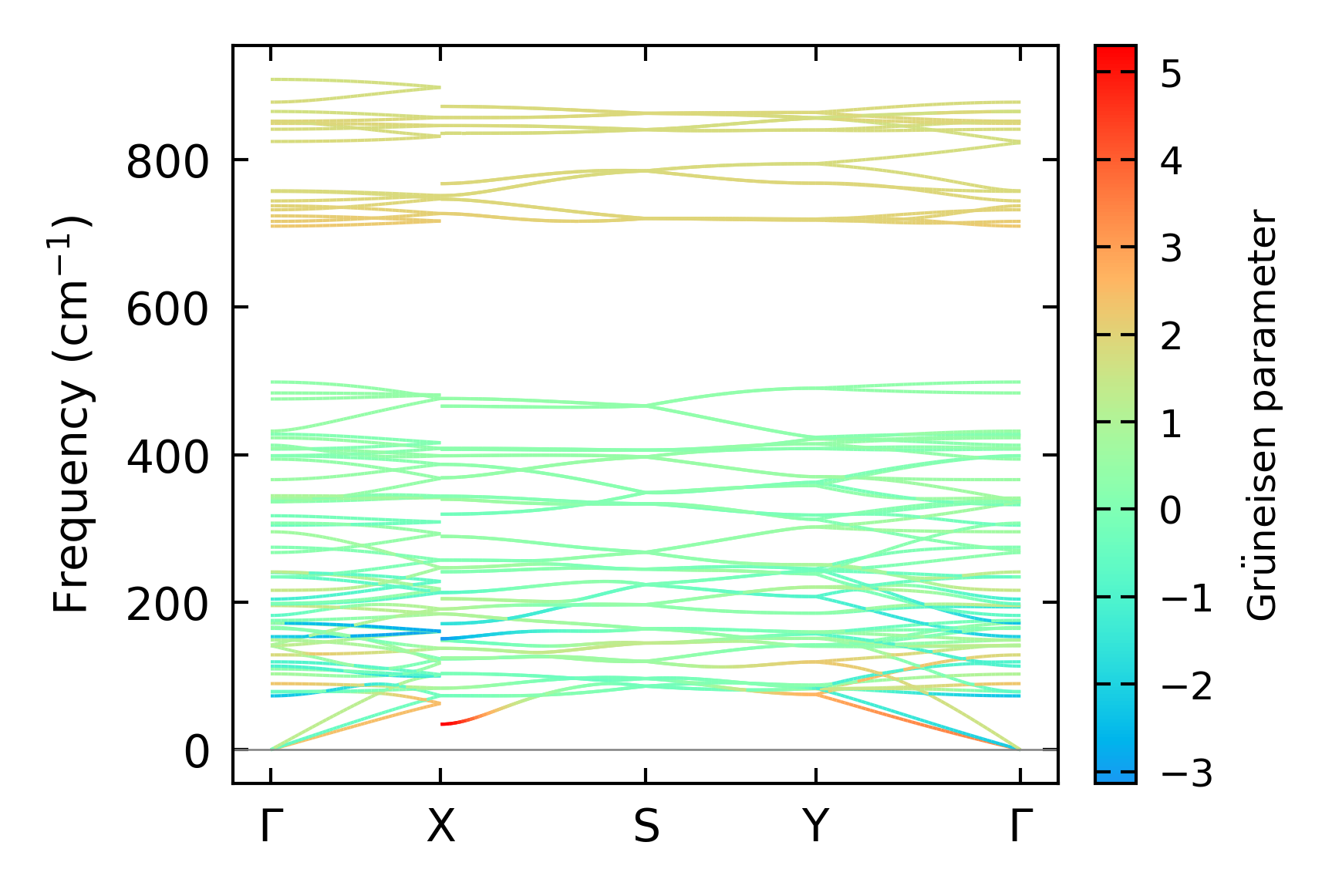

../../_images/fig_gruneisen1352.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 10x12x9, supercell: 1x2x2

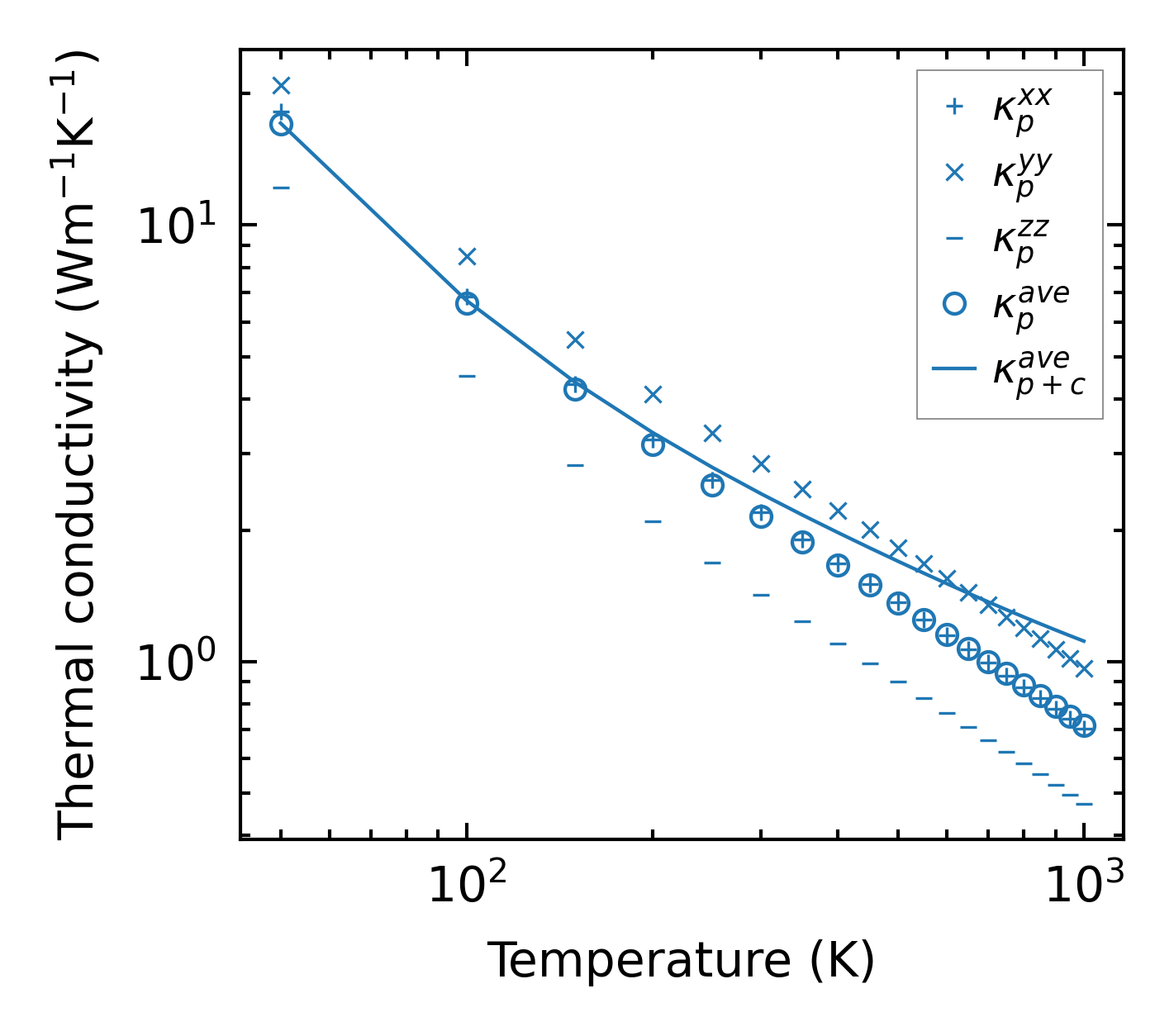

../../_images/fig_kappa2605.png — (a) Temperature-dependent lattice thermal conductivity

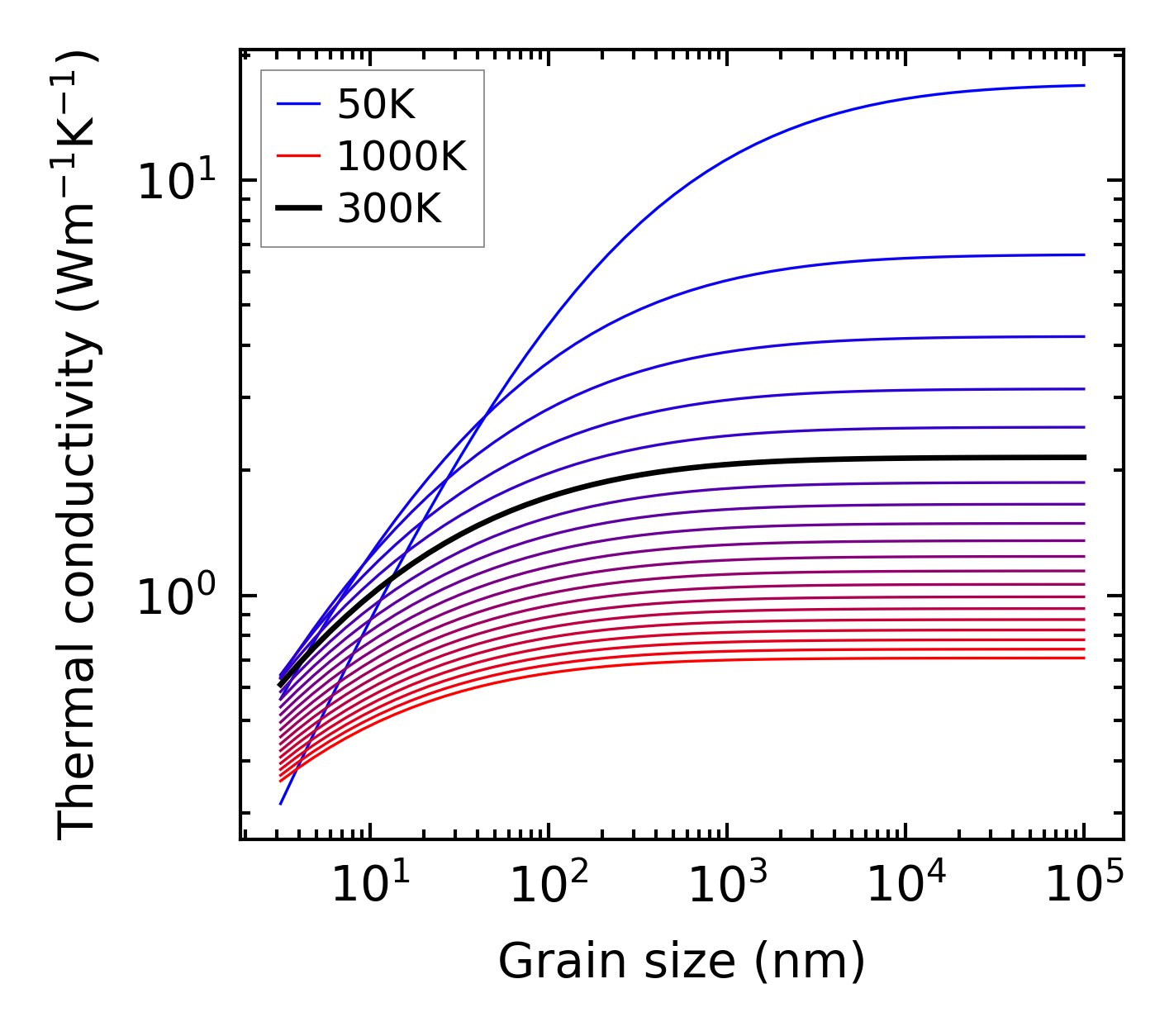

../../_images/fig_kappa_vs_grain_size1368.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

../../_images/fig_lifetime1342.png — (a) Phonon lifetime due to phonon-phonon scattering

../../_images/fig_scat_rates1341.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

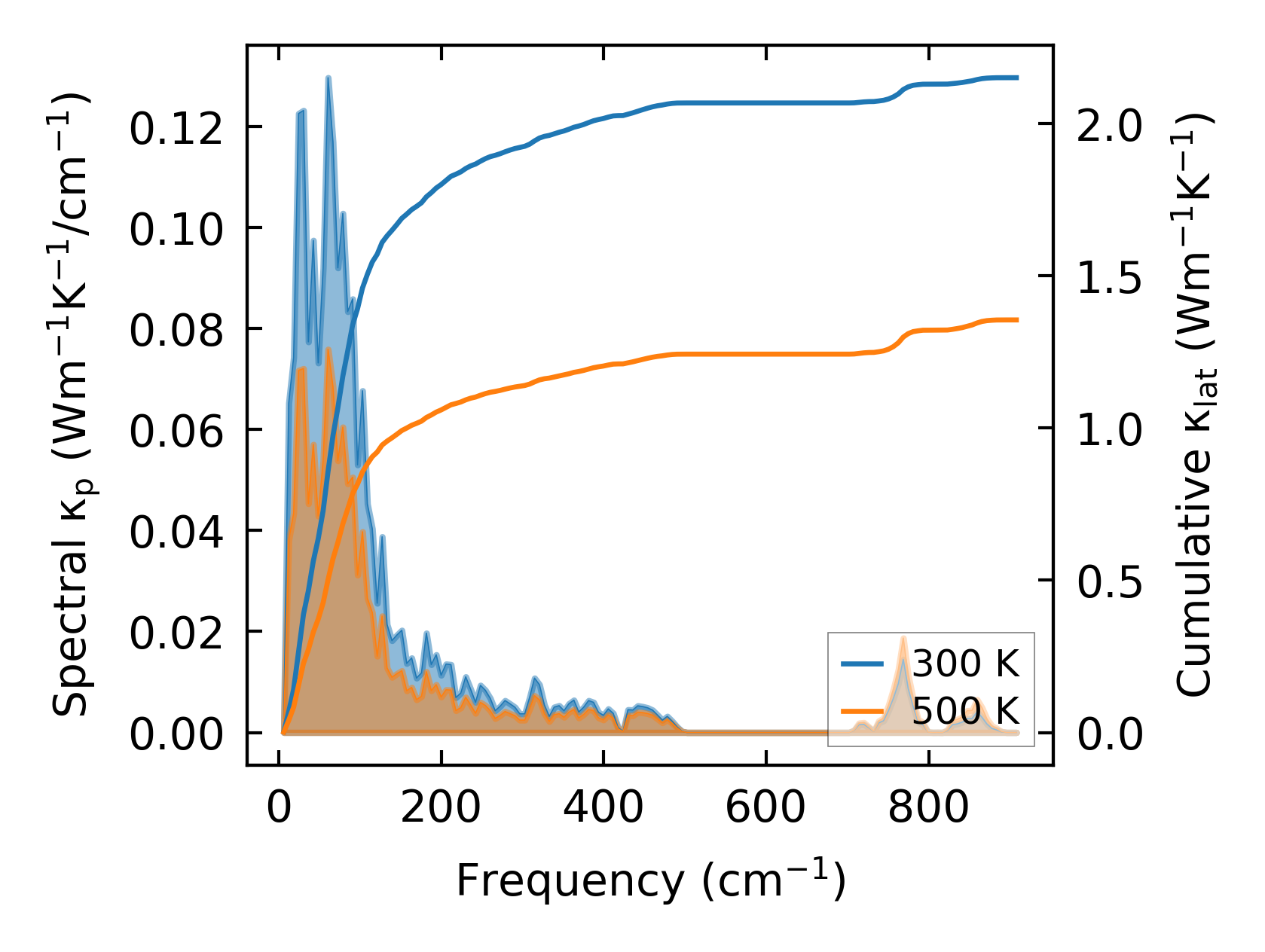

../../_images/fig_cumu_frequency1342.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

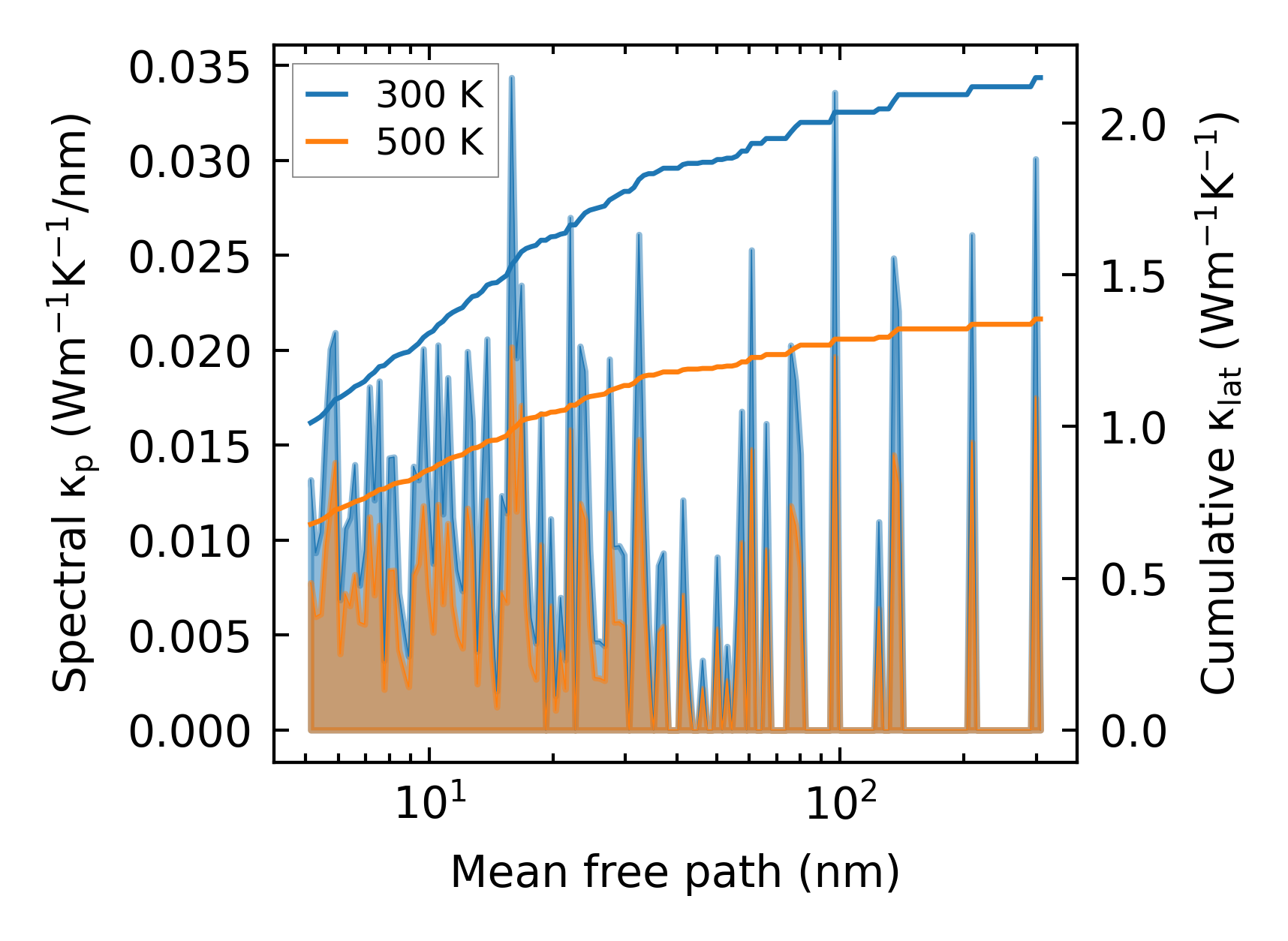

../../_images/fig_cumu_mfp1342.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

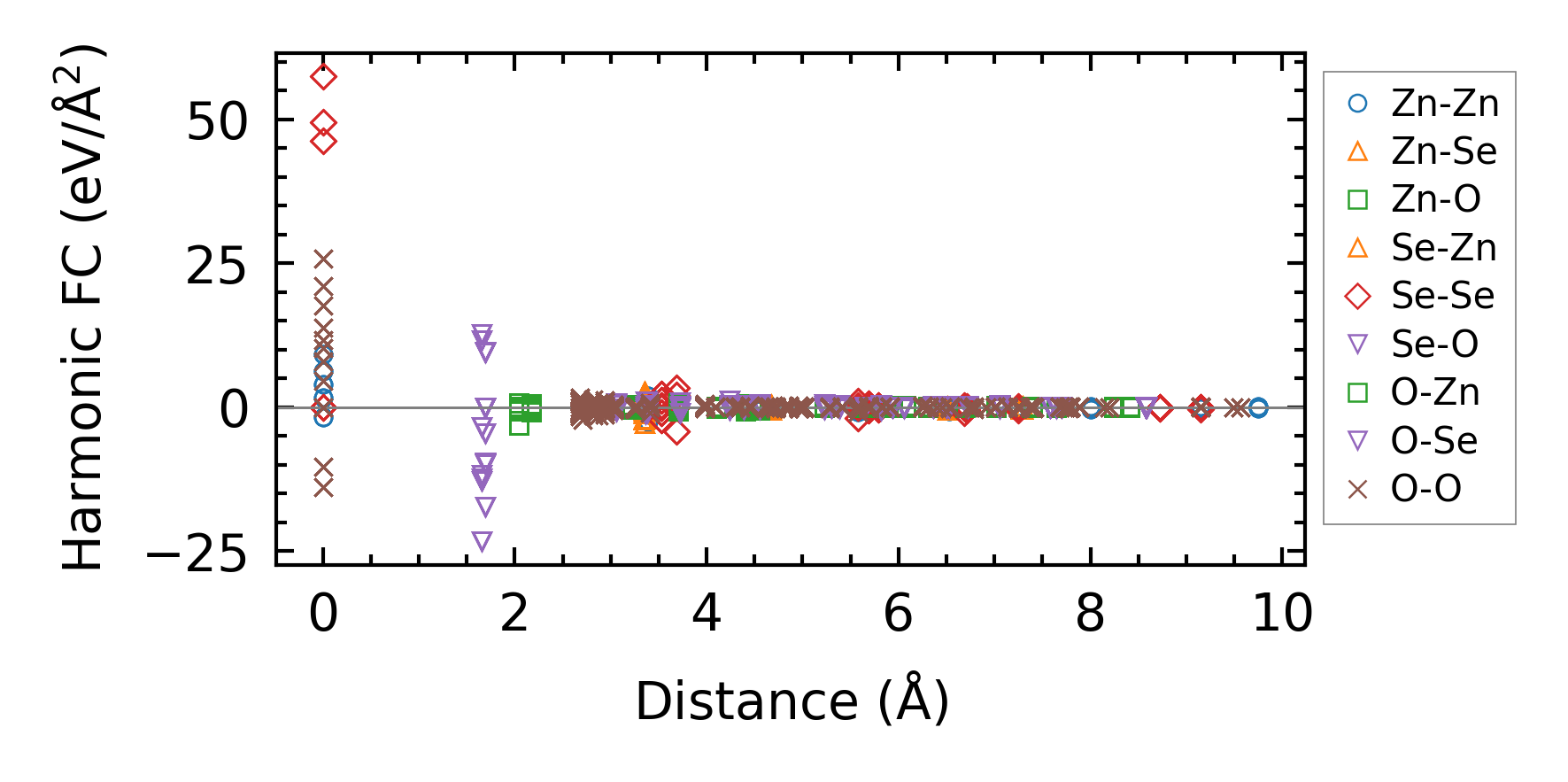

../../_images/fig_fc22491.png — (a) Force constants w.r.t atomic distance

Summary

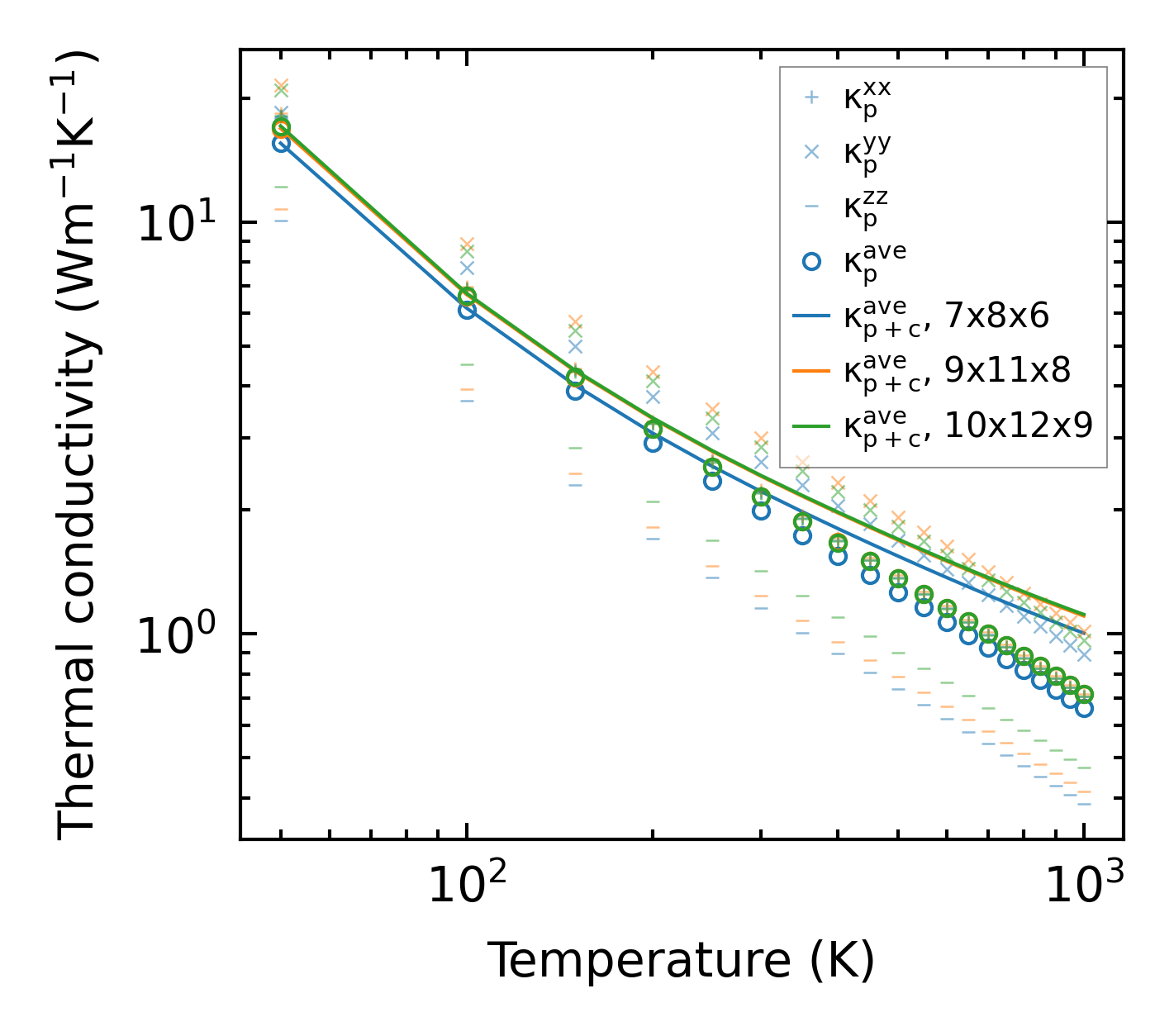

../../_images/fig_kappa2606.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_times4449.png — (b) Computation time
