mp-769763/Li5CuH2O4/anharm

Space group: Pnma (62)
Link: Materials Project
Download: mp-769763.tar.gz

Harmonic properties

../../_images/fig_bandos_pr2698.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo2698.png — (b) Thermodynamic properties

Grüneisen parameters

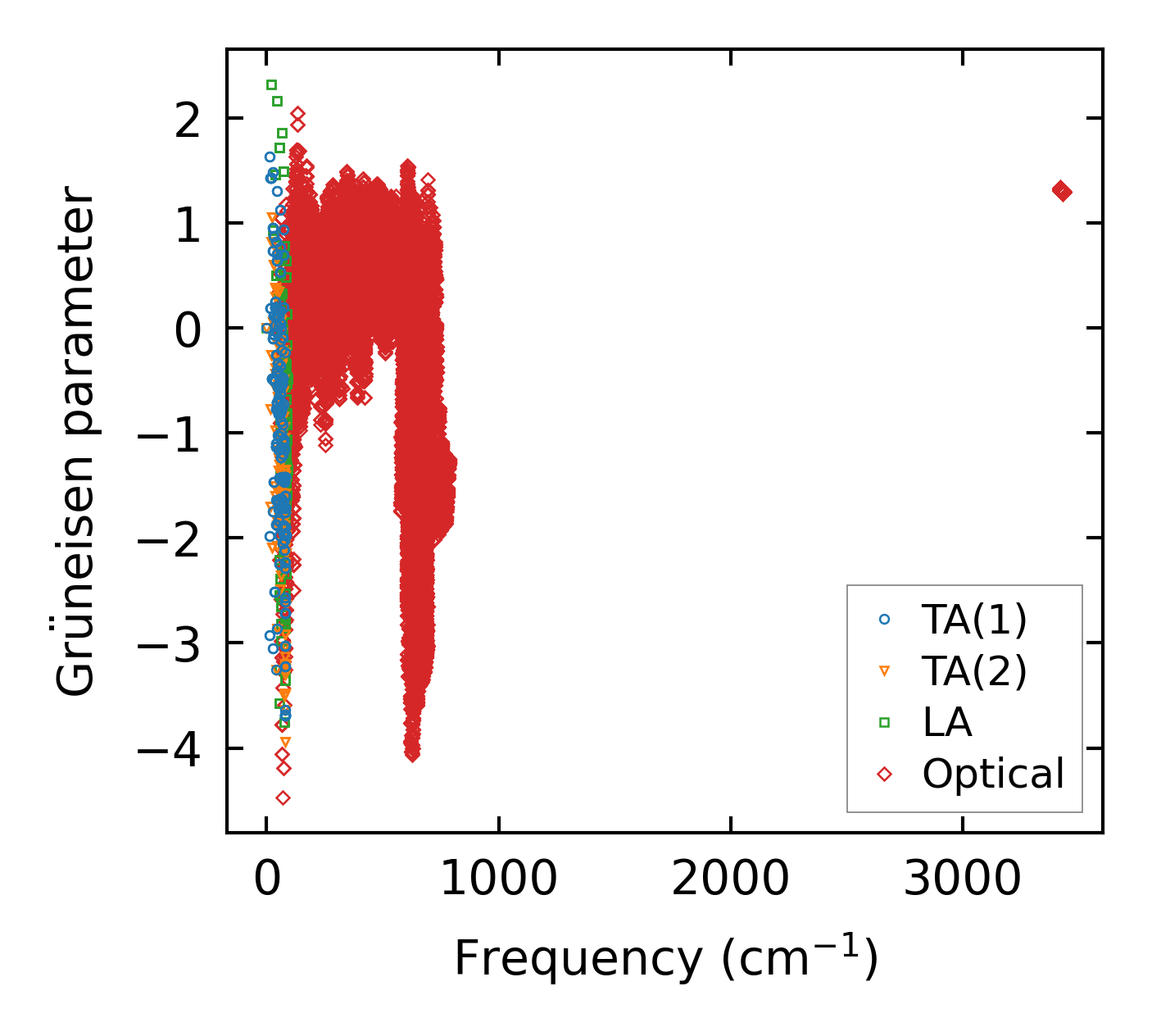

../../_images/fig_gru_all1362.png — (a) Grüneisen parameters

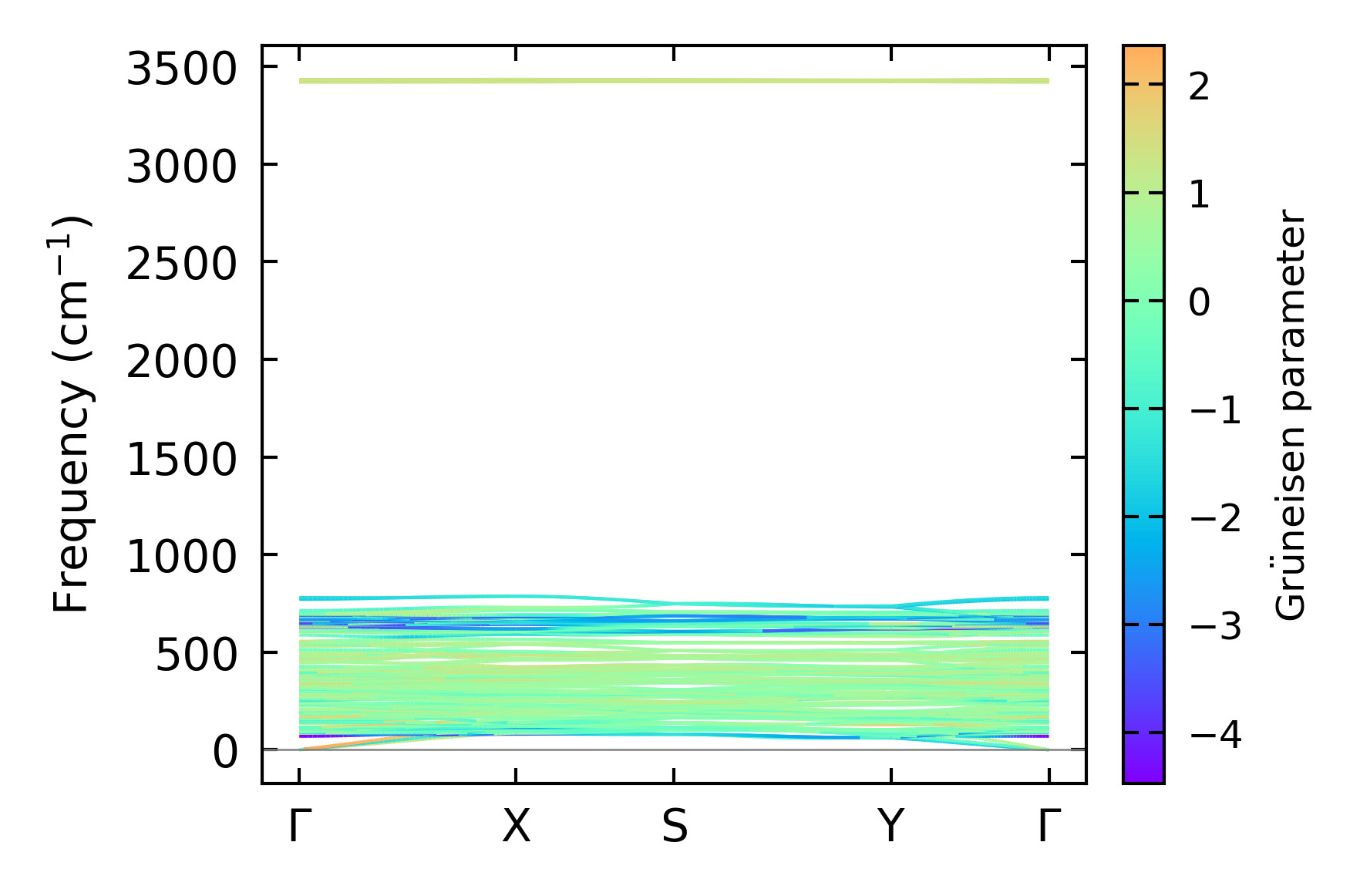

../../_images/fig_gruneisen1362.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 13x9x6, supercell: 2x1x1

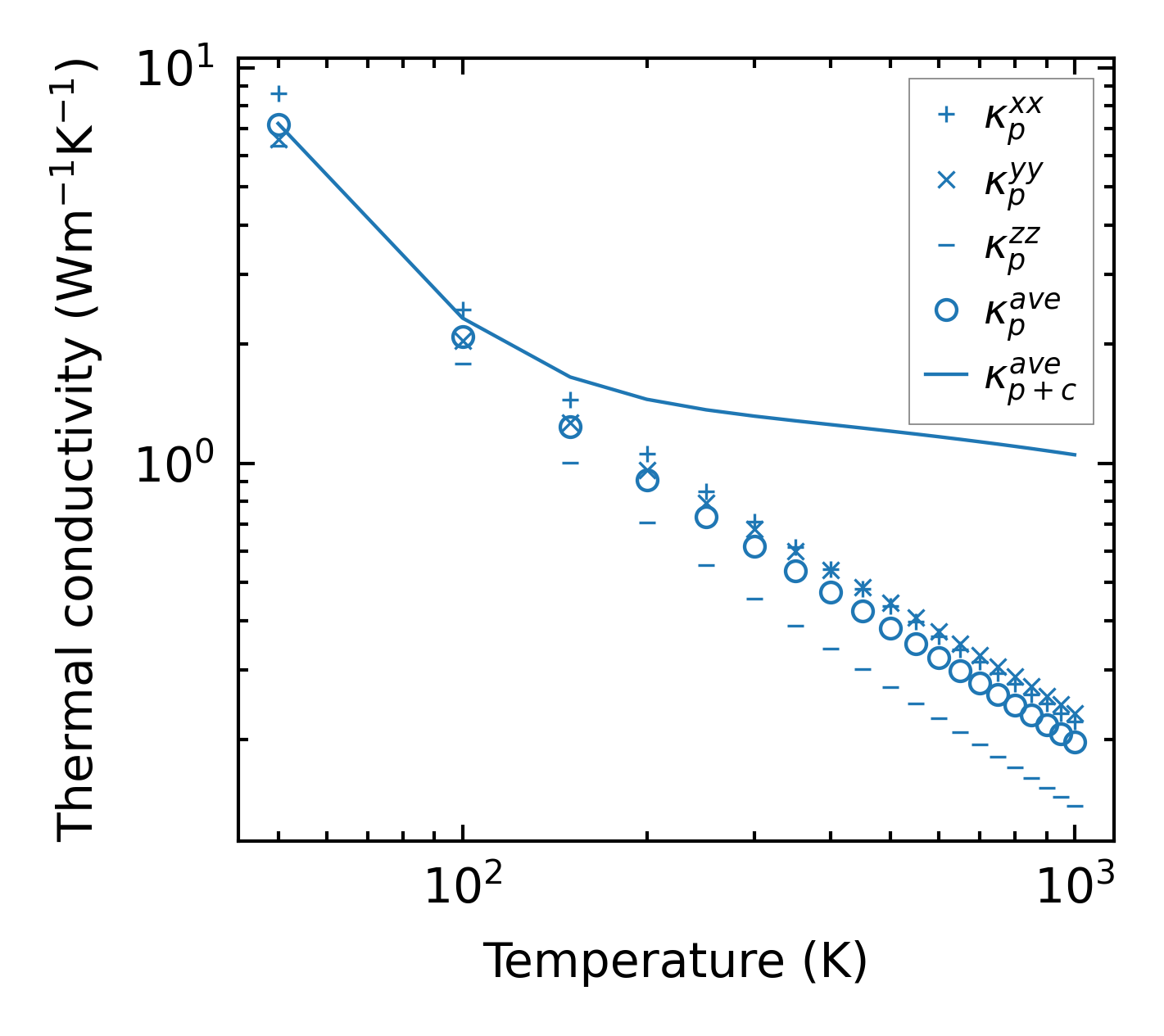

../../_images/fig_kappa2625.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size1378.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

../../_images/fig_lifetime1352.png — (a) Phonon lifetime due to phonon-phonon scattering

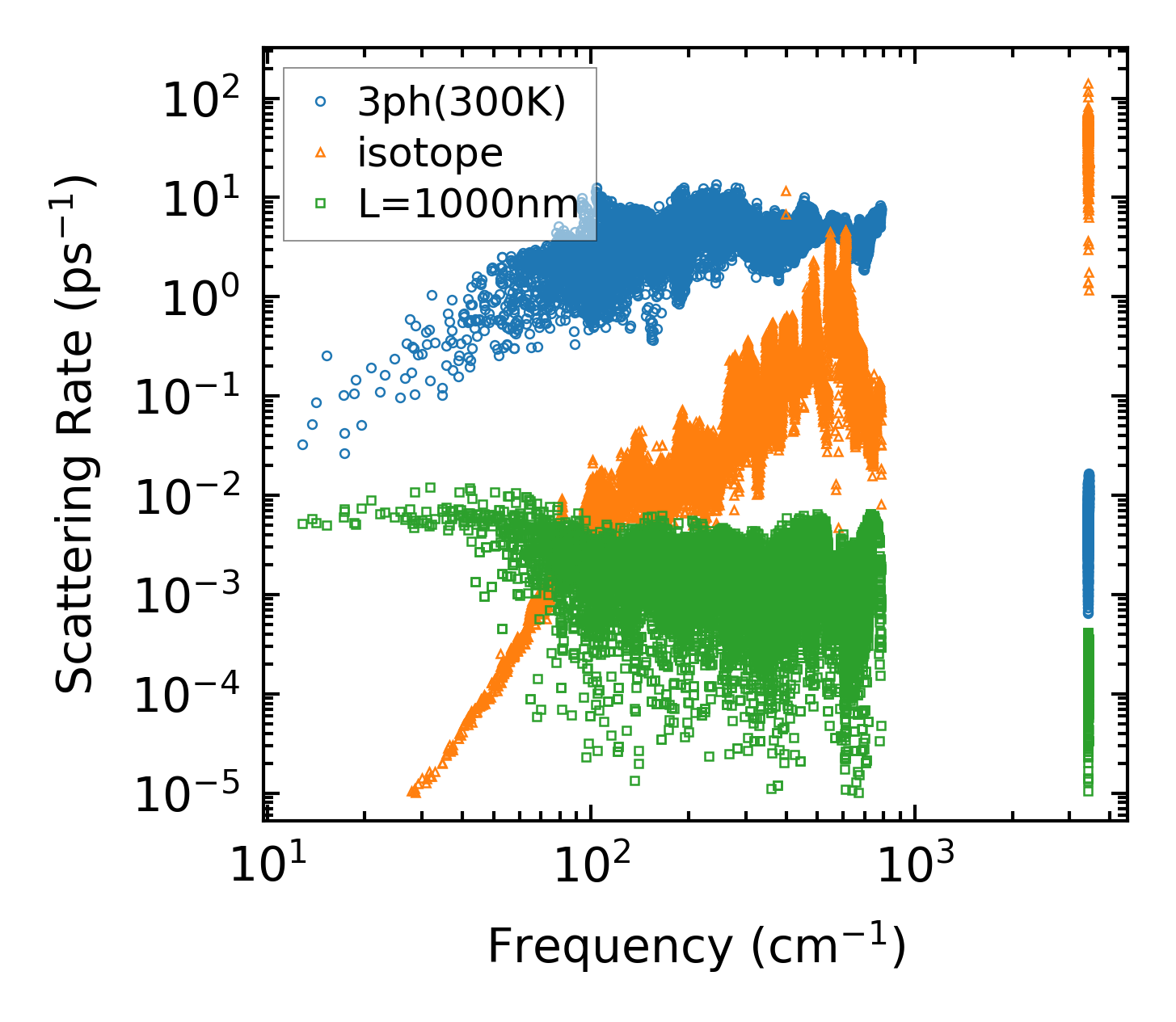

../../_images/fig_scat_rates1351.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

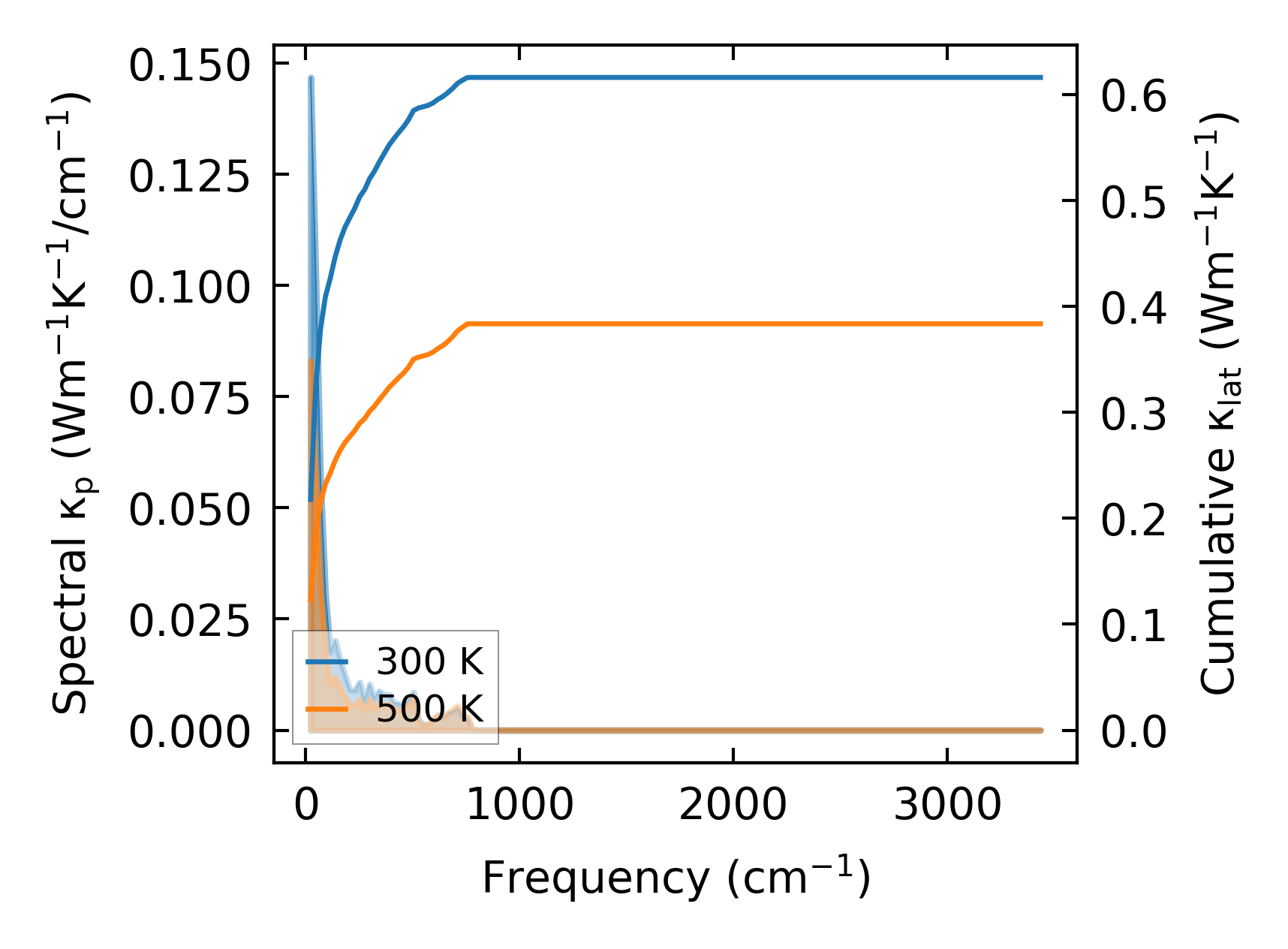

../../_images/fig_cumu_frequency1352.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

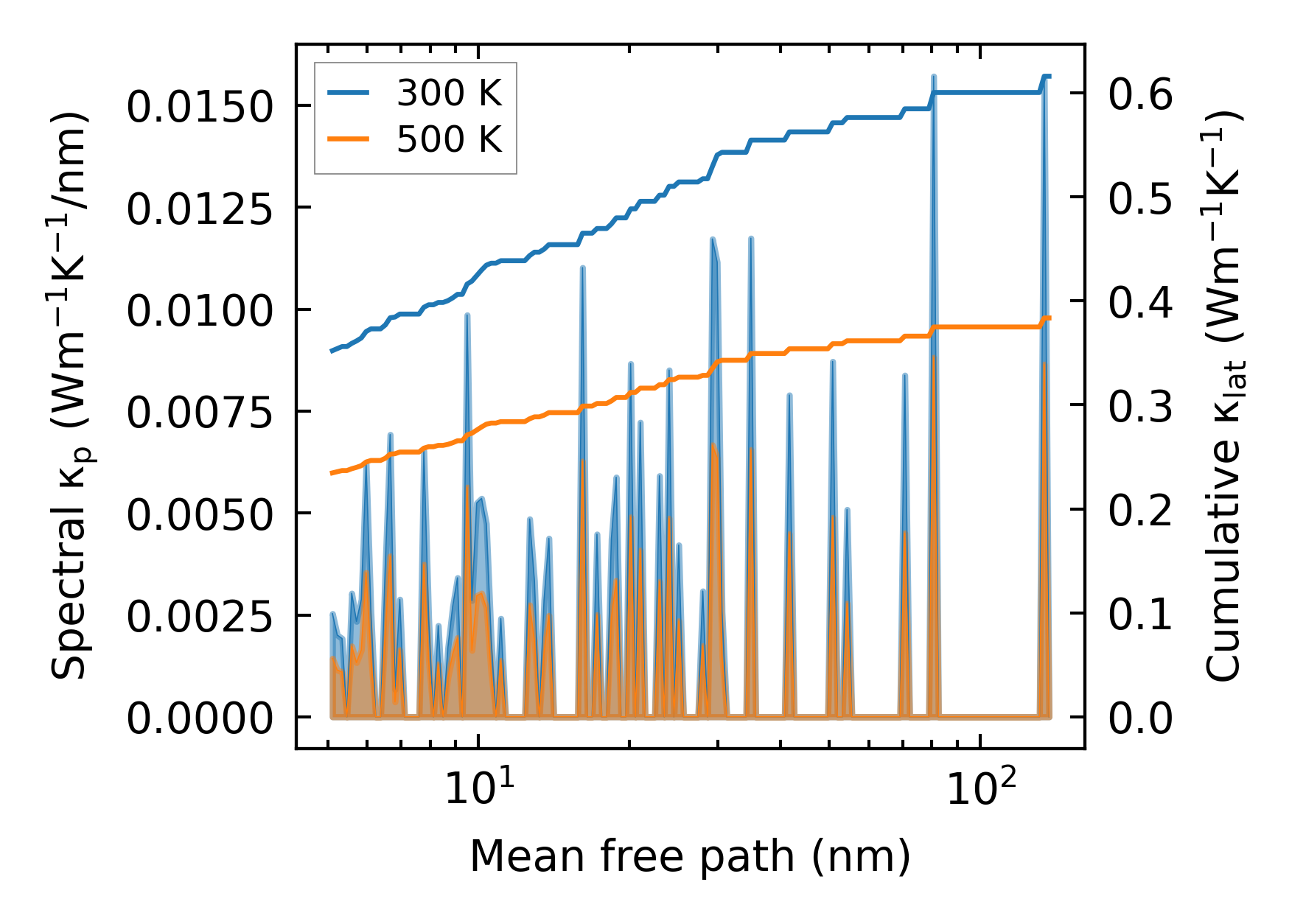

../../_images/fig_cumu_mfp1352.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

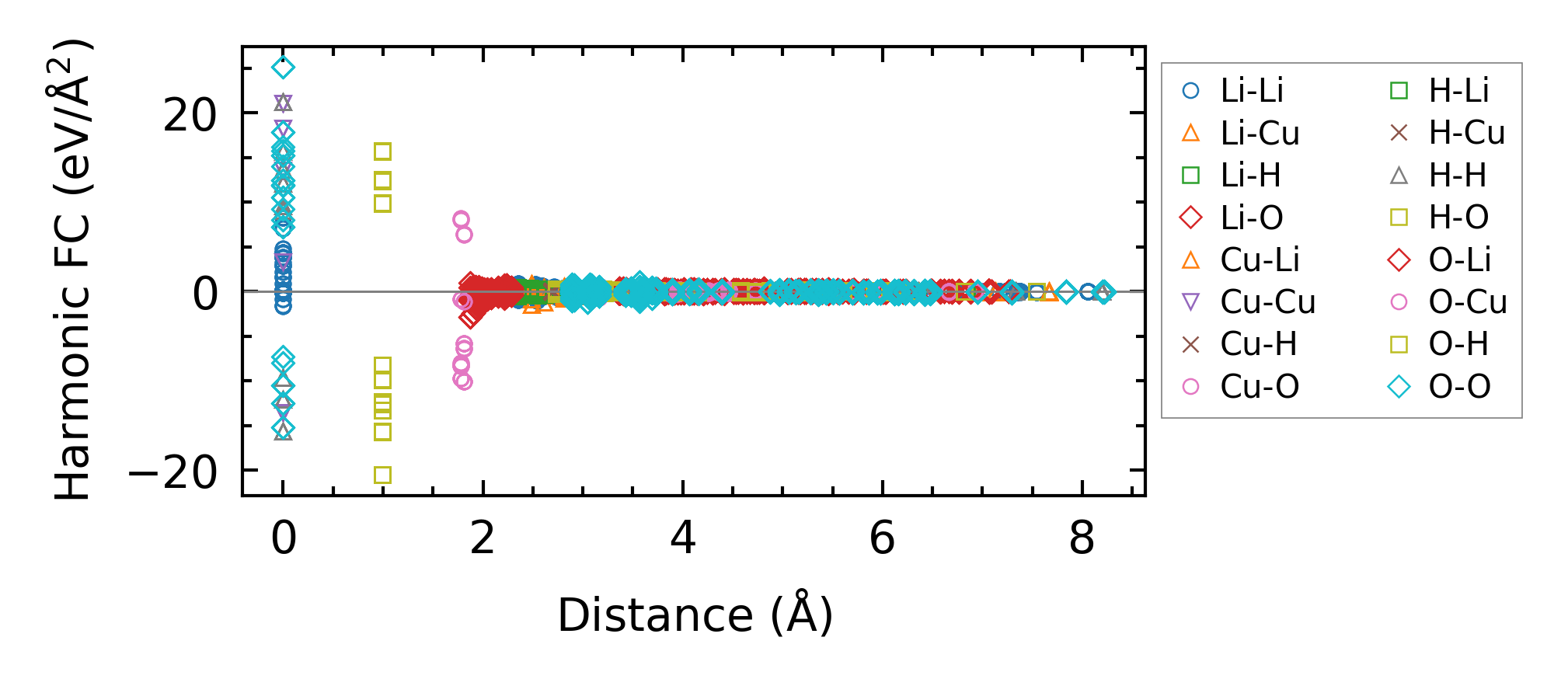

../../_images/fig_fc22519.png — (a) Force constants w.r.t atomic distance

Summary

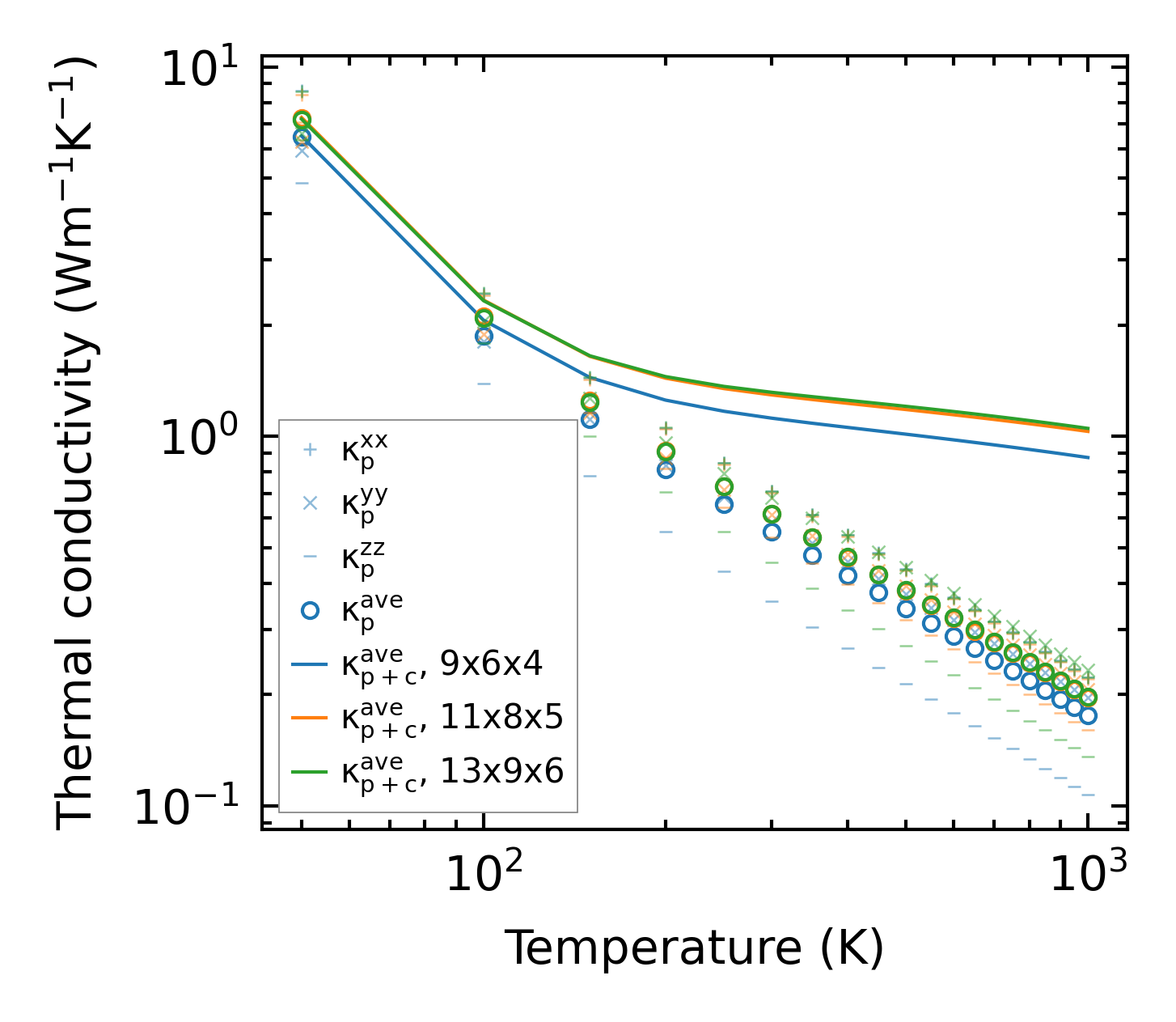

../../_images/fig_kappa2626.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_times4490.png — (b) Computation time
