mp-769301/Ca4Ta2O9/anharm

Space group: Pbcn (60)
Link: Materials Project
Download: mp-769301.tar.gz

Harmonic properties

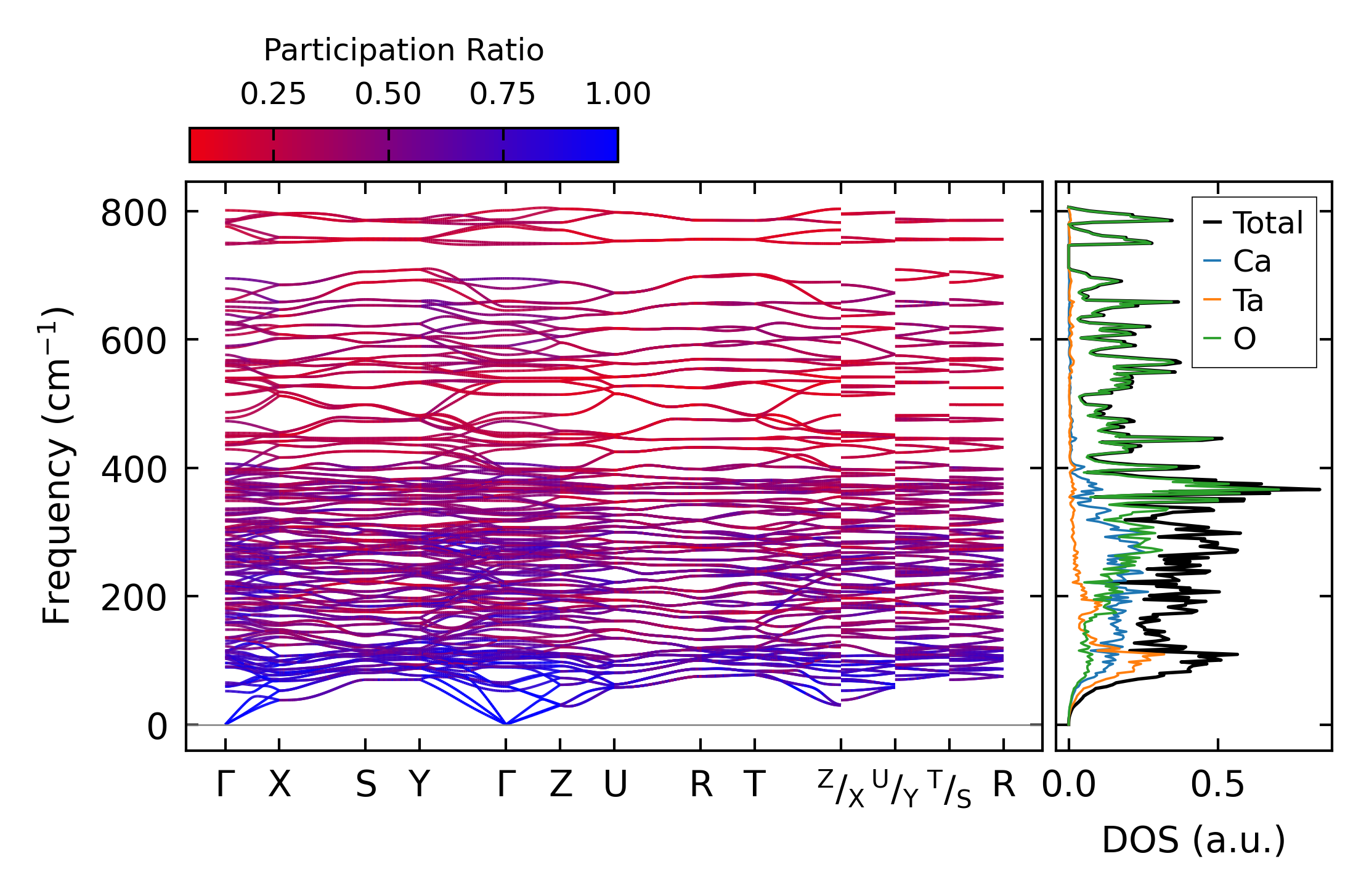

../../_images/fig_bandos_pr2668.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo2668.png — (b) Thermodynamic properties

Grüneisen parameters

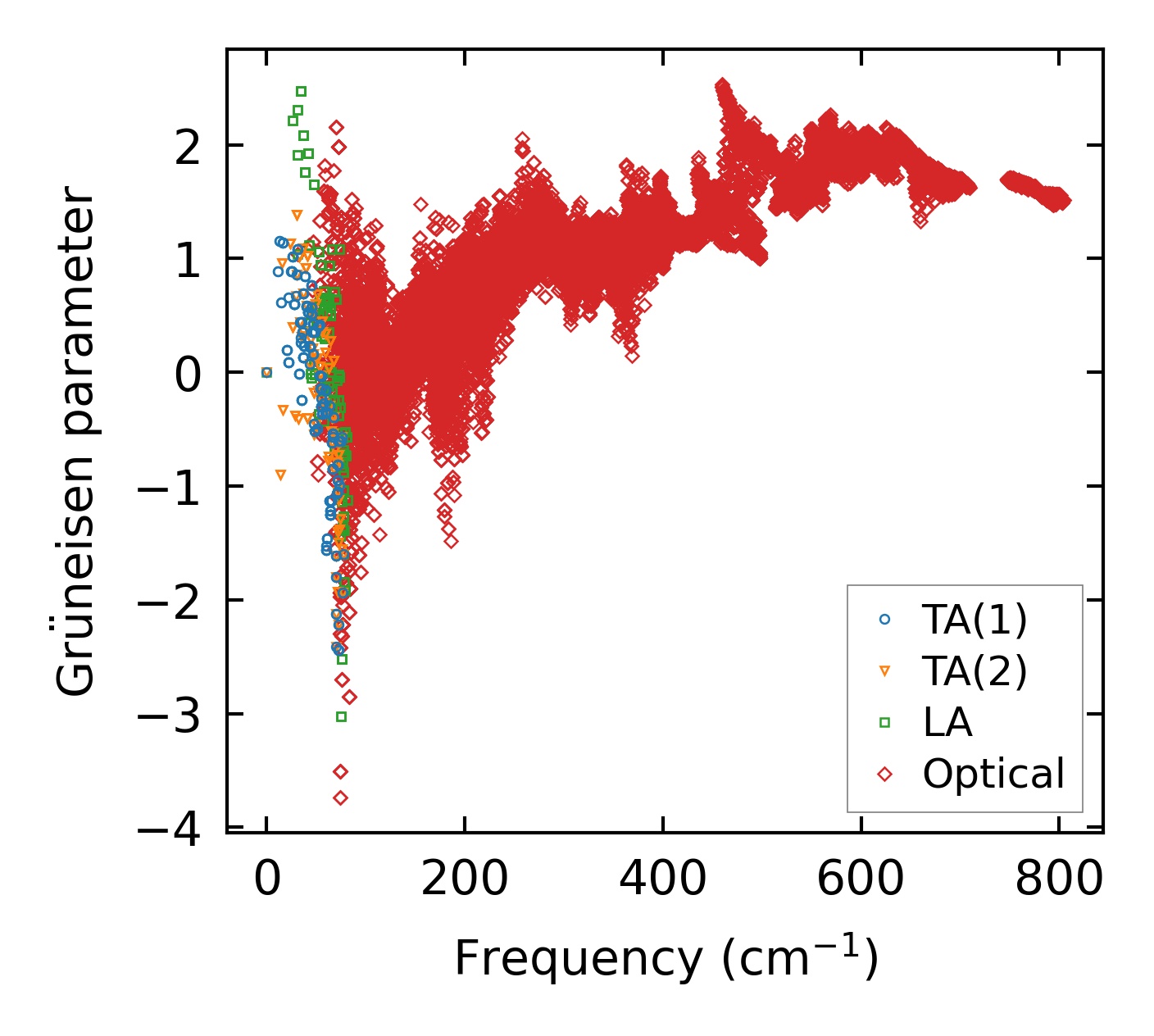

../../_images/fig_gru_all1350.png — (a) Grüneisen parameters

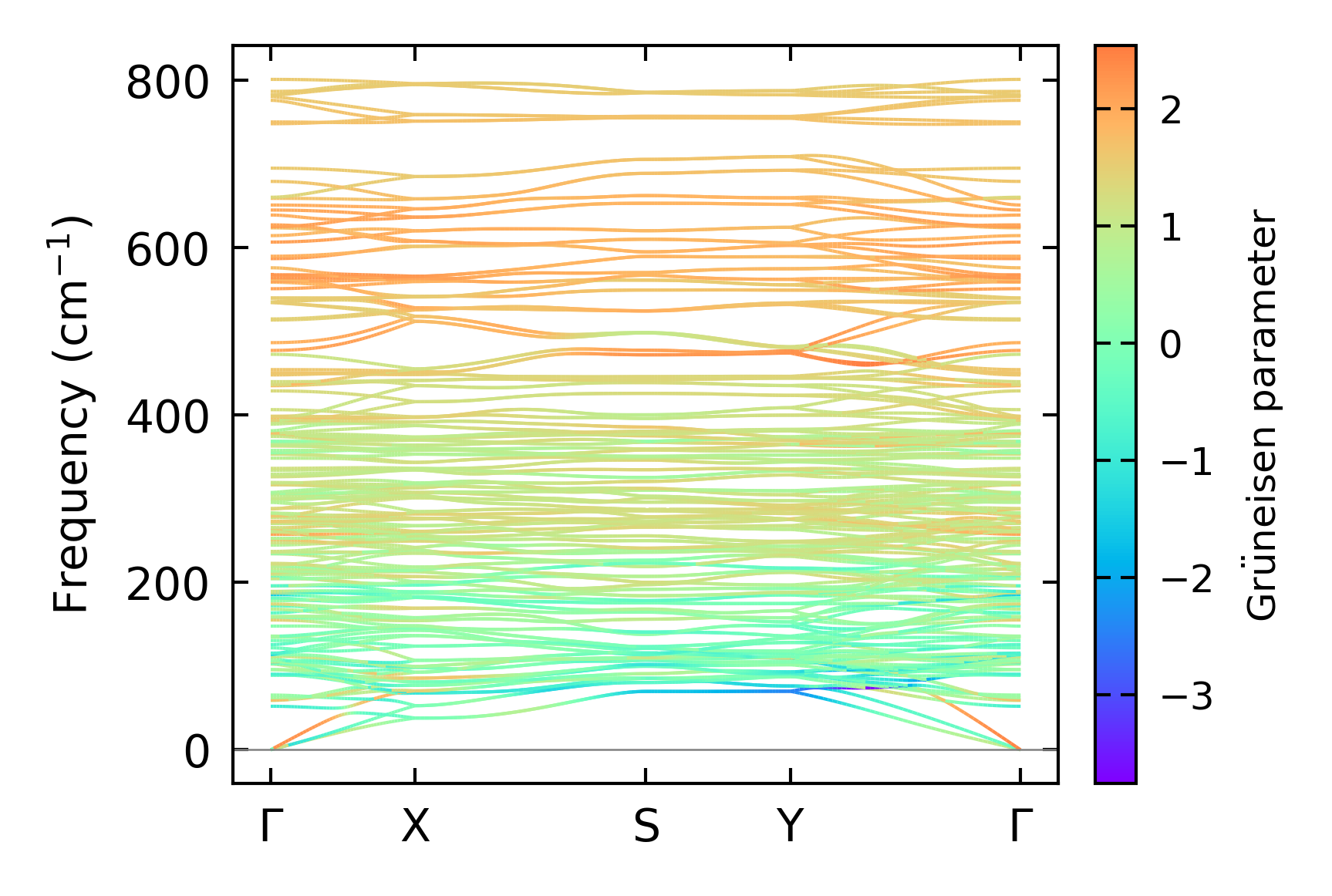

../../_images/fig_gruneisen1350.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 7x12x4, supercell: 1x2x1

../../_images/fig_kappa2601.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size1366.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

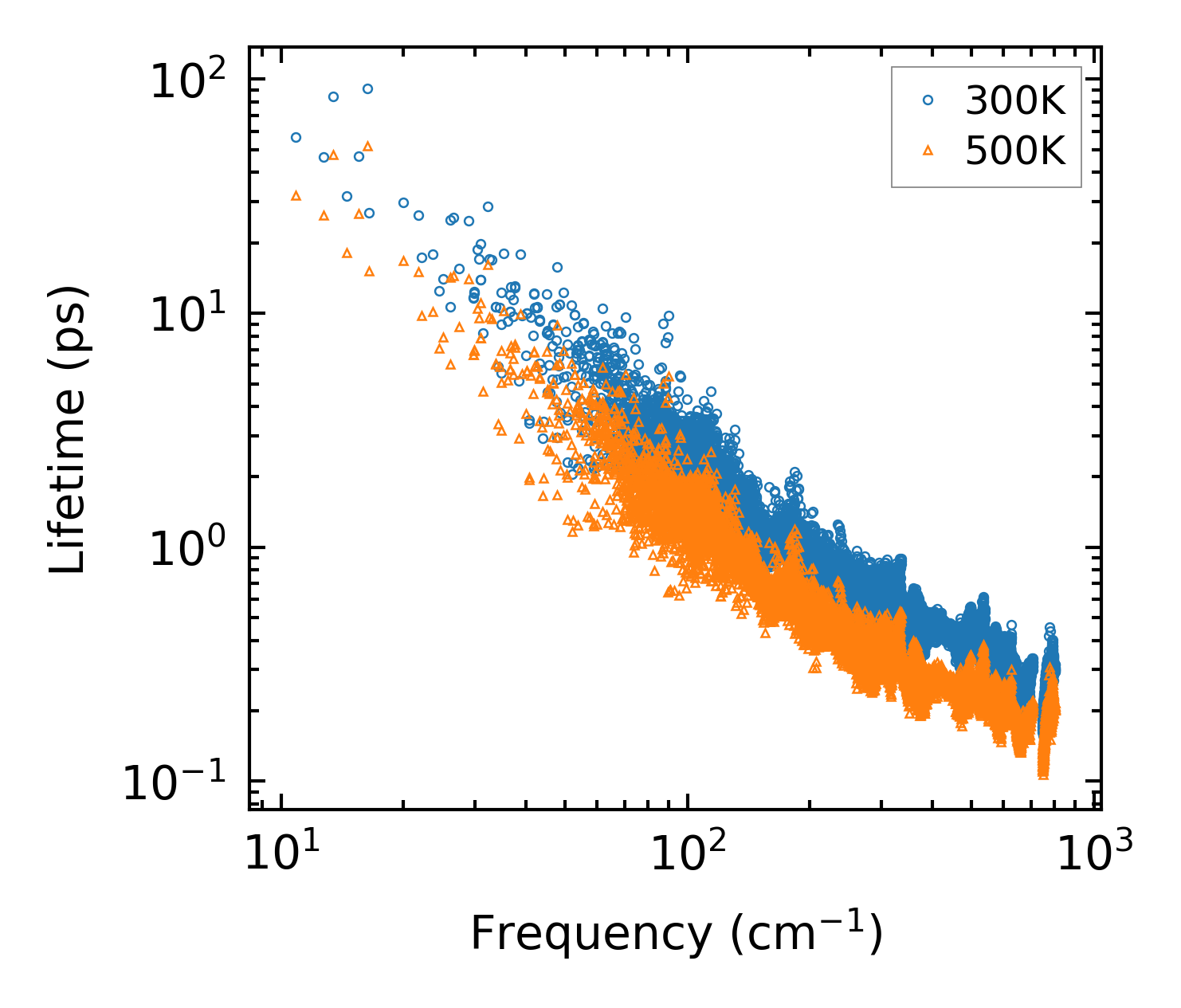

../../_images/fig_lifetime1340.png — (a) Phonon lifetime due to phonon-phonon scattering

../../_images/fig_scat_rates1339.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

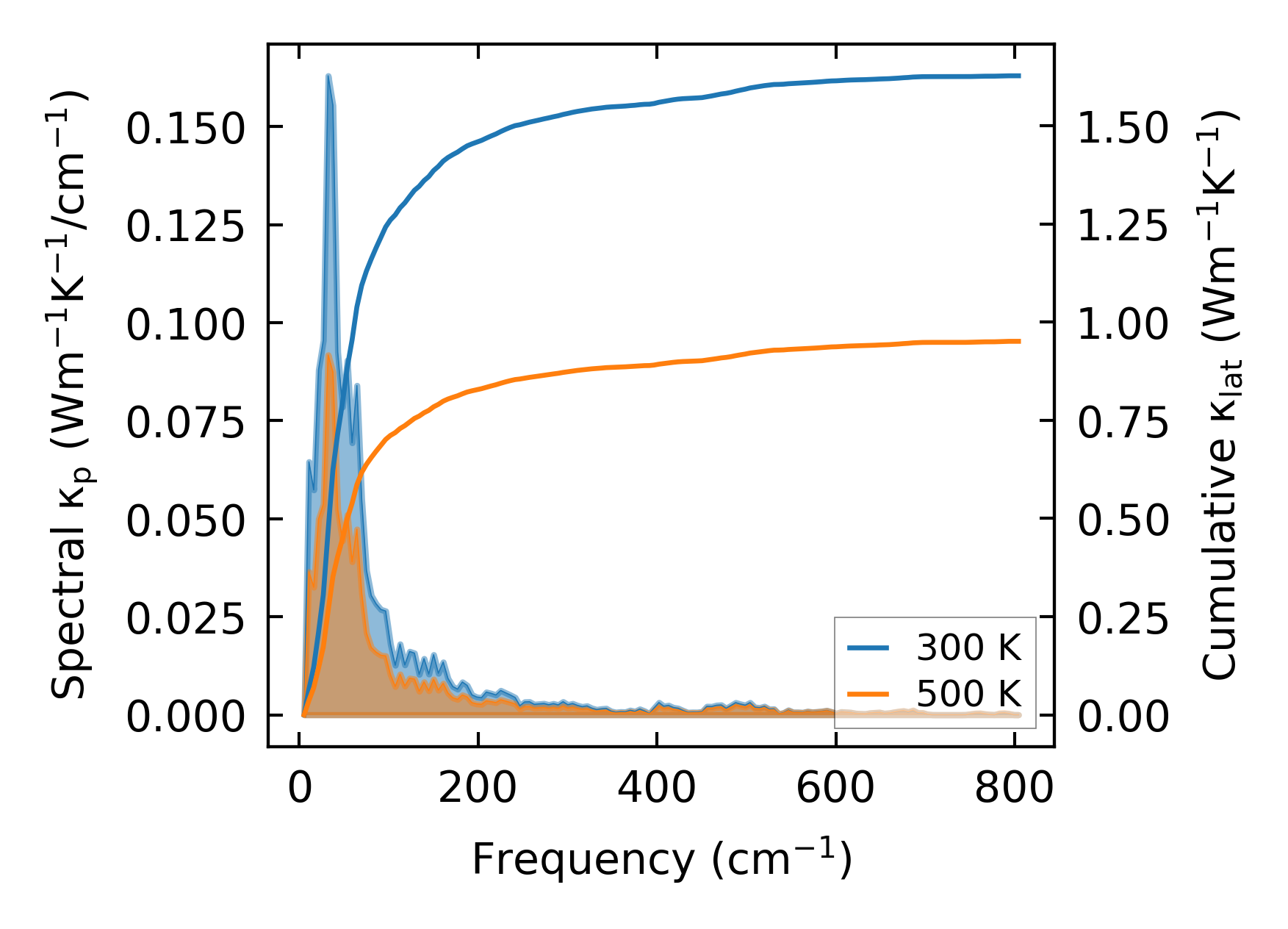

../../_images/fig_cumu_frequency1340.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

../../_images/fig_cumu_mfp1340.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

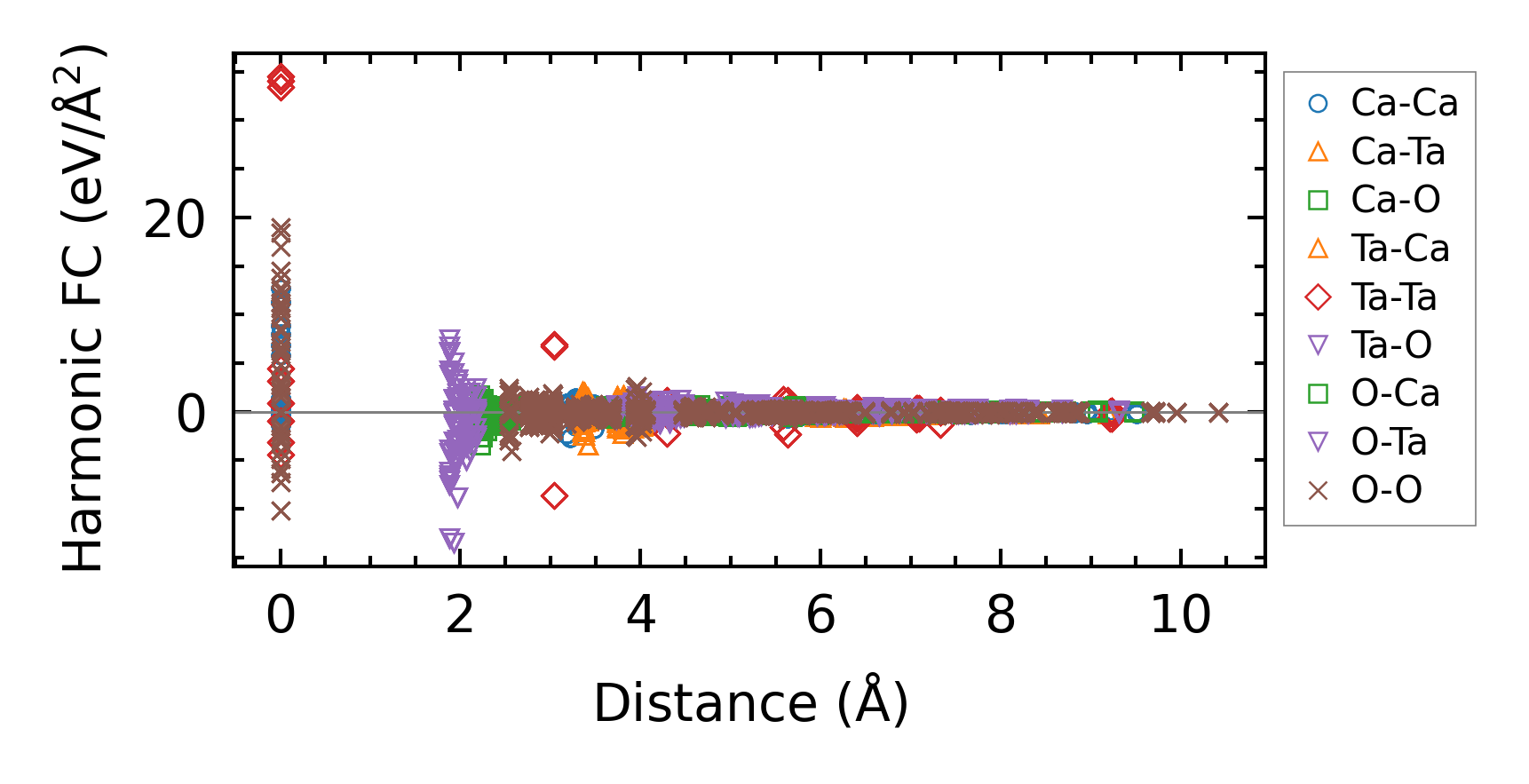

../../_images/fig_fc22489.png — (a) Force constants w.r.t atomic distance

Summary

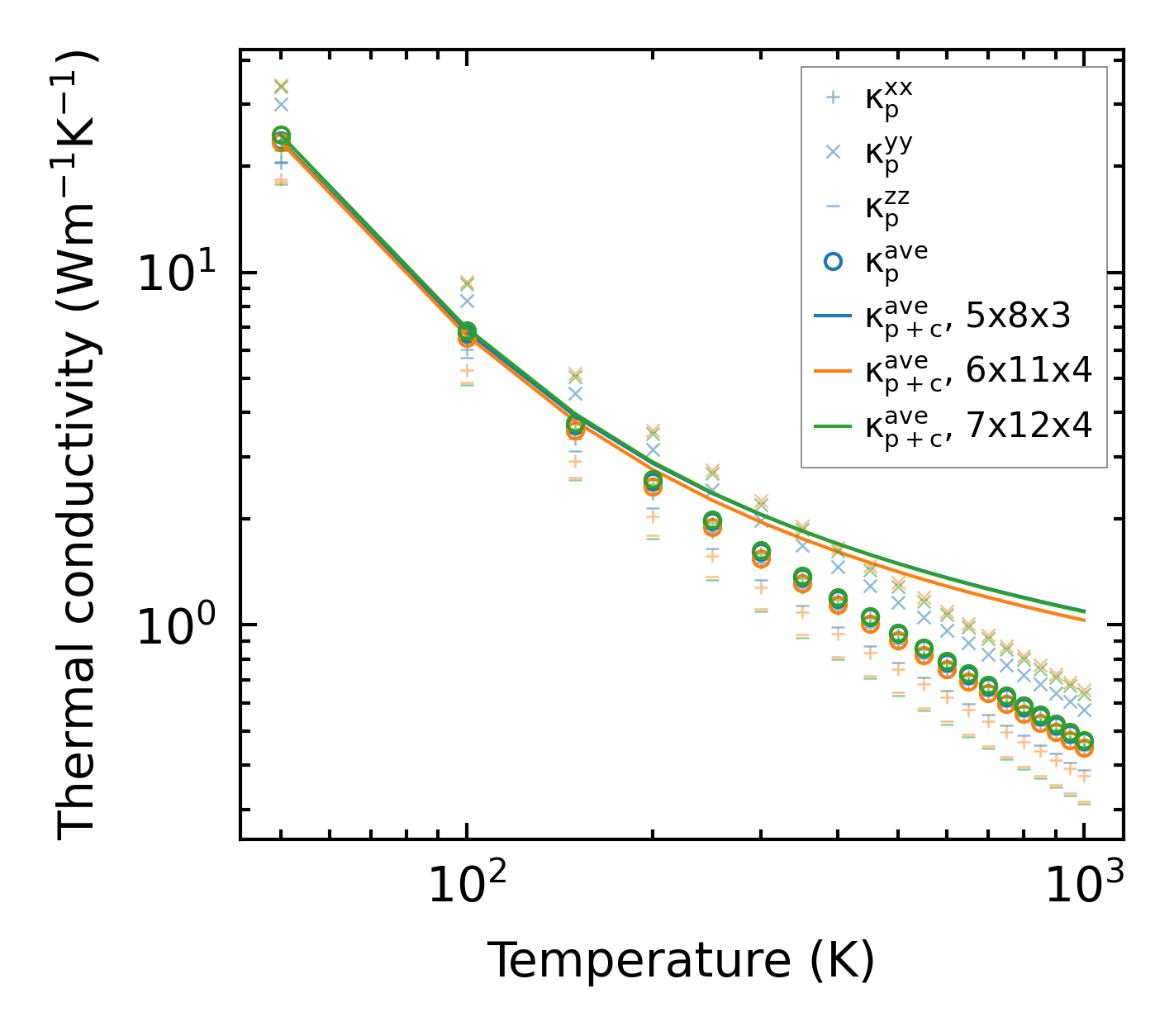

../../_images/fig_kappa2602.png — (a) Temperature-dependent lattice thermal conductivity

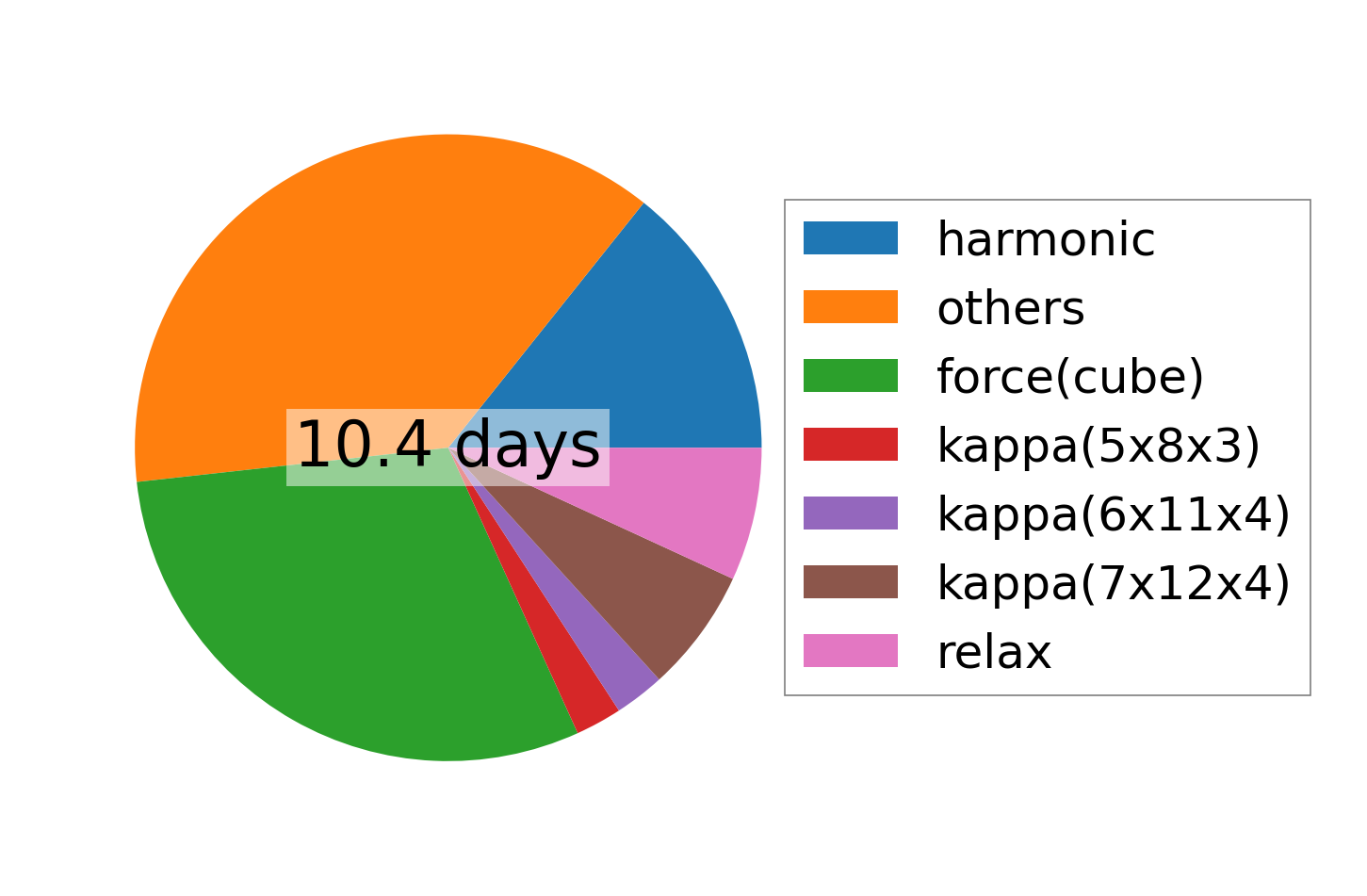

../../_images/fig_times4444.png — (b) Computation time
