mp-769398/Na3IO/anharm

Space group: P6_3/mmc (194)
Link: Materials Project
Download: mp-769398.tar.gz

Harmonic properties

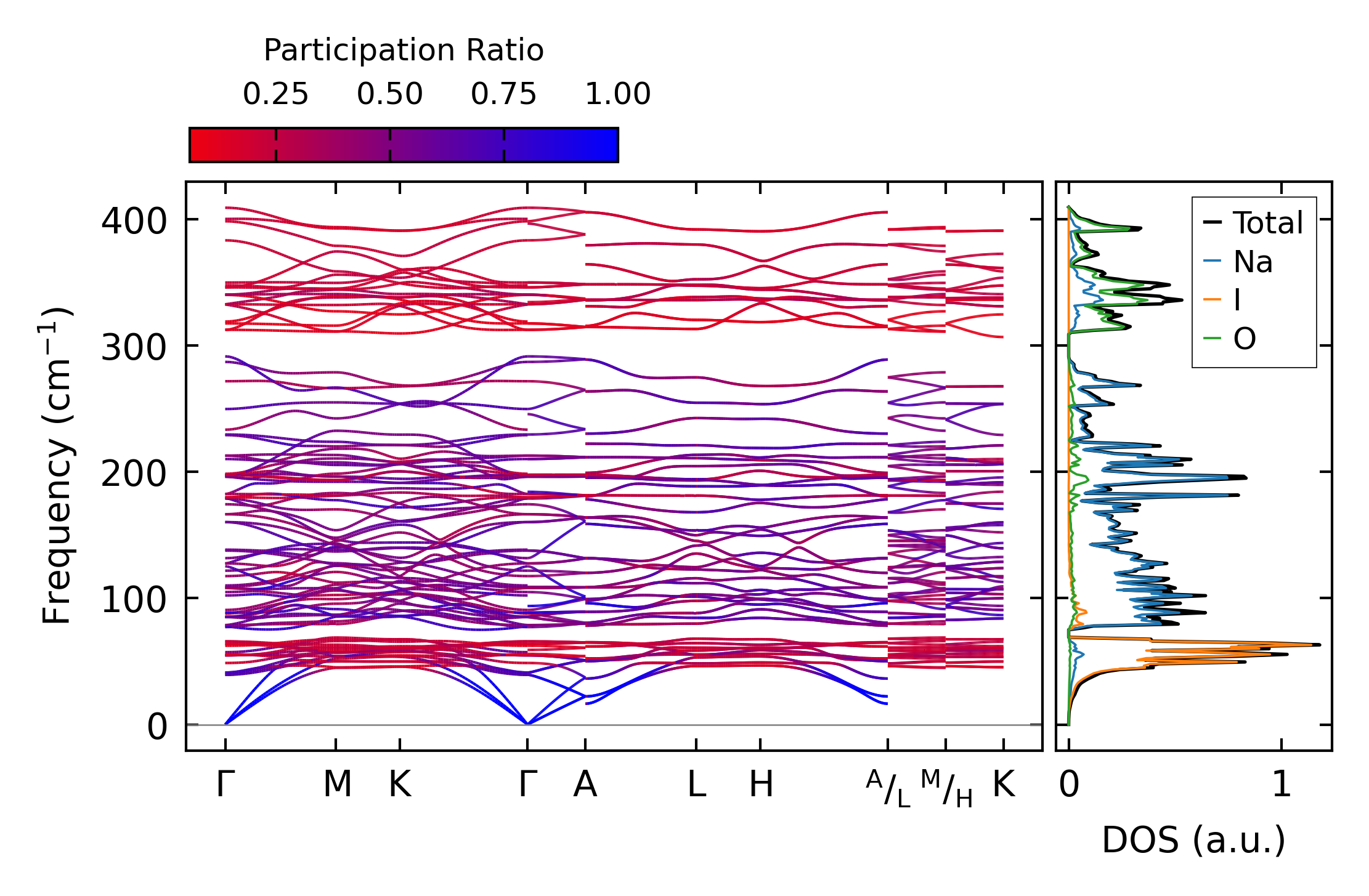

../../_images/fig_bandos_pr2688.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo2688.png — (b) Thermodynamic properties

Grüneisen parameters

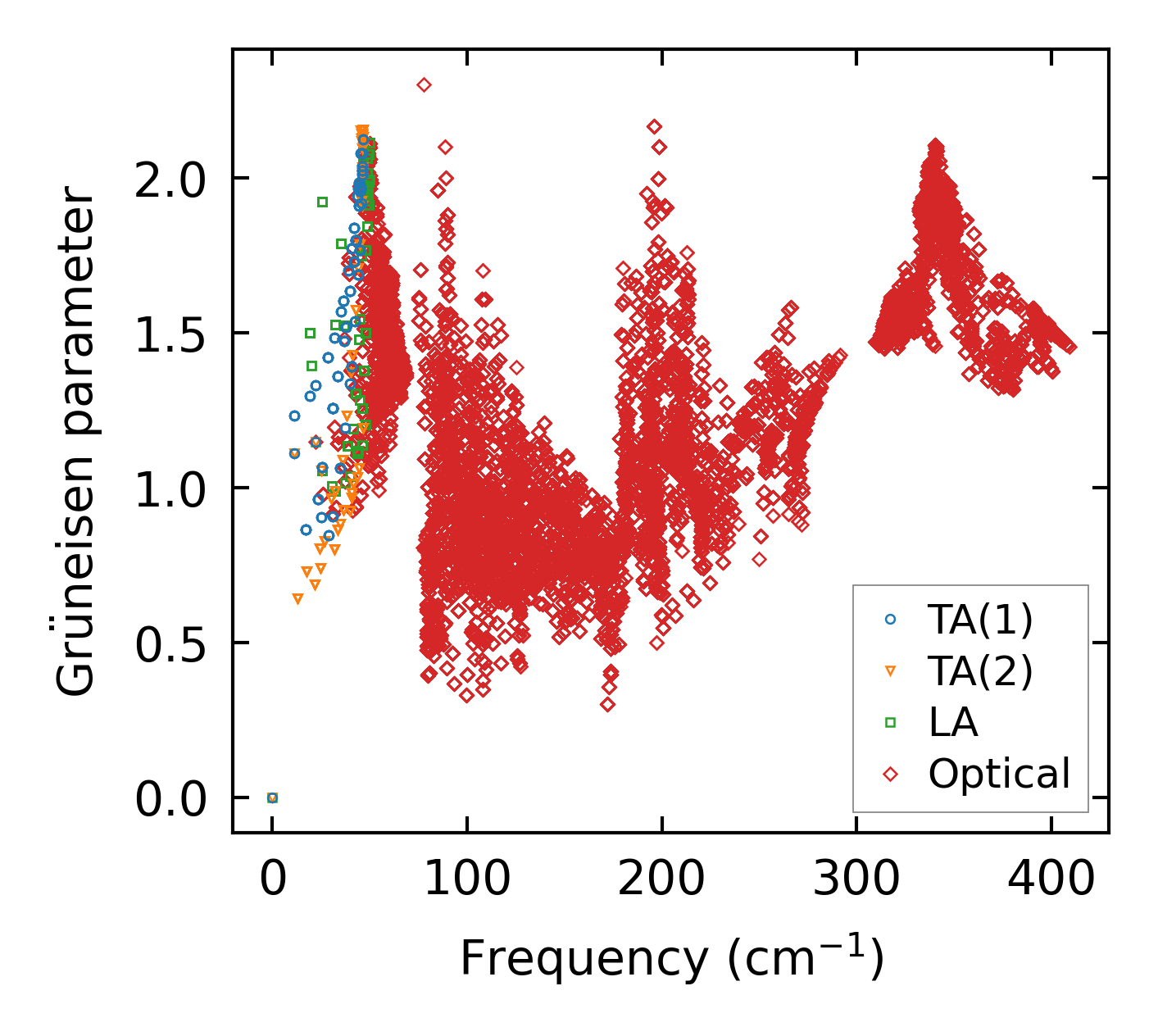

../../_images/fig_gru_all1361.png — (a) Grüneisen parameters

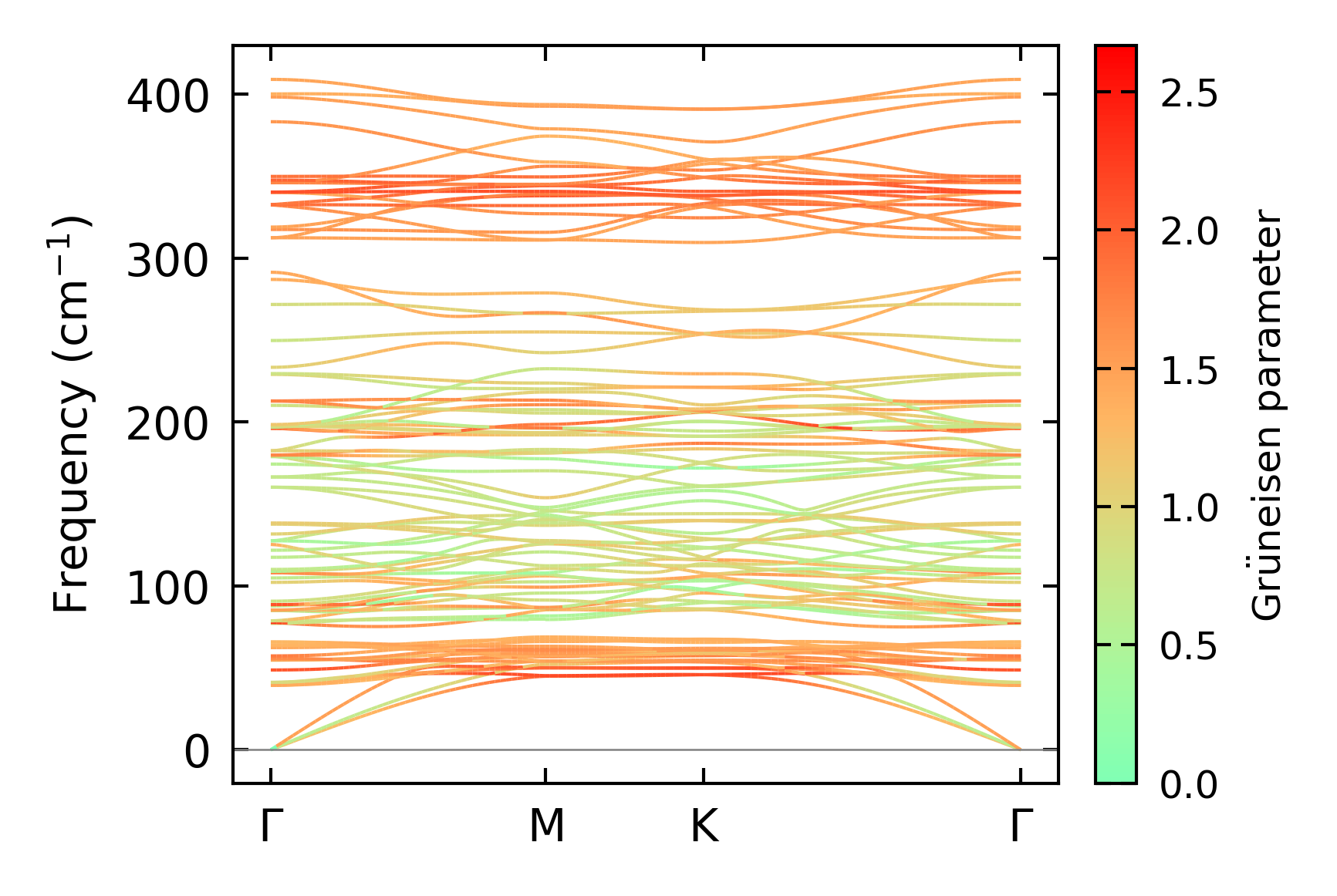

../../_images/fig_gruneisen1361.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 11x11x4, supercell: 2x2x1

../../_images/fig_kappa2623.png — (a) Temperature-dependent lattice thermal conductivity

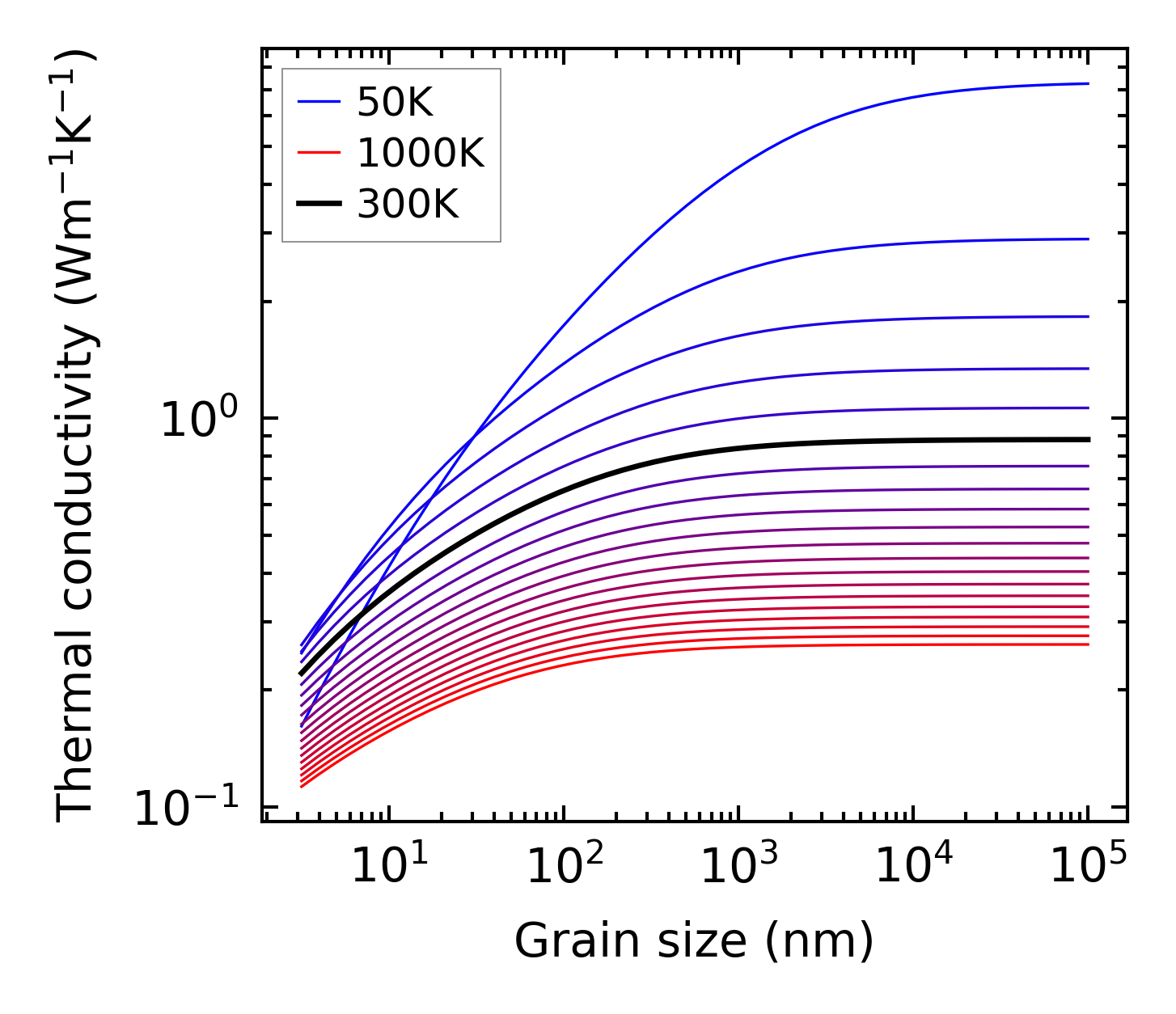

../../_images/fig_kappa_vs_grain_size1377.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

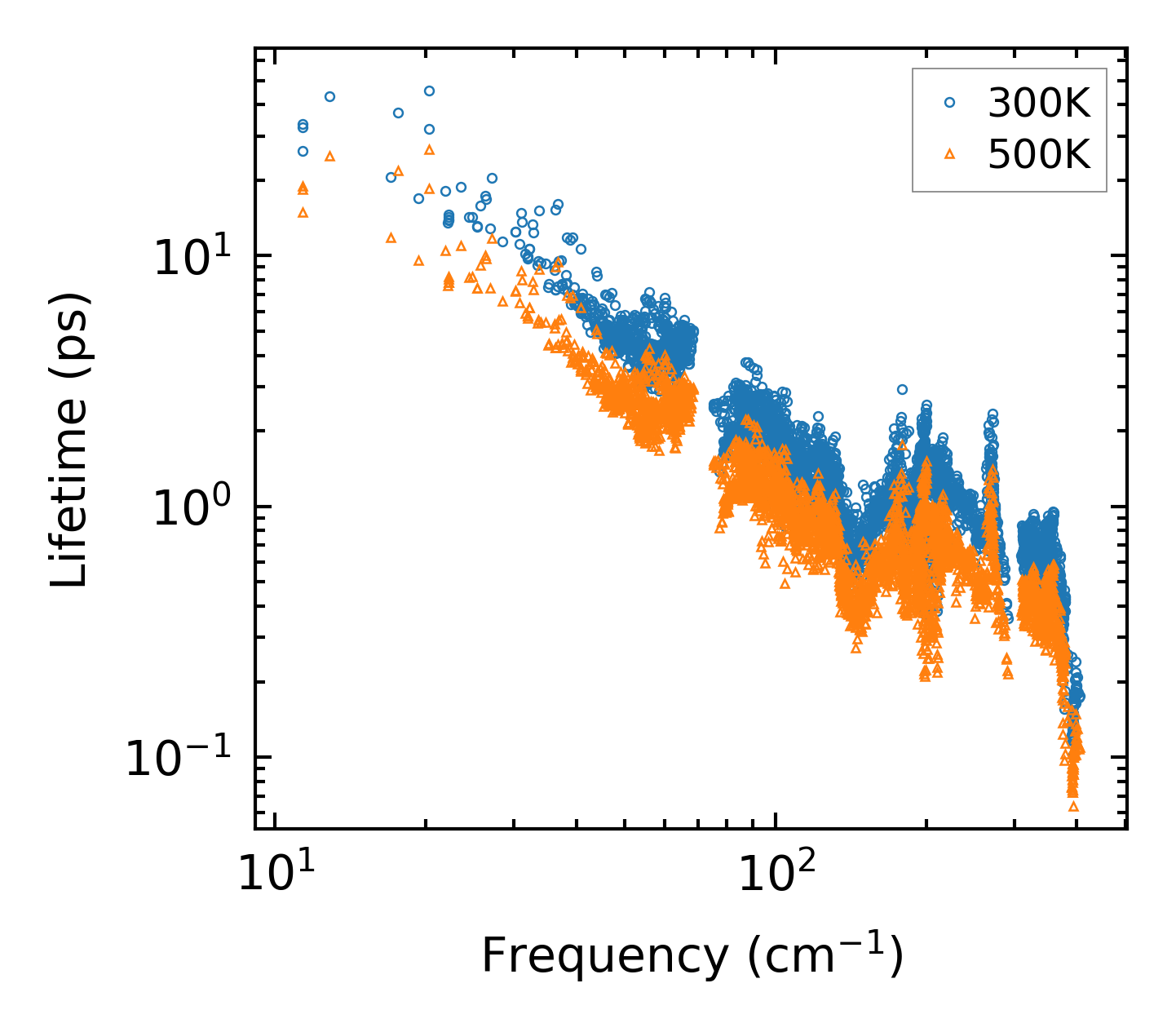

../../_images/fig_lifetime1351.png — (a) Phonon lifetime due to phonon-phonon scattering

../../_images/fig_scat_rates1350.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

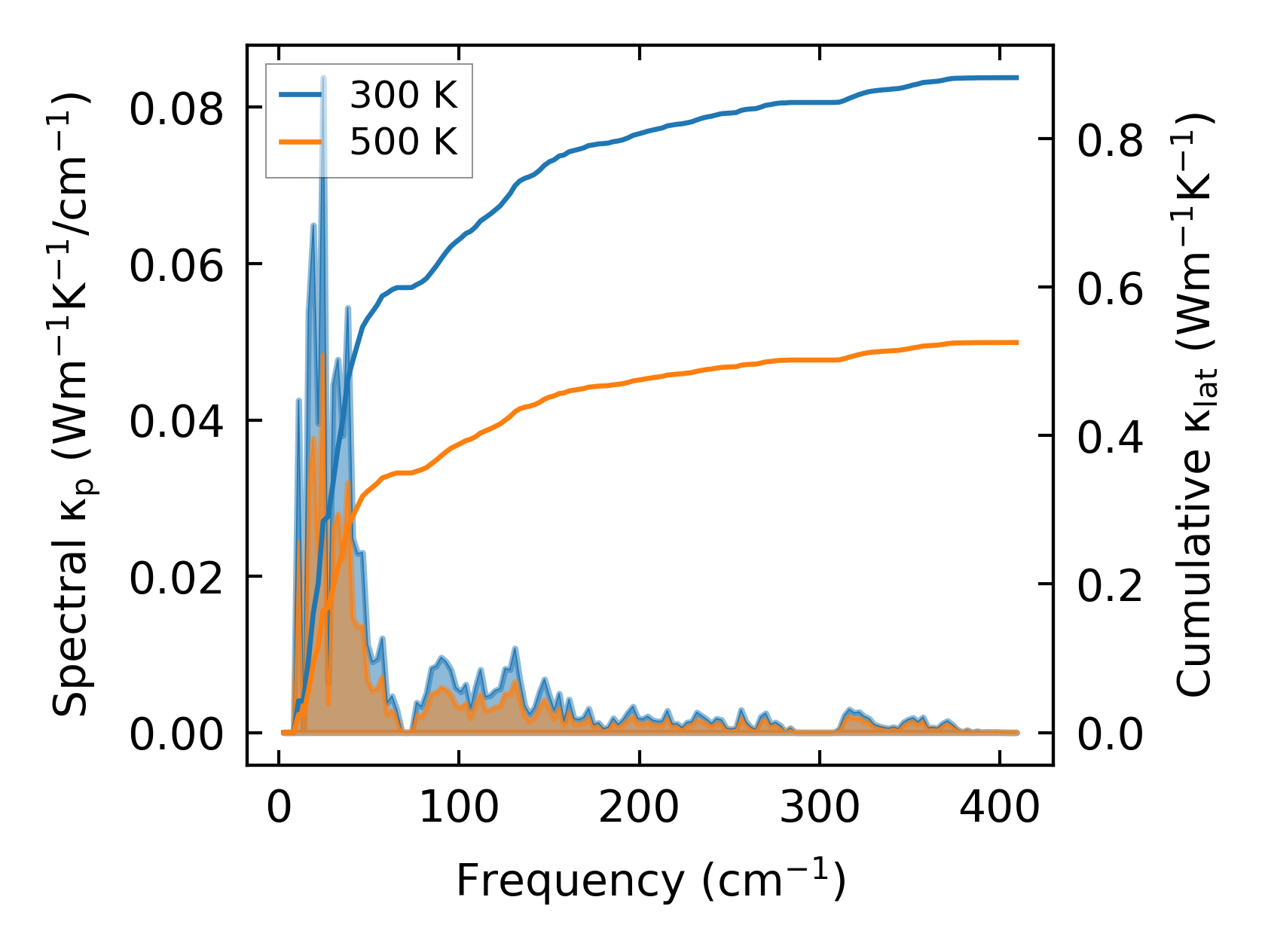

../../_images/fig_cumu_frequency1351.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

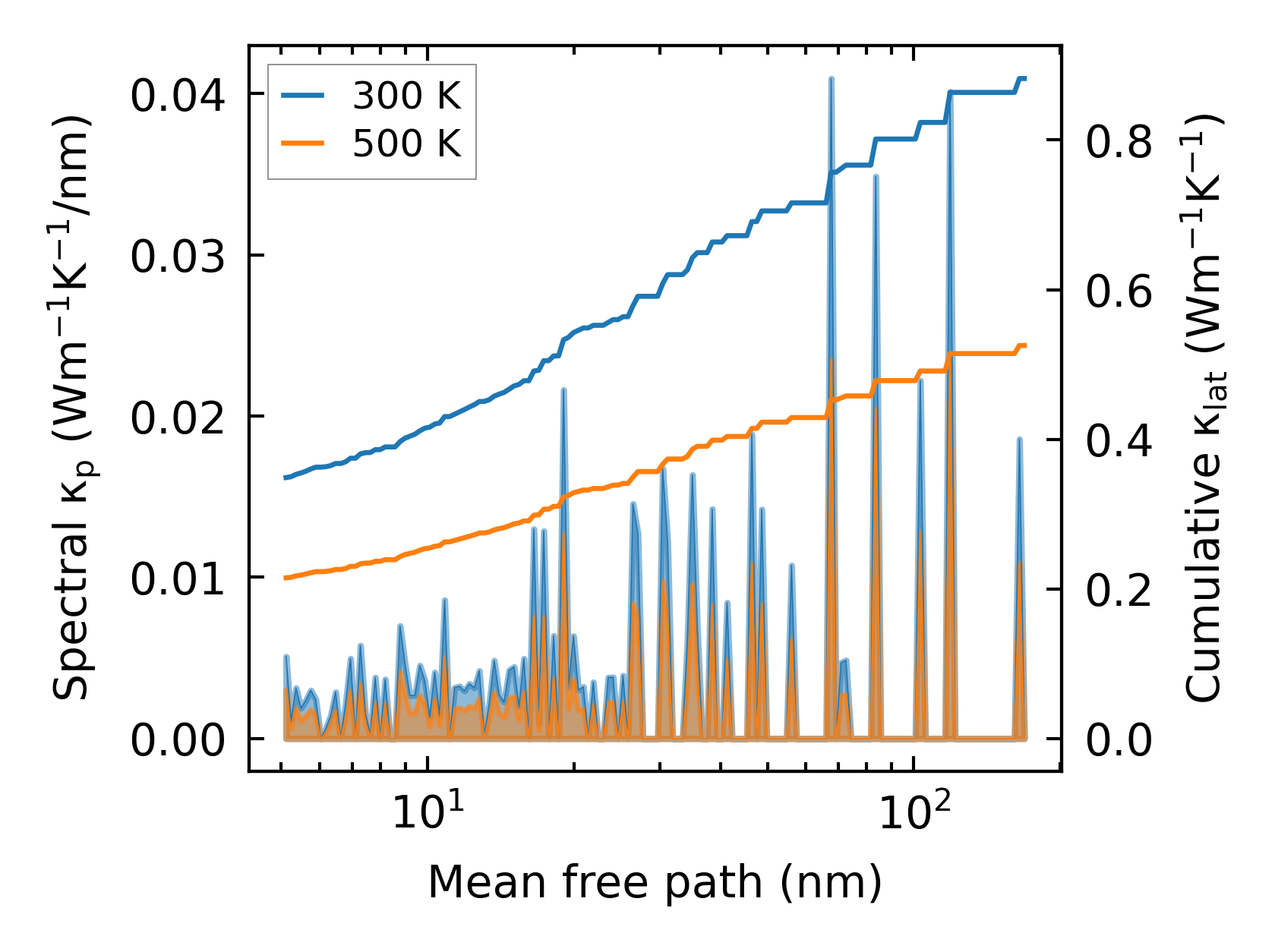

../../_images/fig_cumu_mfp1351.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

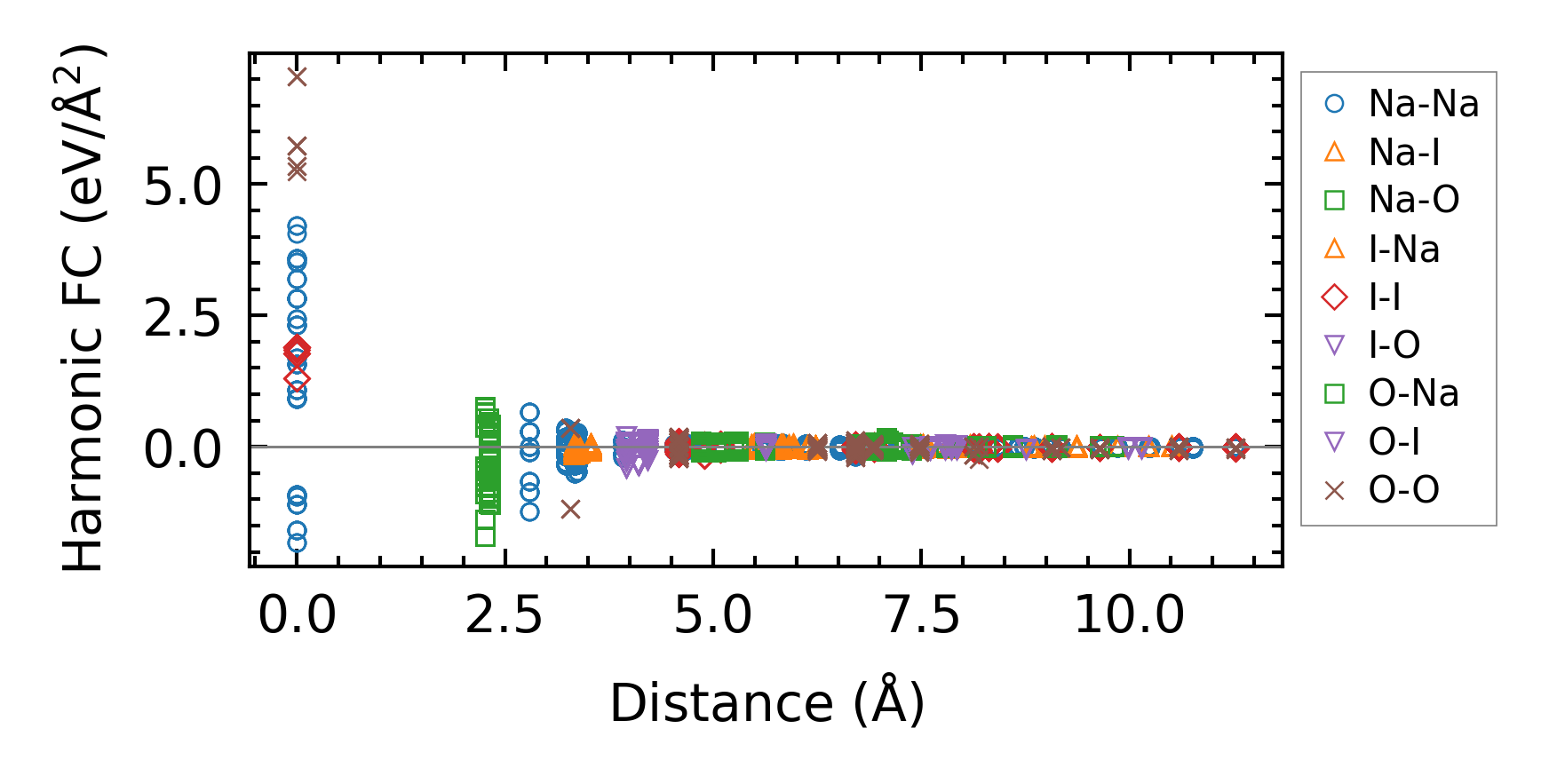

../../_images/fig_fc22509.png — (a) Force constants w.r.t atomic distance

Summary

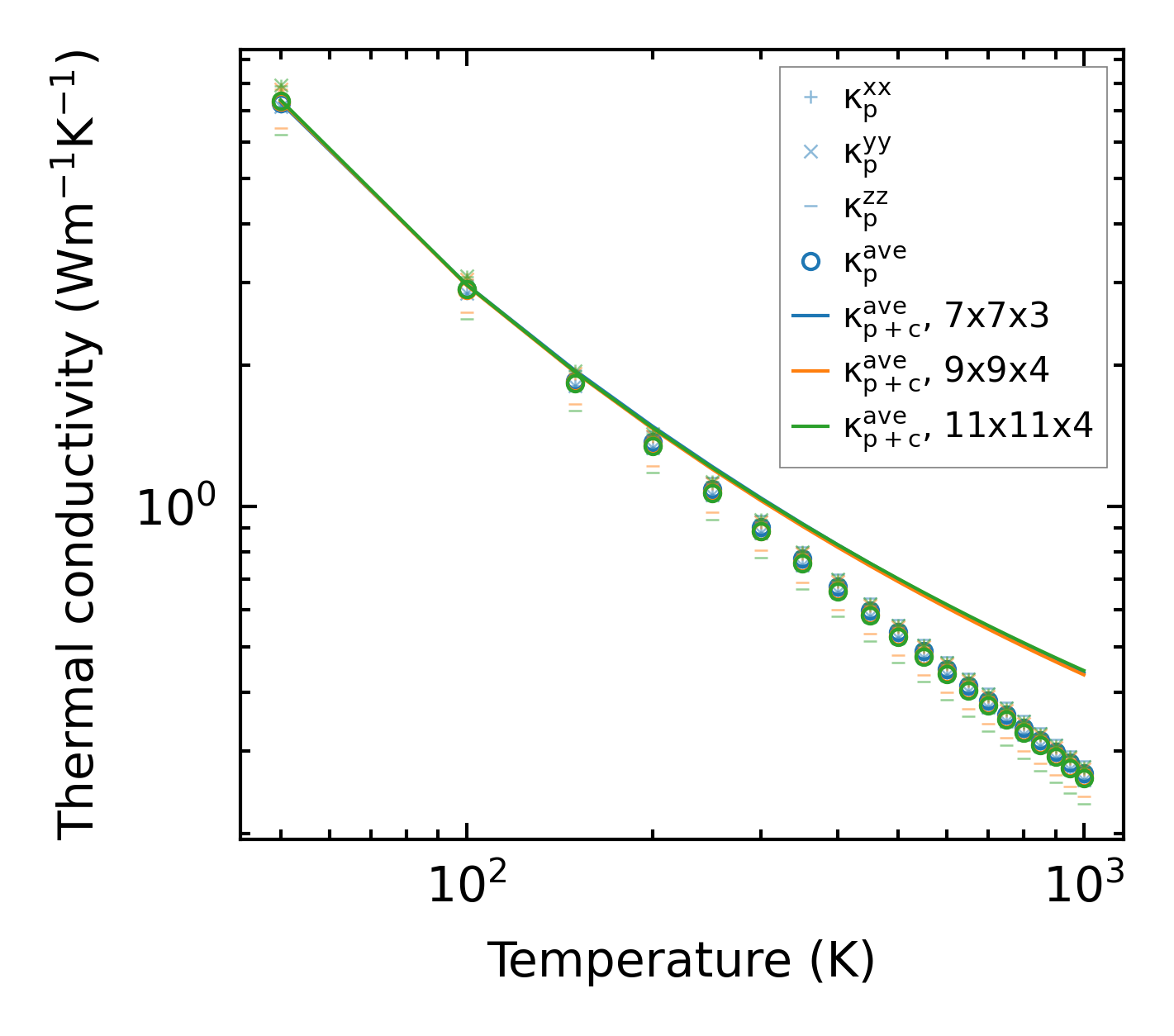

../../_images/fig_kappa2624.png — (a) Temperature-dependent lattice thermal conductivity

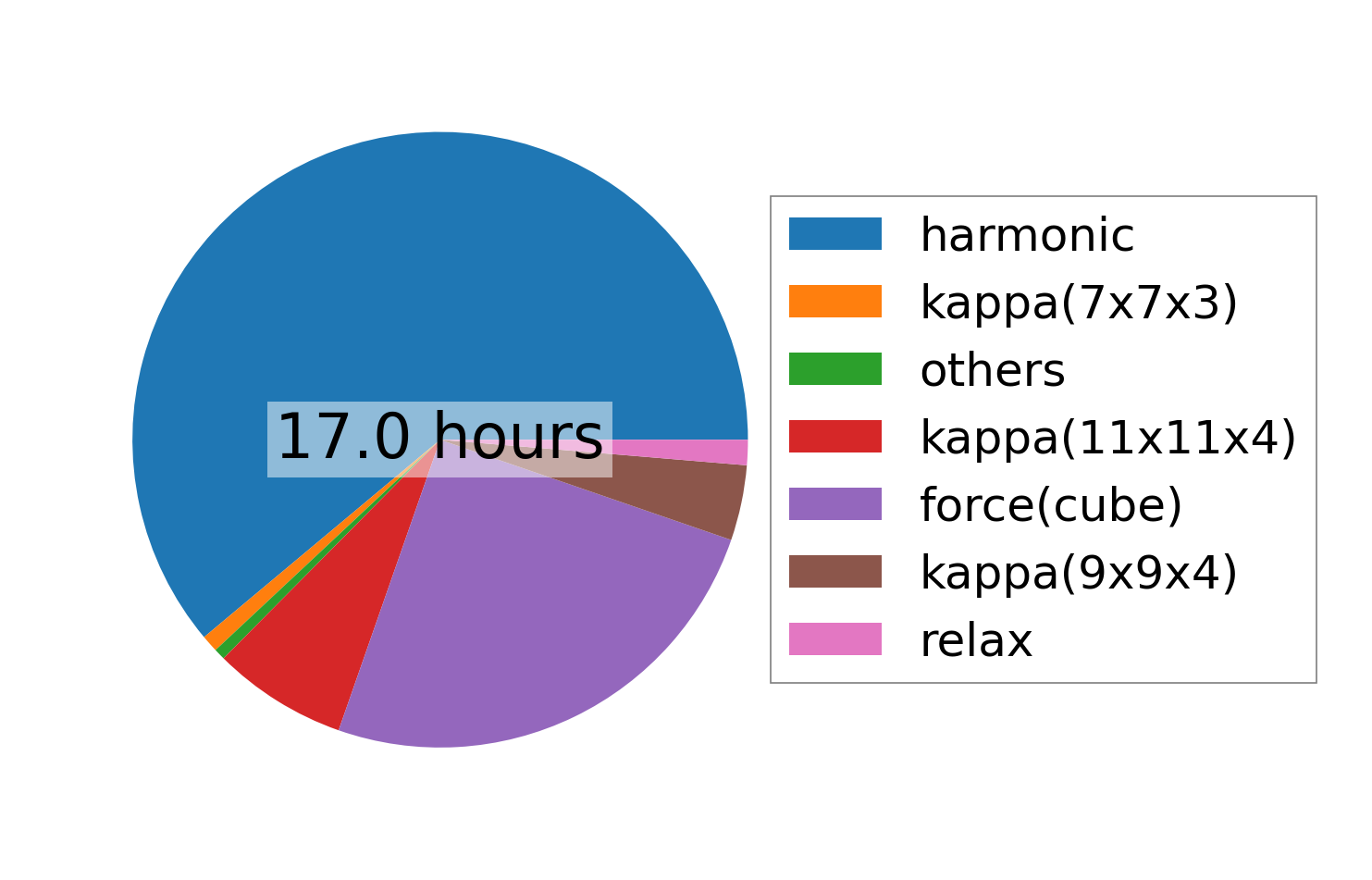

../../_images/fig_times4475.png — (b) Computation time
