mp-626785/KHO/anharm

Space group: Cmc2_1 (36)
Link: Materials Project
Download: mp-626785.tar.gz

Harmonic properties

../../_images/fig_bandos_pr5809.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo5809.png — (b) Thermodynamic properties

Grüneisen parameters

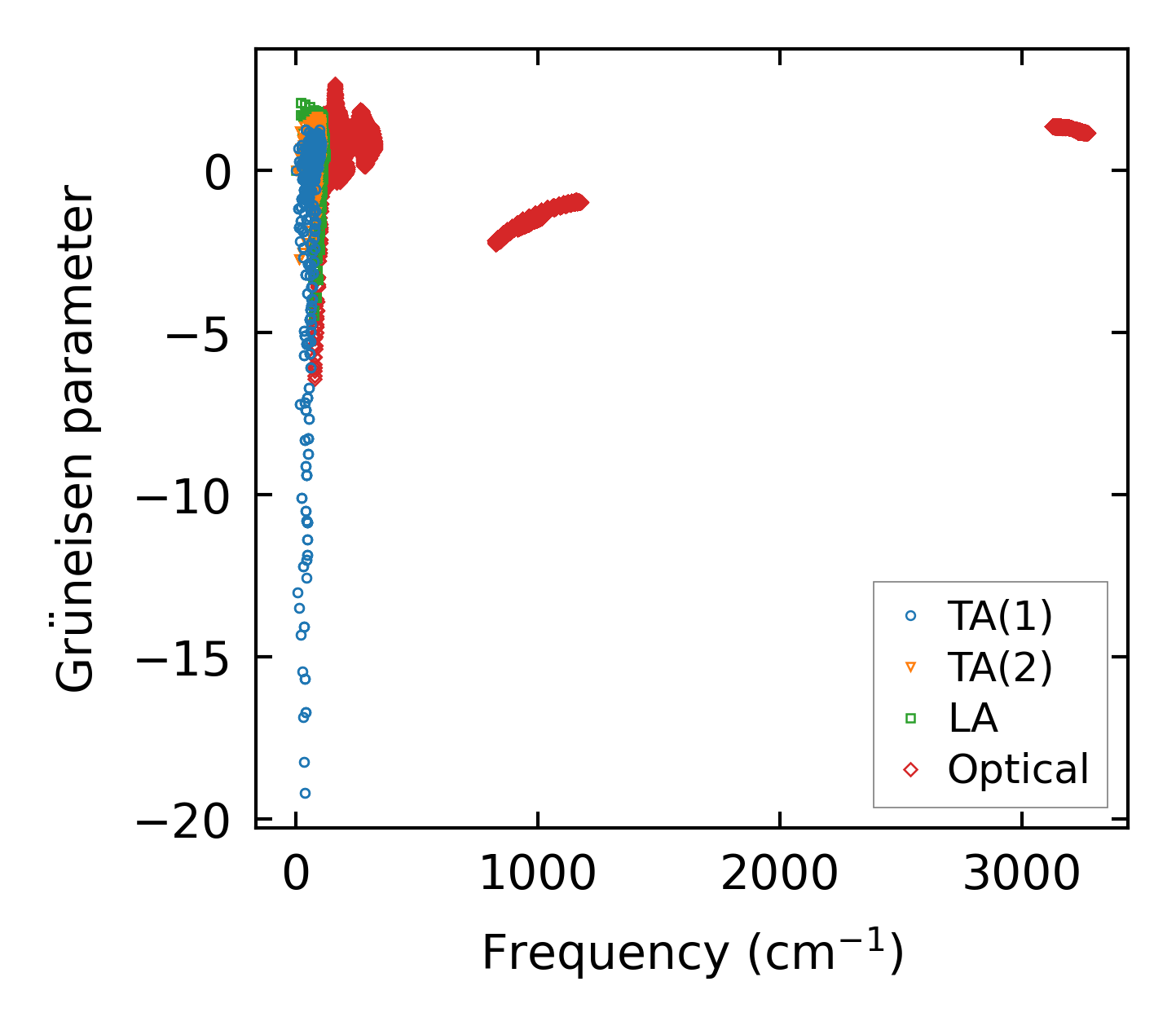

../../_images/fig_gru_all2394.png — (a) Grüneisen parameters

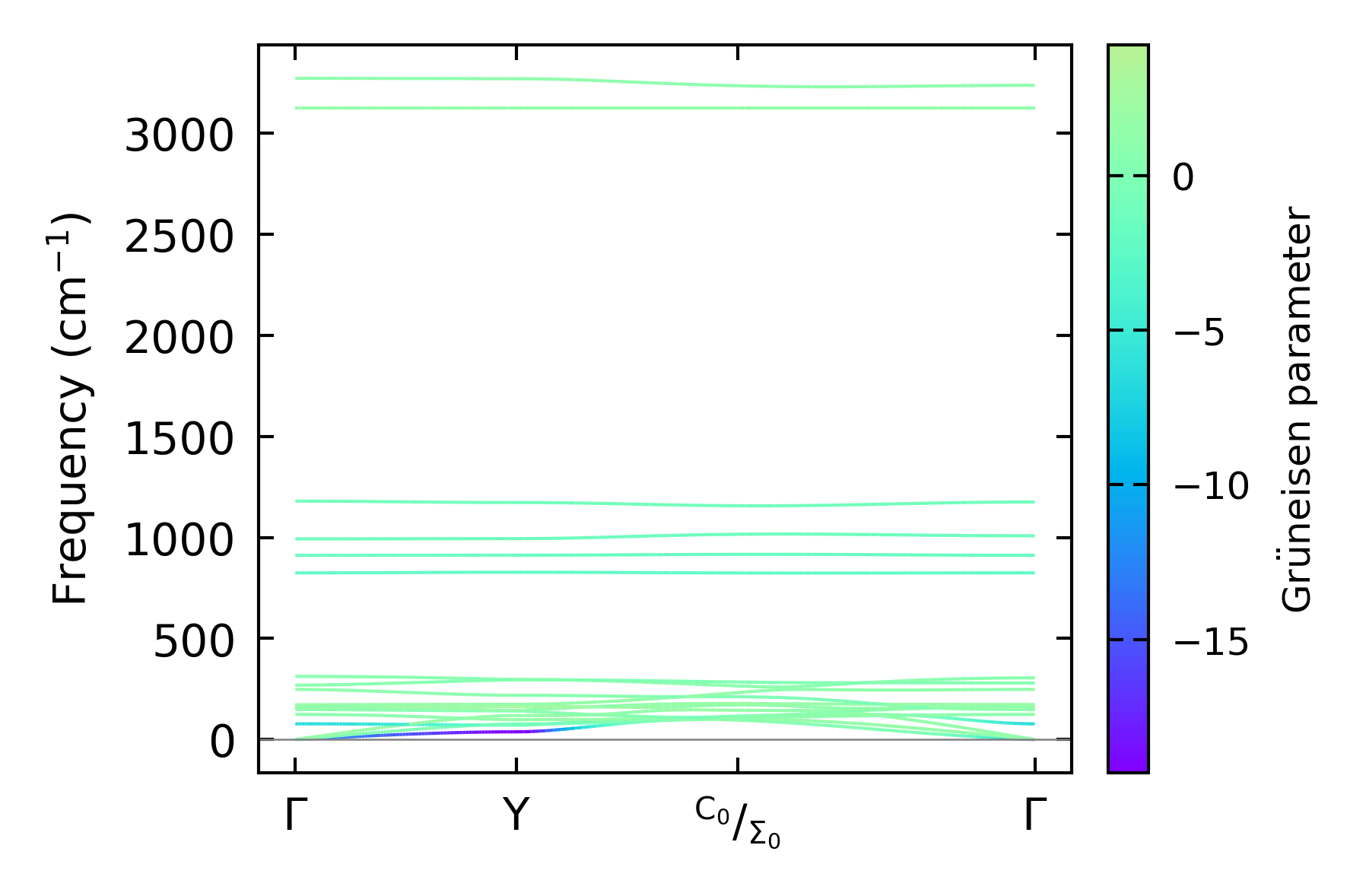

../../_images/fig_gruneisen2394.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 15x15x20, supercell: 3x1x3

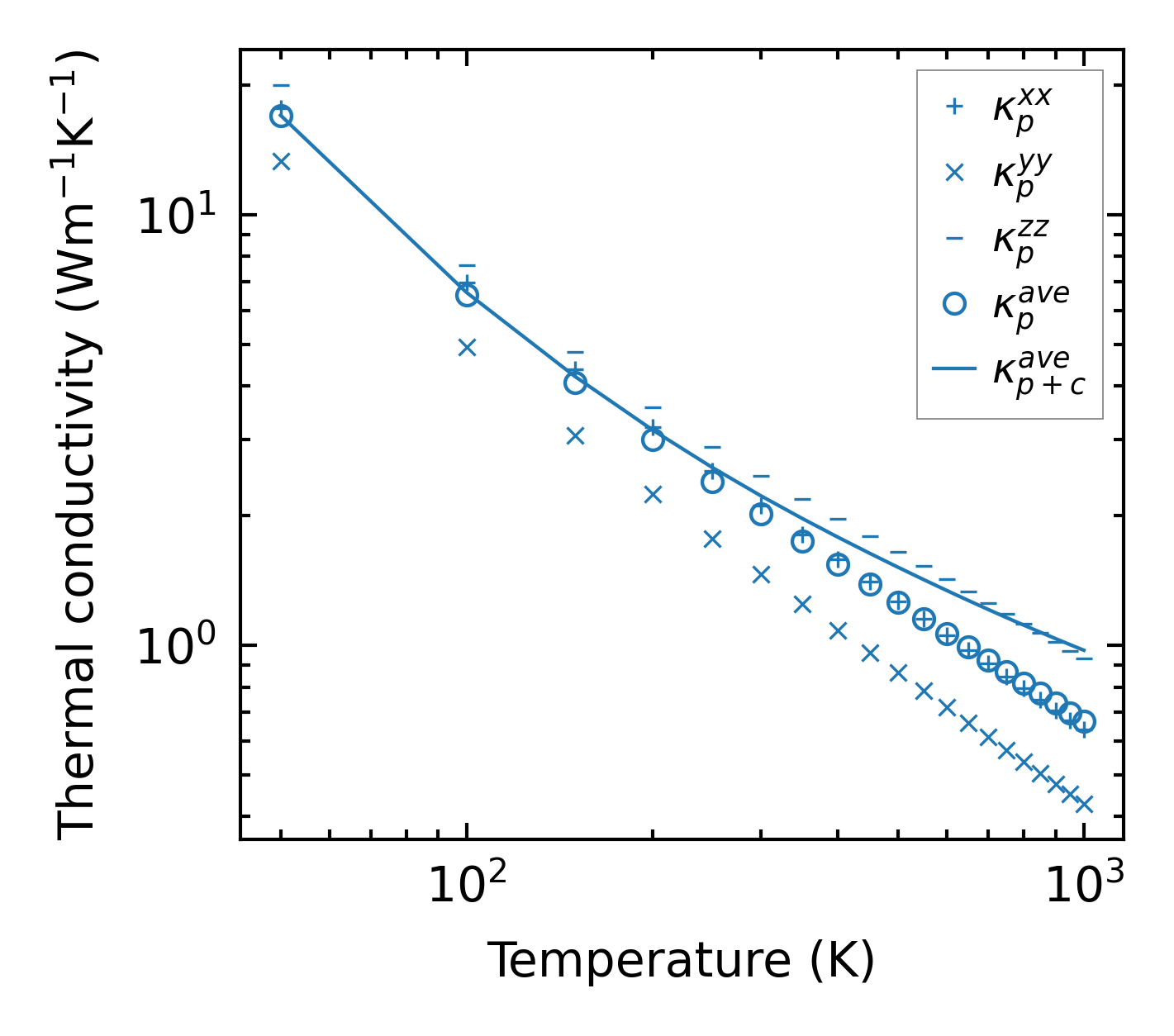

../../_images/fig_kappa4563.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size2425.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

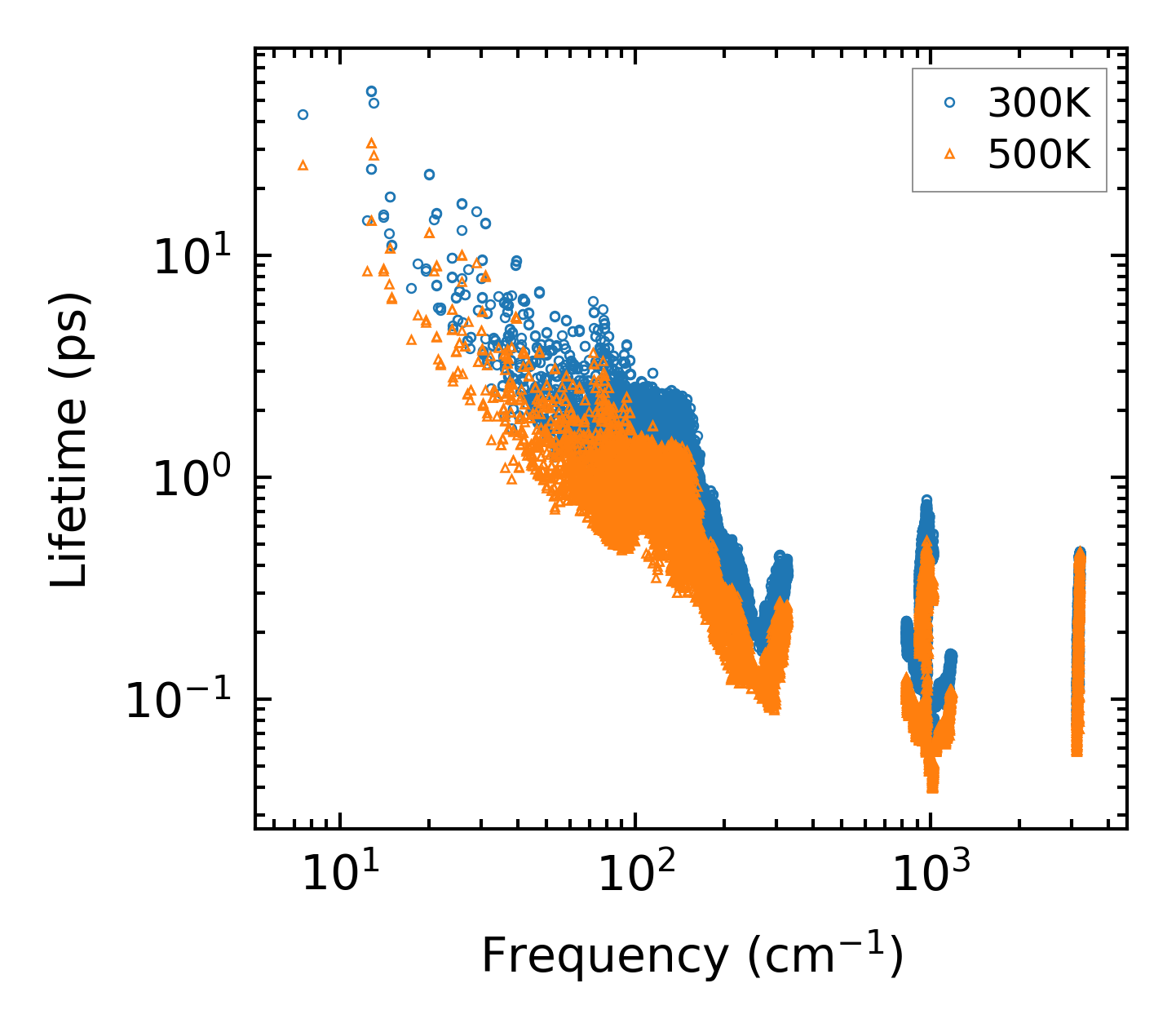

../../_images/fig_lifetime2378.png — (a) Phonon lifetime due to phonon-phonon scattering

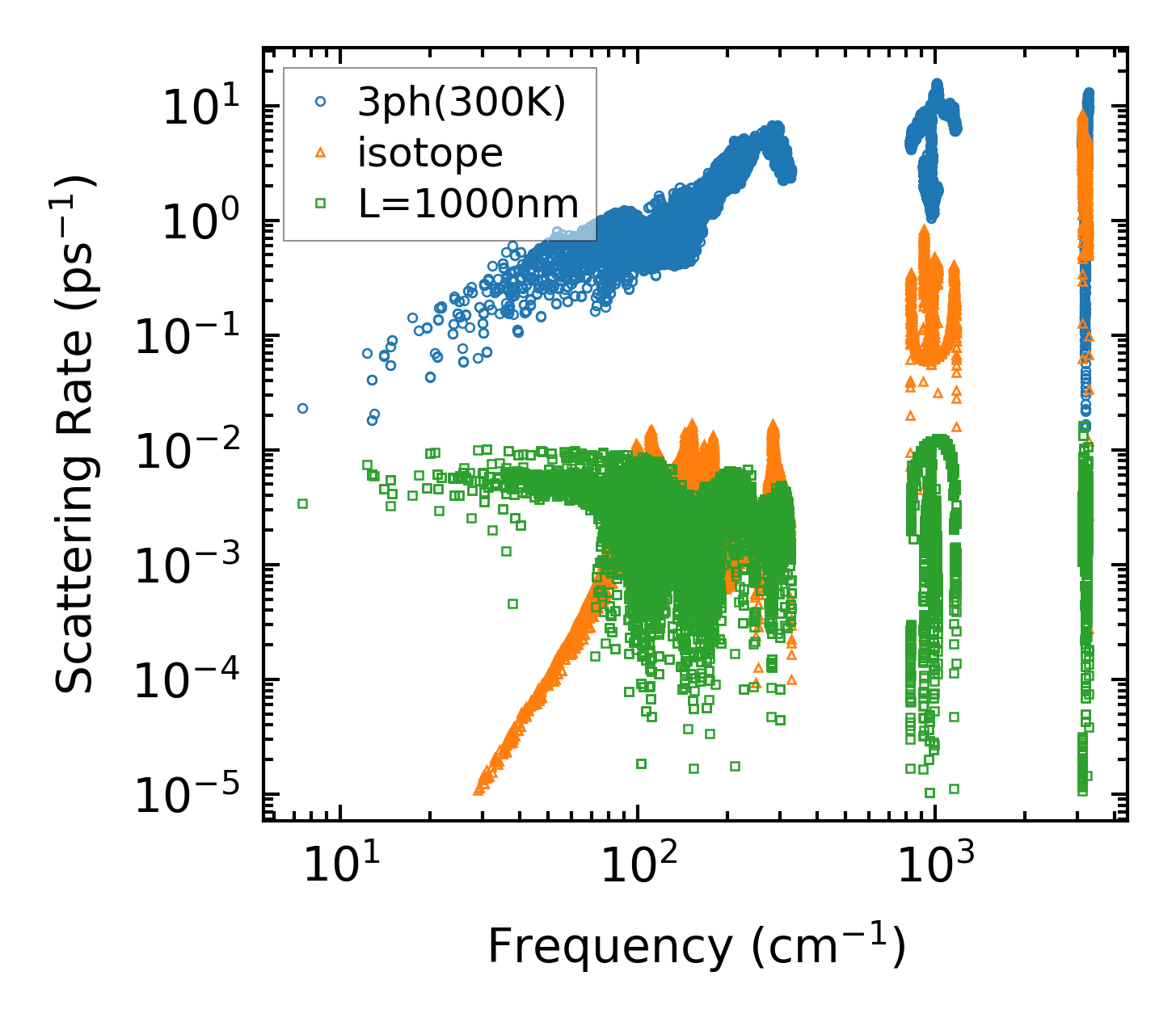

../../_images/fig_scat_rates2377.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

../../_images/fig_cumu_frequency2378.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

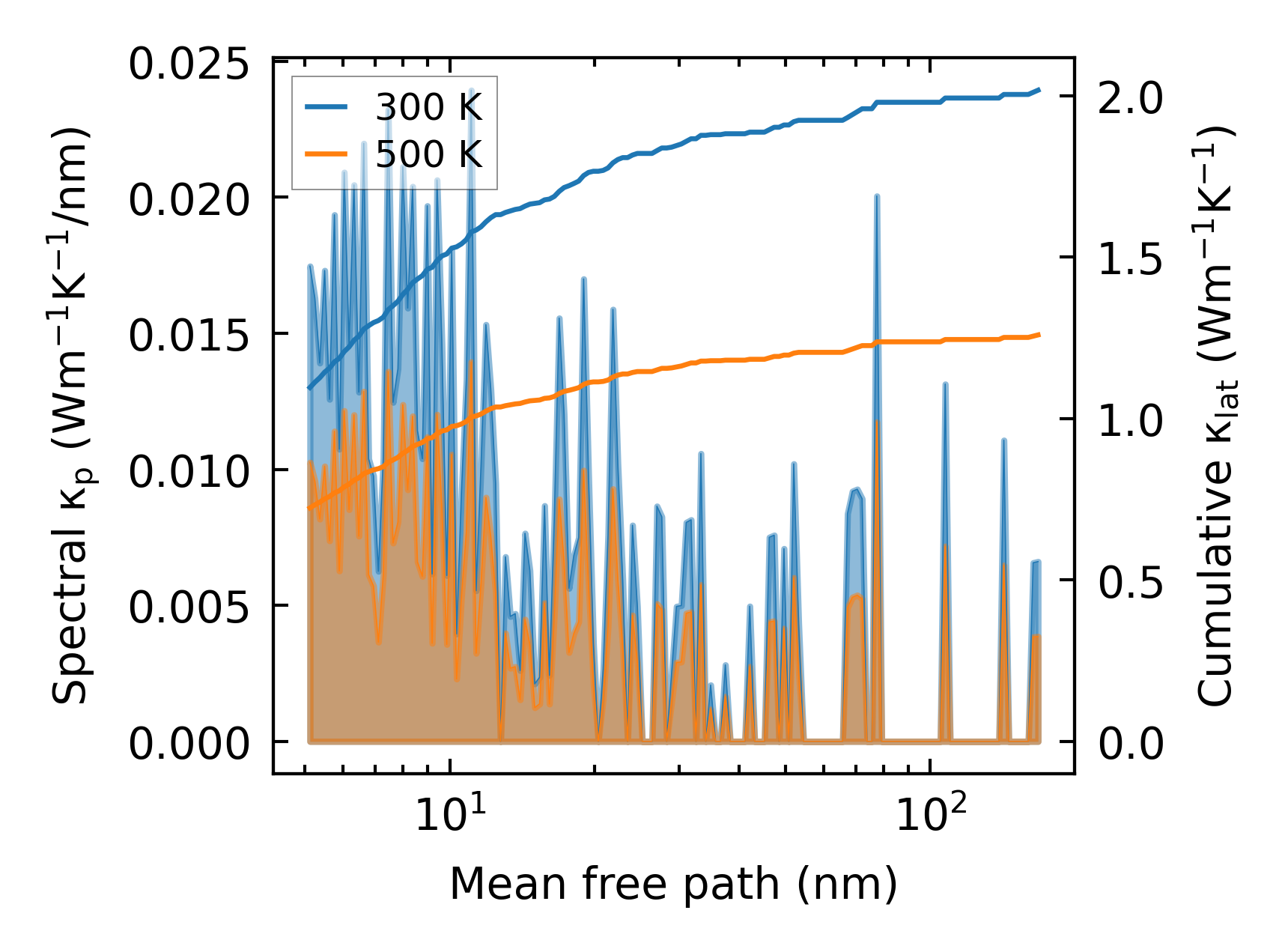

../../_images/fig_cumu_mfp2378.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

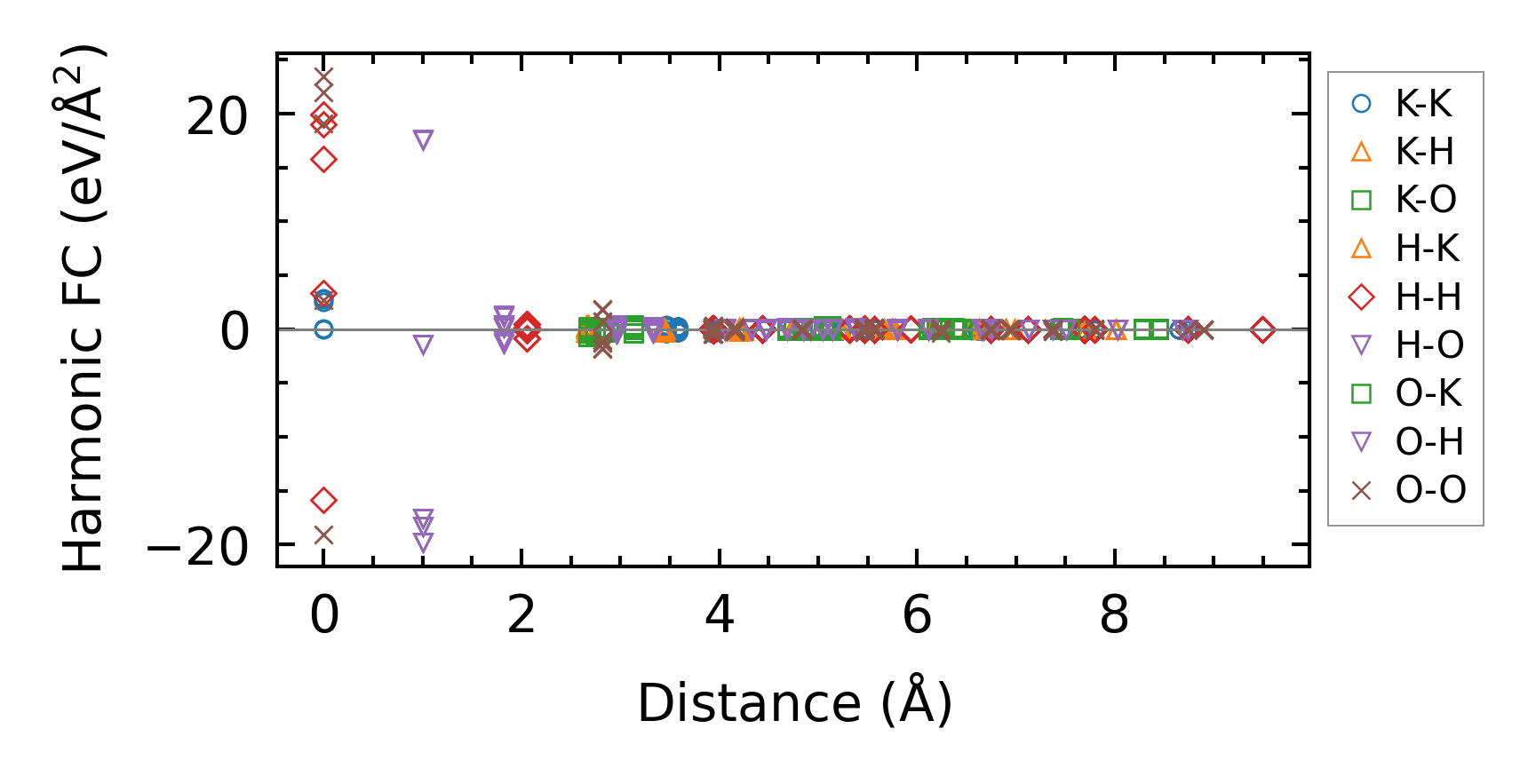

../../_images/fig_fc25605.png — (a) Force constants w.r.t atomic distance

Summary

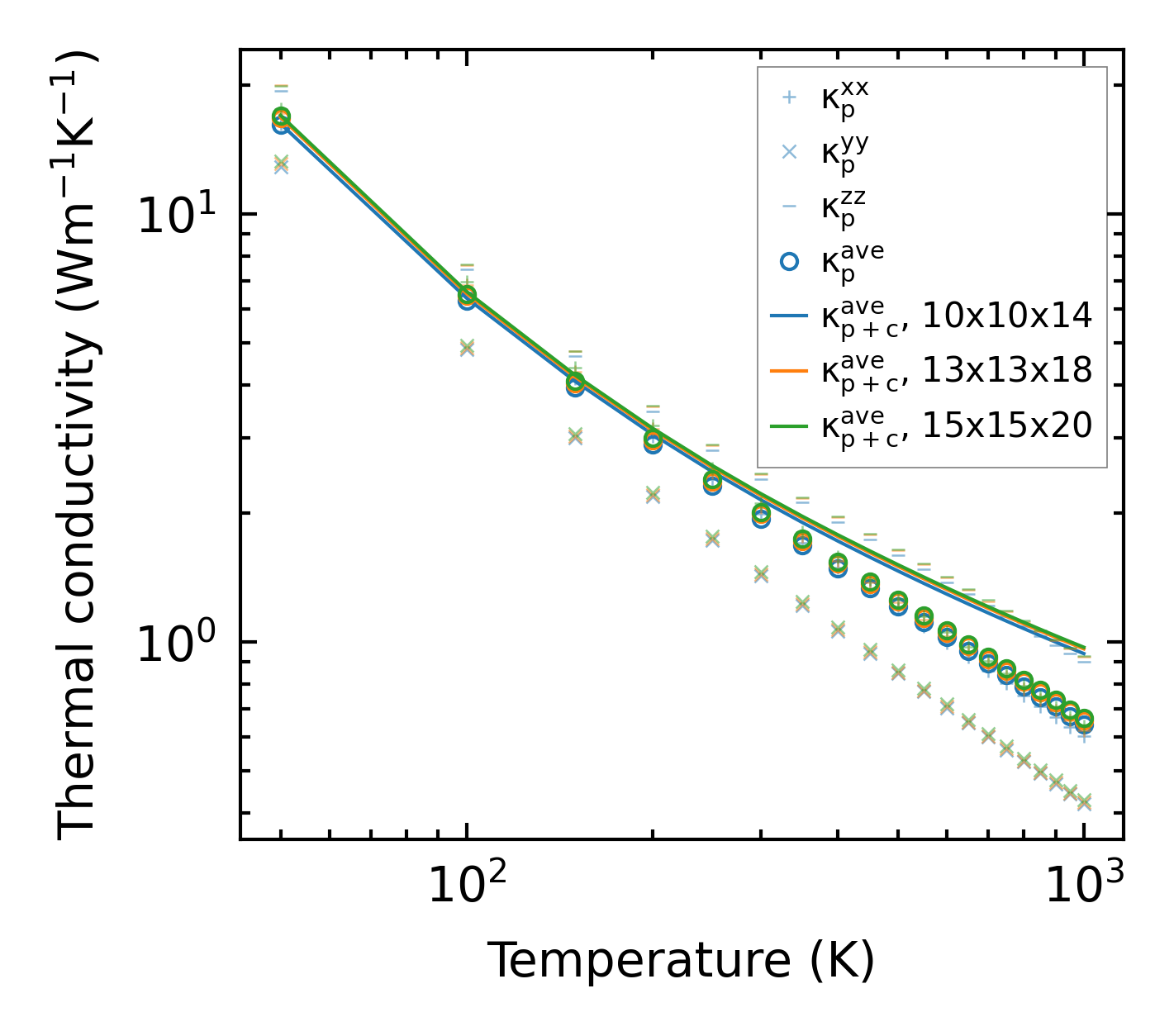

../../_images/fig_kappa4564.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_times10578.png — (b) Computation time
