mp-626725/BaH2O2/anharm

Space group: P2_1/c (14)
Link: Materials Project
Download: mp-626725.tar.gz

Harmonic properties

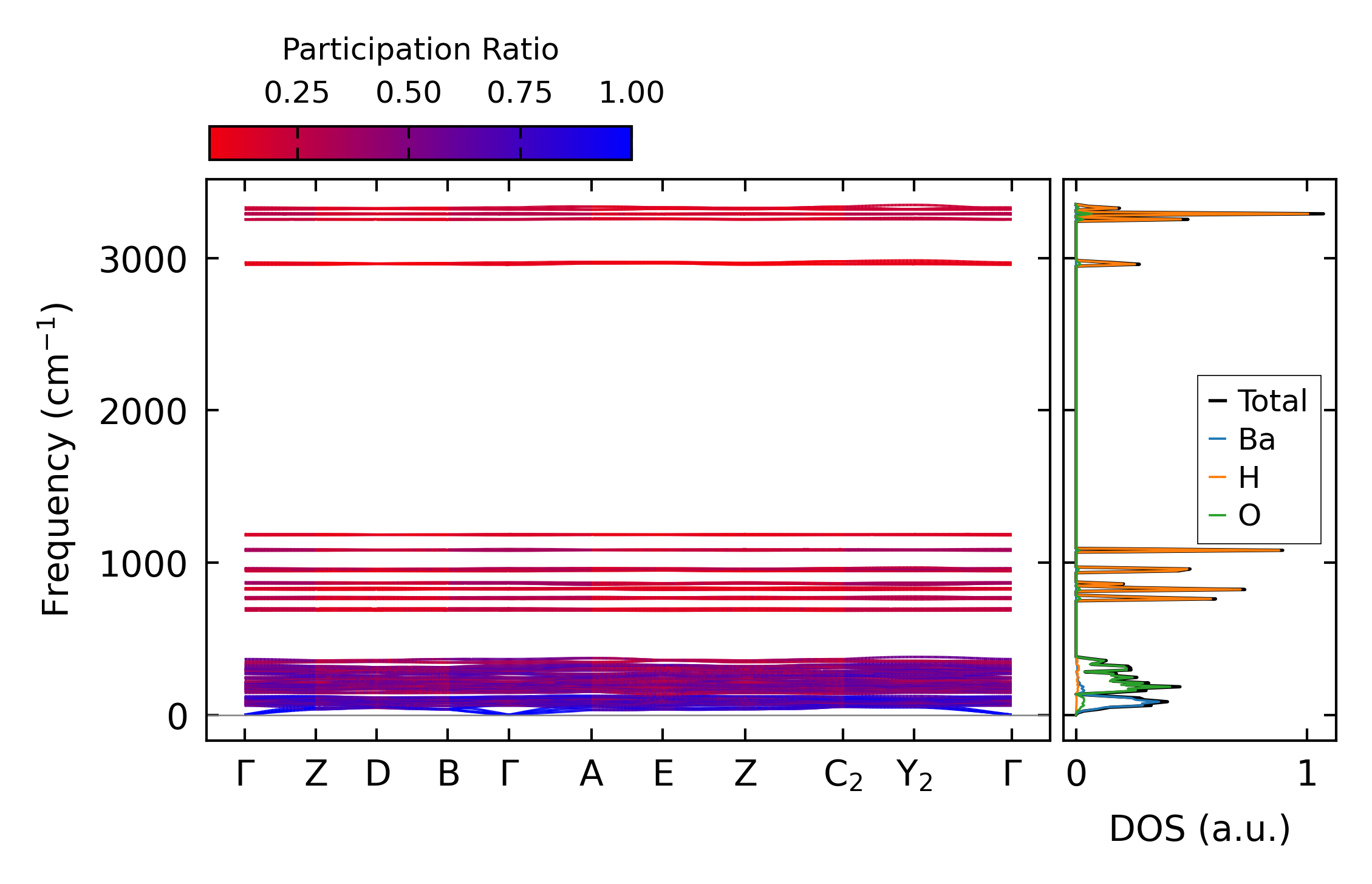

../../_images/fig_bandos_pr5807.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo5807.png — (b) Thermodynamic properties

Grüneisen parameters

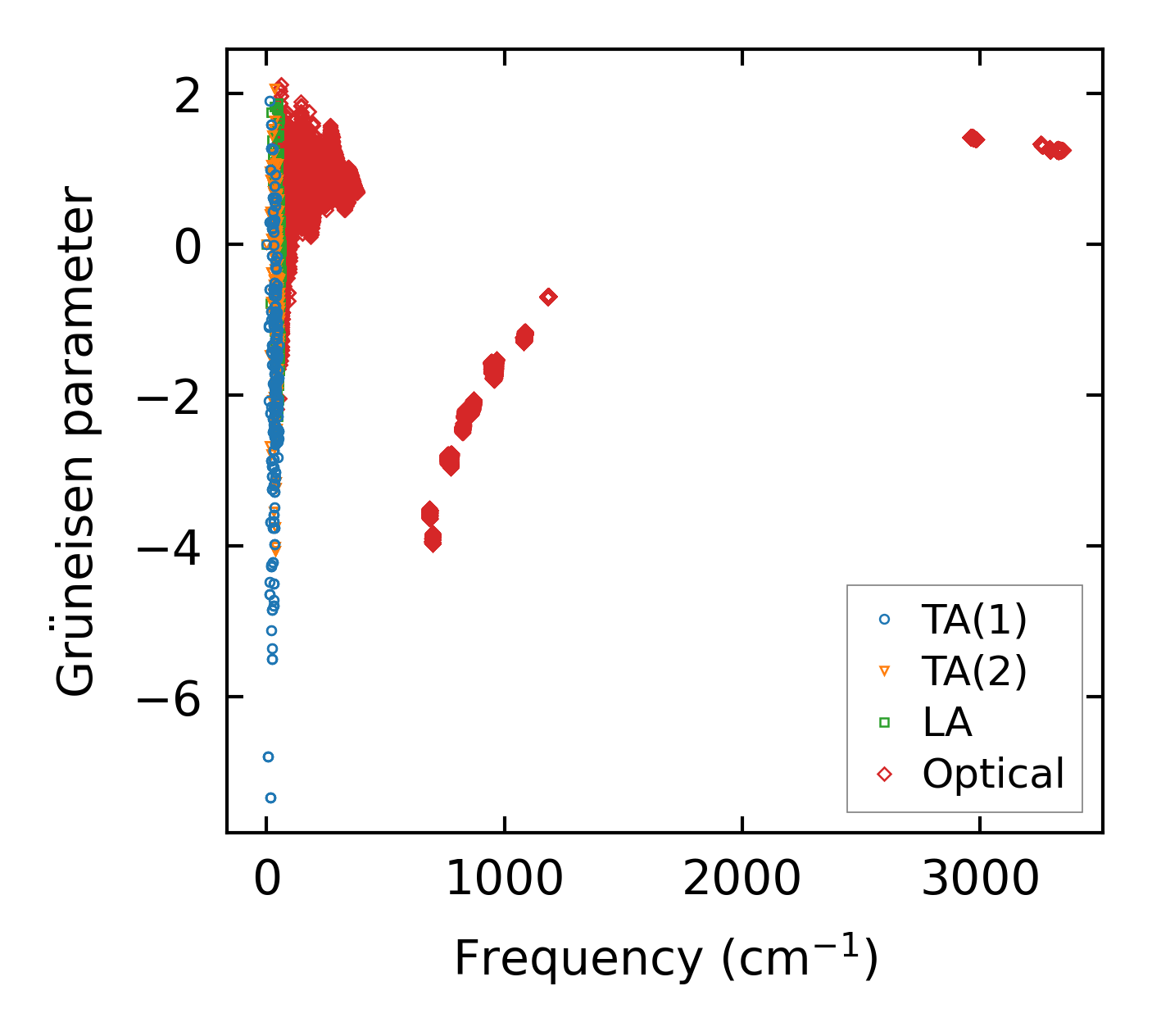

../../_images/fig_gru_all2392.png — (a) Grüneisen parameters

../../_images/fig_gruneisen2392.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 11x9x6, supercell: 2x1x1

../../_images/fig_kappa4560.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size2423.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

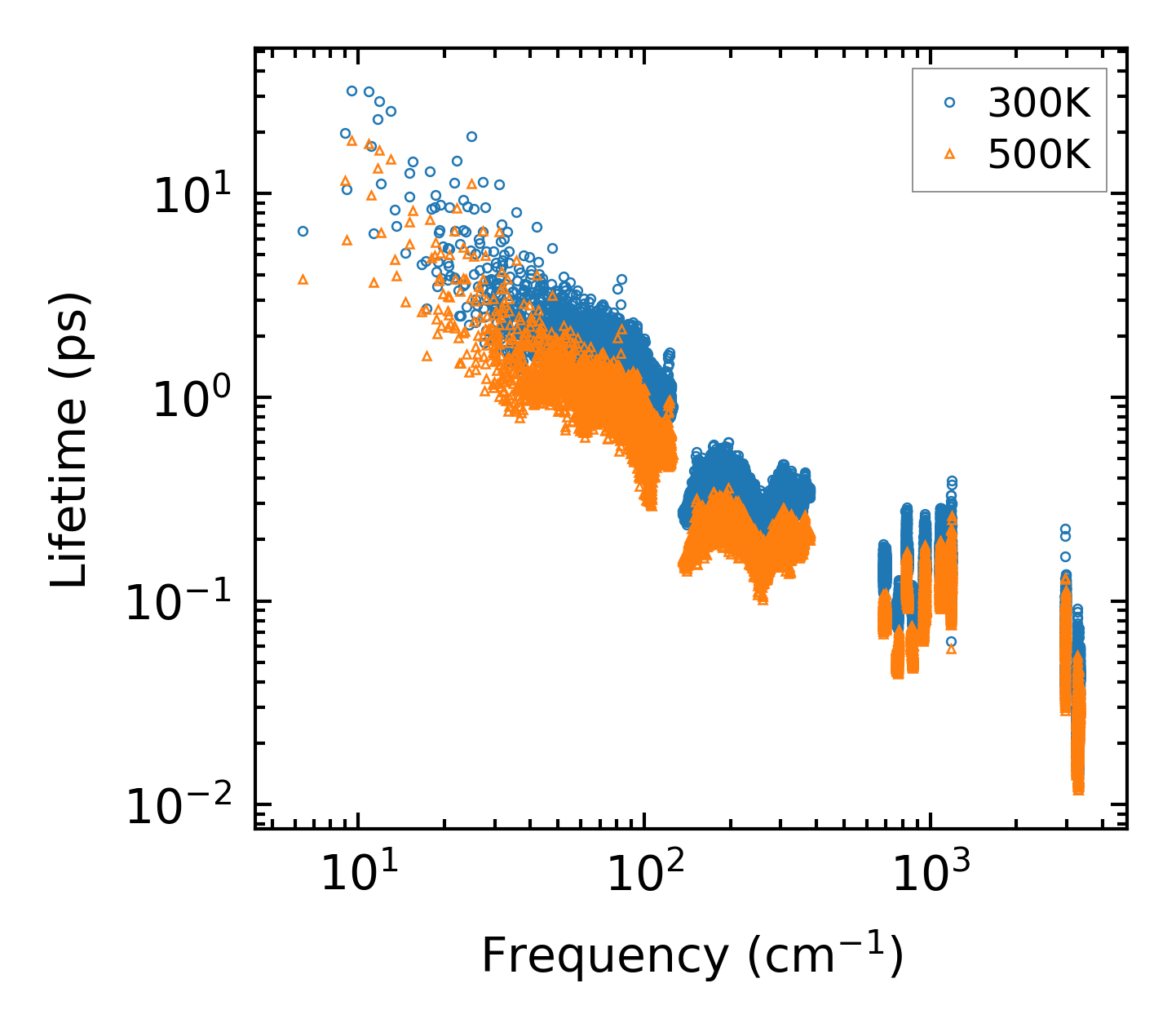

../../_images/fig_lifetime2376.png — (a) Phonon lifetime due to phonon-phonon scattering

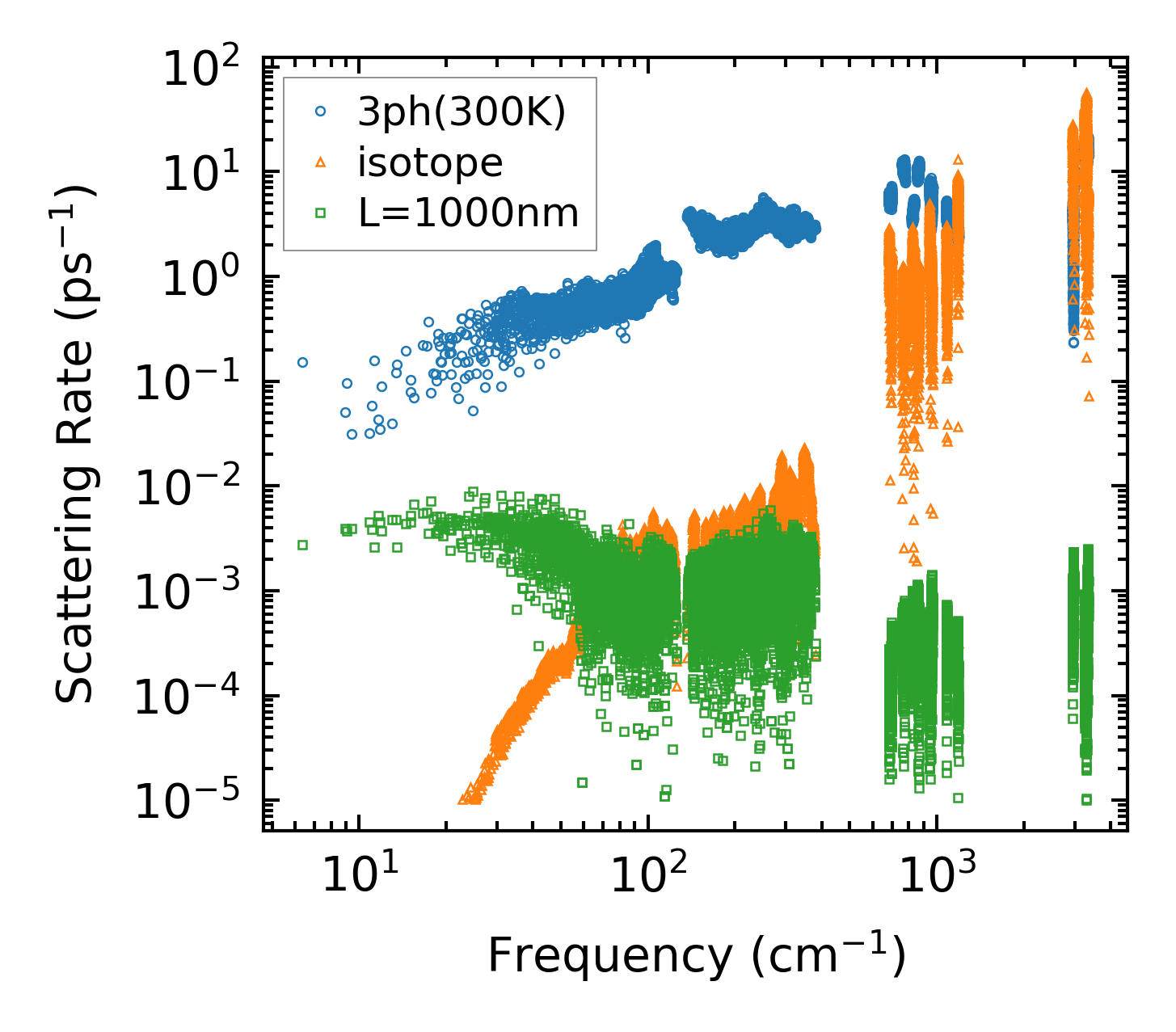

../../_images/fig_scat_rates2375.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

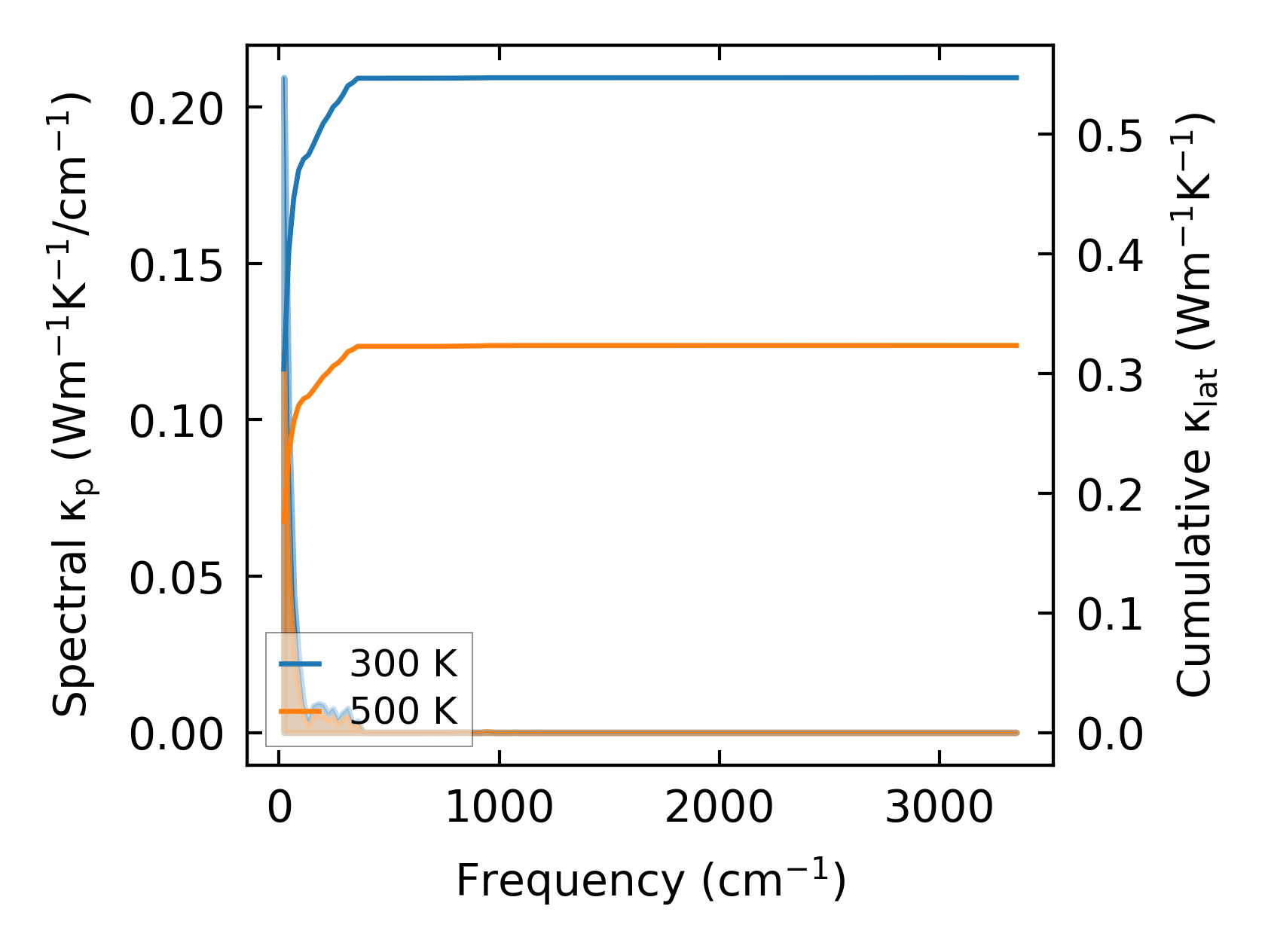

../../_images/fig_cumu_frequency2376.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

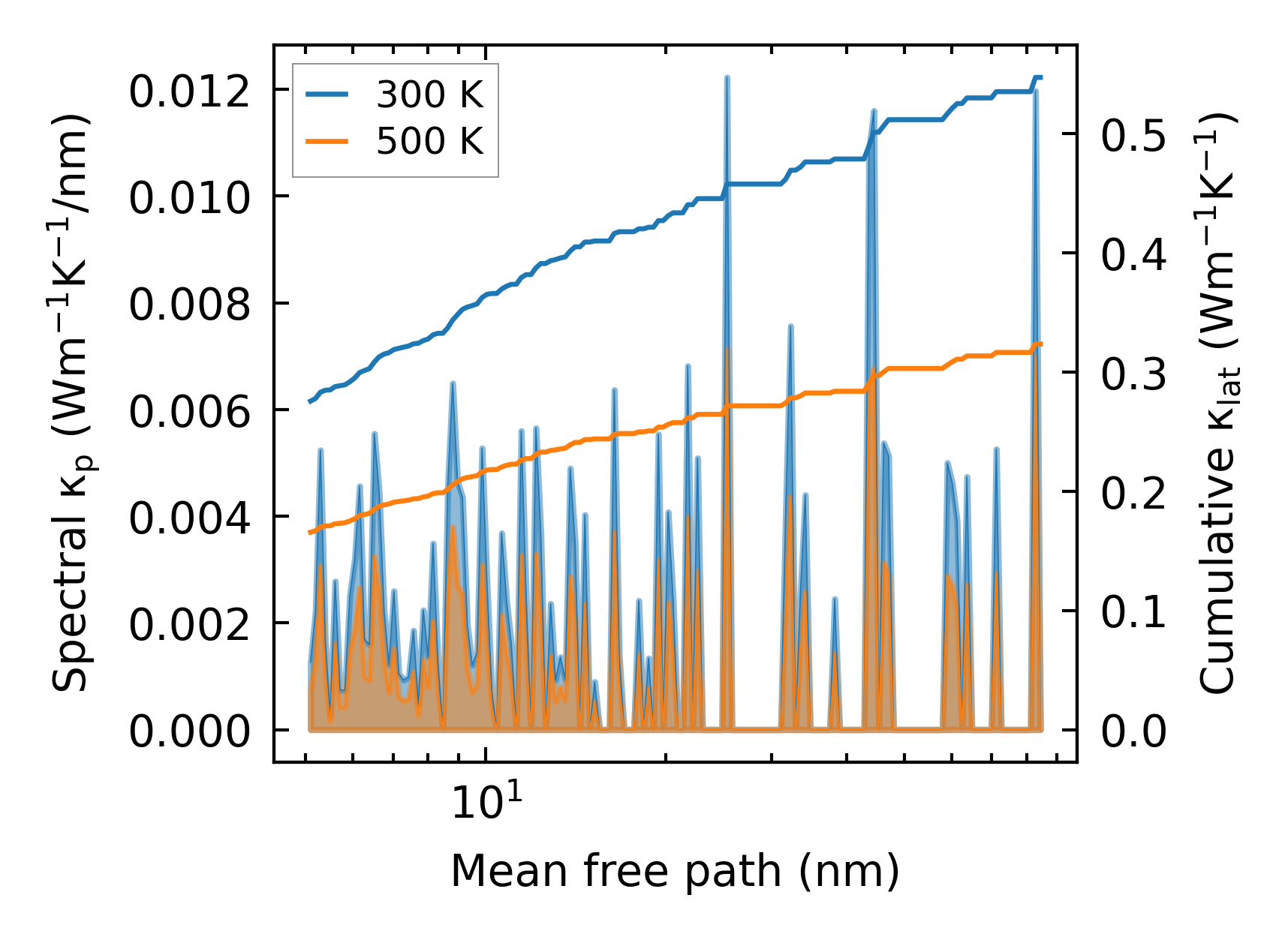

../../_images/fig_cumu_mfp2376.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

../../_images/fig_fc25603.png — (a) Force constants w.r.t atomic distance

Summary

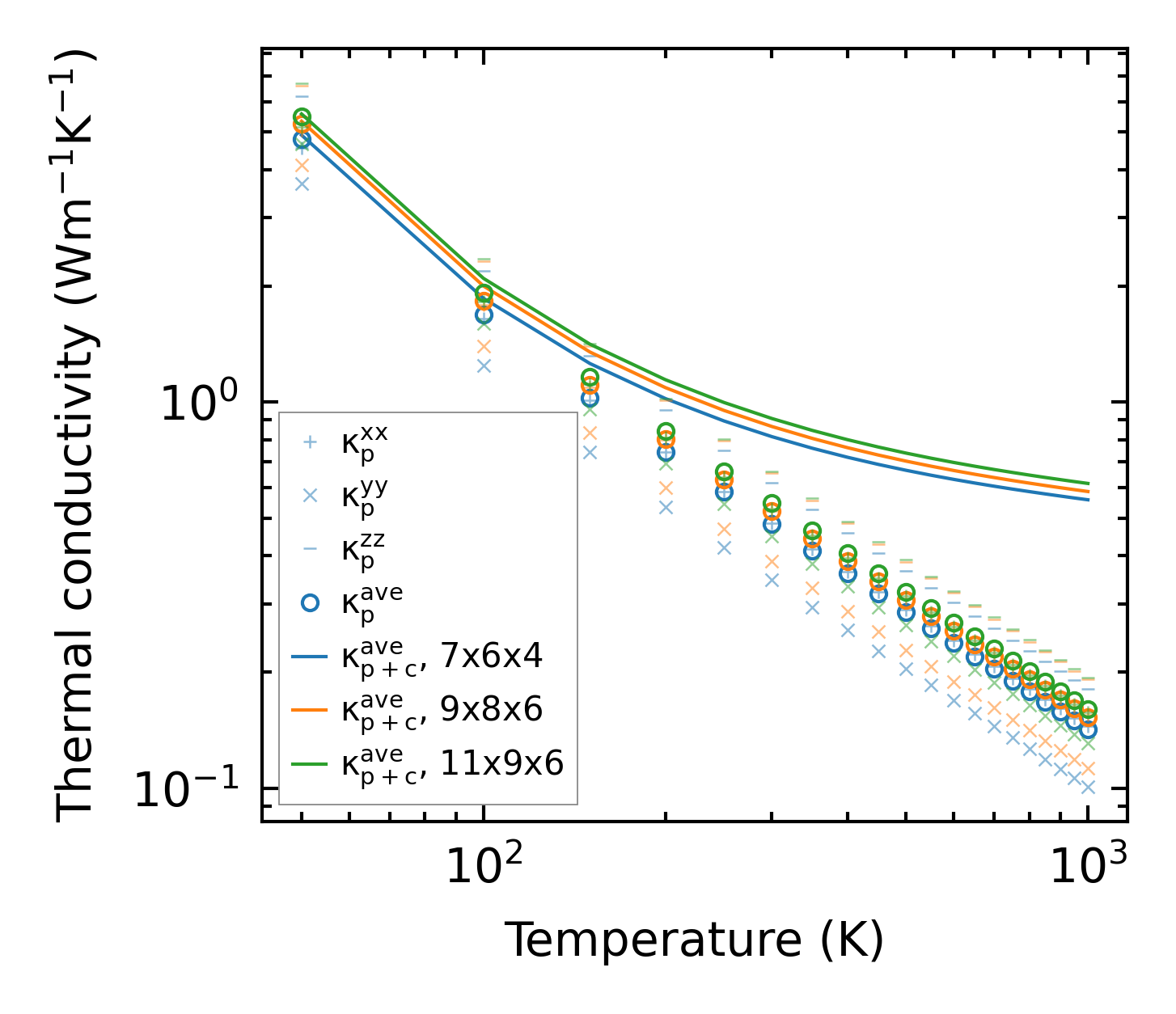

../../_images/fig_kappa4561.png — (a) Temperature-dependent lattice thermal conductivity

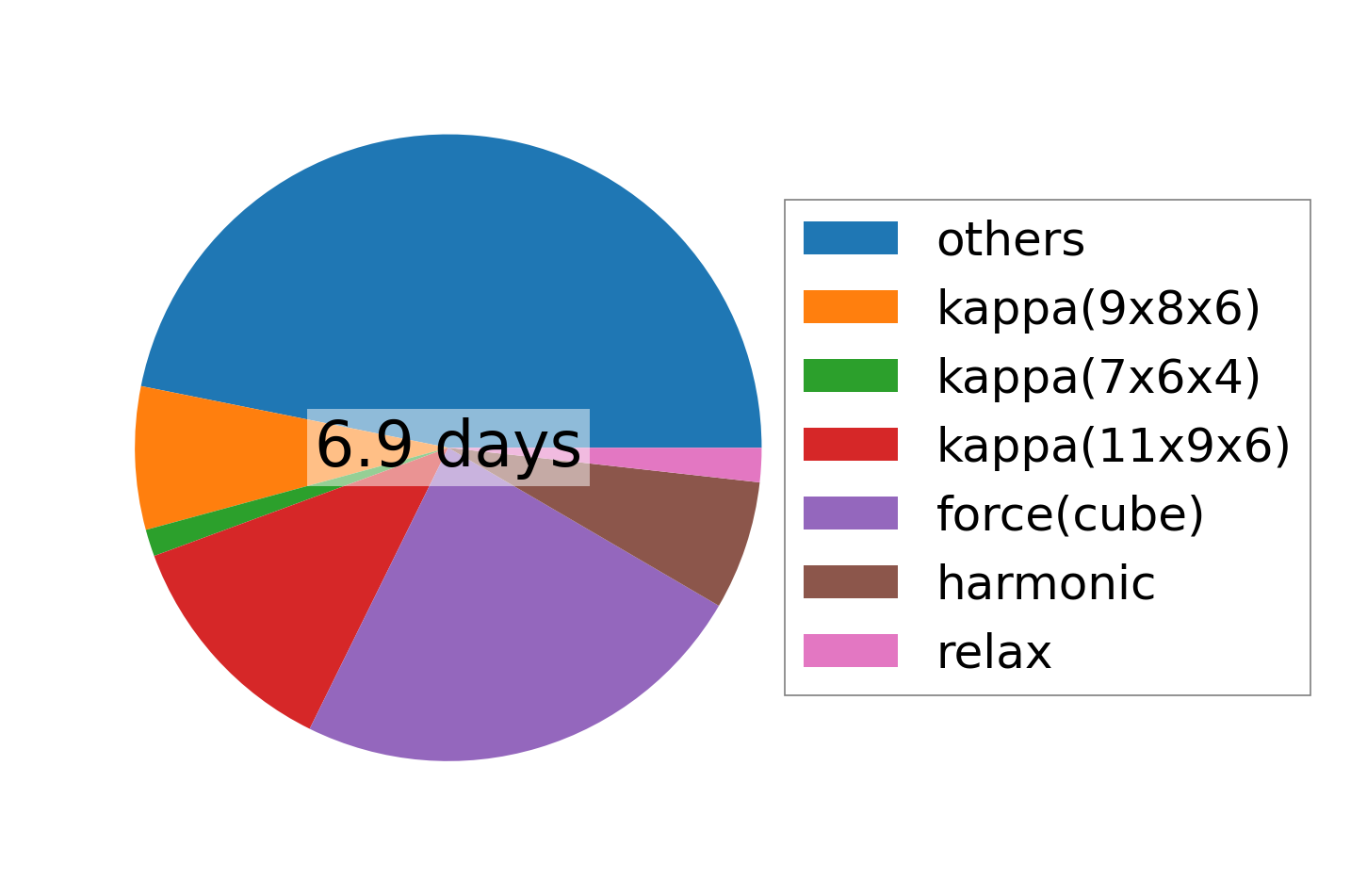

../../_images/fig_times10567.png — (b) Computation time
