mp-626412-2/InH3O3/anharm

Space group: R-3 (148)
Link: Materials Project
Download: mp-626412-2.tar.gz

Equation of state

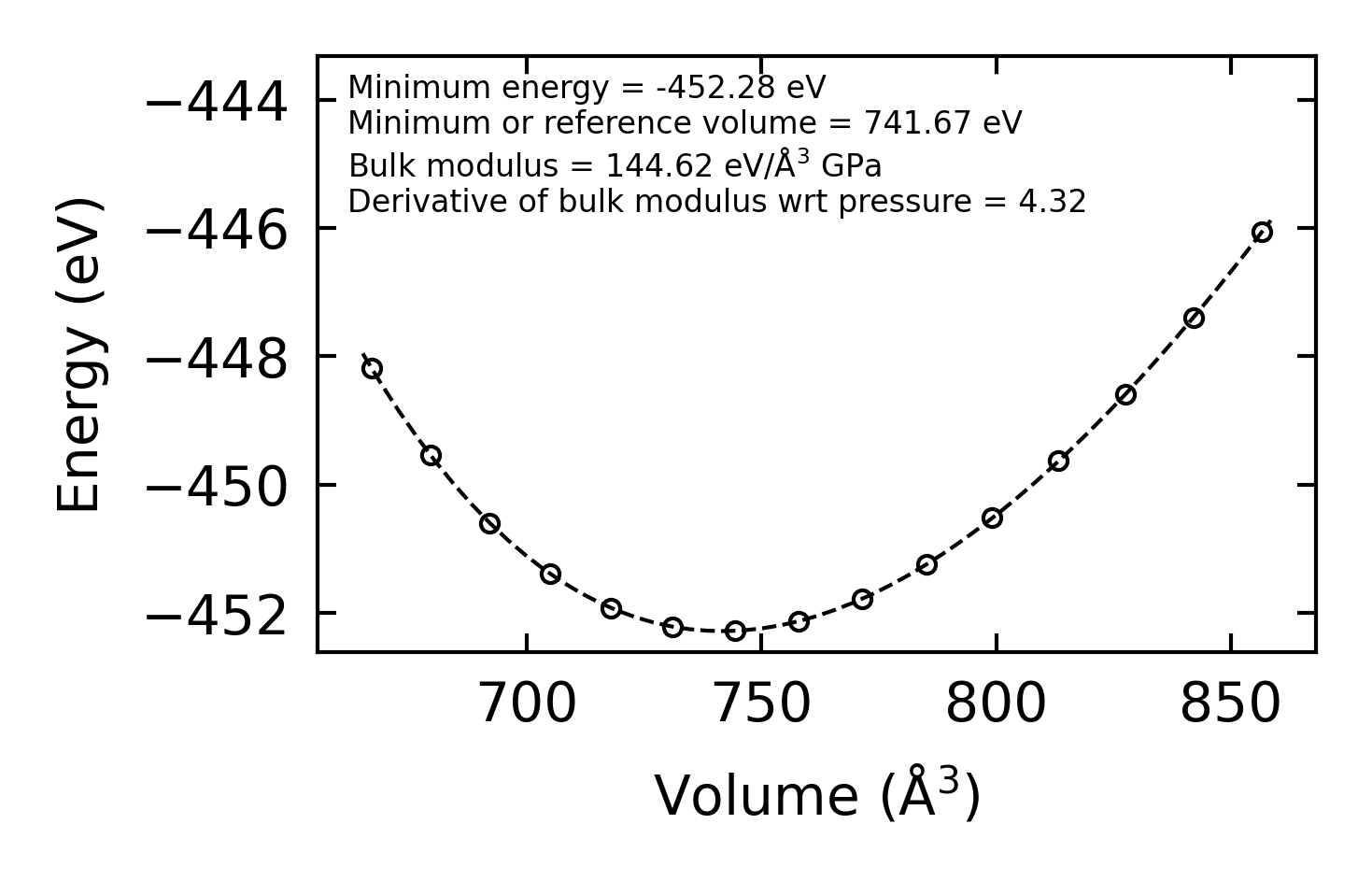

../../_images/fig_bm2909.png — (a) Equation of state

Harmonic properties

../../_images/fig_bandos_pr5782.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_bandos8375.png — (b) Phonon dispersion and DOS

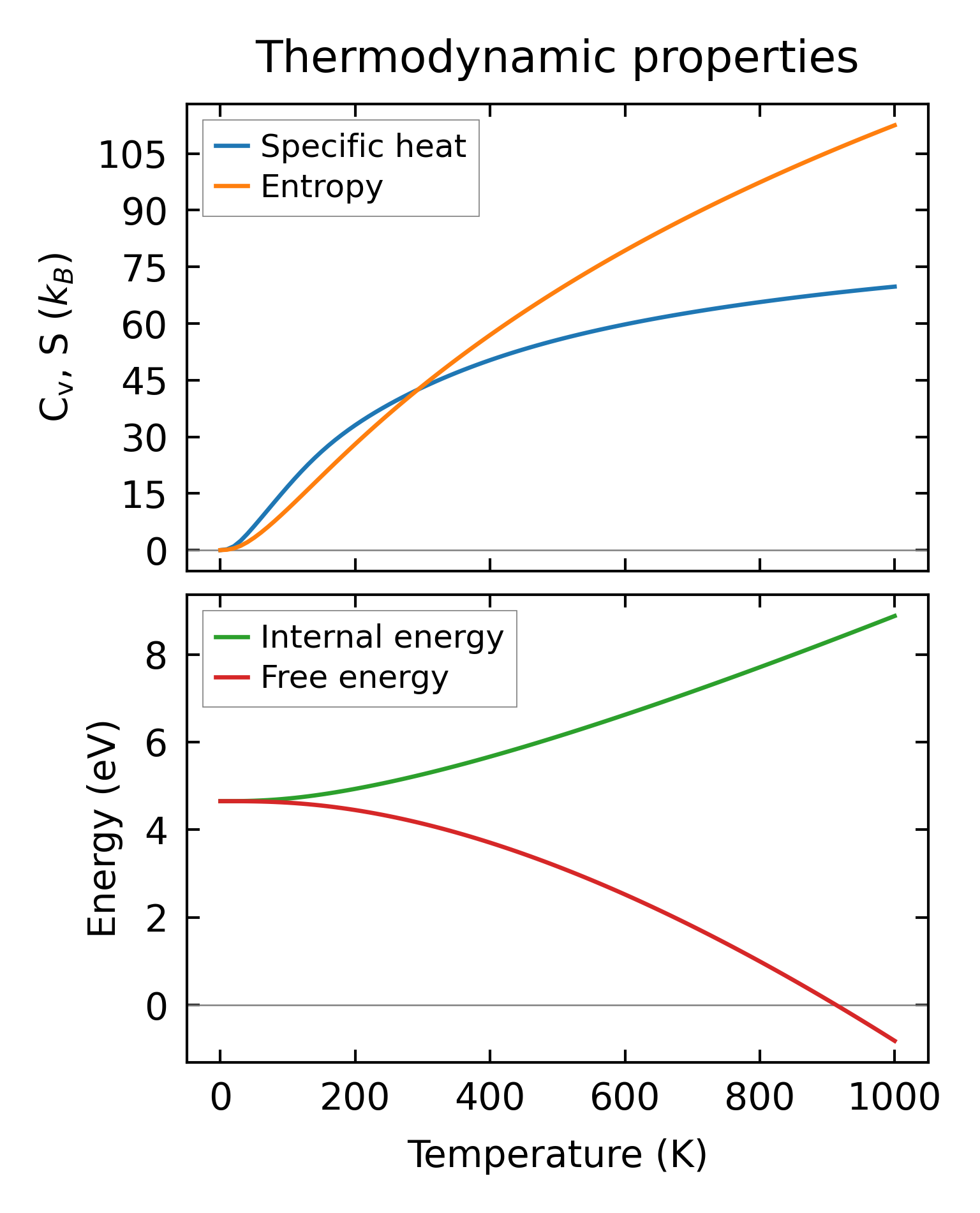

../../_images/fig_thermo5782.png — (c) Thermodynamic properties

Grüneisen parameters

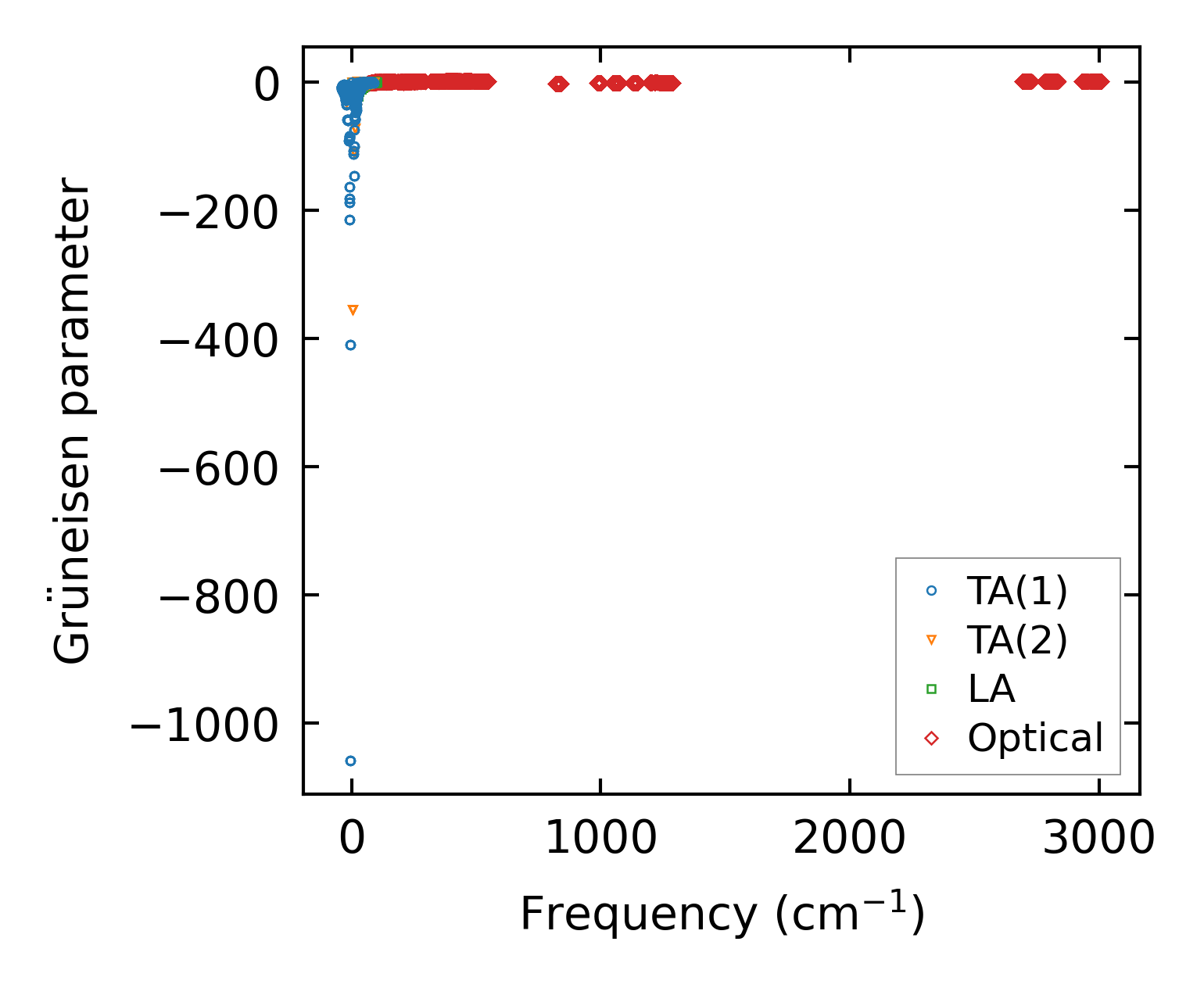

../../_images/fig_gru_all2389.png — (a) Grüneisen parameters

../../_images/fig_gruneisen2389.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO), supercell 1x1x2 — q-mesh: 11x11x11, supercell: 1x1x2

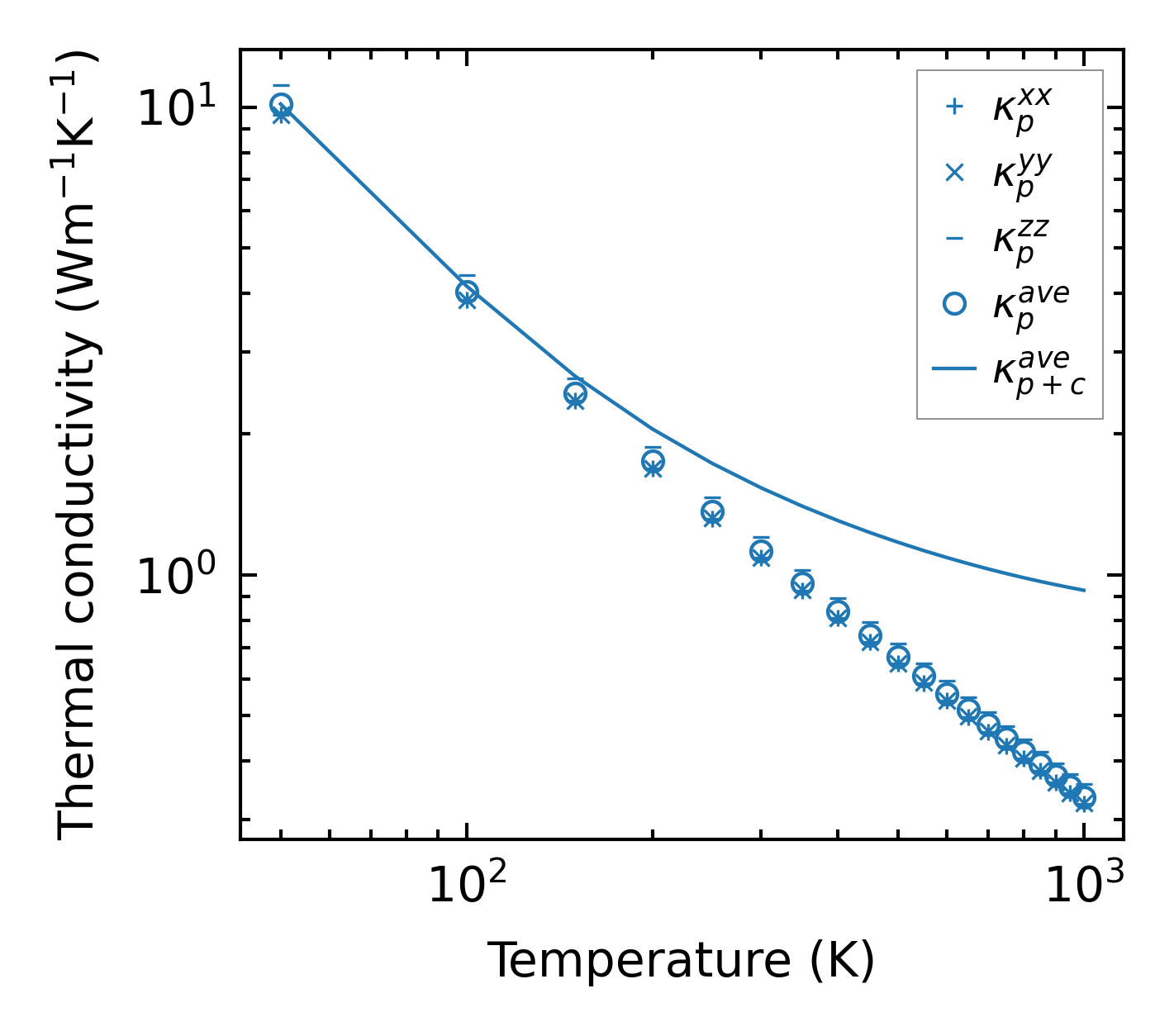

../../_images/fig_kappa4556.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size2420.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

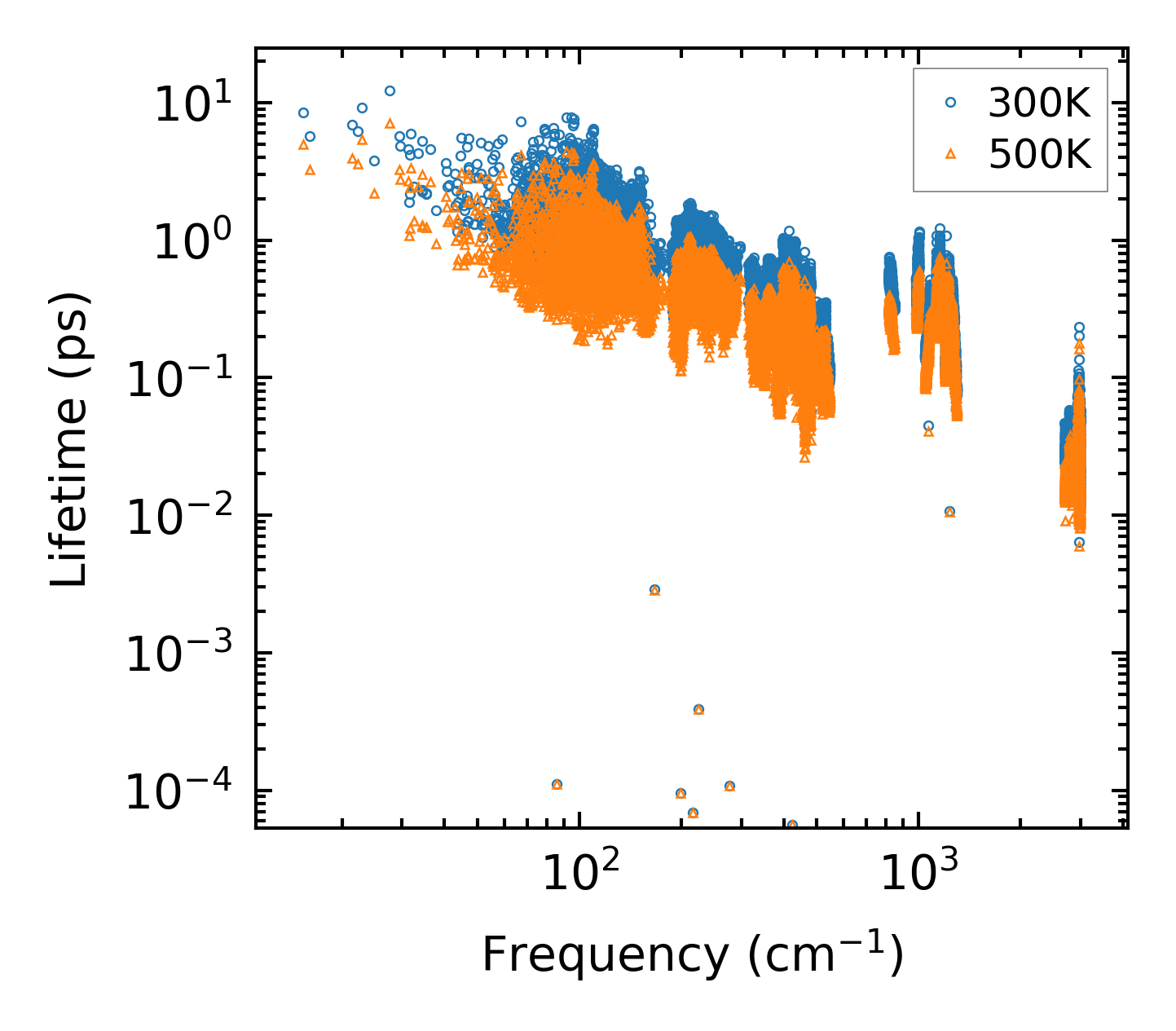

../../_images/fig_lifetime2373.png — (a) Phonon lifetime due to phonon-phonon scattering

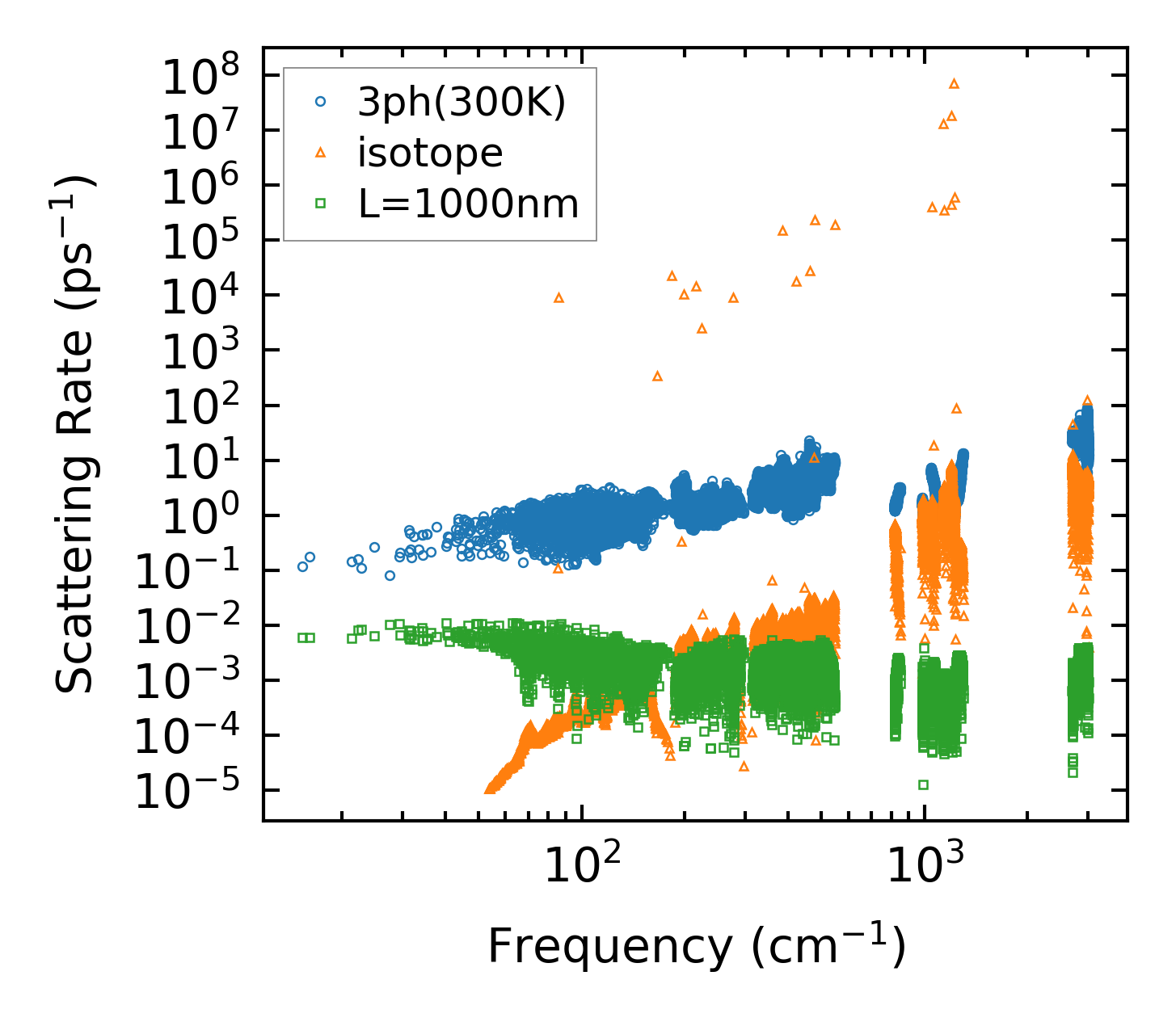

../../_images/fig_scat_rates2372.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

../../_images/fig_cumu_frequency2373.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

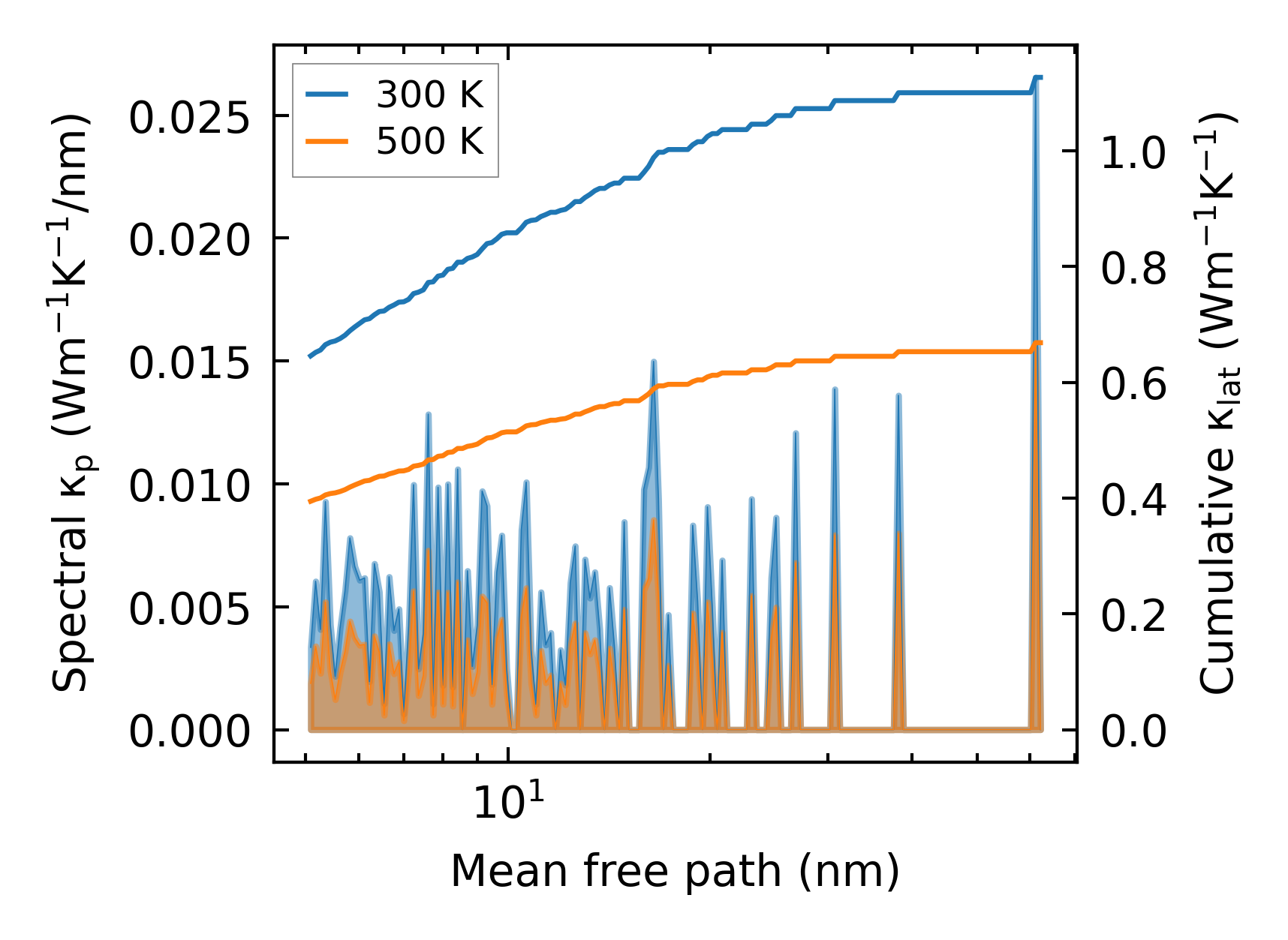

../../_images/fig_cumu_mfp2373.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

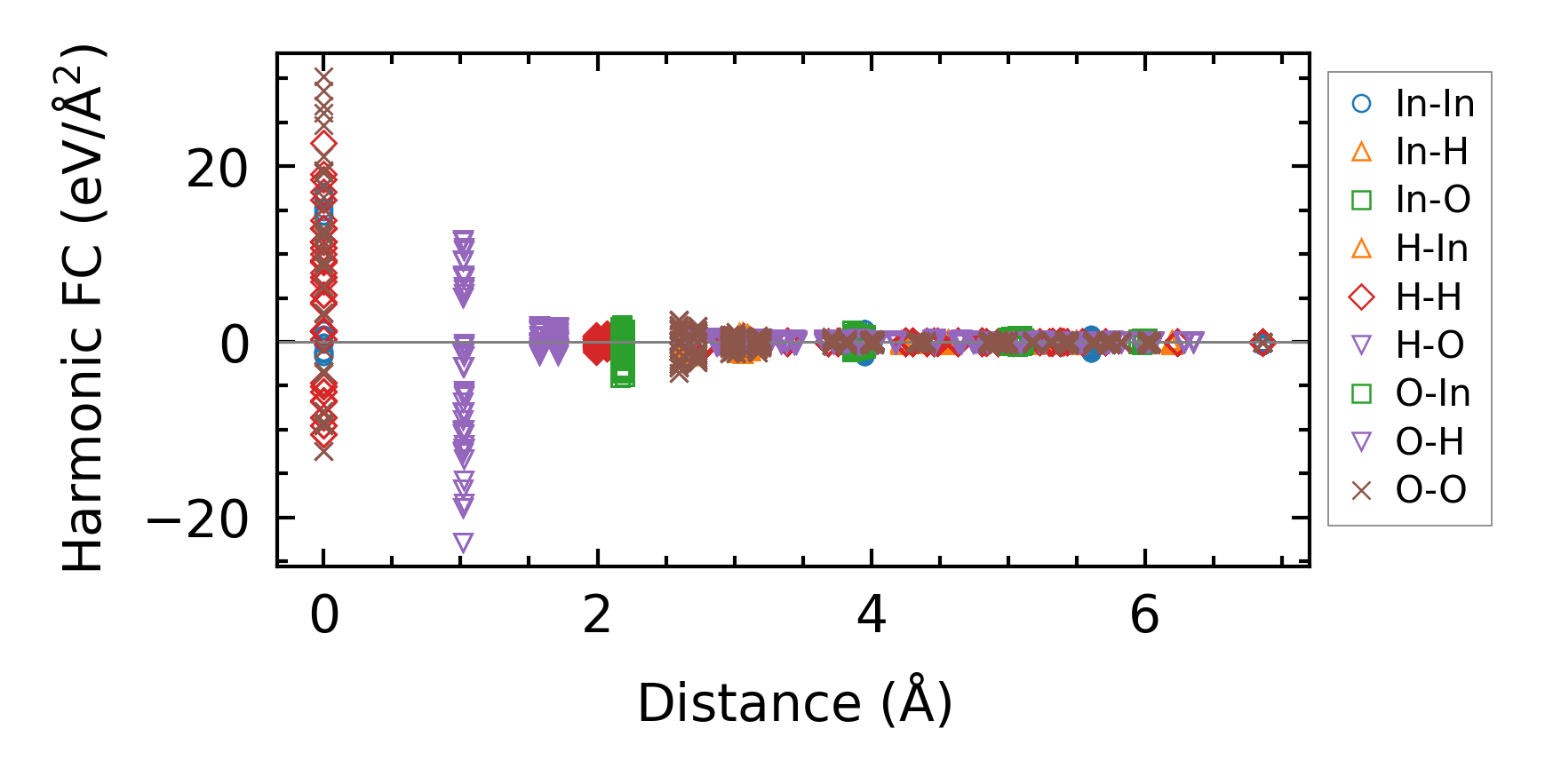

../../_images/fig_fc25578.png — (a) Force constants w.r.t atomic distance

Summary

../../_images/fig_times10490.png — (a) Computation time
