mp-581749/CsTm2Cu3Se5/anharm

Space group: Cmcm (63)
Link: Materials Project
Download: mp-581749.tar.gz

Harmonic properties

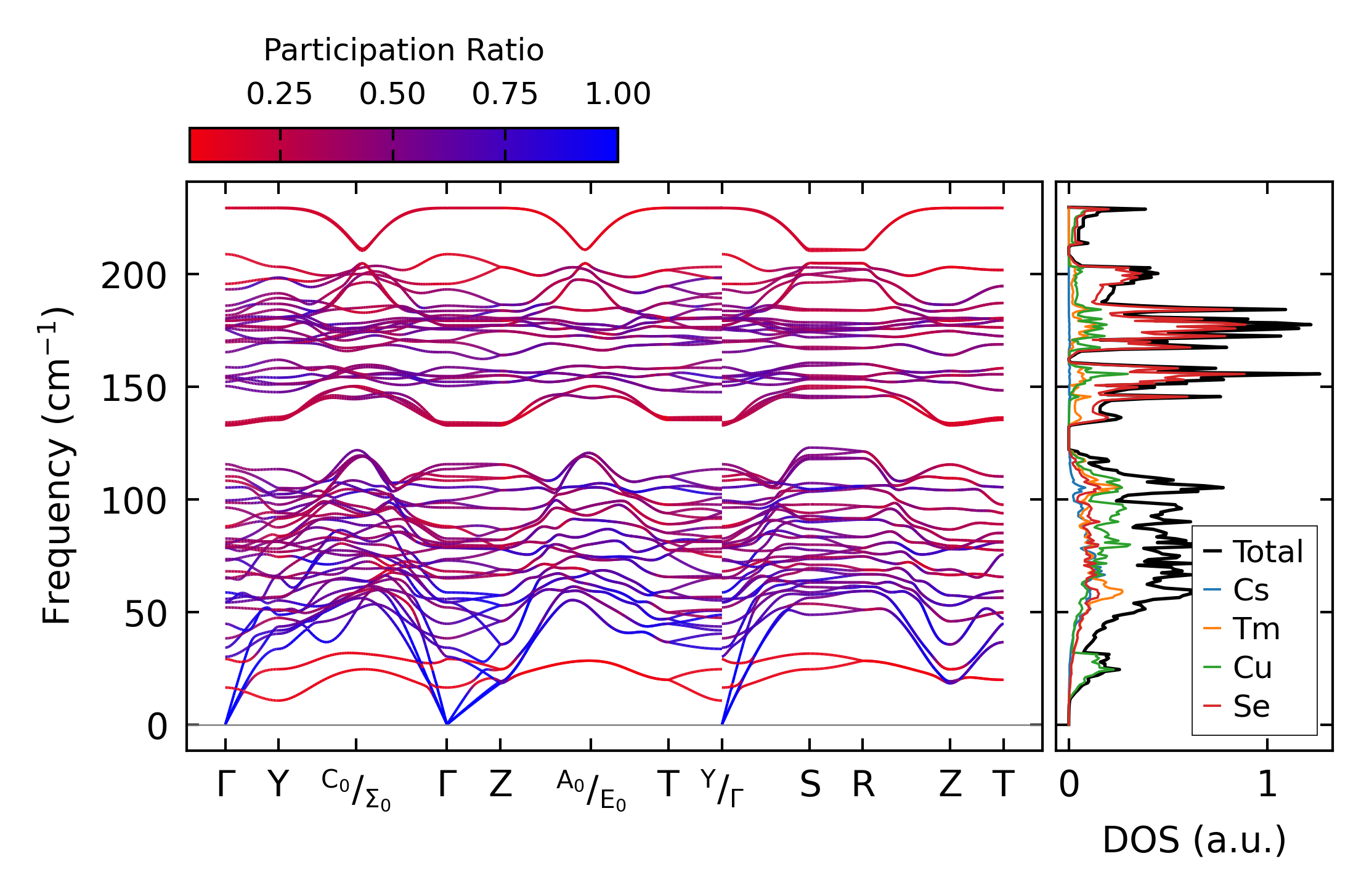

../../_images/fig_bandos_pr6777.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo6777.png — (b) Thermodynamic properties

Grüneisen parameters

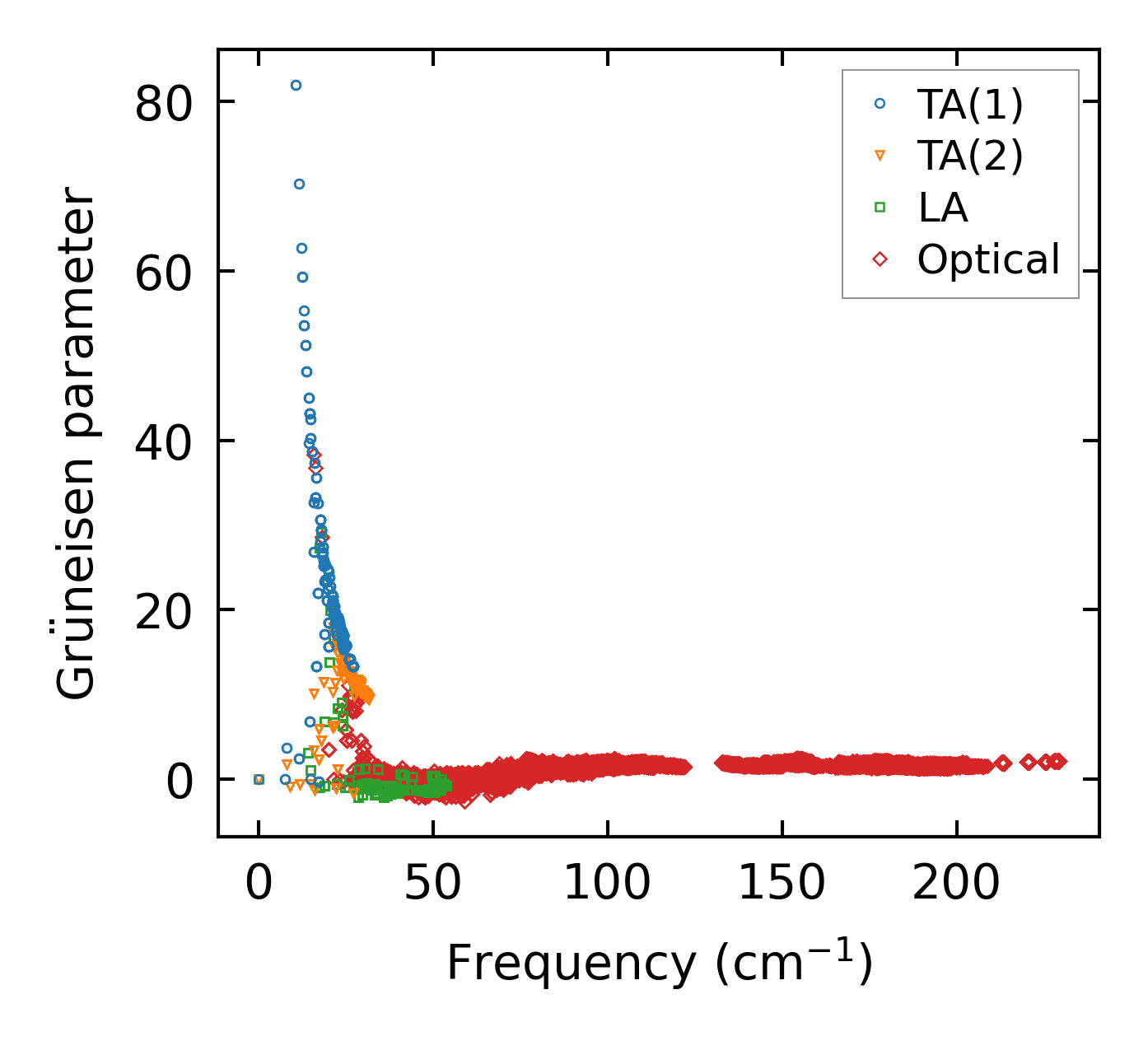

../../_images/fig_gru_all2782.png — (a) Grüneisen parameters

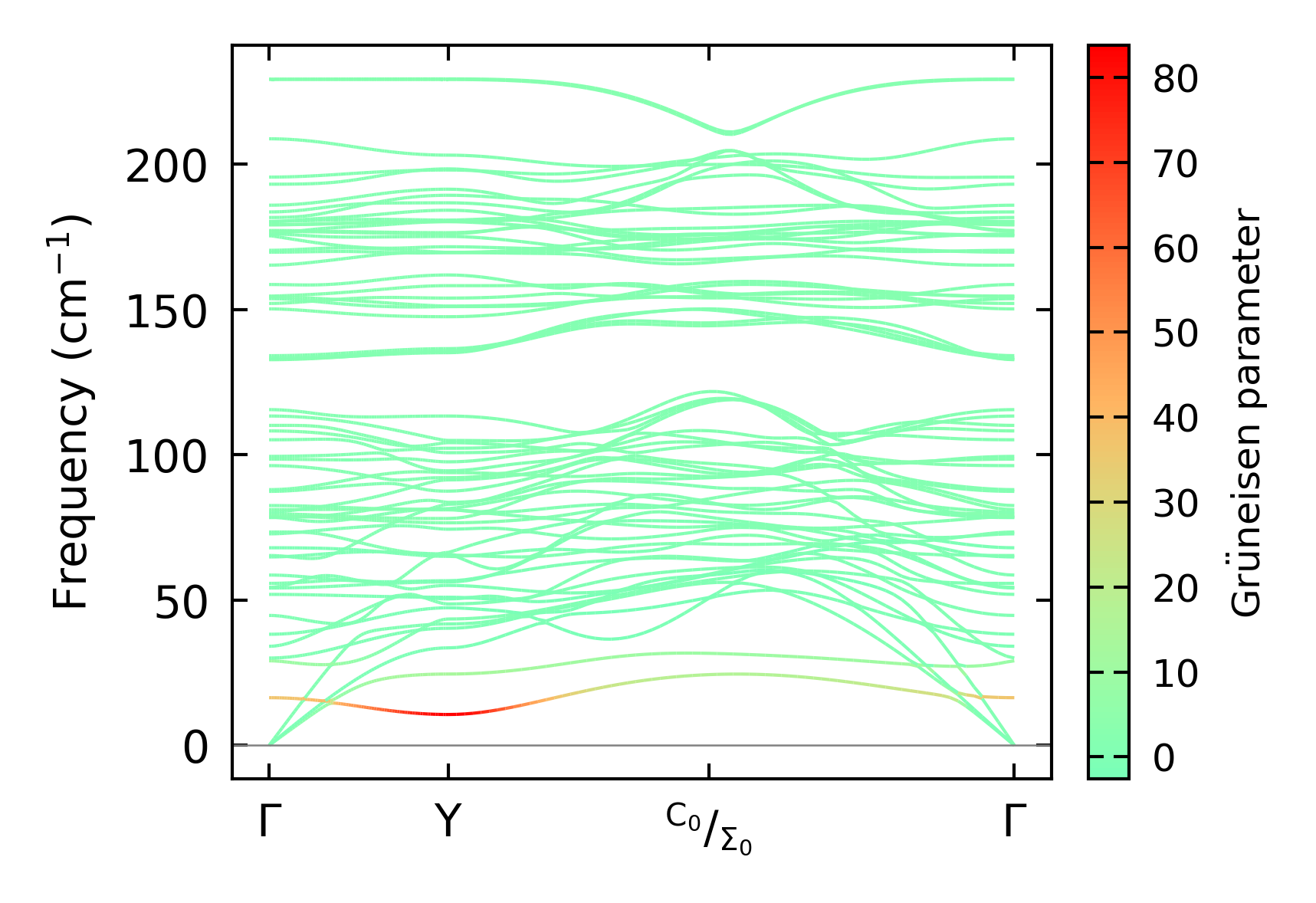

../../_images/fig_gruneisen2782.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 11x11x5, supercell: 3x1x1

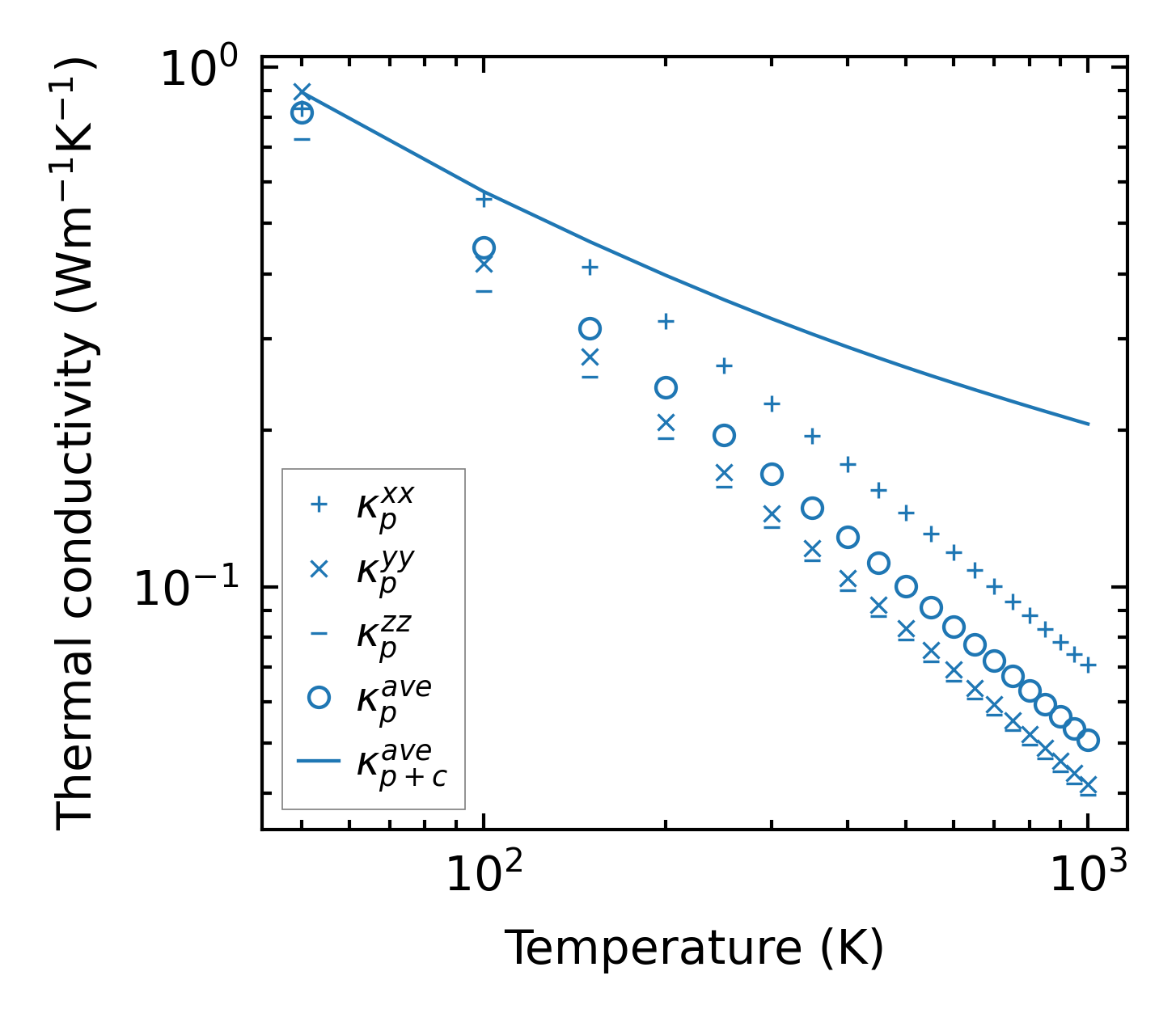

../../_images/fig_kappa5285.png — (a) Temperature-dependent lattice thermal conductivity

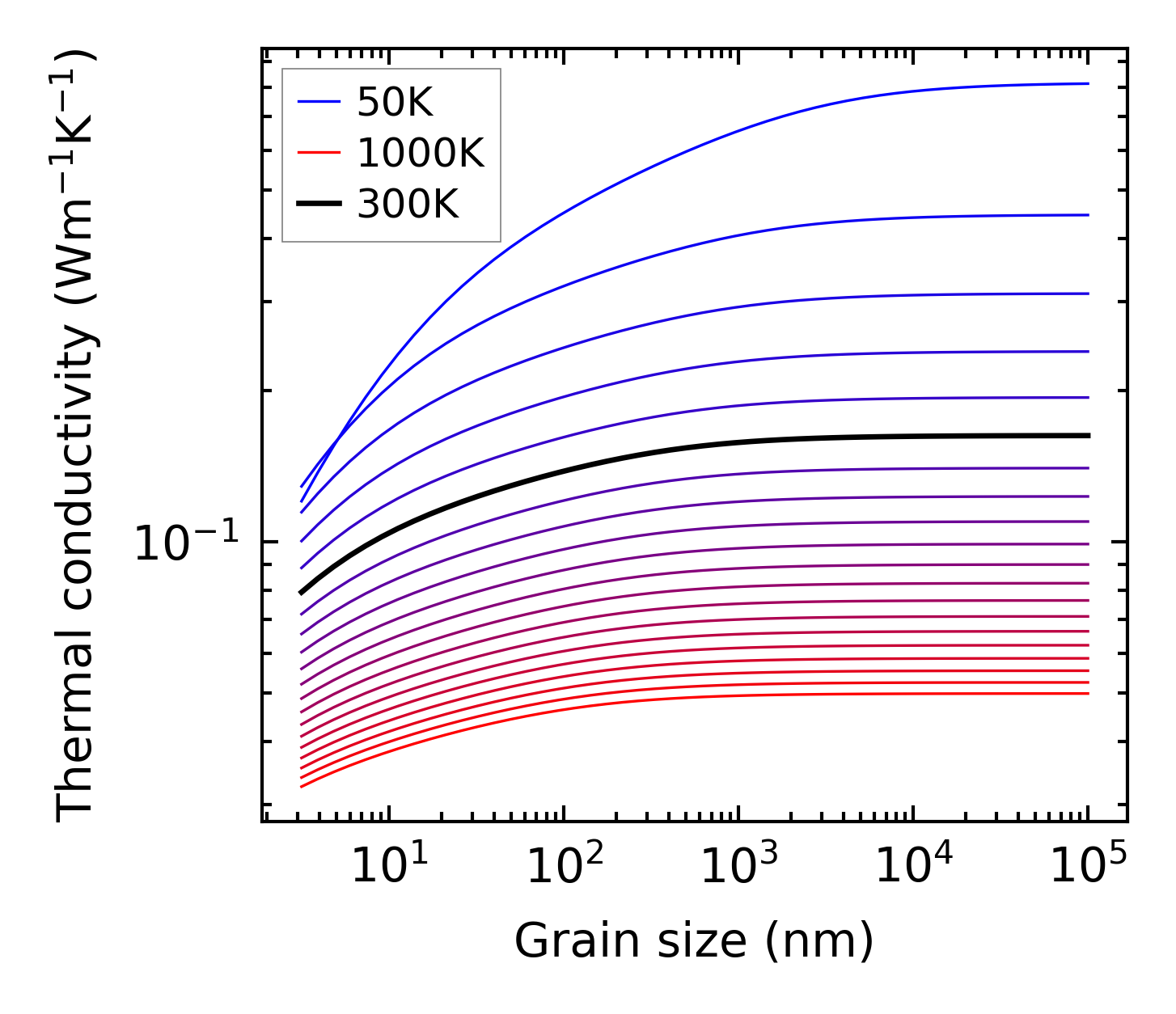

../../_images/fig_kappa_vs_grain_size2823.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

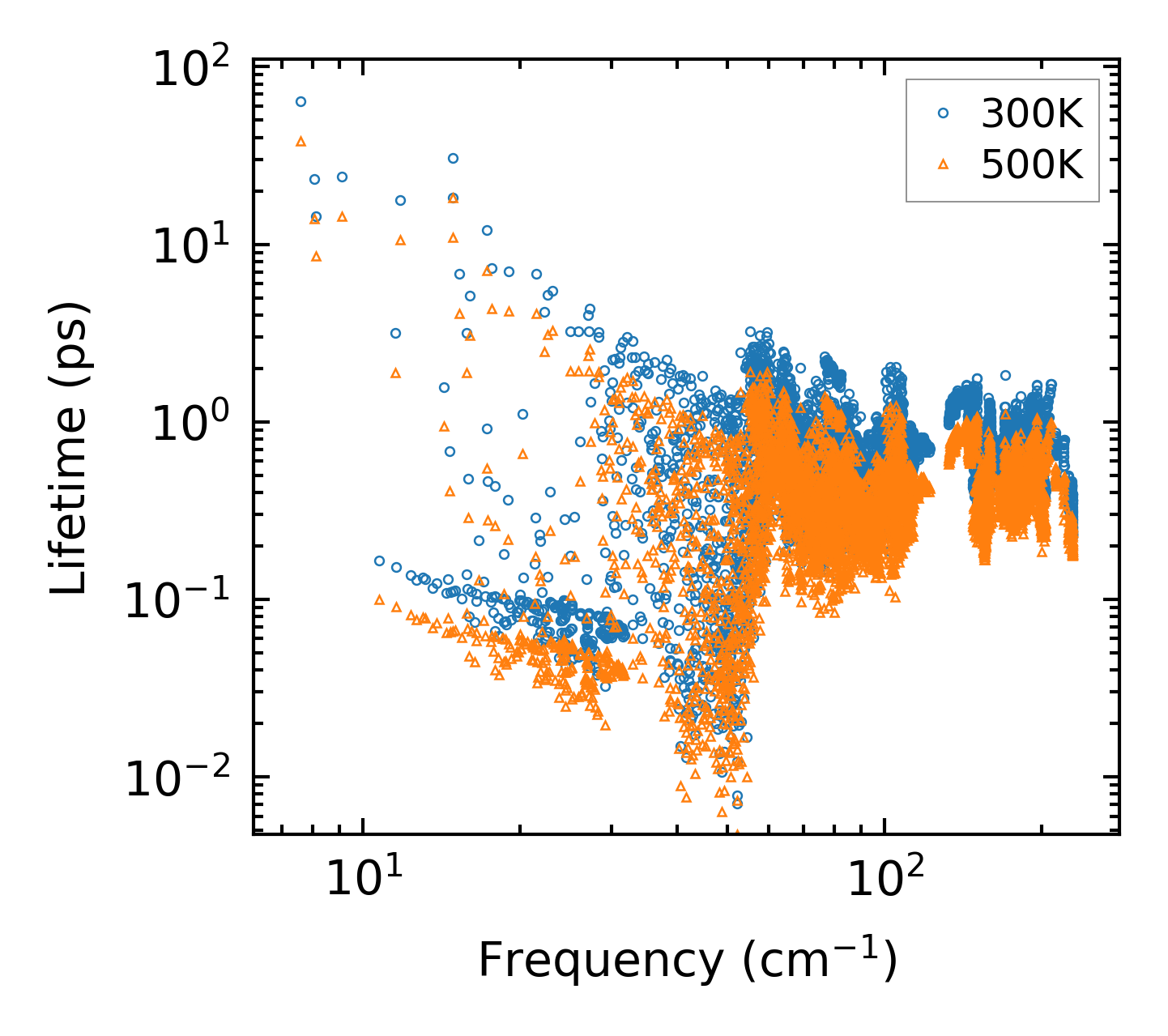

../../_images/fig_lifetime2758.png — (a) Phonon lifetime due to phonon-phonon scattering

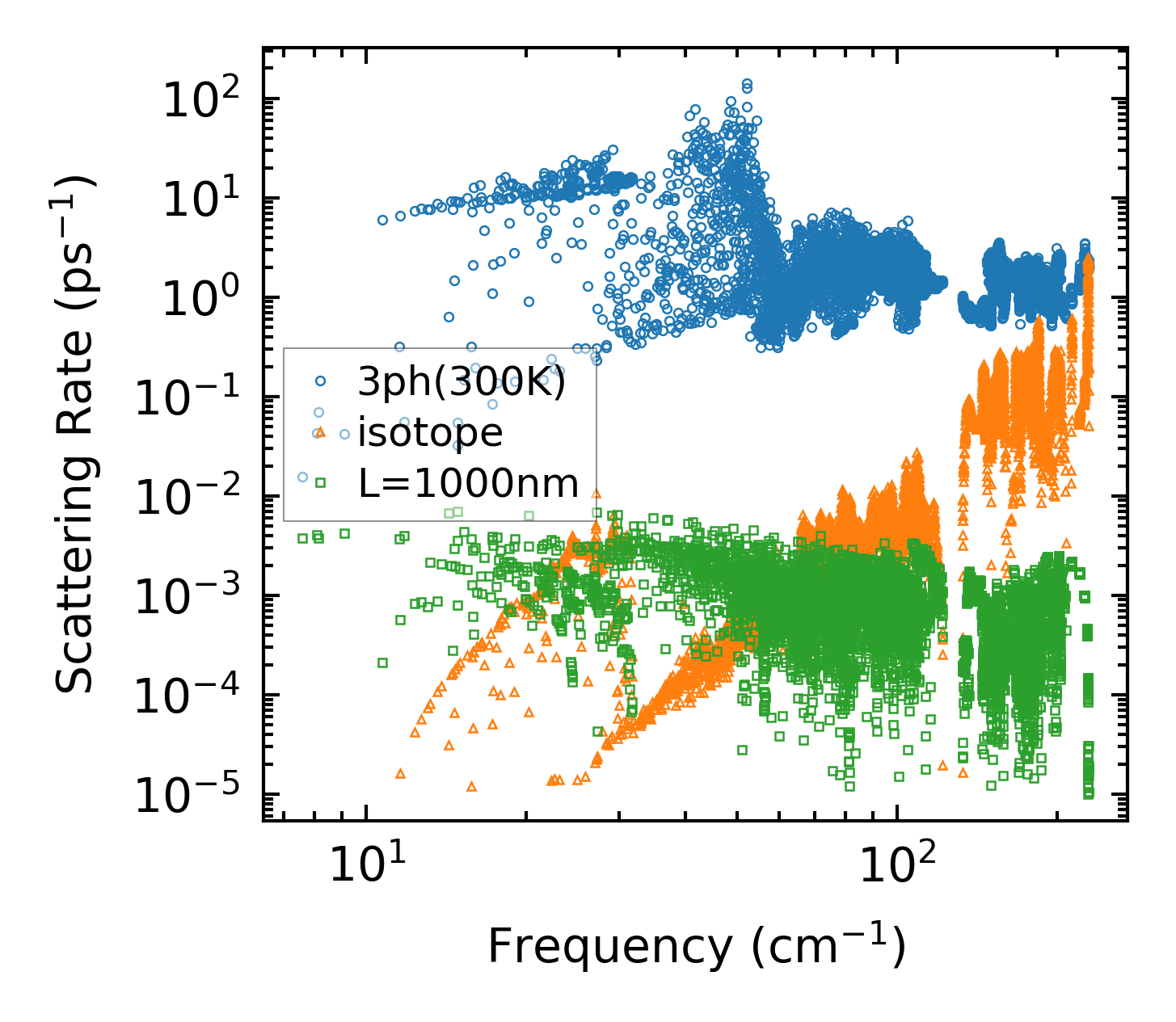

../../_images/fig_scat_rates2757.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

../../_images/fig_cumu_frequency2758.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

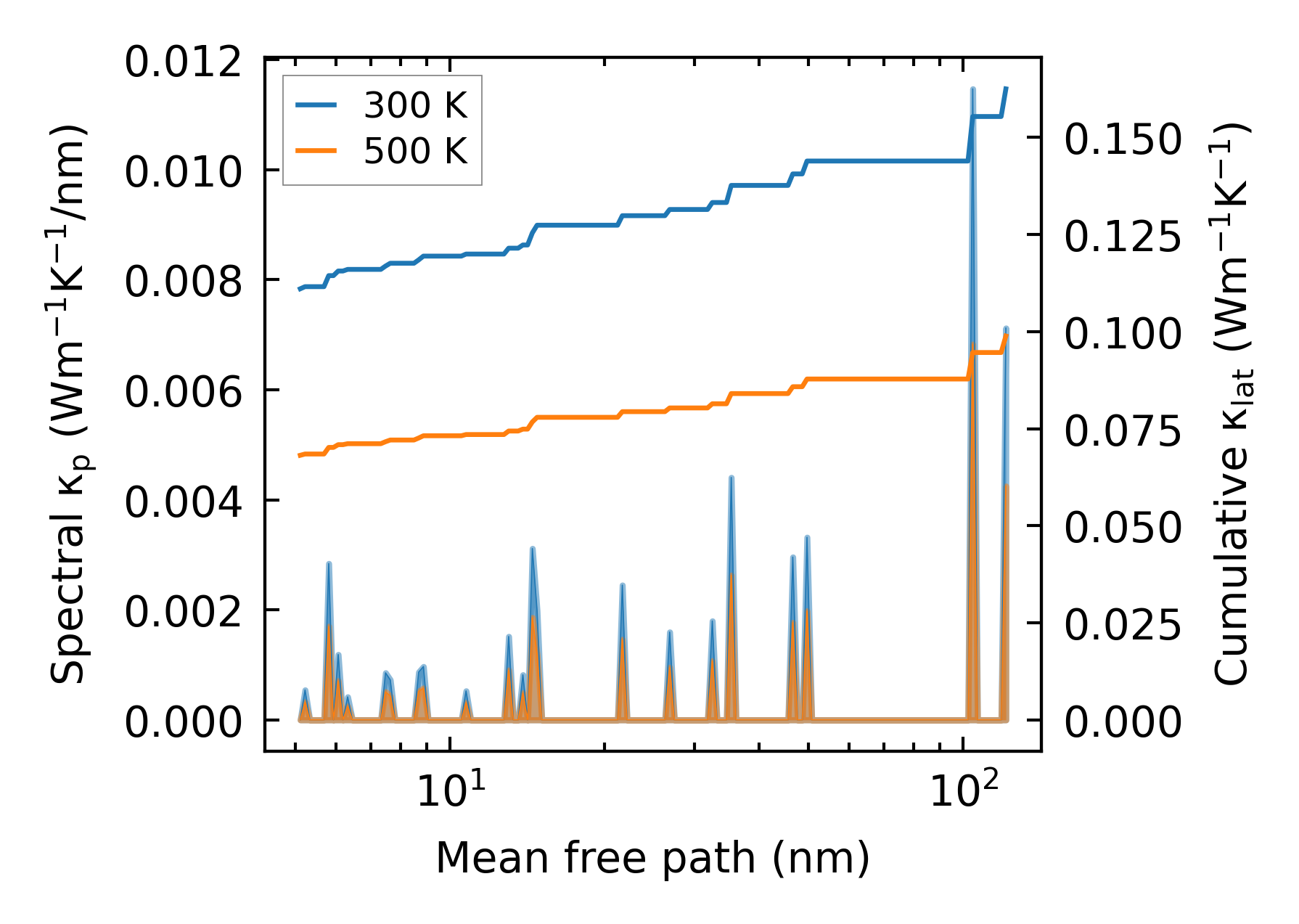

../../_images/fig_cumu_mfp2757.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

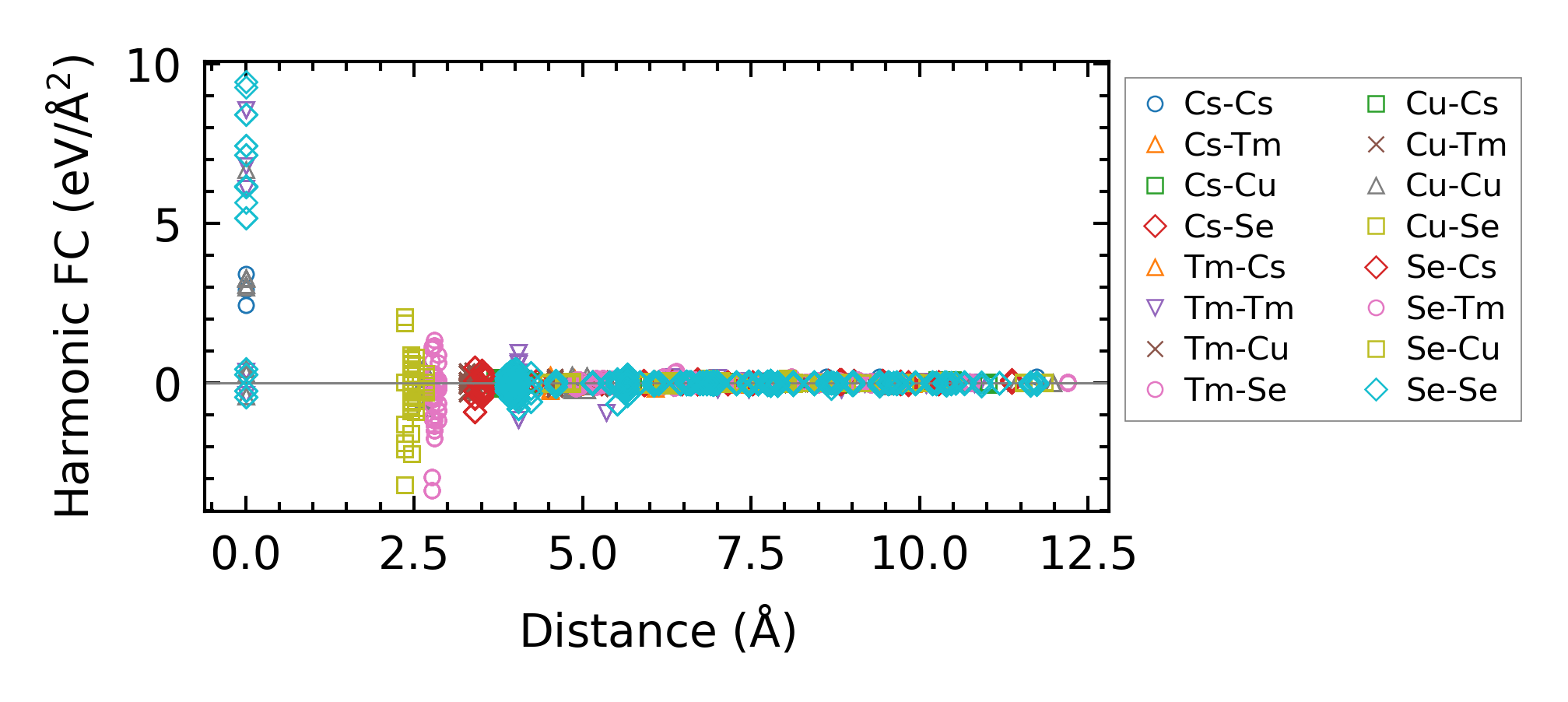

../../_images/fig_fc26564.png — (a) Force constants w.r.t atomic distance

Summary

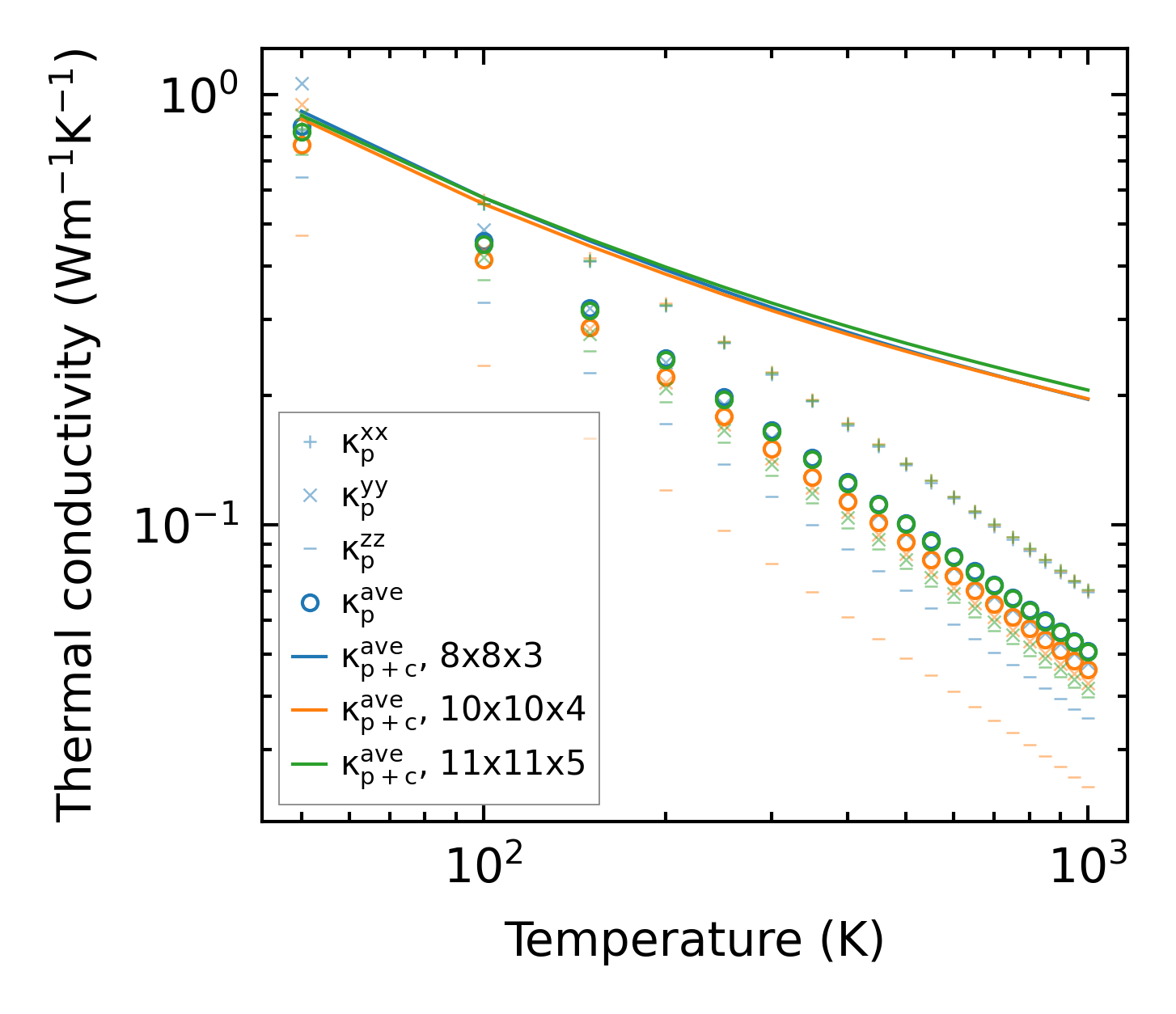

../../_images/fig_kappa5286.png — (a) Temperature-dependent lattice thermal conductivity

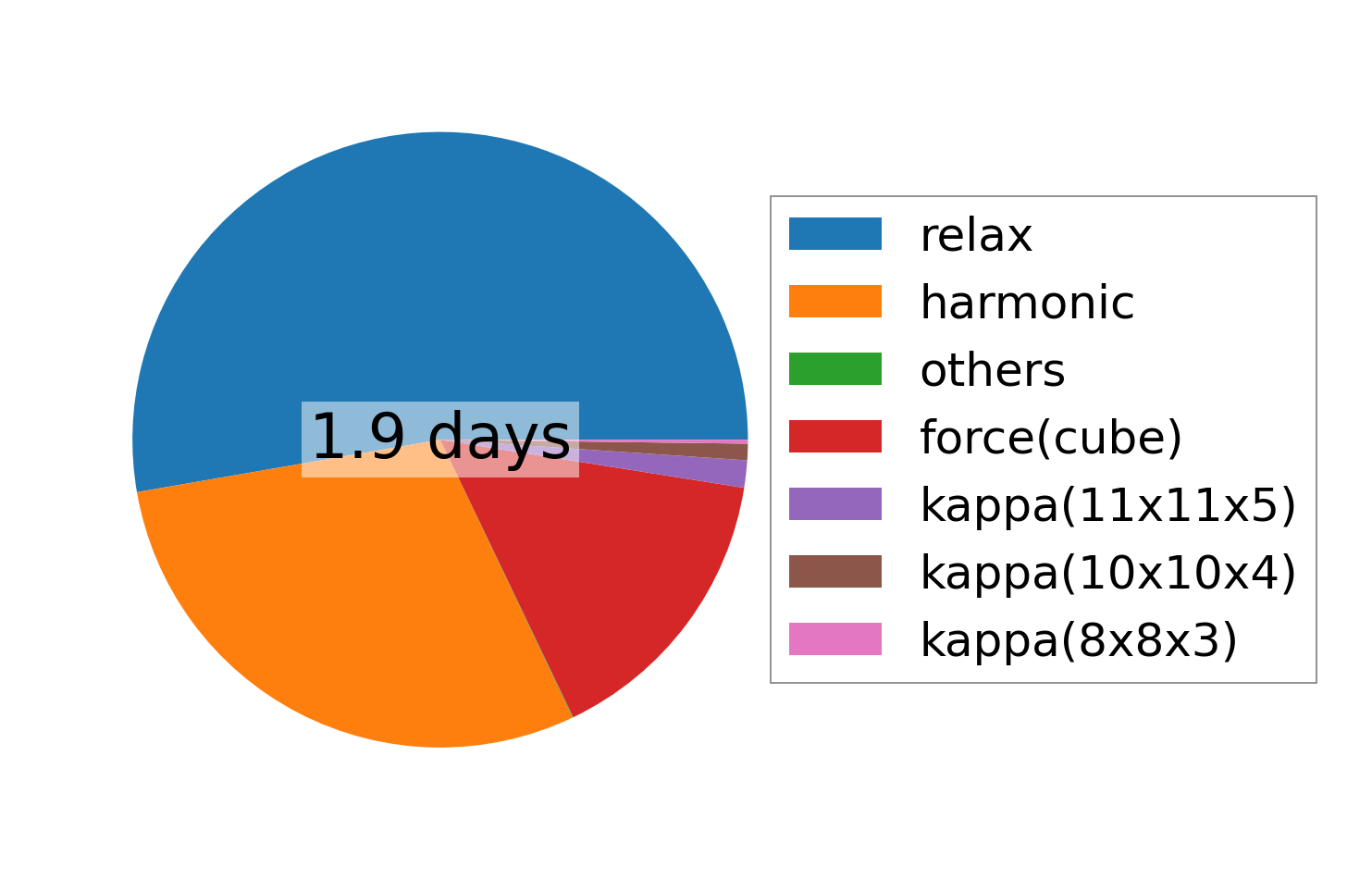

../../_images/fig_times12168.png — (b) Computation time
