mp-581376/Tl3Ag3Sb2S6/anharm

Space group: P2_1/c (14)
Link: Materials Project
Download: mp-581376.tar.gz

Harmonic properties

../../_images/fig_bandos_pr6766.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo6766.png — (b) Thermodynamic properties

Grüneisen parameters

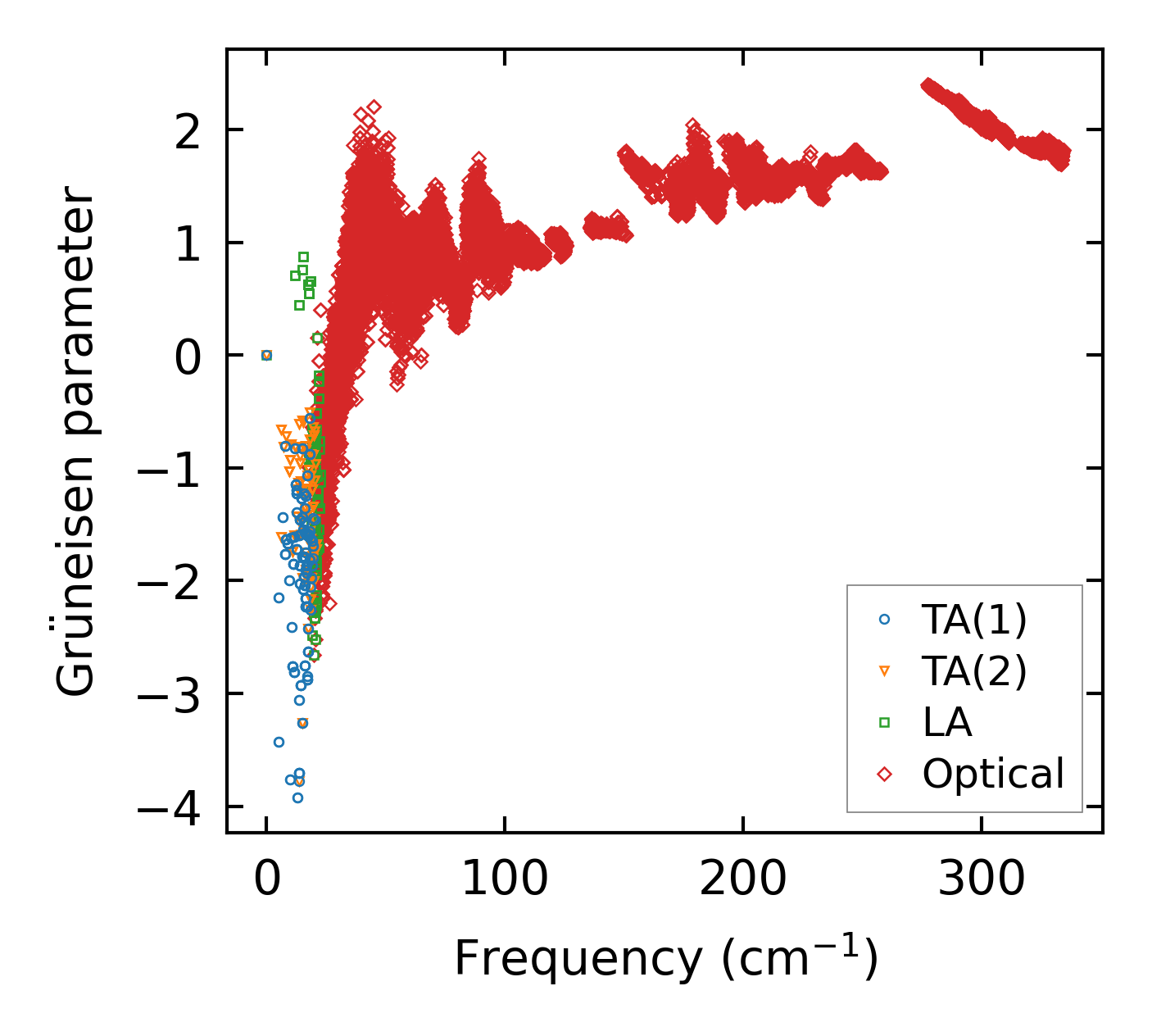

../../_images/fig_gru_all2775.png — (a) Grüneisen parameters

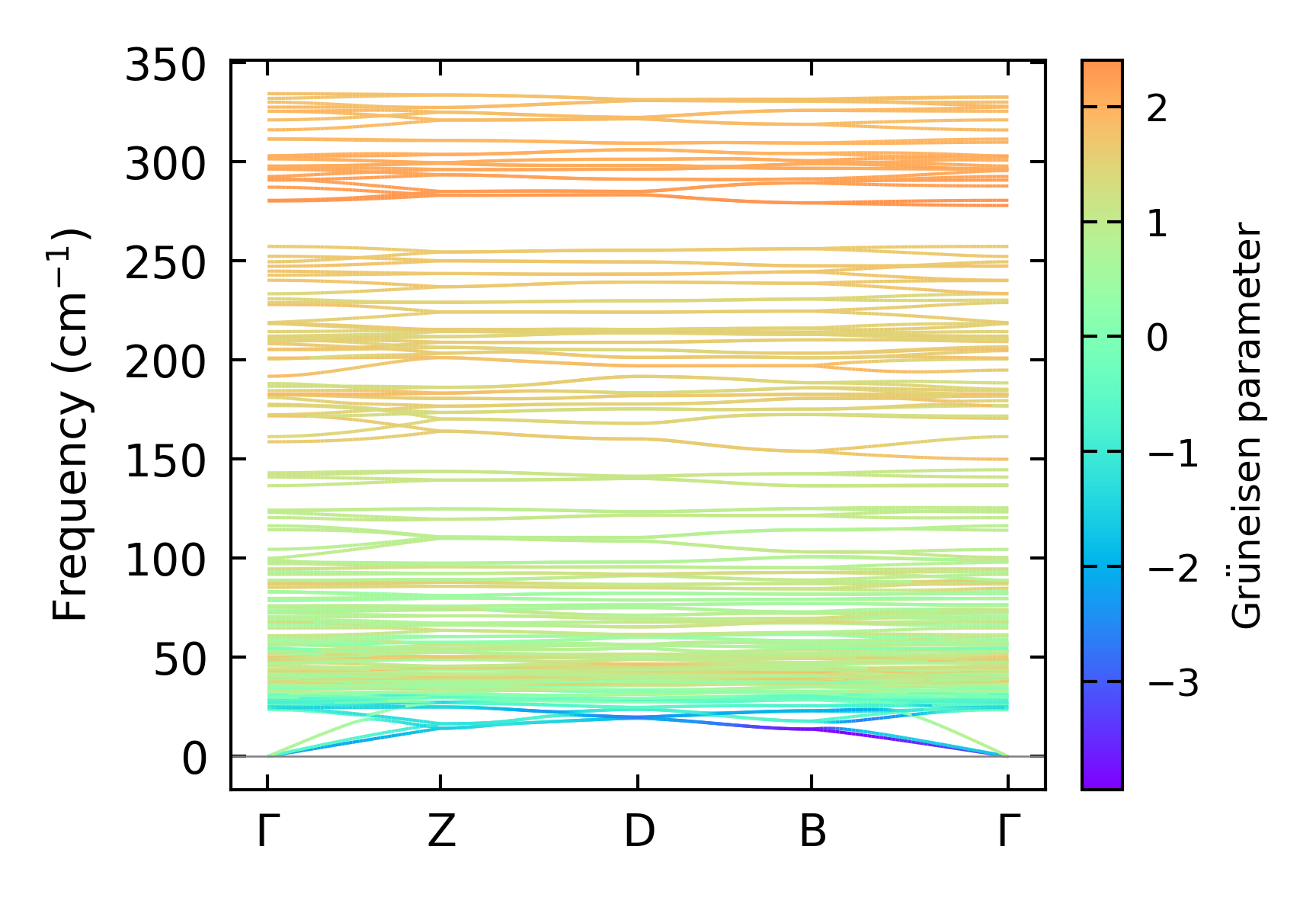

../../_images/fig_gruneisen2775.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 6x6x6, supercell: 2x1x1

../../_images/fig_kappa5273.png — (a) Temperature-dependent lattice thermal conductivity

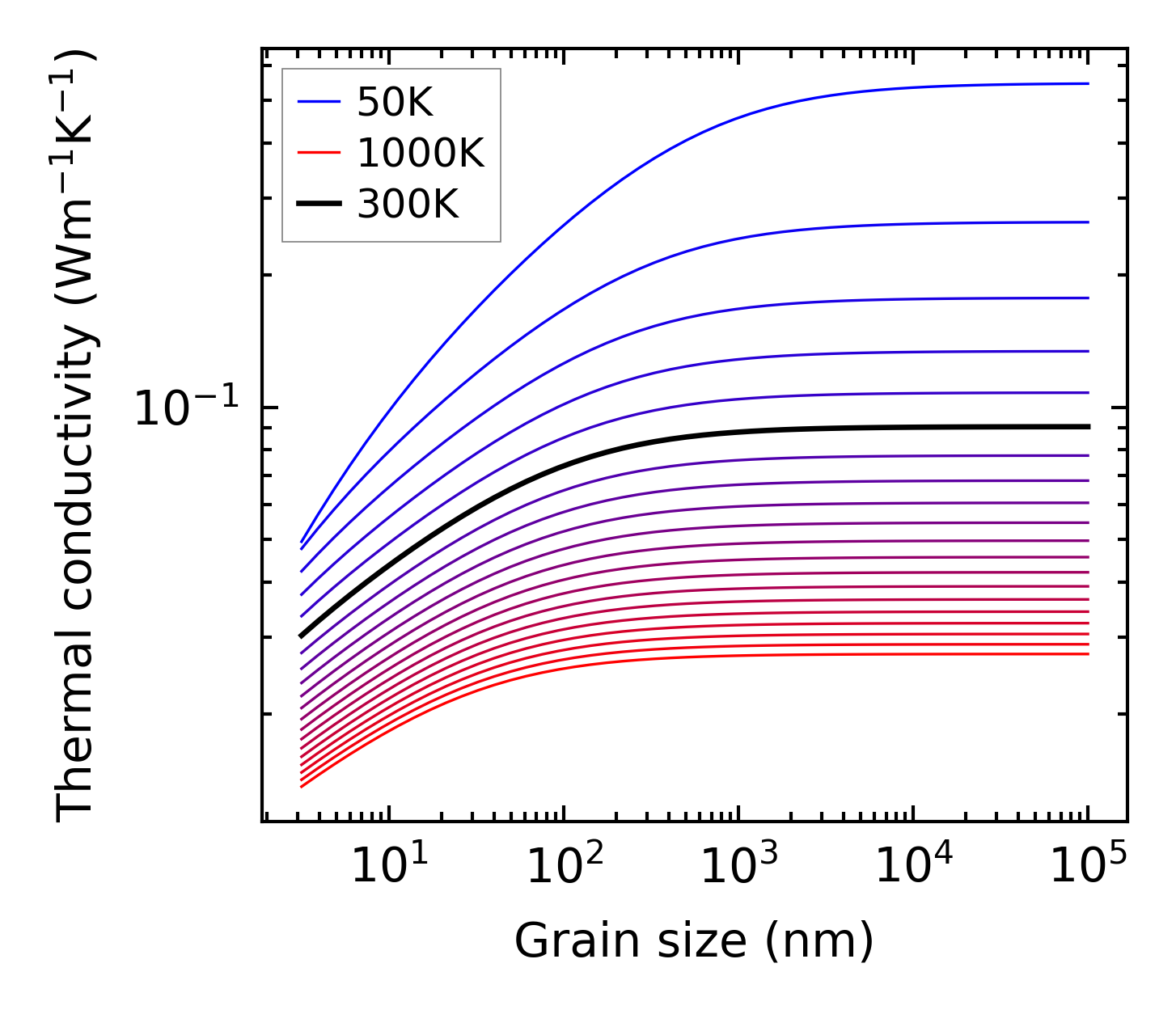

../../_images/fig_kappa_vs_grain_size2816.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

../../_images/fig_lifetime2751.png — (a) Phonon lifetime due to phonon-phonon scattering

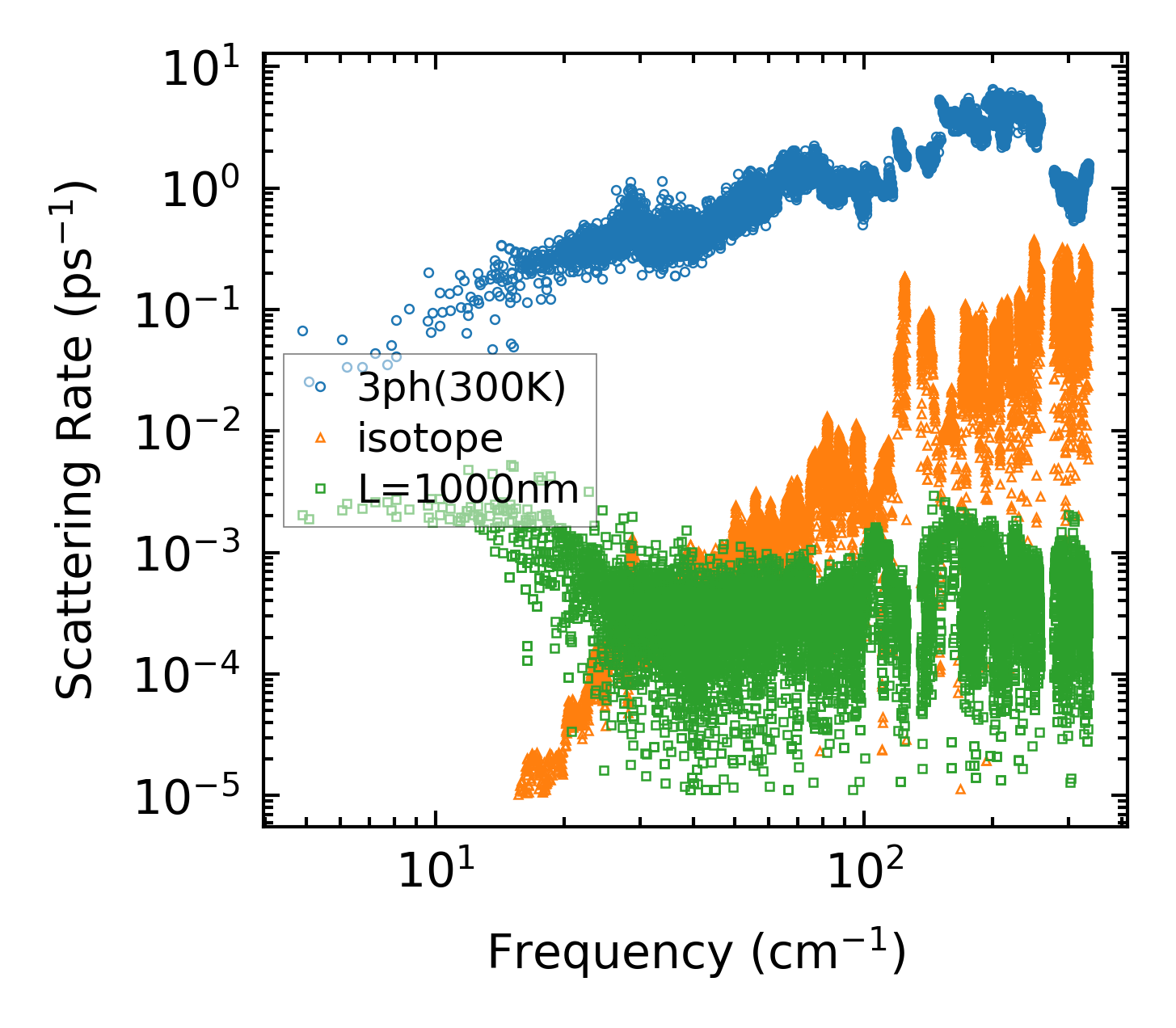

../../_images/fig_scat_rates2750.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

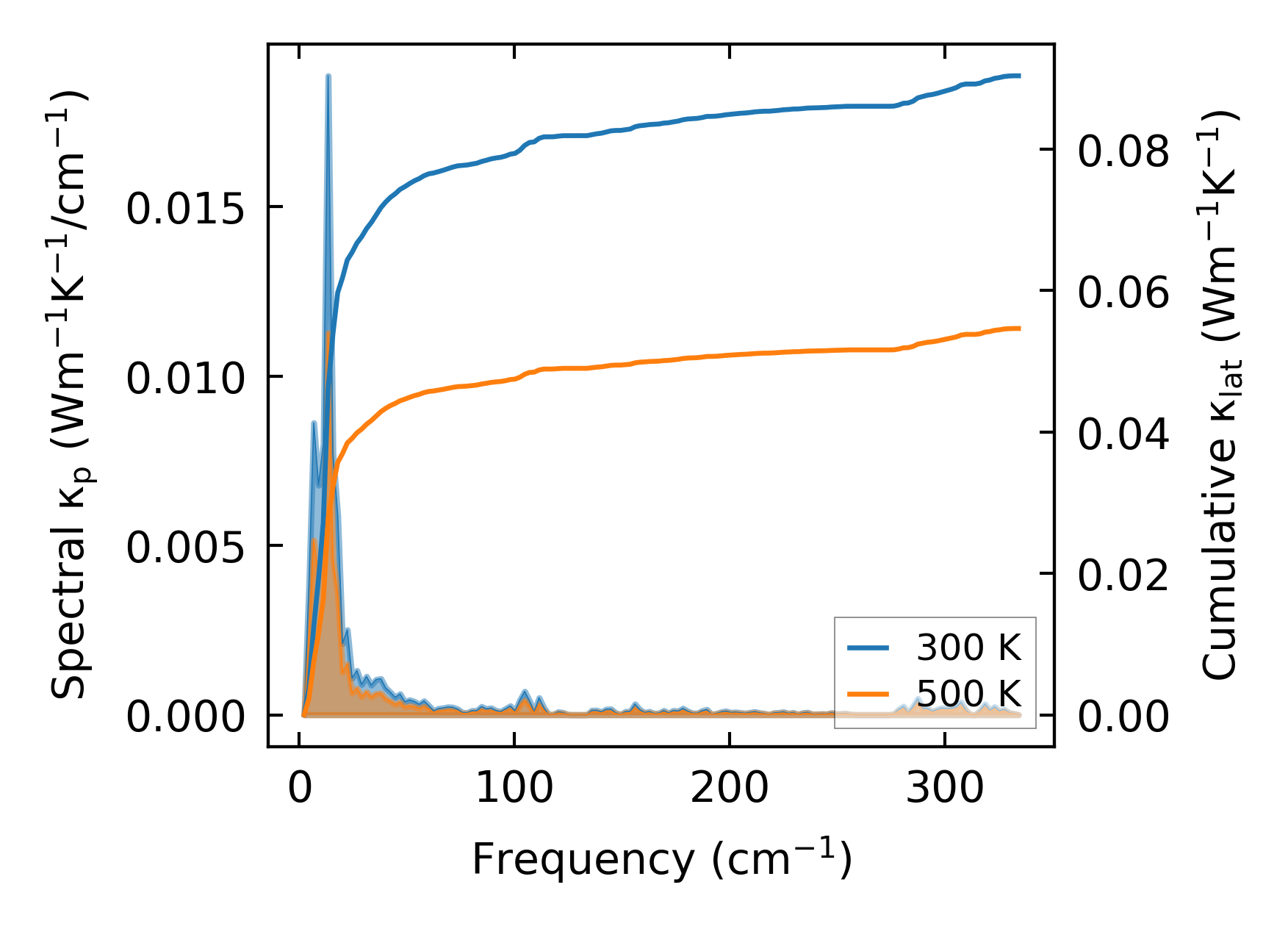

../../_images/fig_cumu_frequency2751.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

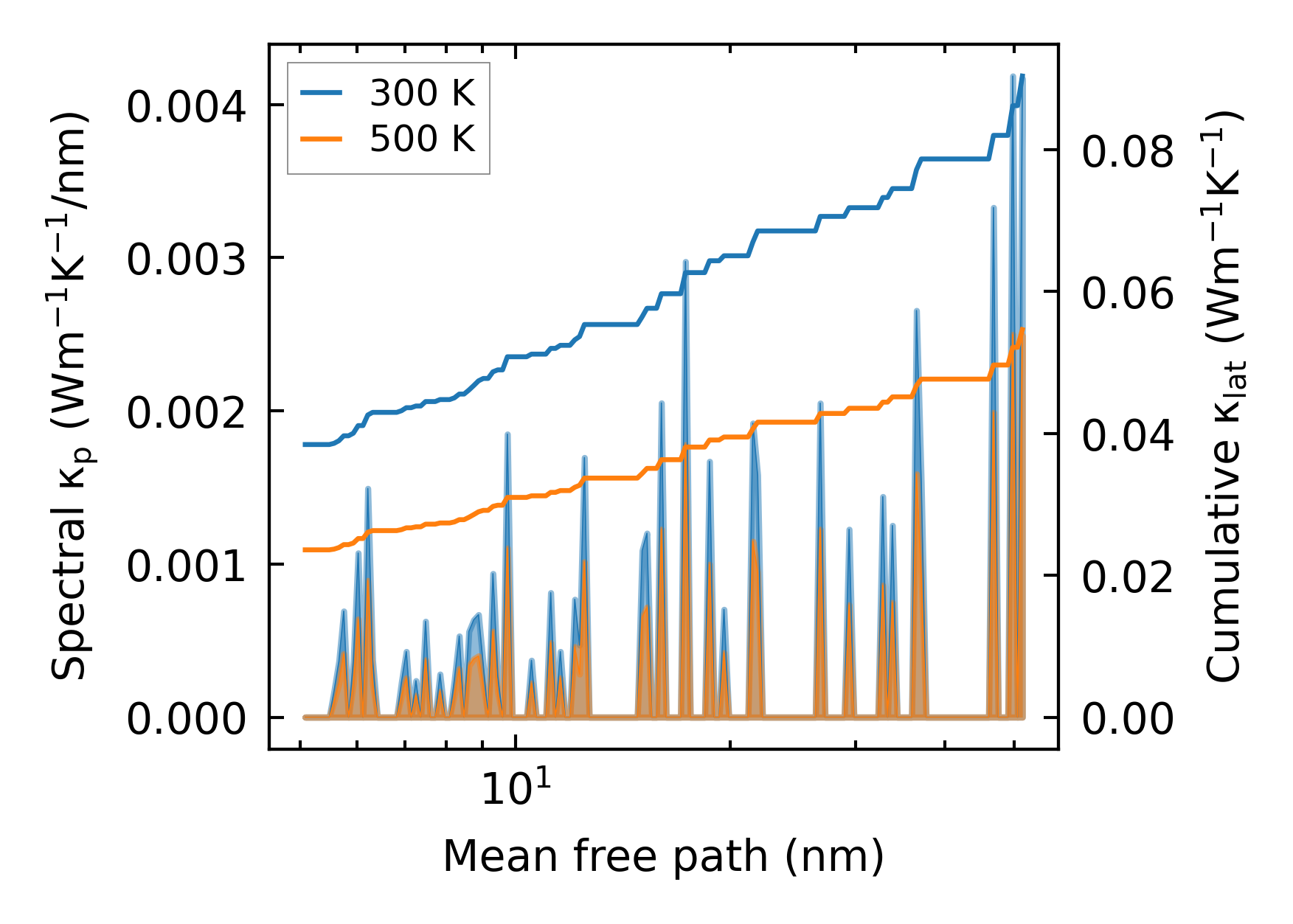

../../_images/fig_cumu_mfp2750.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

../../_images/fig_fc26553.png — (a) Force constants w.r.t atomic distance

Summary

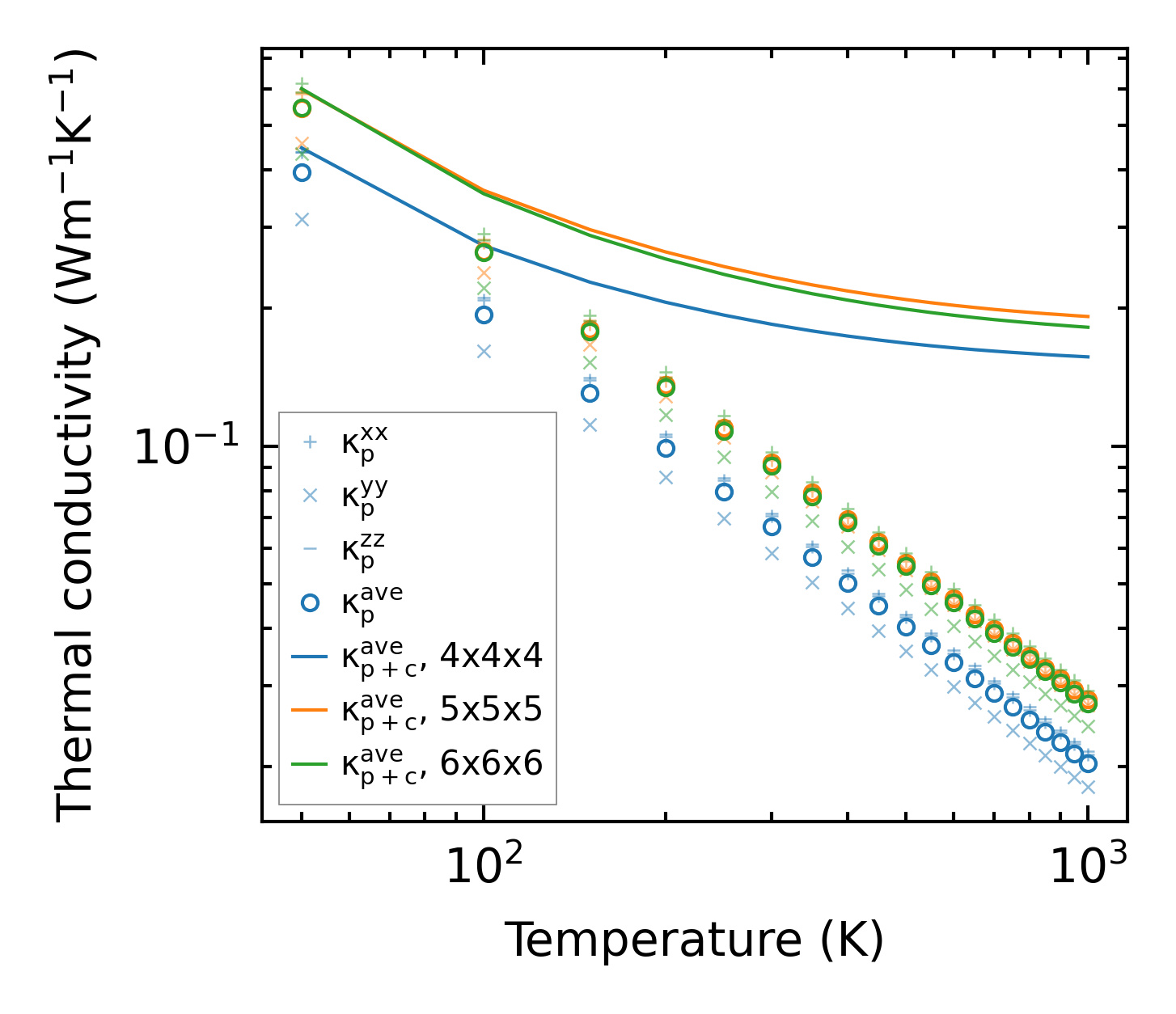

../../_images/fig_kappa5274.png — (a) Temperature-dependent lattice thermal conductivity

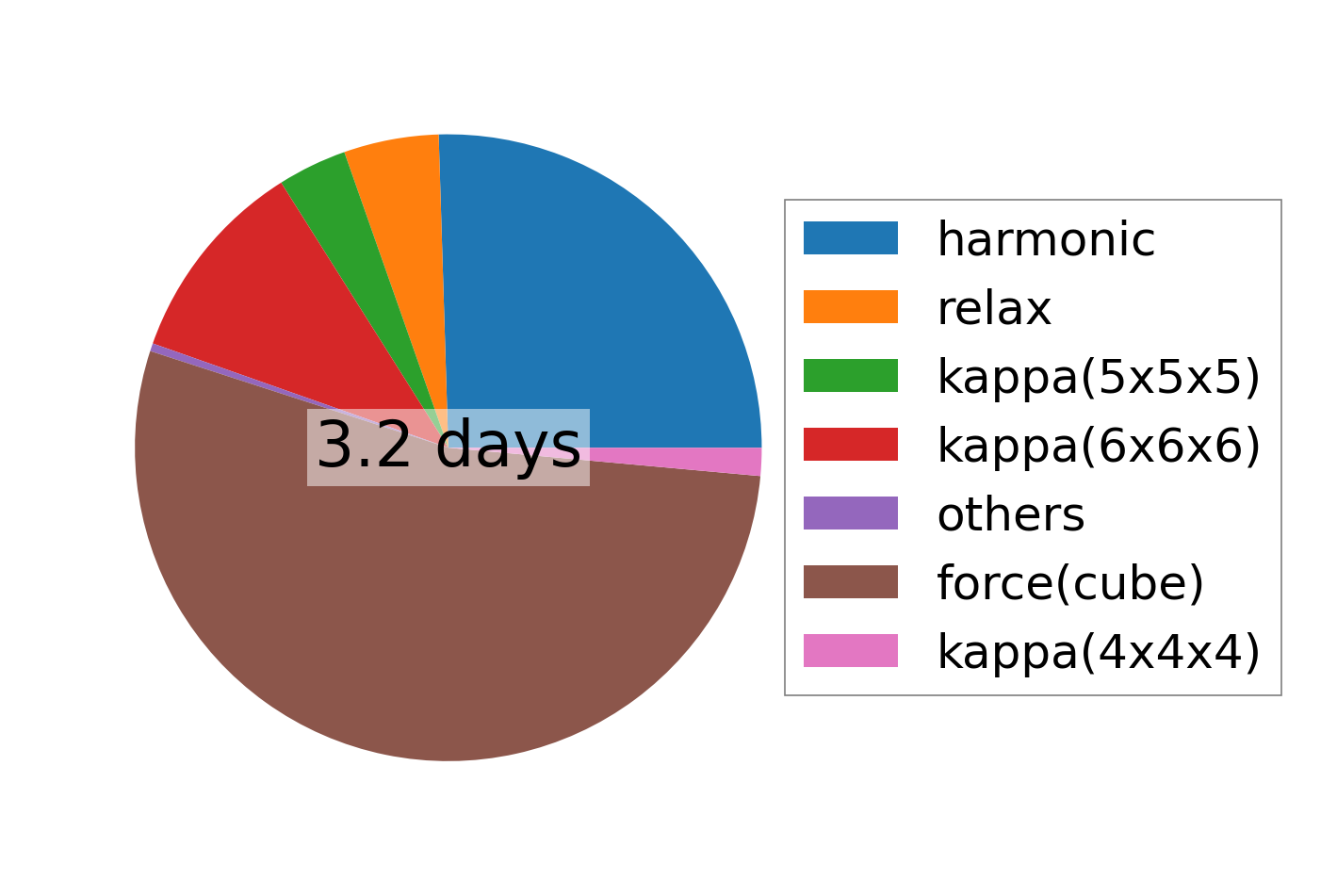

../../_images/fig_times12151.png — (b) Computation time
