mp-551905/OsO4/harm

Harmonic properties

../../_images/fig_bandos_pr9150.png

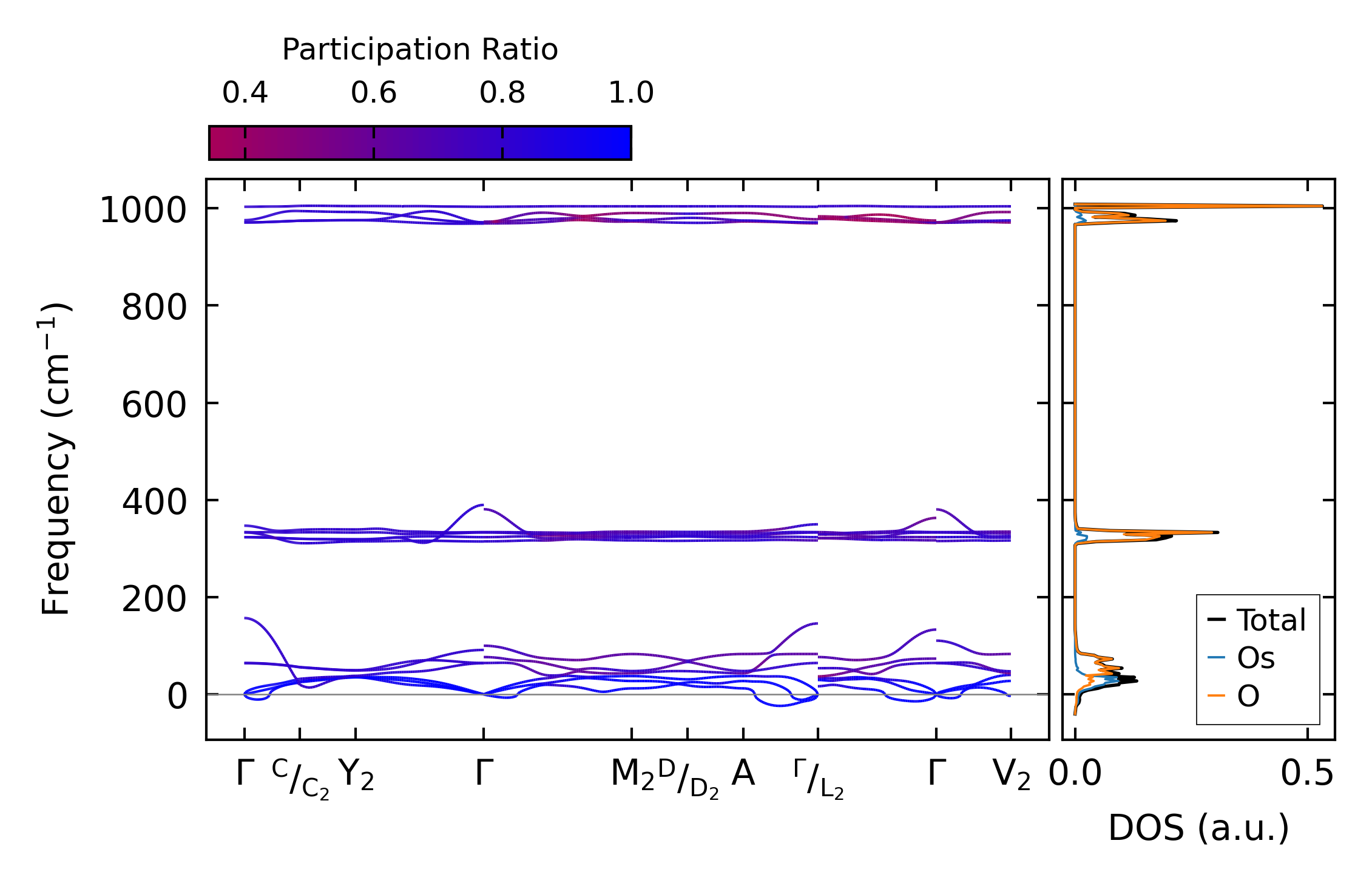

(a) Phonon dispersion with participation ratio and DOS

../../_images/fig_bandos12864.png

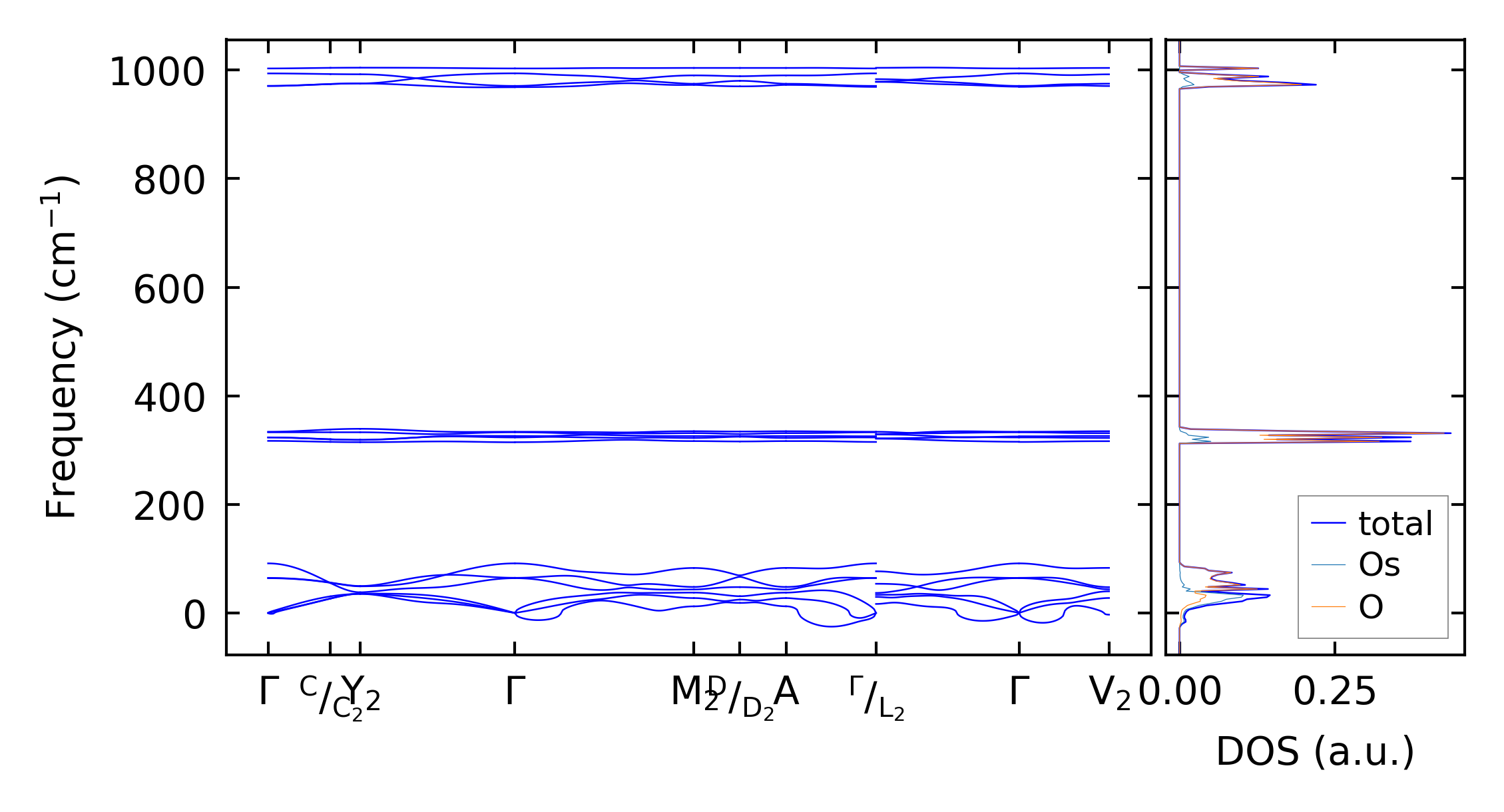

(b) Phonon dispersion and DOS

../../_images/fig_thermo9150.png

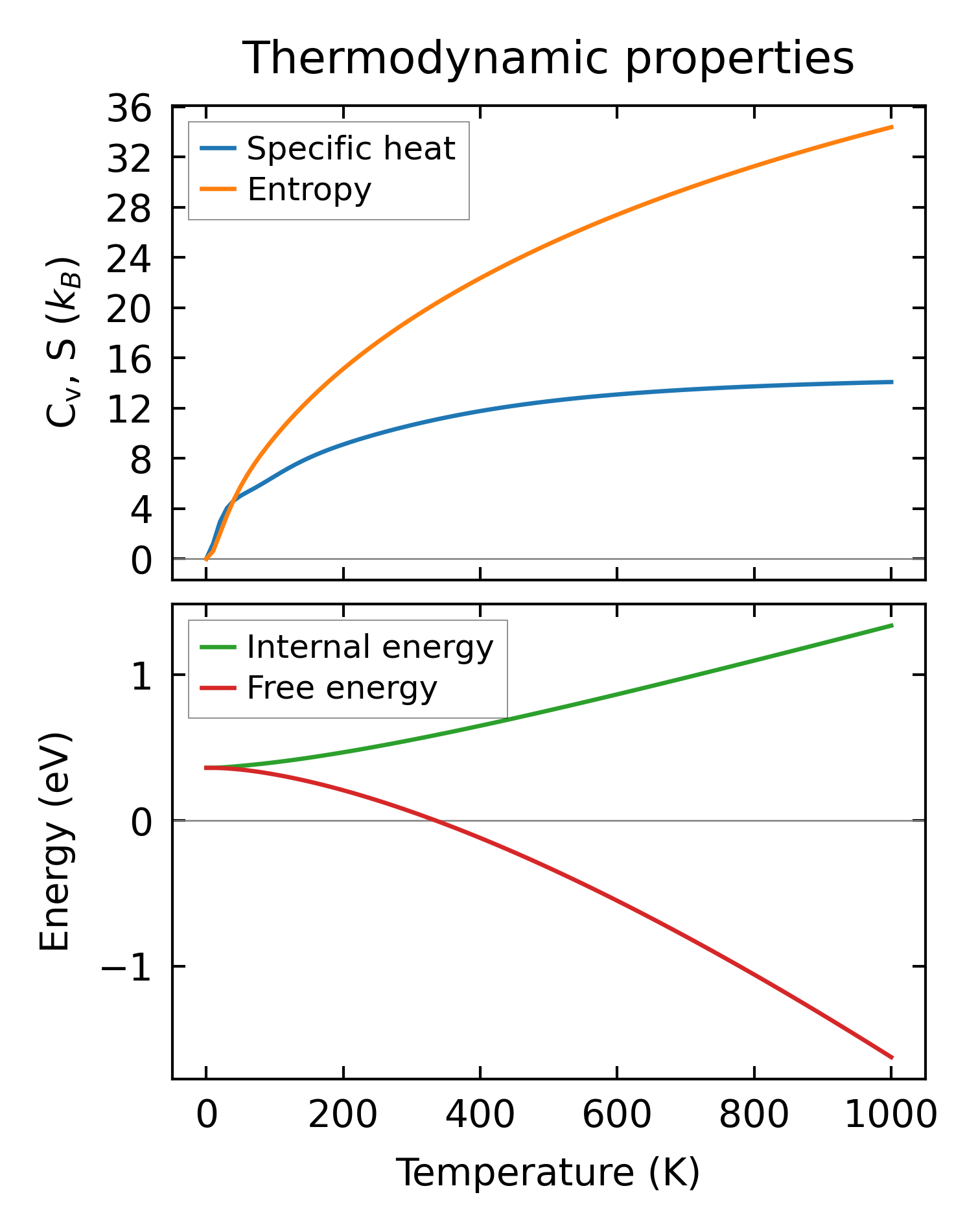

(c) Thermodynamic properties

Force constants

../../_images/fig_fc28912.png

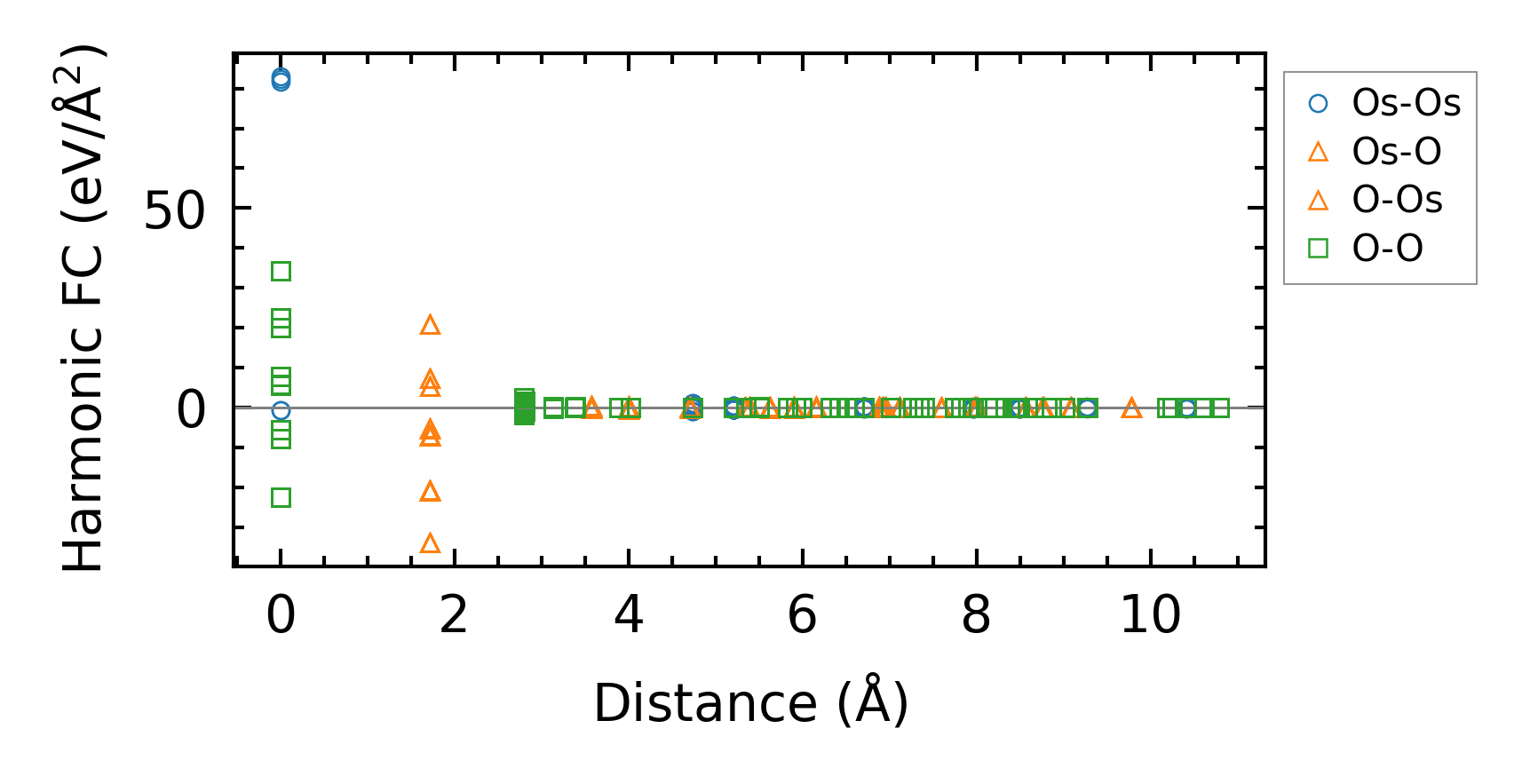

(a) Force constants w.r.t atomic distance

Summary

../../_images/fig_times15982.png

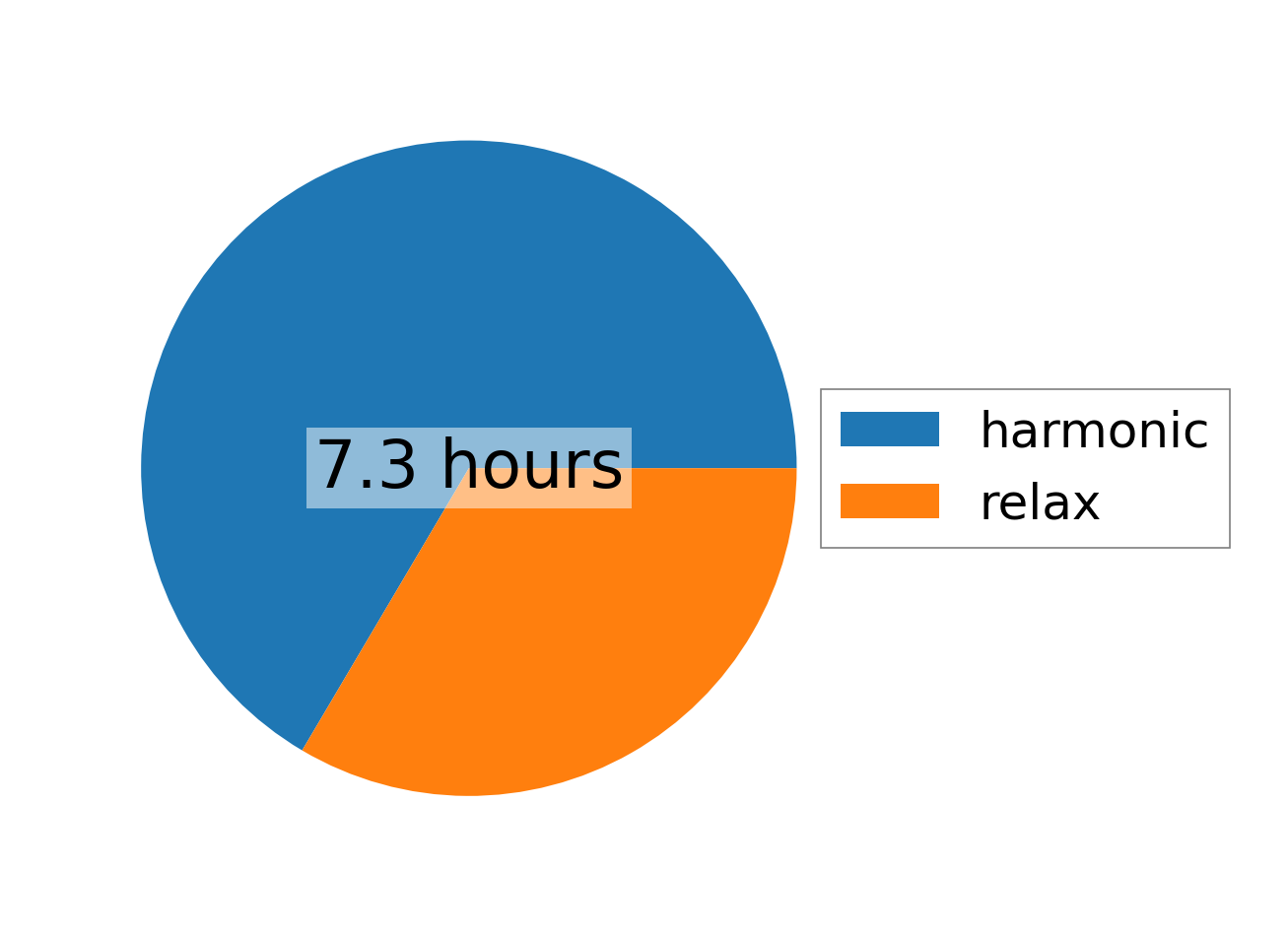

(a) Computation time
