mp-1219728/PrZnAgP2/anharm

Space group: P3m1 (156)
Link: Materials Project
Download: mp-1219728.tar.gz

Harmonic properties

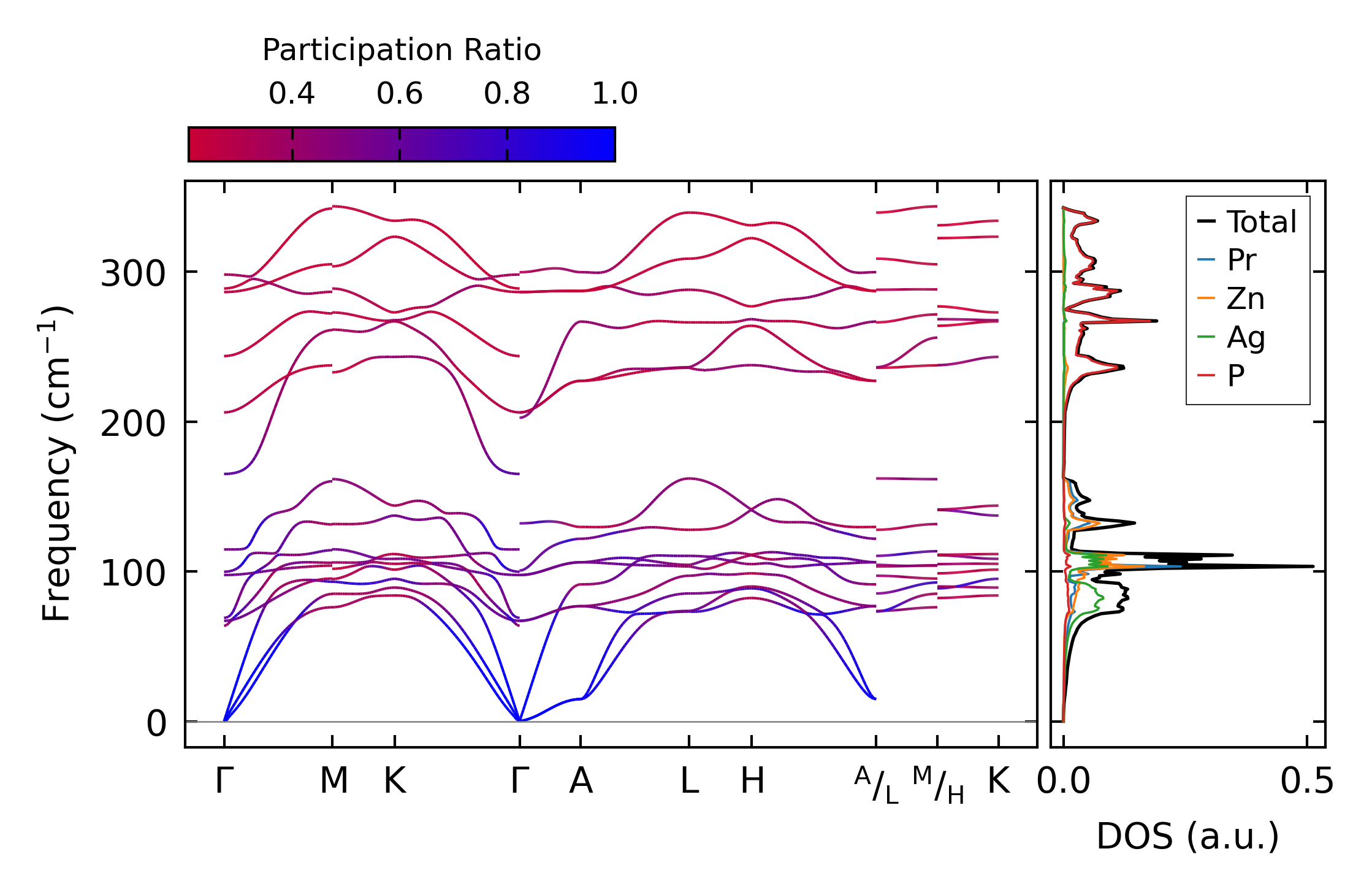

../../_images/fig_bandos_pr15286.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo15285.png — (b) Thermodynamic properties

Grüneisen parameters

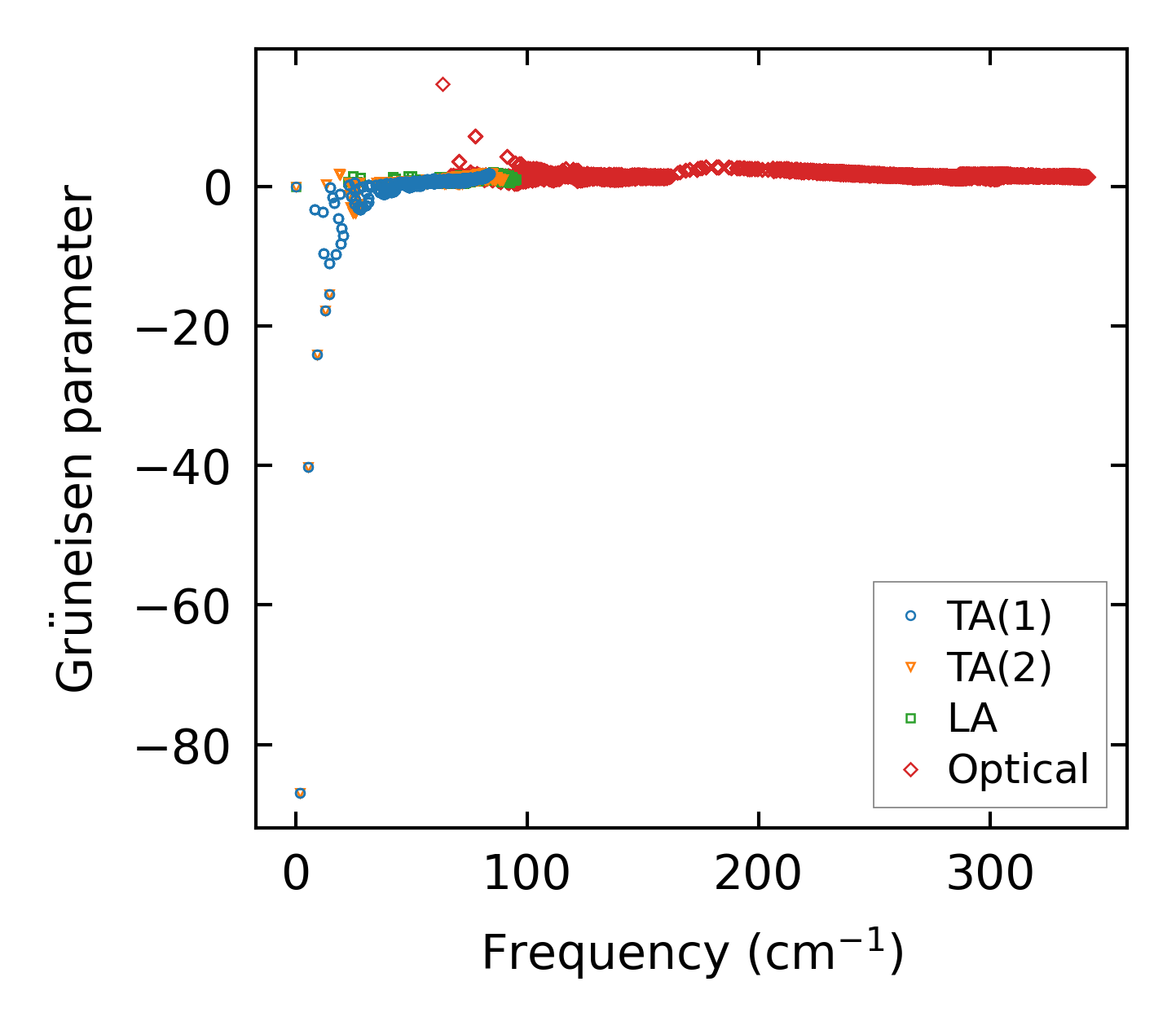

../../_images/fig_gru_all6593.png — (a) Grüneisen parameters

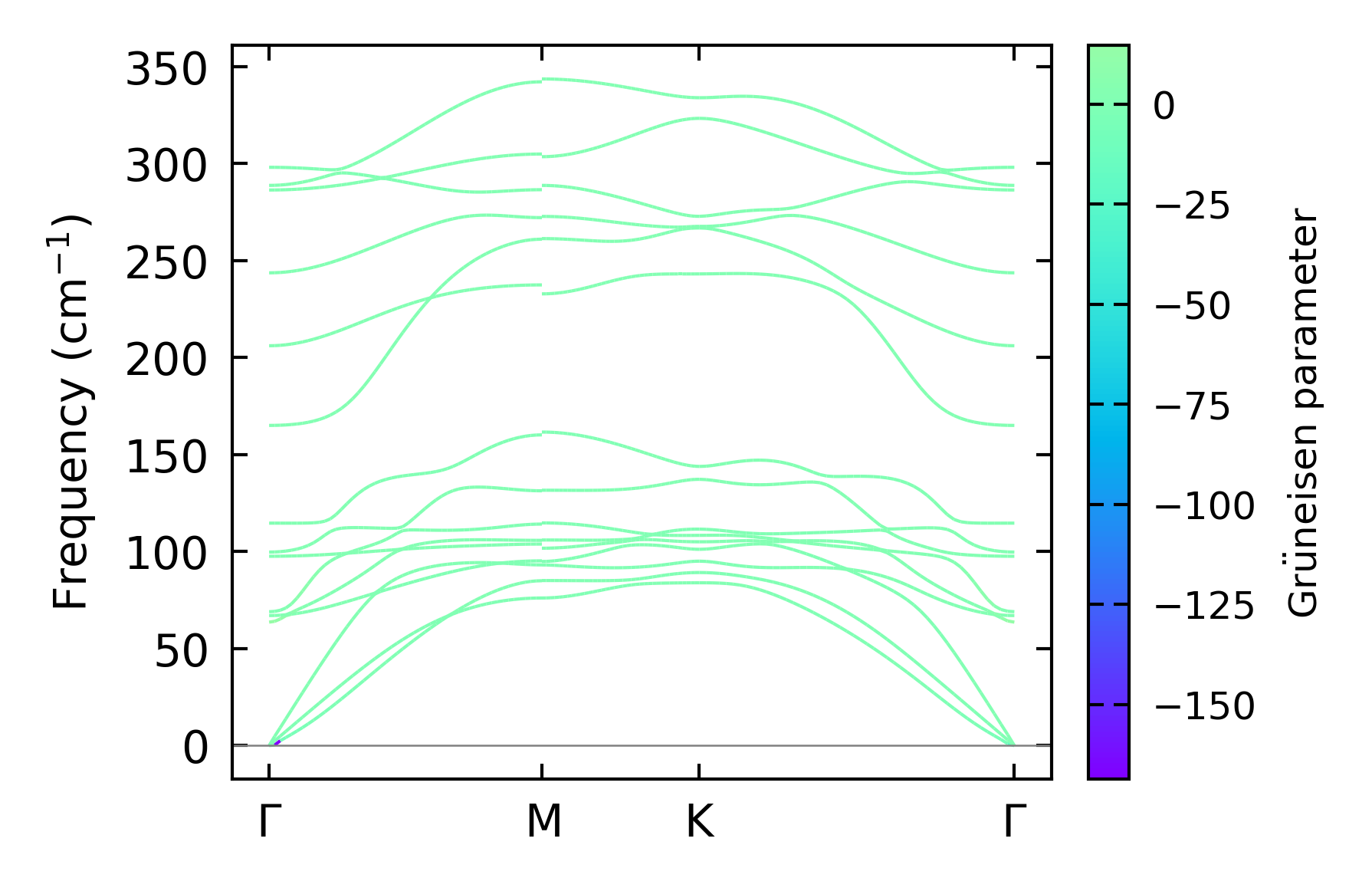

../../_images/fig_gruneisen6593.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 18x18x11, supercell: 3x3x2

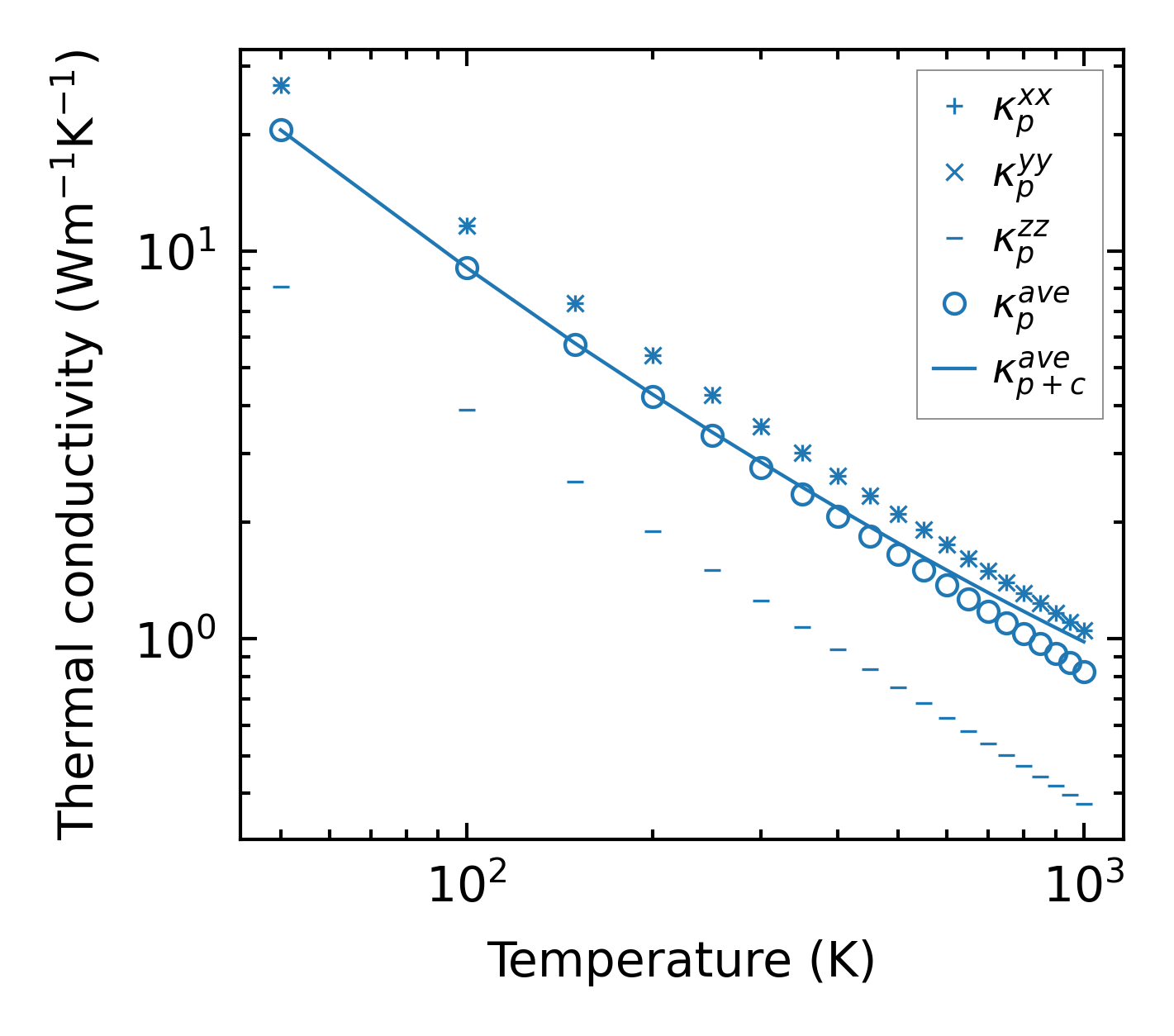

../../_images/fig_kappa12410.png — (a) Temperature-dependent lattice thermal conductivity

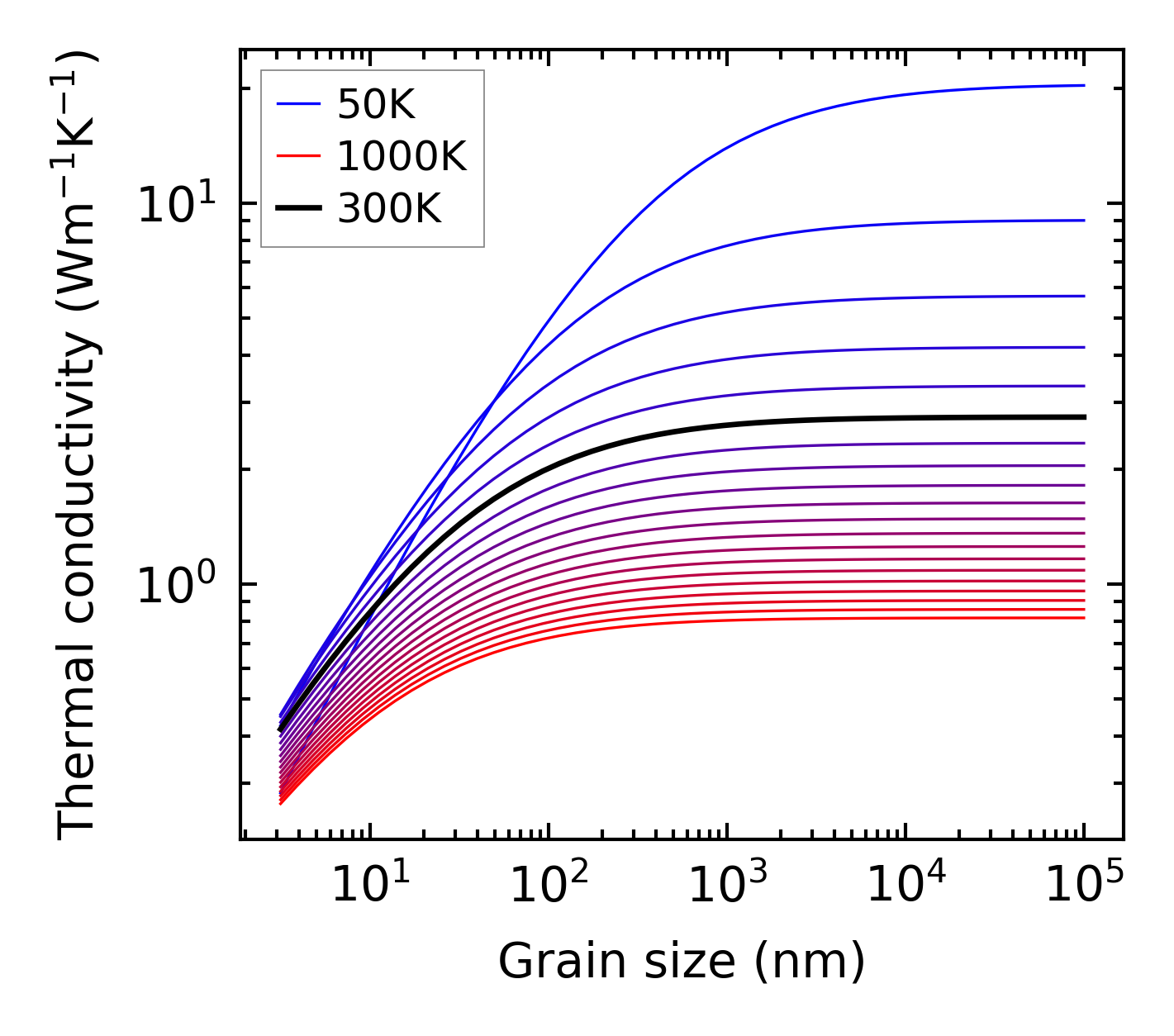

../../_images/fig_kappa_vs_grain_size6671.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

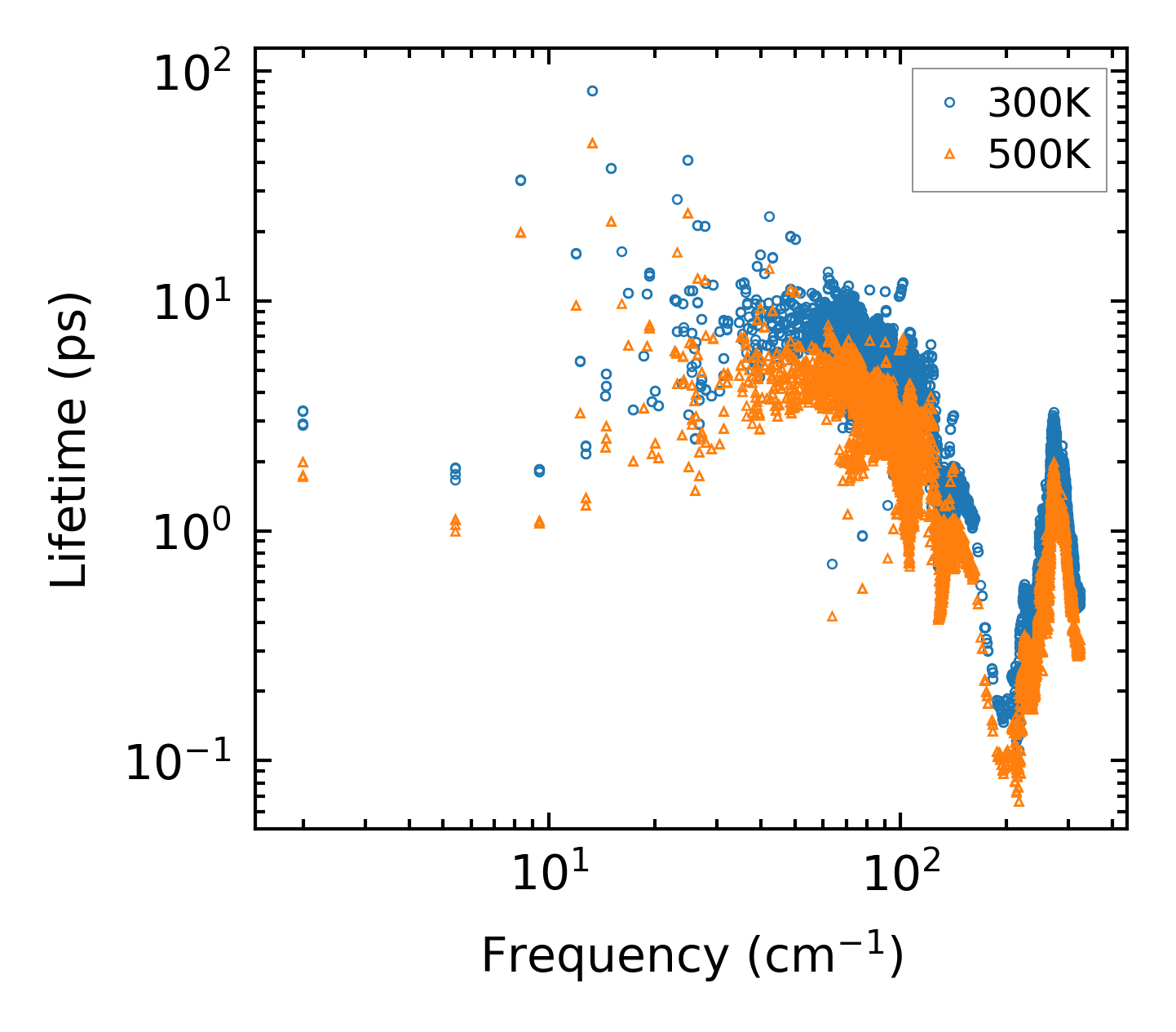

../../_images/fig_lifetime6527.png — (a) Phonon lifetime due to phonon-phonon scattering

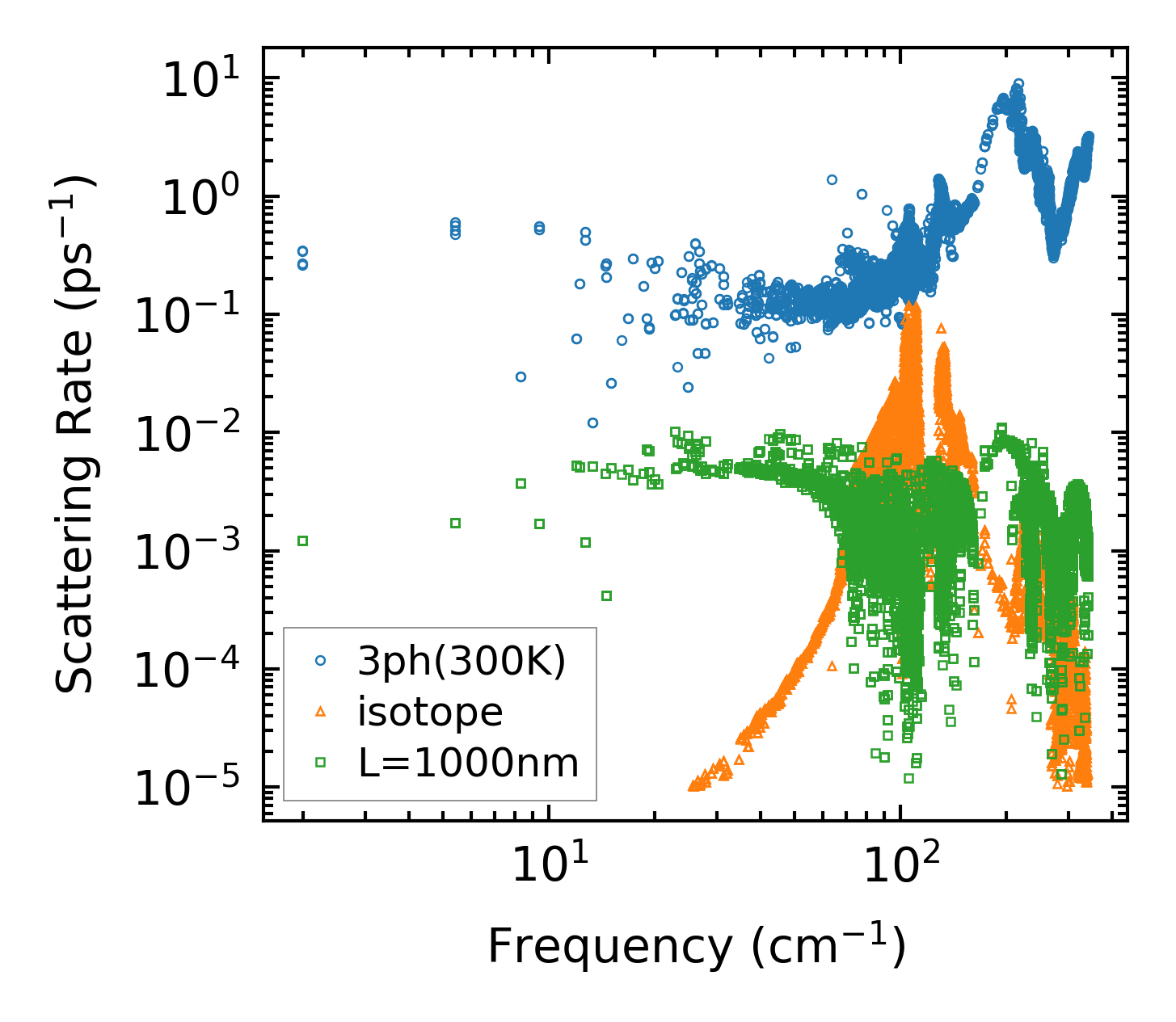

../../_images/fig_scat_rates6526.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

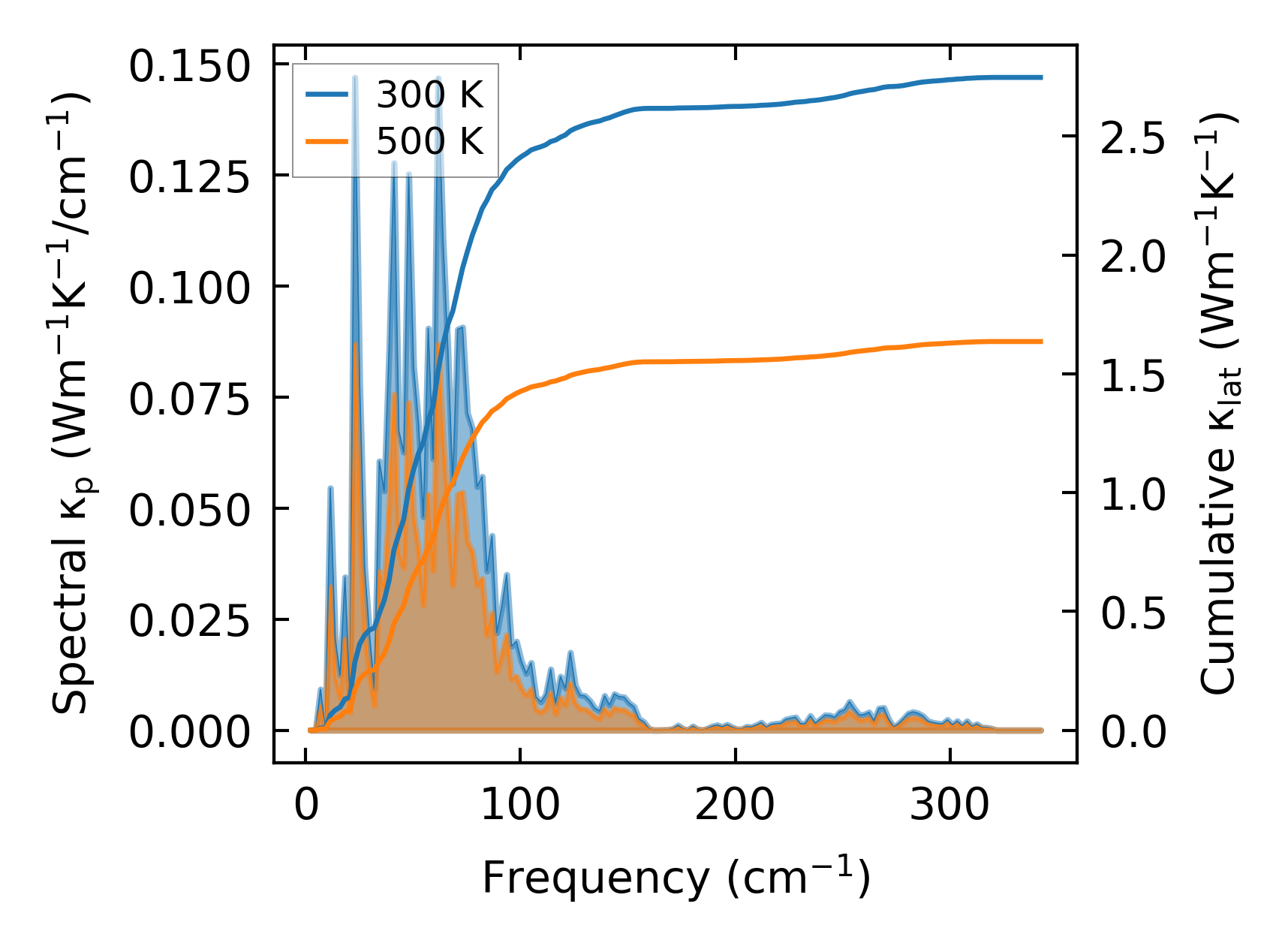

../../_images/fig_cumu_frequency6527.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

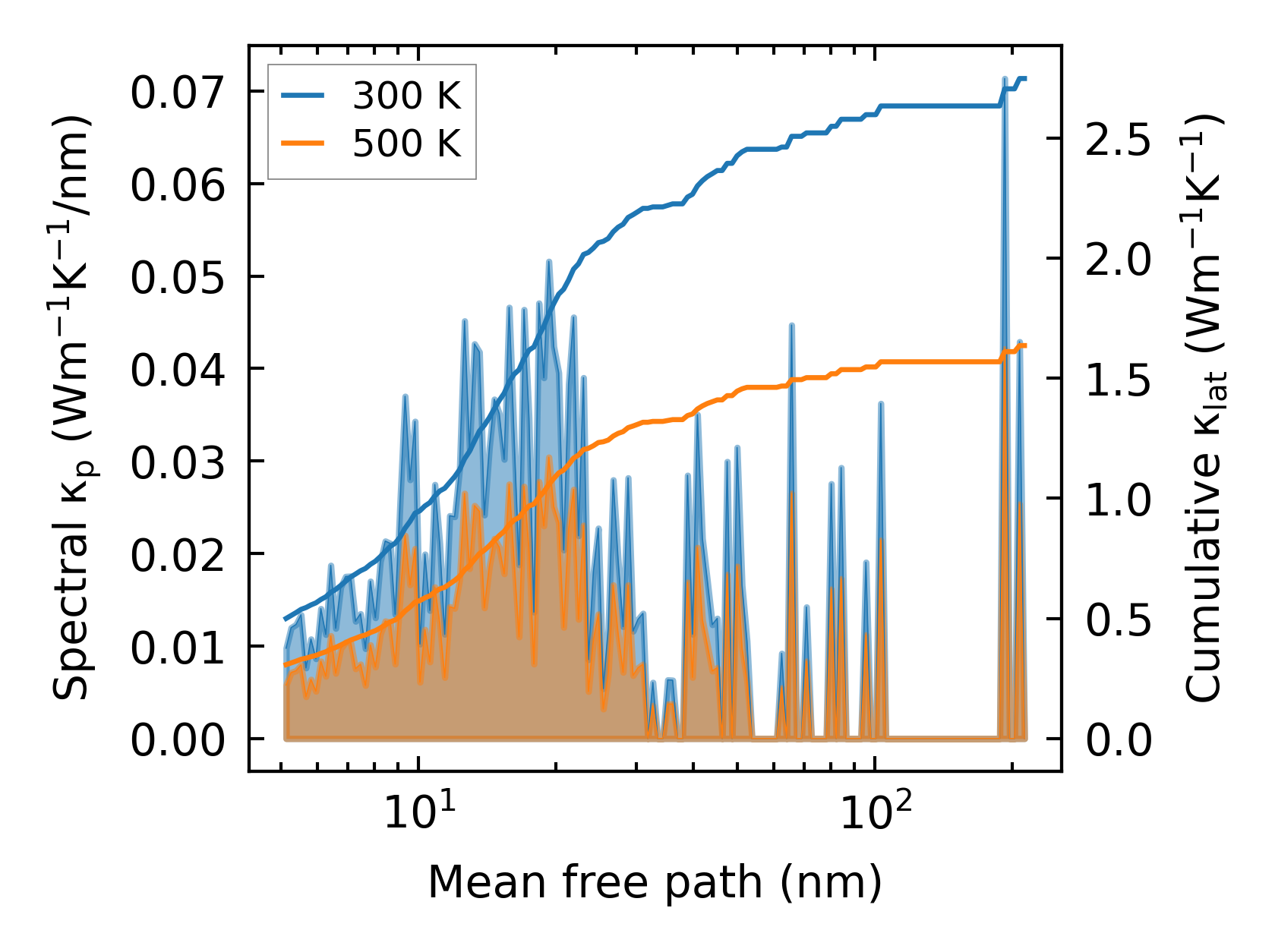

../../_images/fig_cumu_mfp6526.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

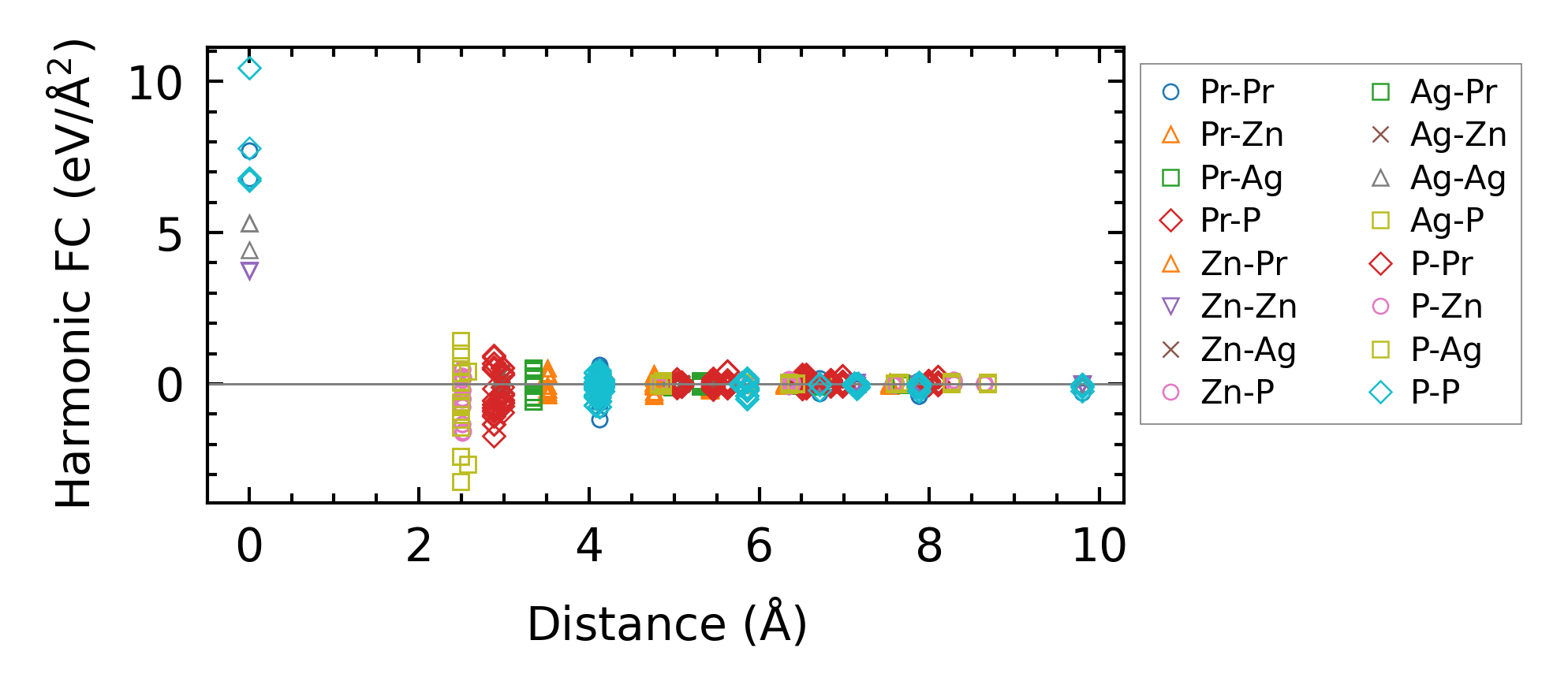

../../_images/fig_fc214895.png — (a) Force constants w.r.t atomic distance

Summary

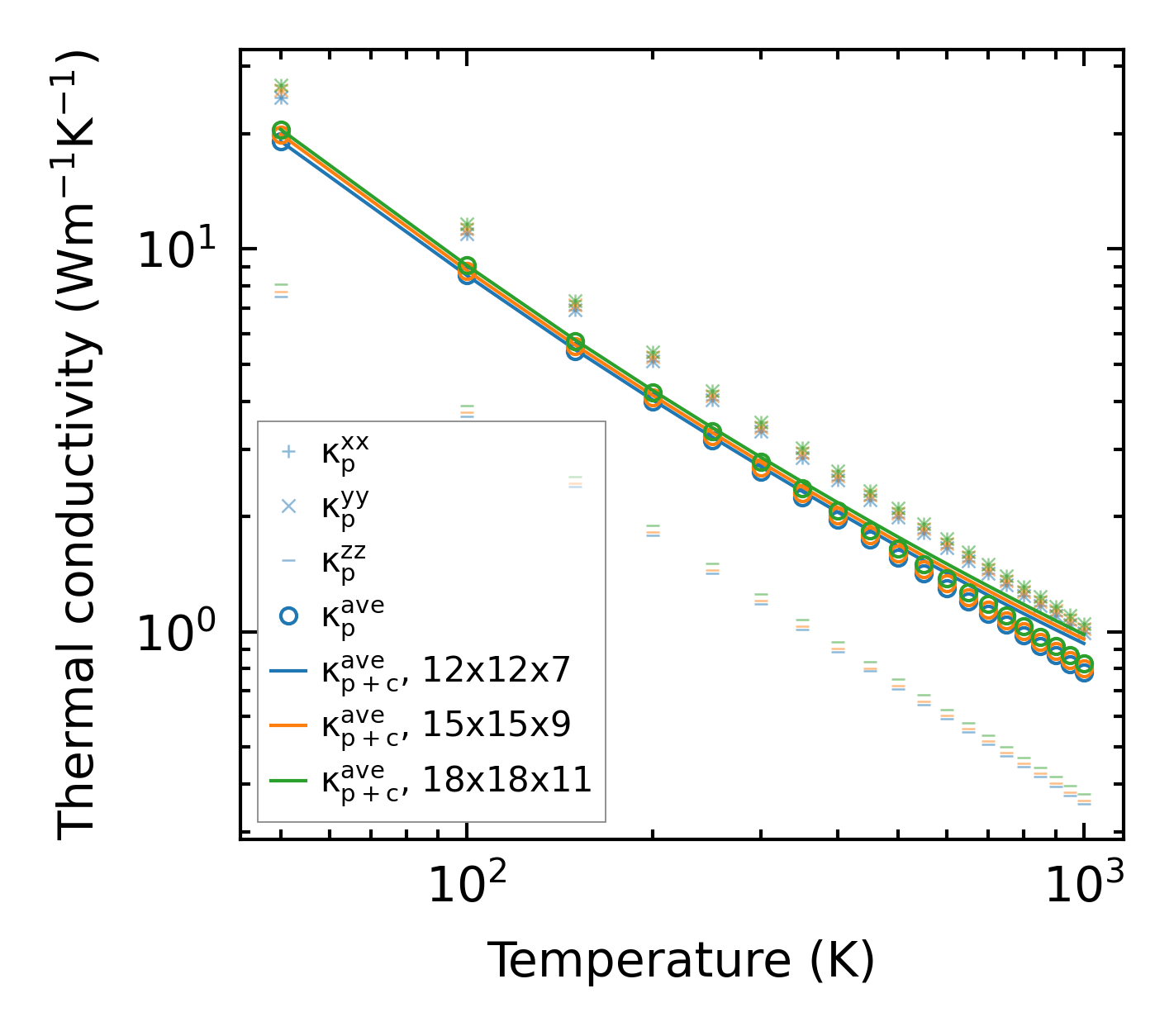

../../_images/fig_kappa12411.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_times25289.png — (b) Computation time
