mp-1219312/ScCuSe2/anharm

Space group: P3m1 (156)
Link: Materials Project
Download: mp-1219312.tar.gz

Harmonic properties

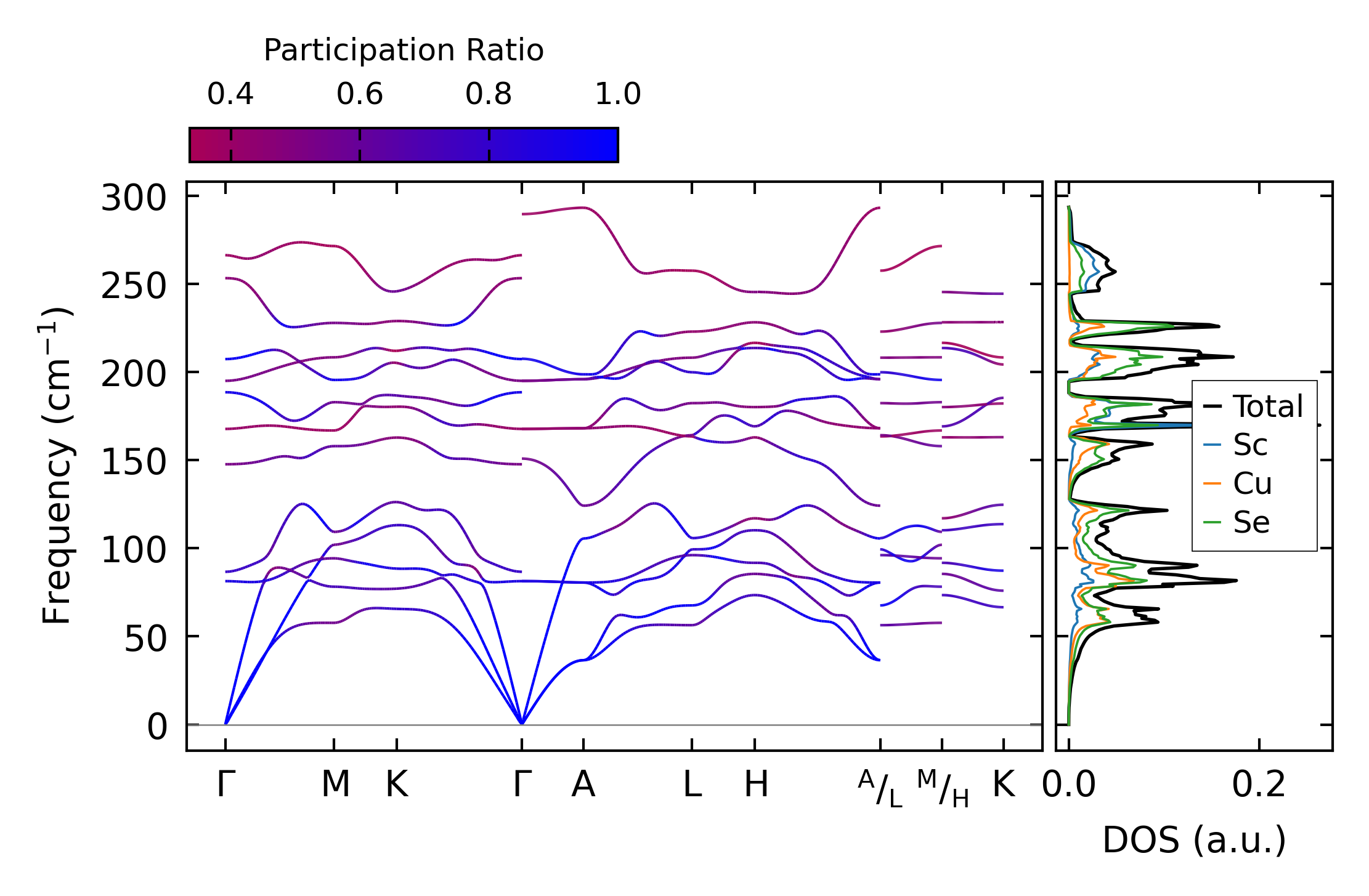

../../_images/fig_bandos_pr15273.png — (a) Phonon dispersion with participation ratio and DOS

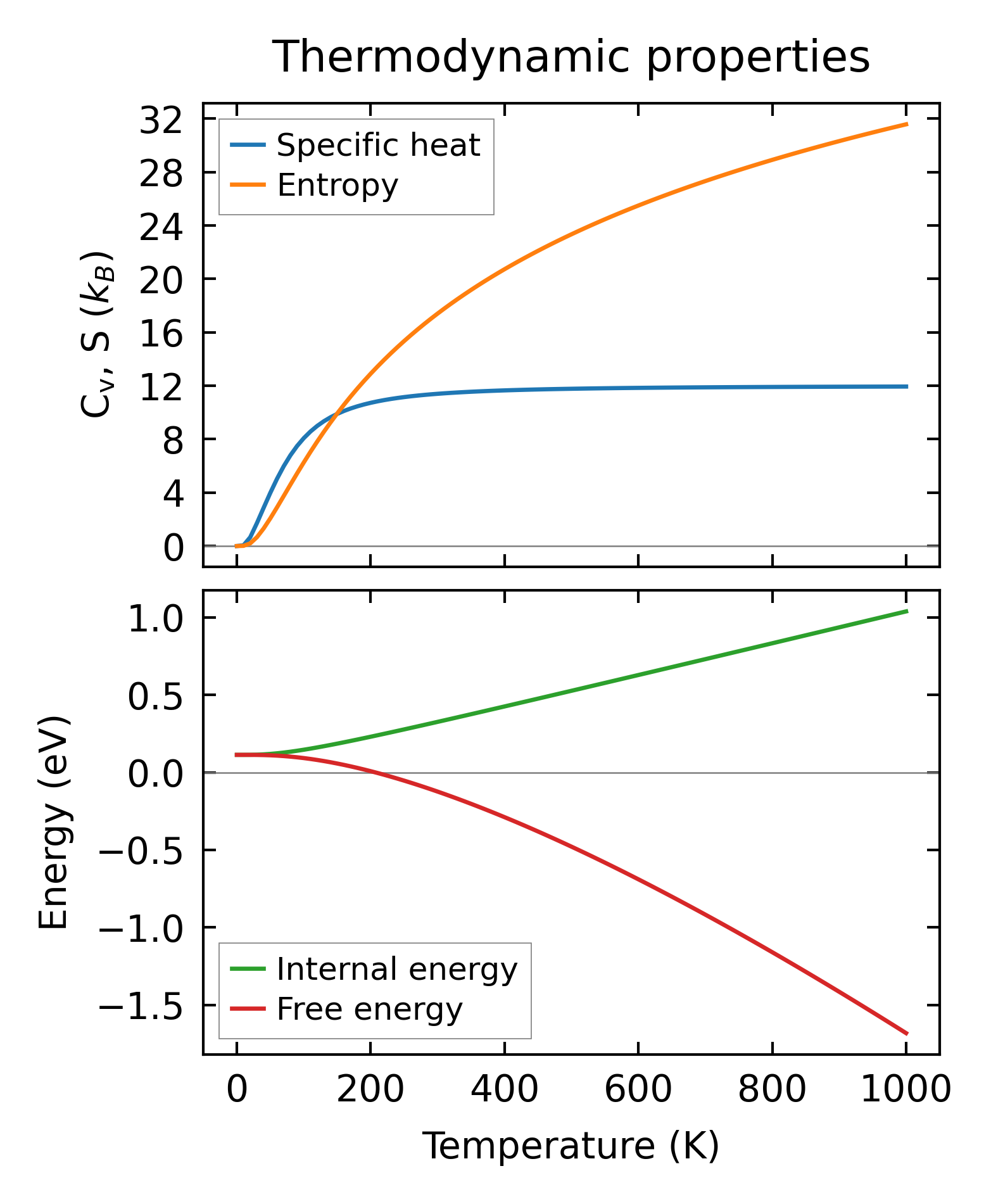

../../_images/fig_thermo15272.png — (b) Thermodynamic properties

Grüneisen parameters

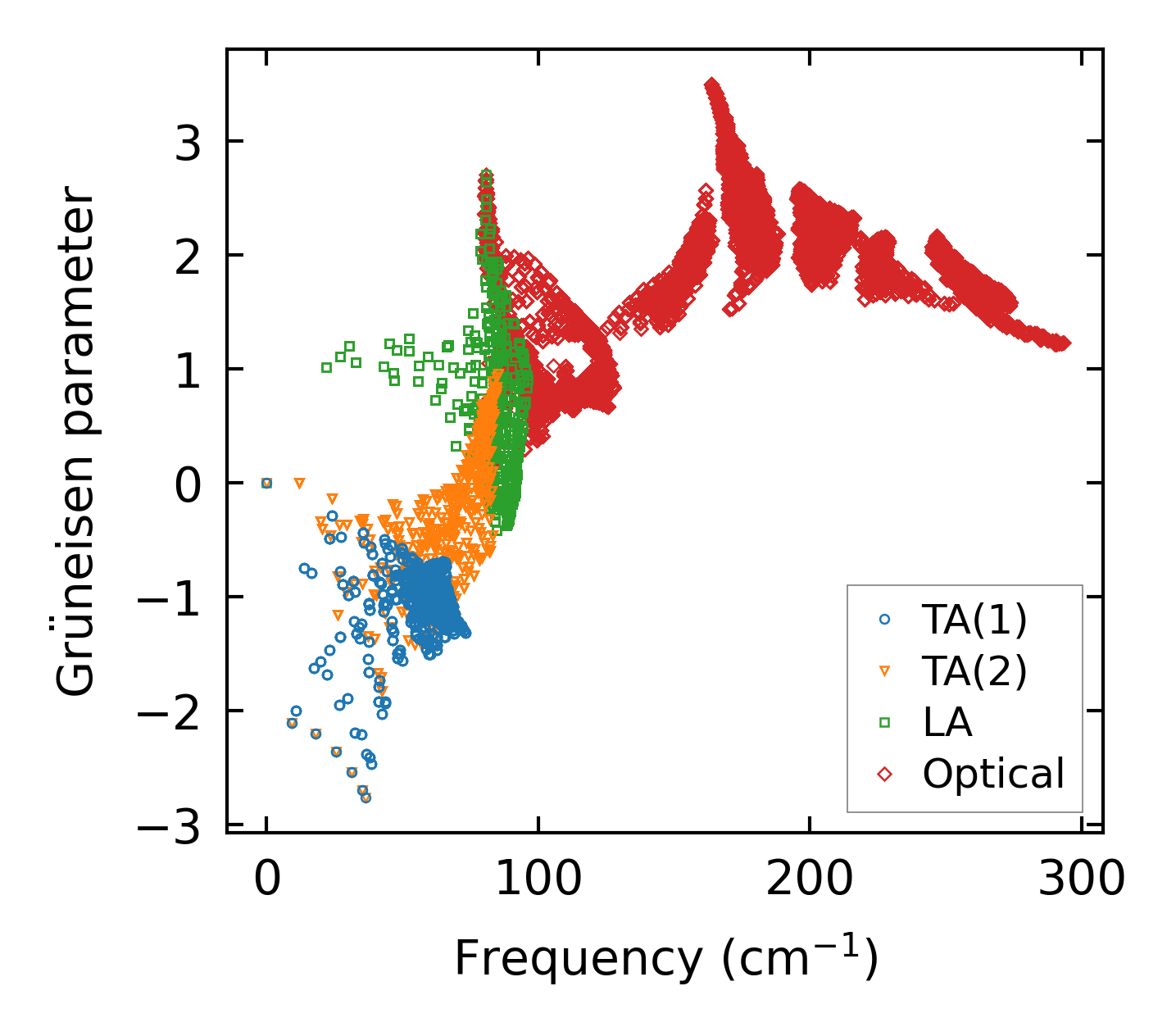

../../_images/fig_gru_all6584.png — (a) Grüneisen parameters

../../_images/fig_gruneisen6584.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 19x19x12, supercell: 4x4x2

../../_images/fig_kappa12392.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size6661.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

../../_images/fig_lifetime6518.png — (a) Phonon lifetime due to phonon-phonon scattering

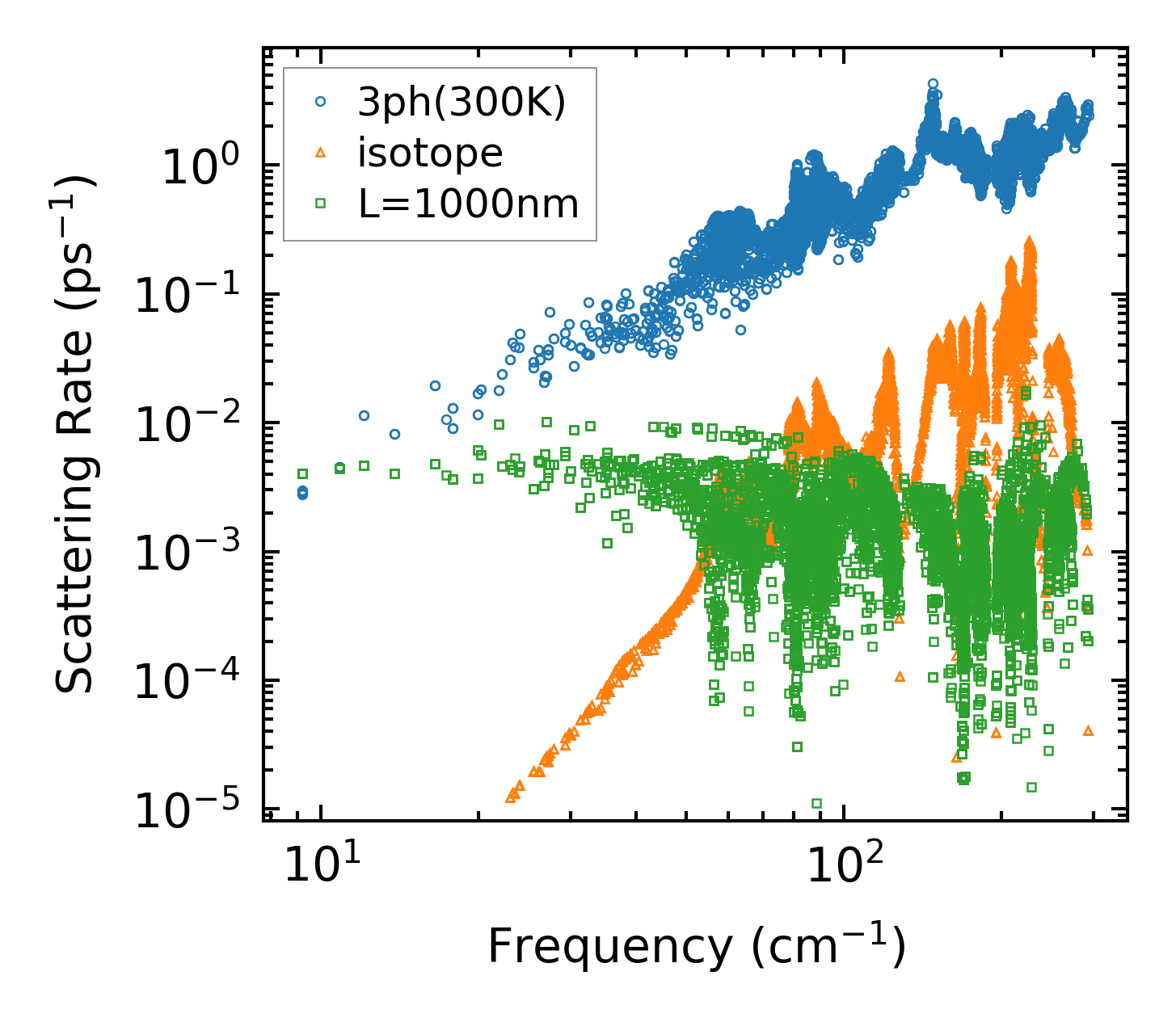

../../_images/fig_scat_rates6517.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

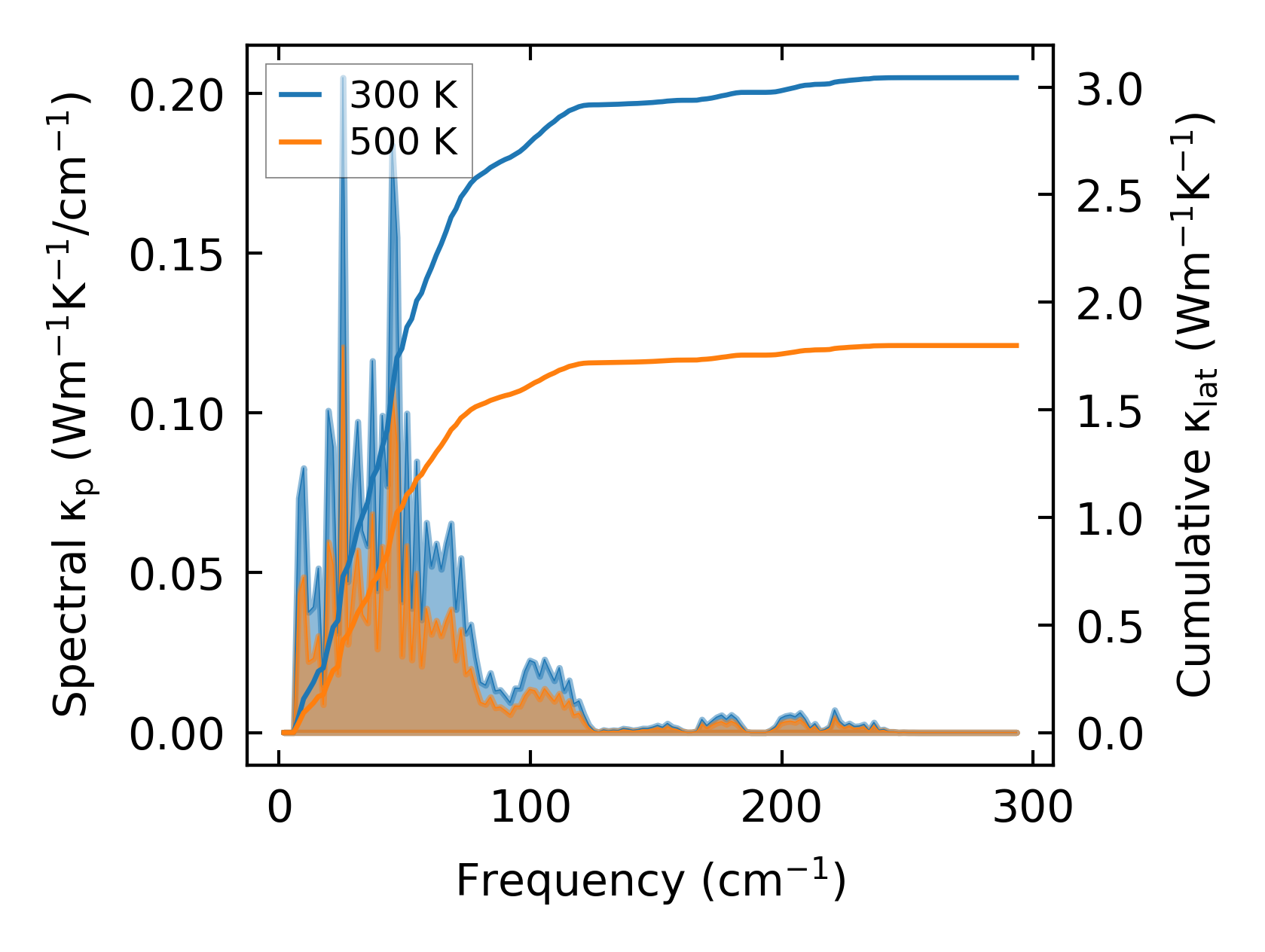

../../_images/fig_cumu_frequency6518.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

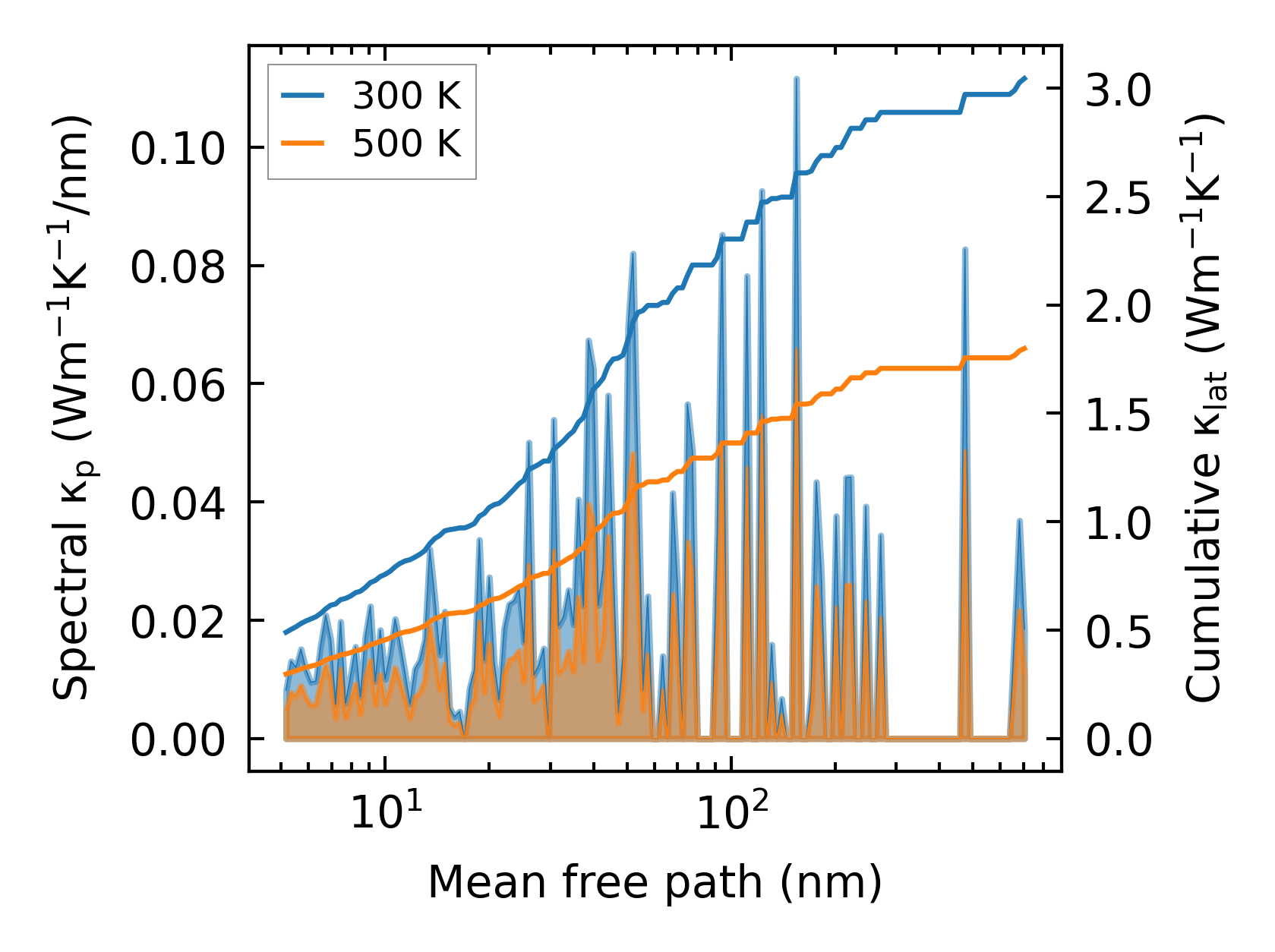

../../_images/fig_cumu_mfp6517.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

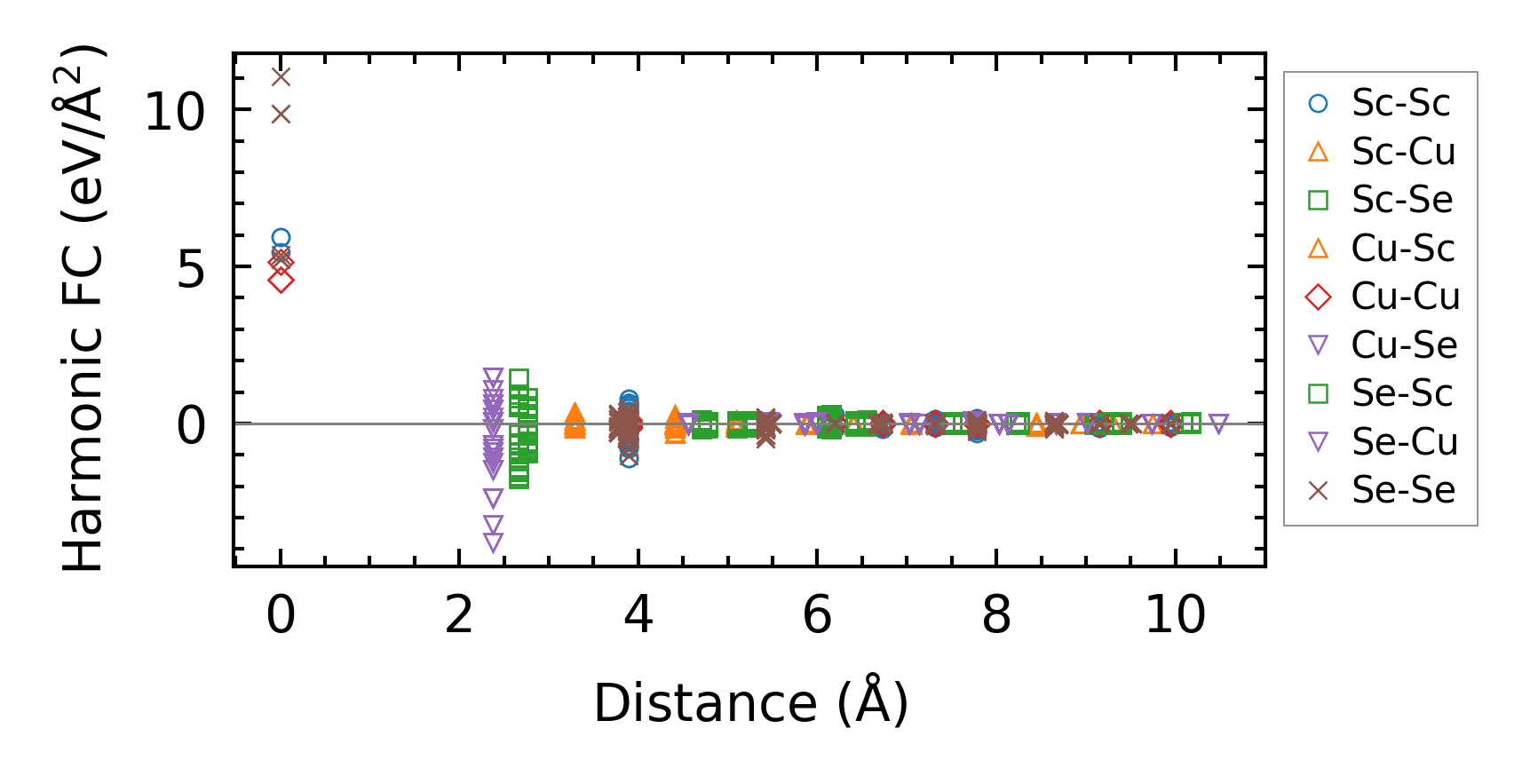

../../_images/fig_fc214883.png — (a) Force constants w.r.t atomic distance

Summary

../../_images/fig_kappa12393.png — (a) Temperature-dependent lattice thermal conductivity

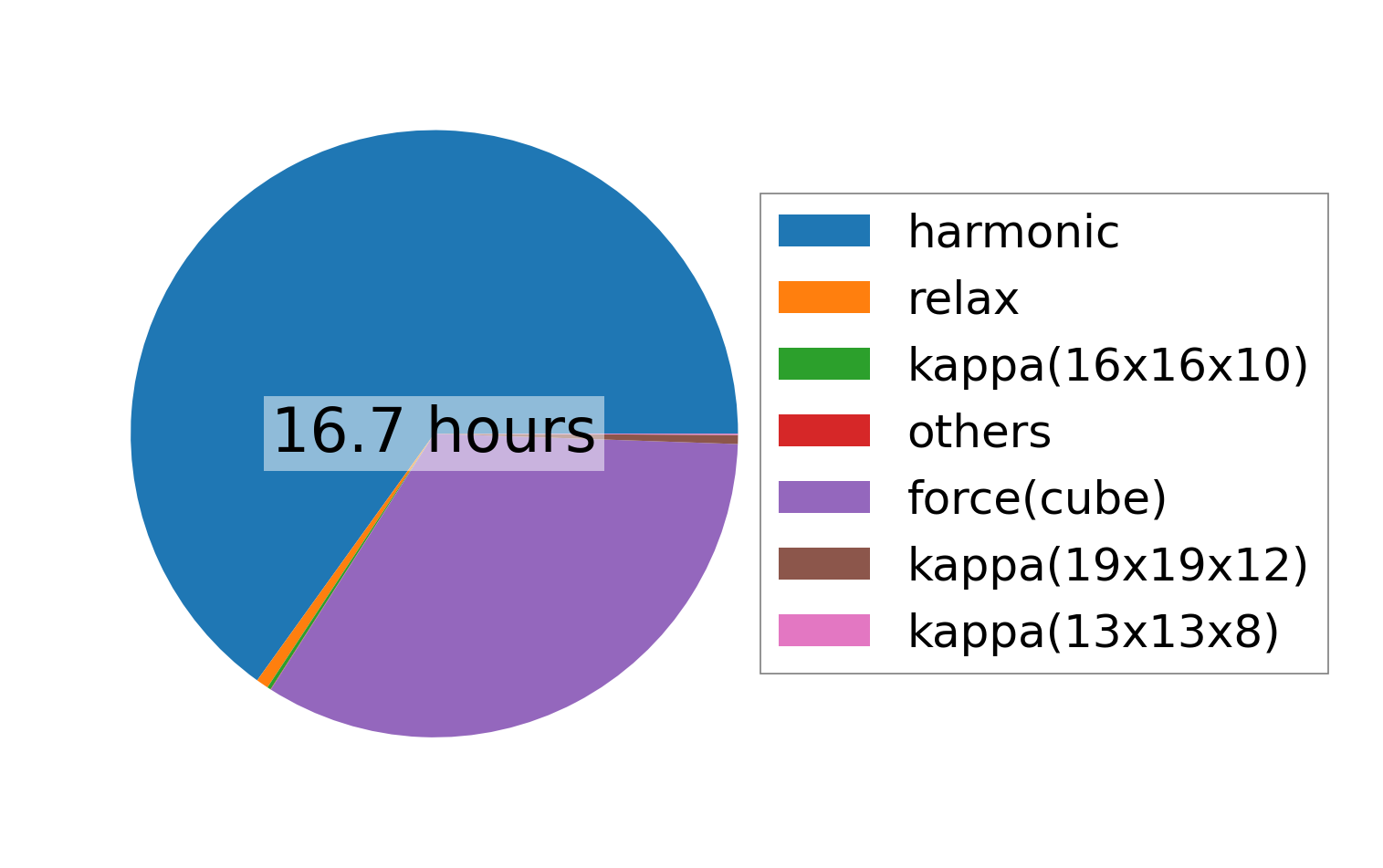

../../_images/fig_times25268.png — (b) Computation time
