mp-1219679/PrBrCl2/anharm

Space group: Pm (6)
Link: Materials Project
Download: mp-1219679.tar.gz

Harmonic properties

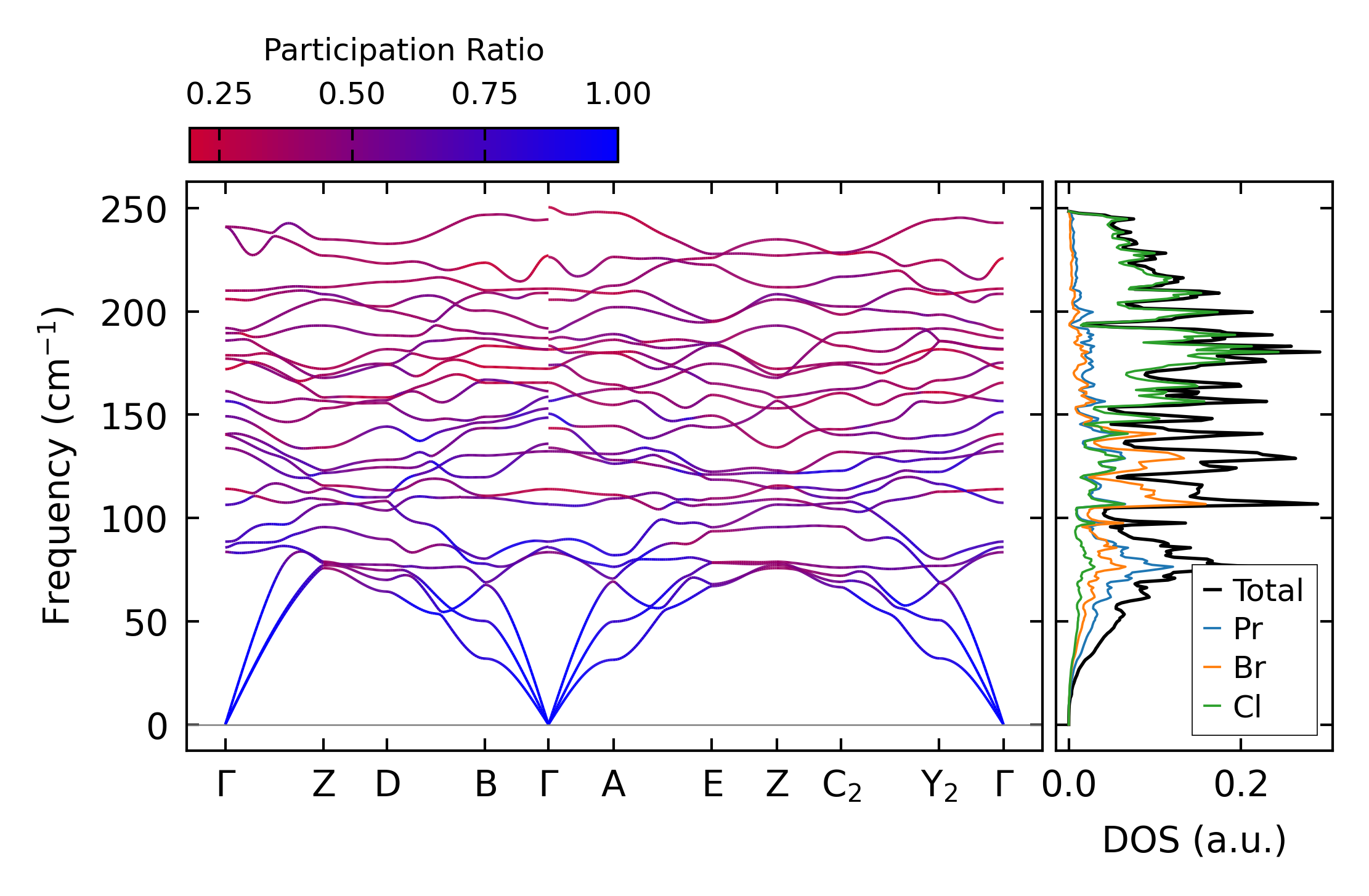

../../_images/fig_bandos_pr15284.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo15283.png — (b) Thermodynamic properties

Grüneisen parameters

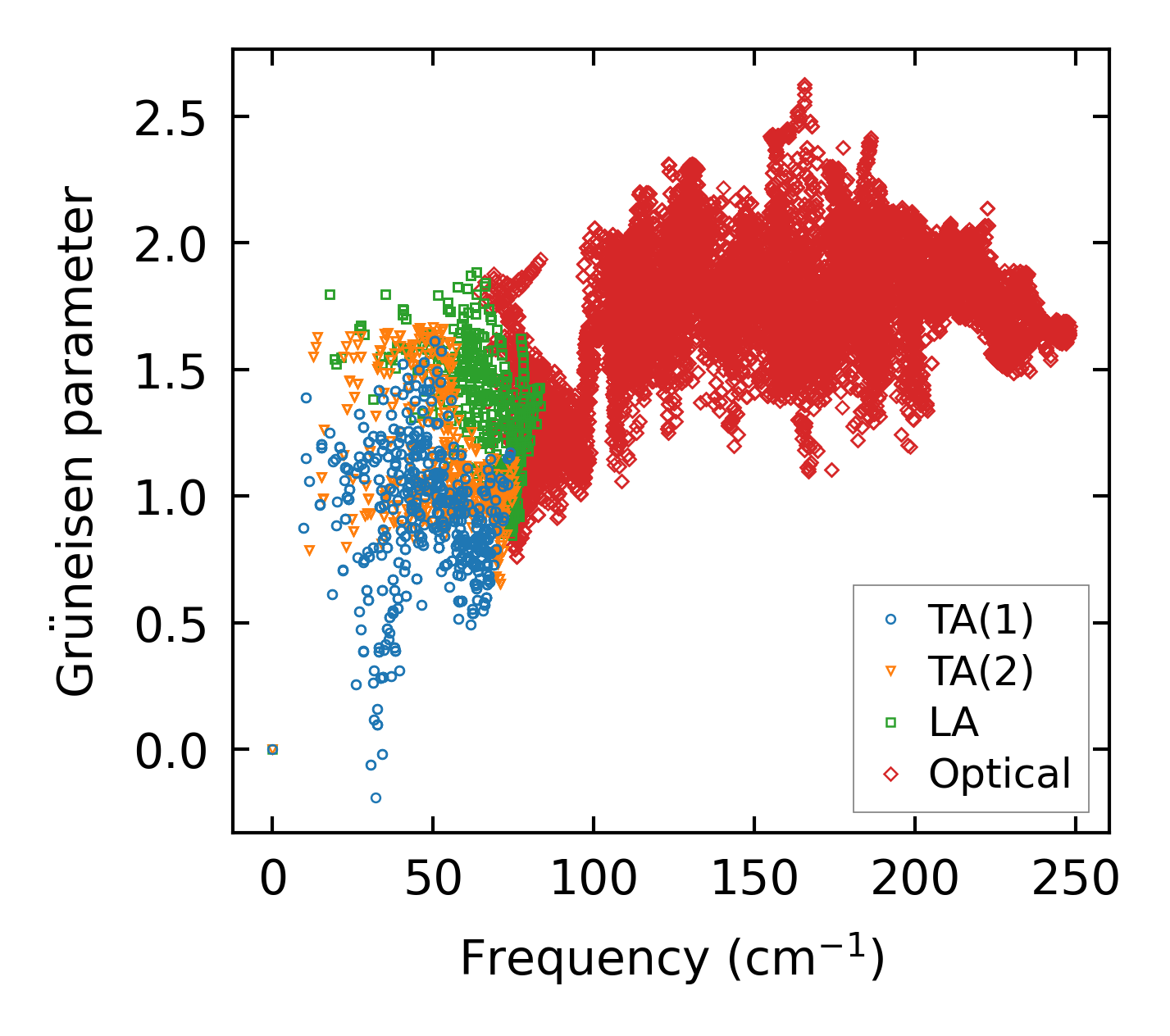

../../_images/fig_gru_all6591.png — (a) Grüneisen parameters

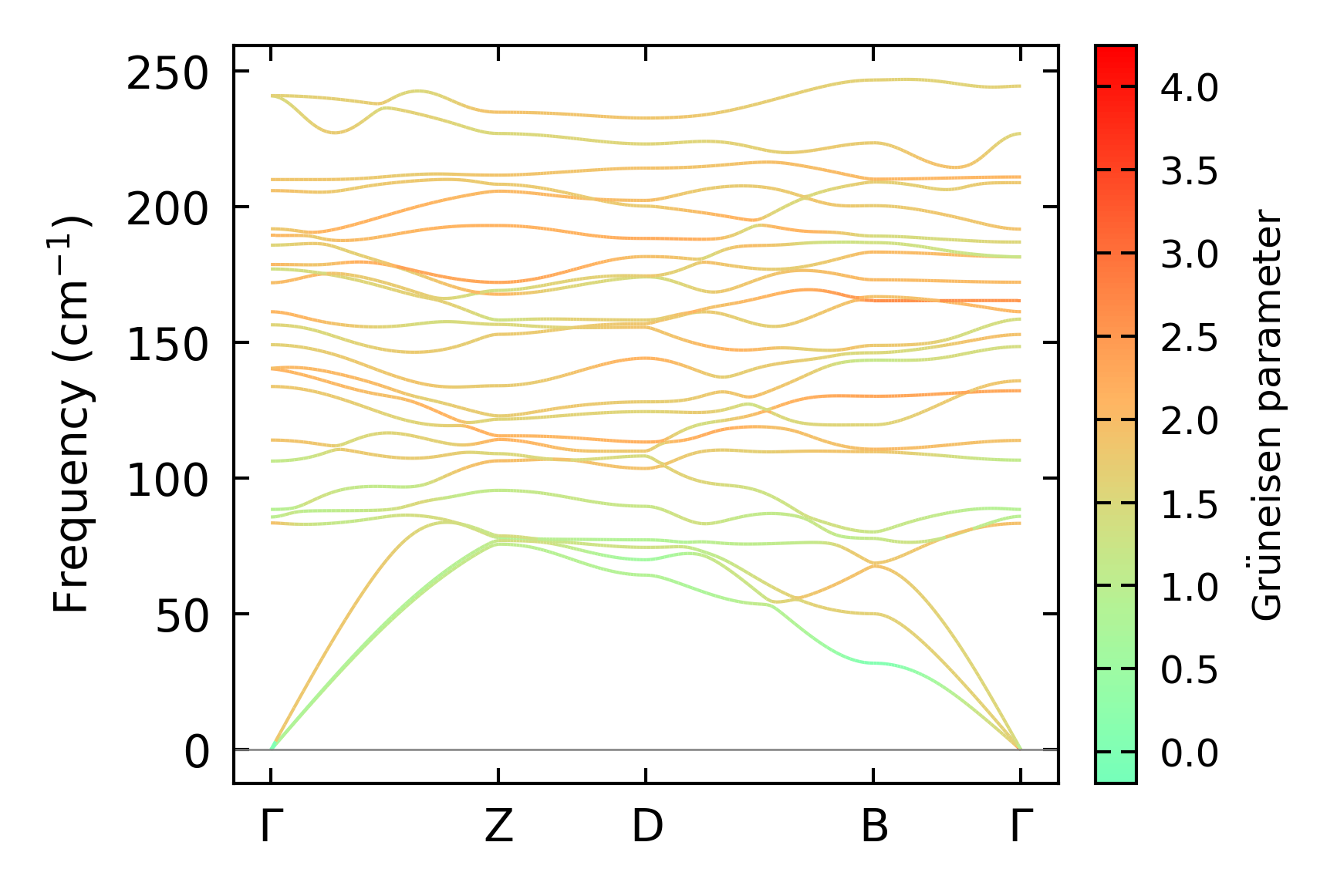

../../_images/fig_gruneisen6591.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 10x17x9, supercell: 2x4x2

../../_images/fig_kappa12406.png — (a) Temperature-dependent lattice thermal conductivity

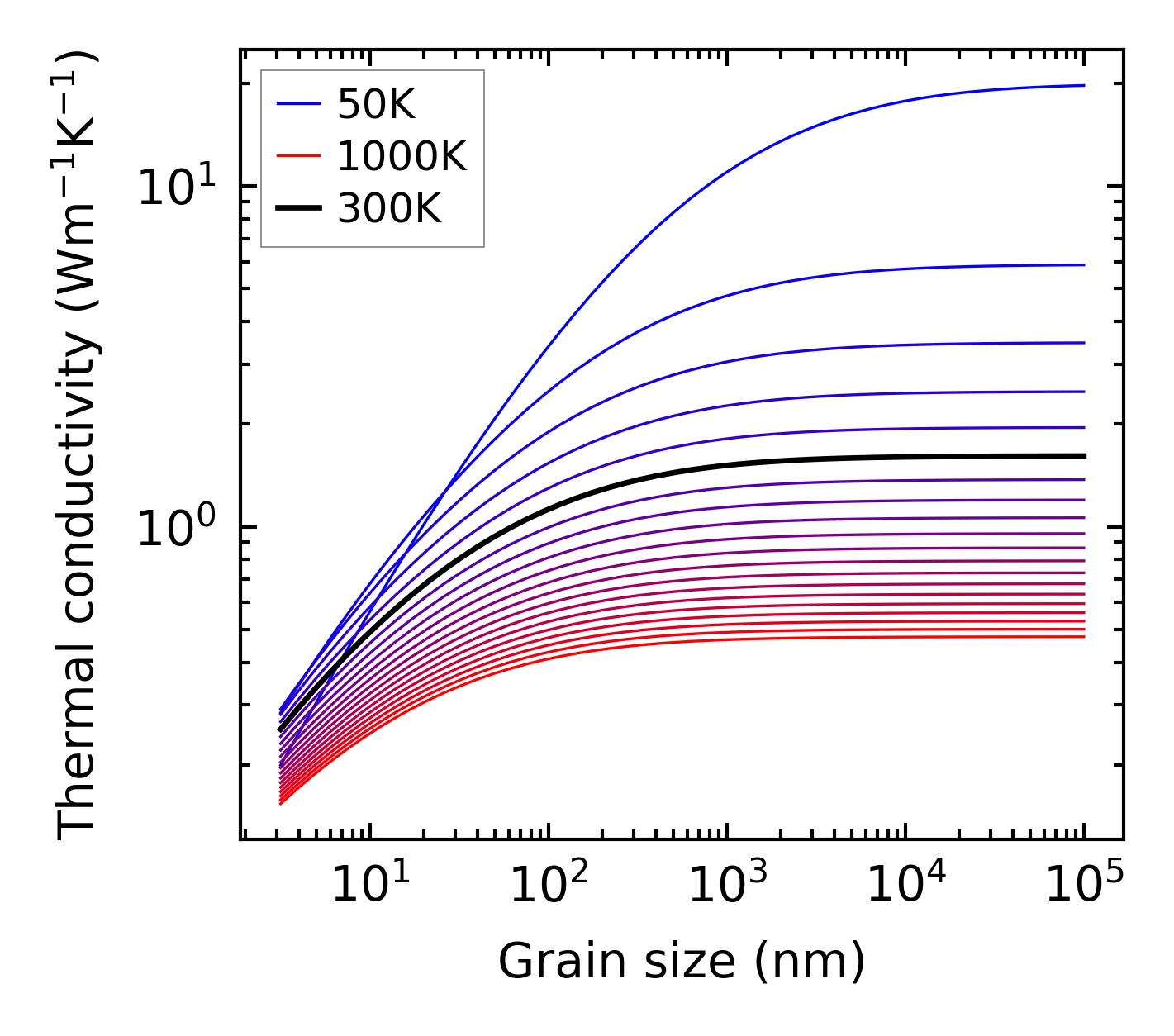

../../_images/fig_kappa_vs_grain_size6669.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

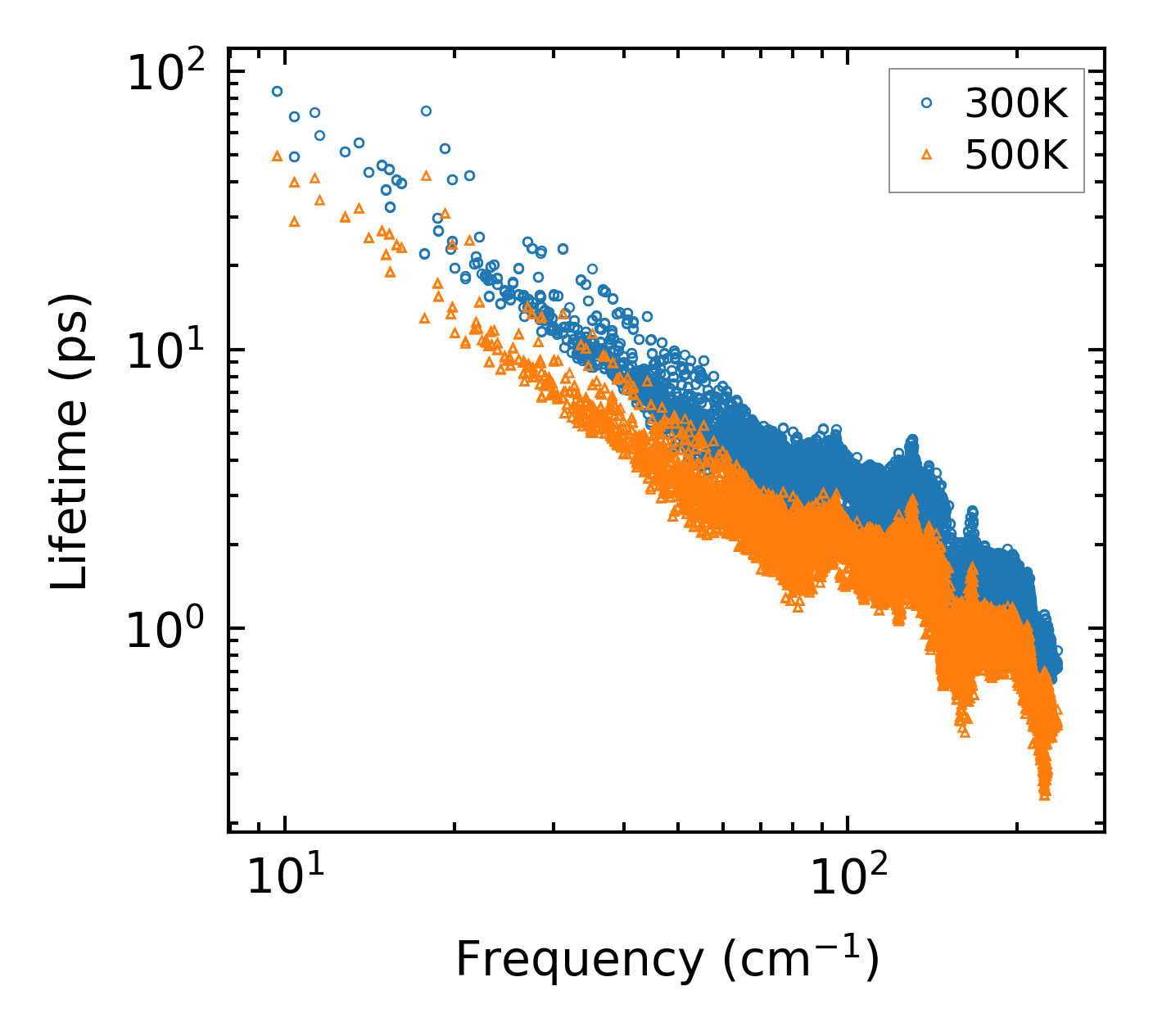

../../_images/fig_lifetime6525.png — (a) Phonon lifetime due to phonon-phonon scattering

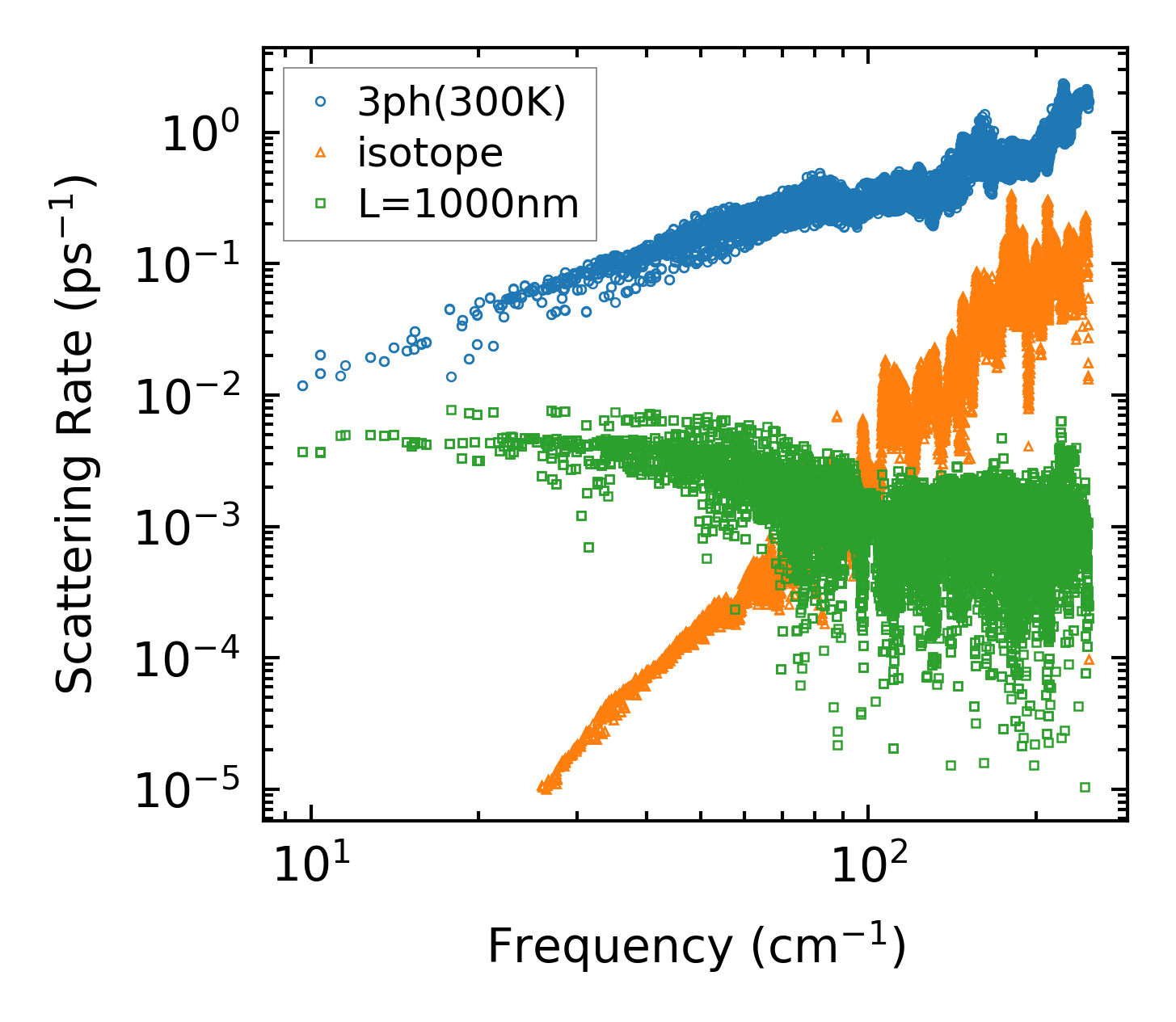

../../_images/fig_scat_rates6524.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

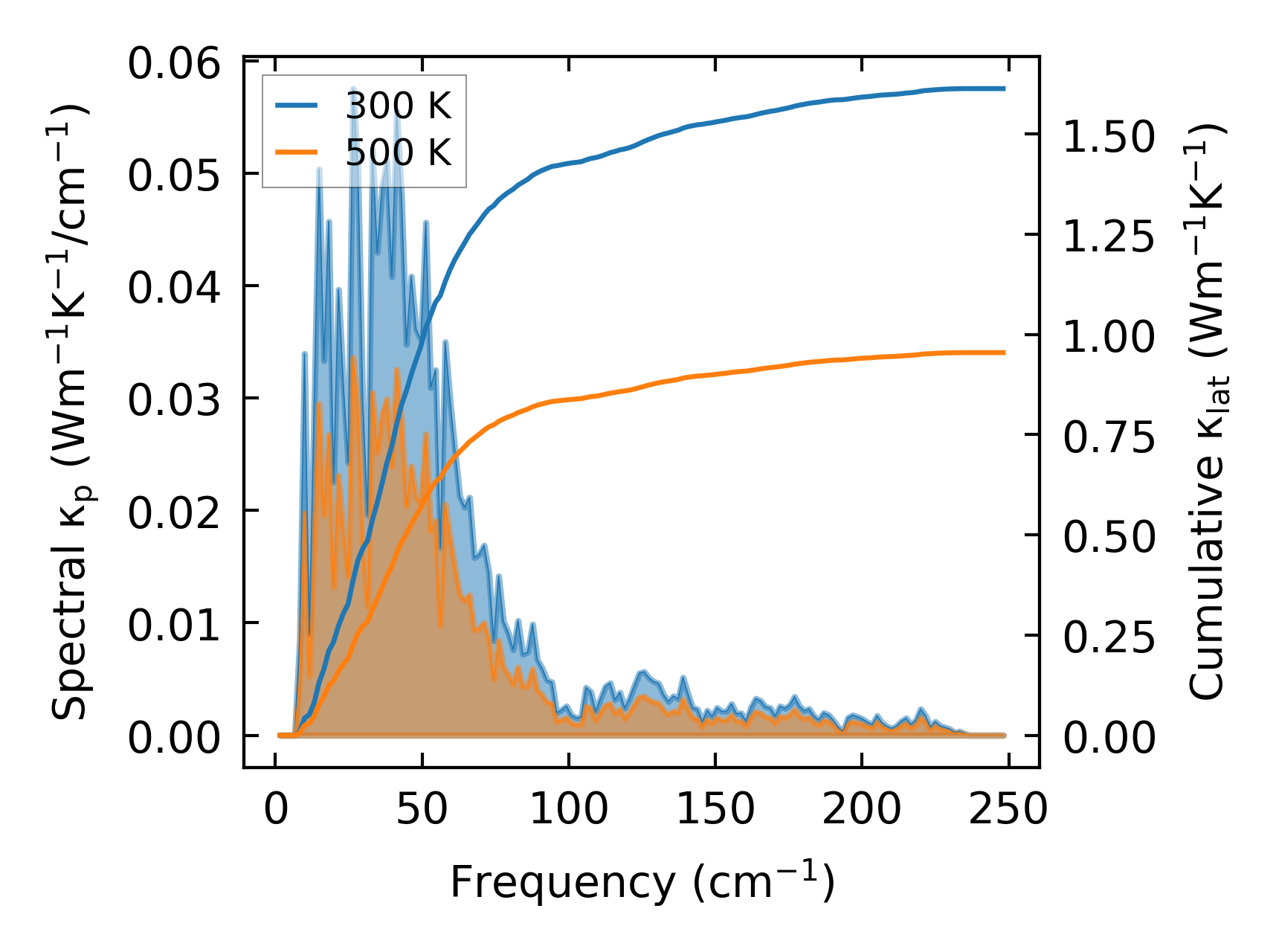

../../_images/fig_cumu_frequency6525.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

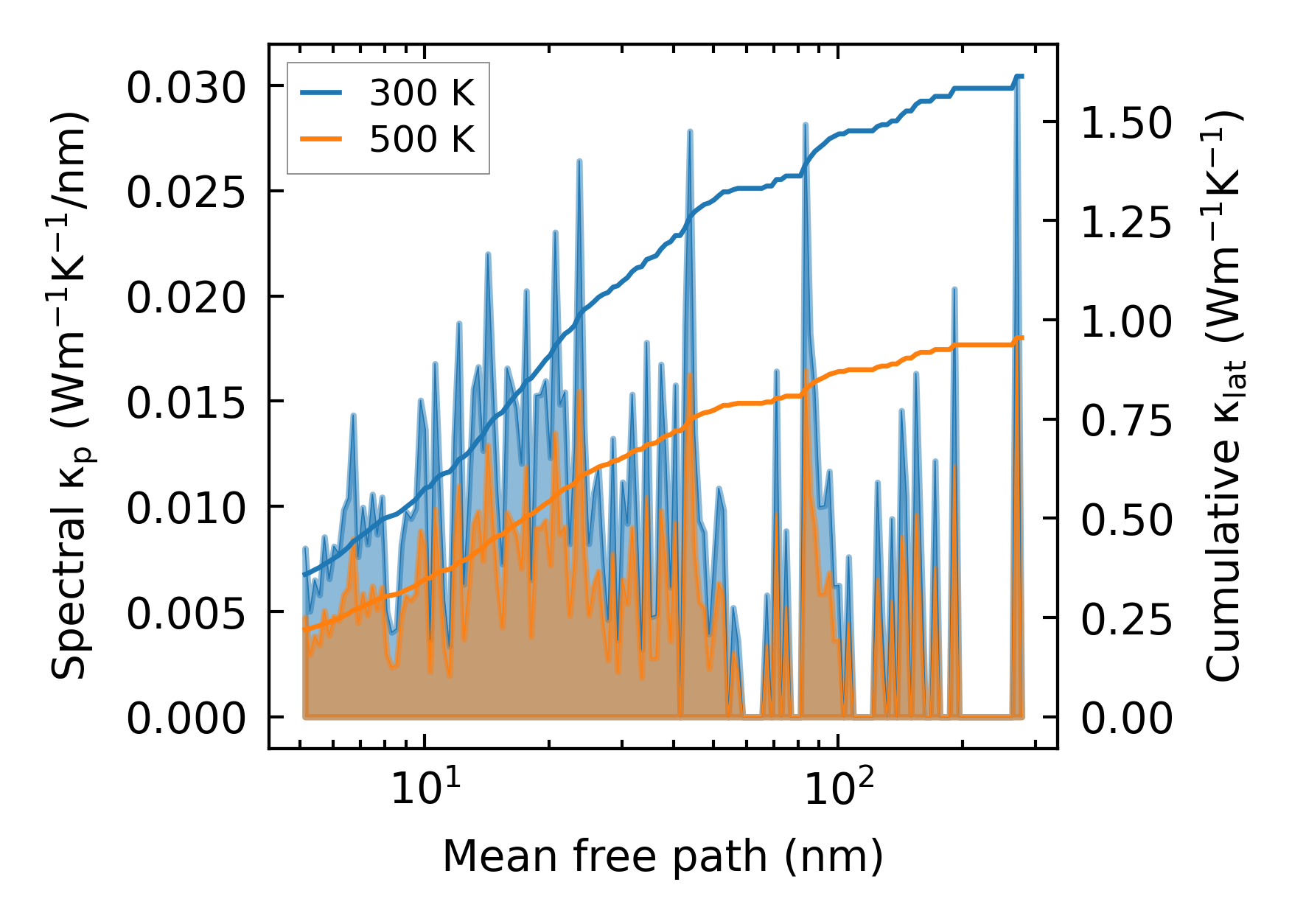

../../_images/fig_cumu_mfp6524.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

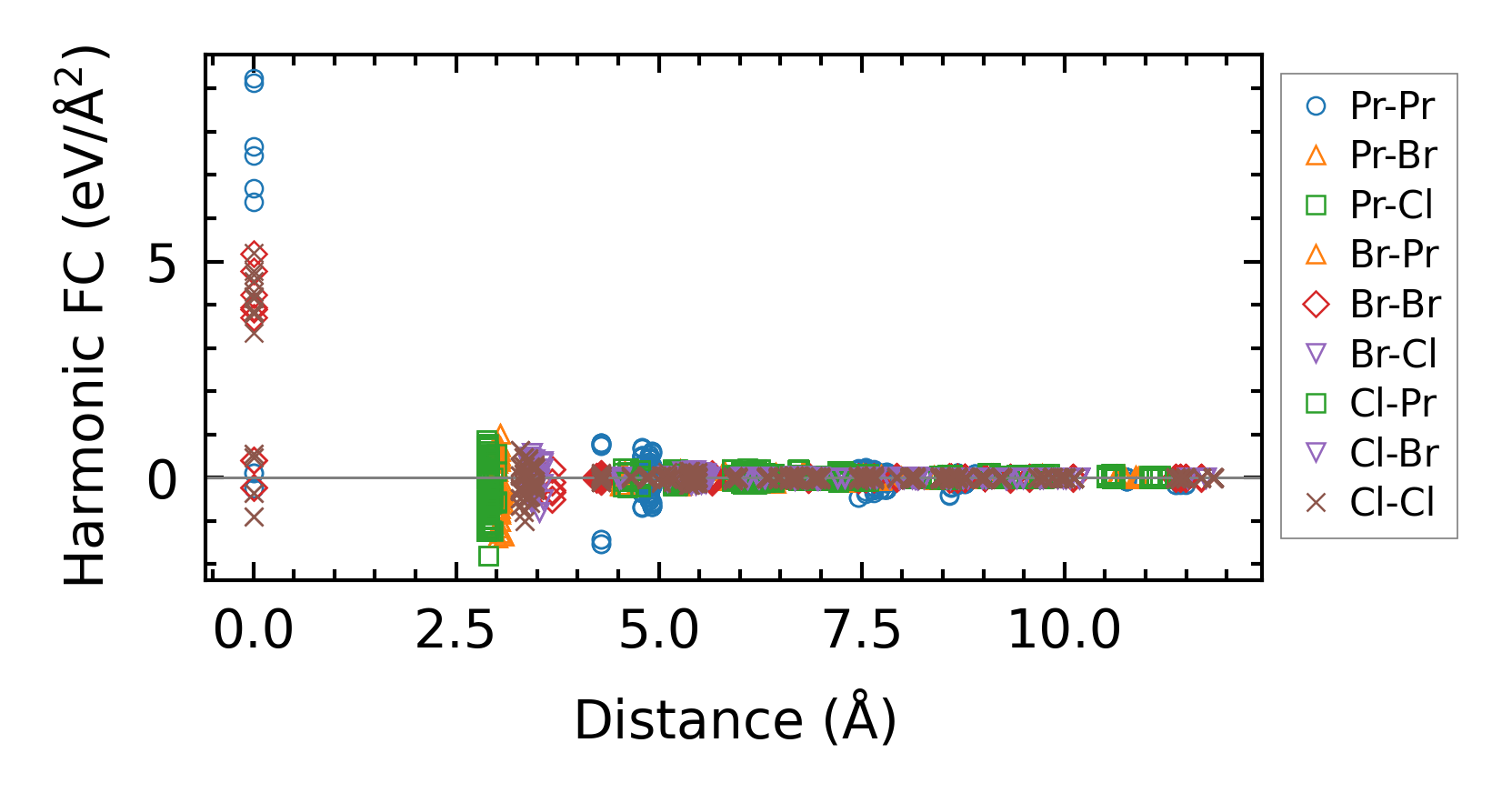

../../_images/fig_fc214893.png — (a) Force constants w.r.t atomic distance

Summary

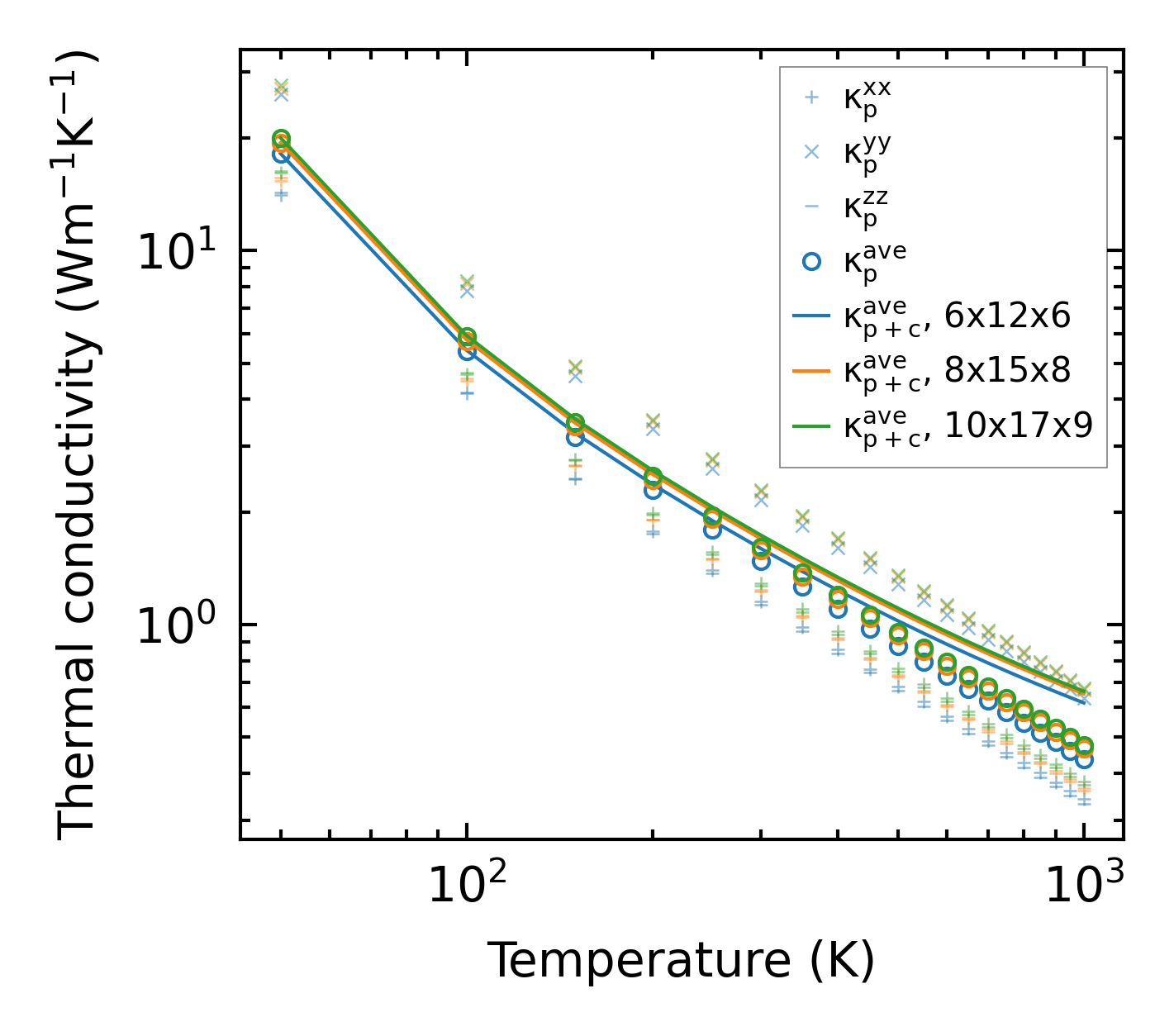

../../_images/fig_kappa12407.png — (a) Temperature-dependent lattice thermal conductivity

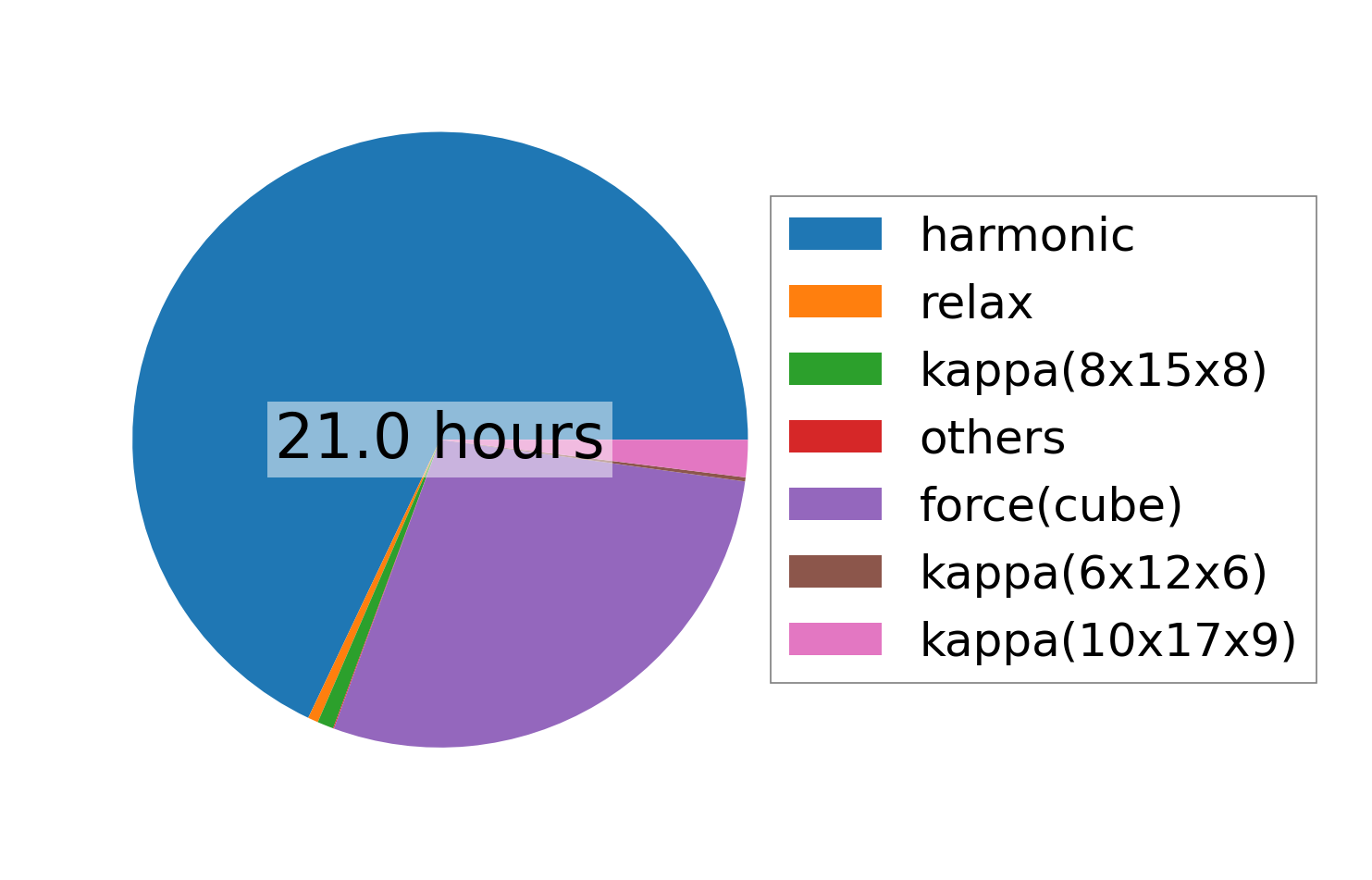

../../_images/fig_times25285.png — (b) Computation time
