mp-1219274/ScNbNi2Sn2/anharm

Space group: R3m (160)
Link: Materials Project
Download: mp-1219274.tar.gz

Harmonic properties

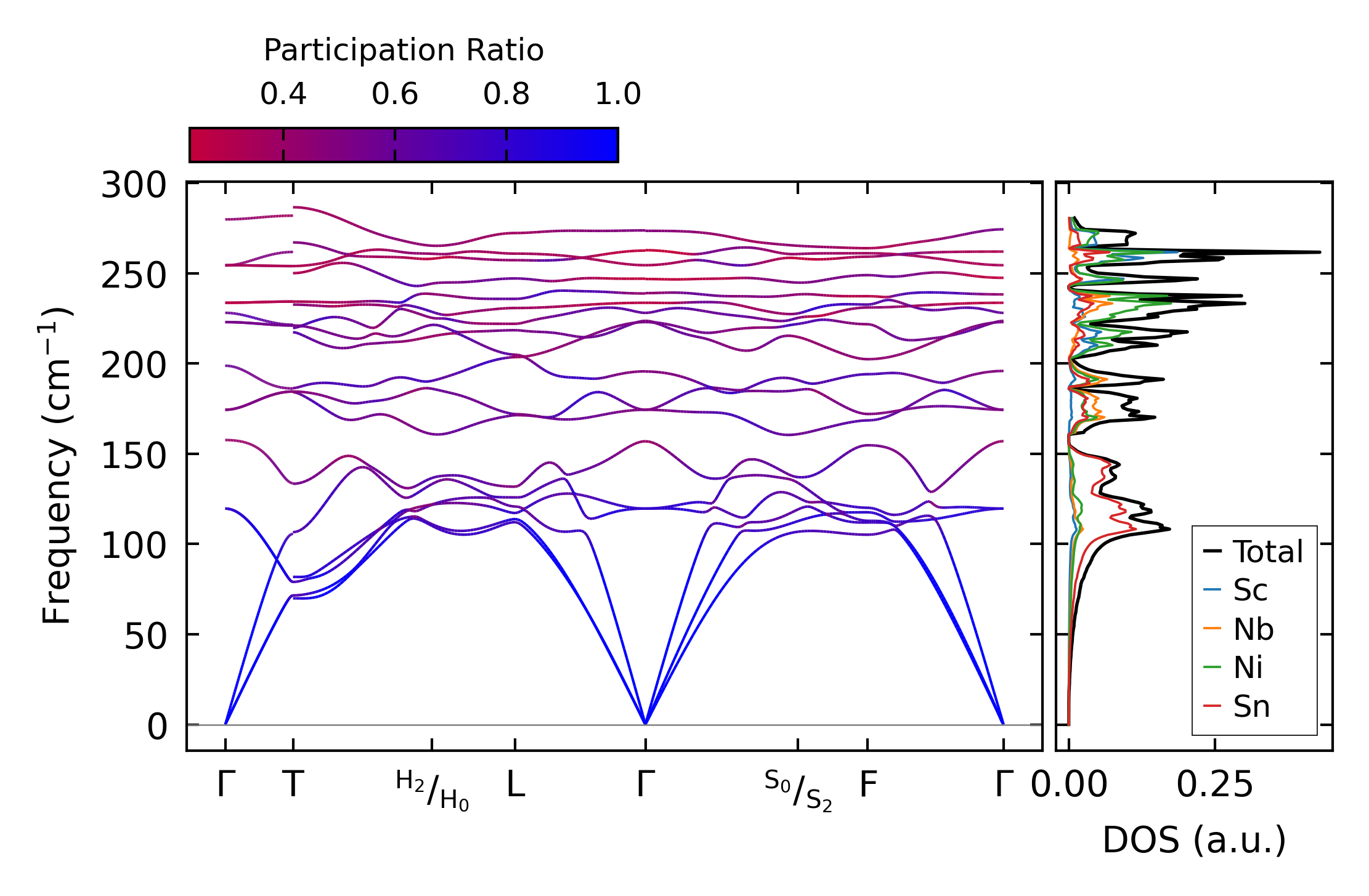

../../_images/fig_bandos_pr15269.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo15268.png — (b) Thermodynamic properties

Grüneisen parameters

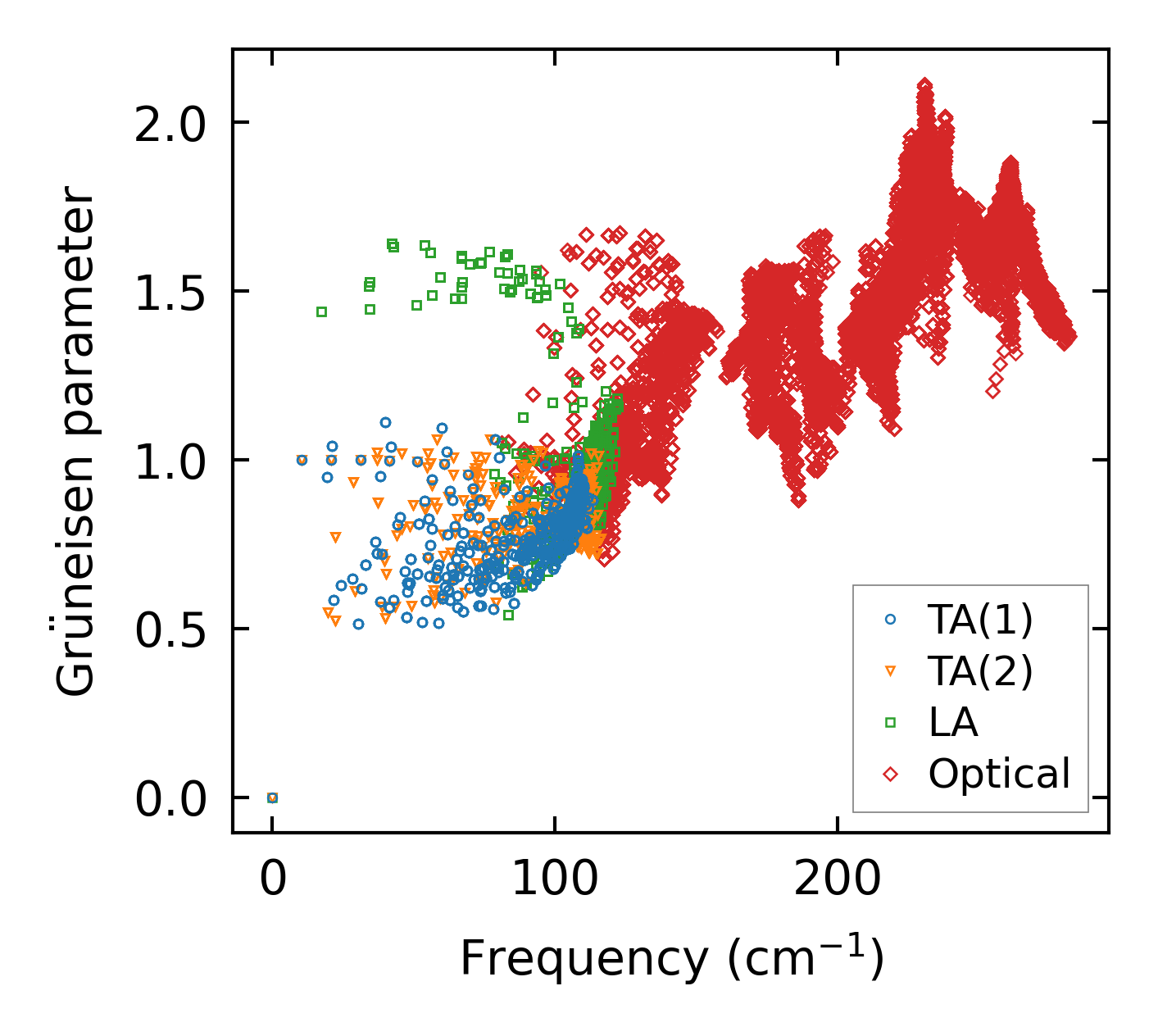

../../_images/fig_gru_all6583.png — (a) Grüneisen parameters

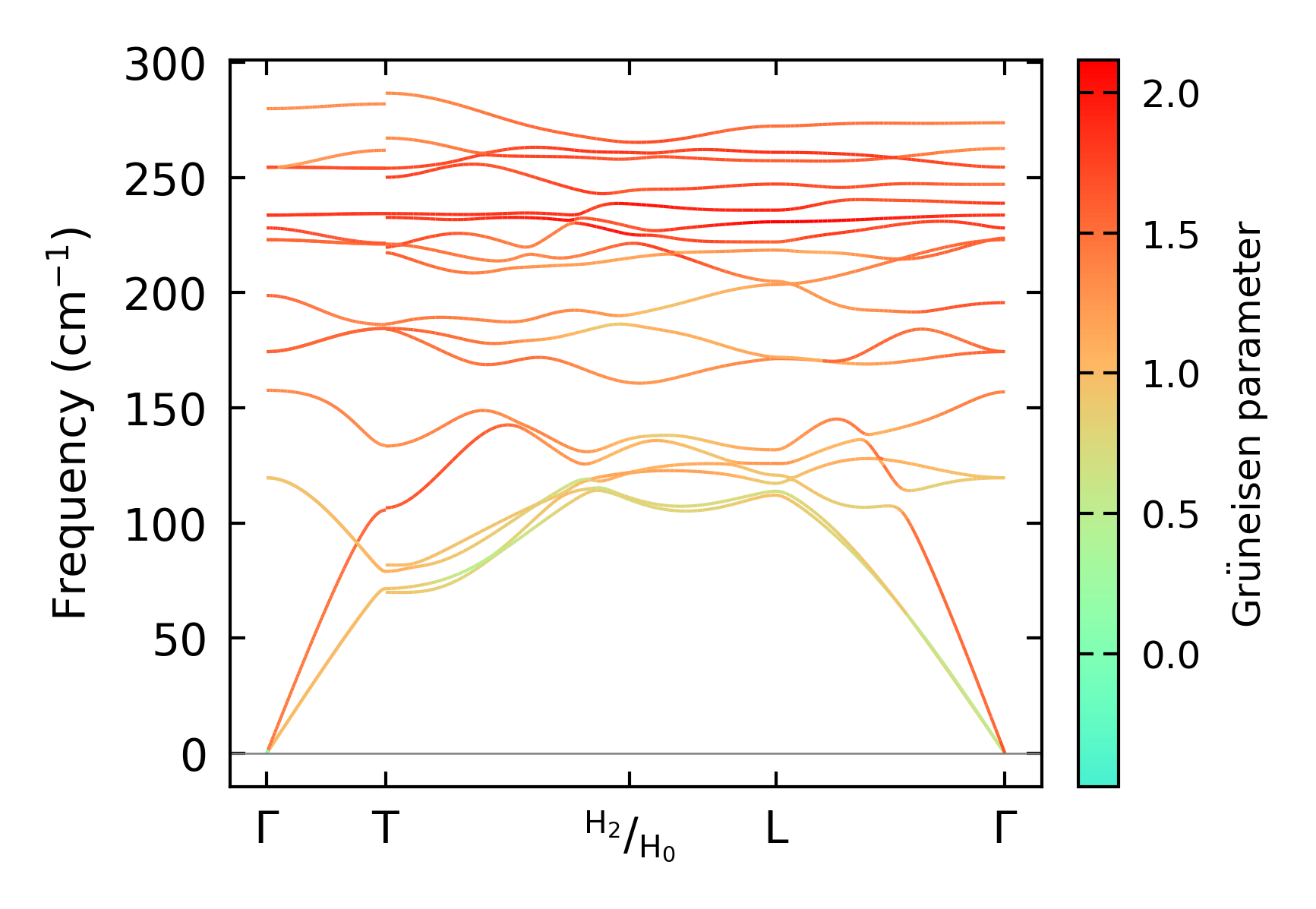

../../_images/fig_gruneisen6583.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 15x15x15, supercell: 2x2x1

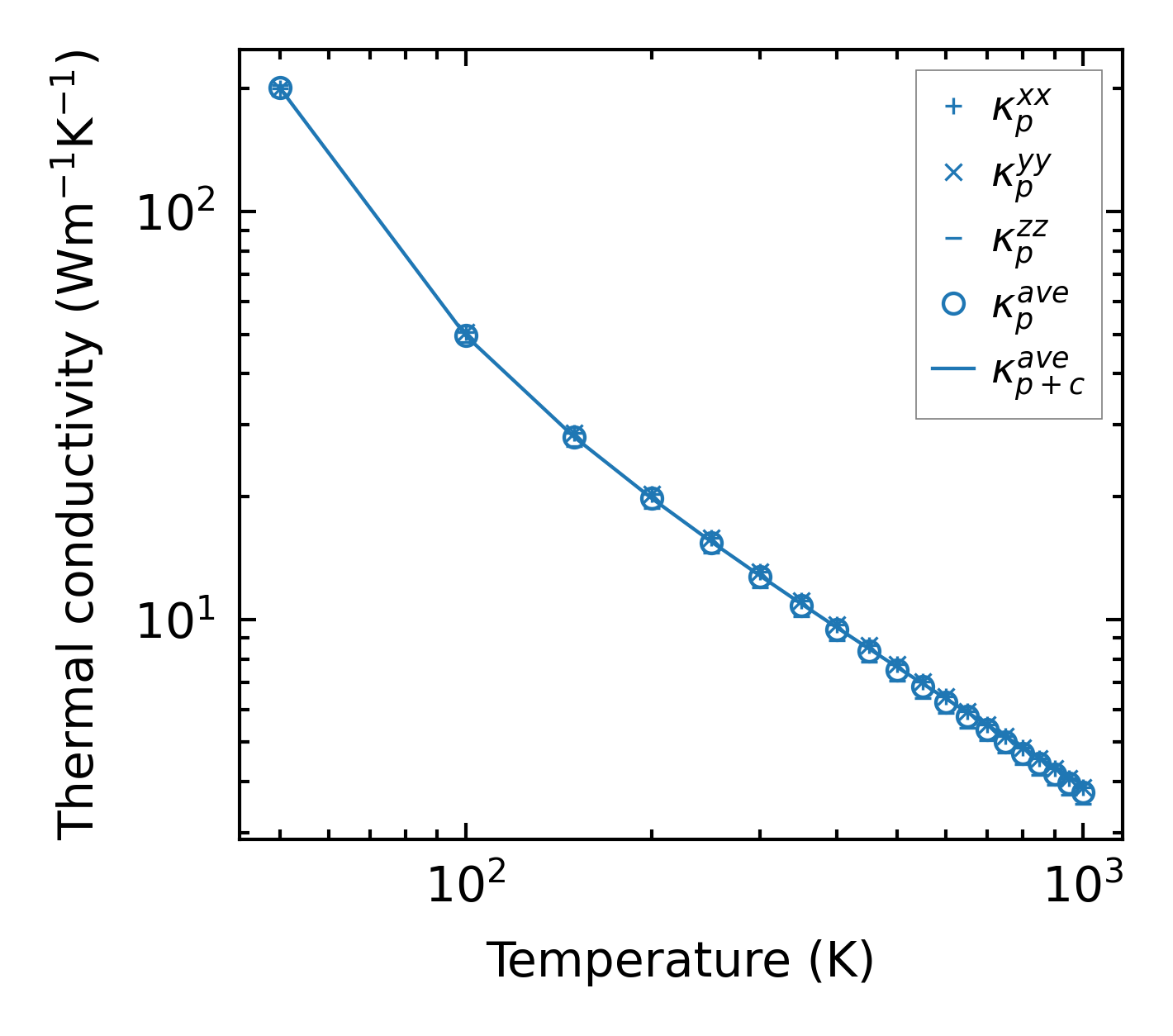

../../_images/fig_kappa12390.png — (a) Temperature-dependent lattice thermal conductivity

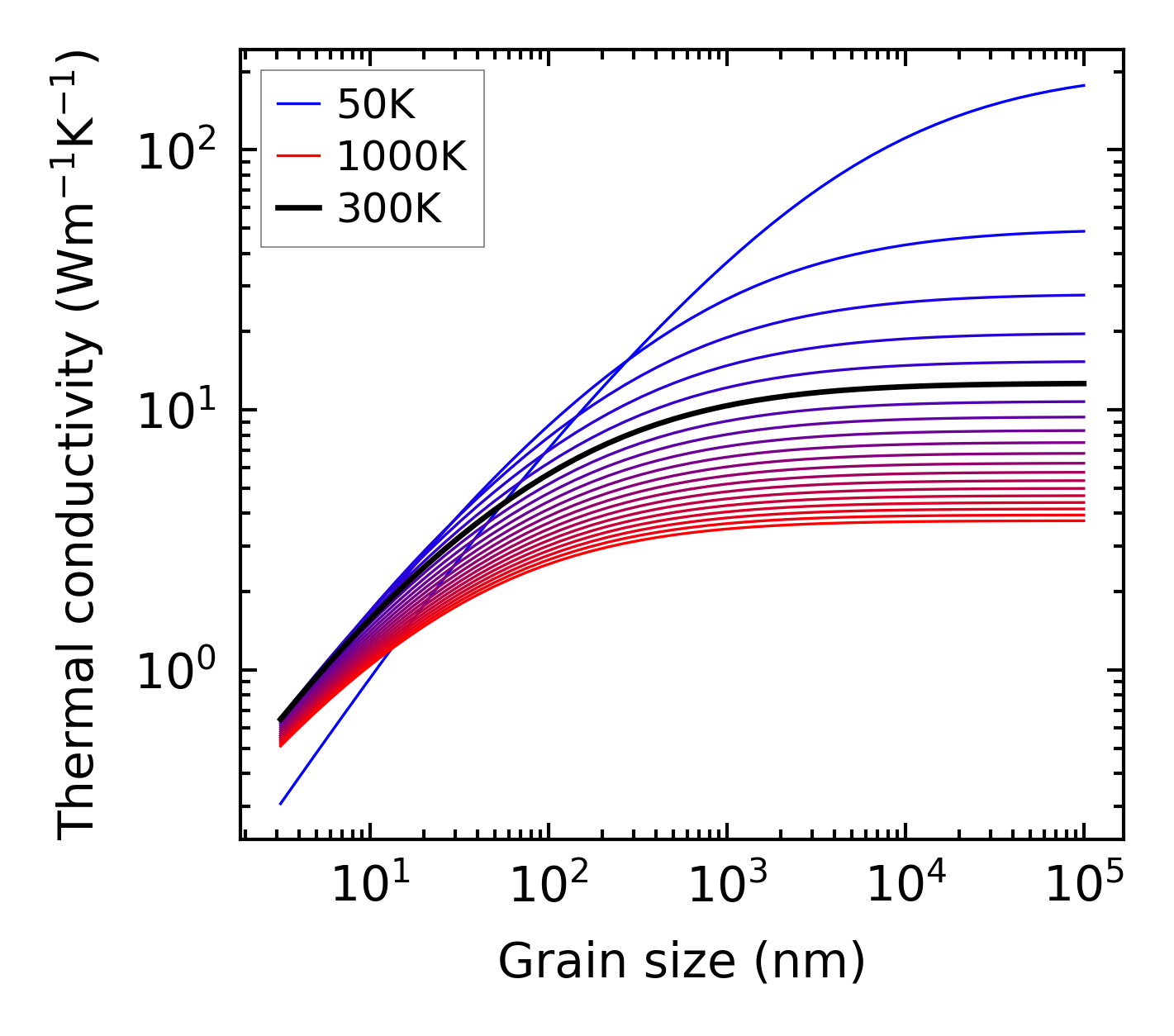

../../_images/fig_kappa_vs_grain_size6660.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

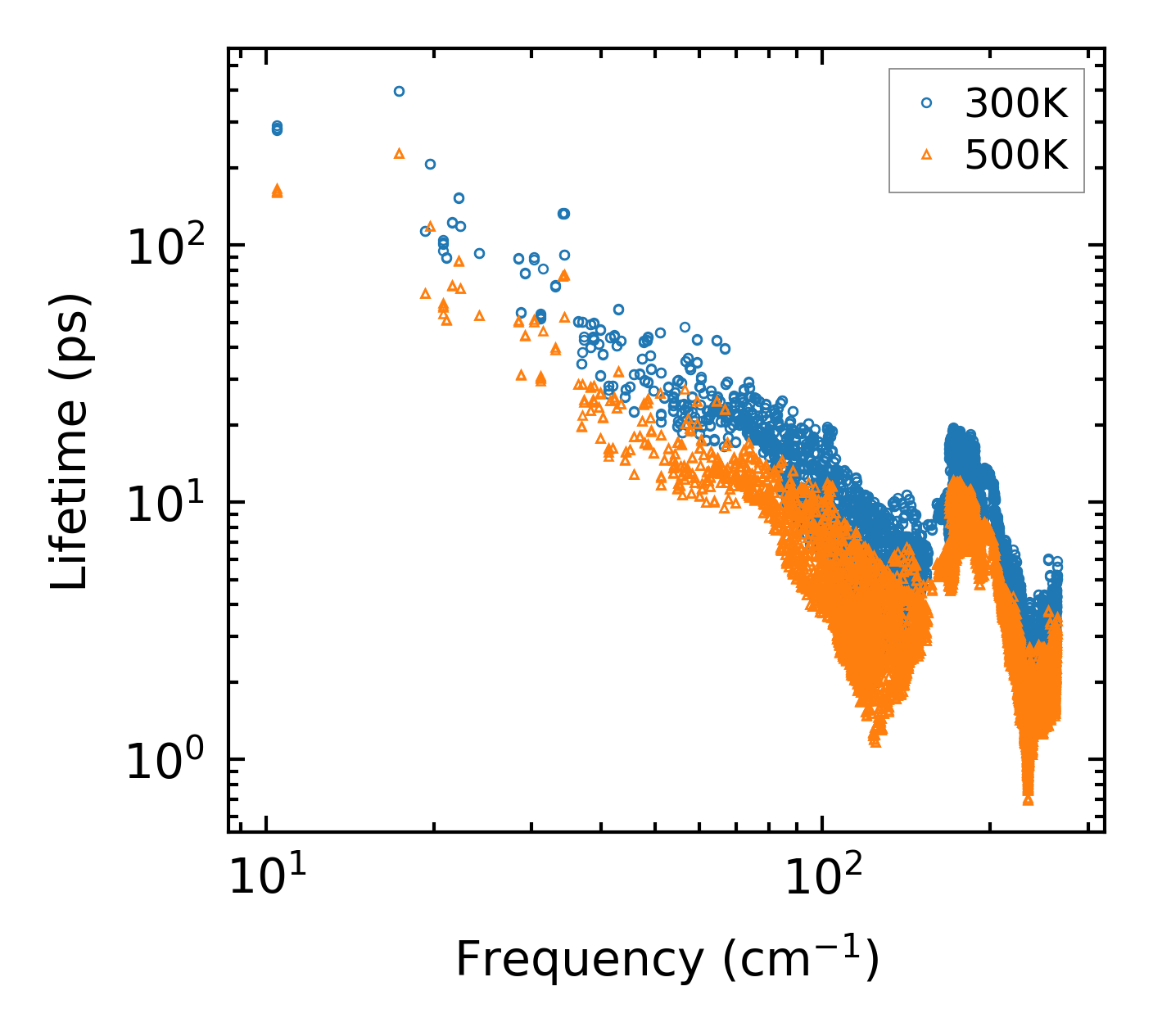

../../_images/fig_lifetime6517.png — (a) Phonon lifetime due to phonon-phonon scattering

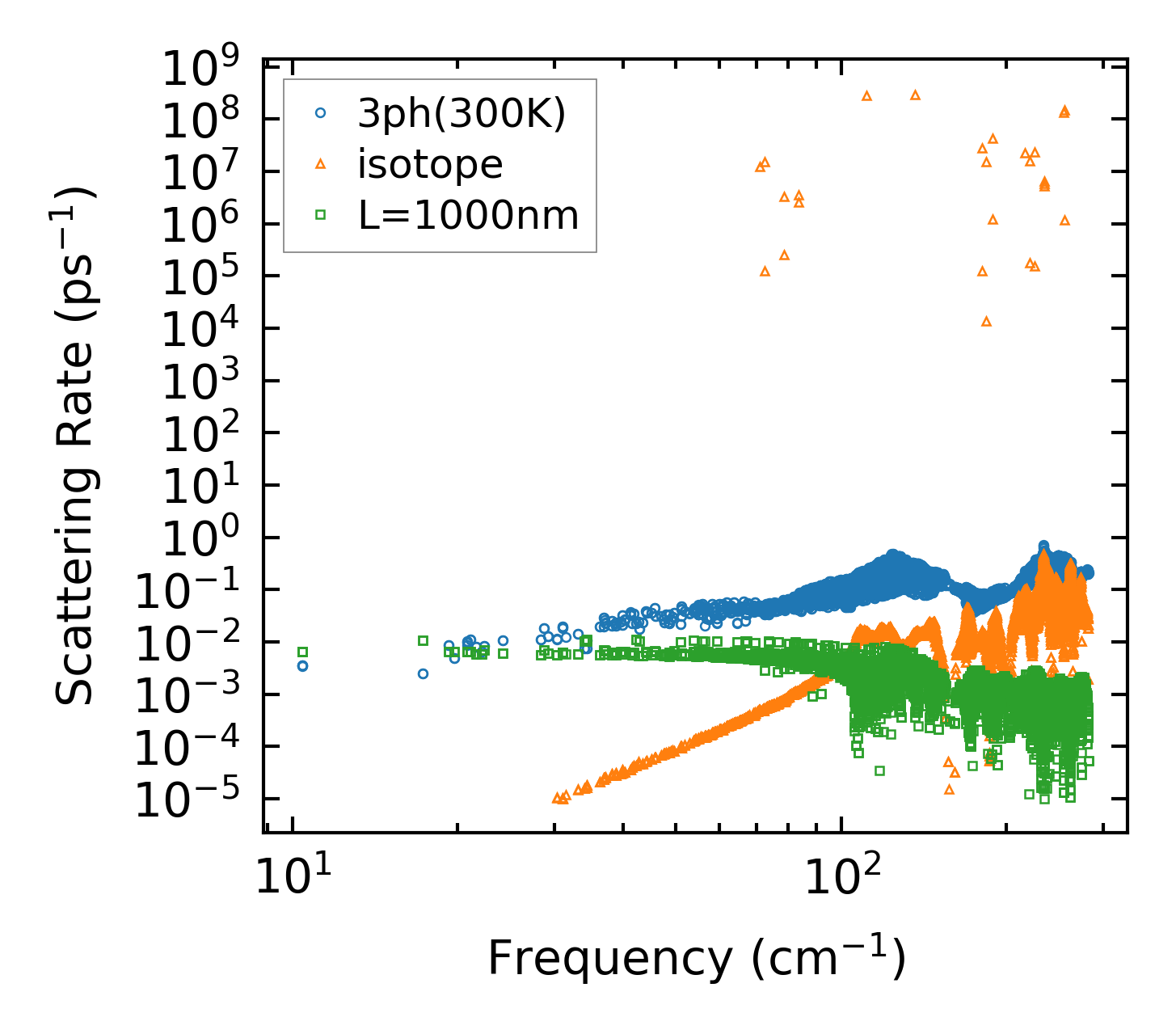

../../_images/fig_scat_rates6516.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

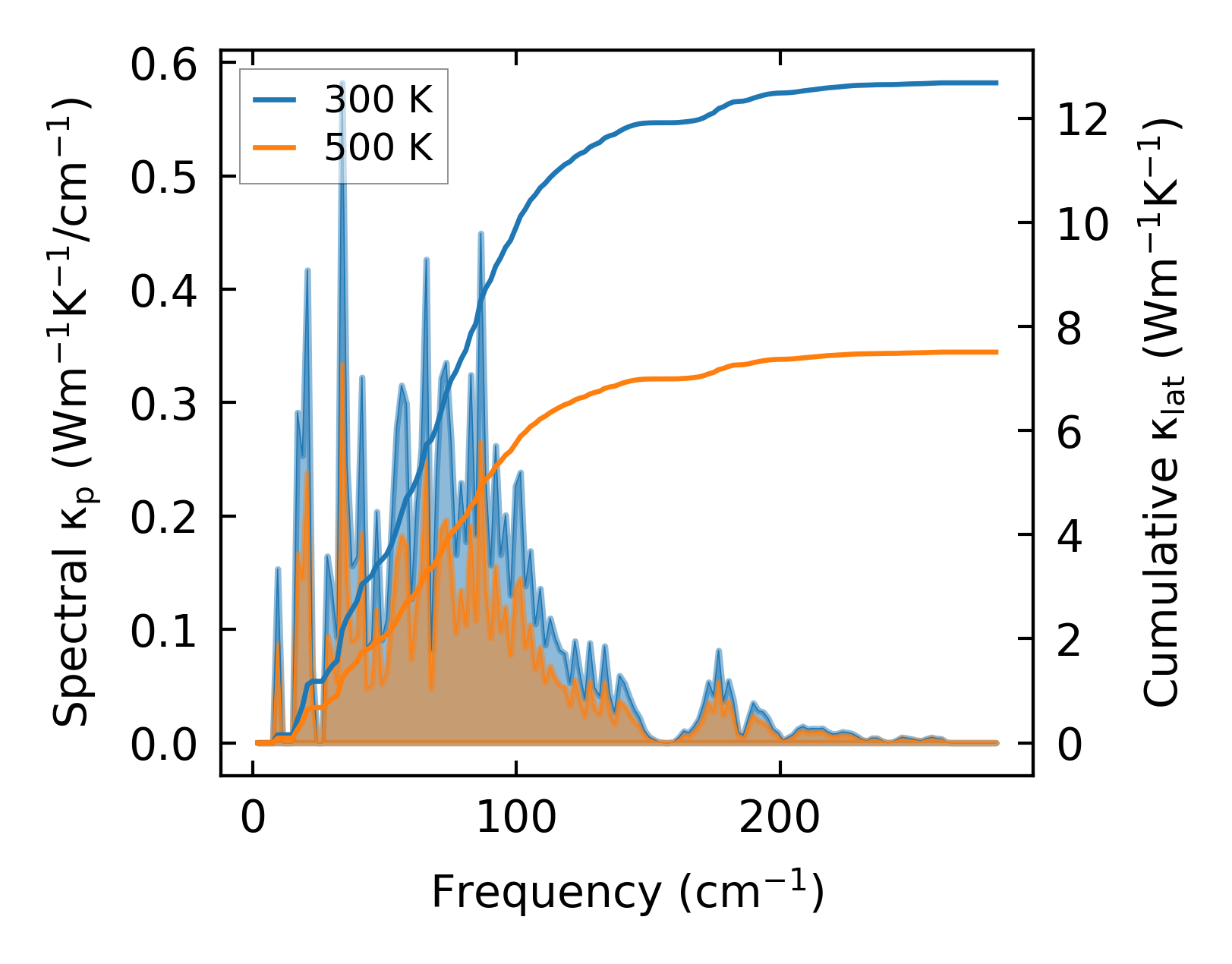

../../_images/fig_cumu_frequency6517.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

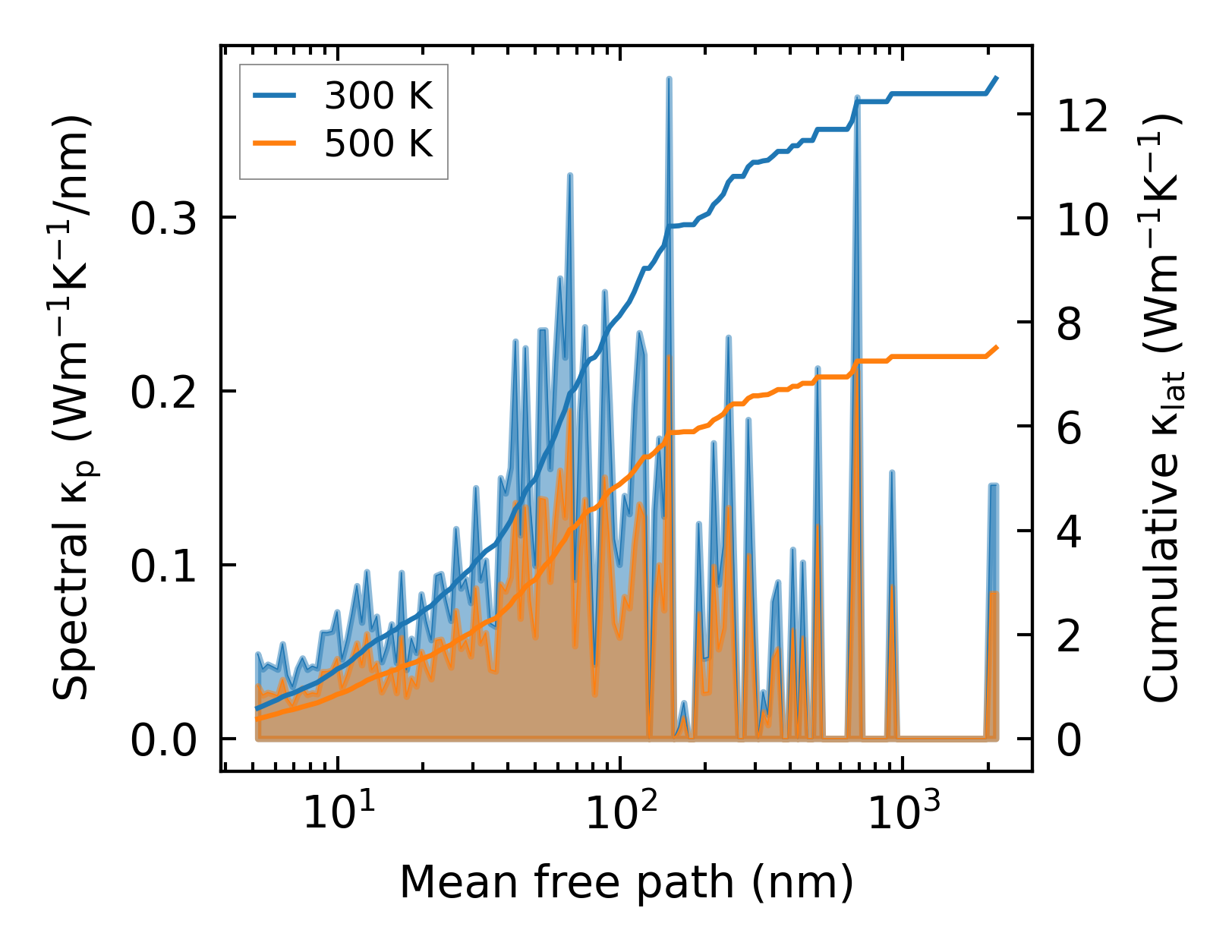

../../_images/fig_cumu_mfp6516.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

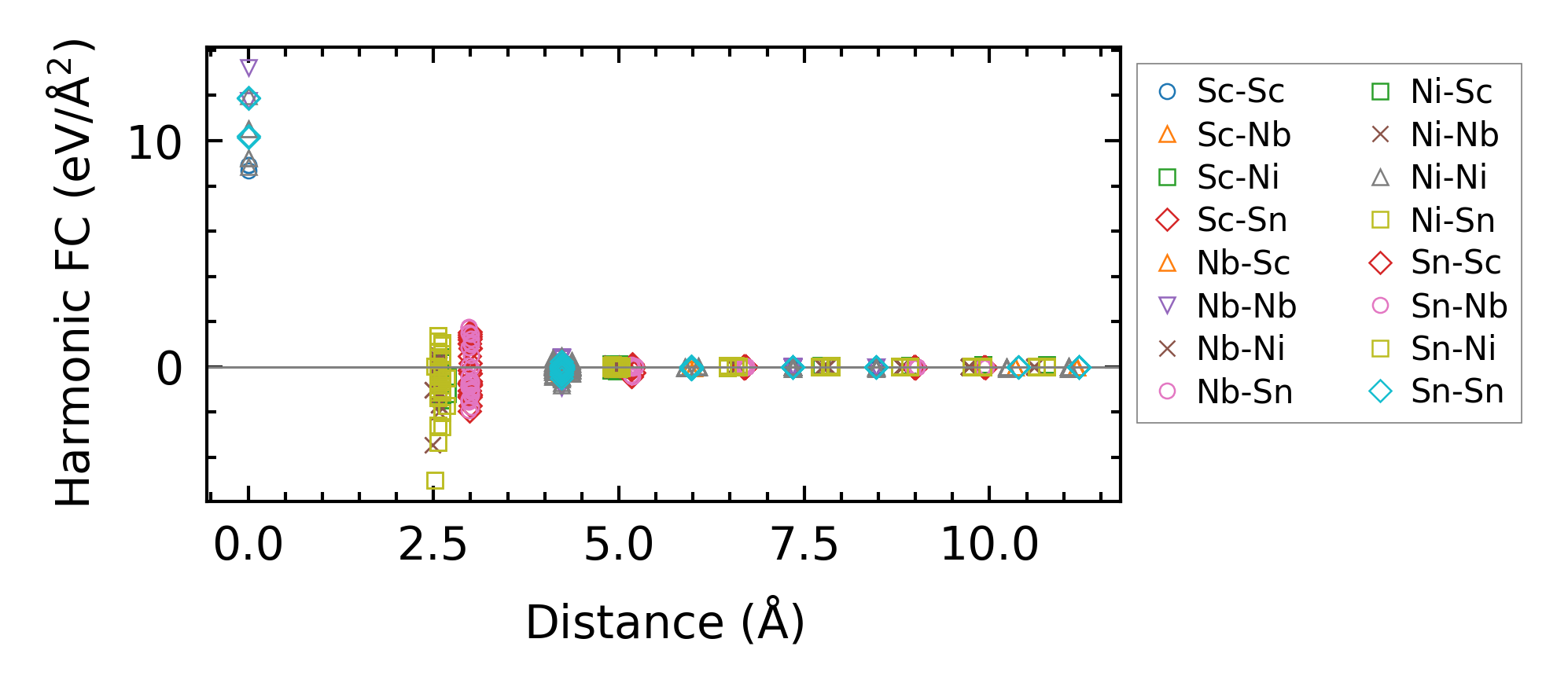

../../_images/fig_fc214879.png — (a) Force constants w.r.t atomic distance

Summary

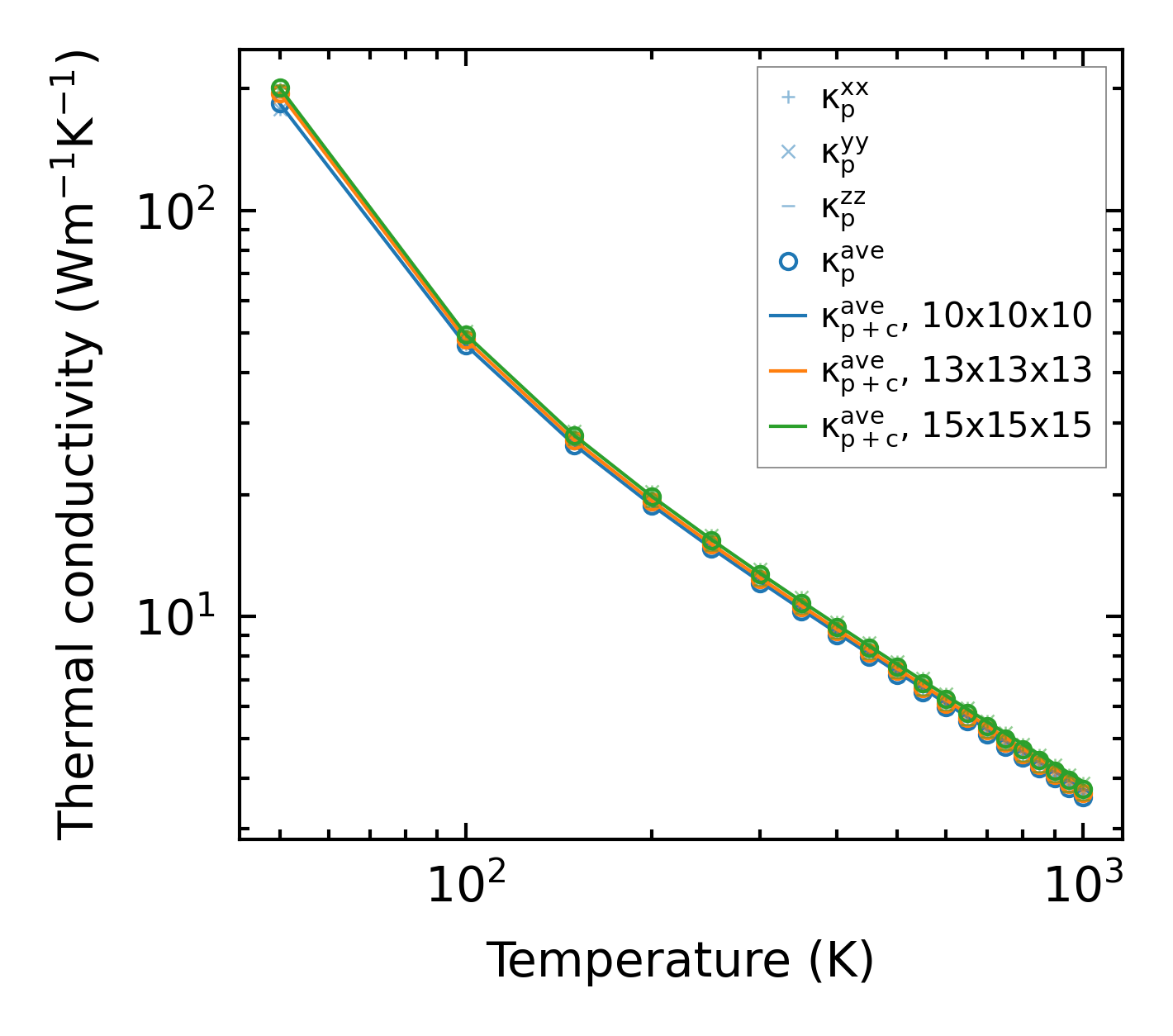

../../_images/fig_kappa12391.png — (a) Temperature-dependent lattice thermal conductivity

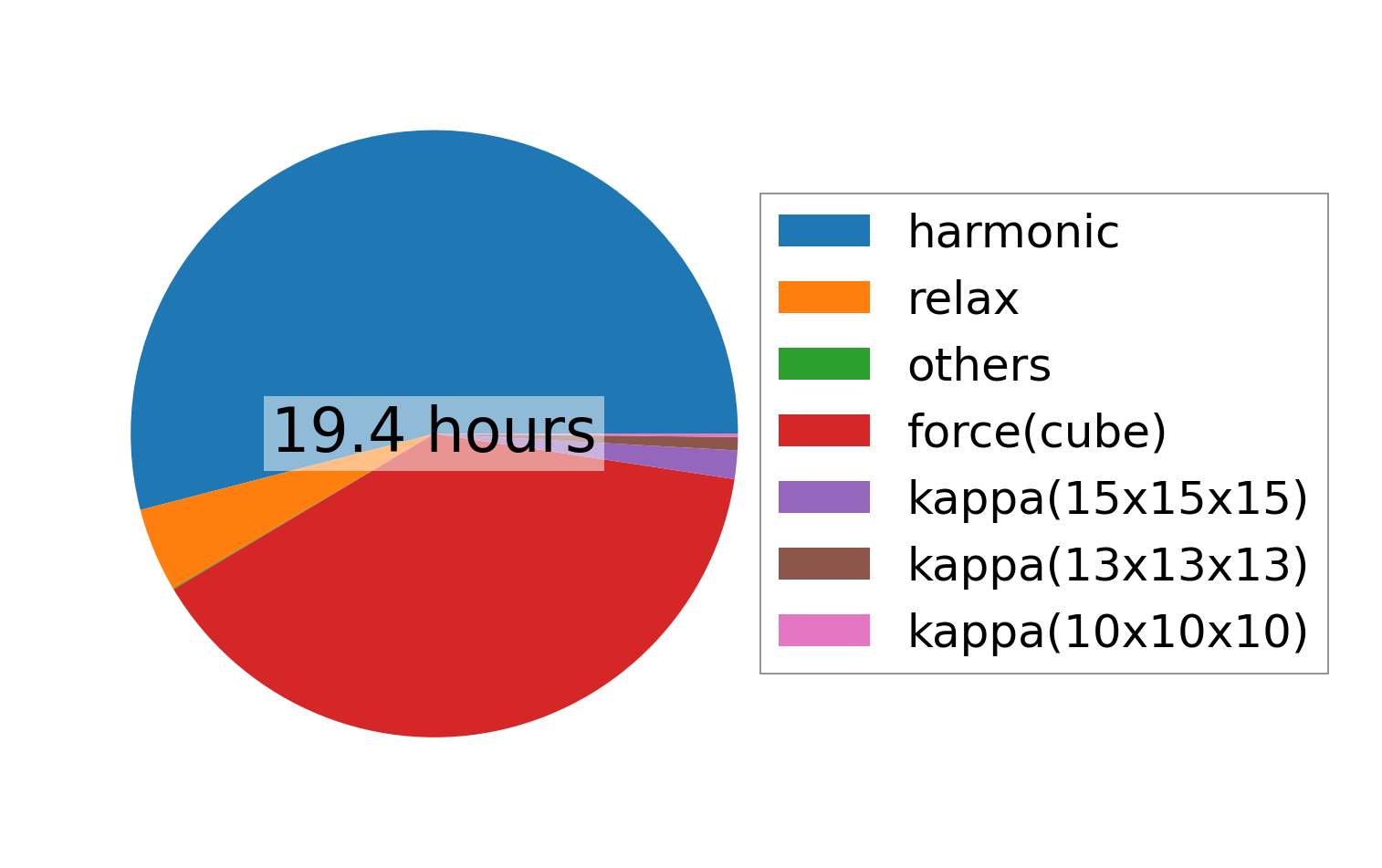

../../_images/fig_times25263.png — (b) Computation time
