mp-1219640/Rb3I2Br/anharm

Space group: Immm (71)
Link: Materials Project
Download: mp-1219640.tar.gz

Harmonic properties

../../_images/fig_bandos_pr15281.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo15280.png — (b) Thermodynamic properties

Grüneisen parameters

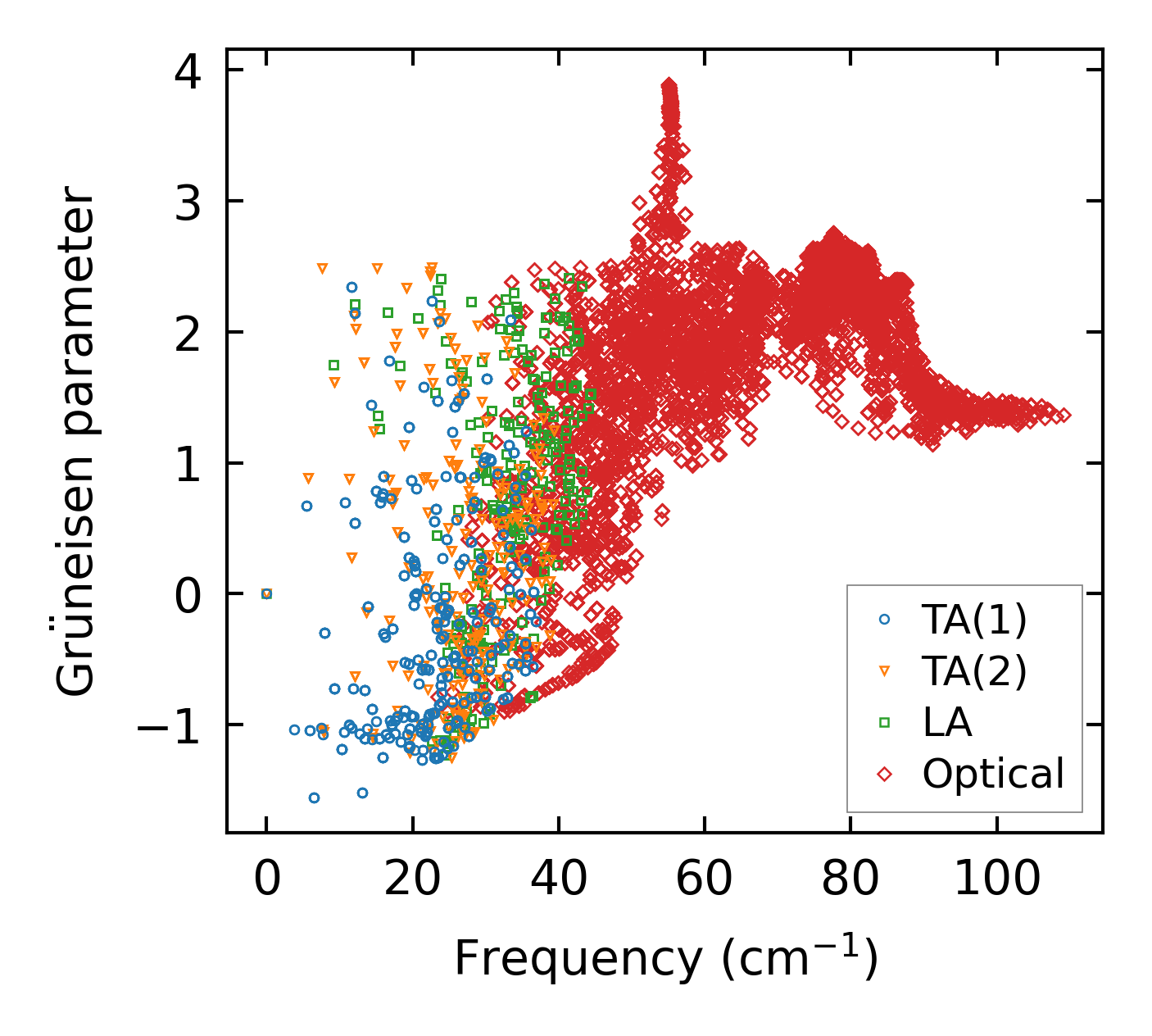

../../_images/fig_gru_all6589.png — (a) Grüneisen parameters

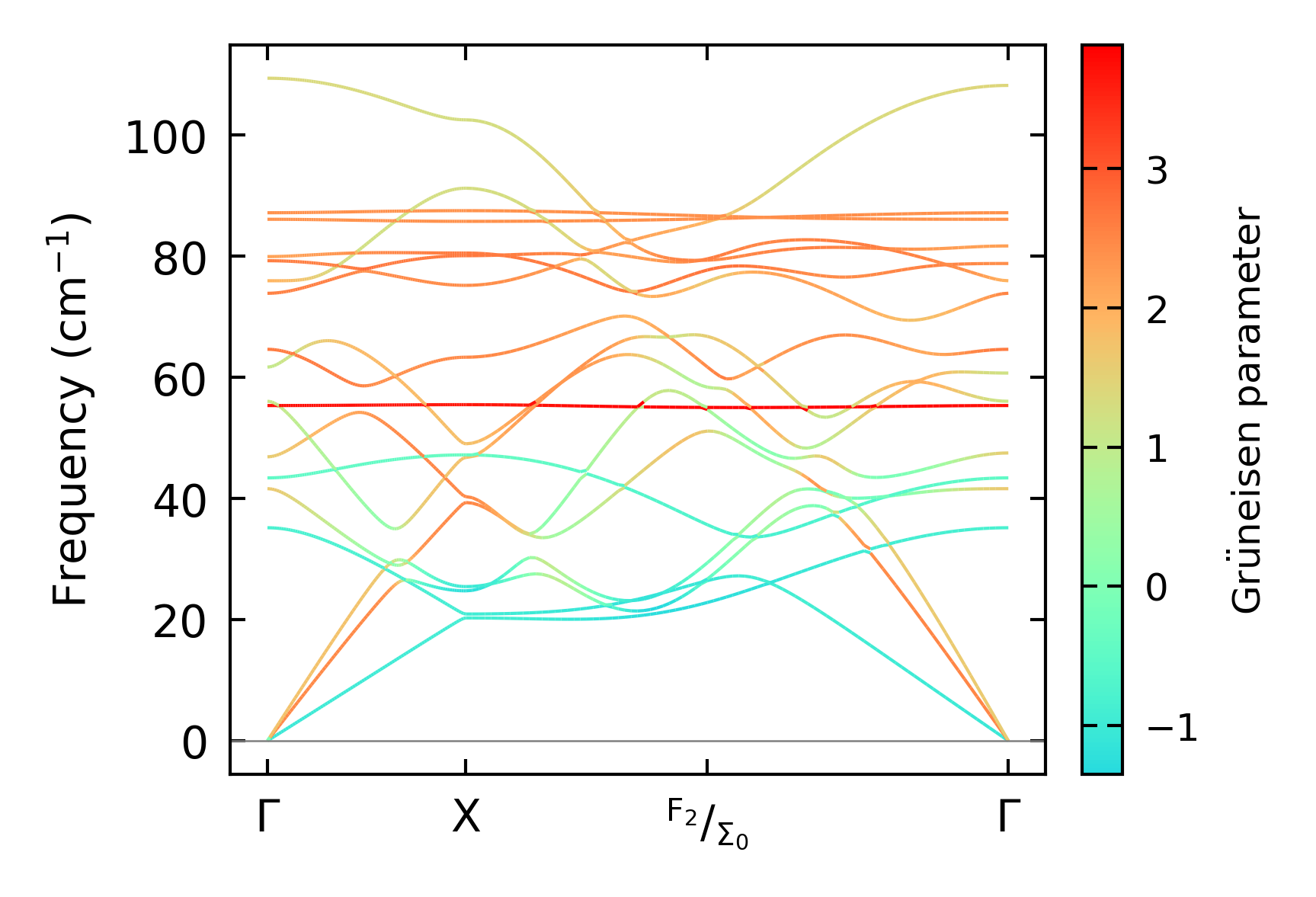

../../_images/fig_gruneisen6589.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 11x11x11, supercell: 4x3x1

../../_images/fig_kappa12402.png — (a) Temperature-dependent lattice thermal conductivity

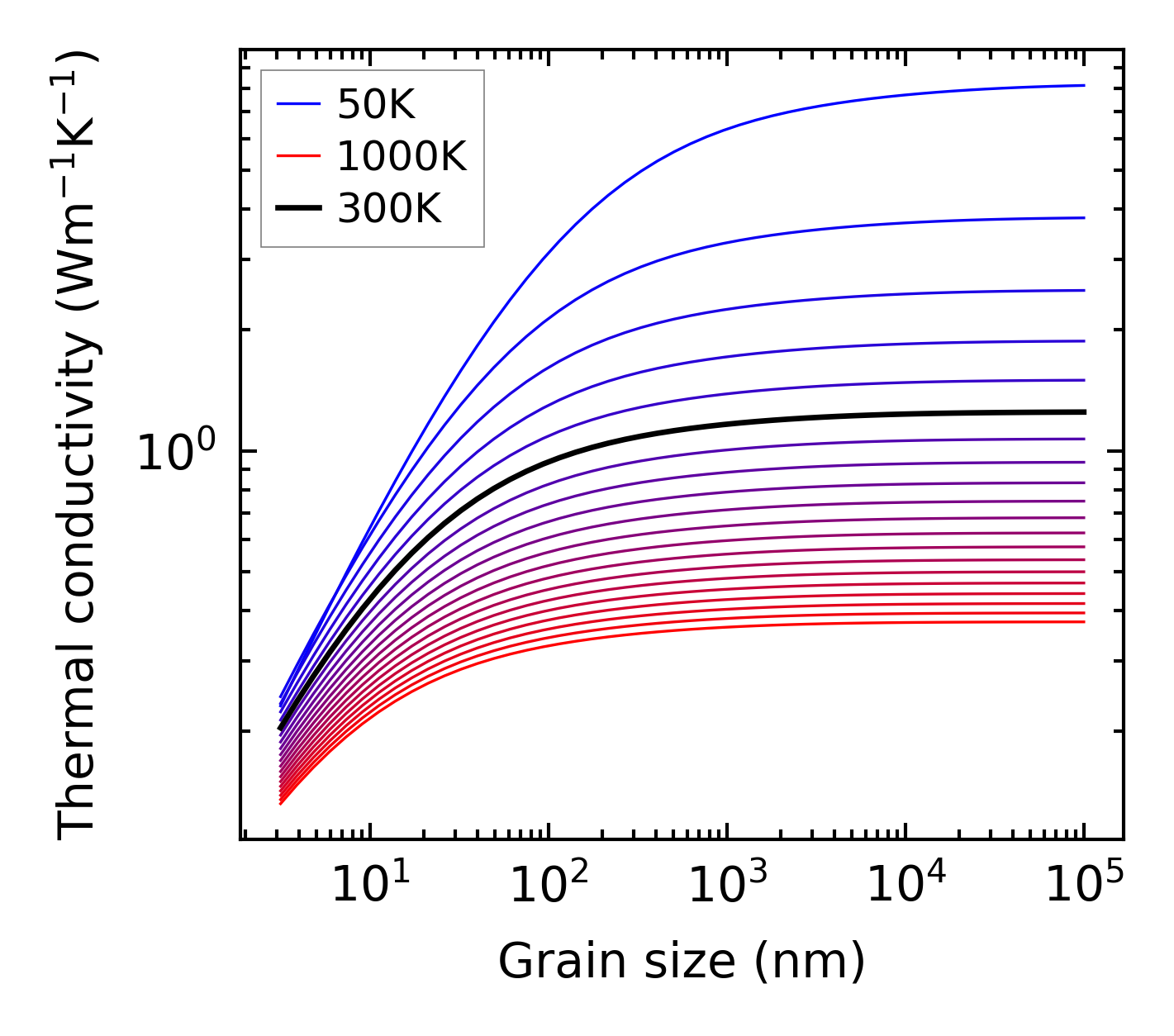

../../_images/fig_kappa_vs_grain_size6667.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

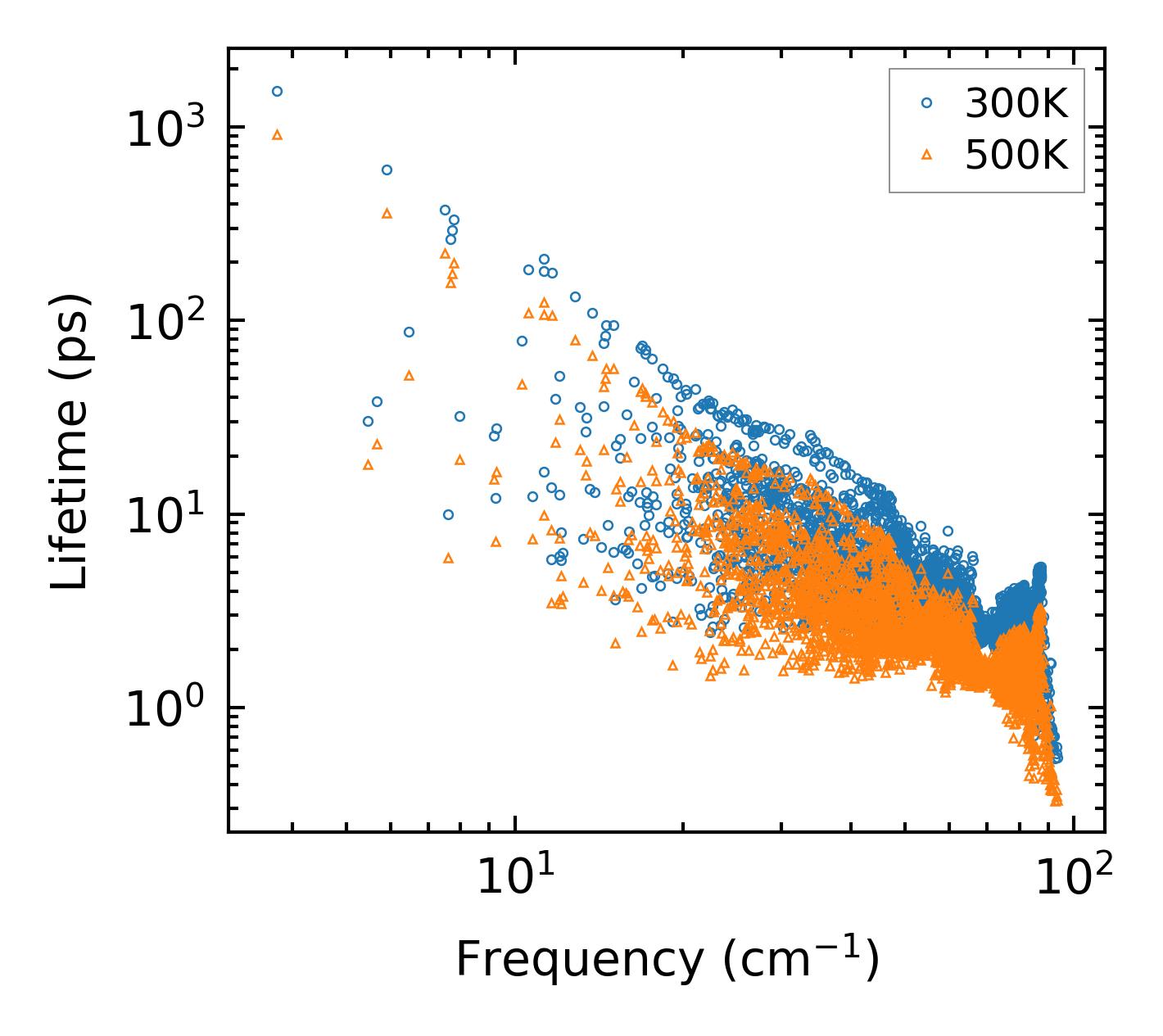

../../_images/fig_lifetime6523.png — (a) Phonon lifetime due to phonon-phonon scattering

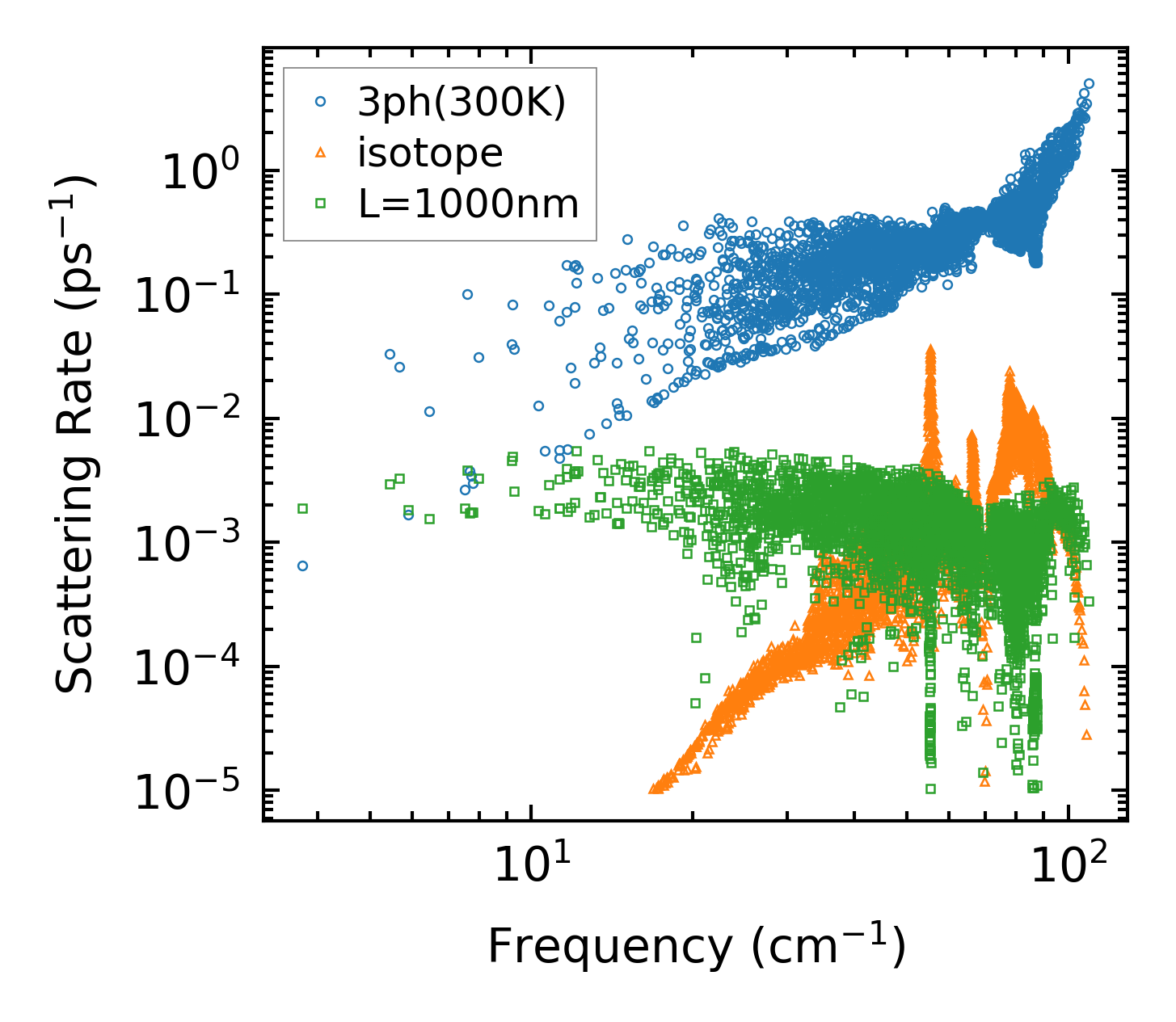

../../_images/fig_scat_rates6522.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

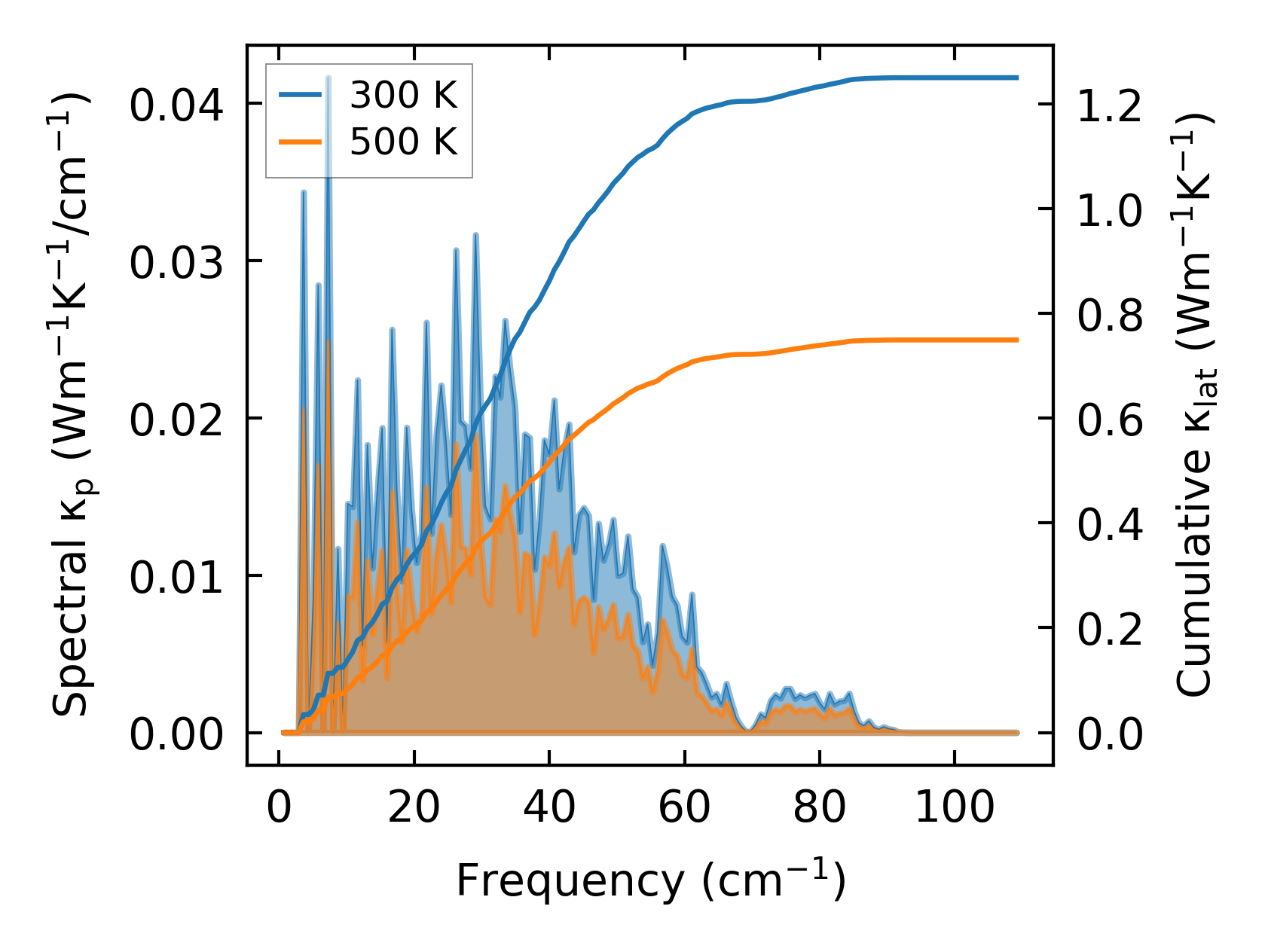

../../_images/fig_cumu_frequency6523.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

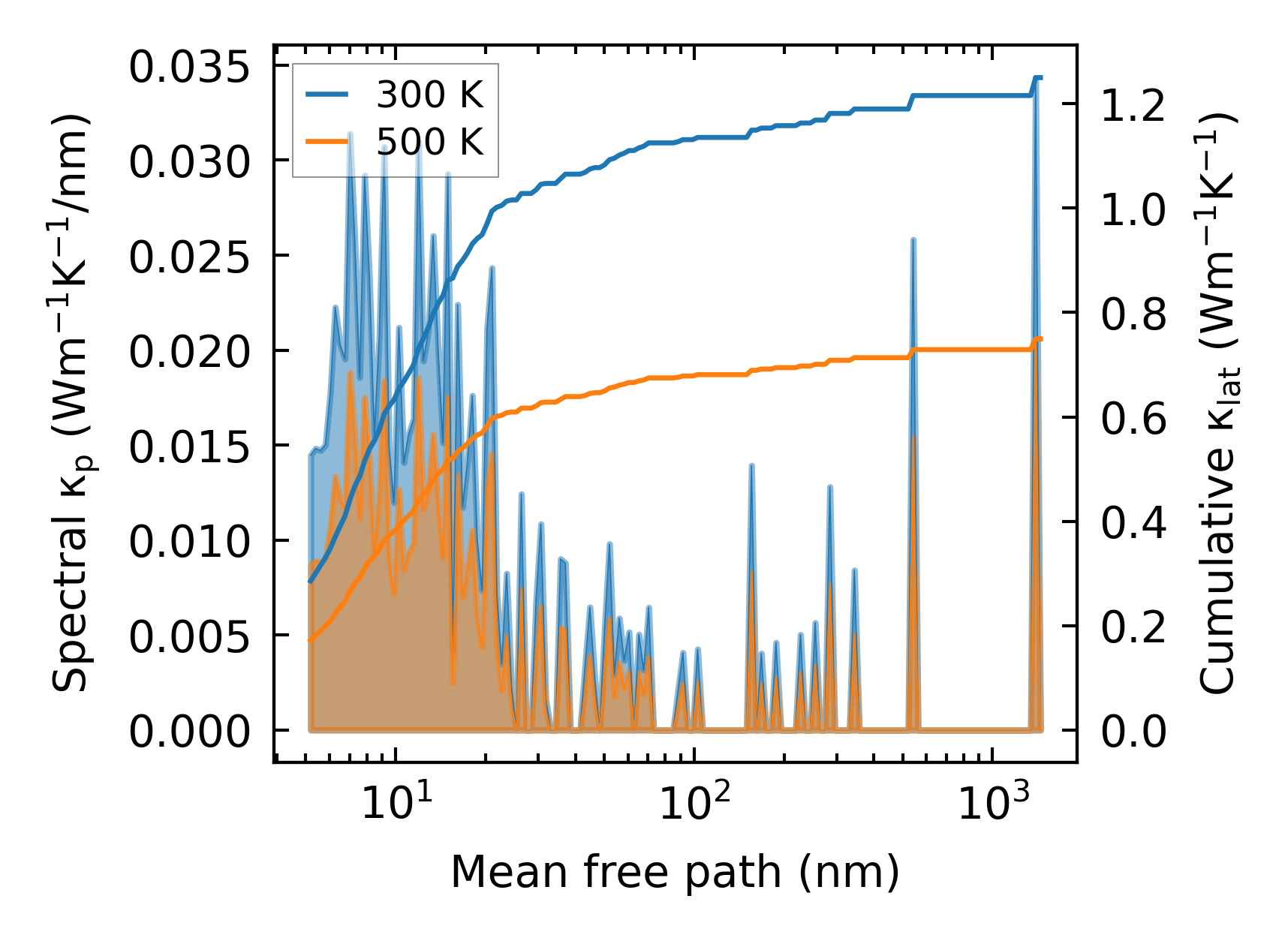

../../_images/fig_cumu_mfp6522.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

../../_images/fig_fc214891.png — (a) Force constants w.r.t atomic distance

Summary

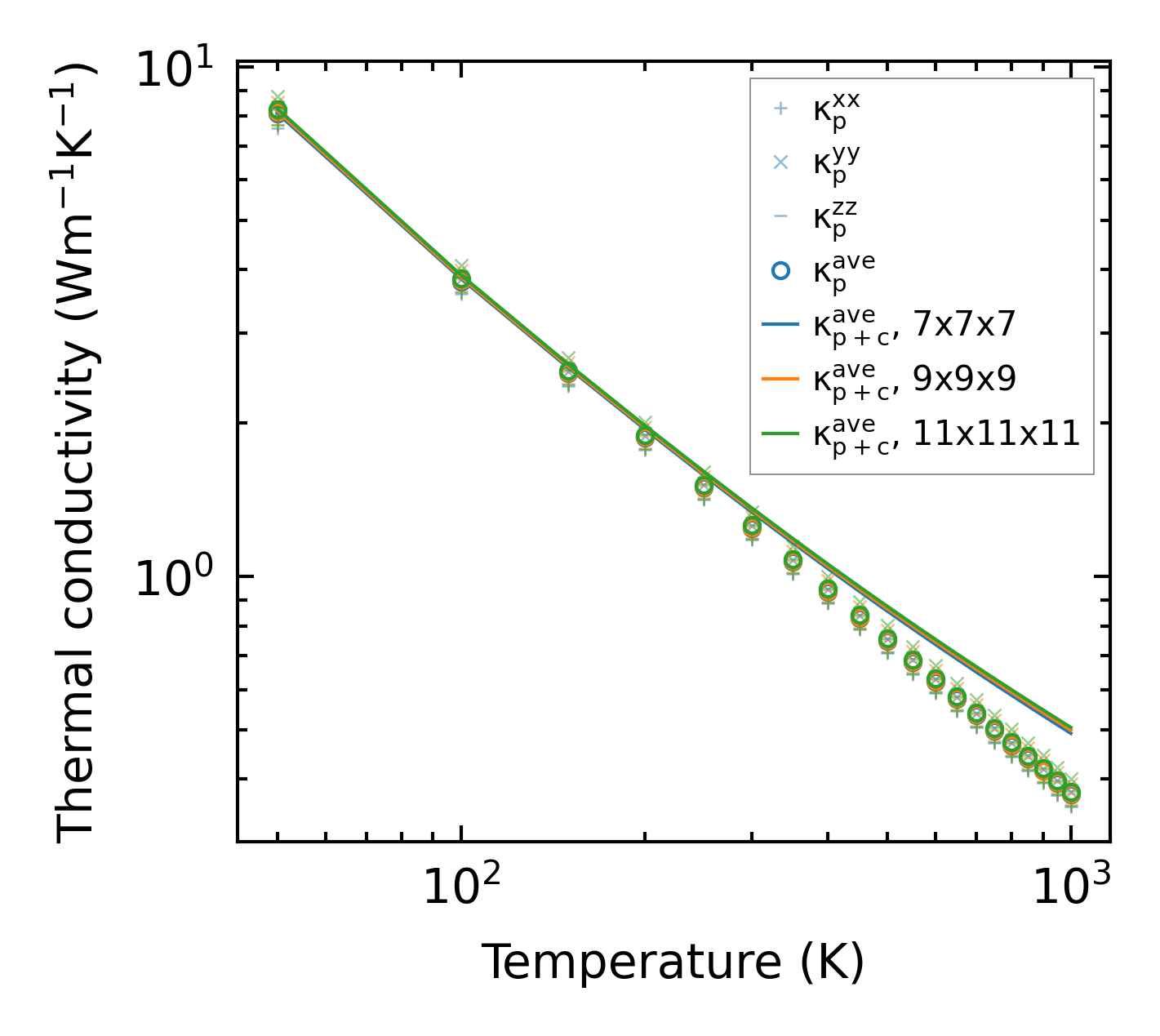

../../_images/fig_kappa12403.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_times25282.png — (b) Computation time
