mp-1194834/BaSc2Si3O10/anharm

Space group: P2_1/m (11)
Link: Materials Project
Download: mp-1194834.tar.gz

Harmonic properties

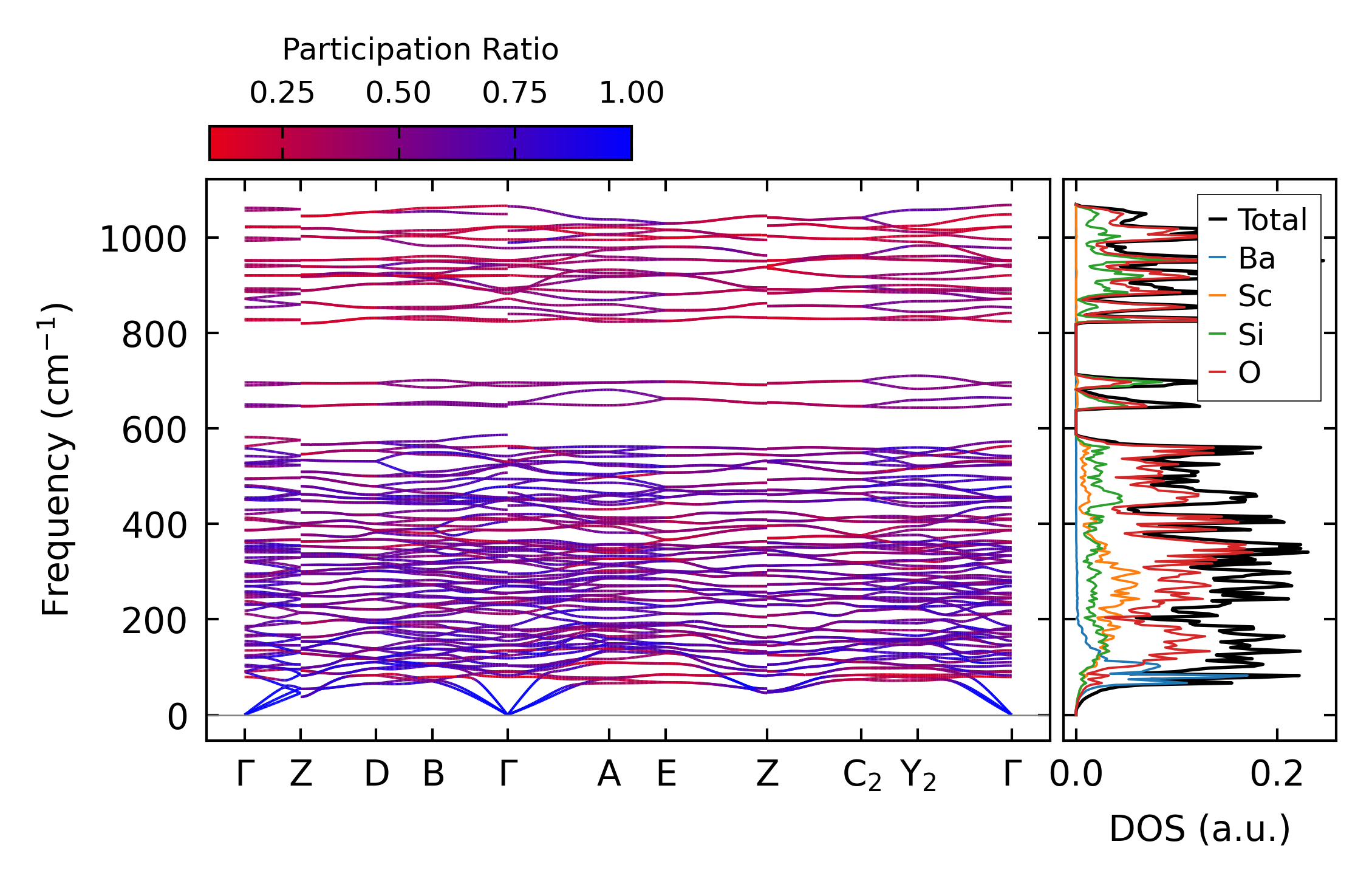

../../_images/fig_bandos_pr15883.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo15882.png — (b) Thermodynamic properties

Grüneisen parameters

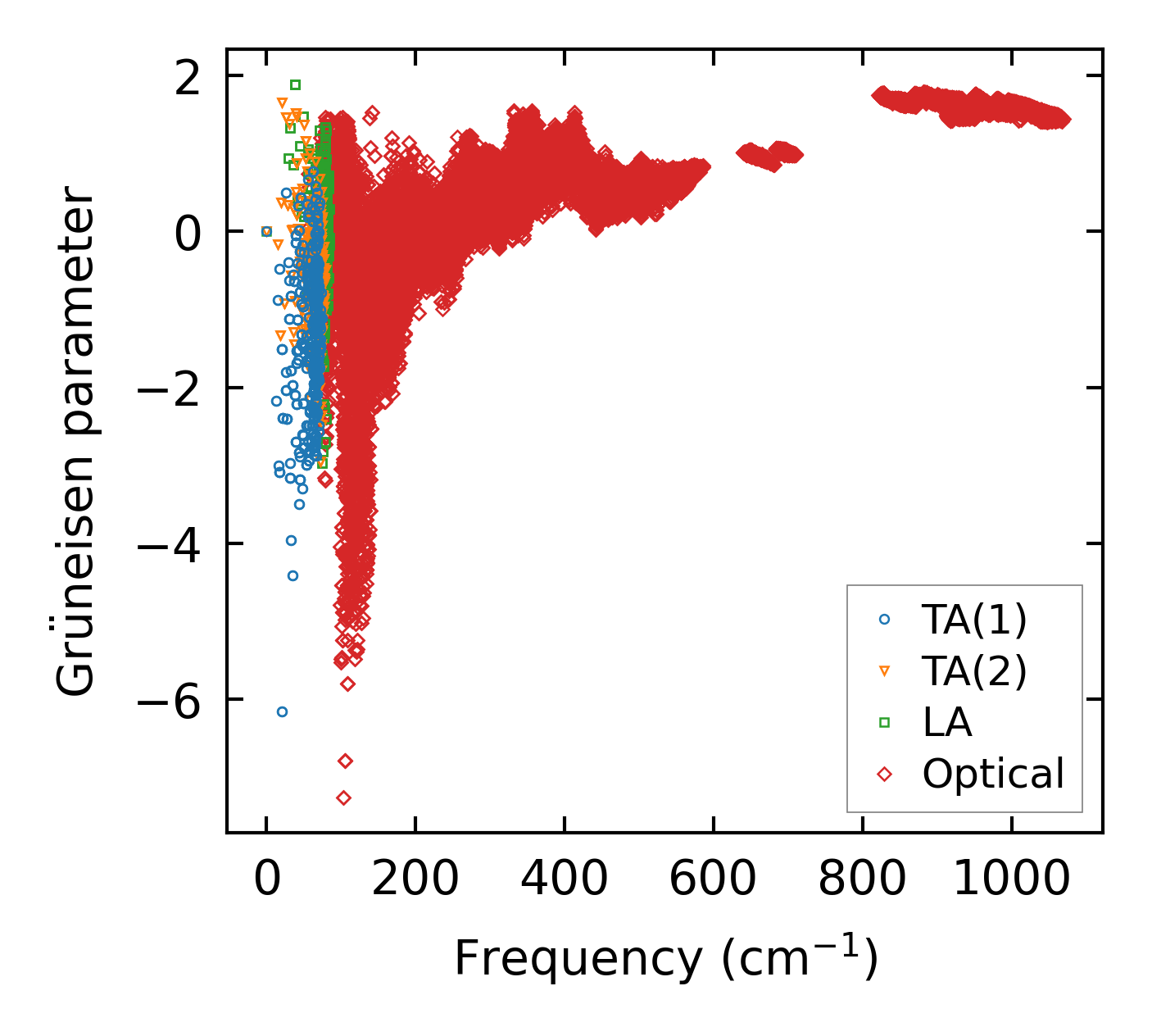

../../_images/fig_gru_all6877.png — (a) Grüneisen parameters

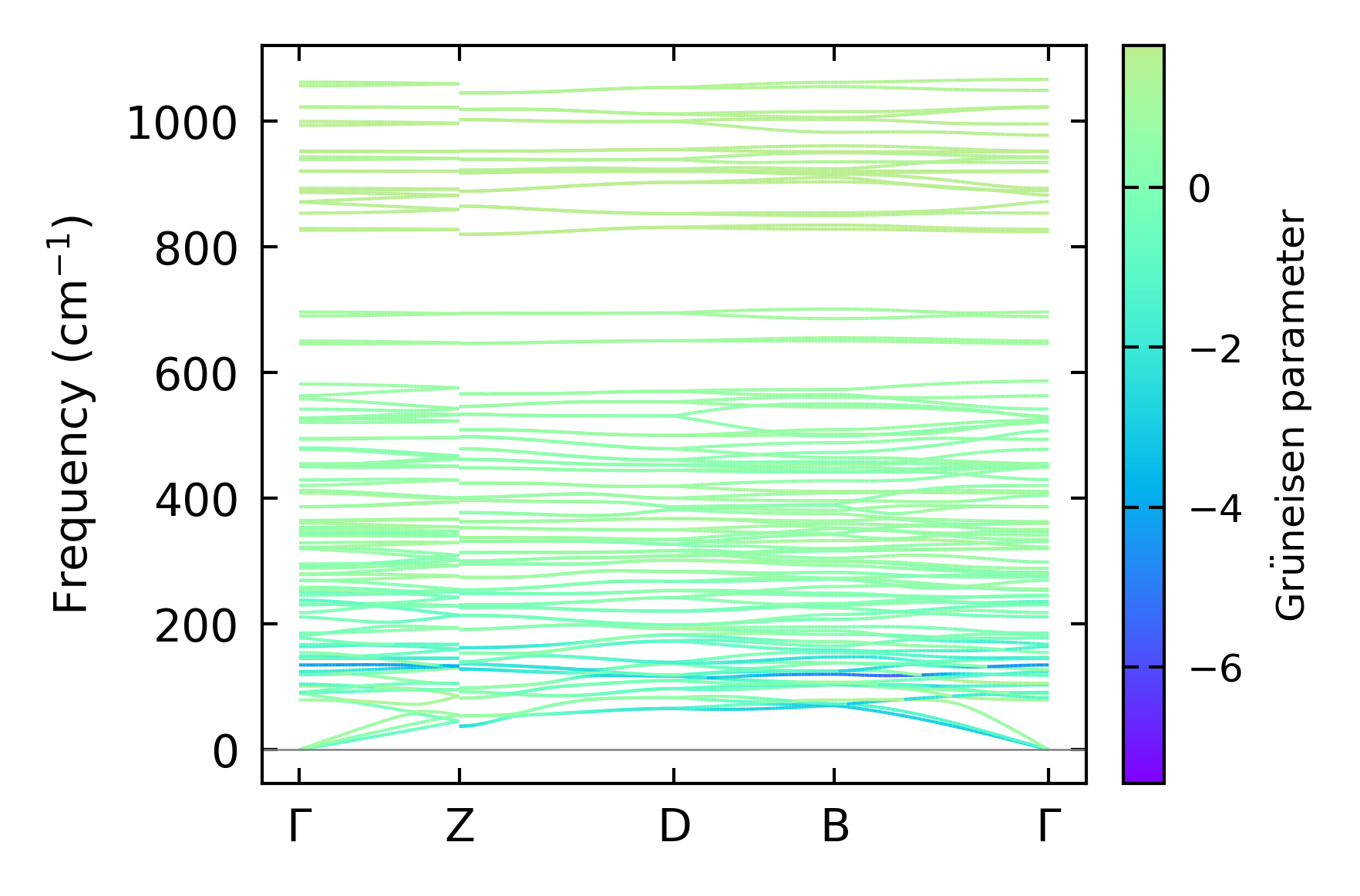

../../_images/fig_gruneisen6877.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 13x6x11, supercell: 2x1x2

../../_images/fig_kappa12951.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size6957.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

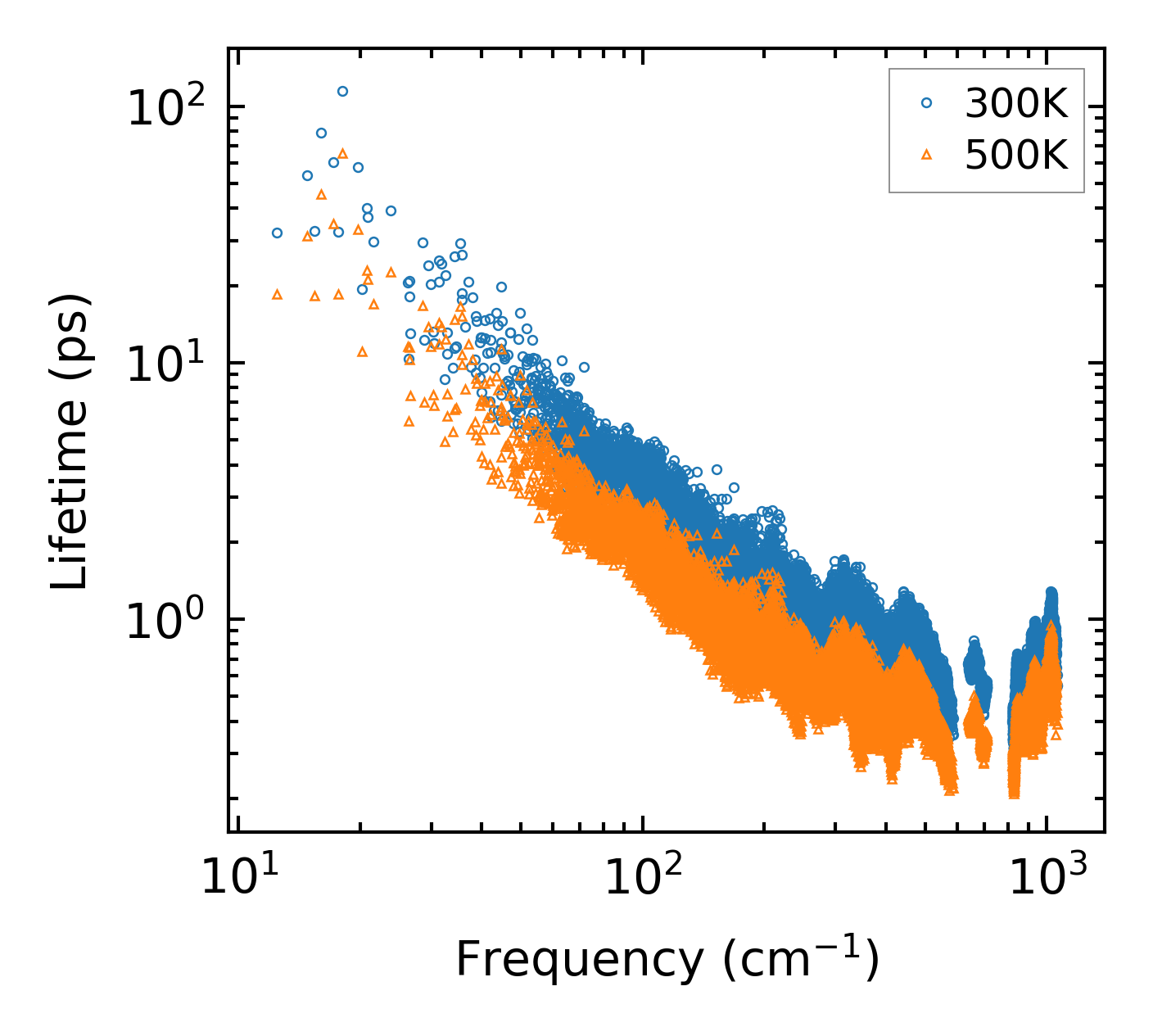

../../_images/fig_lifetime6811.png — (a) Phonon lifetime due to phonon-phonon scattering

../../_images/fig_scat_rates6810.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

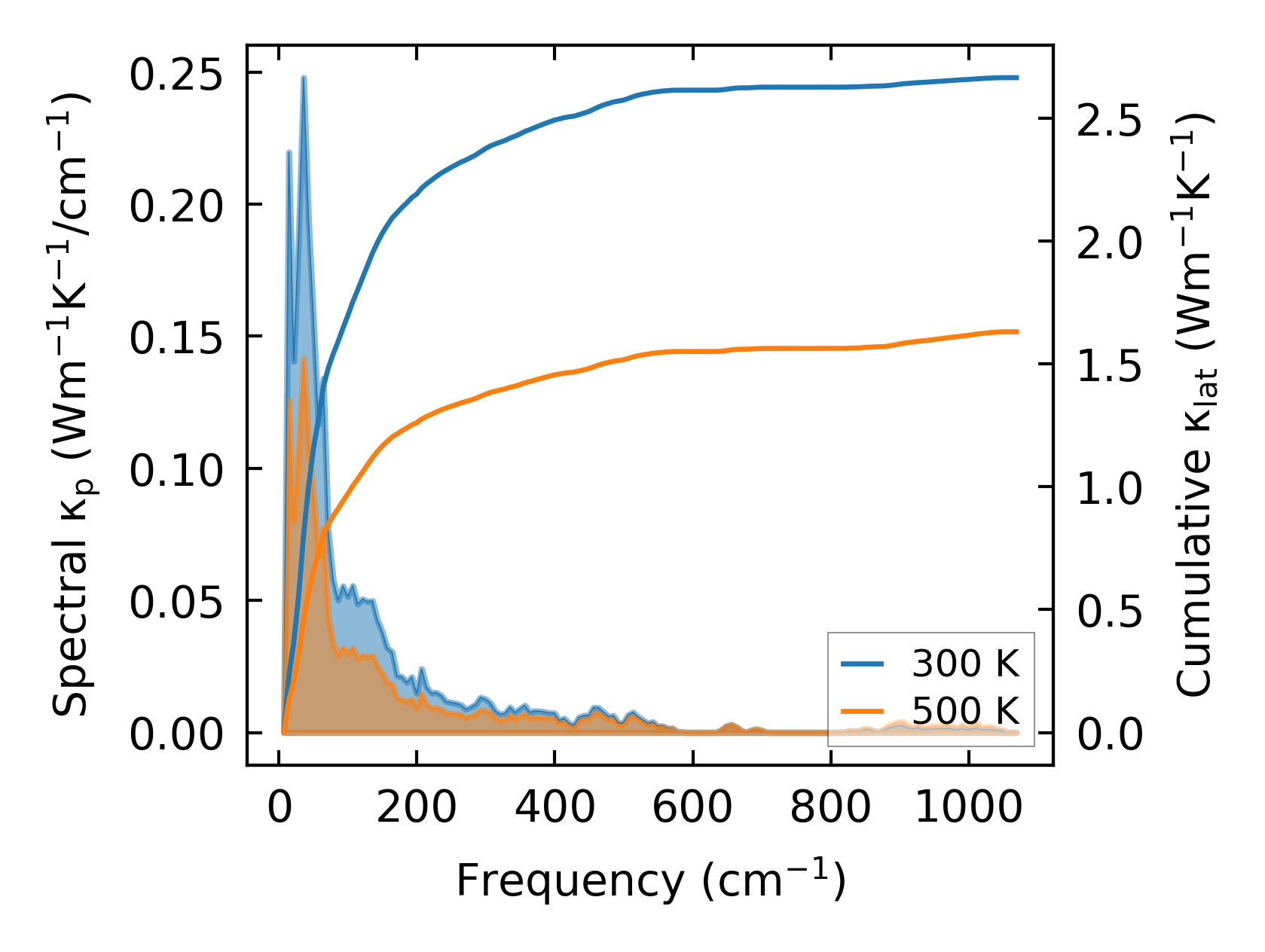

../../_images/fig_cumu_frequency6811.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

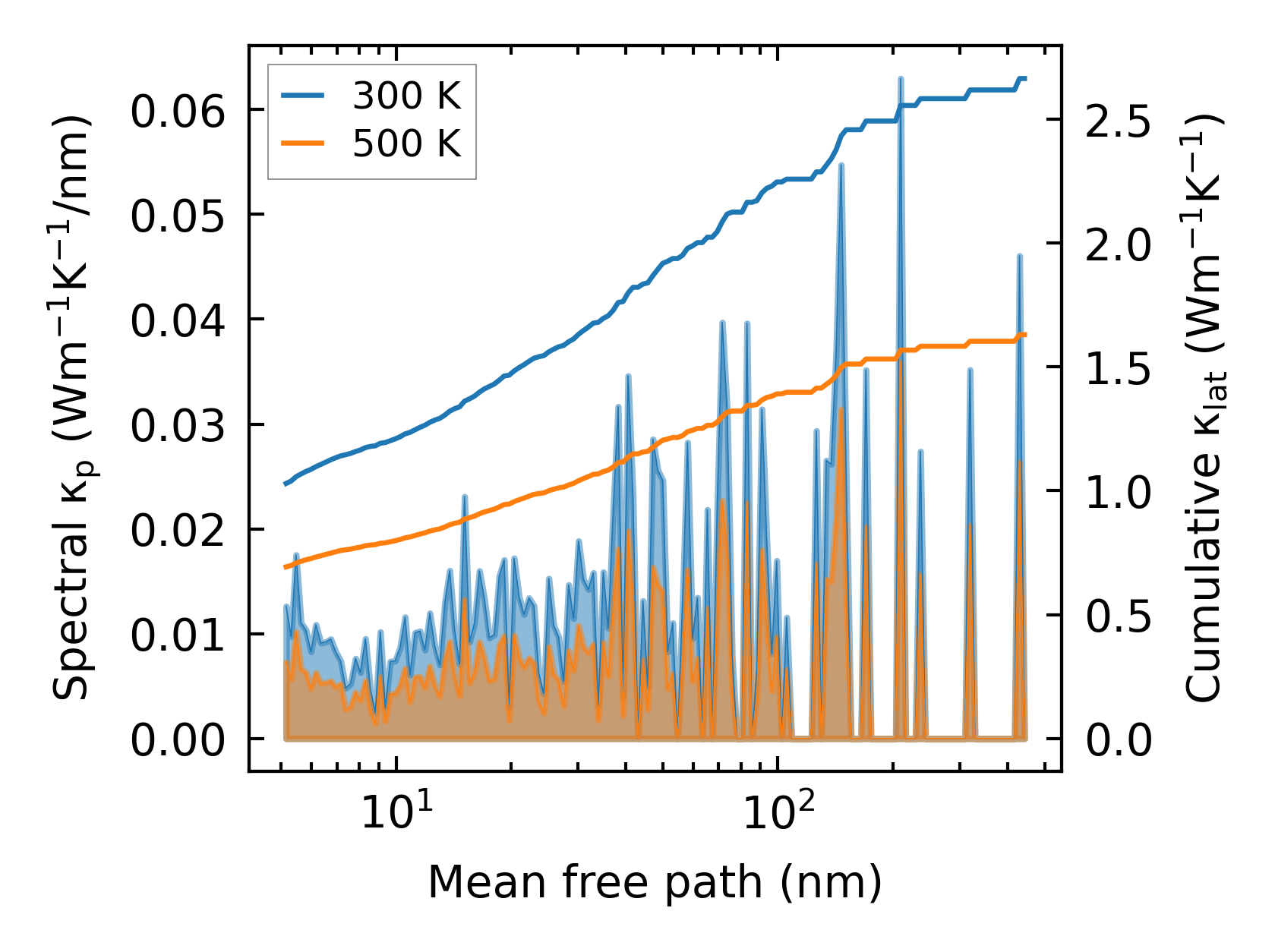

../../_images/fig_cumu_mfp6810.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

../../_images/fig_fc215478.png — (a) Force constants w.r.t atomic distance

Summary

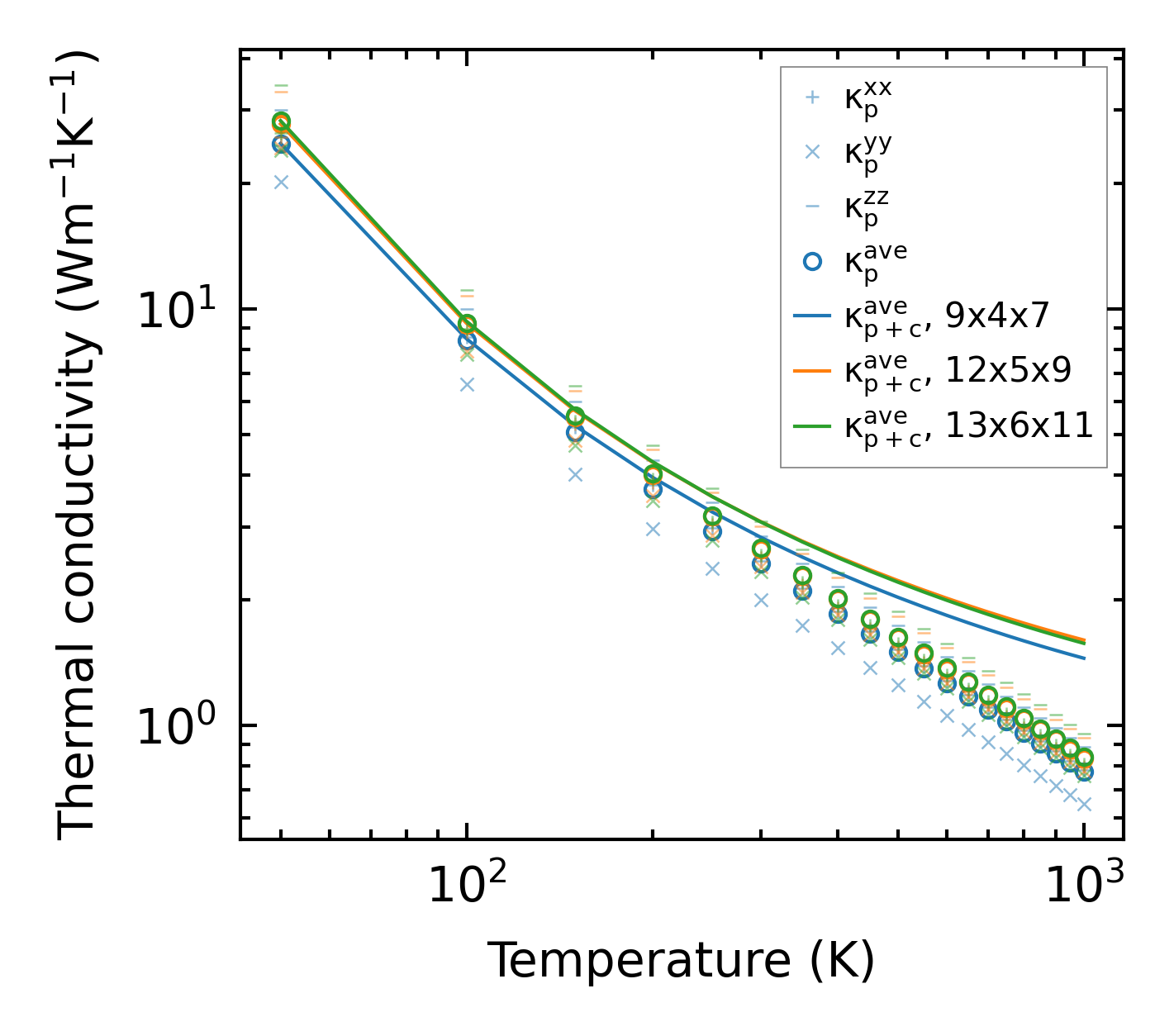

../../_images/fig_kappa12952.png — (a) Temperature-dependent lattice thermal conductivity

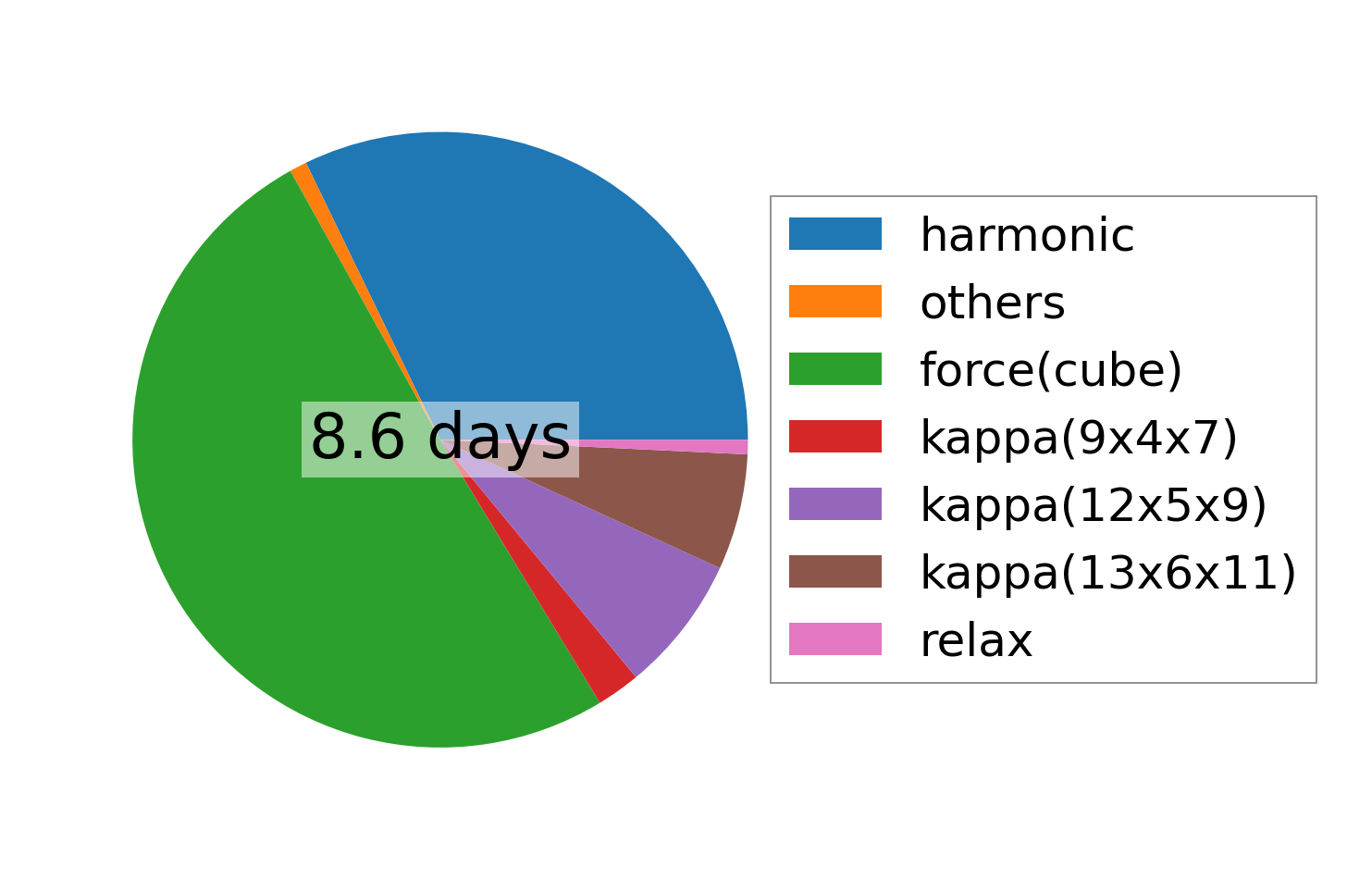

../../_images/fig_times26169.png — (b) Computation time
