mp-1194043-2/ErBO3/anharm

Space group: C2/c (15)
Link: Materials Project
Download: mp-1194043-2.tar.gz

Harmonic properties

../../_images/fig_bandos_pr15852.png — (a) Phonon dispersion with participation ratio and DOS

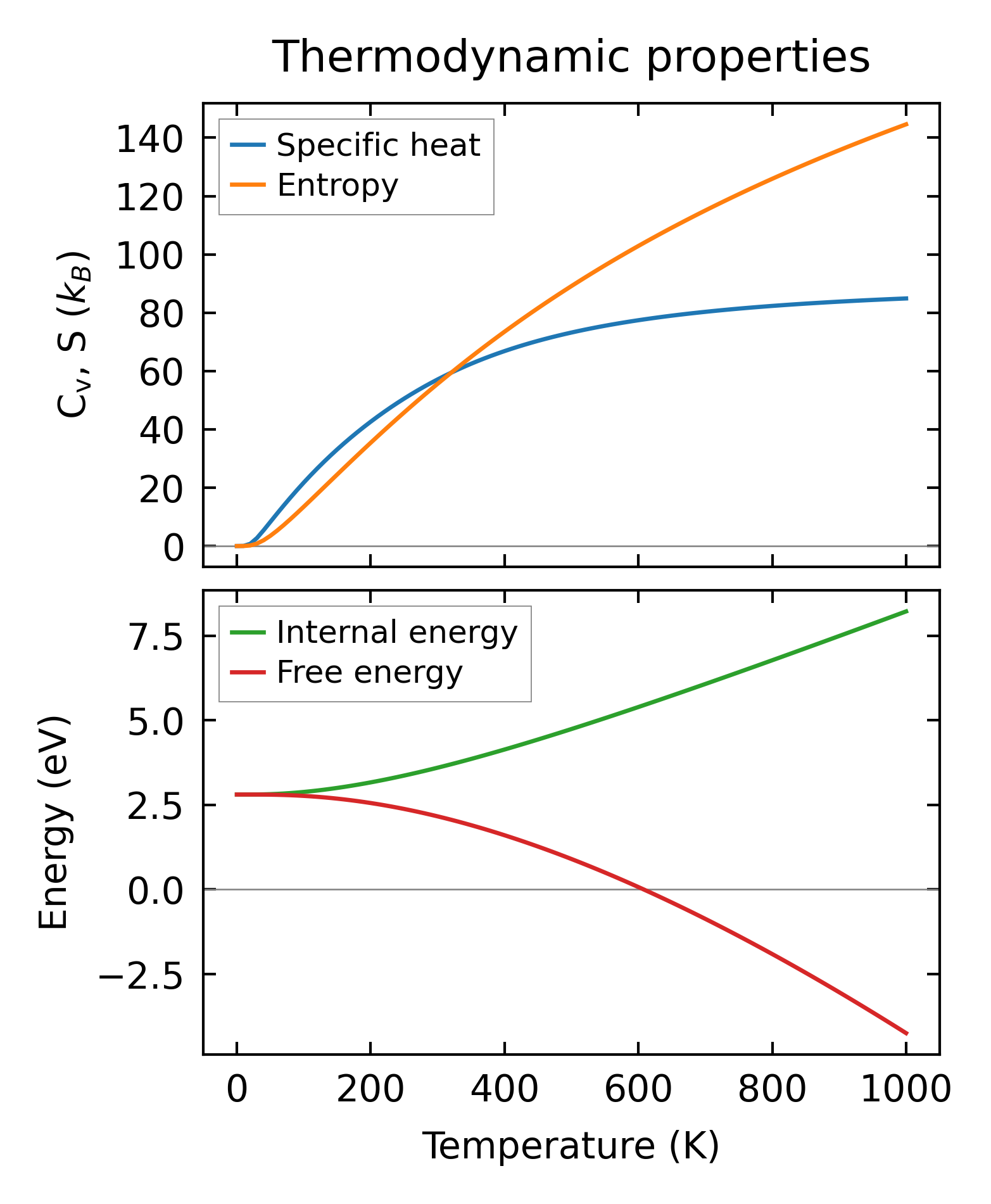

../../_images/fig_thermo15851.png — (b) Thermodynamic properties

Grüneisen parameters

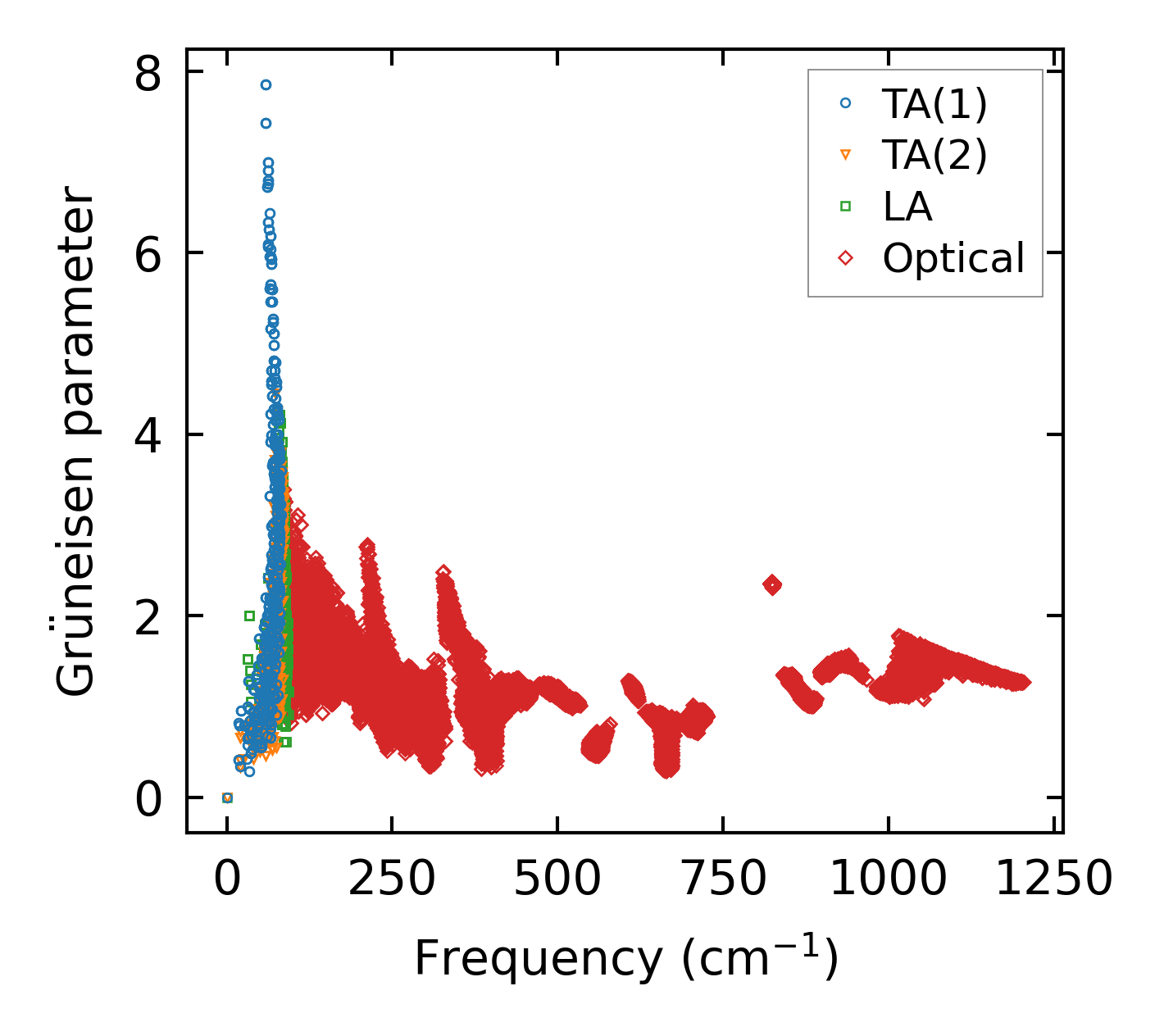

../../_images/fig_gru_all6860.png — (a) Grüneisen parameters

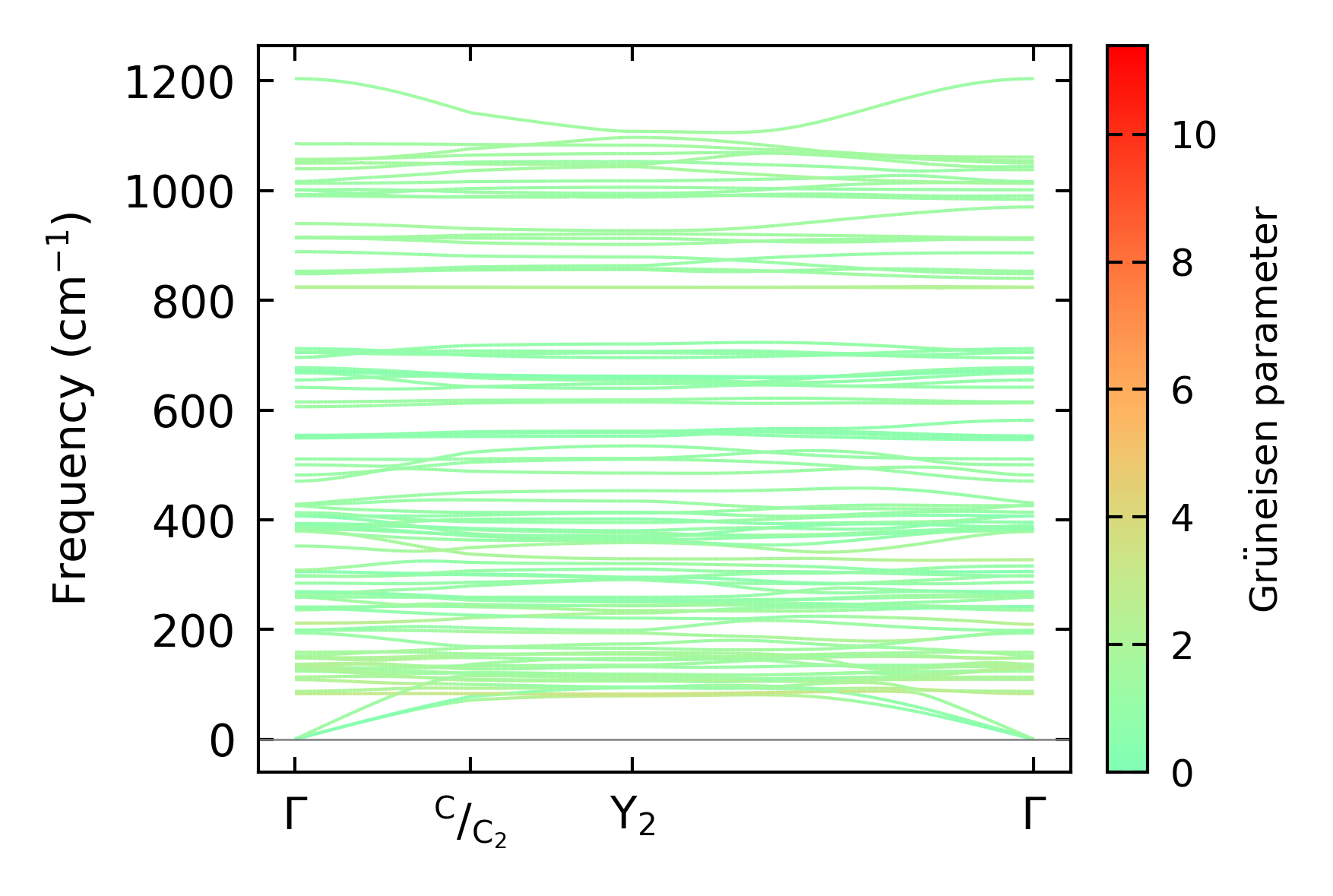

../../_images/fig_gruneisen6860.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 12x12x8, supercell: 1x2x1

../../_images/fig_kappa12919.png — (a) Temperature-dependent lattice thermal conductivity

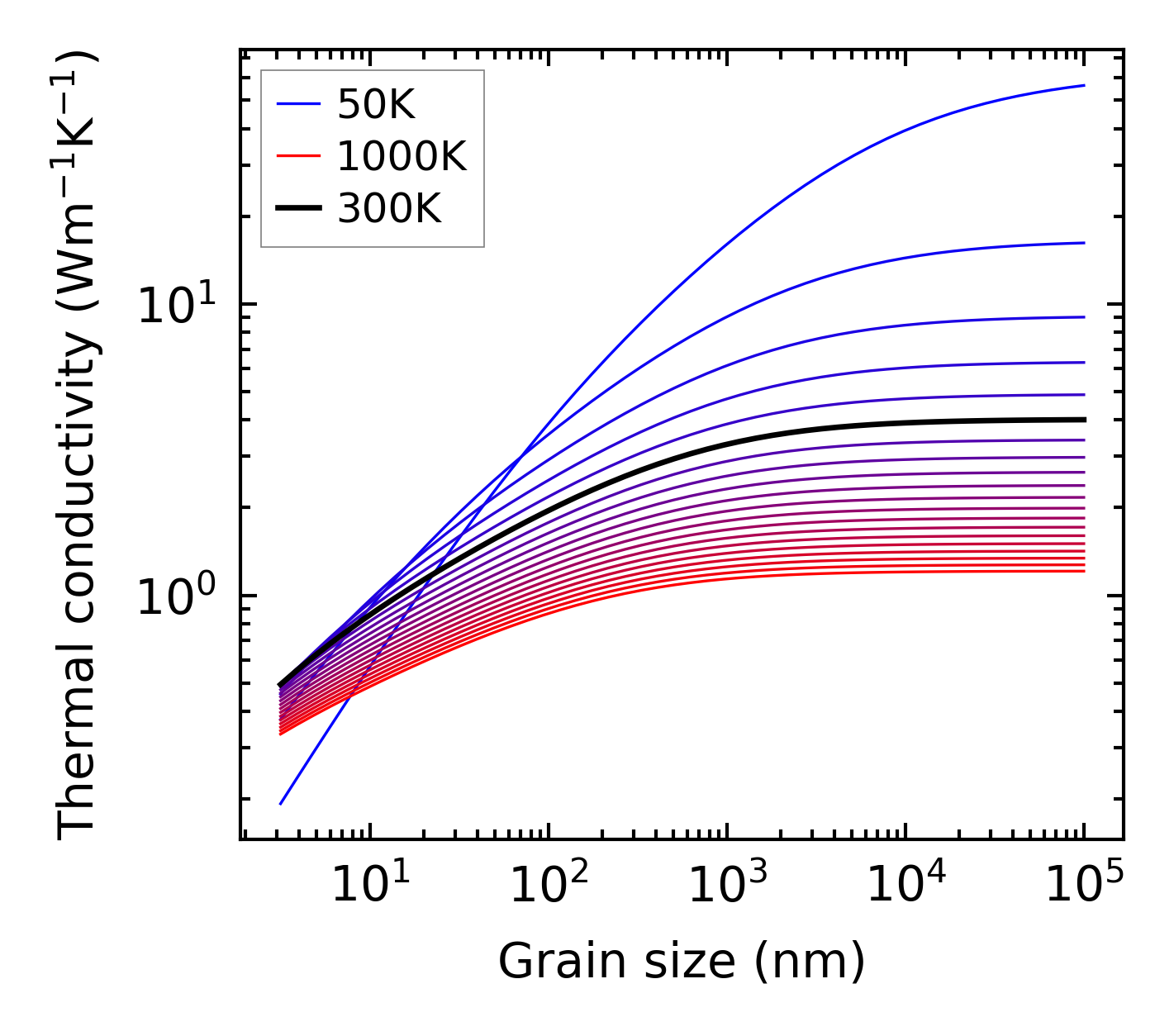

../../_images/fig_kappa_vs_grain_size6940.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

../../_images/fig_lifetime6794.png — (a) Phonon lifetime due to phonon-phonon scattering

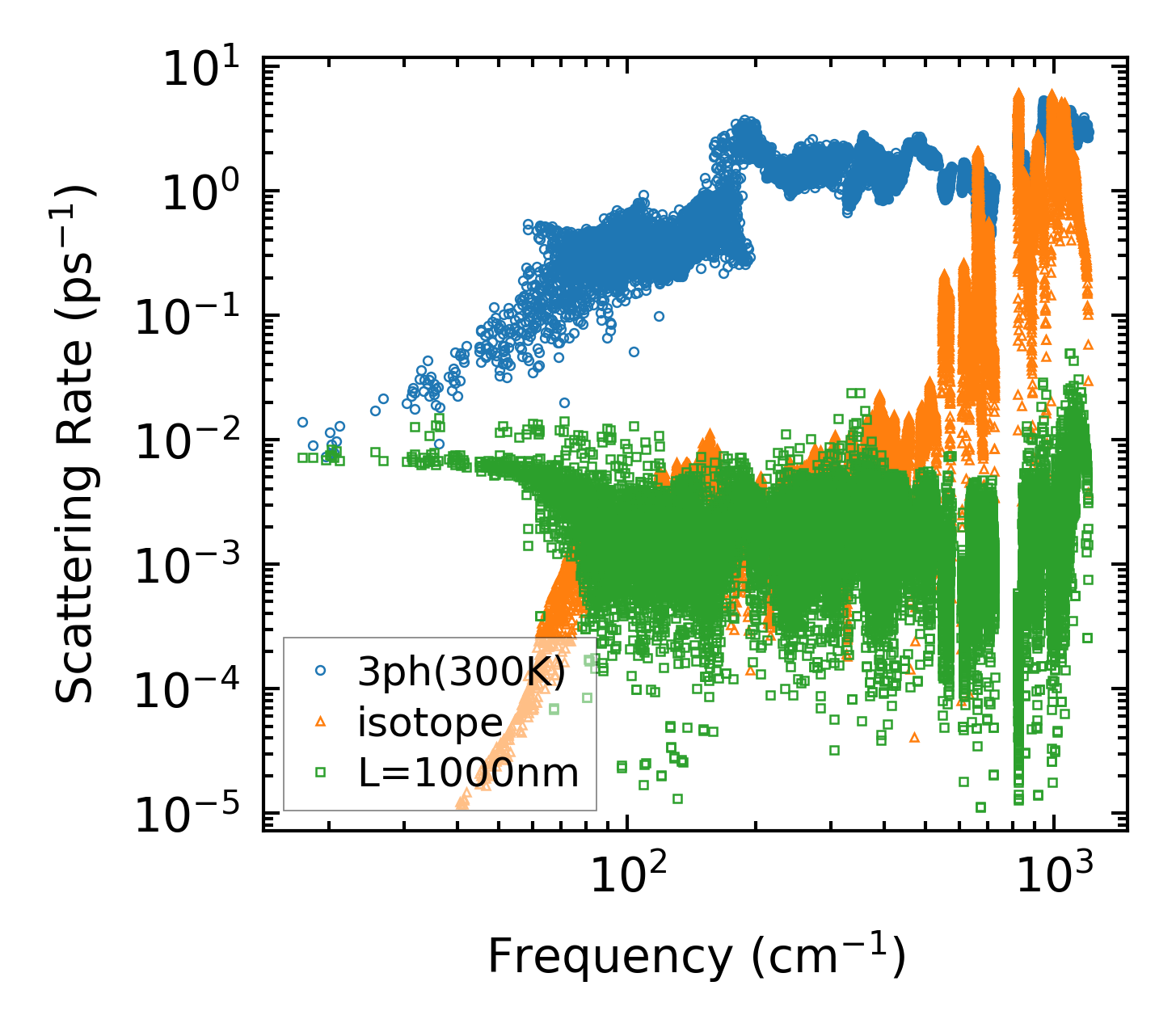

../../_images/fig_scat_rates6793.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

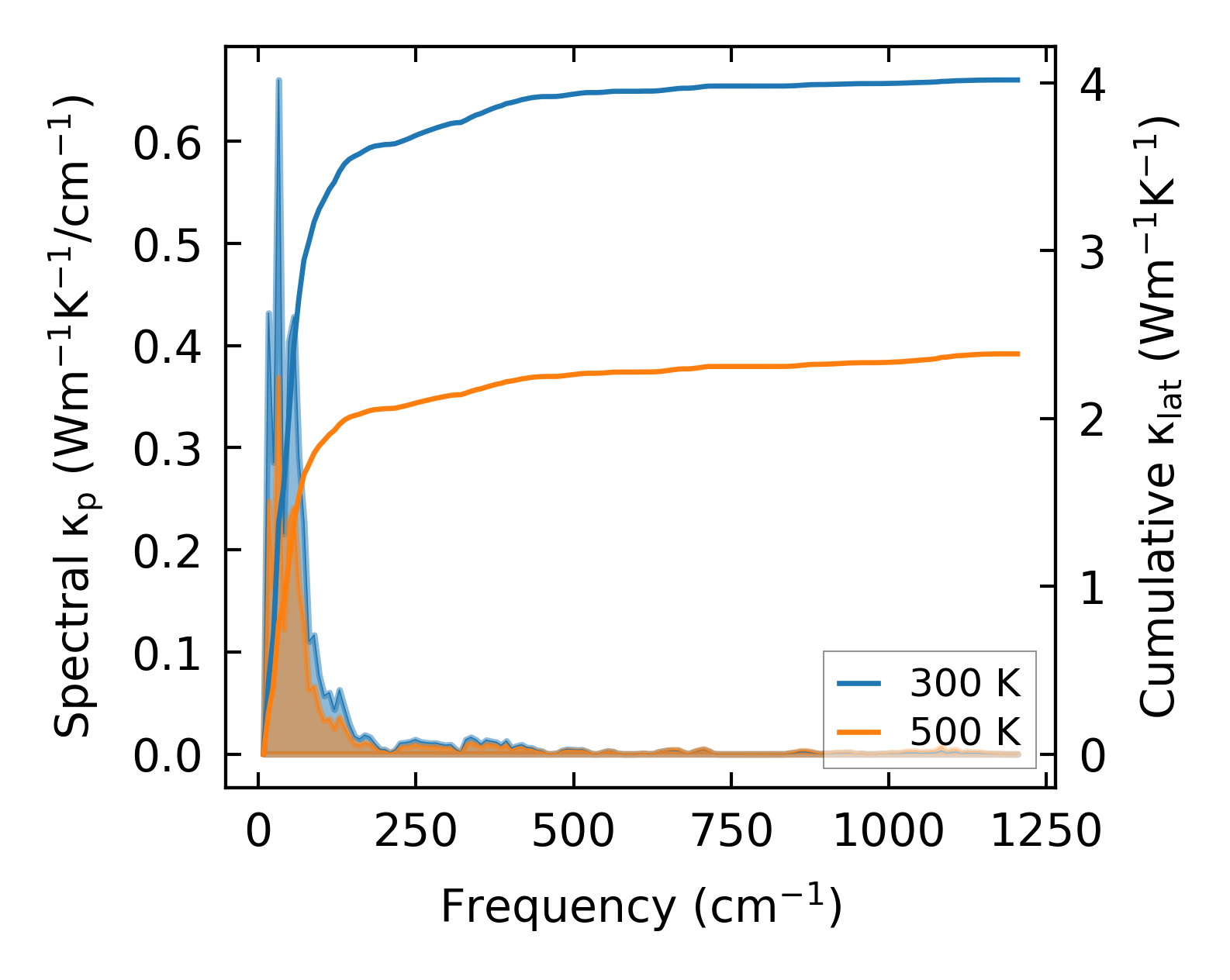

../../_images/fig_cumu_frequency6794.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

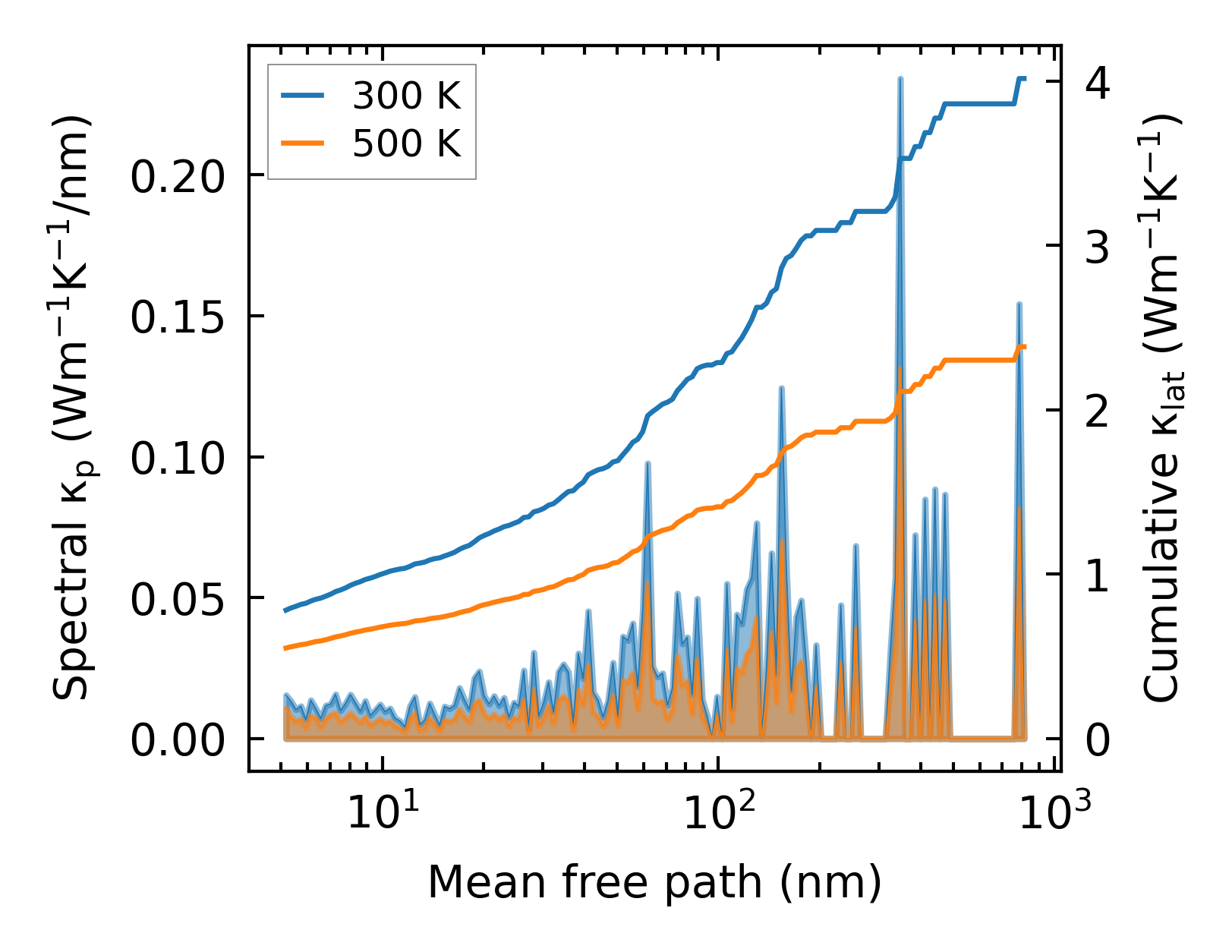

../../_images/fig_cumu_mfp6793.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

../../_images/fig_fc215447.png — (a) Force constants w.r.t atomic distance

Summary

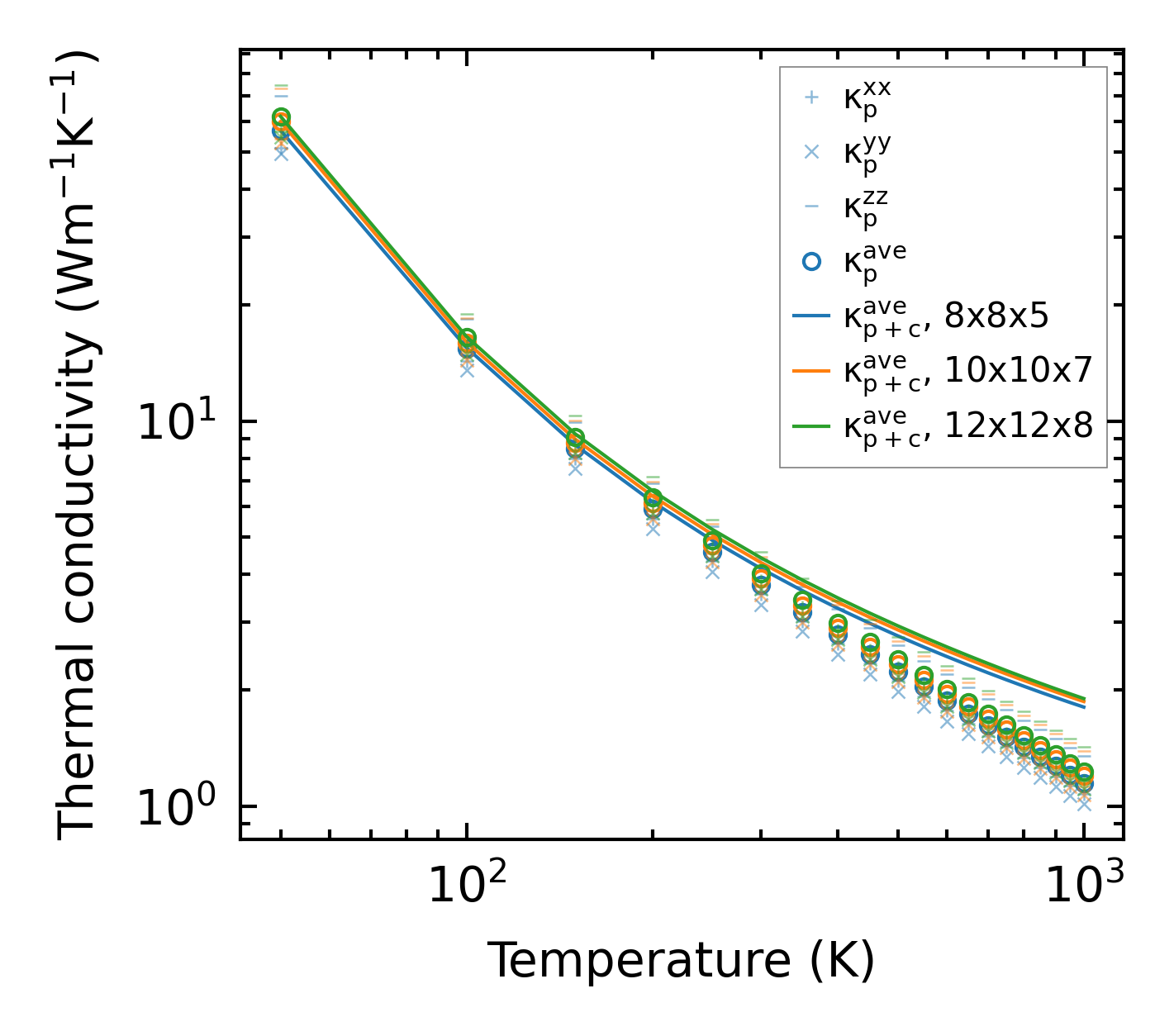

../../_images/fig_kappa12920.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_times26123.png — (b) Computation time
