mp-1105333/La3Bi4Au3/anharm

Space group: I-43d (220)
Link: Materials Project
Download: mp-1105333.tar.gz

Harmonic properties

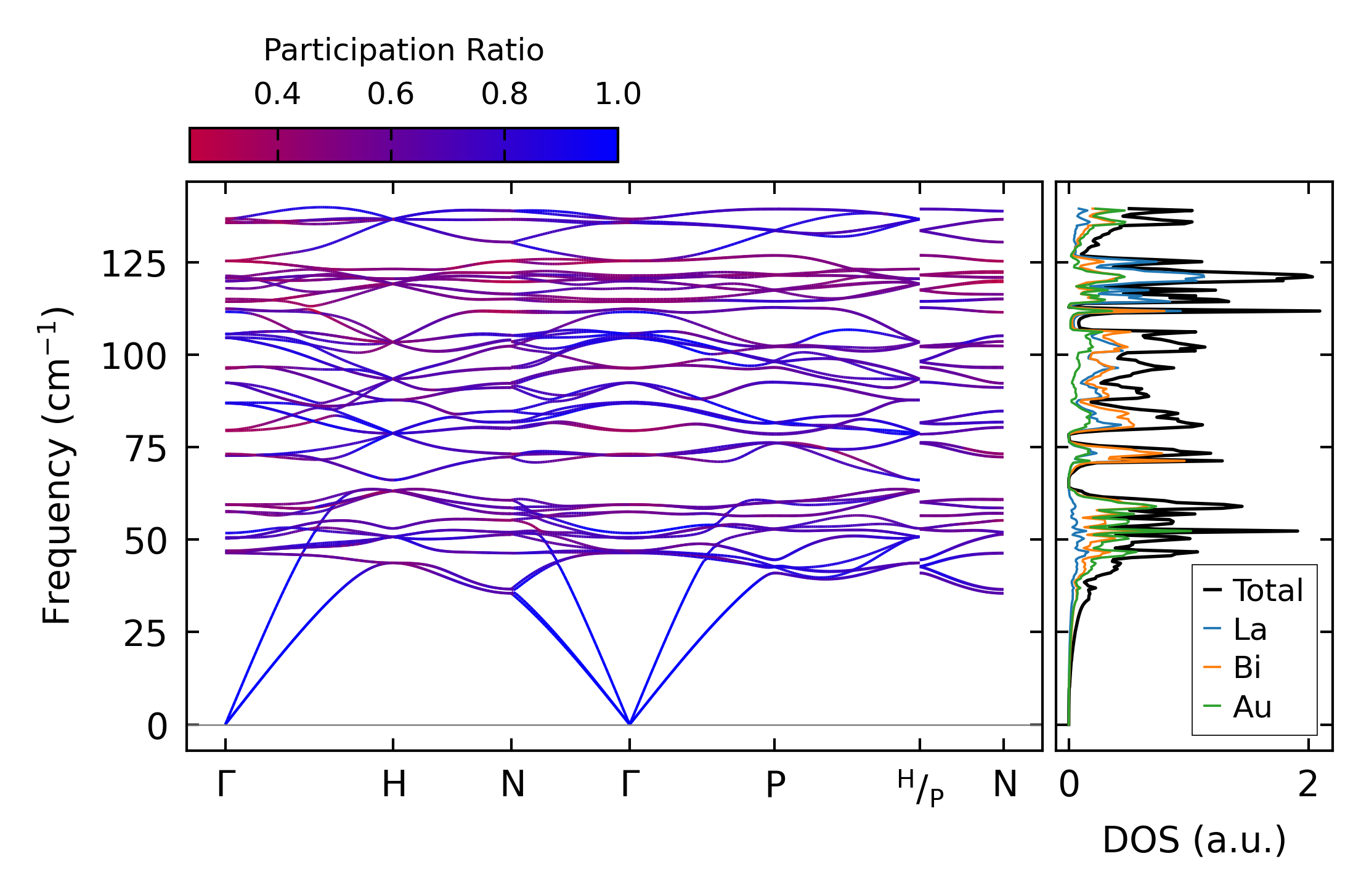

../../_images/fig_bandos_pr16214.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo16213.png — (b) Thermodynamic properties

Grüneisen parameters

../../_images/fig_gru_all7048.png — (a) Grüneisen parameters

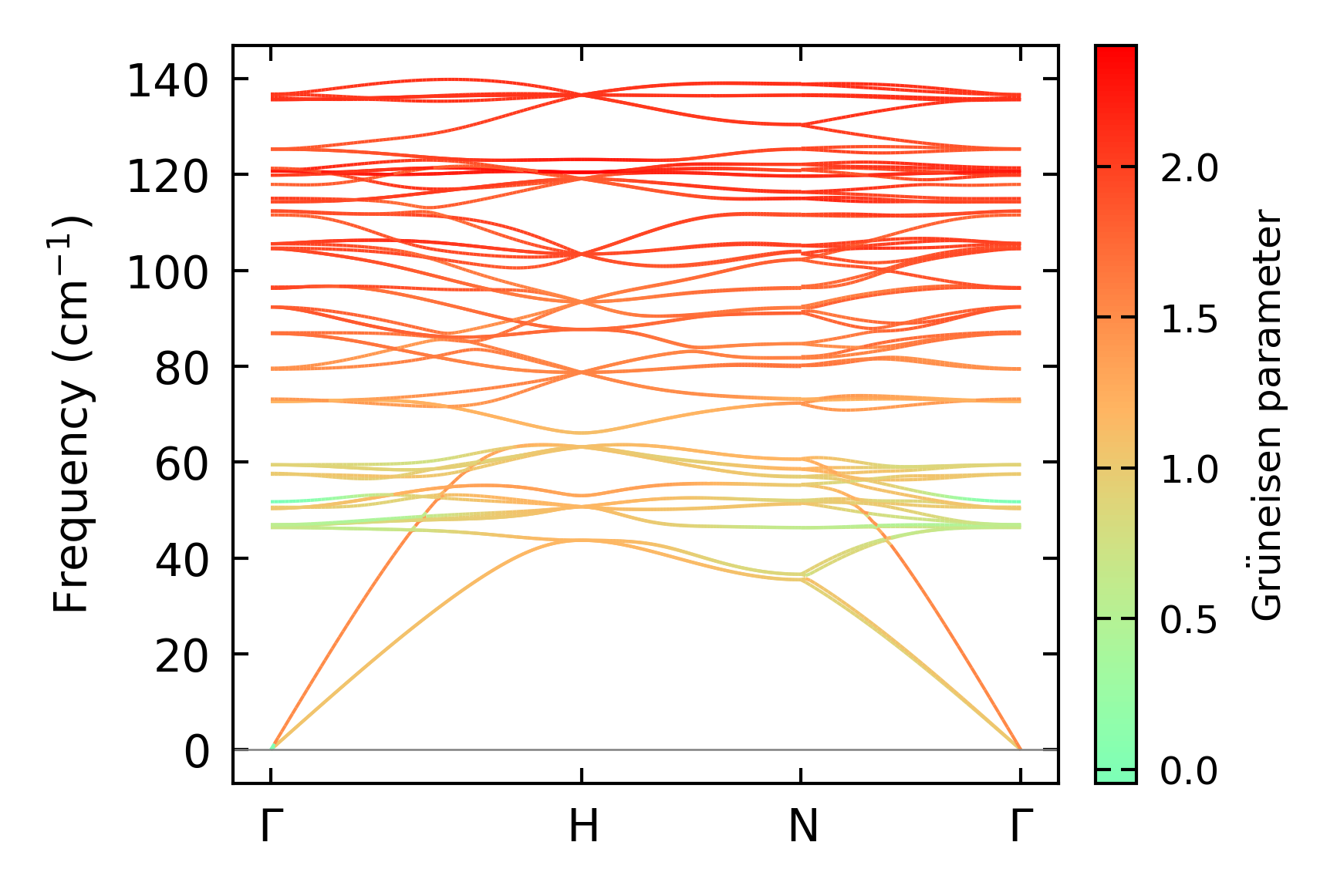

../../_images/fig_gruneisen7048.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 8x8x8, supercell: 1x1x1

../../_images/fig_kappa13276.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size7130.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

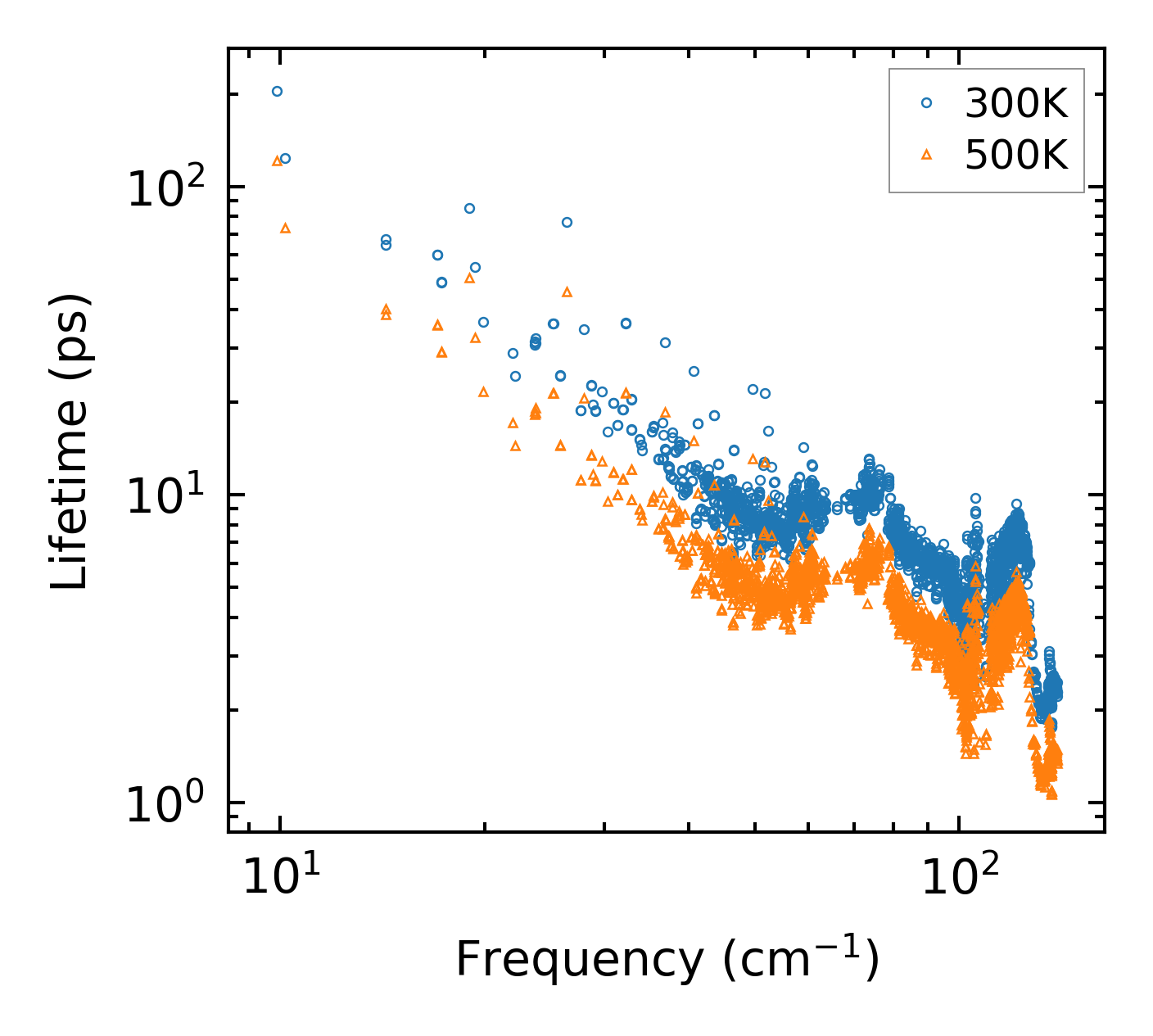

../../_images/fig_lifetime6982.png — (a) Phonon lifetime due to phonon-phonon scattering

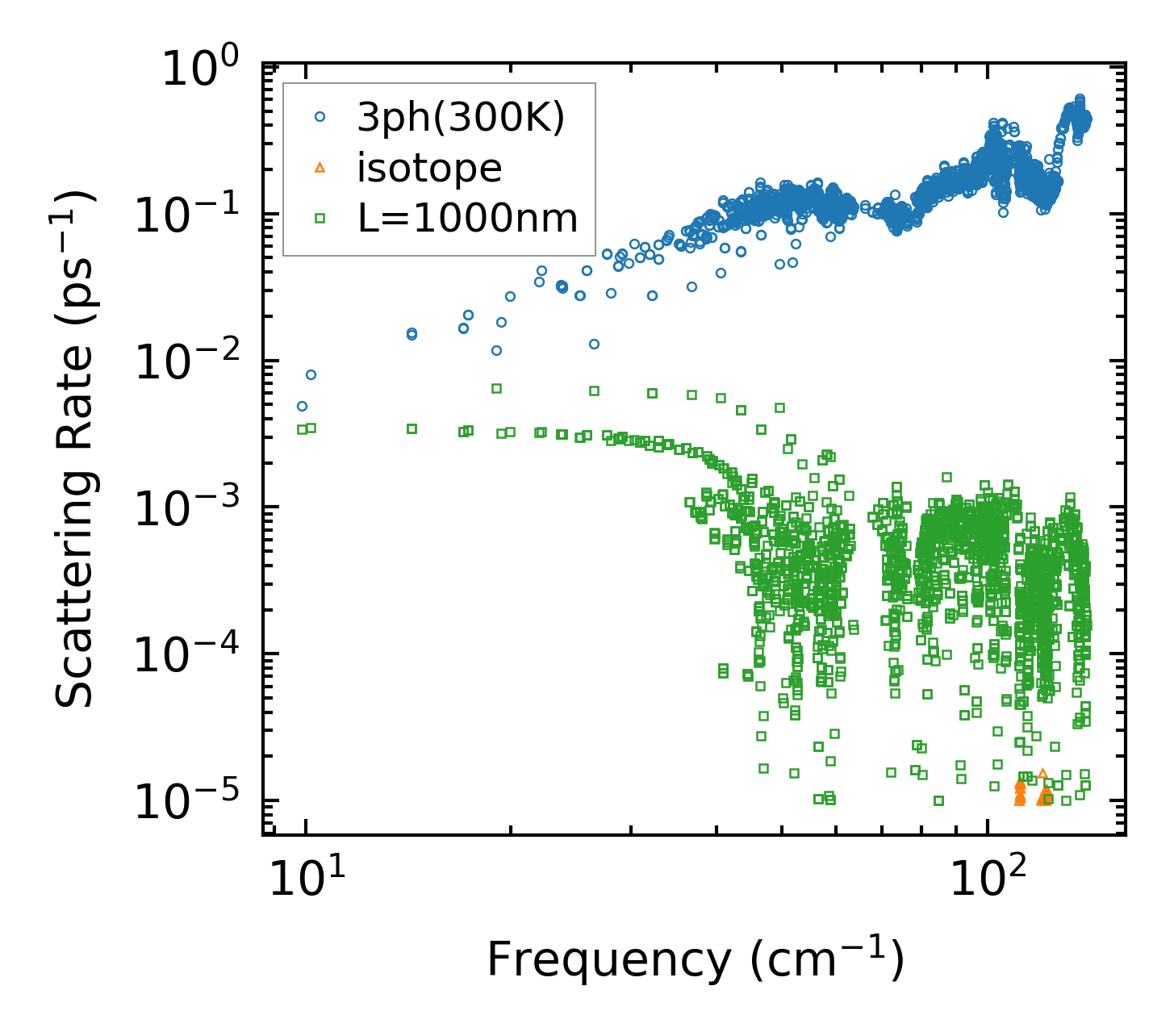

../../_images/fig_scat_rates6981.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

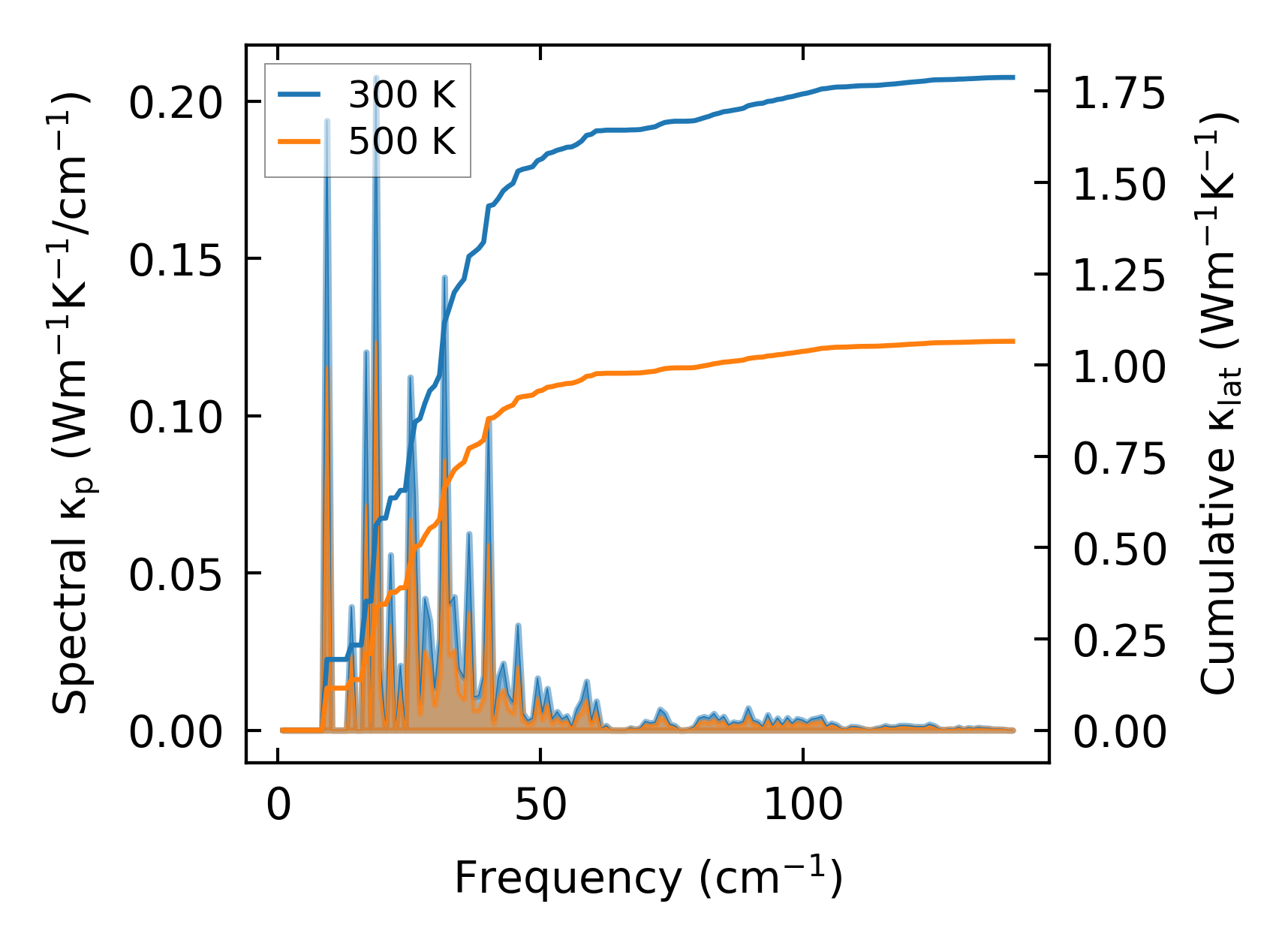

../../_images/fig_cumu_frequency6982.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

../../_images/fig_cumu_mfp6981.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

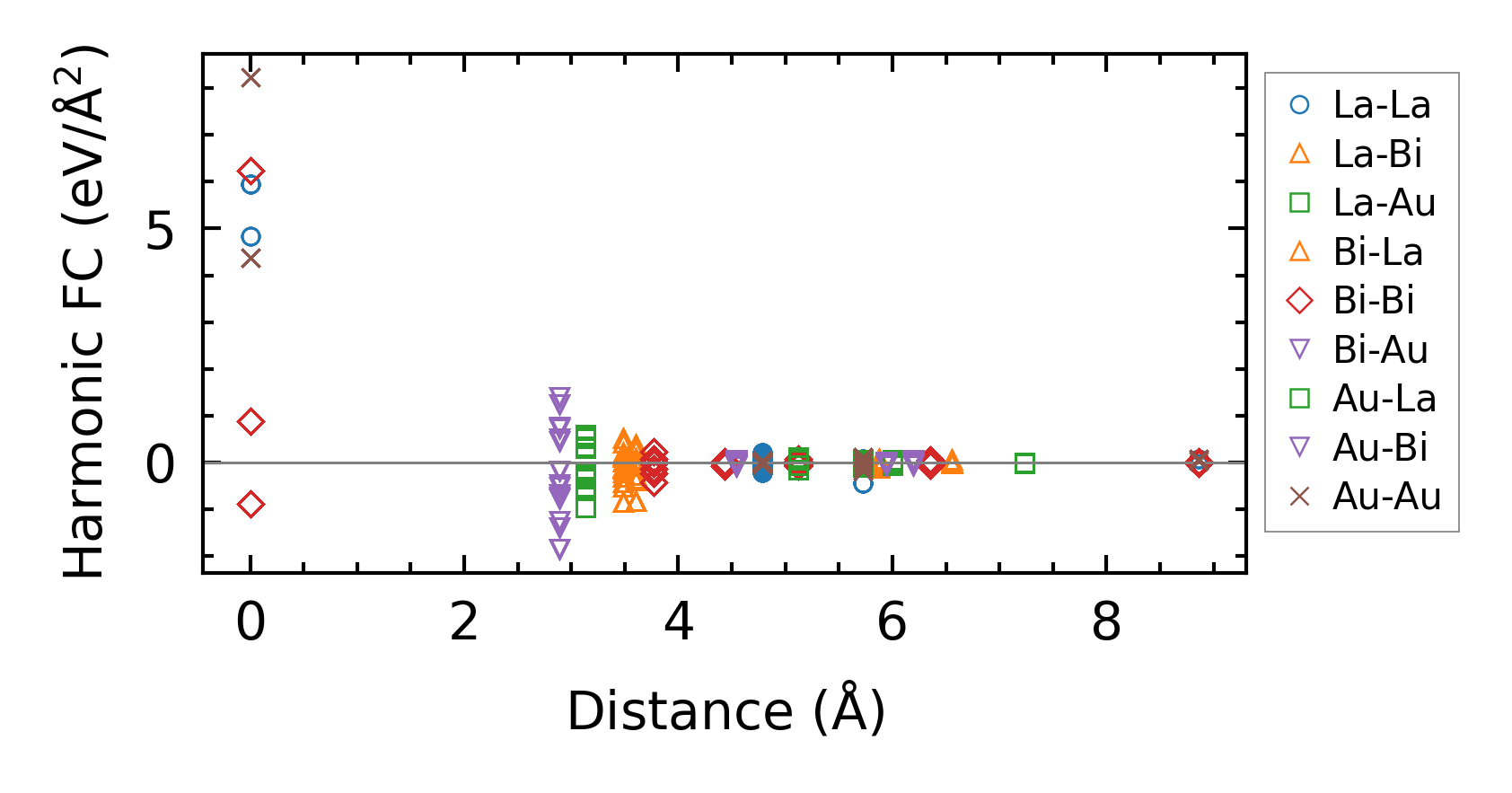

../../_images/fig_fc215807.png — (a) Force constants w.r.t atomic distance

Summary

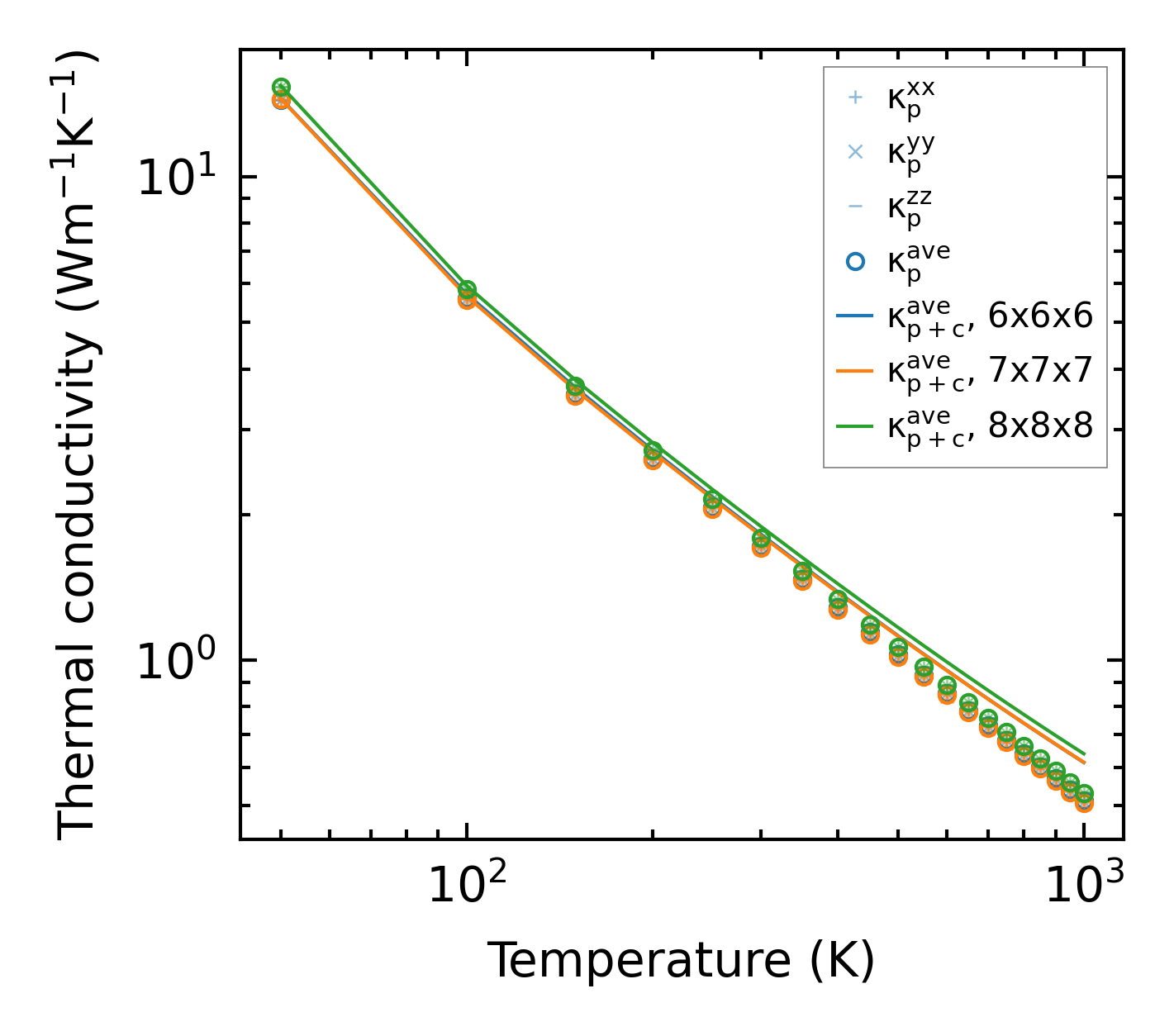

../../_images/fig_kappa13277.png — (a) Temperature-dependent lattice thermal conductivity

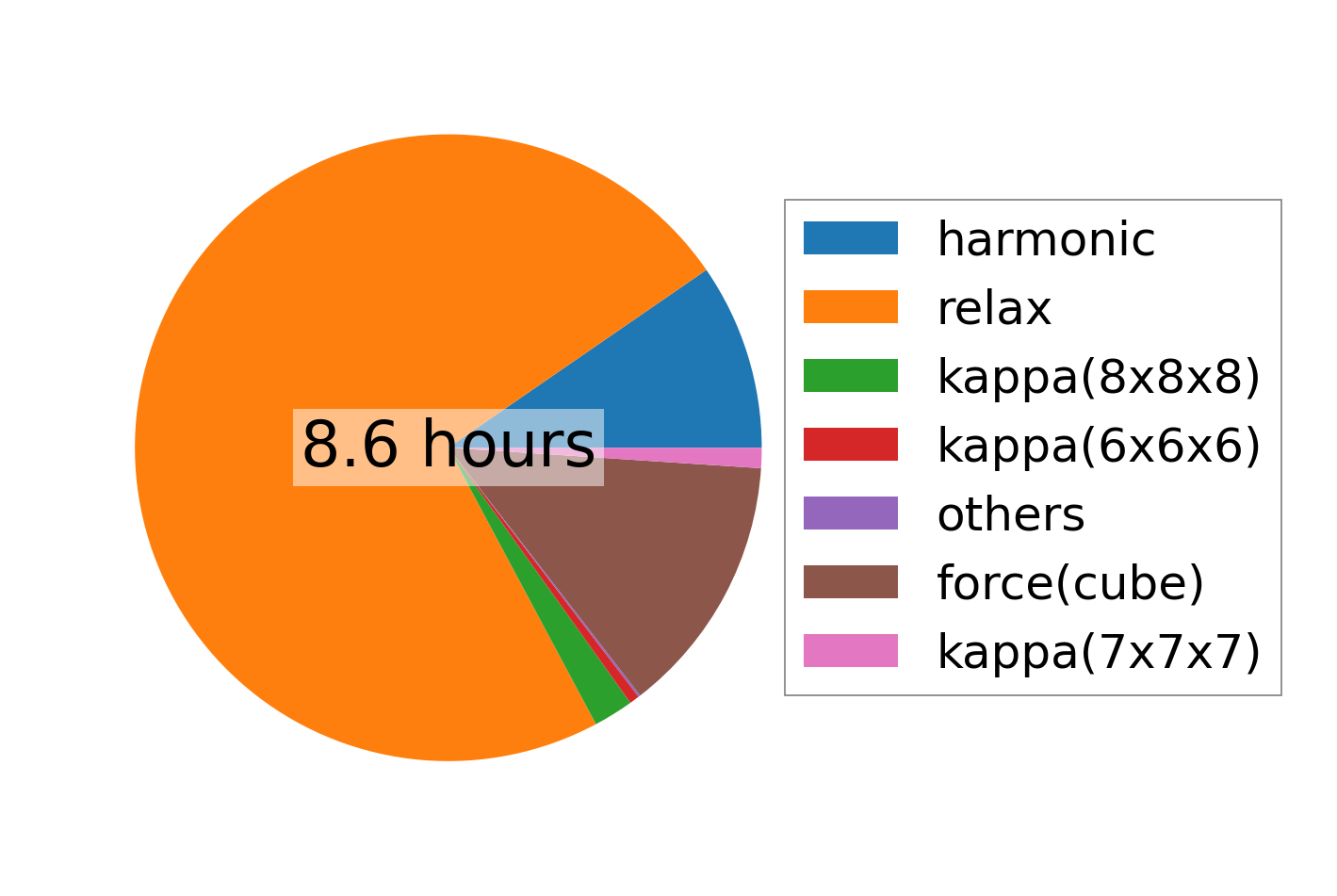

../../_images/fig_times26692.png — (b) Computation time
