mp-771978/Ga2HgO4/anharm

Space group: Pnma (62)
Link: Materials Project
Download: mp-771978.tar.gz

Harmonic properties

../../_images/fig_bandos_pr2516.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo2516.png — (b) Thermodynamic properties

Grüneisen parameters

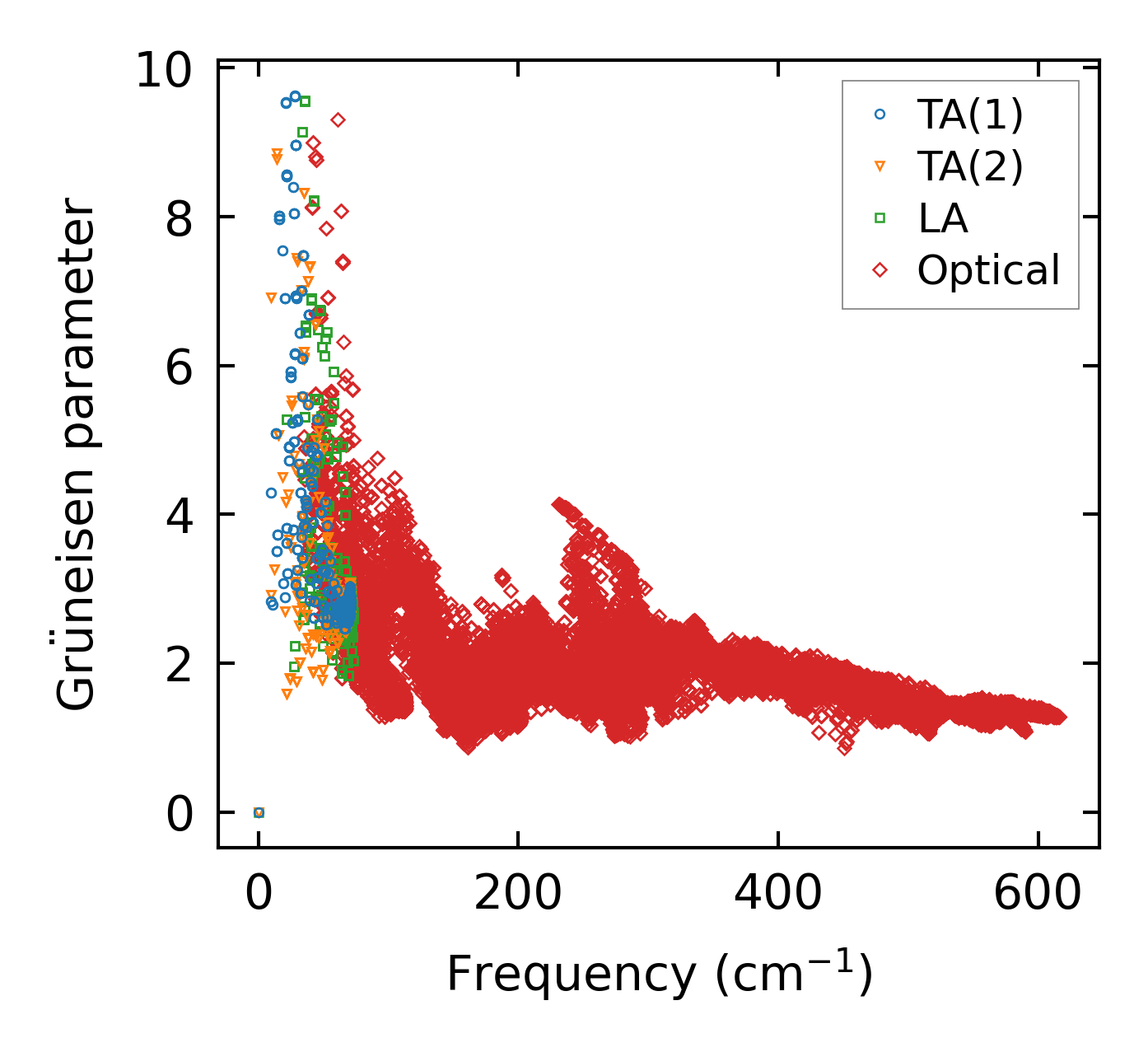

../../_images/fig_gru_all1298.png — (a) Grüneisen parameters

../../_images/fig_gruneisen1298.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 7x24x6, supercell: 1x4x1

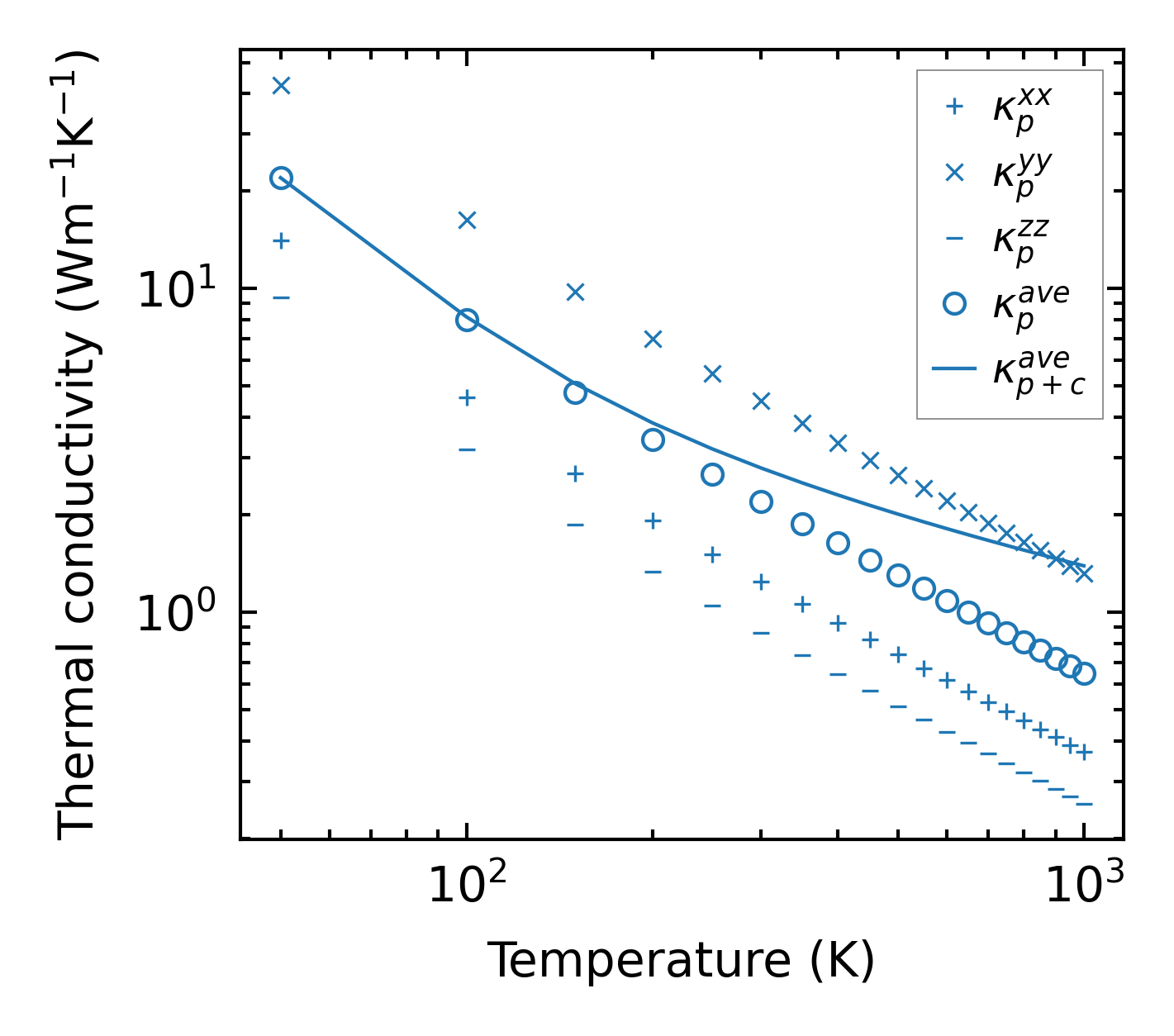

../../_images/fig_kappa2497.png — (a) Temperature-dependent lattice thermal conductivity

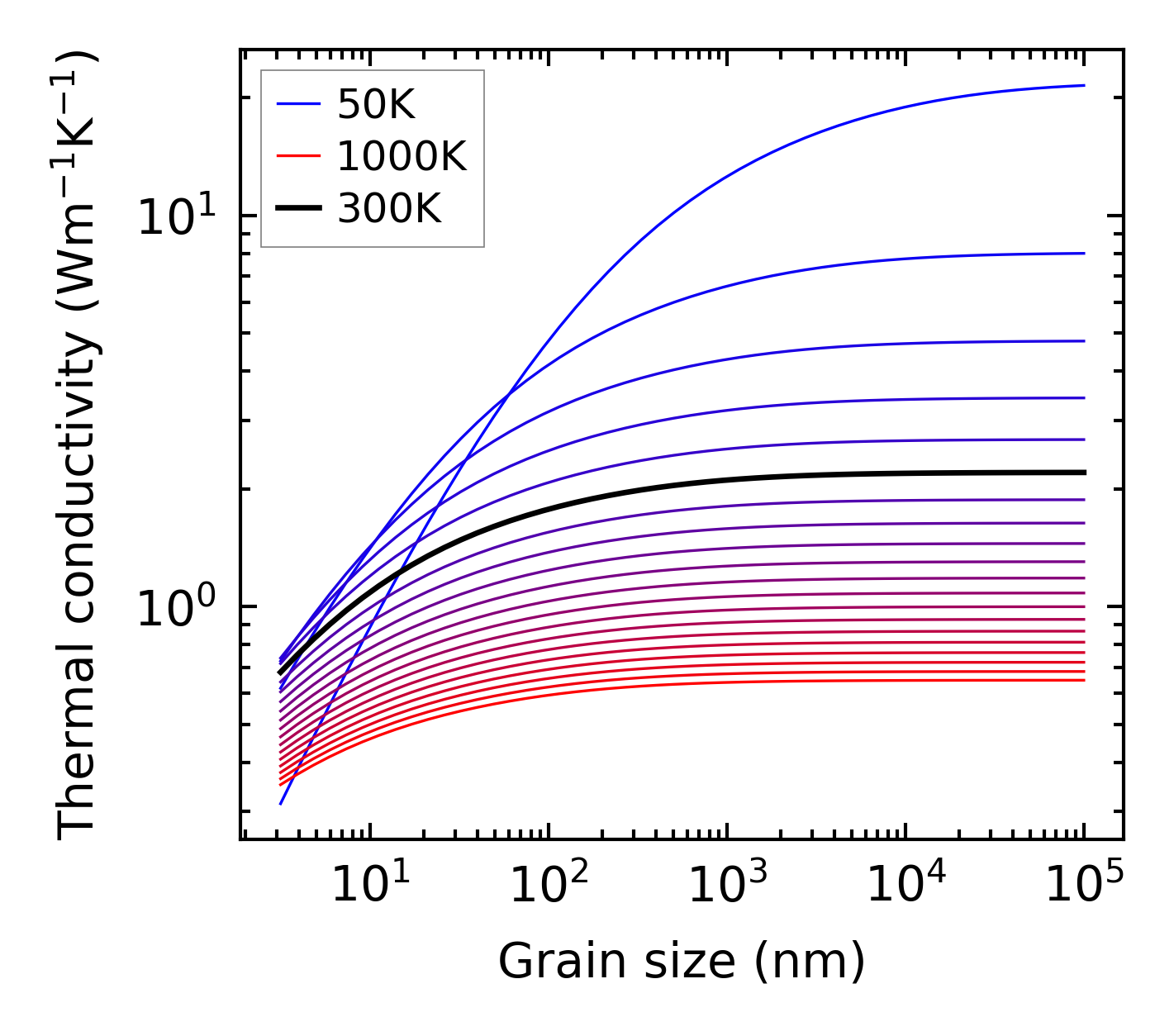

../../_images/fig_kappa_vs_grain_size1314.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

../../_images/fig_lifetime1288.png — (a) Phonon lifetime due to phonon-phonon scattering

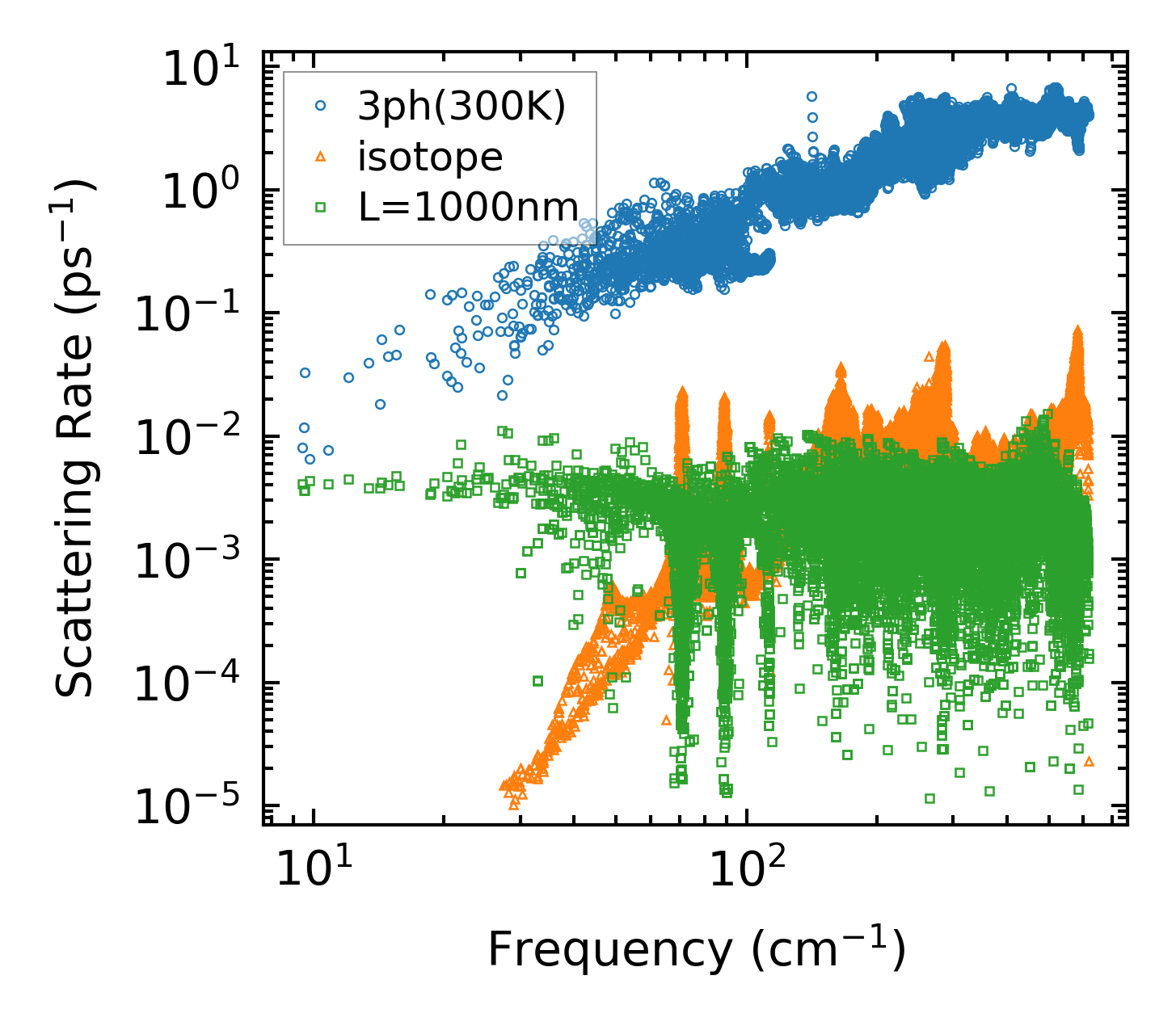

../../_images/fig_scat_rates1287.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

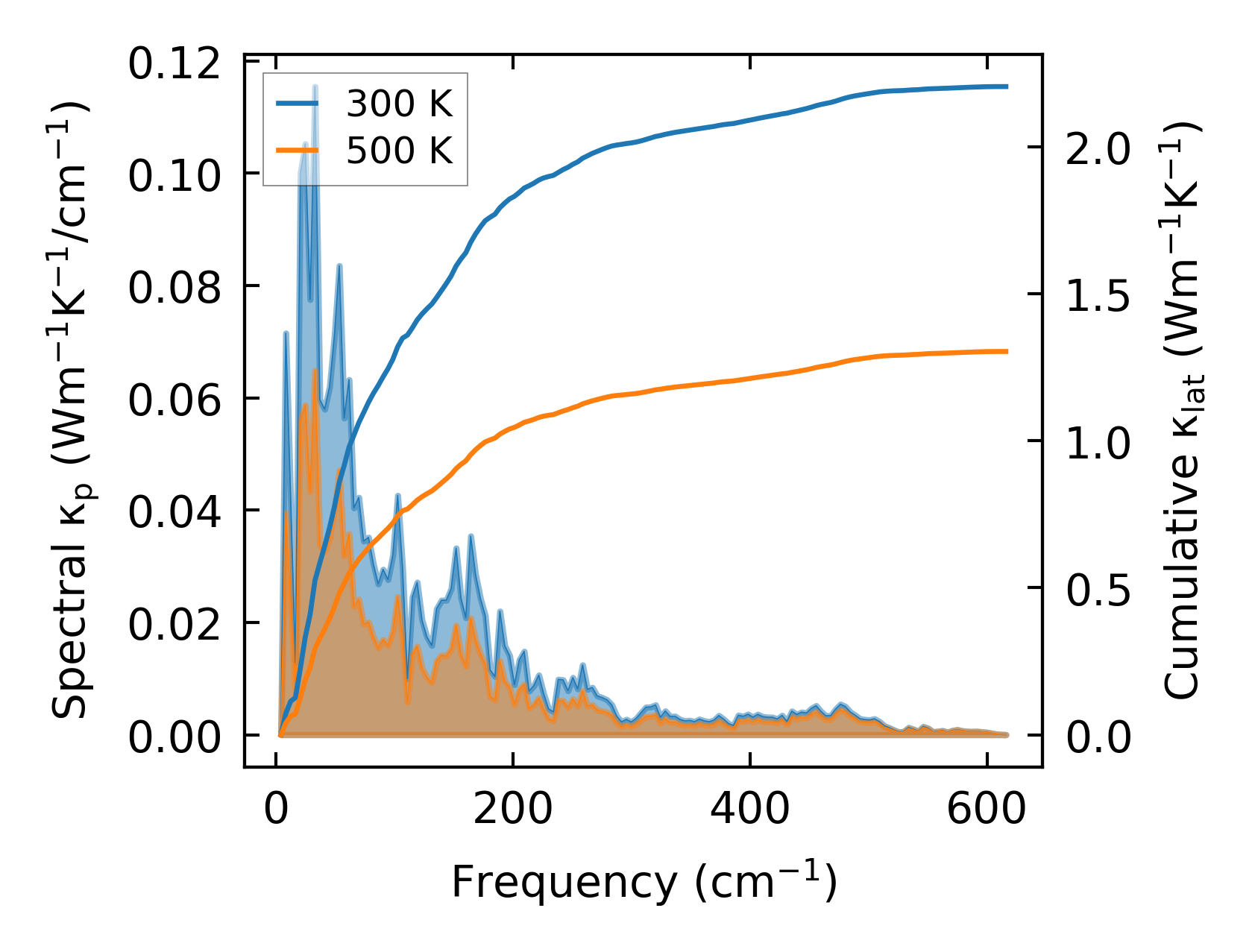

../../_images/fig_cumu_frequency1288.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

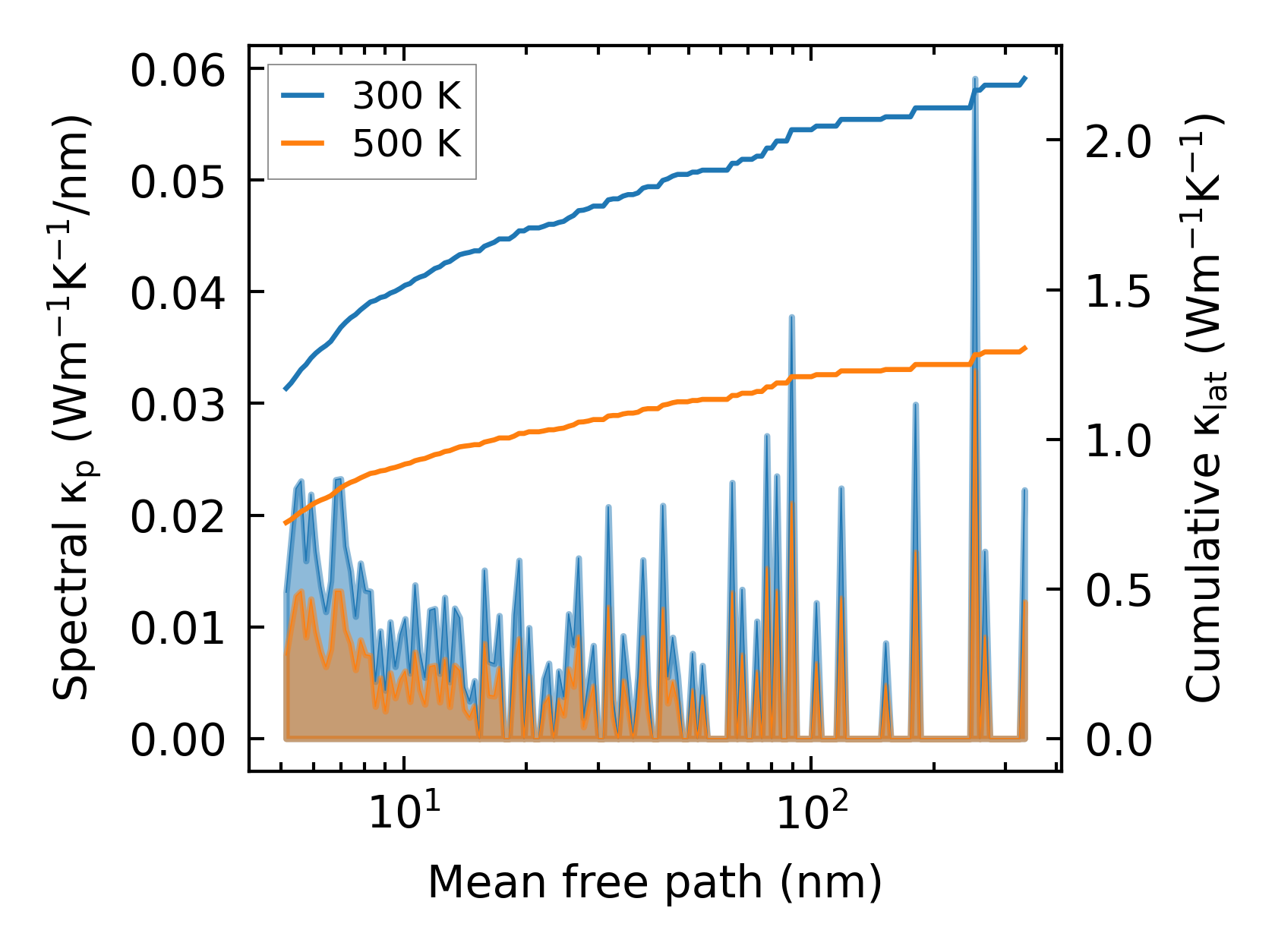

../../_images/fig_cumu_mfp1288.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

../../_images/fig_fc22337.png — (a) Force constants w.r.t atomic distance

Summary

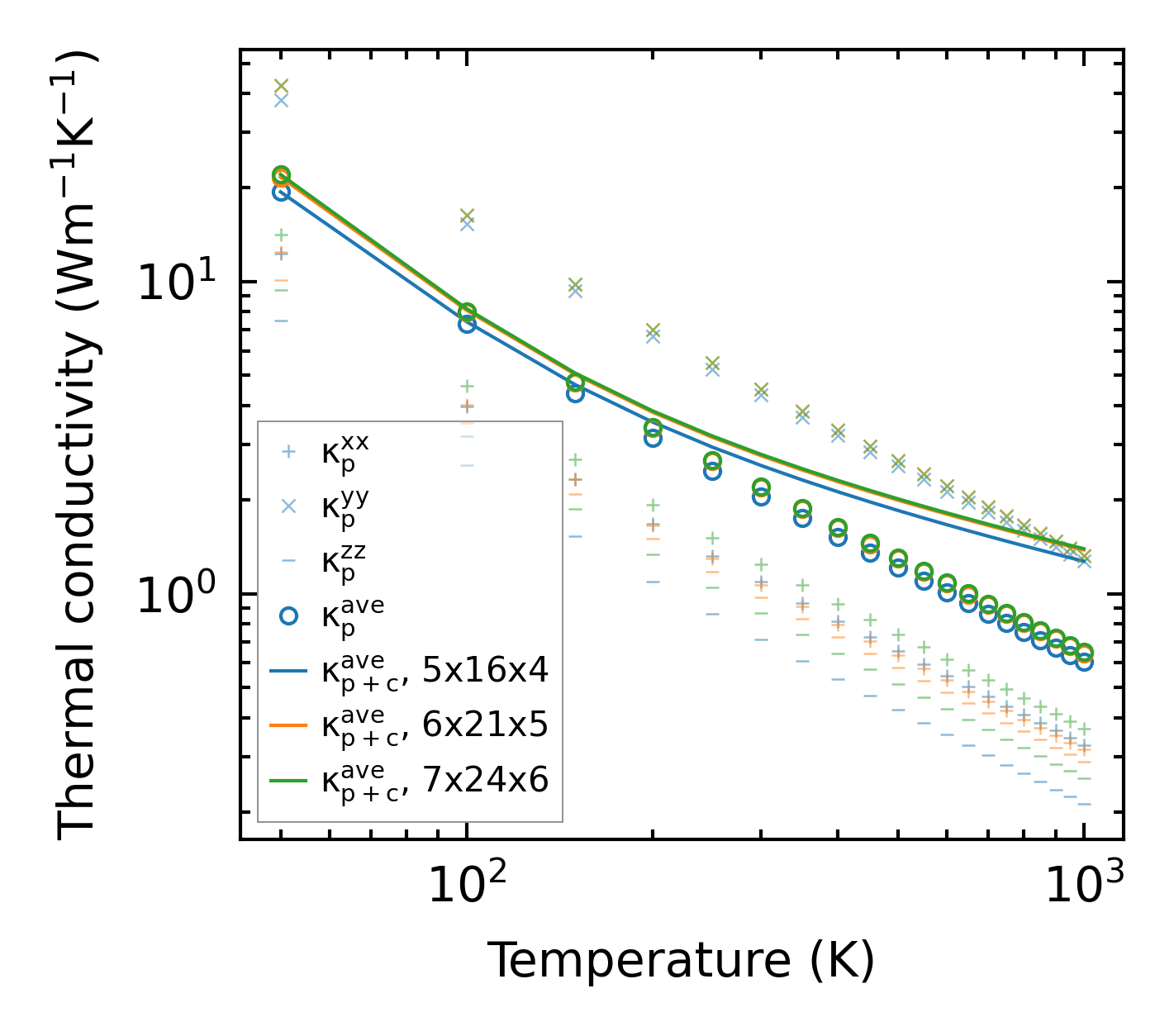

../../_images/fig_kappa2498.png — (a) Temperature-dependent lattice thermal conductivity

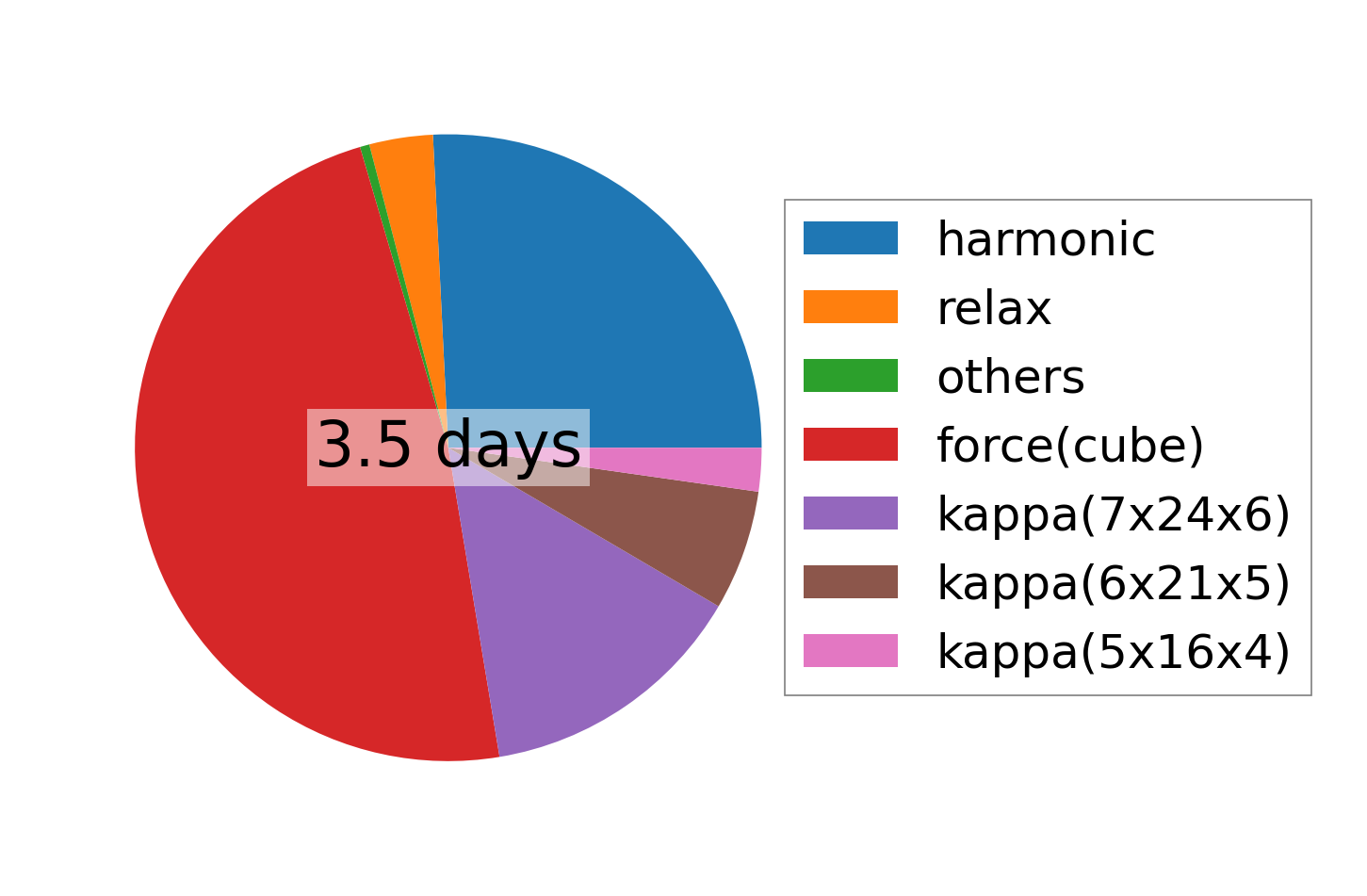

../../_images/fig_times4174.png — (b) Computation time
