mp-707463/KNaReH9/anharm

Space group: Pnma (62)
Link: Materials Project
Download: mp-707463.tar.gz

Harmonic properties

../../_images/fig_bandos_pr4258.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo4258.png — (b) Thermodynamic properties

Grüneisen parameters

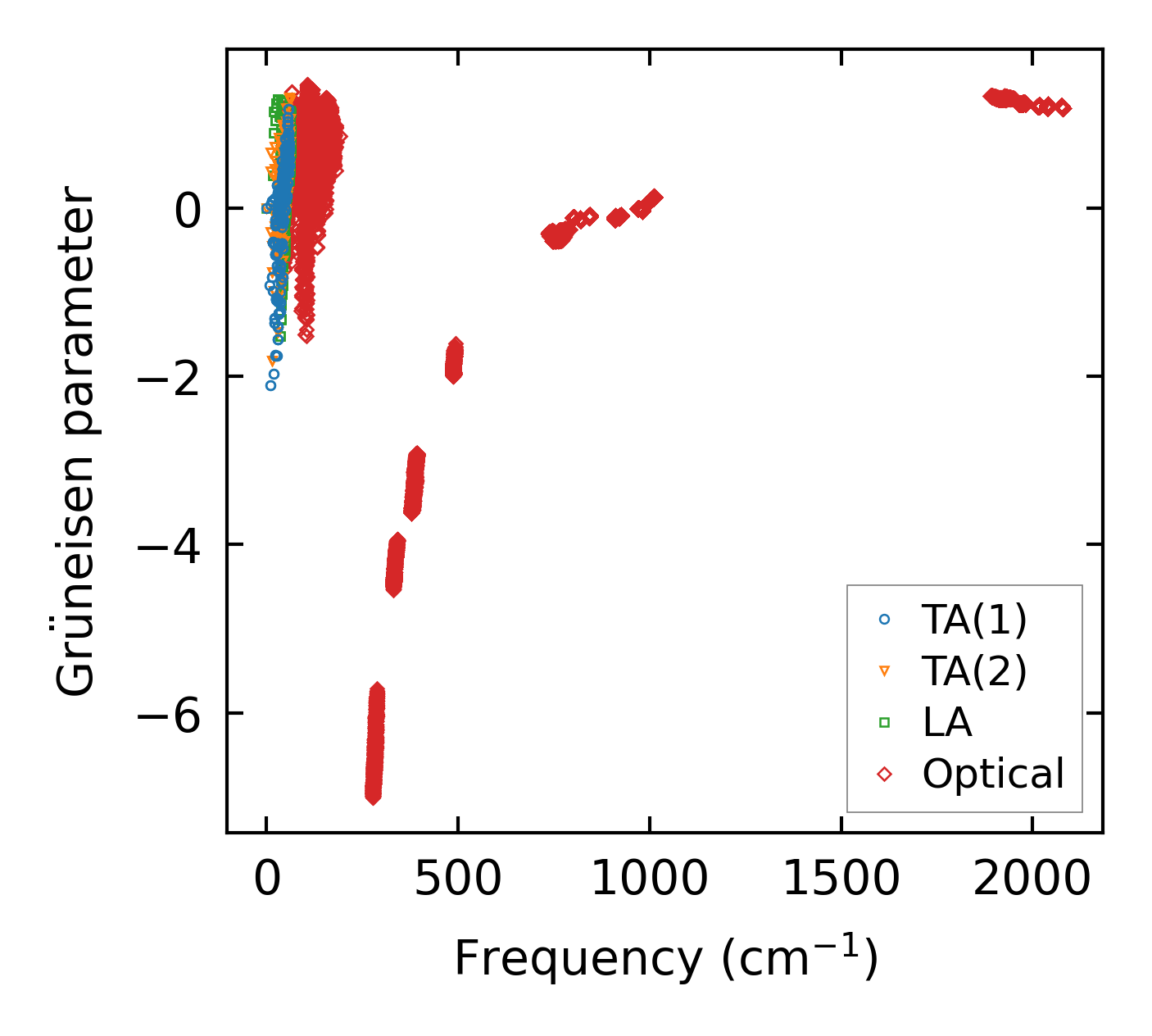

../../_images/fig_gru_all1842.png — (a) Grüneisen parameters

../../_images/fig_gruneisen1842.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 8x13x7, supercell: 1x2x1

../../_images/fig_kappa3531.png — (a) Temperature-dependent lattice thermal conductivity

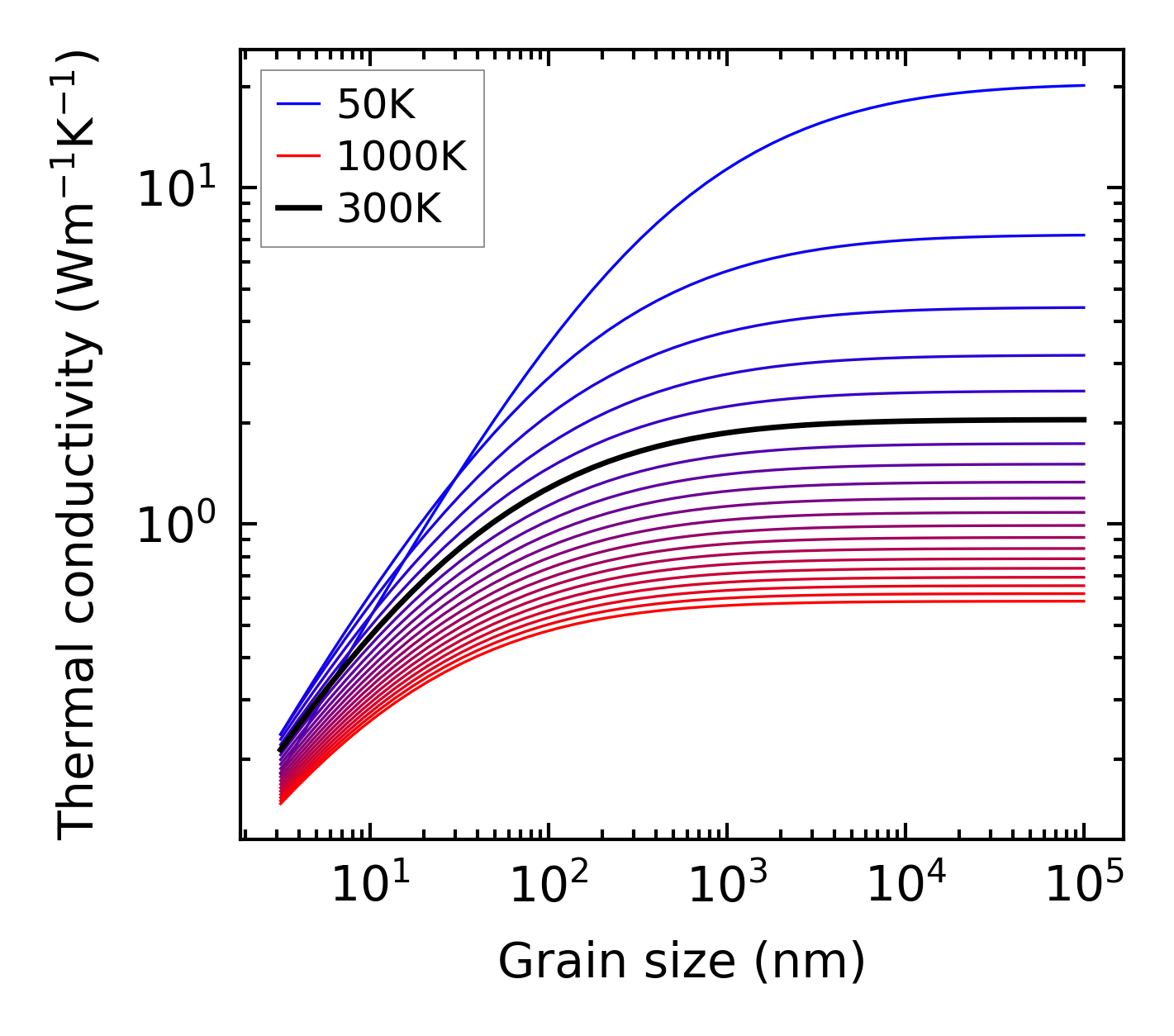

../../_images/fig_kappa_vs_grain_size1870.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

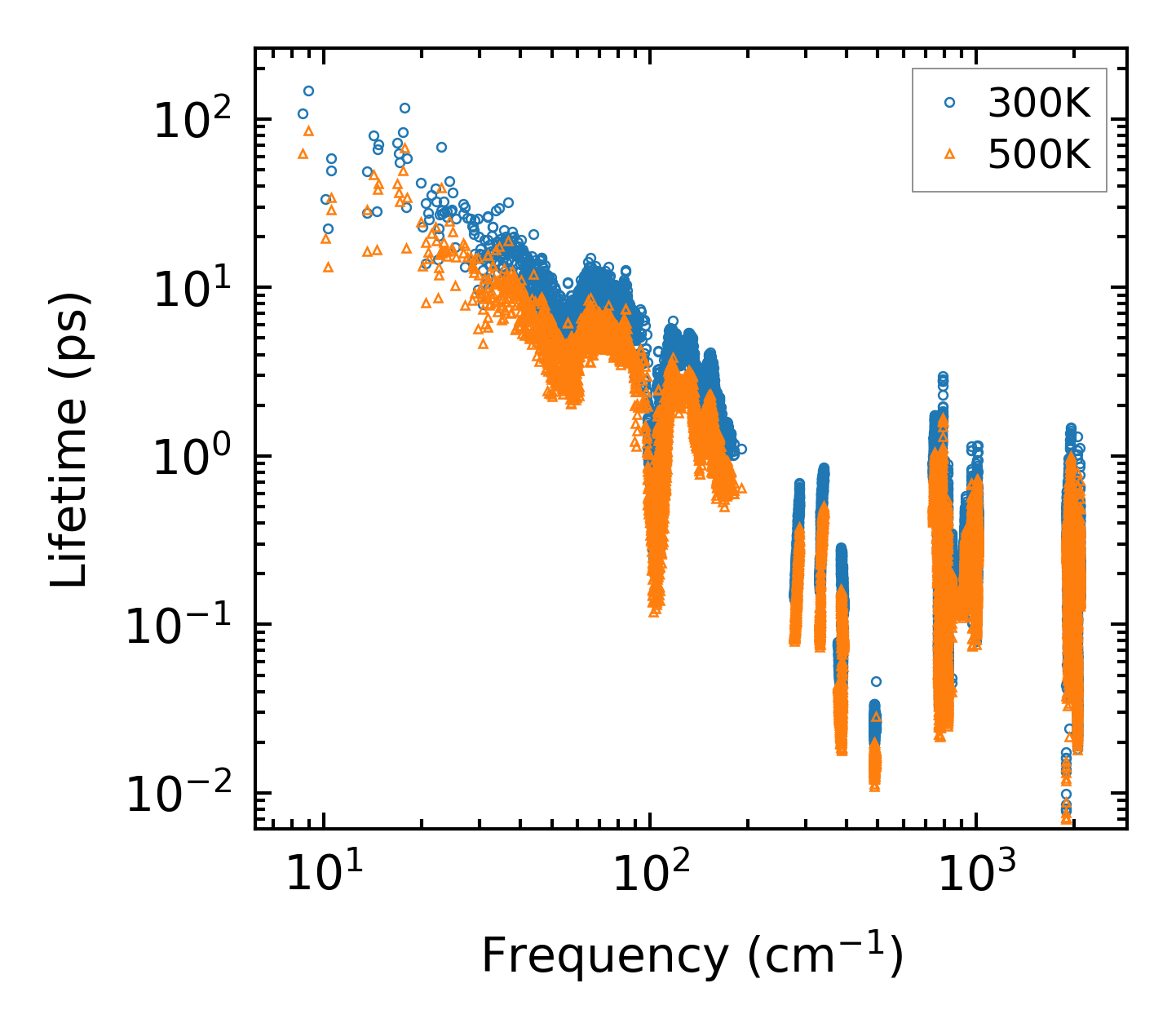

../../_images/fig_lifetime1832.png — (a) Phonon lifetime due to phonon-phonon scattering

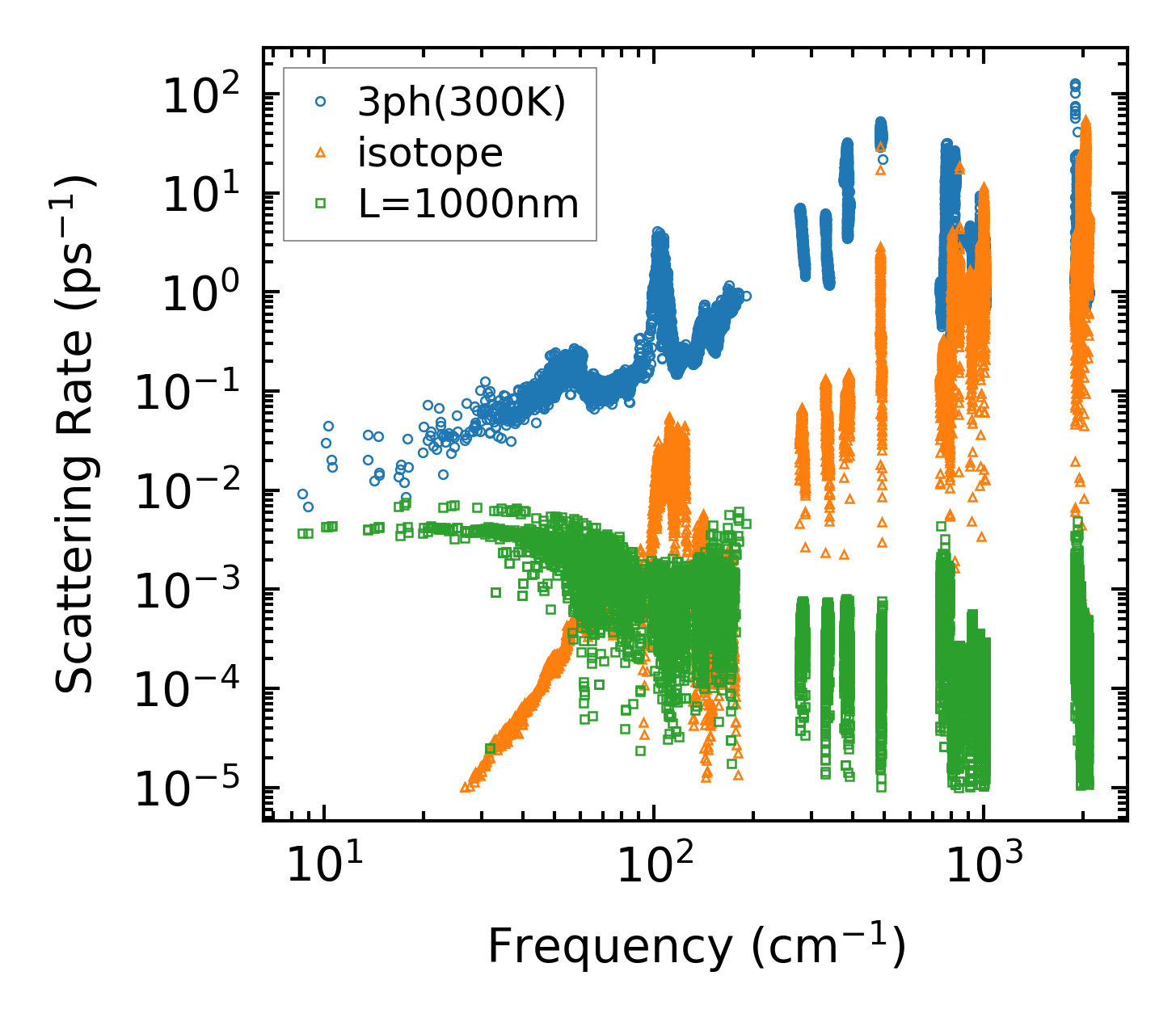

../../_images/fig_scat_rates1831.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

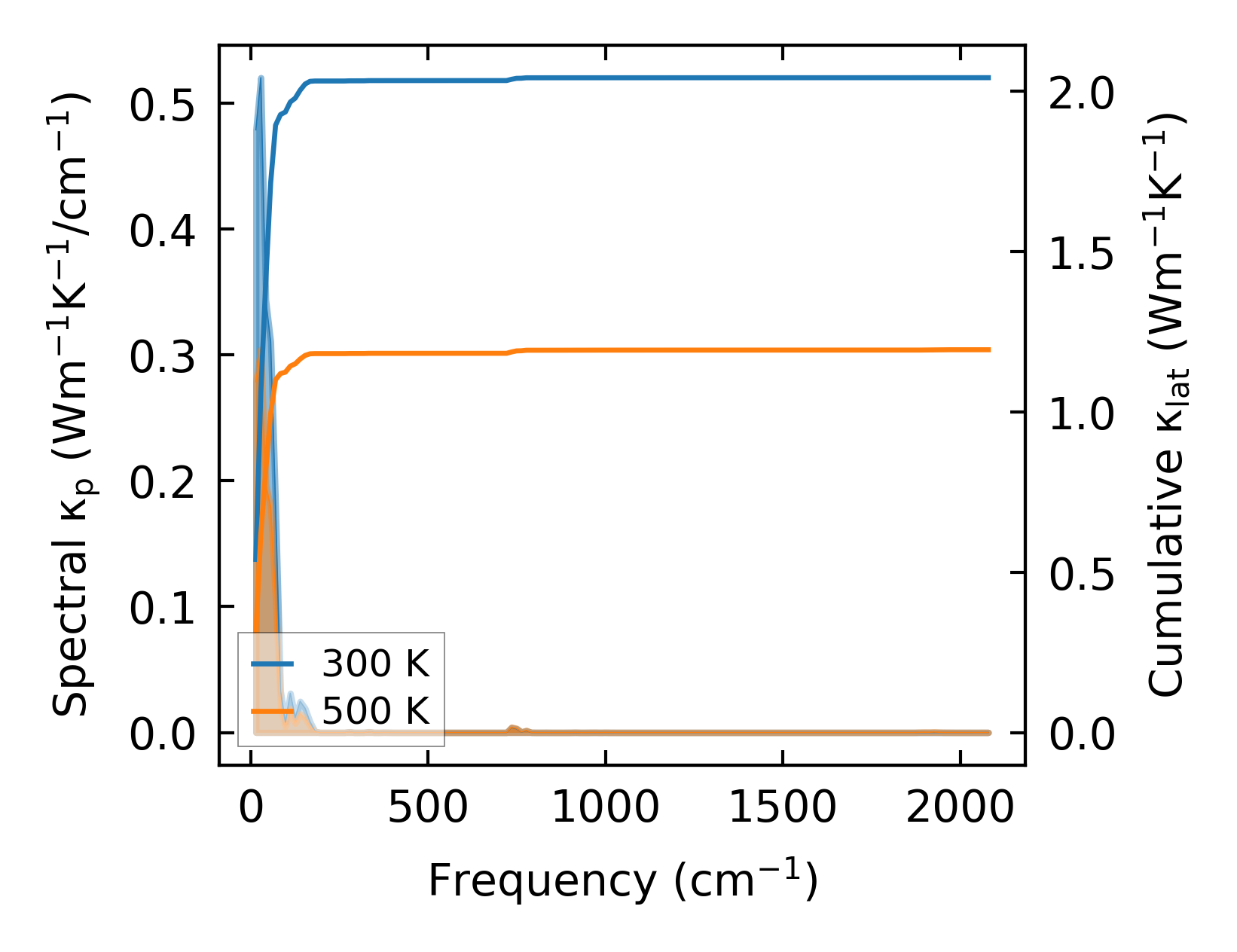

../../_images/fig_cumu_frequency1832.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

../../_images/fig_cumu_mfp1832.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

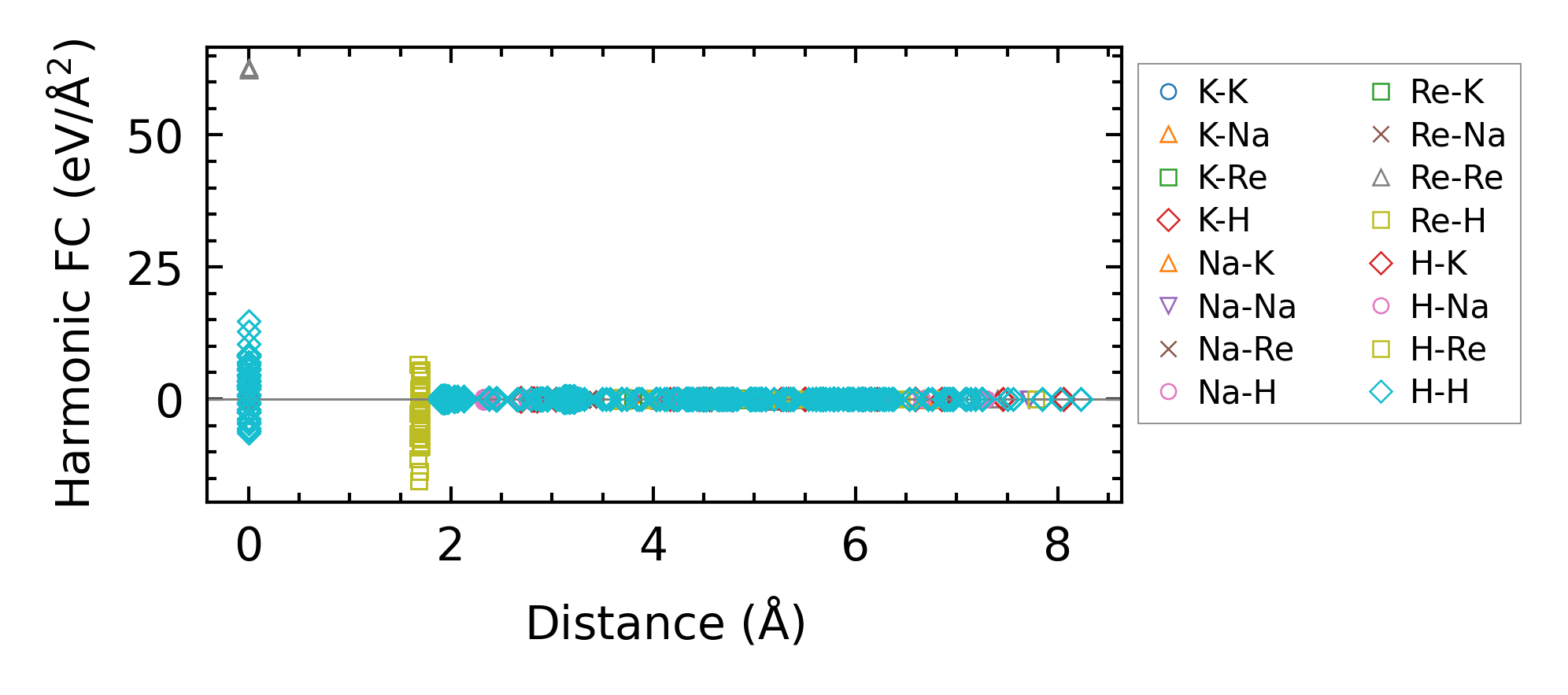

../../_images/fig_fc24071.png — (a) Force constants w.r.t atomic distance

Summary

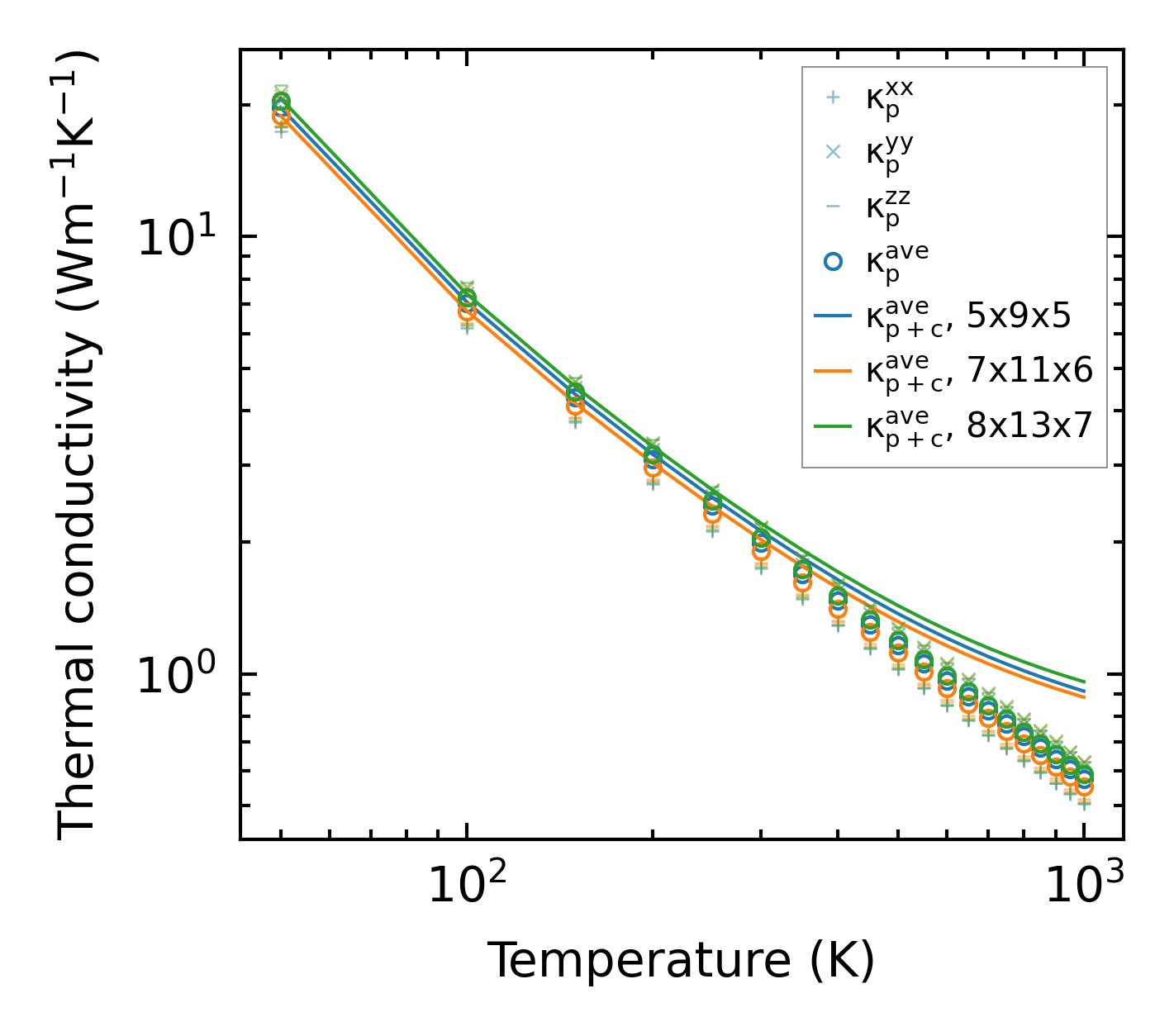

../../_images/fig_kappa3532.png — (a) Temperature-dependent lattice thermal conductivity

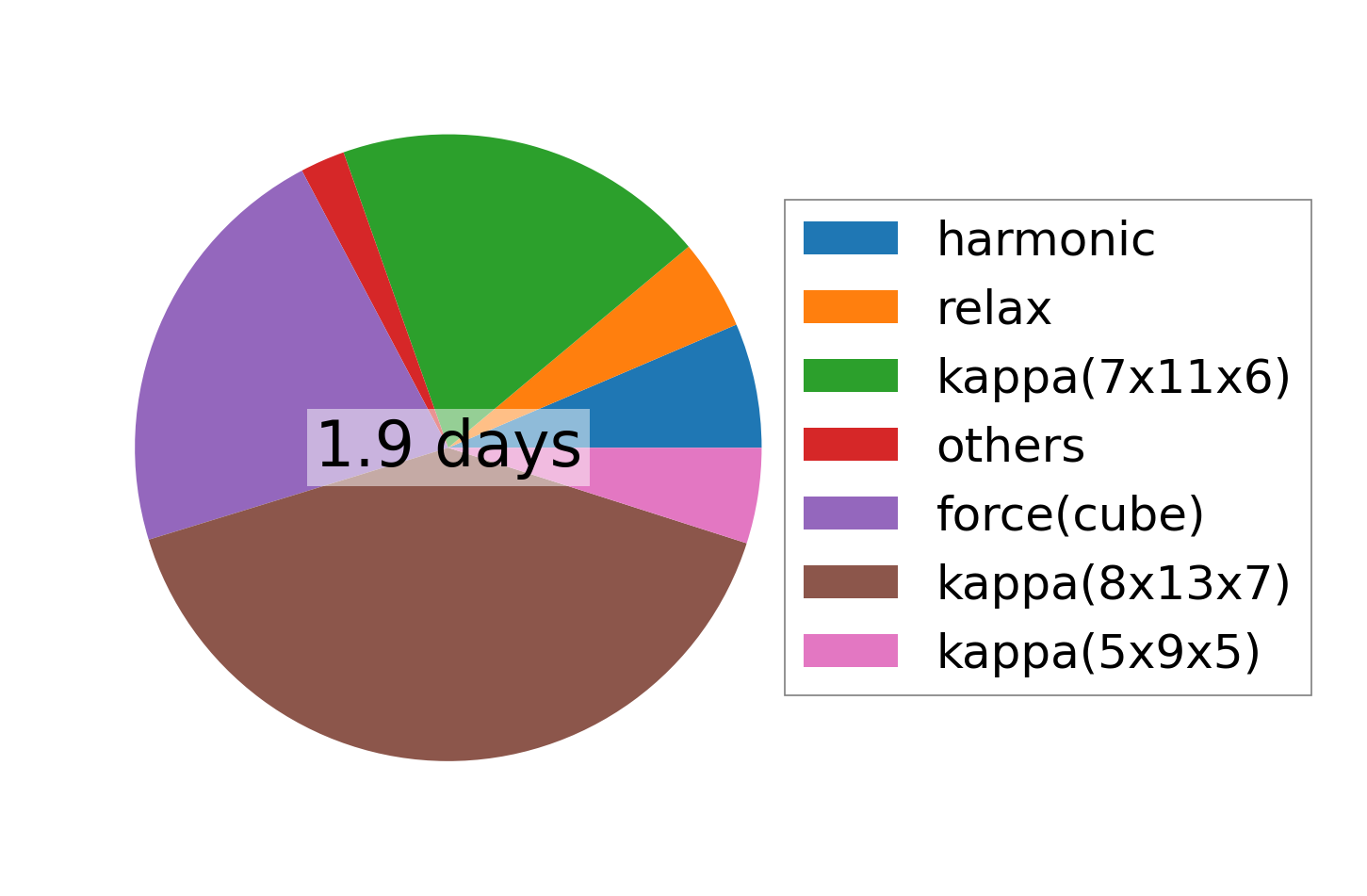

../../_images/fig_times7550.png — (b) Computation time
