mp-707176-2/NaCa2Al2P2H5O11F4/anharm

Space group: P2_1/m (11)
Link: Materials Project
Download: mp-707176-2.tar.gz

Equation of state

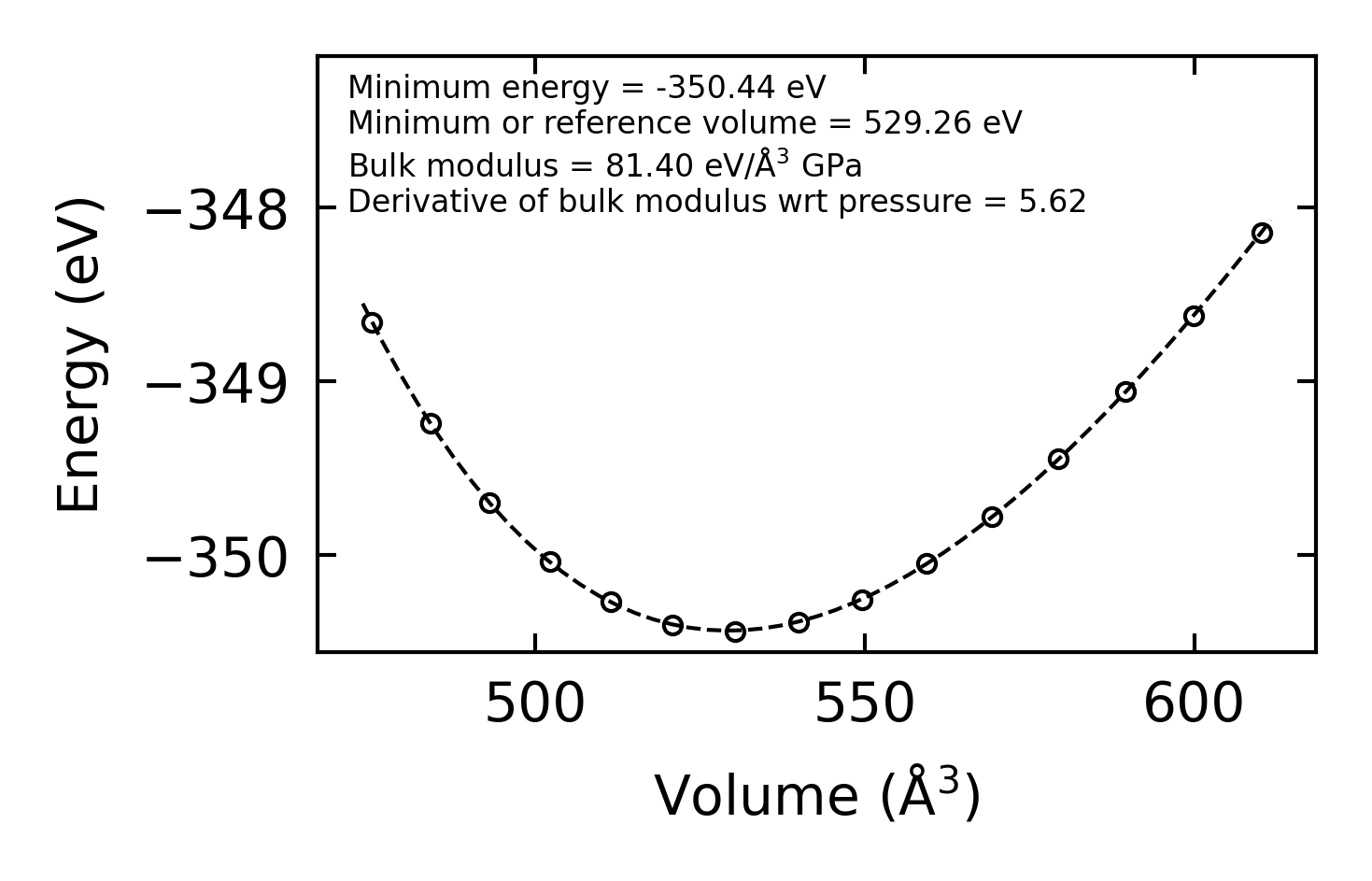

../../_images/fig_bm2137.png — (a) Equation of state

Harmonic properties

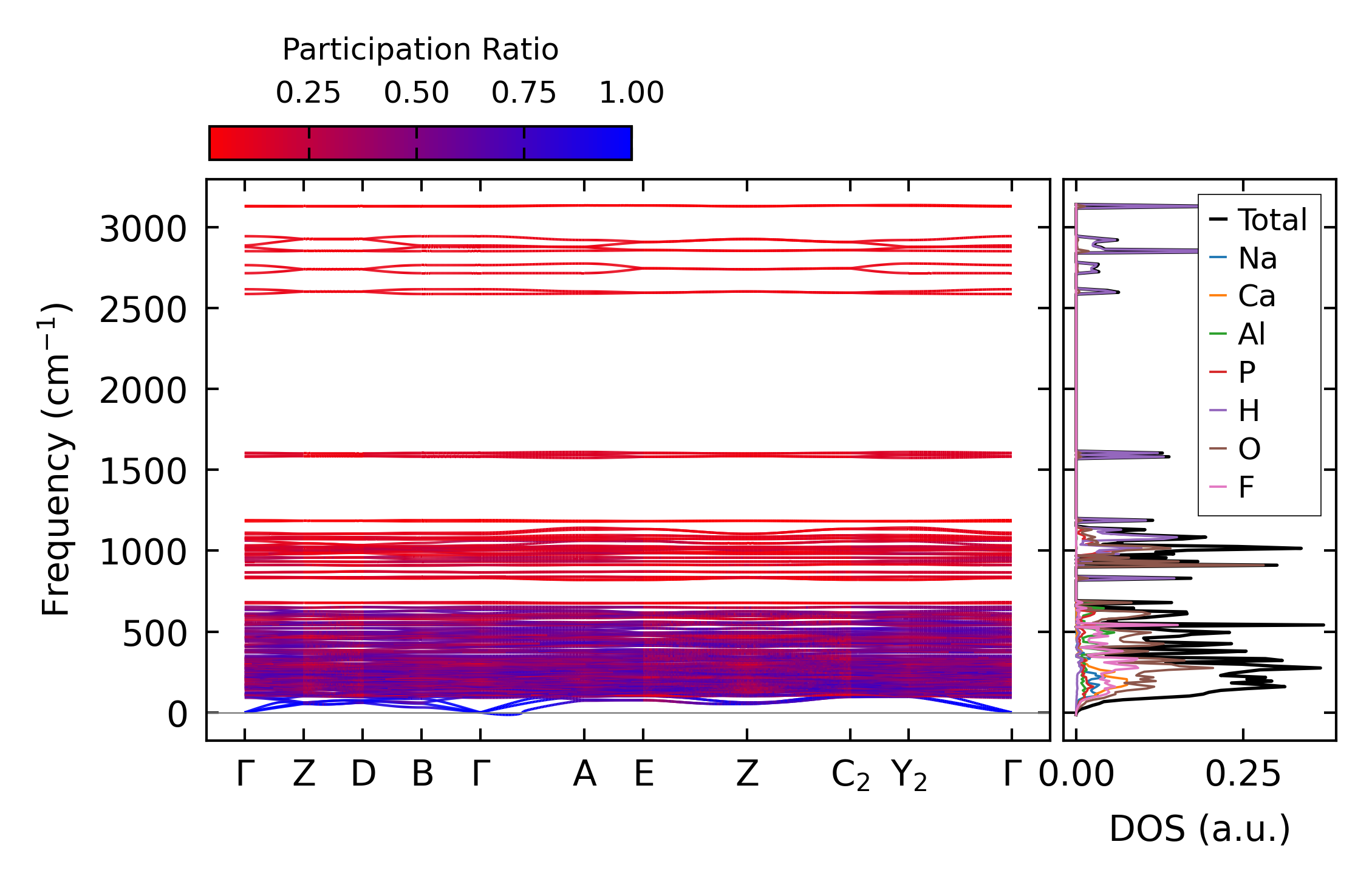

../../_images/fig_bandos_pr4235.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_bandos5865.png — (b) Phonon dispersion and DOS

../../_images/fig_thermo4235.png — (c) Thermodynamic properties

Grüneisen parameters

../../_images/fig_gru_all1838.png — (a) Grüneisen parameters

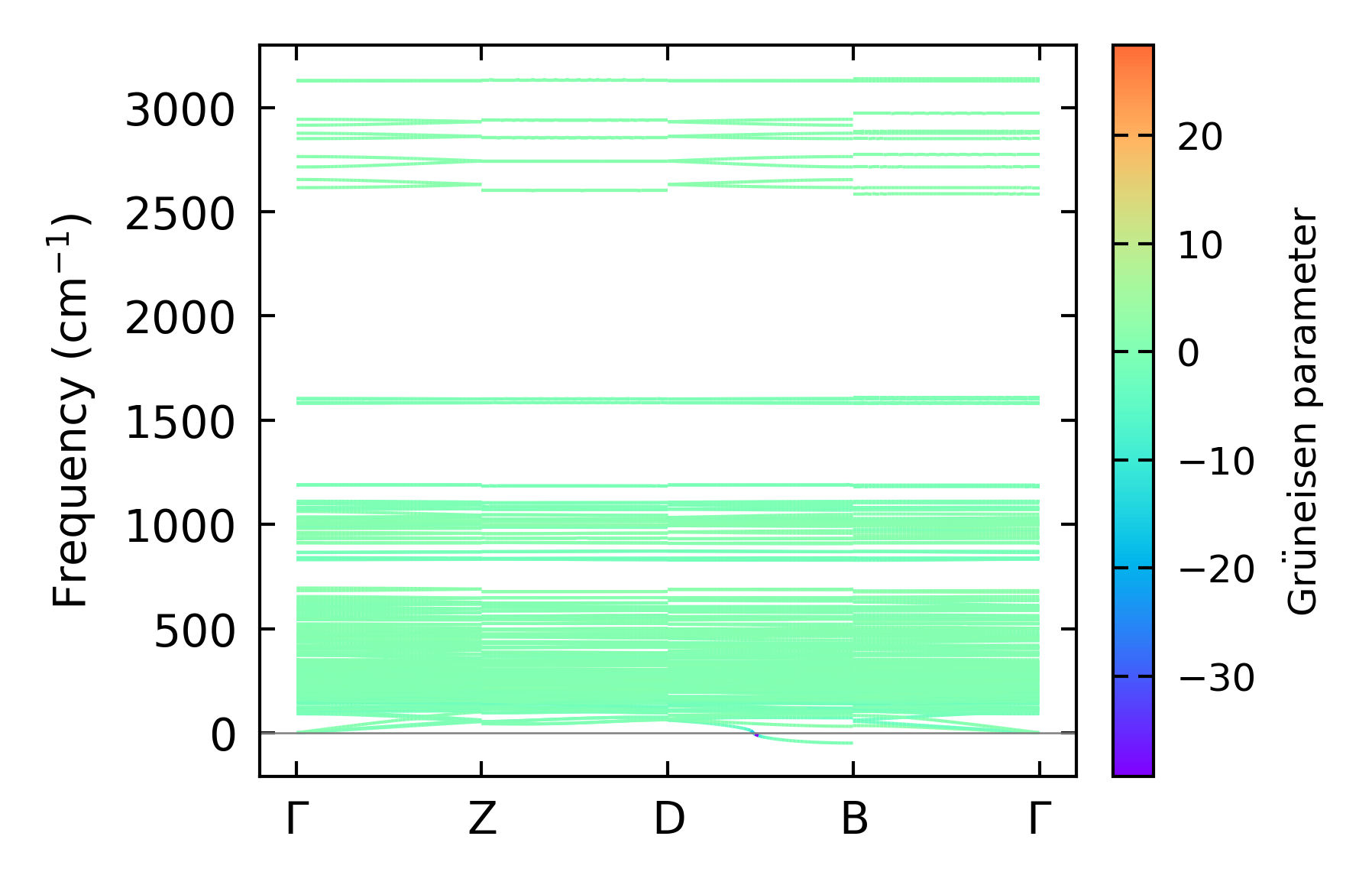

../../_images/fig_gruneisen1838.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO), supercell 2x1x2 — q-mesh: 13x6x7, supercell: 2x1x2

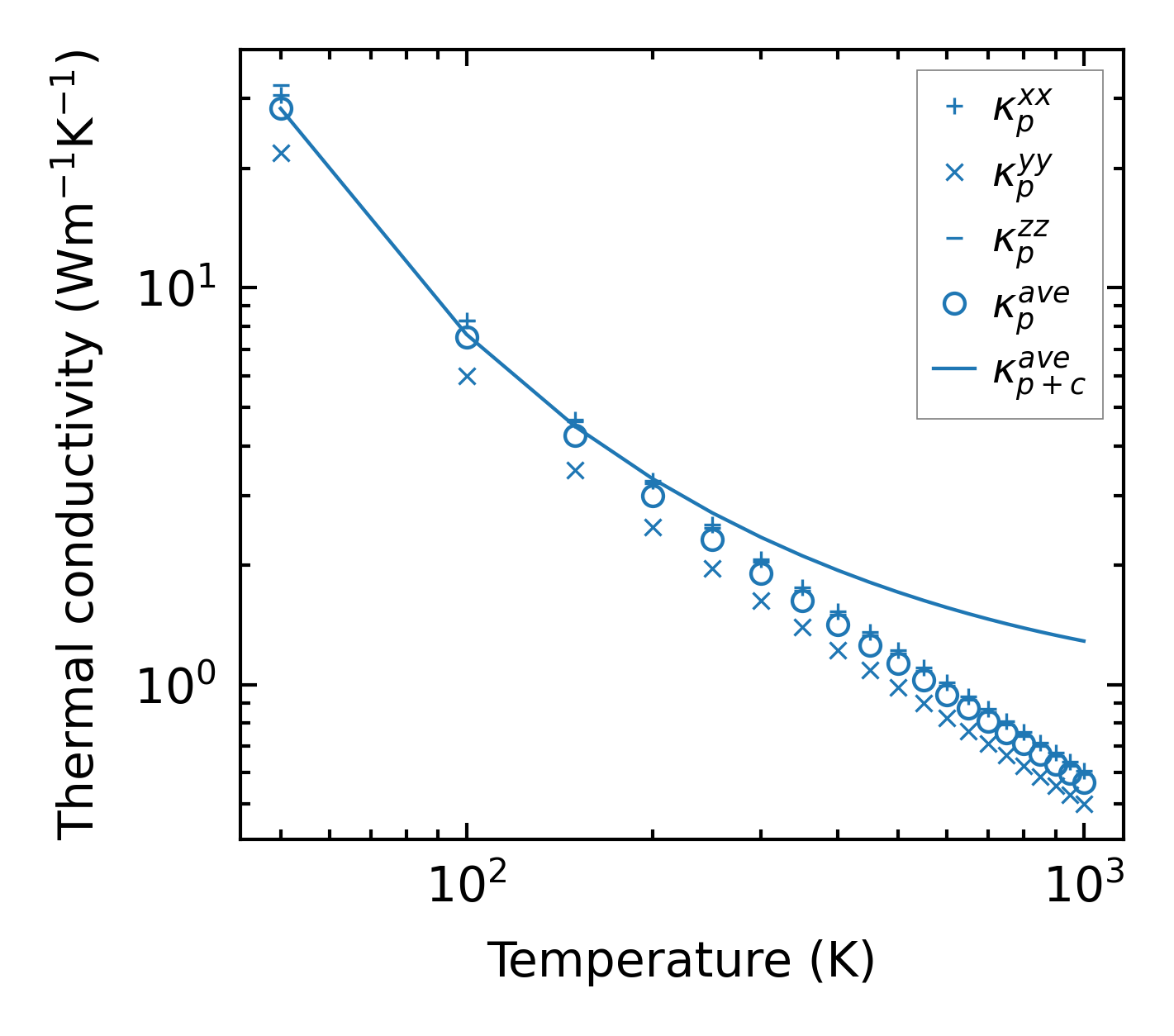

../../_images/fig_kappa3525.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size1866.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

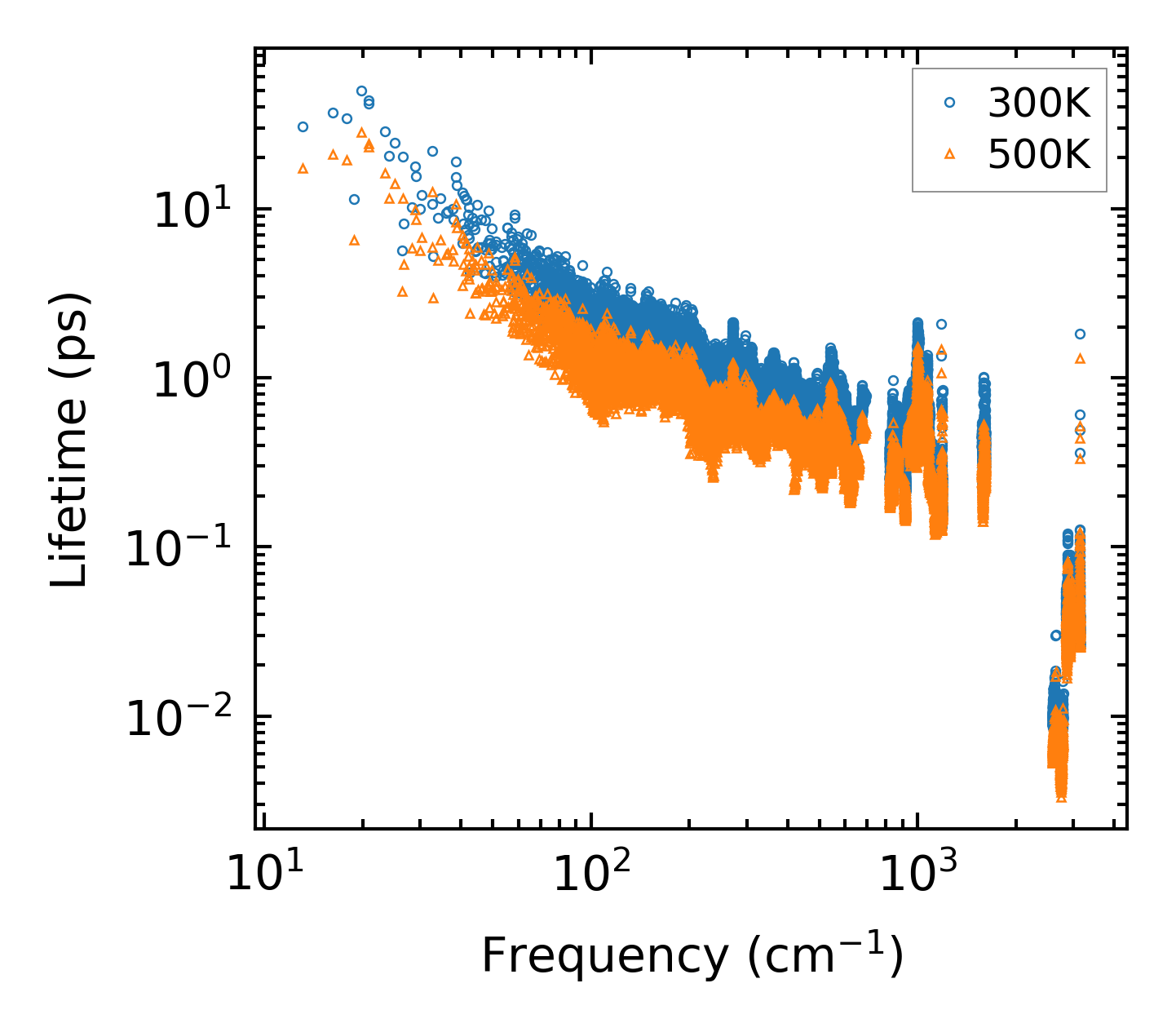

../../_images/fig_lifetime1828.png — (a) Phonon lifetime due to phonon-phonon scattering

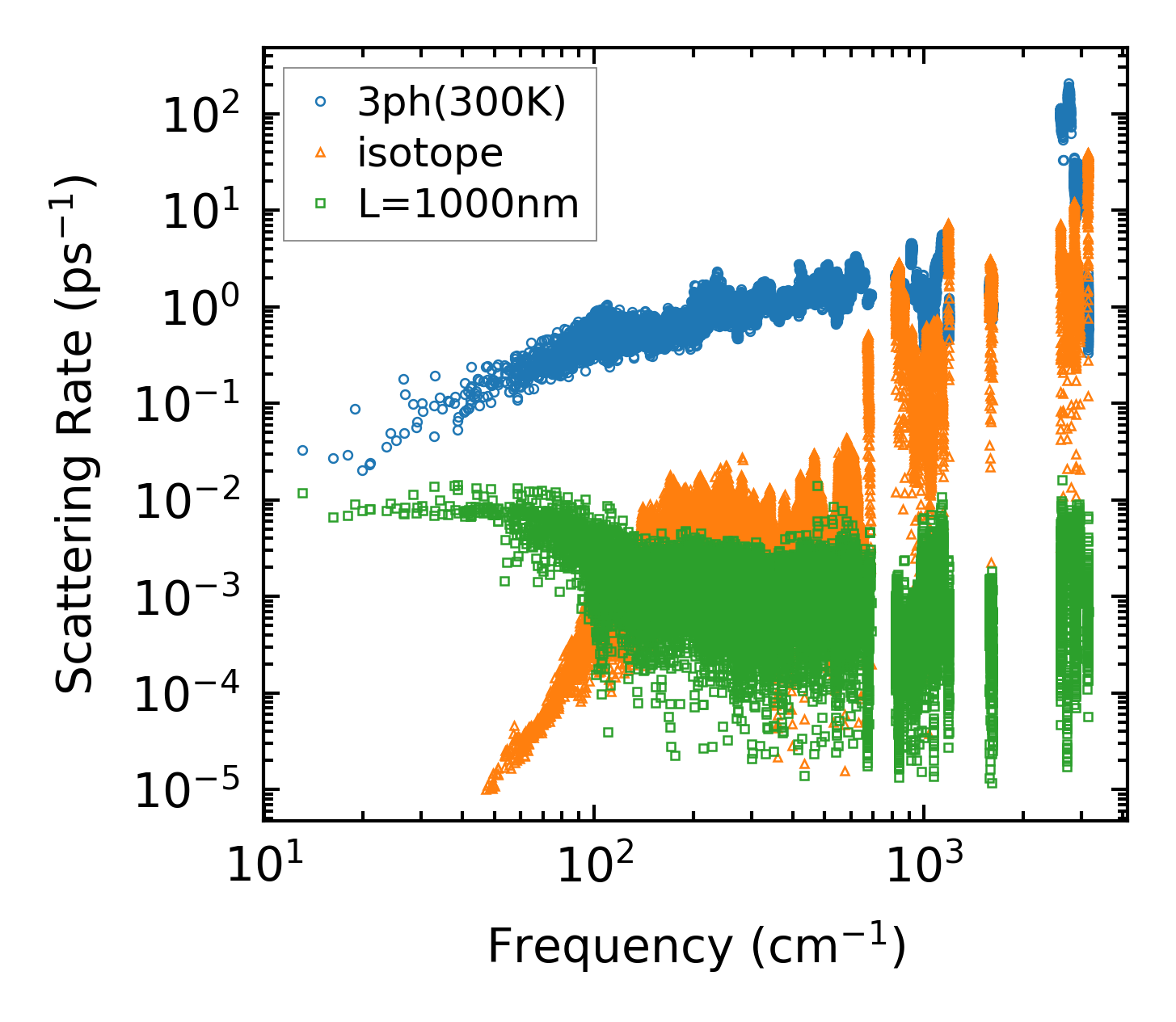

../../_images/fig_scat_rates1827.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

../../_images/fig_cumu_frequency1828.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

../../_images/fig_cumu_mfp1828.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

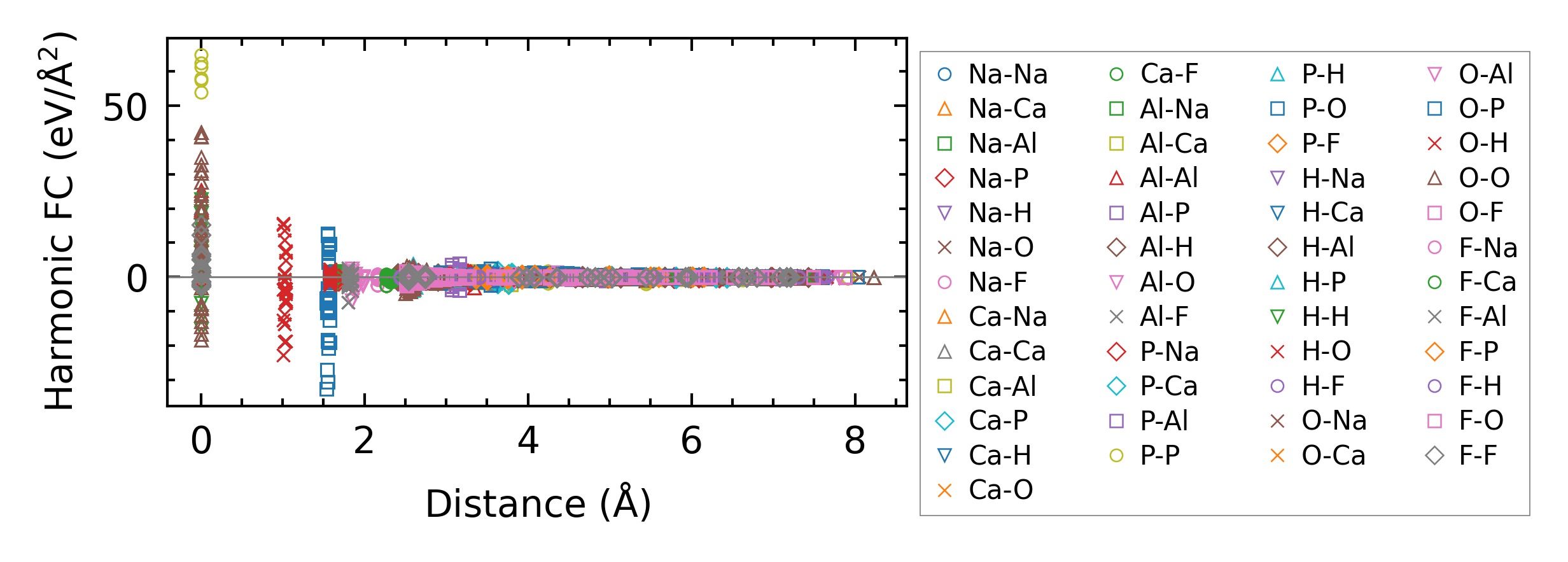

../../_images/fig_fc24048.png — (a) Force constants w.r.t atomic distance

Summary

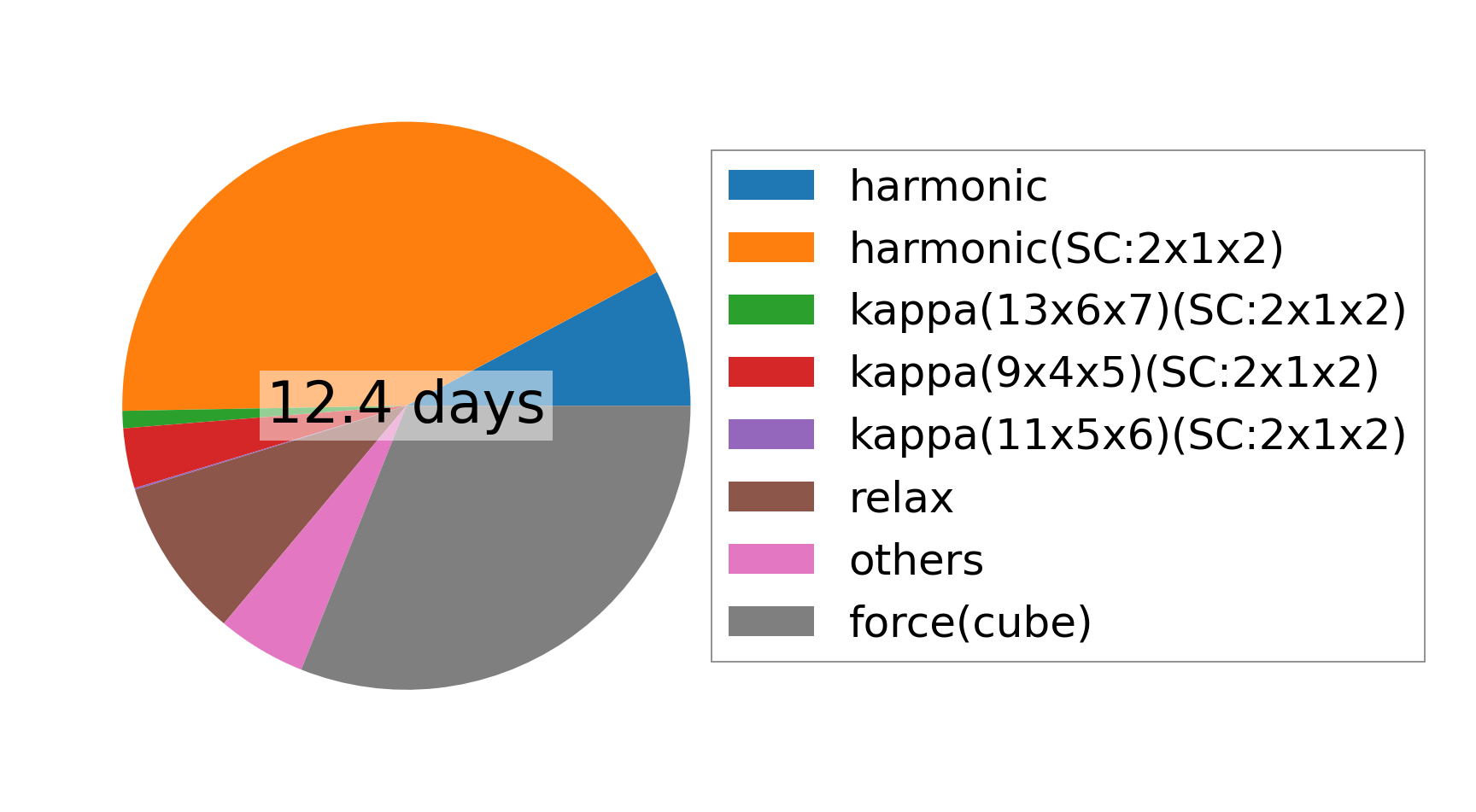

../../_images/fig_times7496.png — (a) Computation time
