mp-695890/Mg10Si3H4O18/anharm

Space group: Pnnm (58)
Link: Materials Project
Download: mp-695890.tar.gz

Equation of state

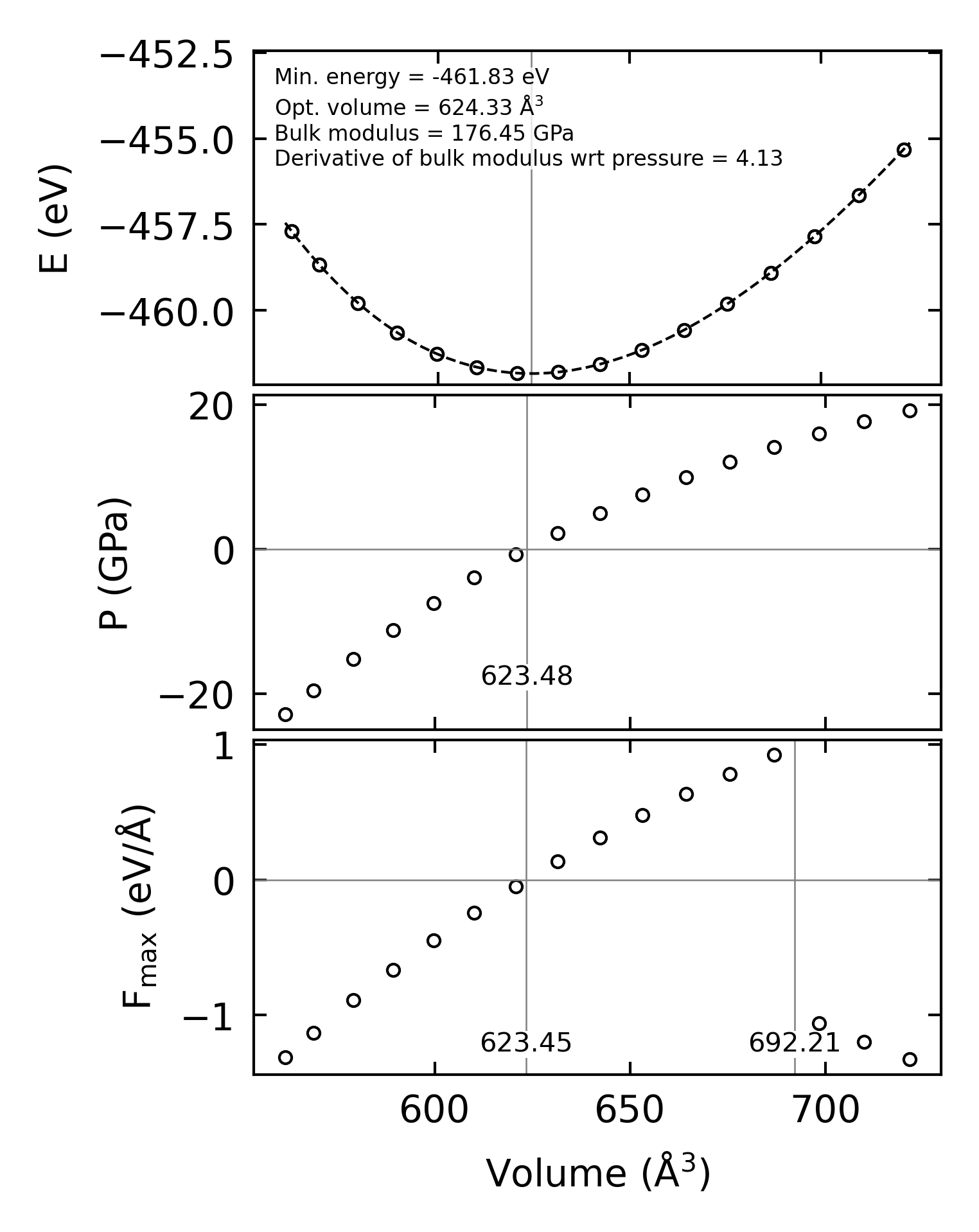

../../_images/fig_bm2399.png — (a) Equation of state

Harmonic properties

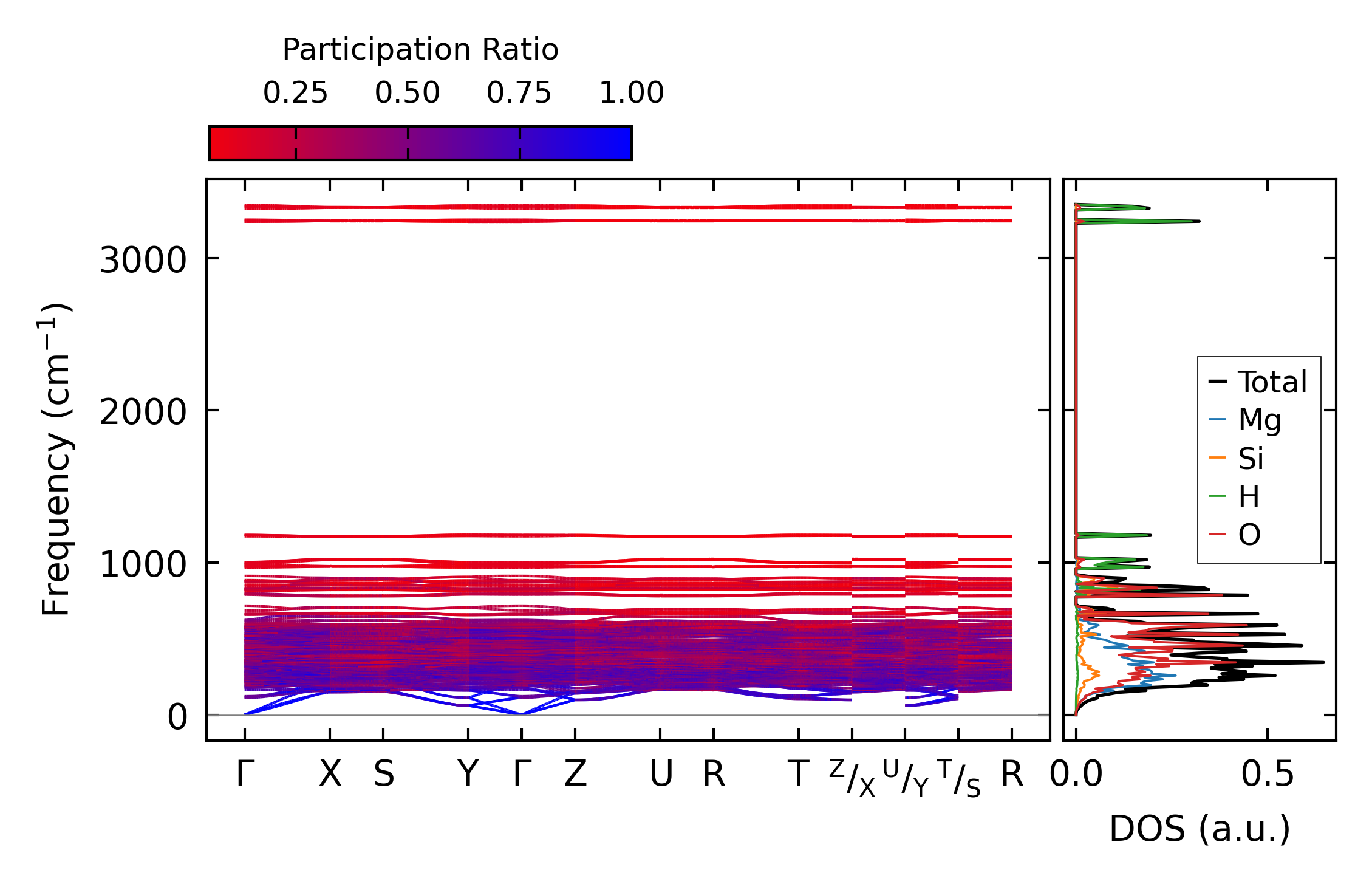

../../_images/fig_bandos_pr4853.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo4853.png — (b) Thermodynamic properties

Grüneisen parameters

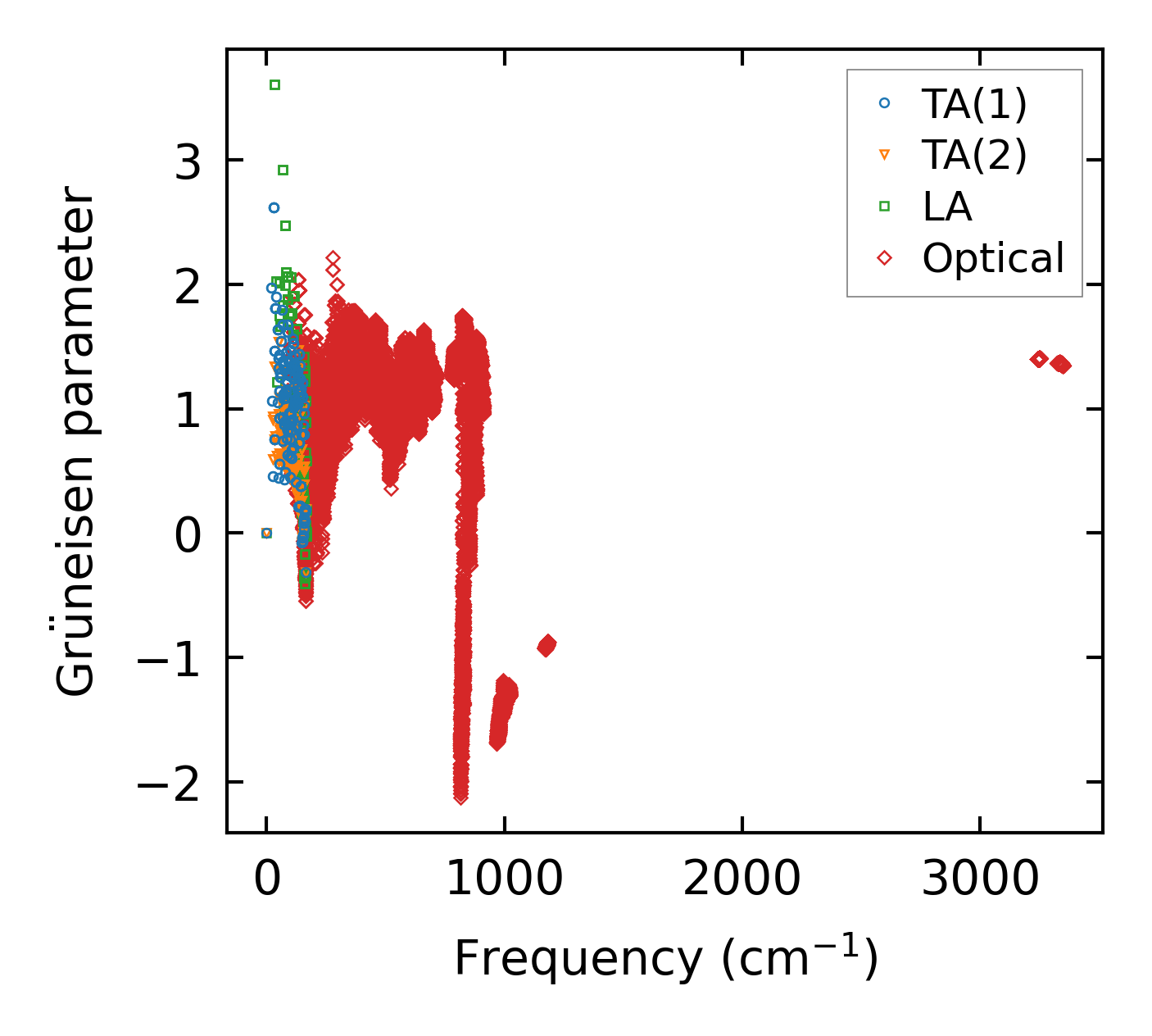

../../_images/fig_gru_all2086.png — (a) Grüneisen parameters

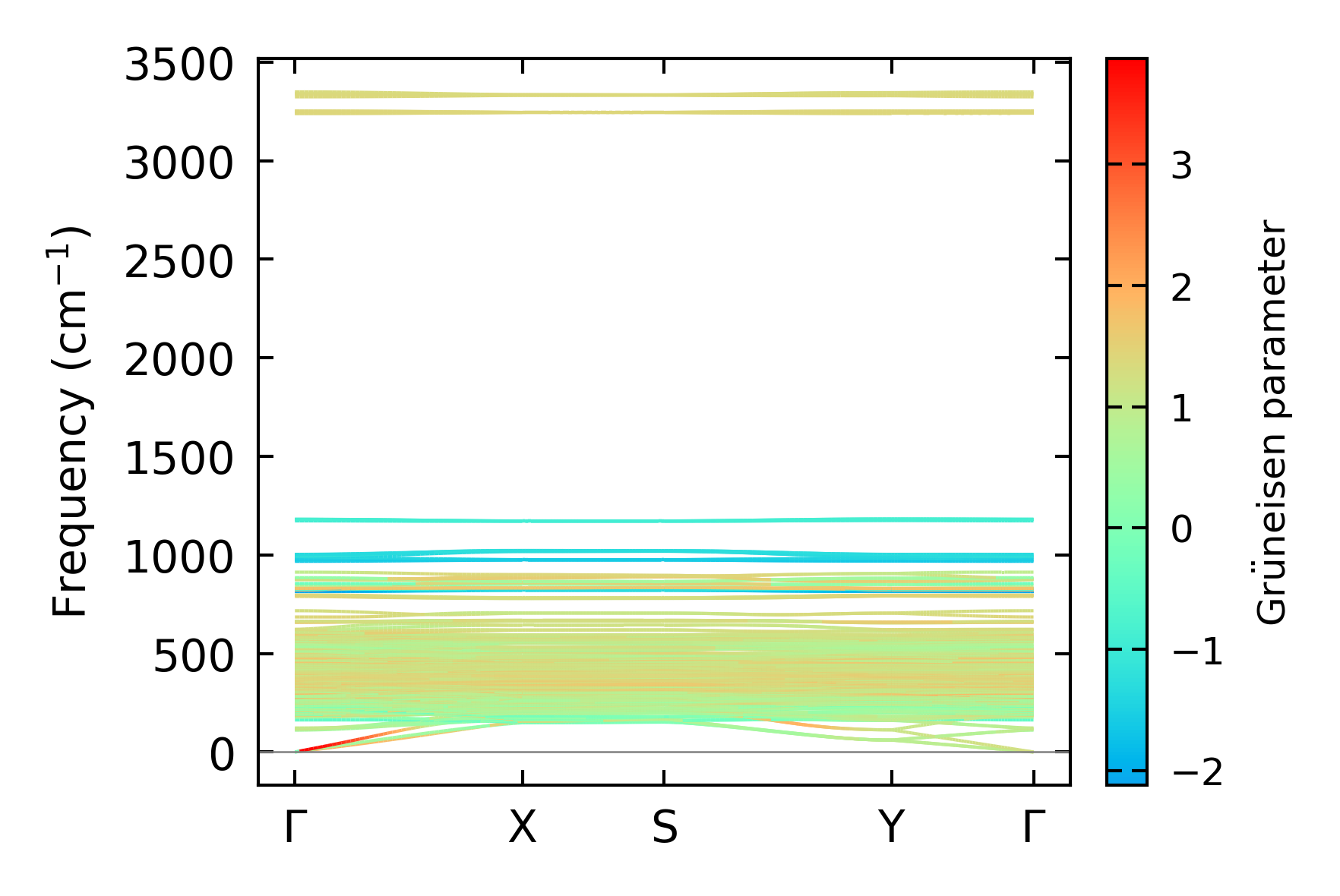

../../_images/fig_gruneisen2086.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 14x5x8, supercell: 2x1x1

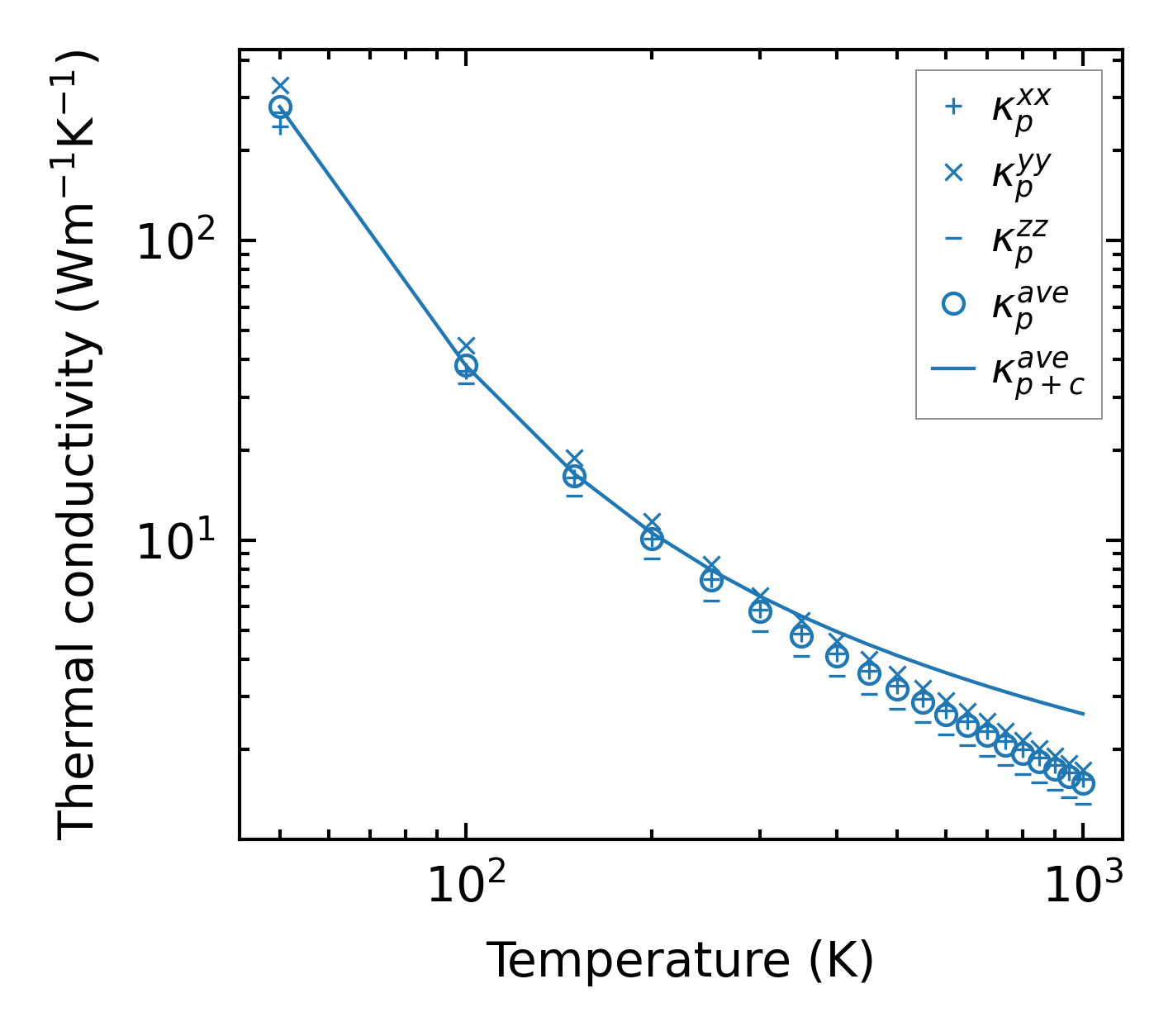

../../_images/fig_kappa4001.png — (a) Temperature-dependent lattice thermal conductivity

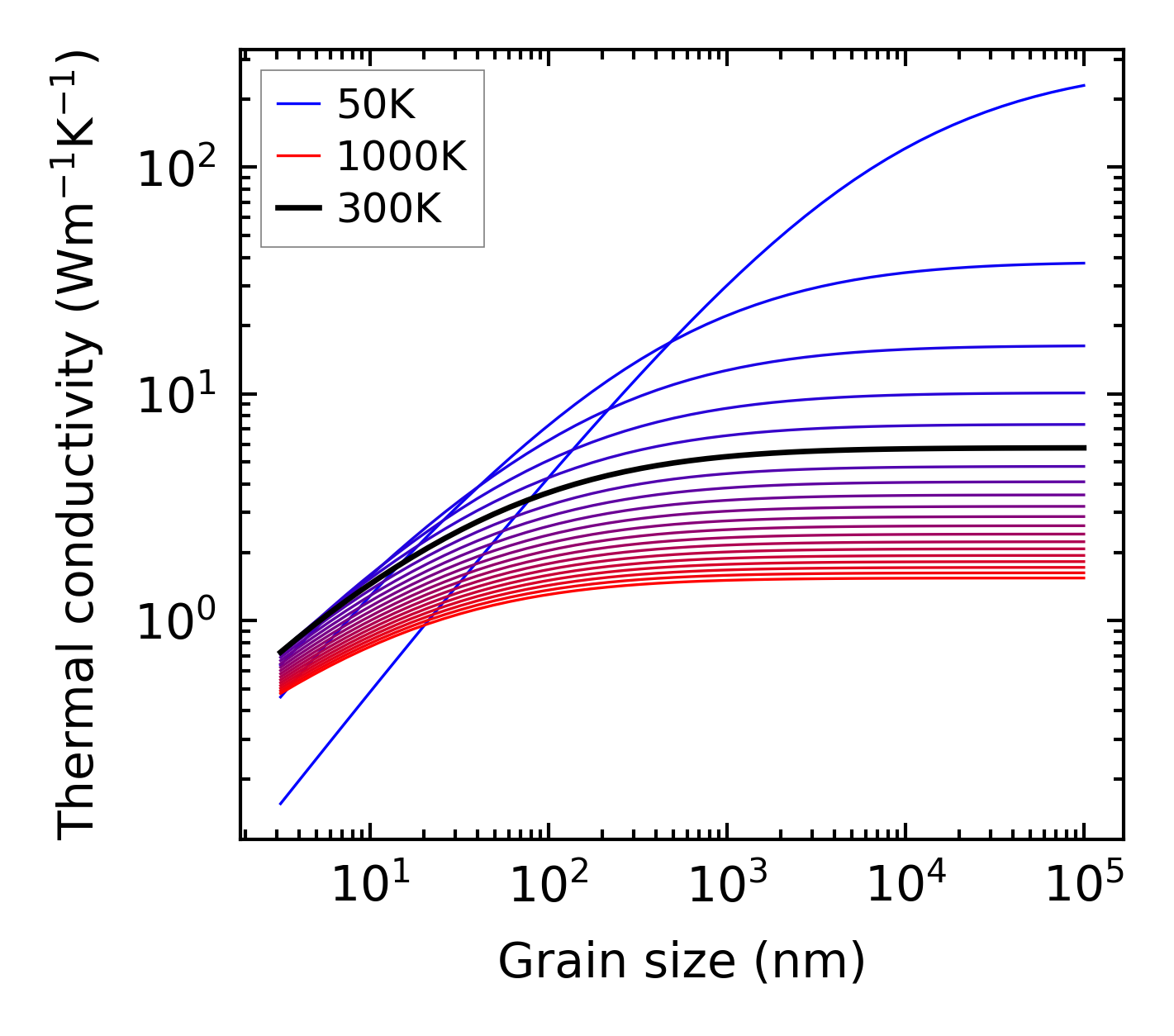

../../_images/fig_kappa_vs_grain_size2117.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

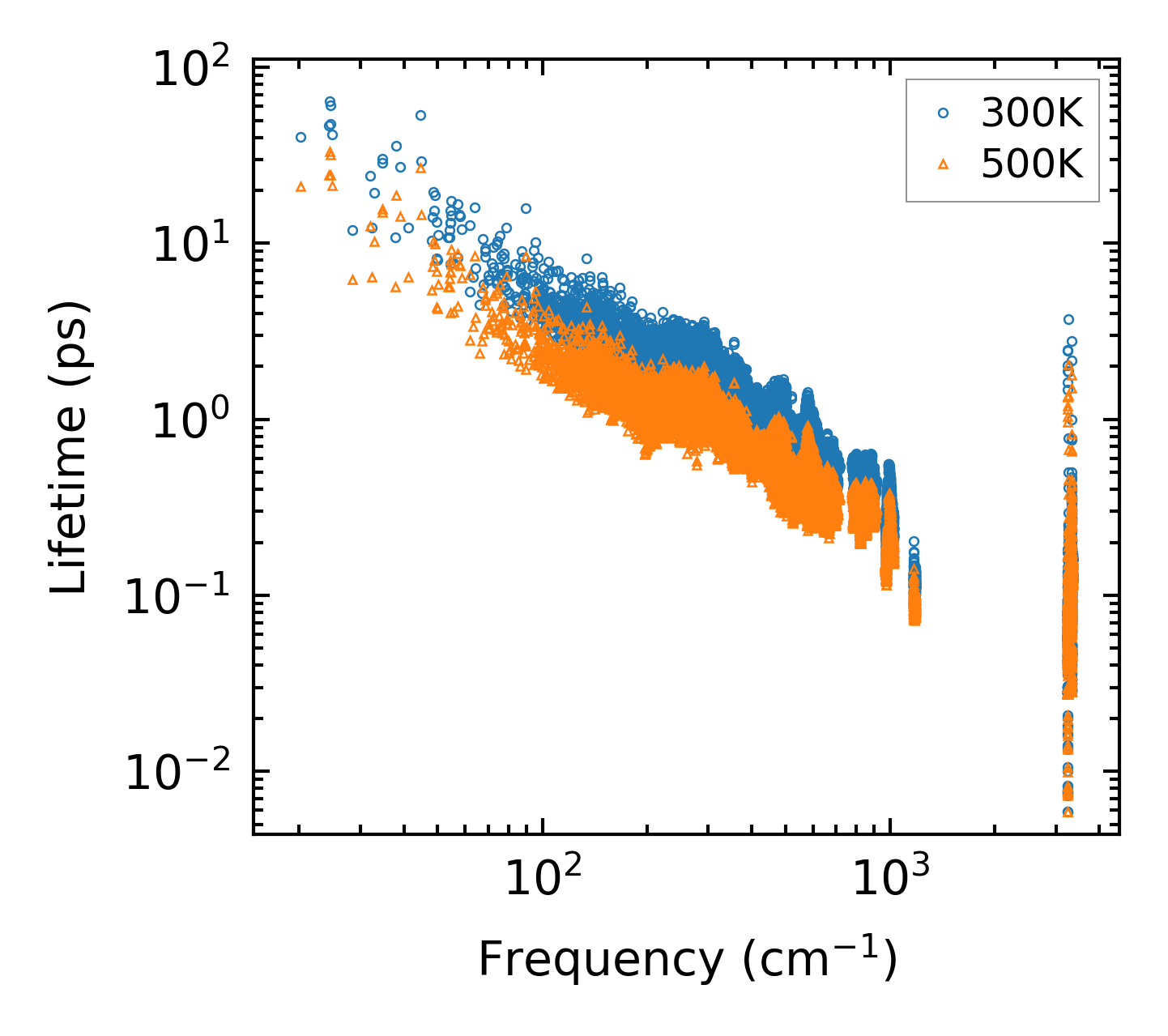

../../_images/fig_lifetime2073.png — (a) Phonon lifetime due to phonon-phonon scattering

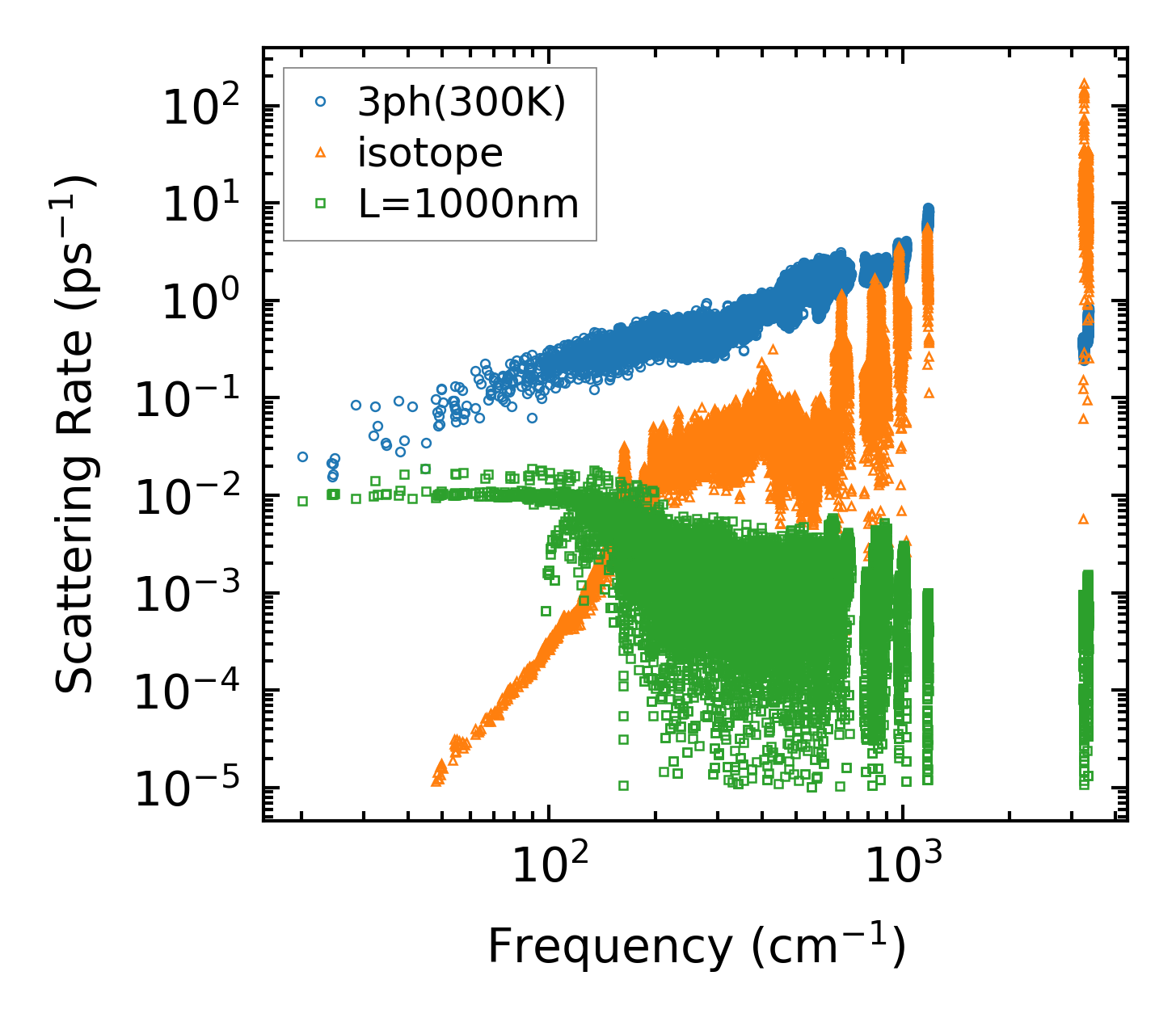

../../_images/fig_scat_rates2072.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

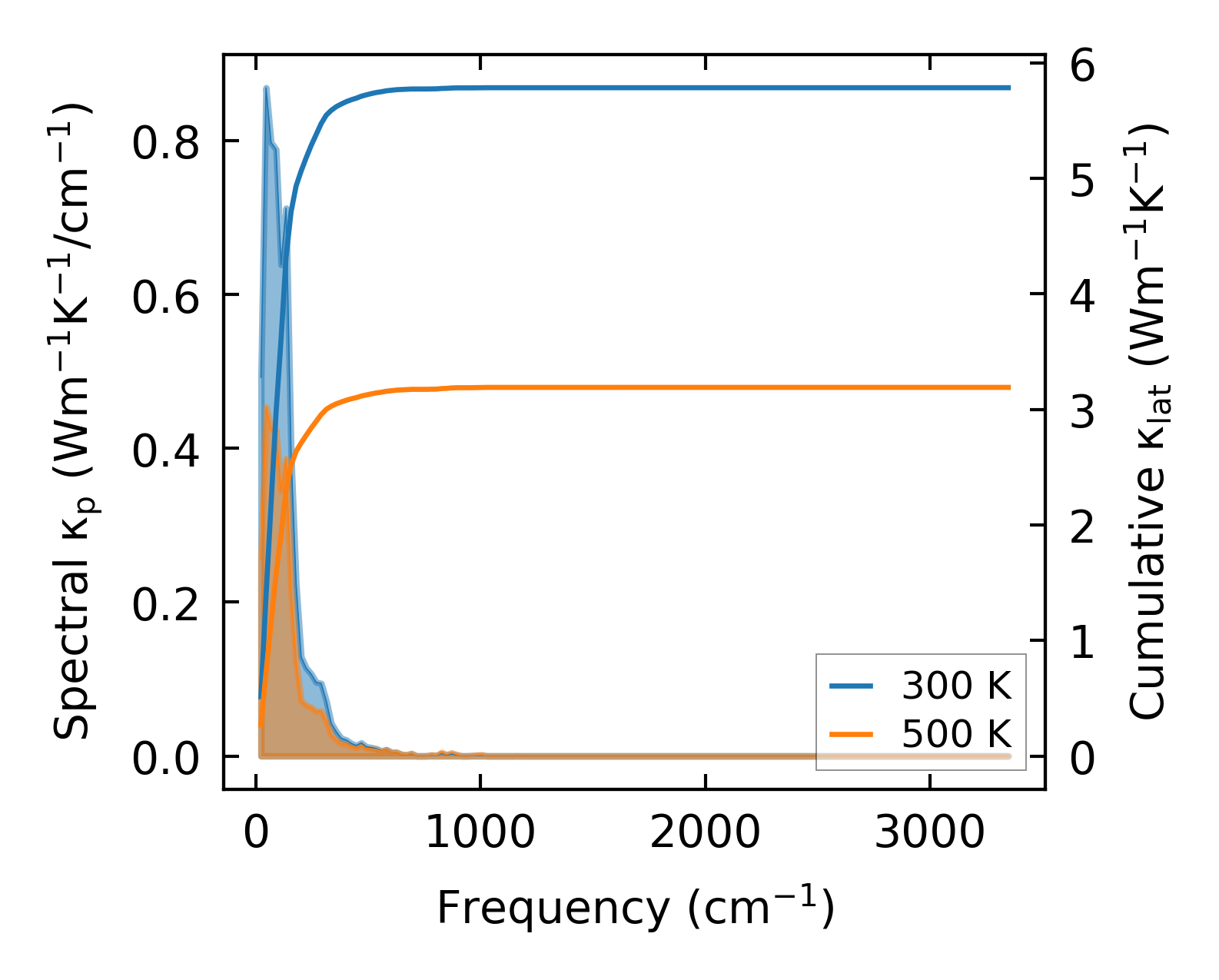

../../_images/fig_cumu_frequency2073.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

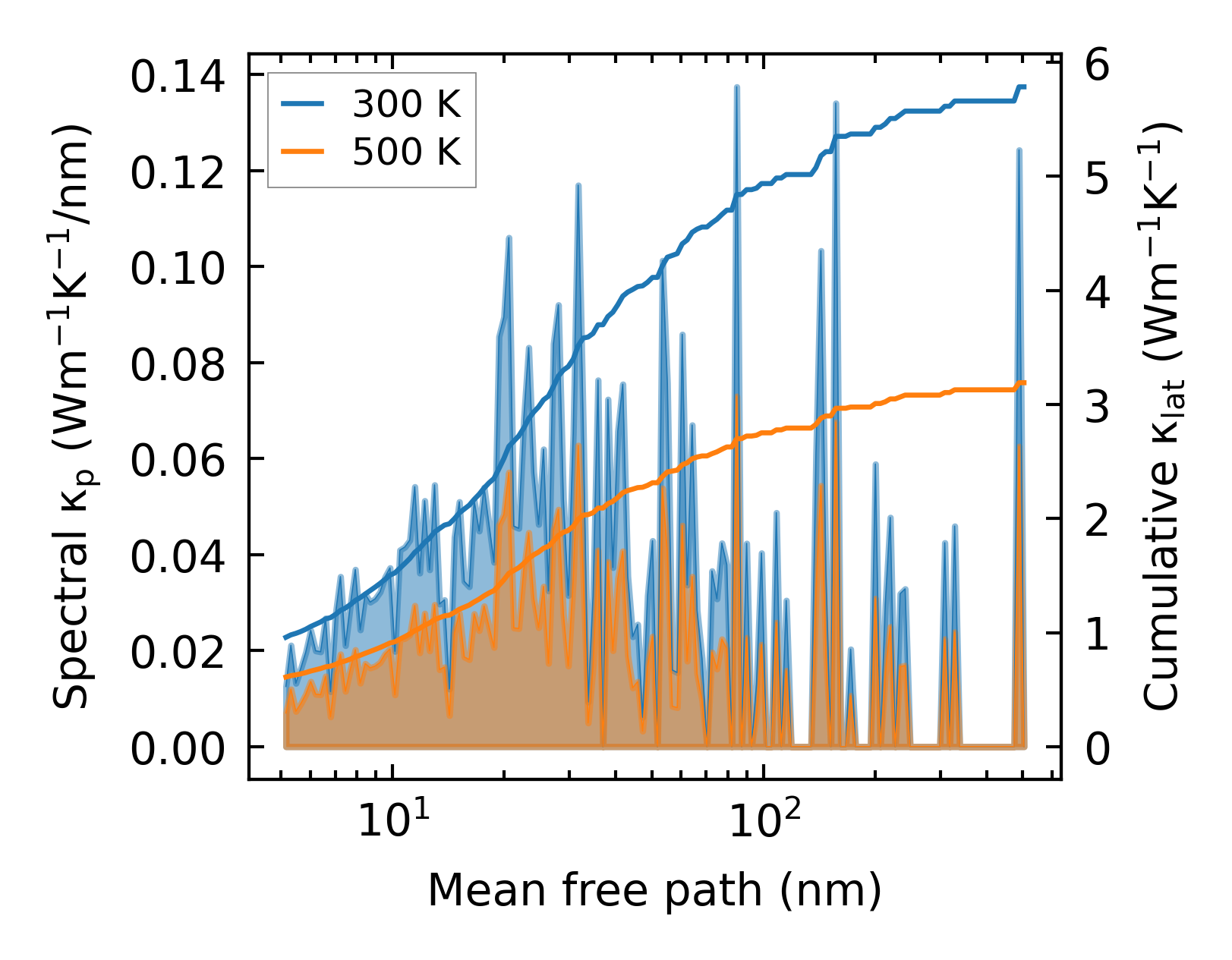

../../_images/fig_cumu_mfp2073.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

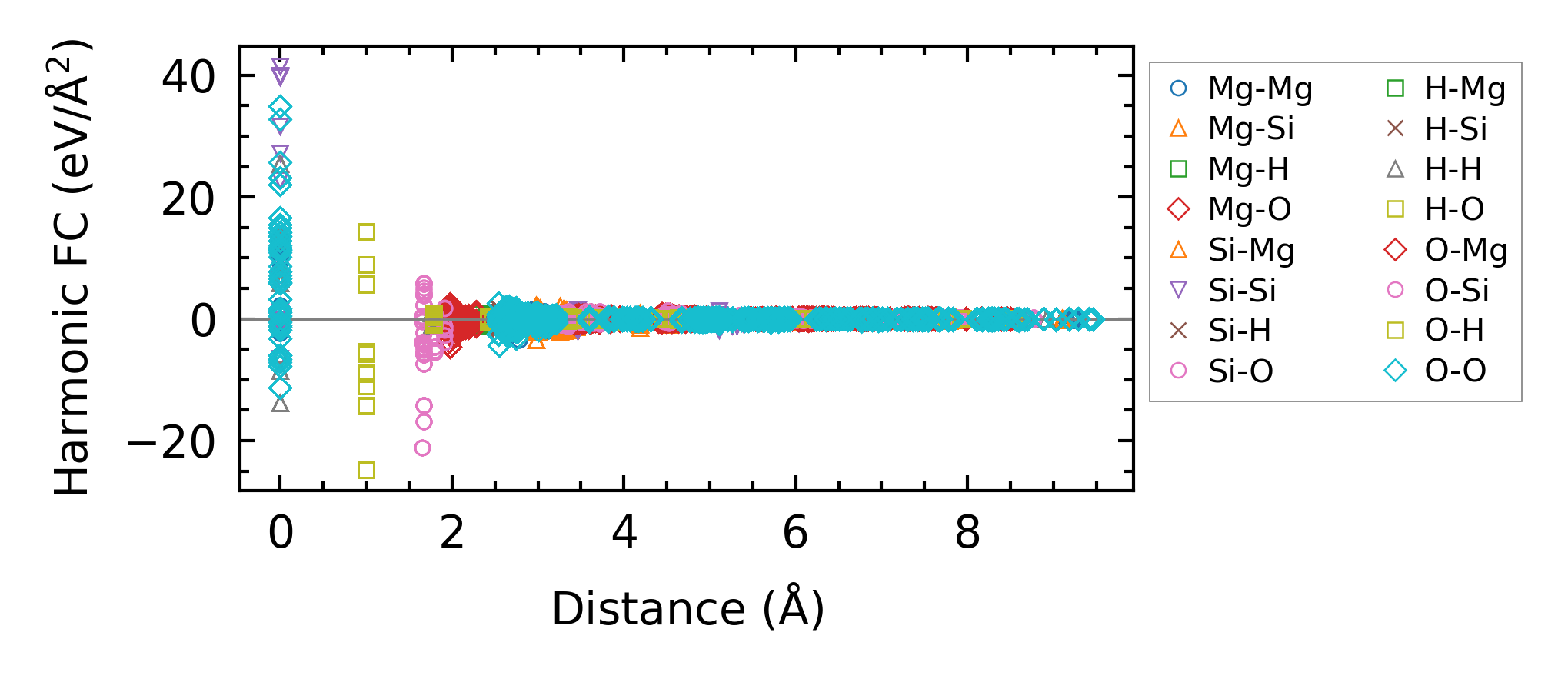

../../_images/fig_fc24662.png — (a) Force constants w.r.t atomic distance

Summary

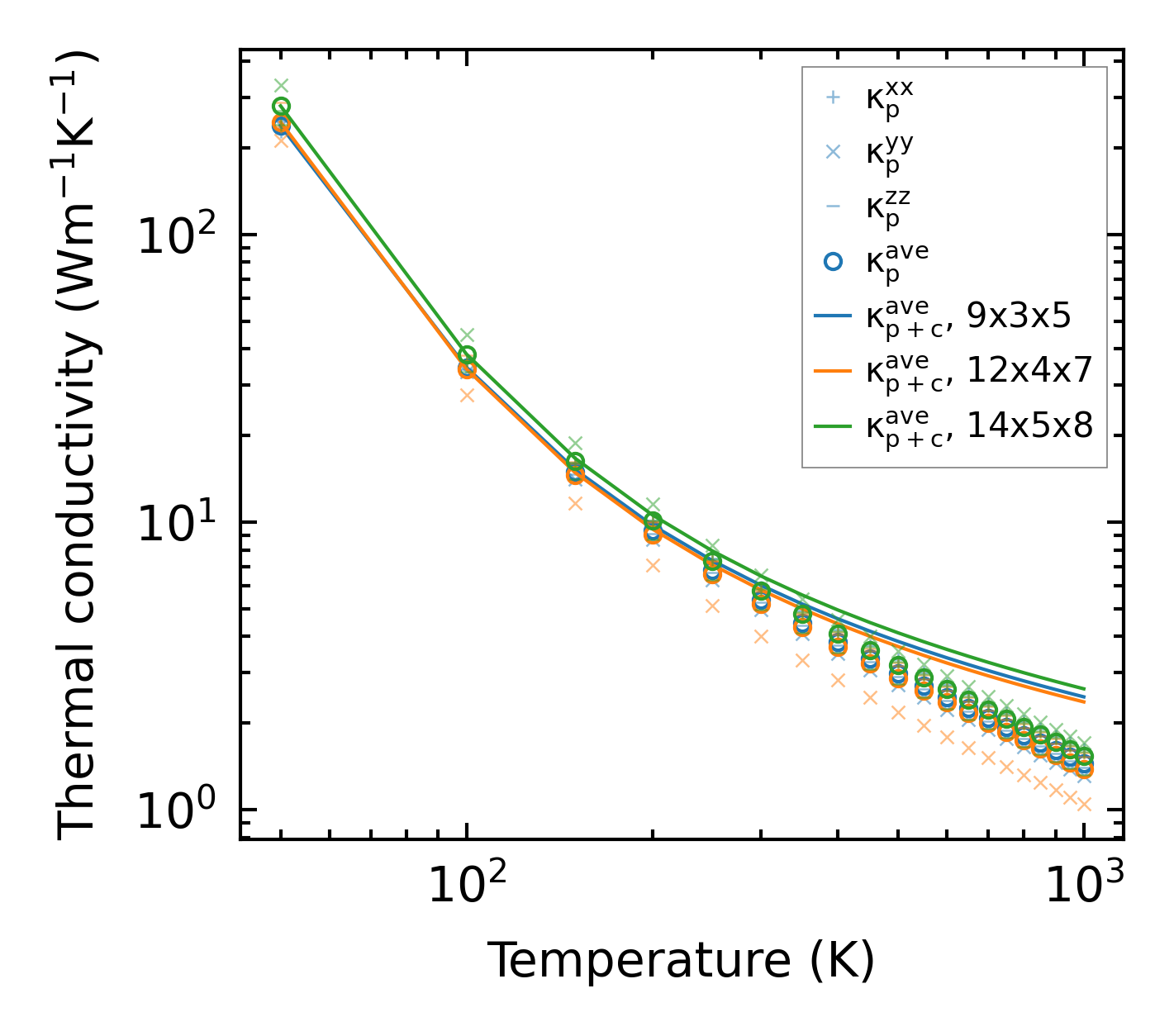

../../_images/fig_kappa4002.png — (a) Temperature-dependent lattice thermal conductivity

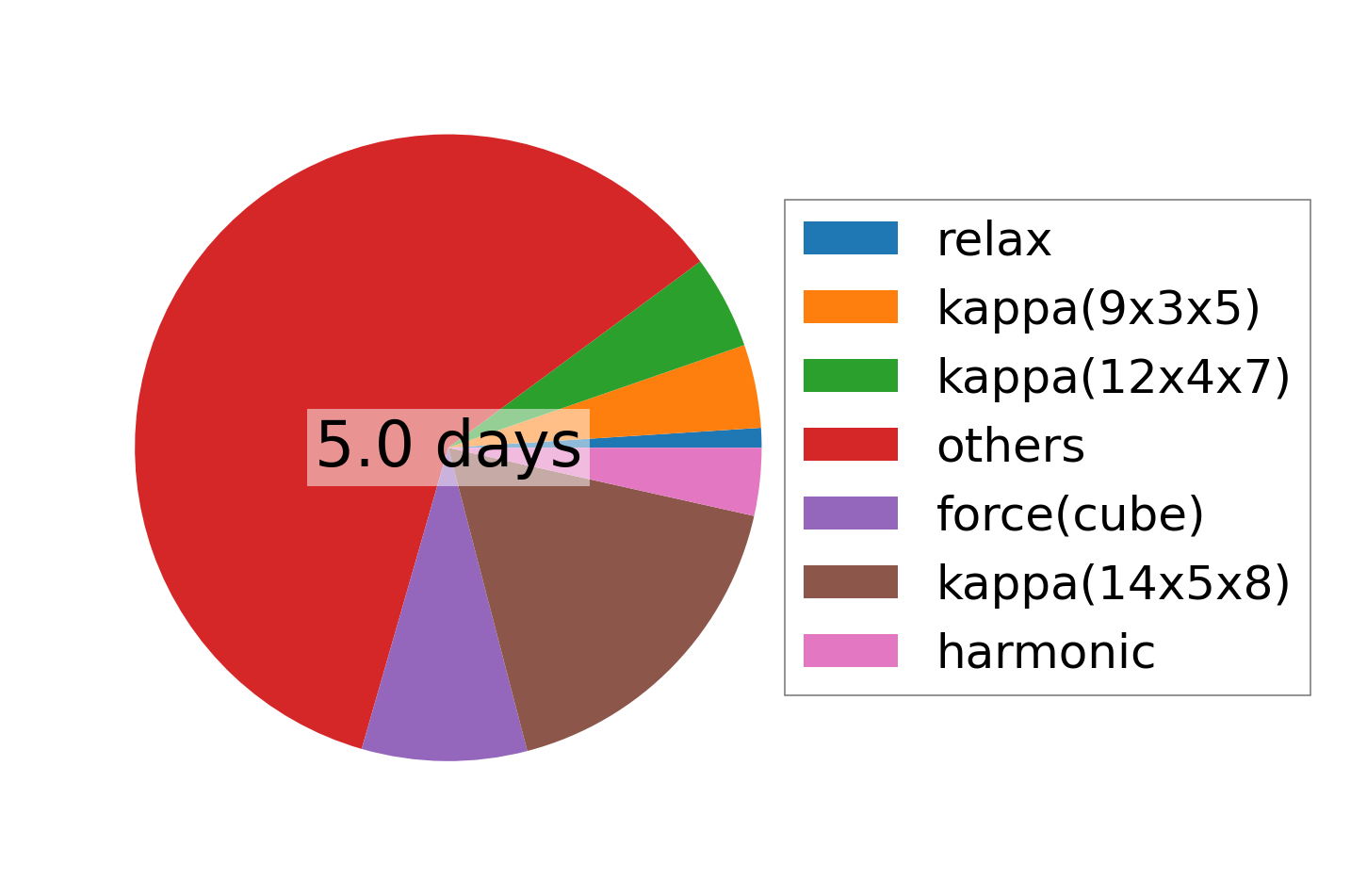

../../_images/fig_times8605.png — (b) Computation time
