mp-695070/Ca3Ga2SiSn2O12/anharm

Space group: I4_1/acd (142)
Link: Materials Project
Download: mp-695070.tar.gz

Harmonic properties

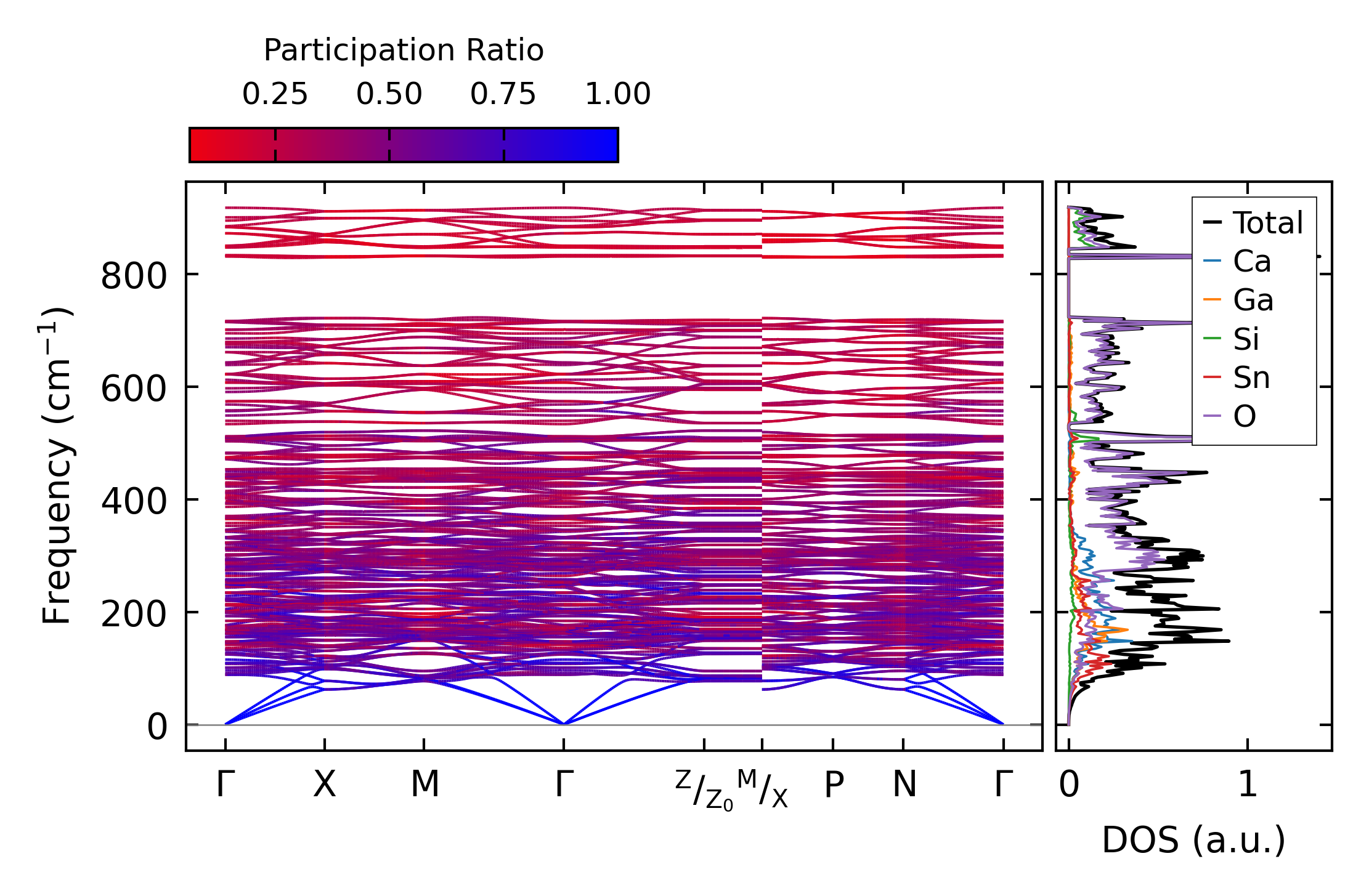

../../_images/fig_bandos_pr4828.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo4828.png — (b) Thermodynamic properties

Grüneisen parameters

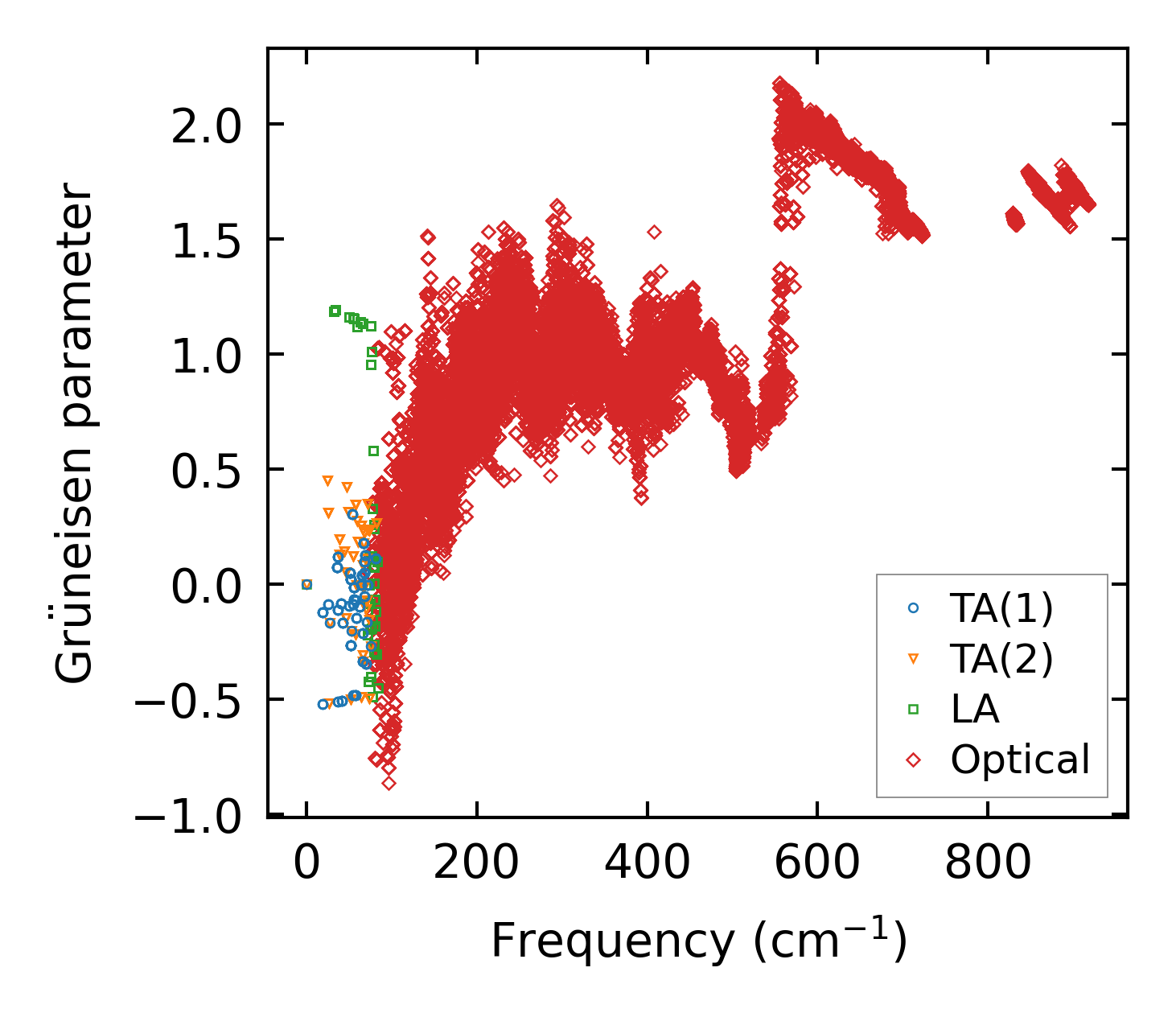

../../_images/fig_gru_all2083.png — (a) Grüneisen parameters

../../_images/fig_gruneisen2083.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 7x7x7, supercell: 1x1x1

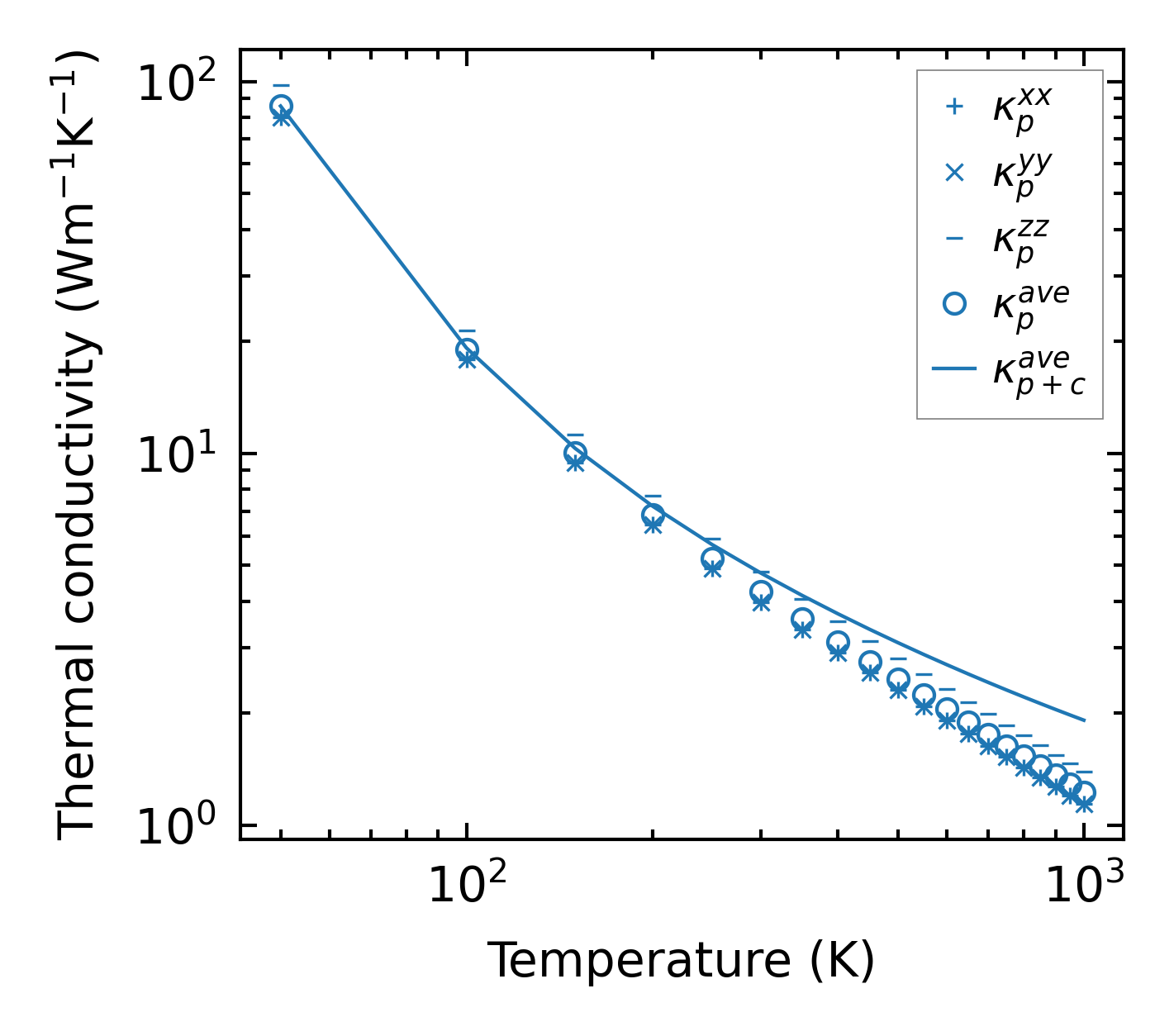

../../_images/fig_kappa3995.png — (a) Temperature-dependent lattice thermal conductivity

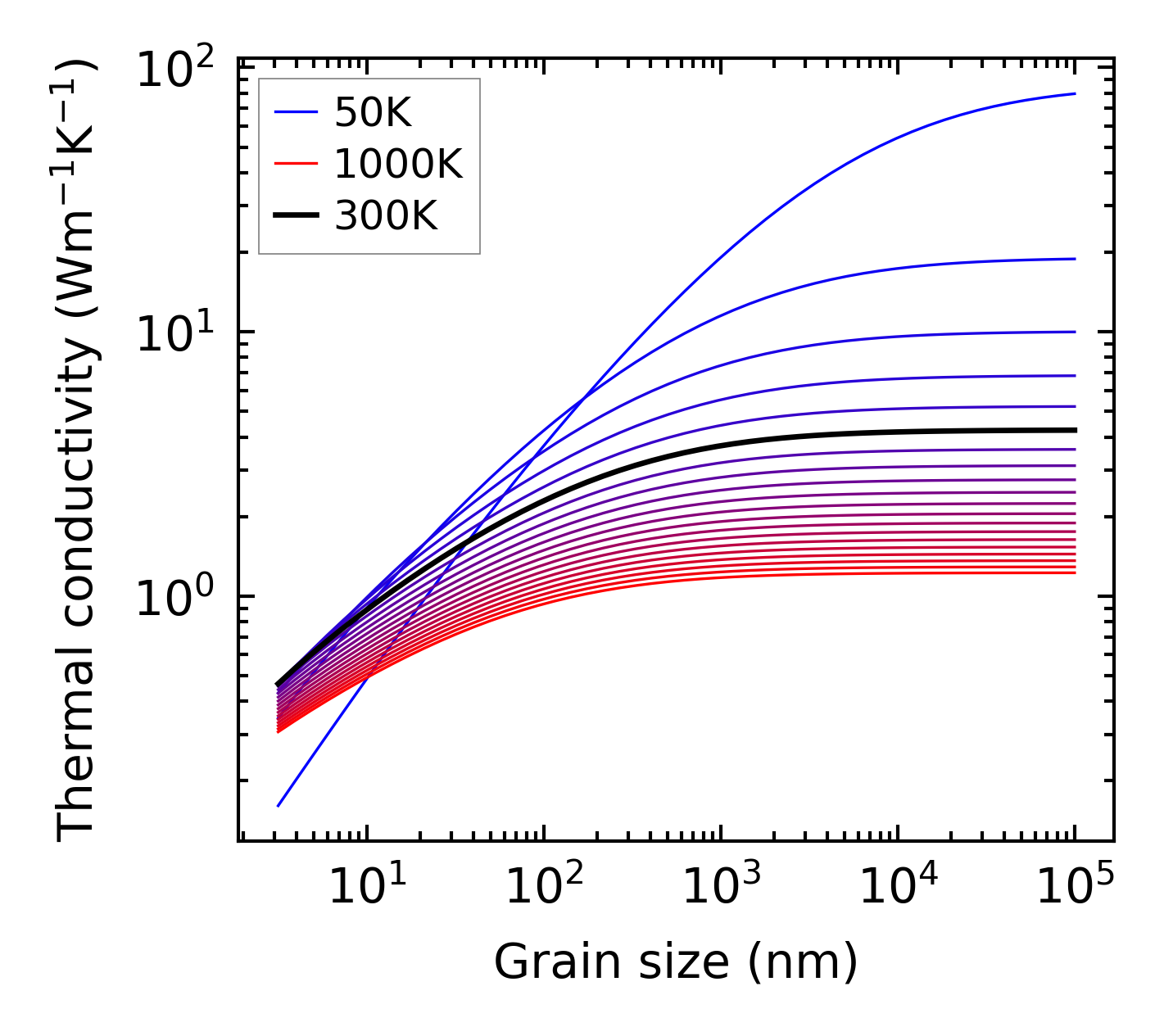

../../_images/fig_kappa_vs_grain_size2114.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

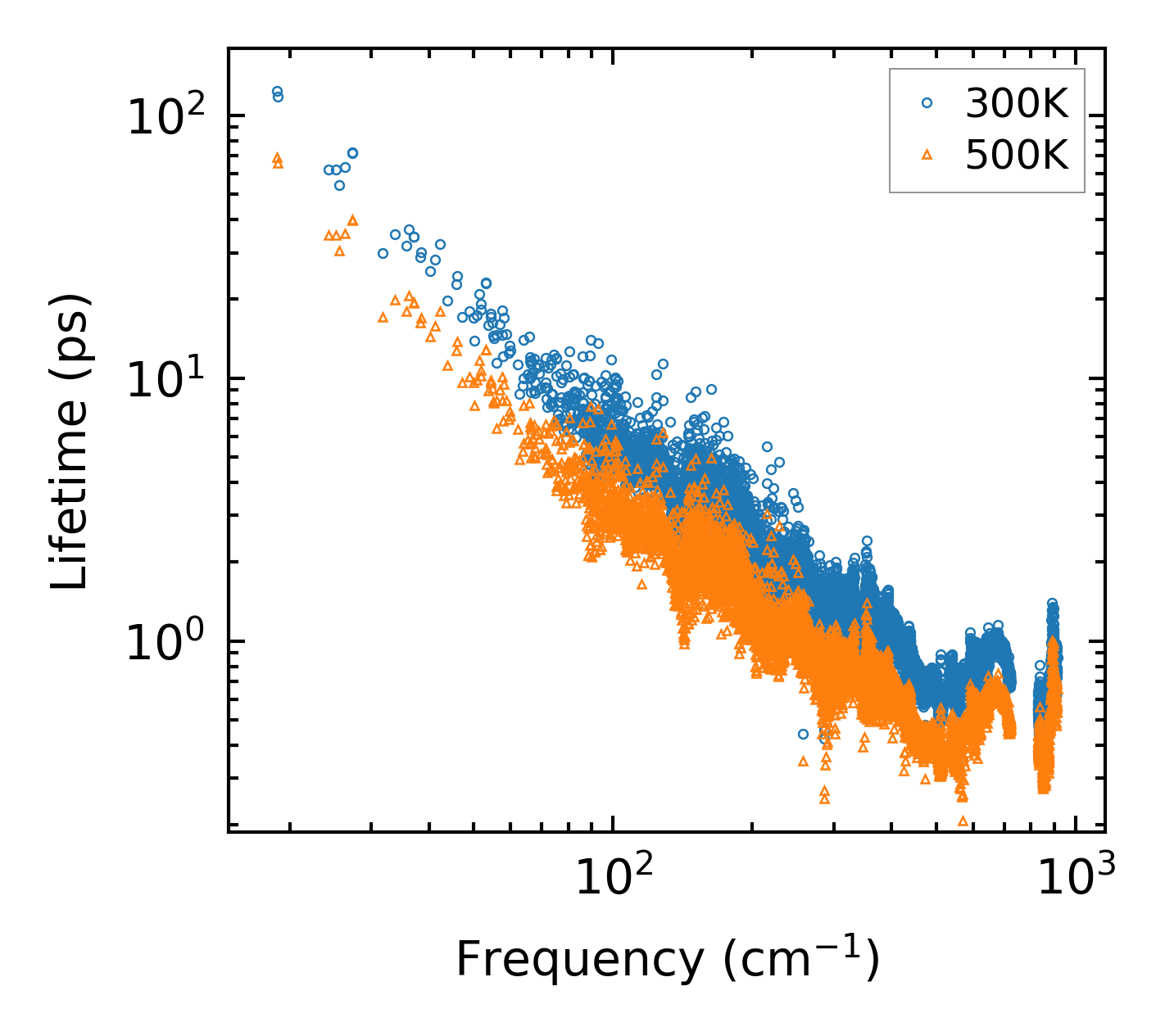

../../_images/fig_lifetime2070.png — (a) Phonon lifetime due to phonon-phonon scattering

../../_images/fig_scat_rates2069.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

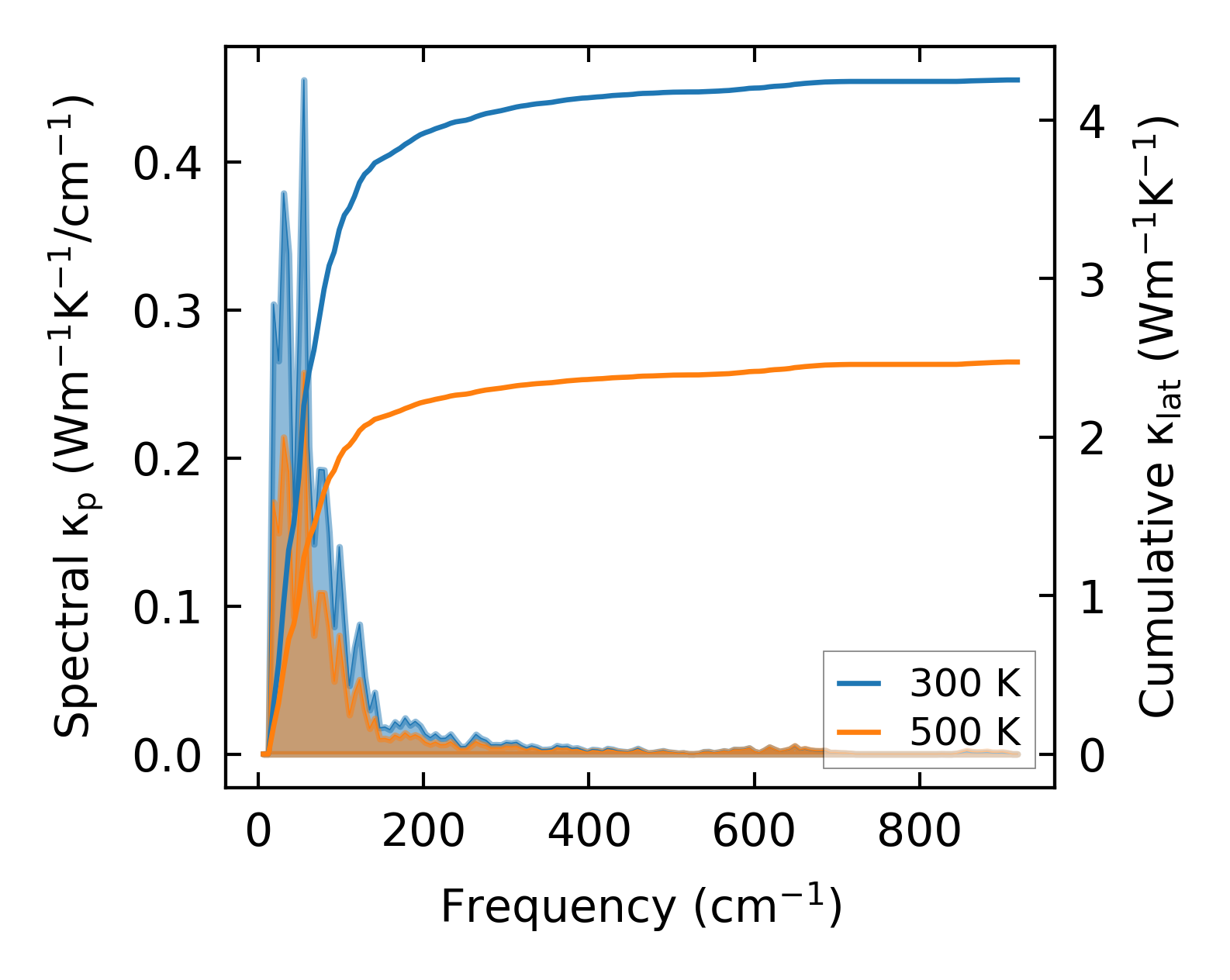

../../_images/fig_cumu_frequency2070.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

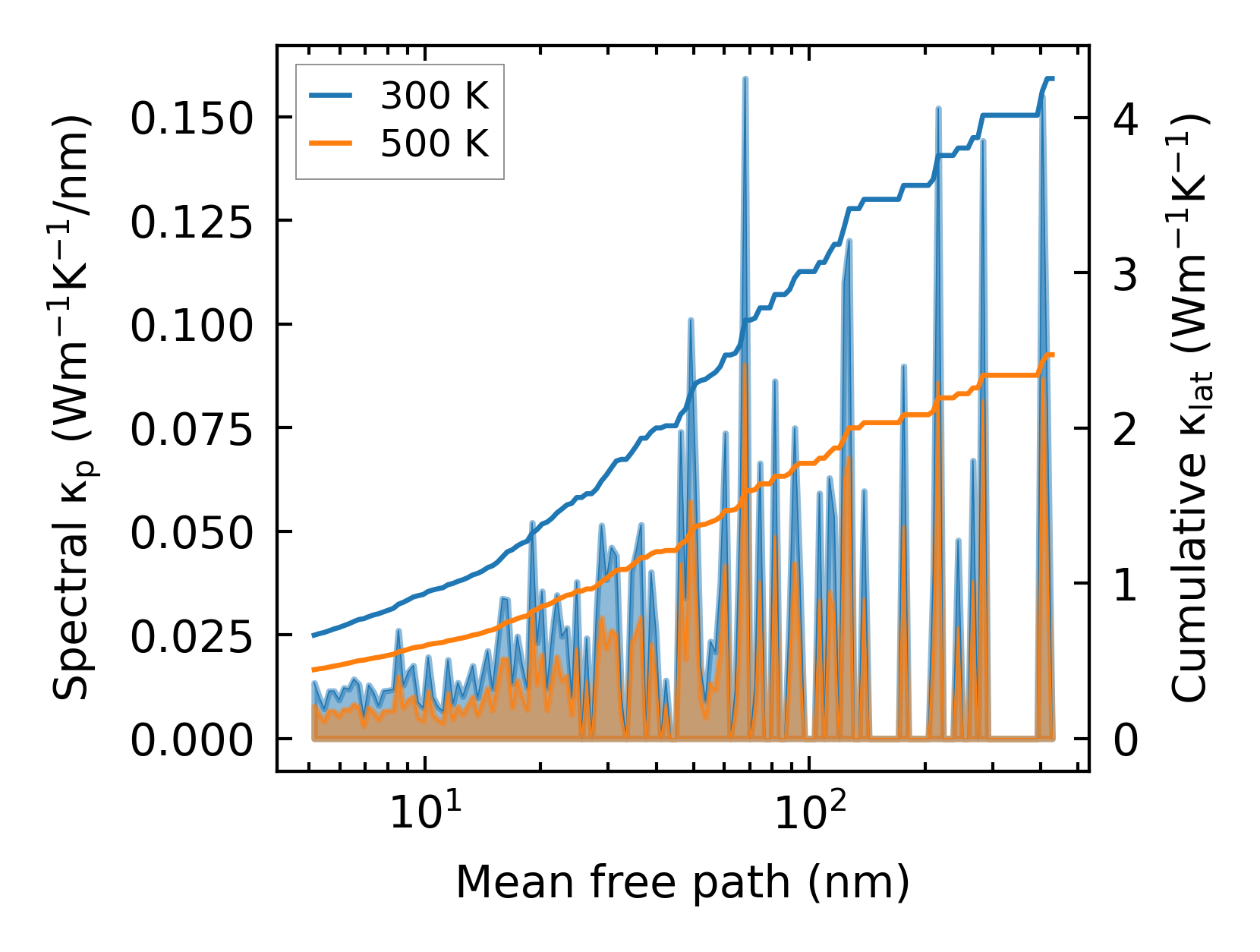

../../_images/fig_cumu_mfp2070.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

../../_images/fig_fc24637.png — (a) Force constants w.r.t atomic distance

Summary

../../_images/fig_kappa3996.png — (a) Temperature-dependent lattice thermal conductivity

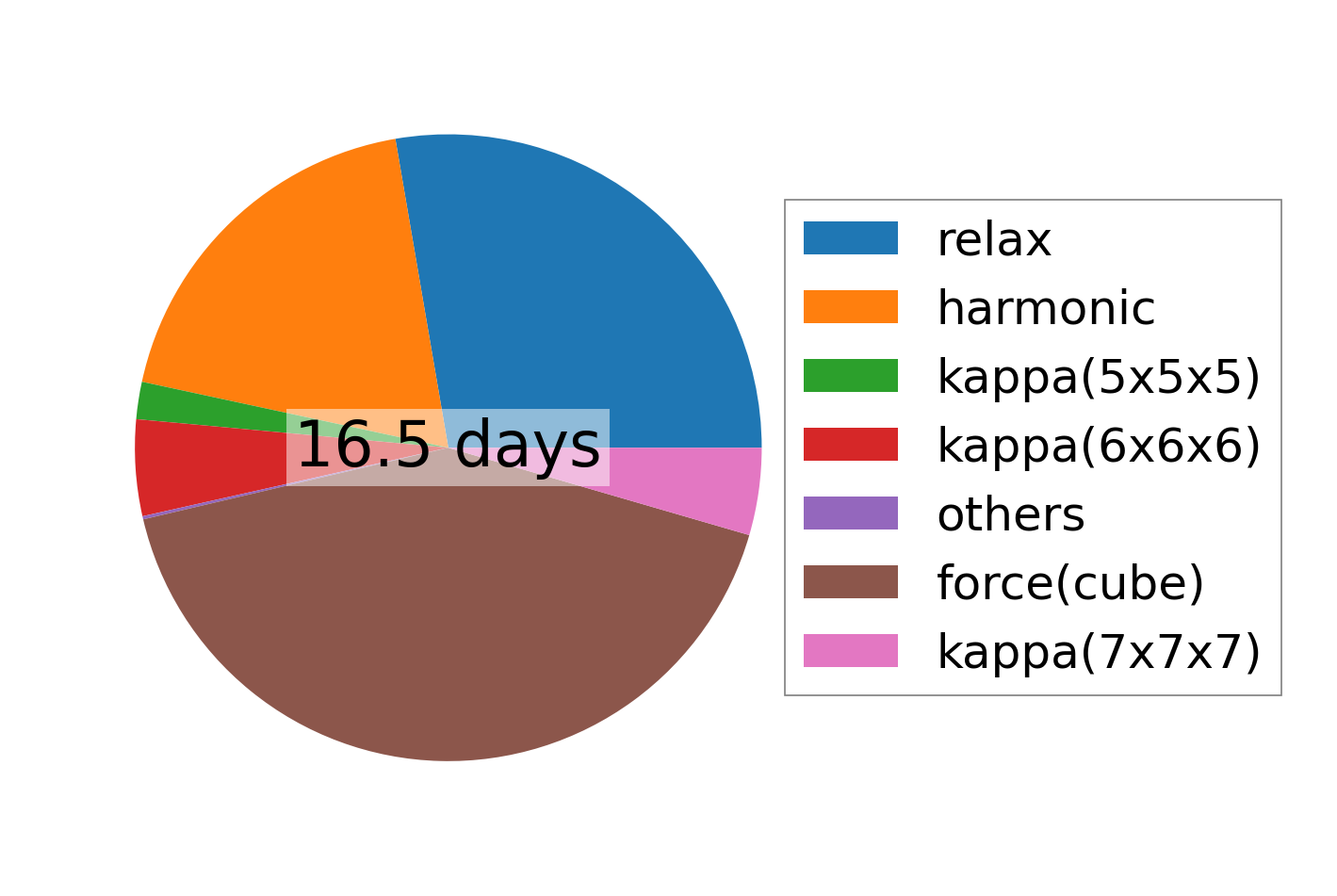

../../_images/fig_times8542.png — (b) Computation time
