mp-695511/Na2CaTi2Ge3O12/anharm

Space group: I4_1/acd (142)
Link: Materials Project
Download: mp-695511.tar.gz

Harmonic properties

../../_images/fig_bandos_pr4843.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo4843.png — (b) Thermodynamic properties

Grüneisen parameters

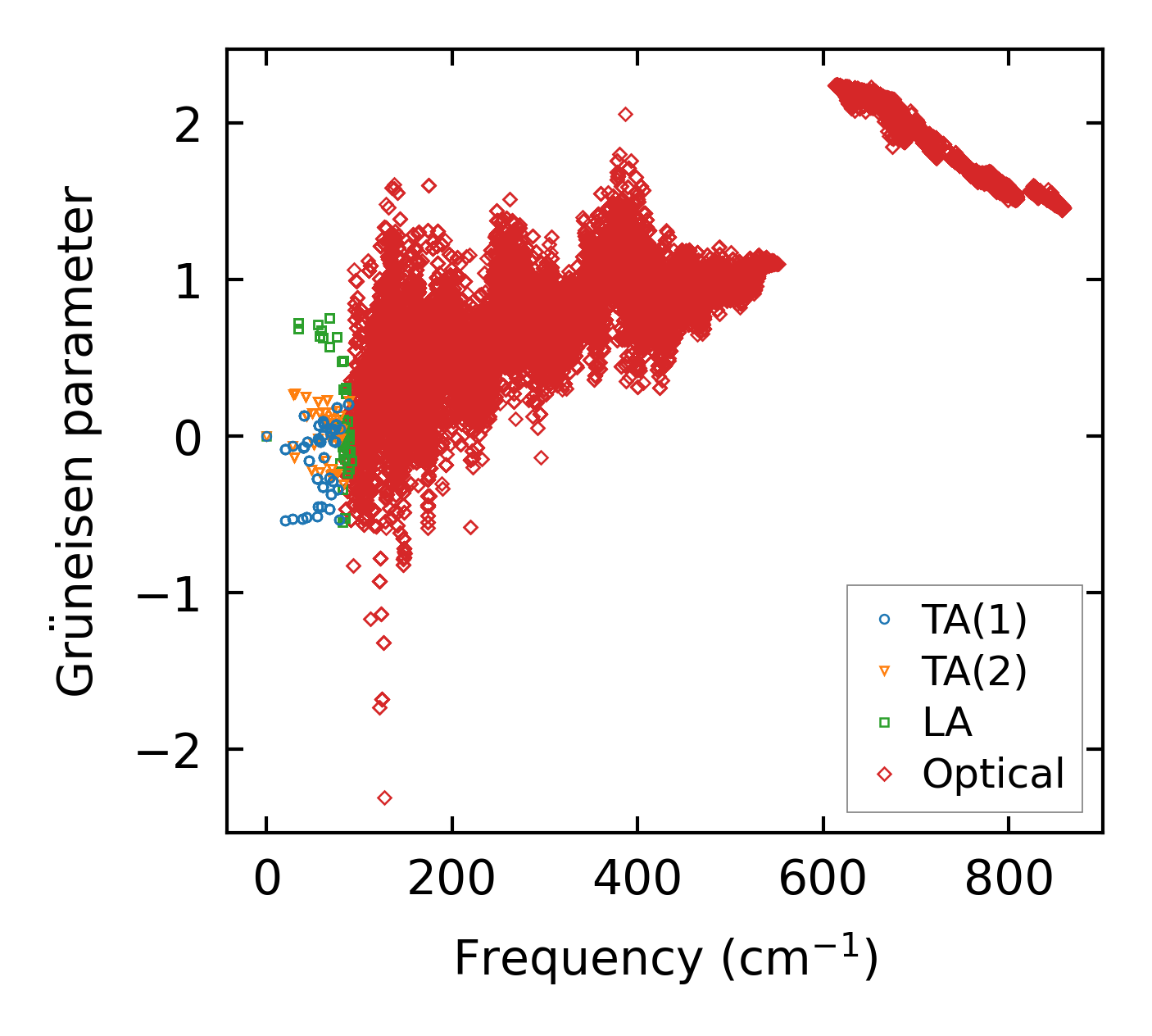

../../_images/fig_gru_all2084.png — (a) Grüneisen parameters

../../_images/fig_gruneisen2084.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 7x7x7, supercell: 1x1x1

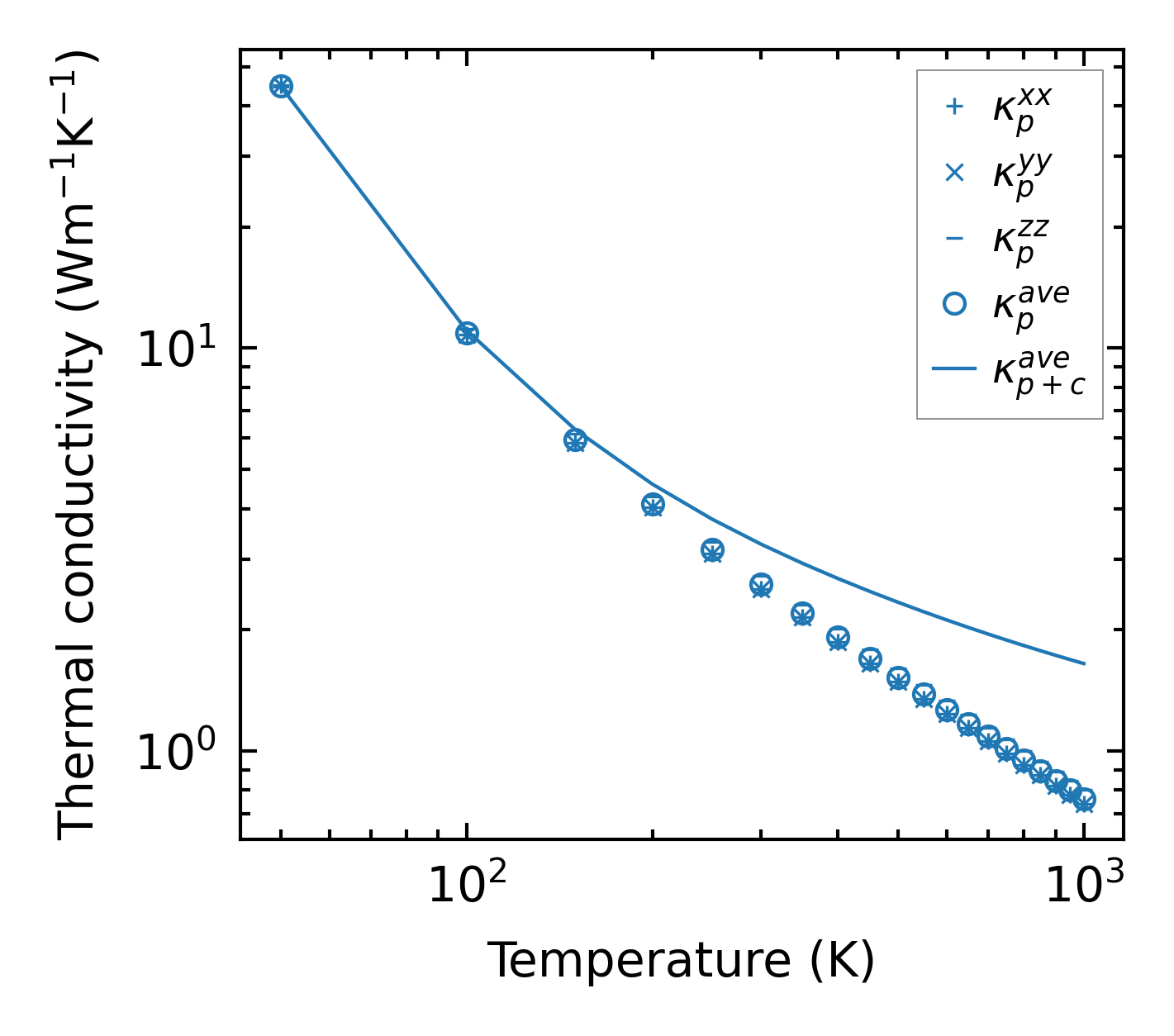

../../_images/fig_kappa3997.png — (a) Temperature-dependent lattice thermal conductivity

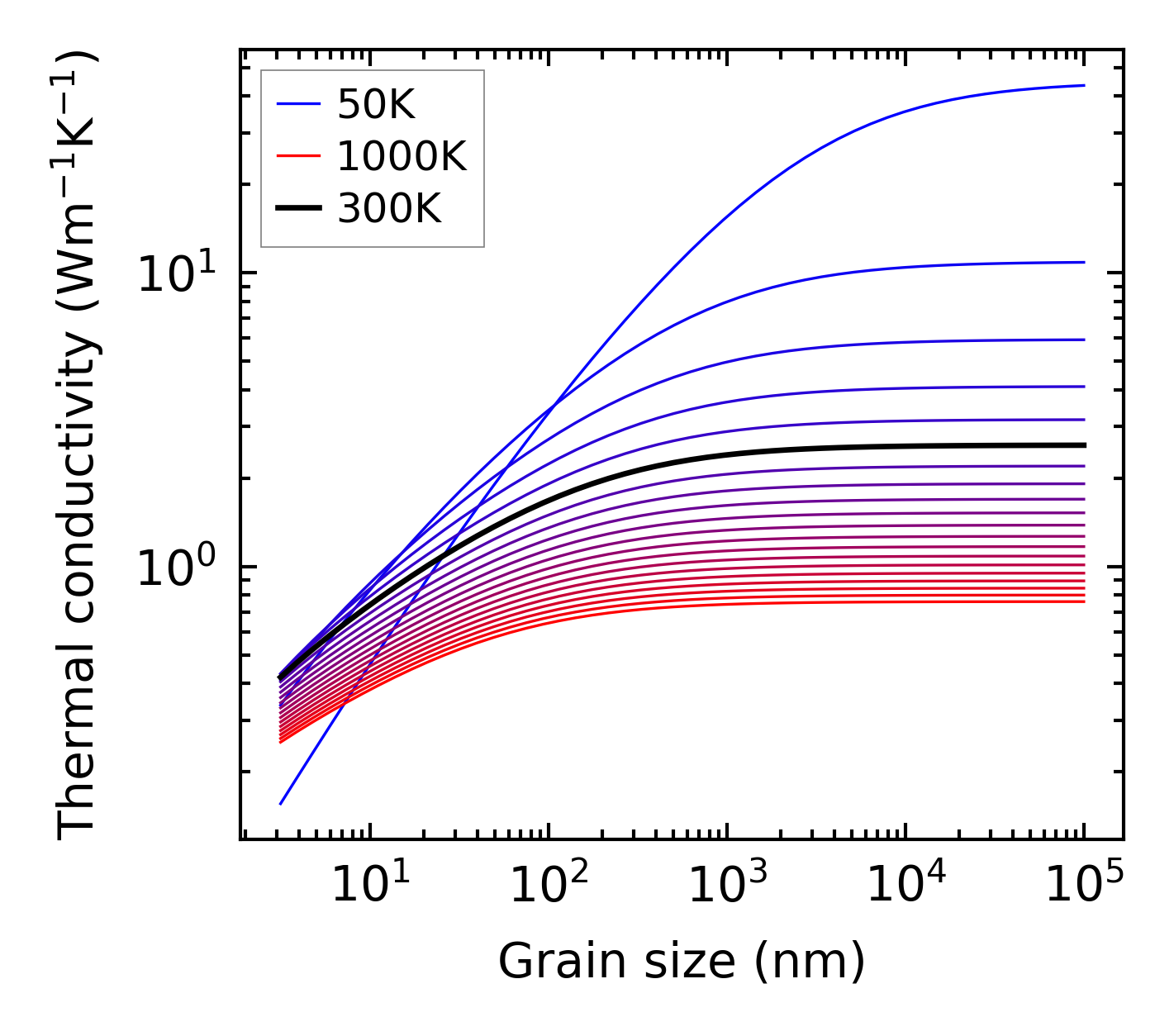

../../_images/fig_kappa_vs_grain_size2115.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

../../_images/fig_lifetime2071.png — (a) Phonon lifetime due to phonon-phonon scattering

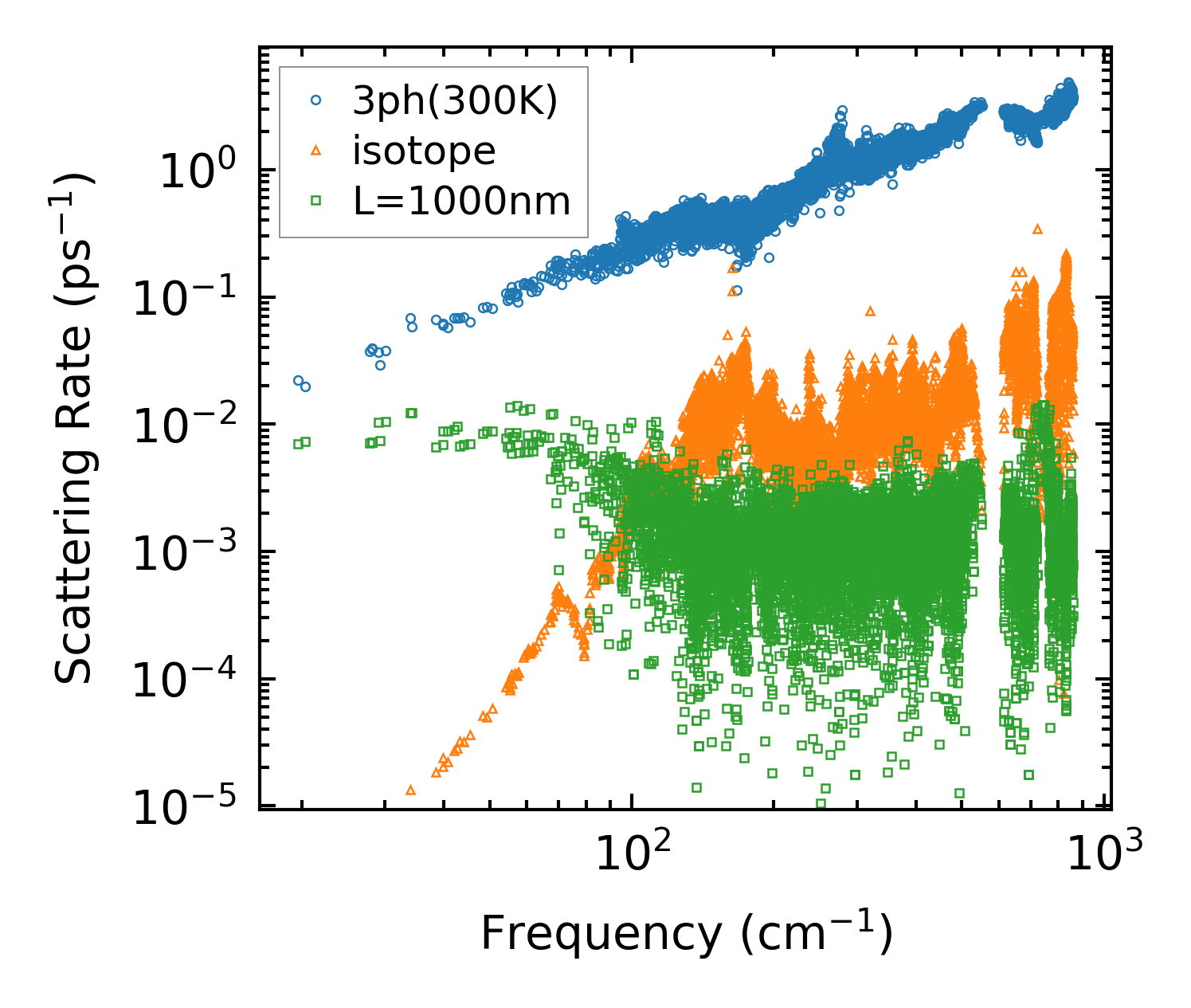

../../_images/fig_scat_rates2070.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

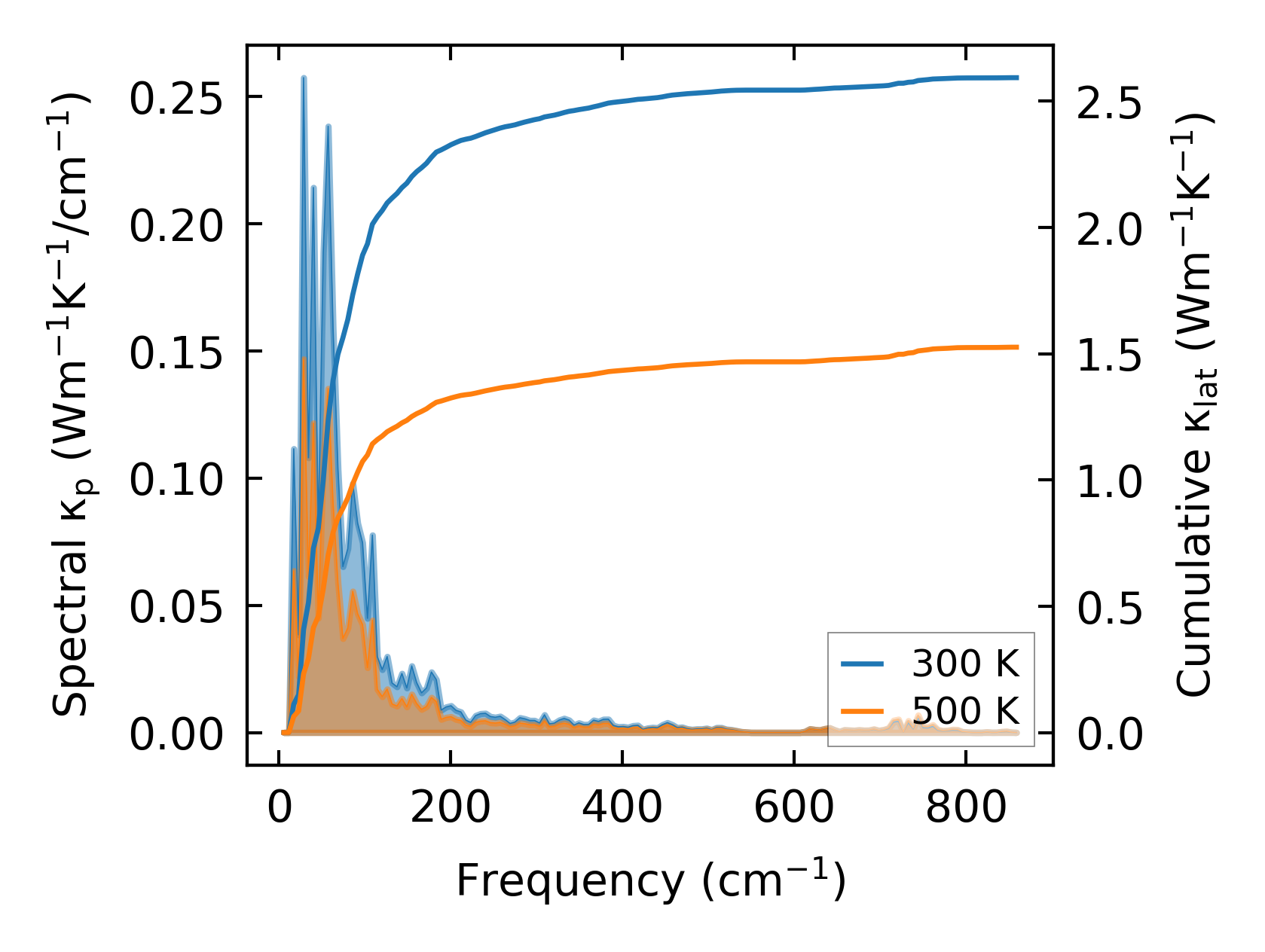

../../_images/fig_cumu_frequency2071.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

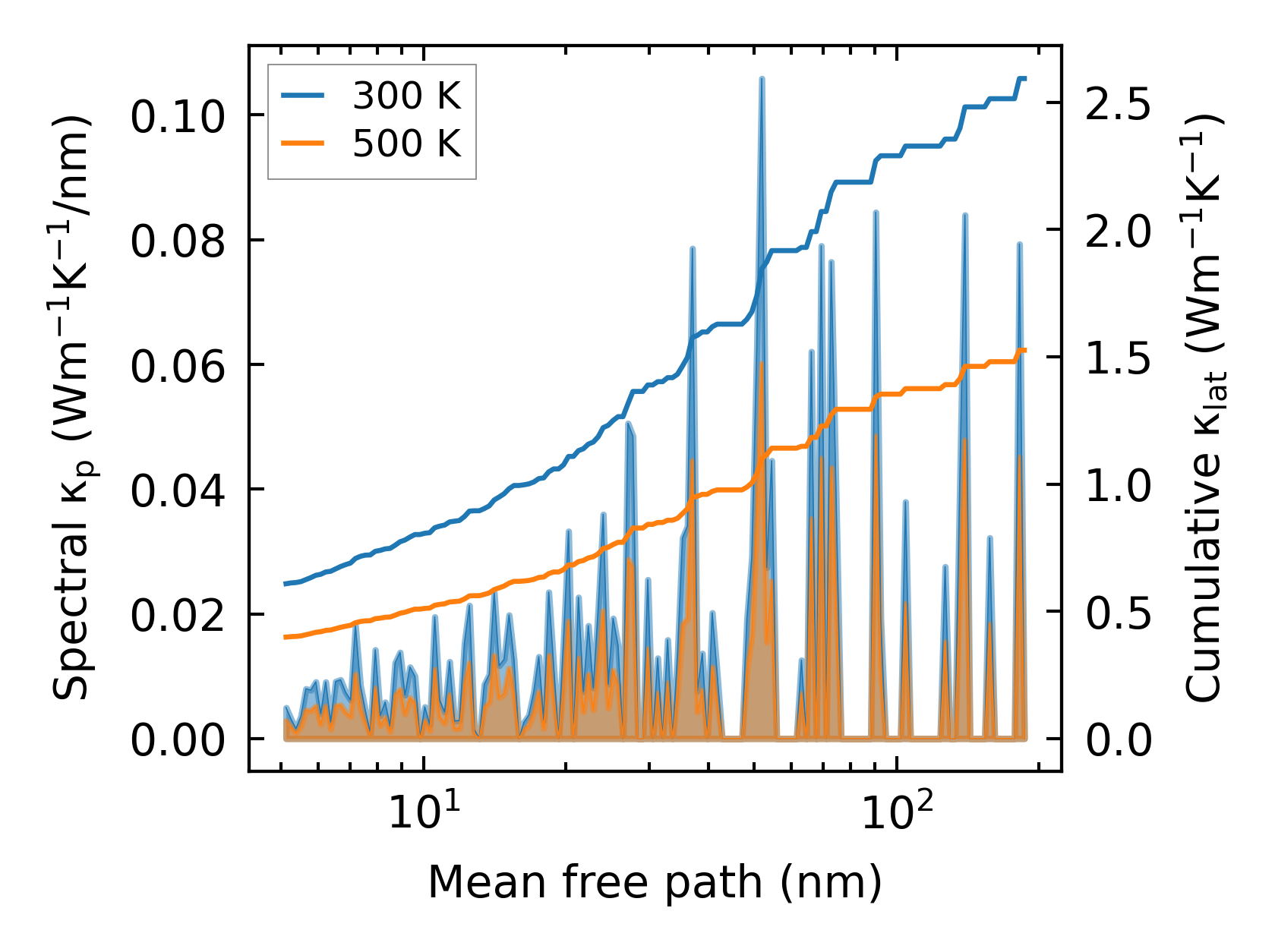

../../_images/fig_cumu_mfp2071.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

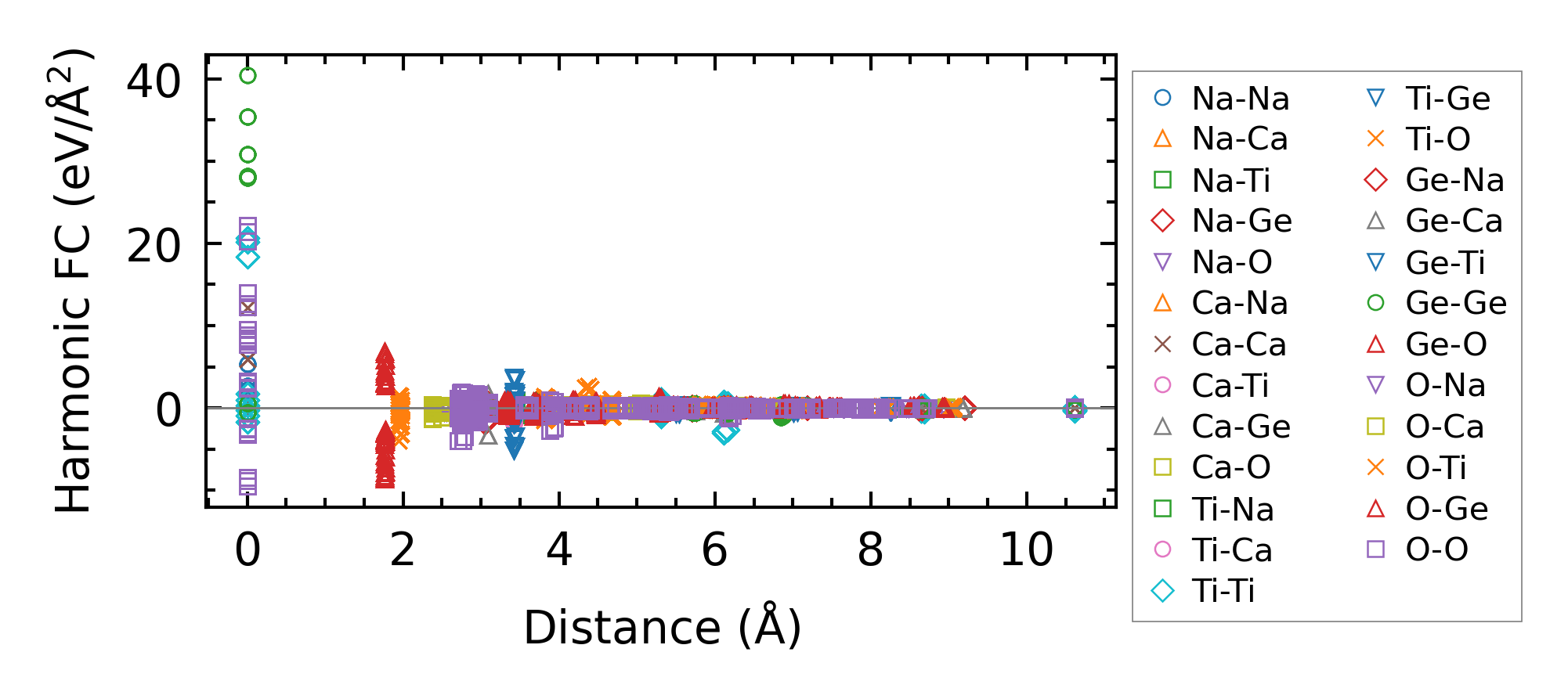

../../_images/fig_fc24652.png — (a) Force constants w.r.t atomic distance

Summary

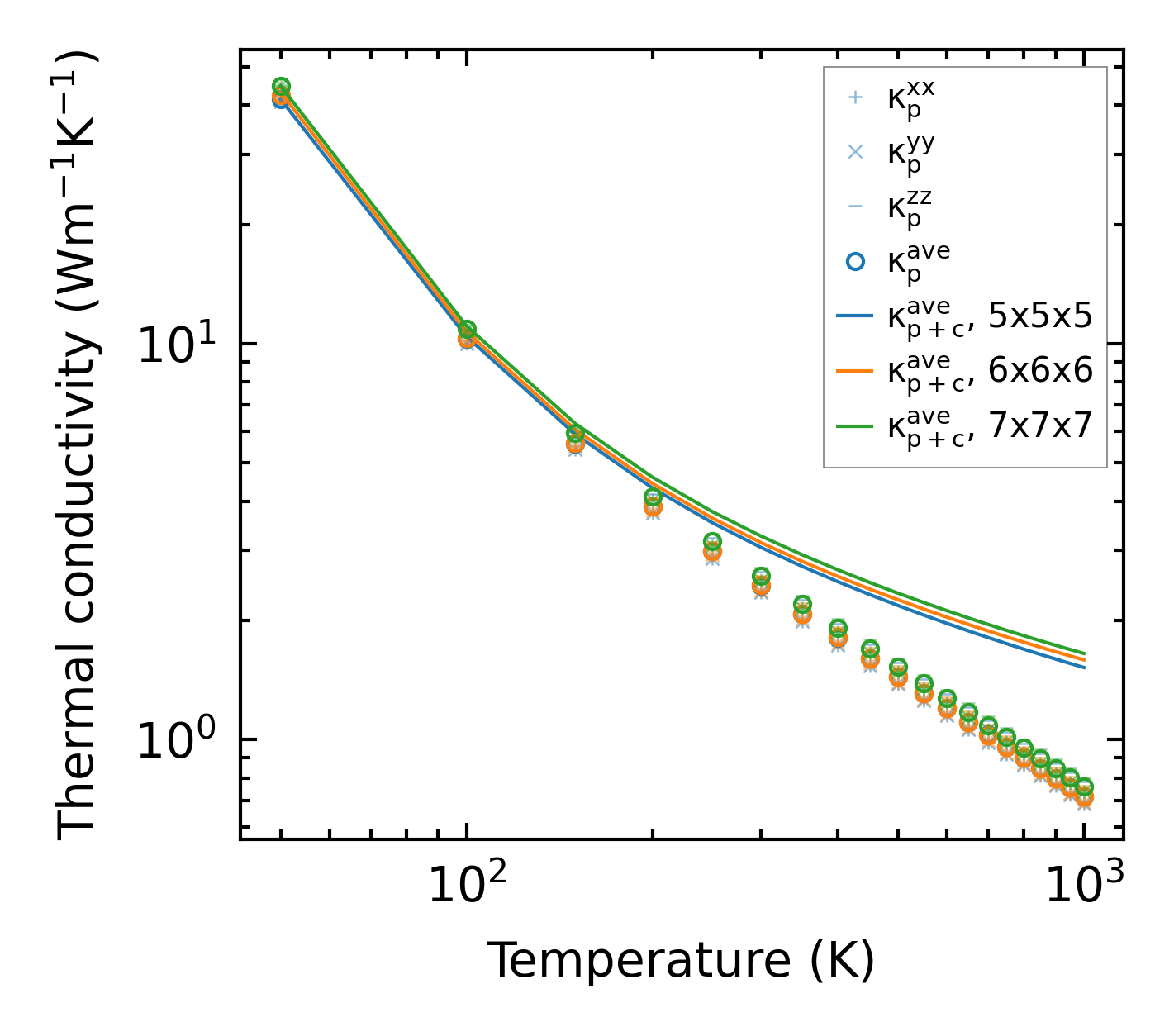

../../_images/fig_kappa3998.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_times8581.png — (b) Computation time
