mp-695850/CdCl2/anharm

Space group: P-3m1 (164)
Link: Materials Project
Download: mp-695850.tar.gz

Harmonic properties

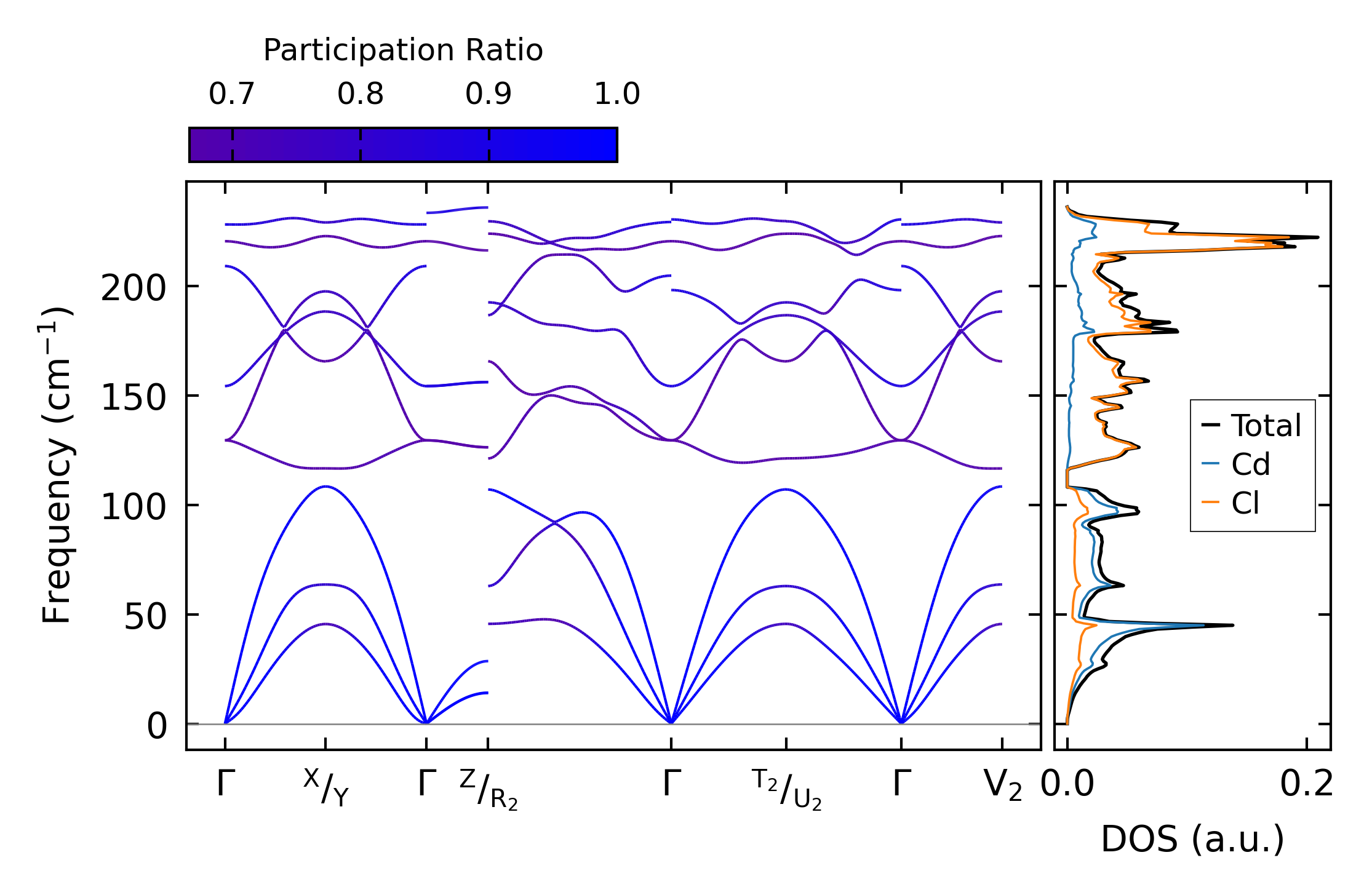

../../_images/fig_bandos_pr4852.png — (a) Phonon dispersion with participation ratio and DOS

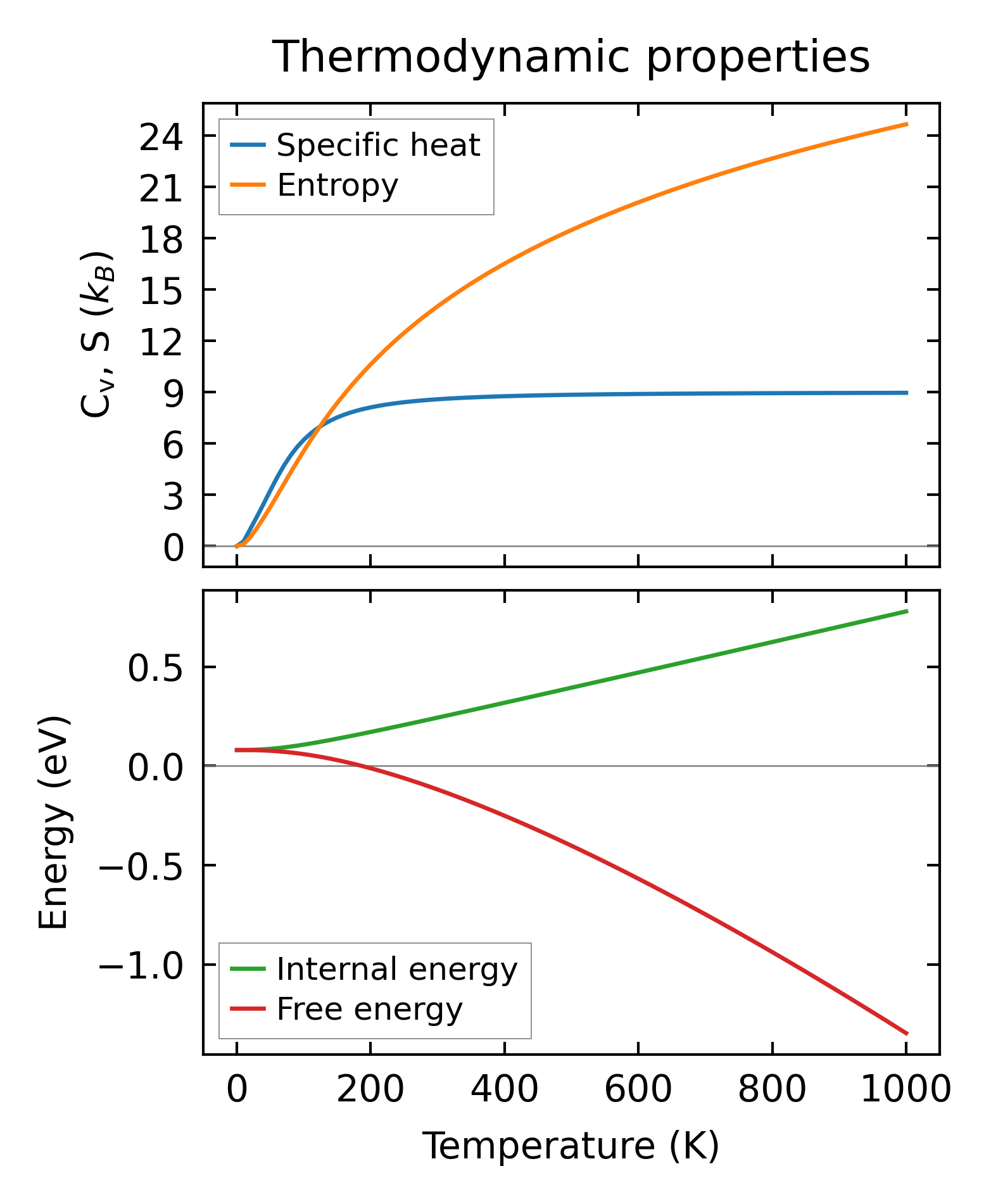

../../_images/fig_thermo4852.png — (b) Thermodynamic properties

Grüneisen parameters

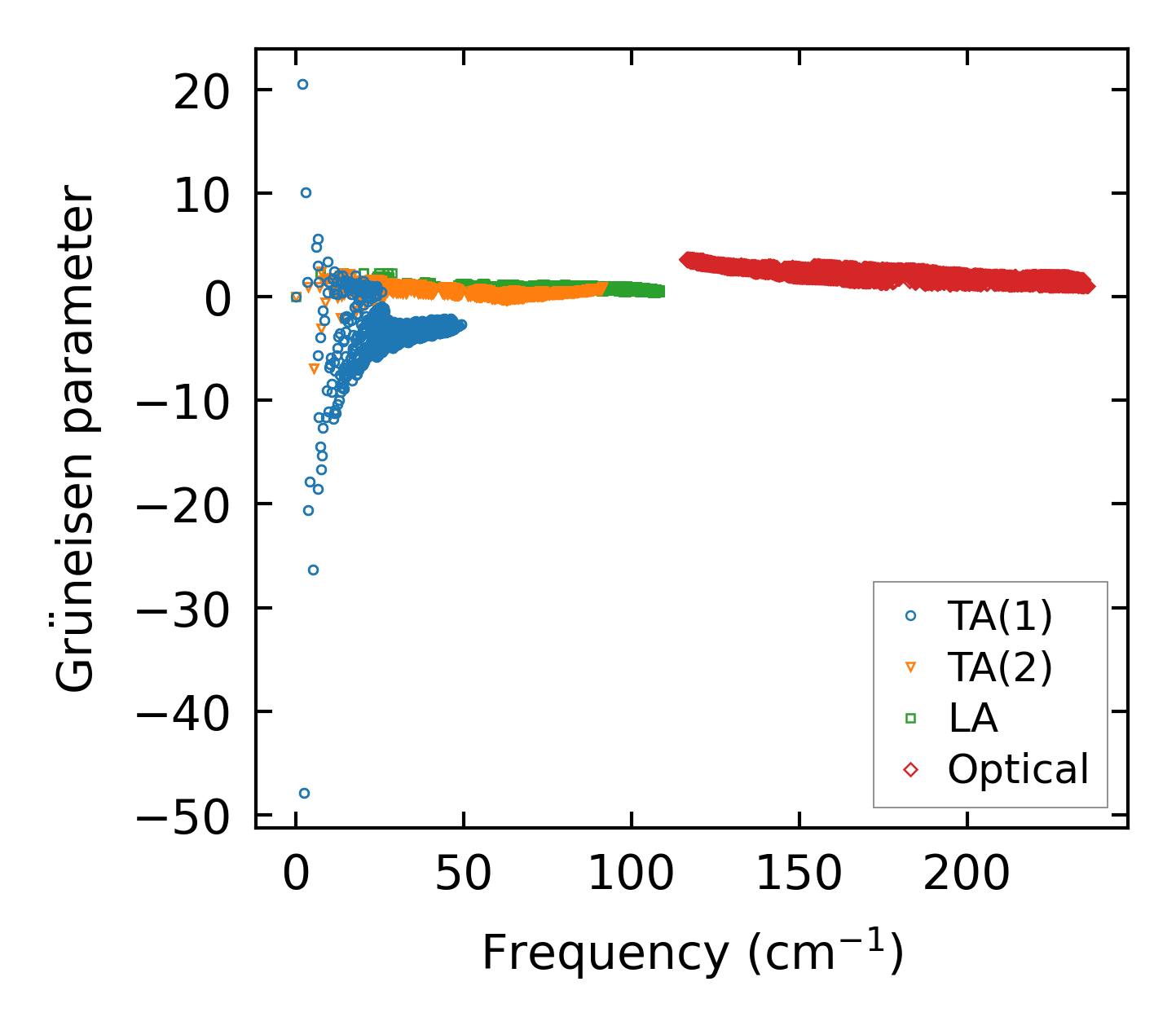

../../_images/fig_gru_all2085.png — (a) Grüneisen parameters

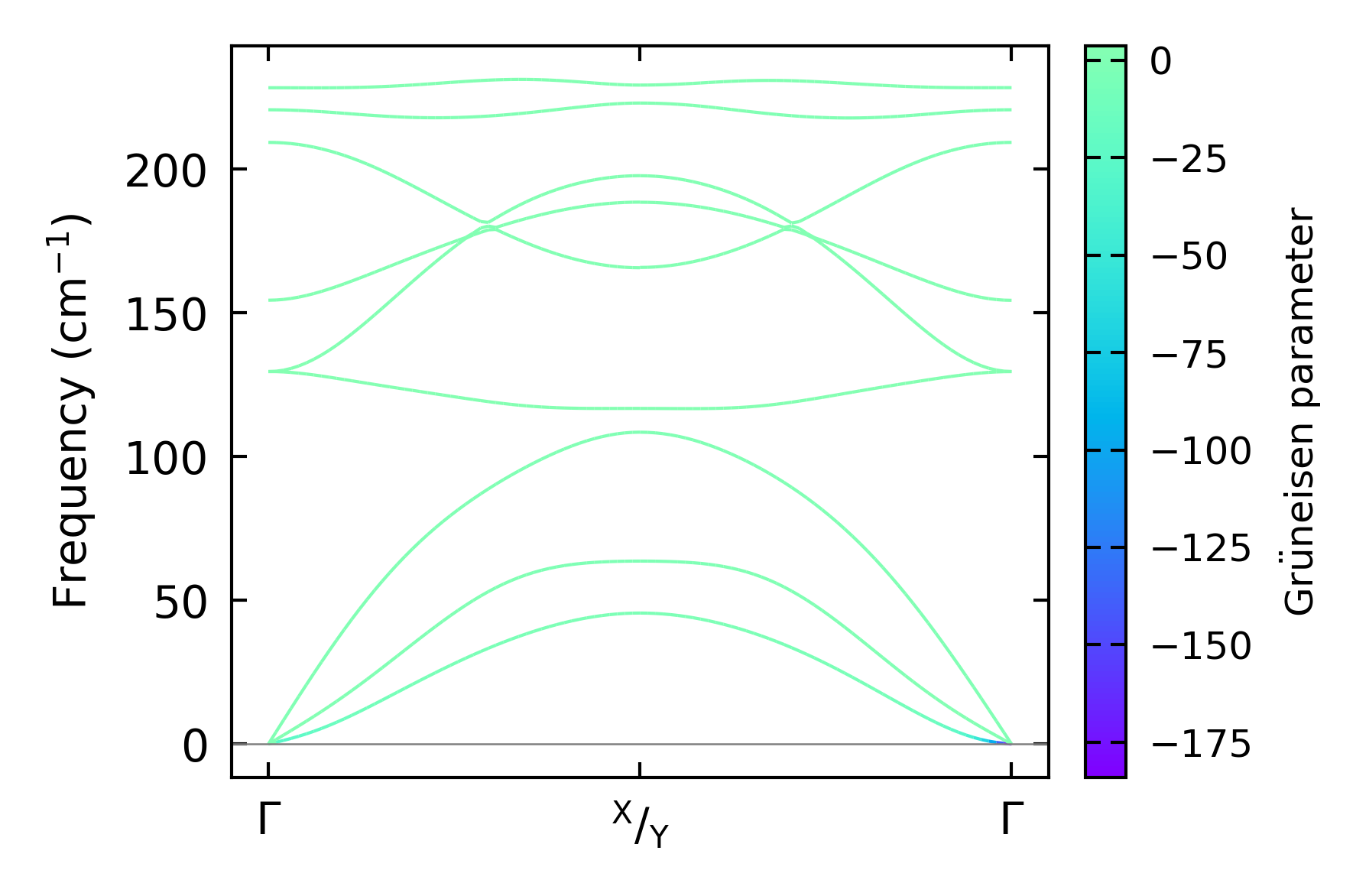

../../_images/fig_gruneisen2085.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 19x19x12, supercell: 4x4x3

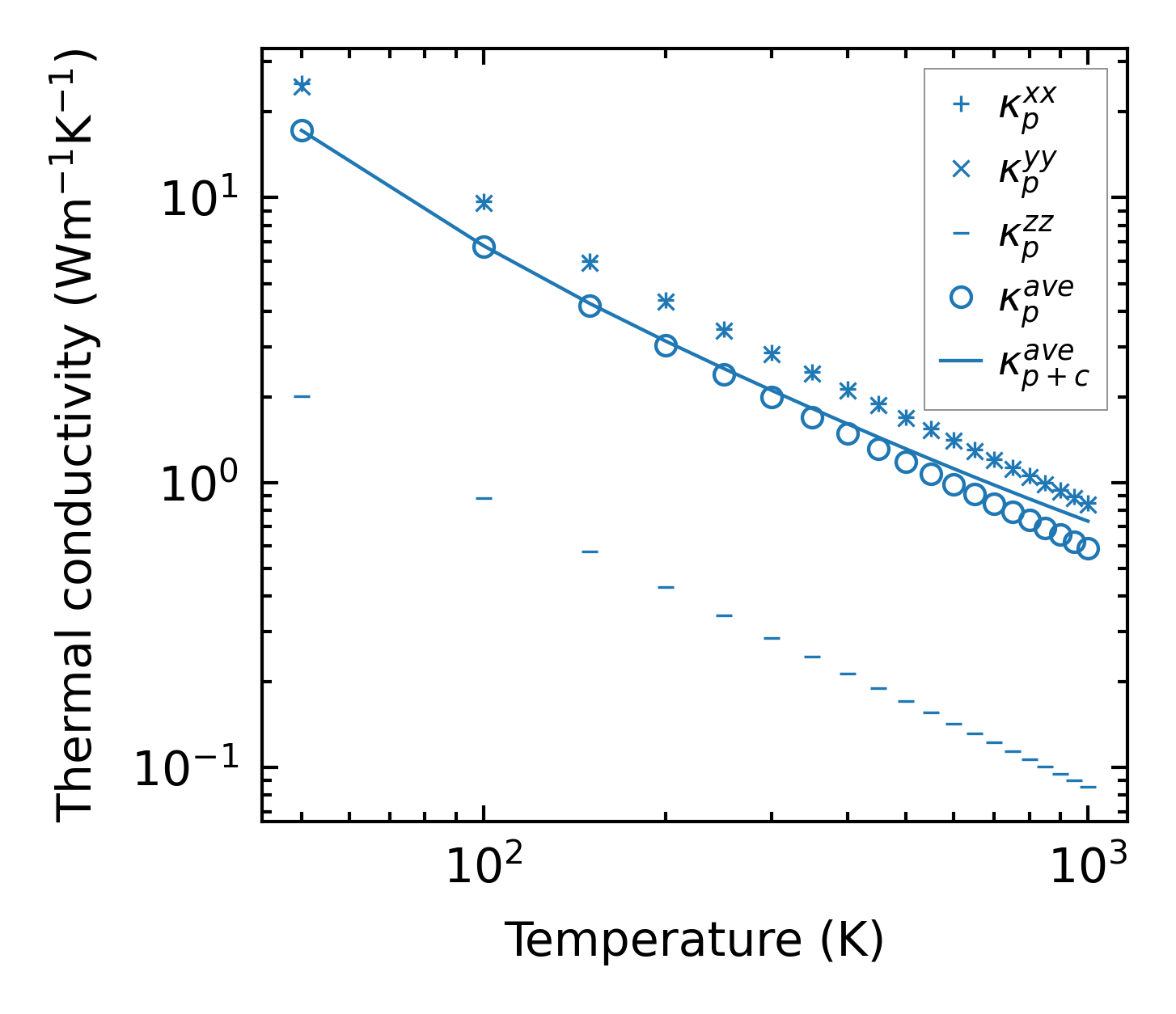

../../_images/fig_kappa3999.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size2116.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

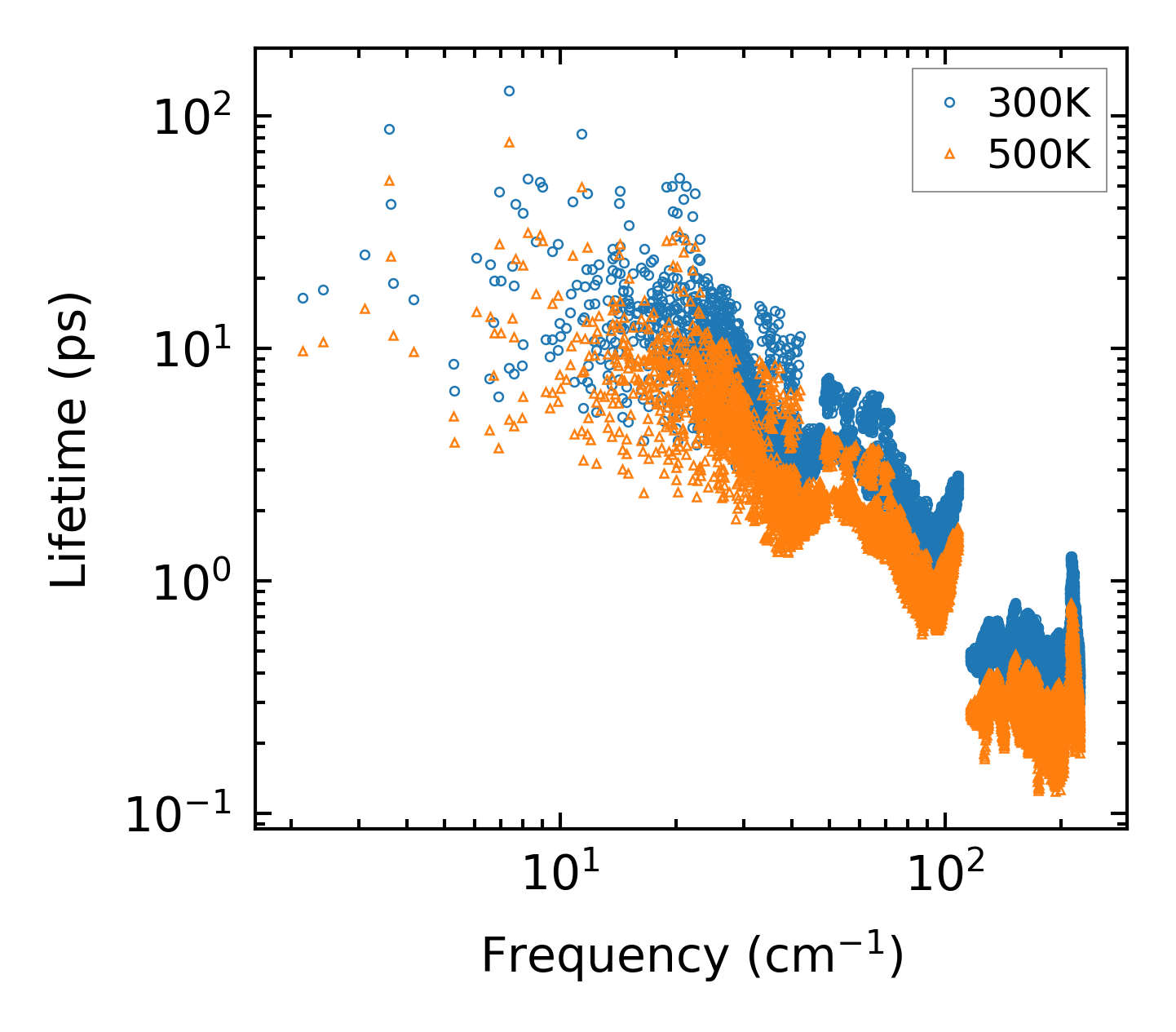

../../_images/fig_lifetime2072.png — (a) Phonon lifetime due to phonon-phonon scattering

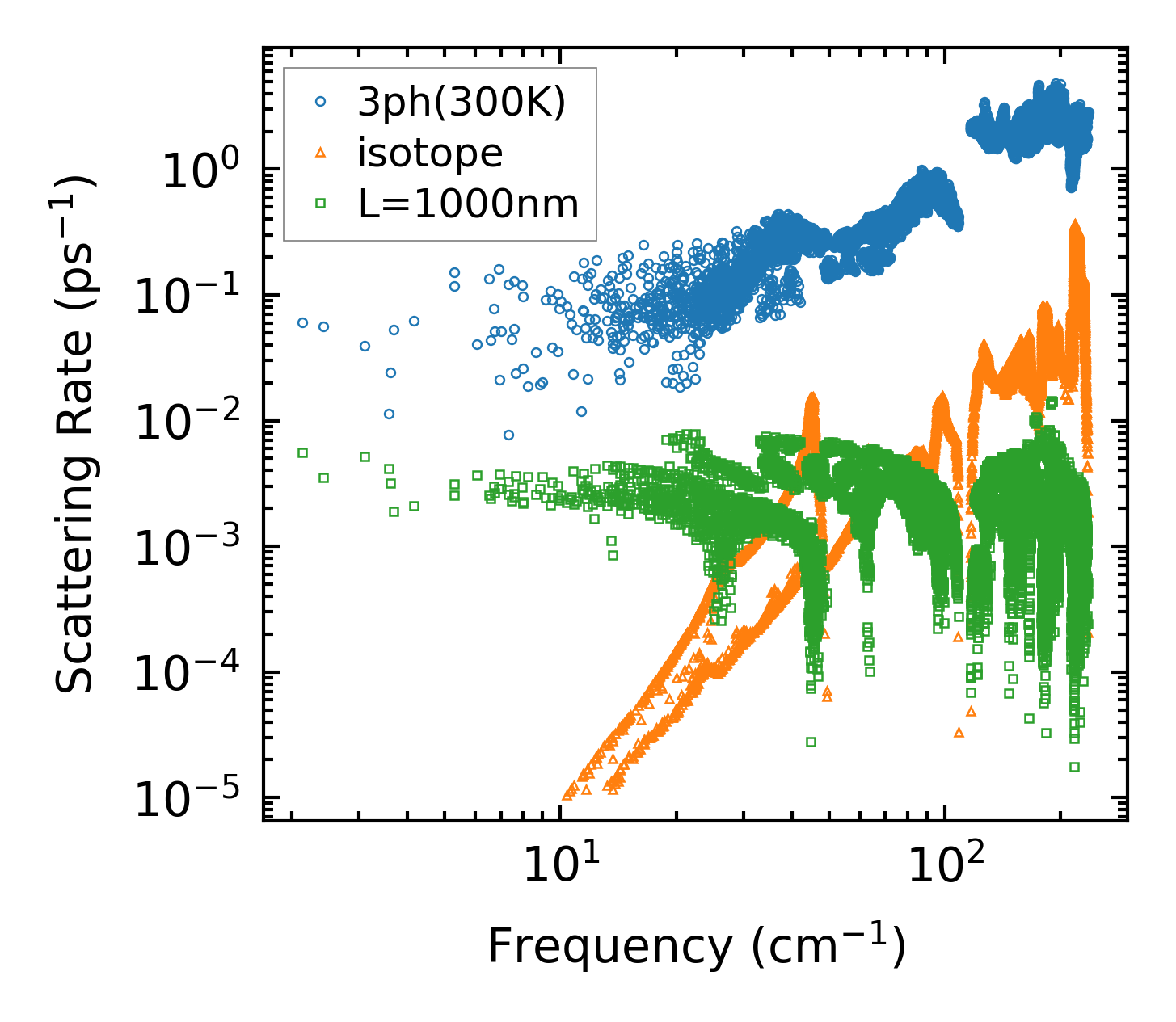

../../_images/fig_scat_rates2071.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

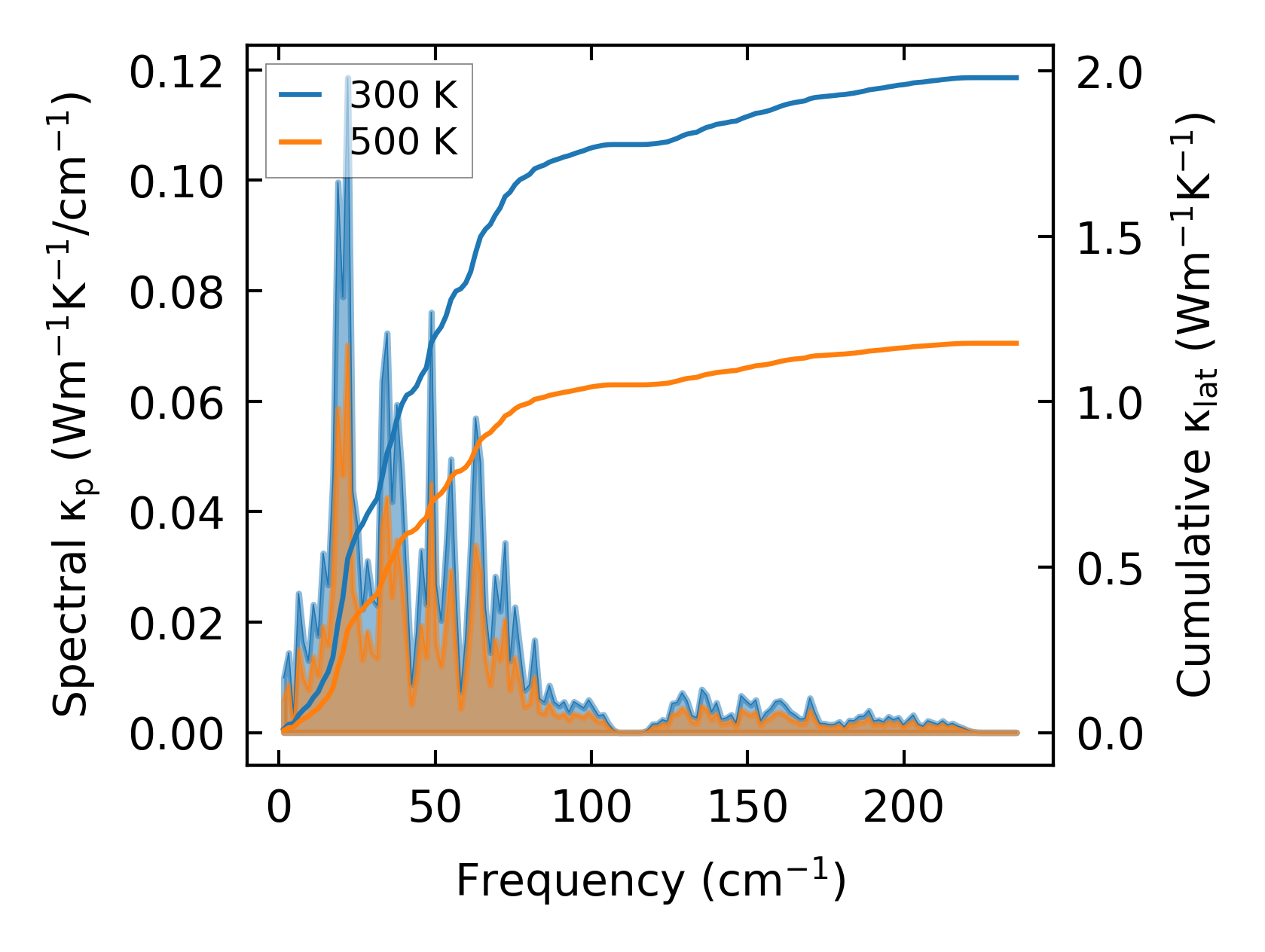

../../_images/fig_cumu_frequency2072.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

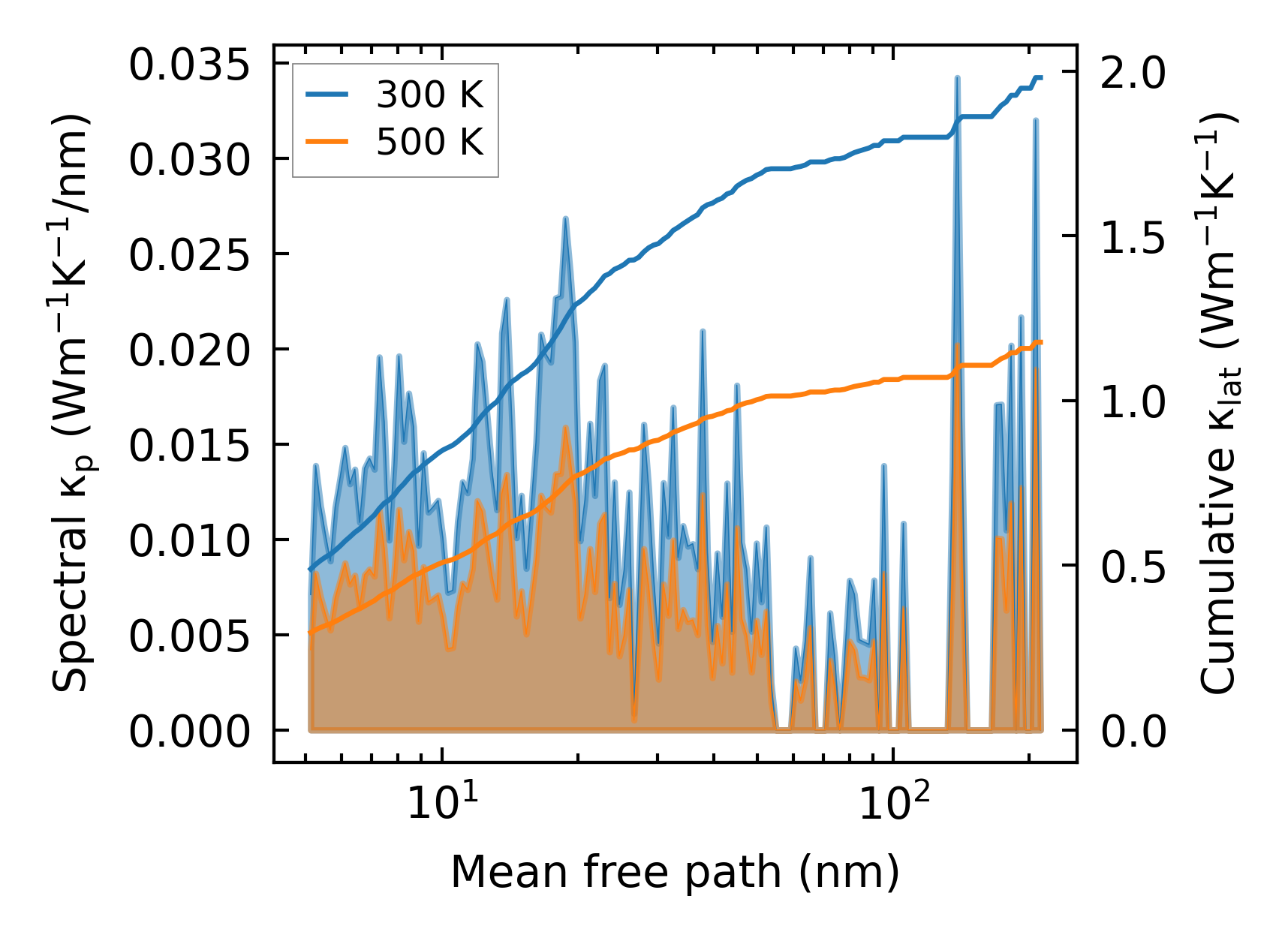

../../_images/fig_cumu_mfp2072.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

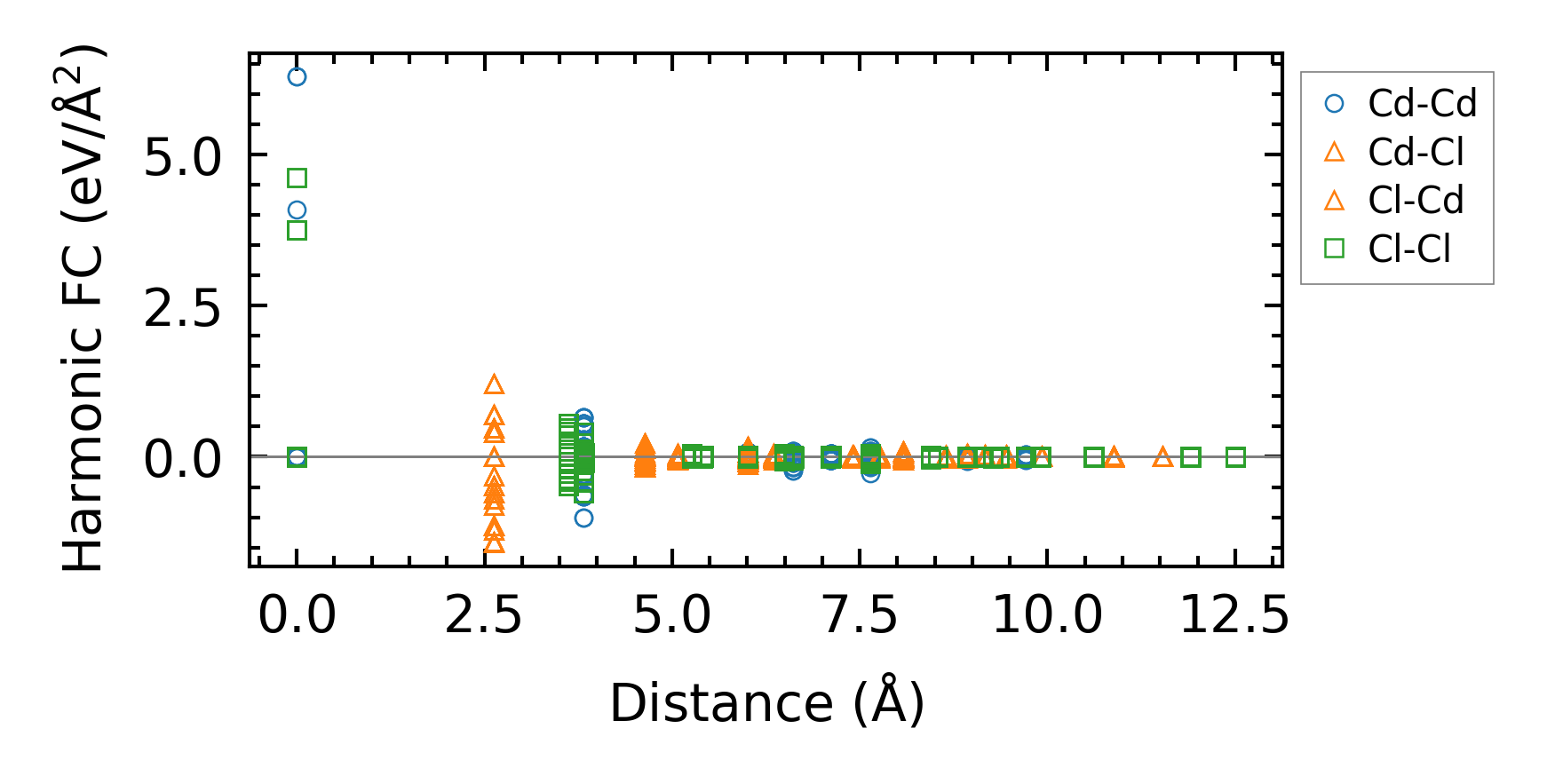

../../_images/fig_fc24661.png — (a) Force constants w.r.t atomic distance

Summary

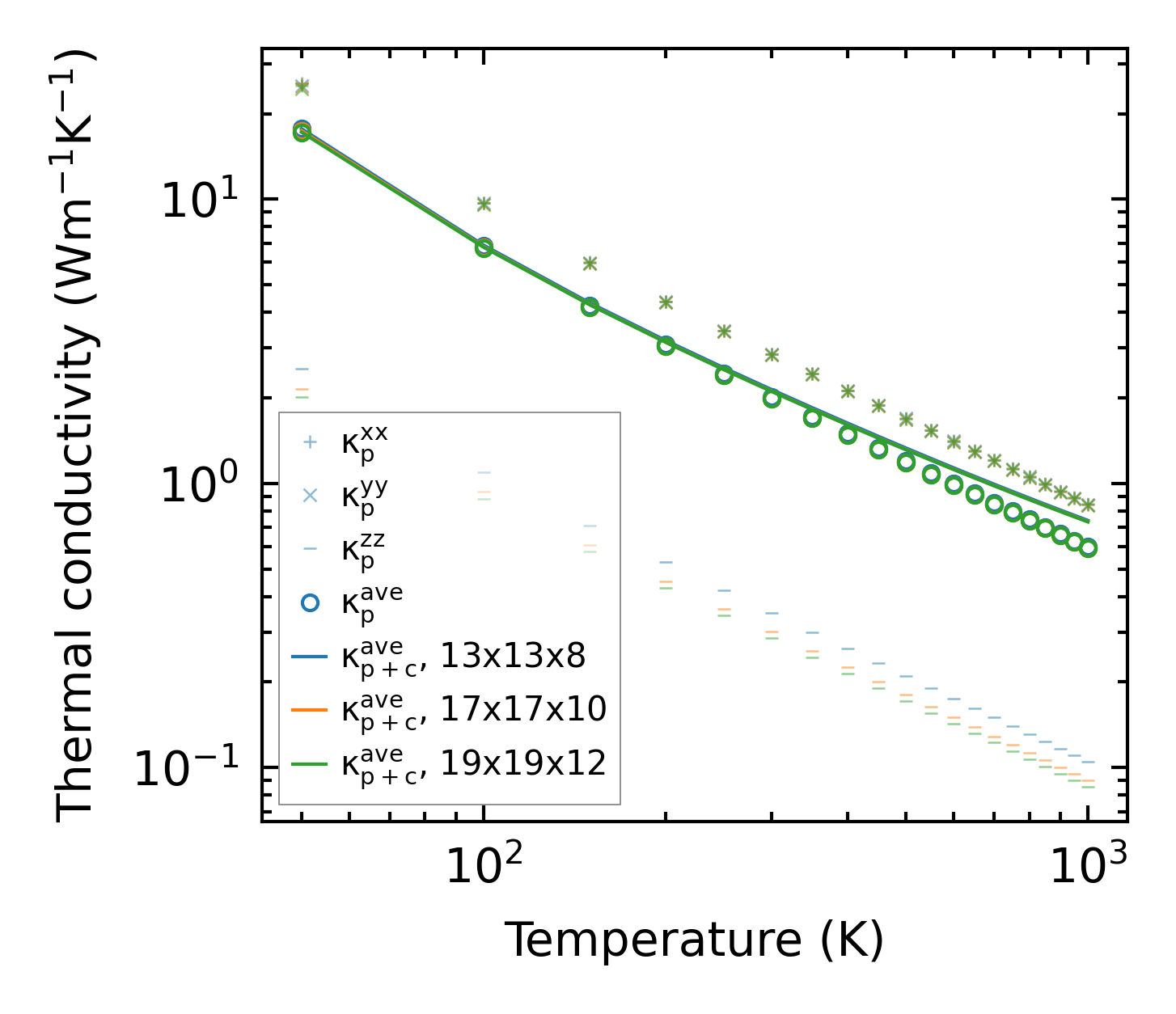

../../_images/fig_kappa4000.png — (a) Temperature-dependent lattice thermal conductivity

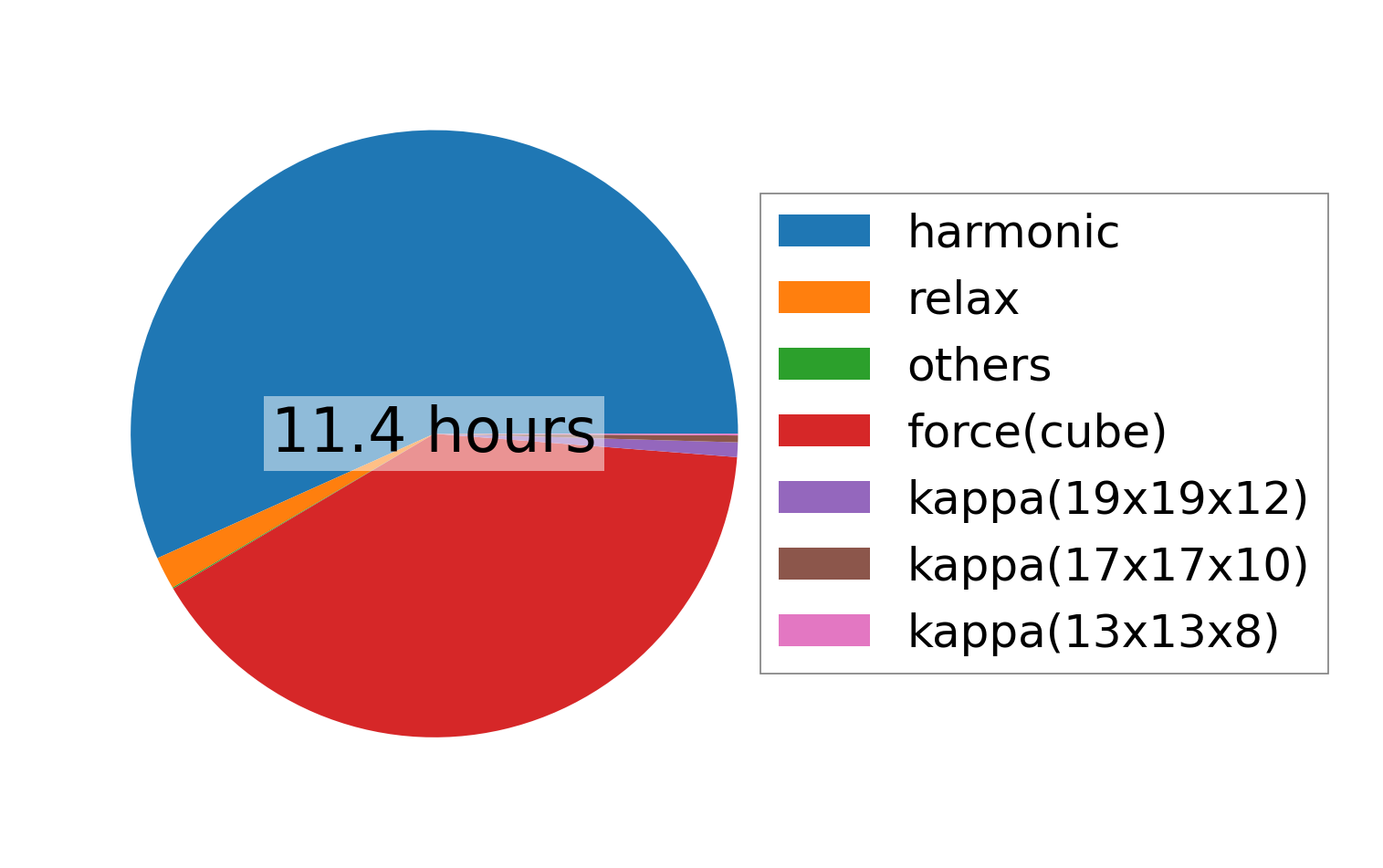

../../_images/fig_times8603.png — (b) Computation time
