mp-642845/Rb3H5Pt/anharm

Space group: P4/mbm (127)
Link: Materials Project
Download: mp-642845.tar.gz

Harmonic properties

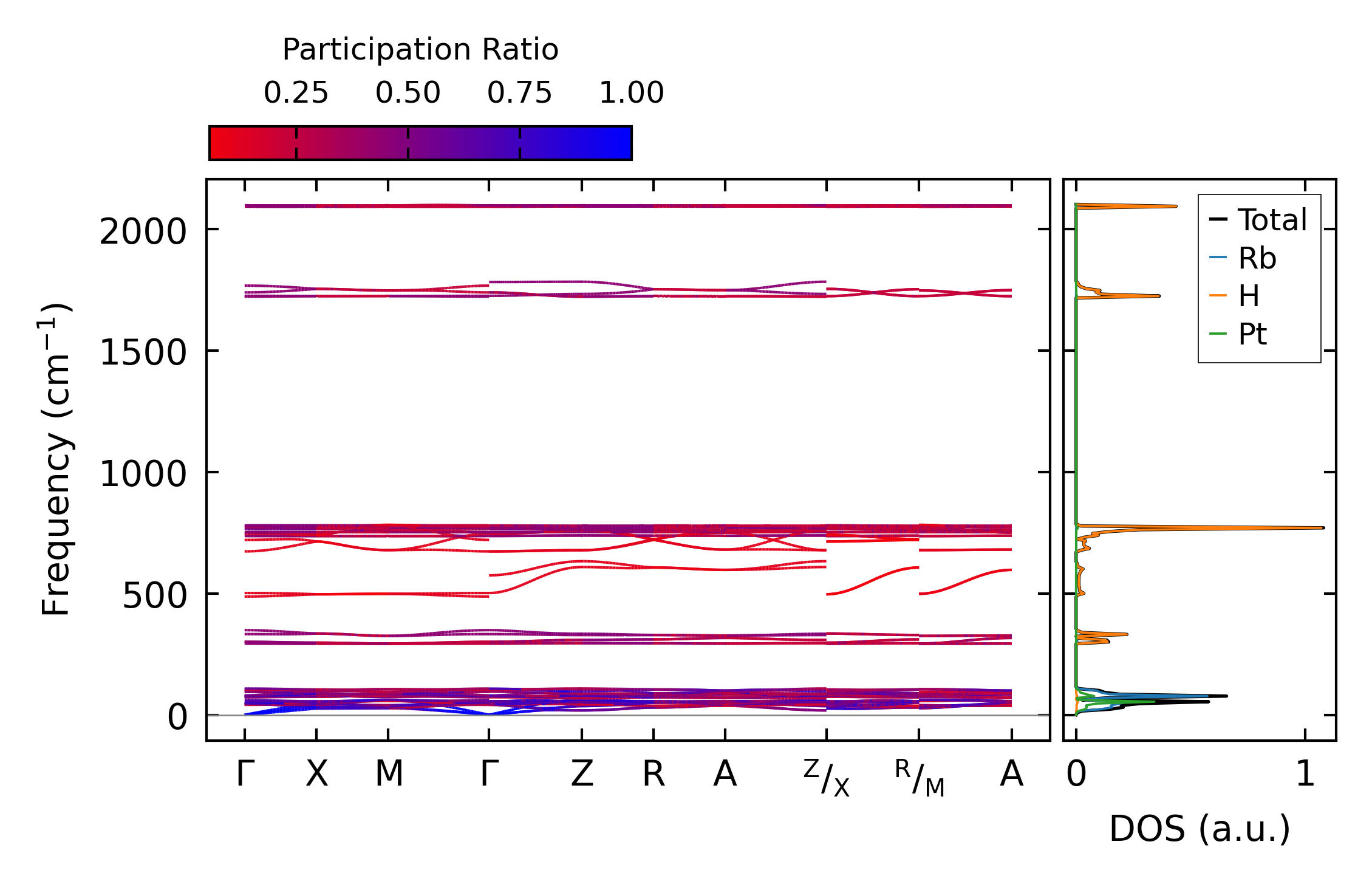

../../_images/fig_bandos_pr5449.png — (a) Phonon dispersion with participation ratio and DOS

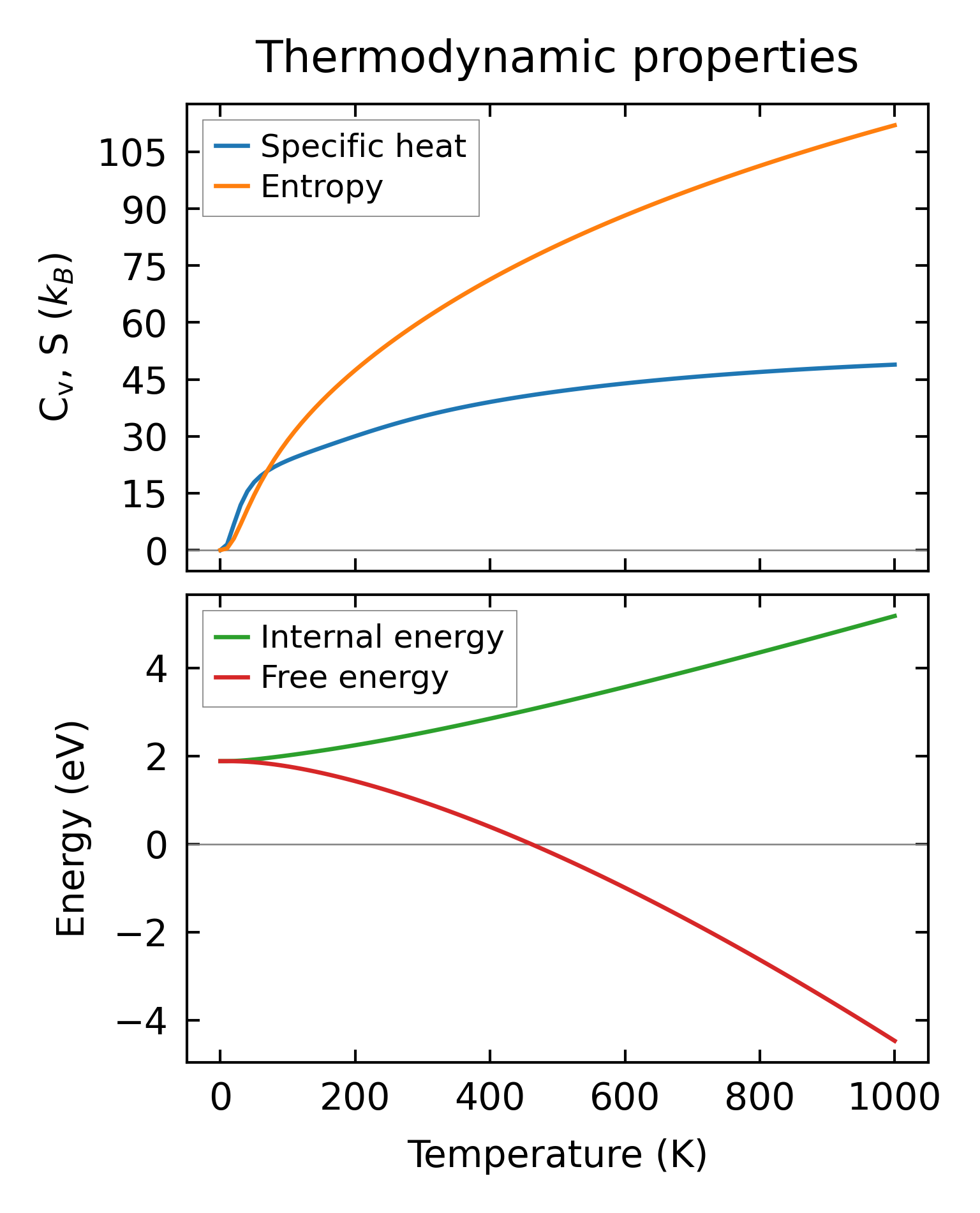

../../_images/fig_thermo5449.png — (b) Thermodynamic properties

Grüneisen parameters

../../_images/fig_gru_all2264.png — (a) Grüneisen parameters

../../_images/fig_gruneisen2264.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 9x9x12, supercell: 2x2x2

../../_images/fig_kappa4332.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size2295.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

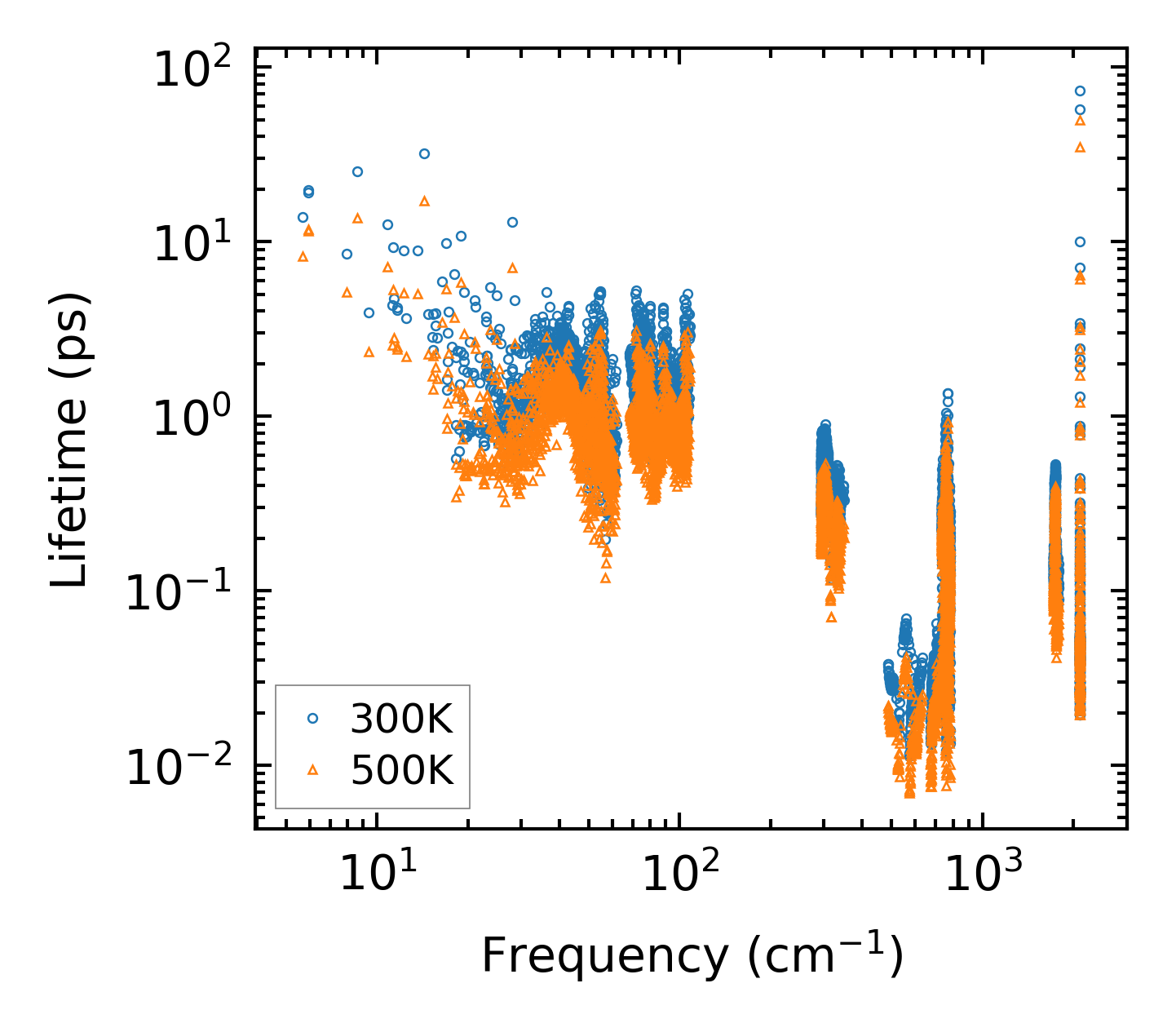

../../_images/fig_lifetime2250.png — (a) Phonon lifetime due to phonon-phonon scattering

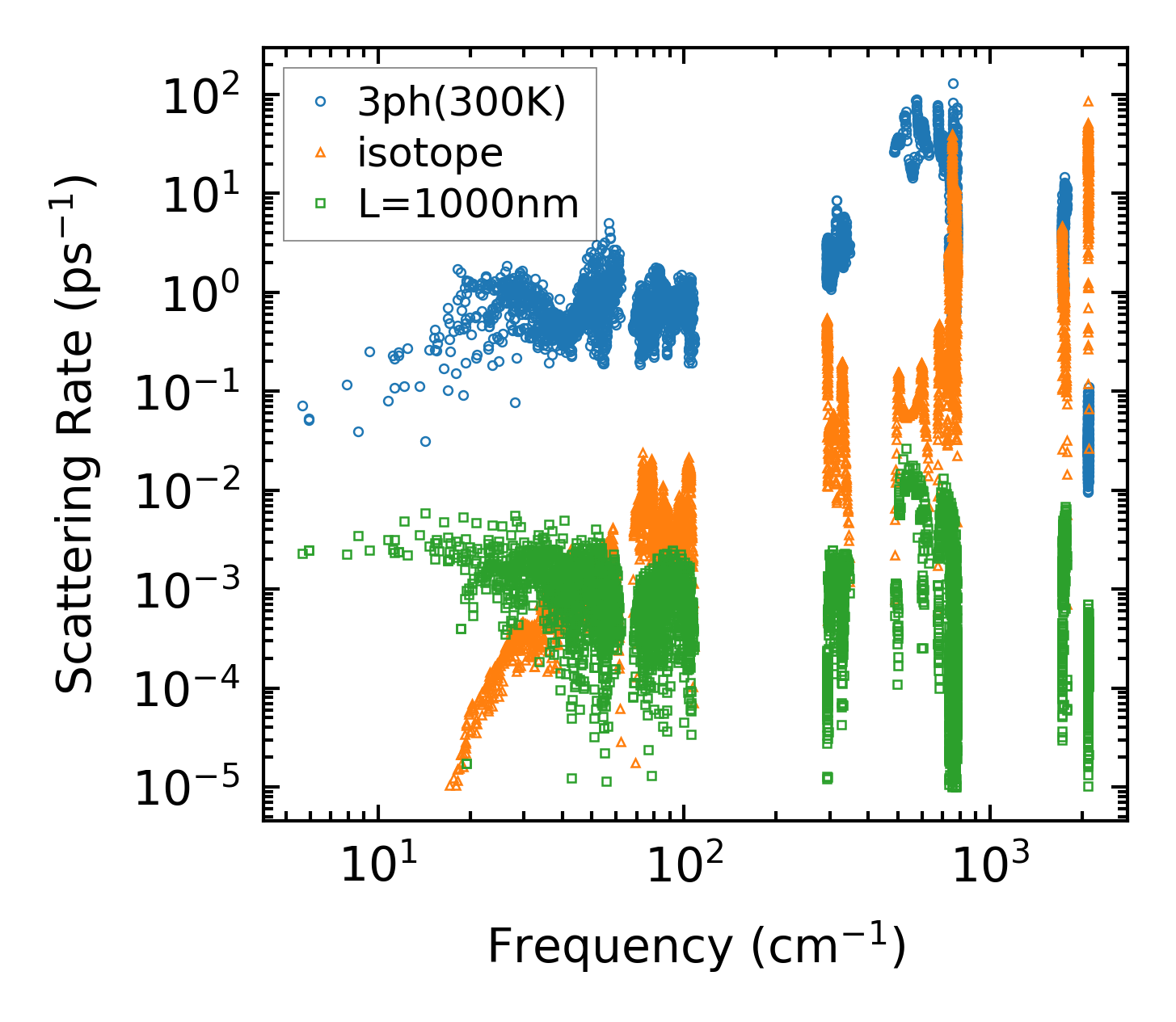

../../_images/fig_scat_rates2249.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

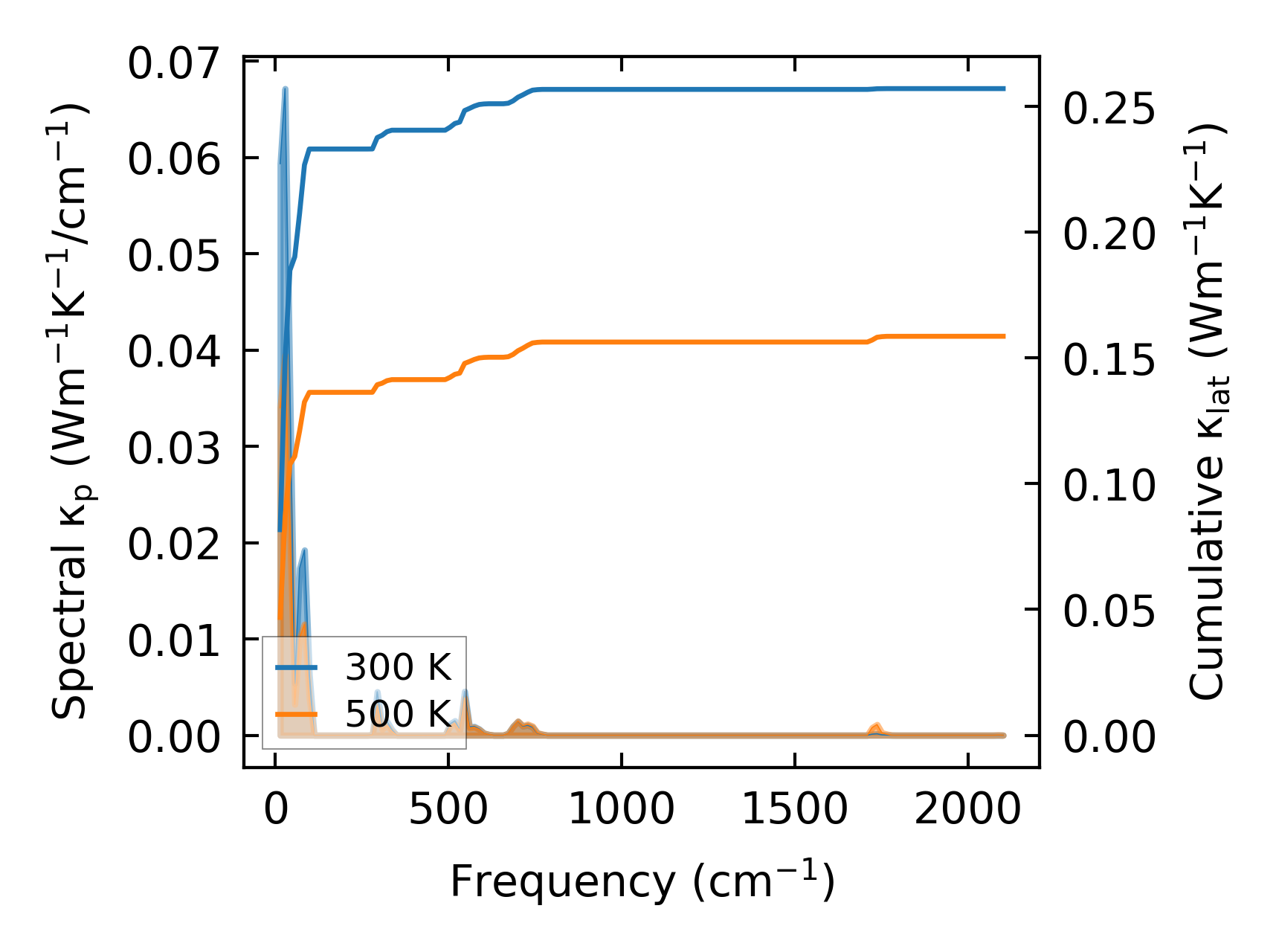

../../_images/fig_cumu_frequency2250.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

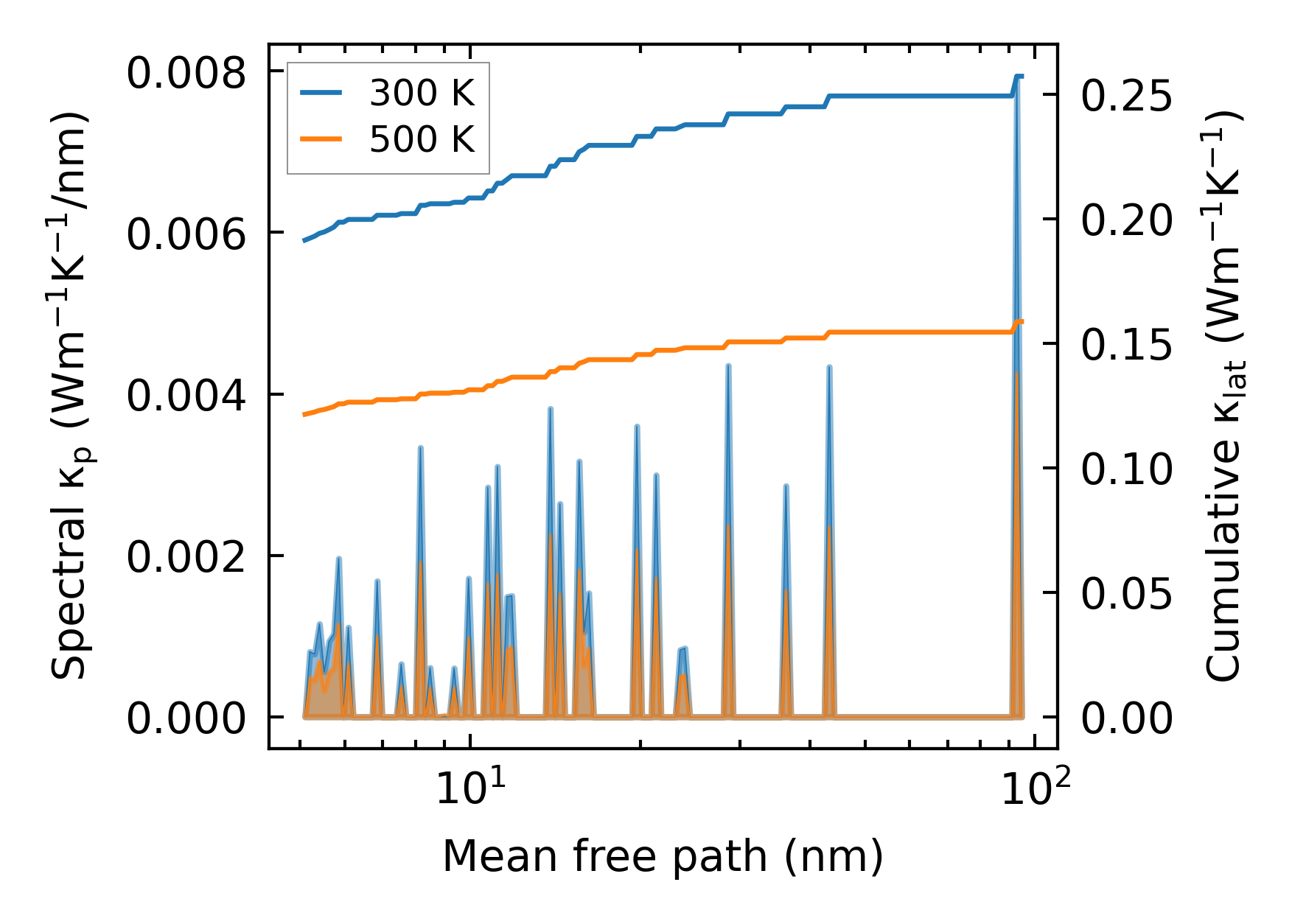

../../_images/fig_cumu_mfp2250.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

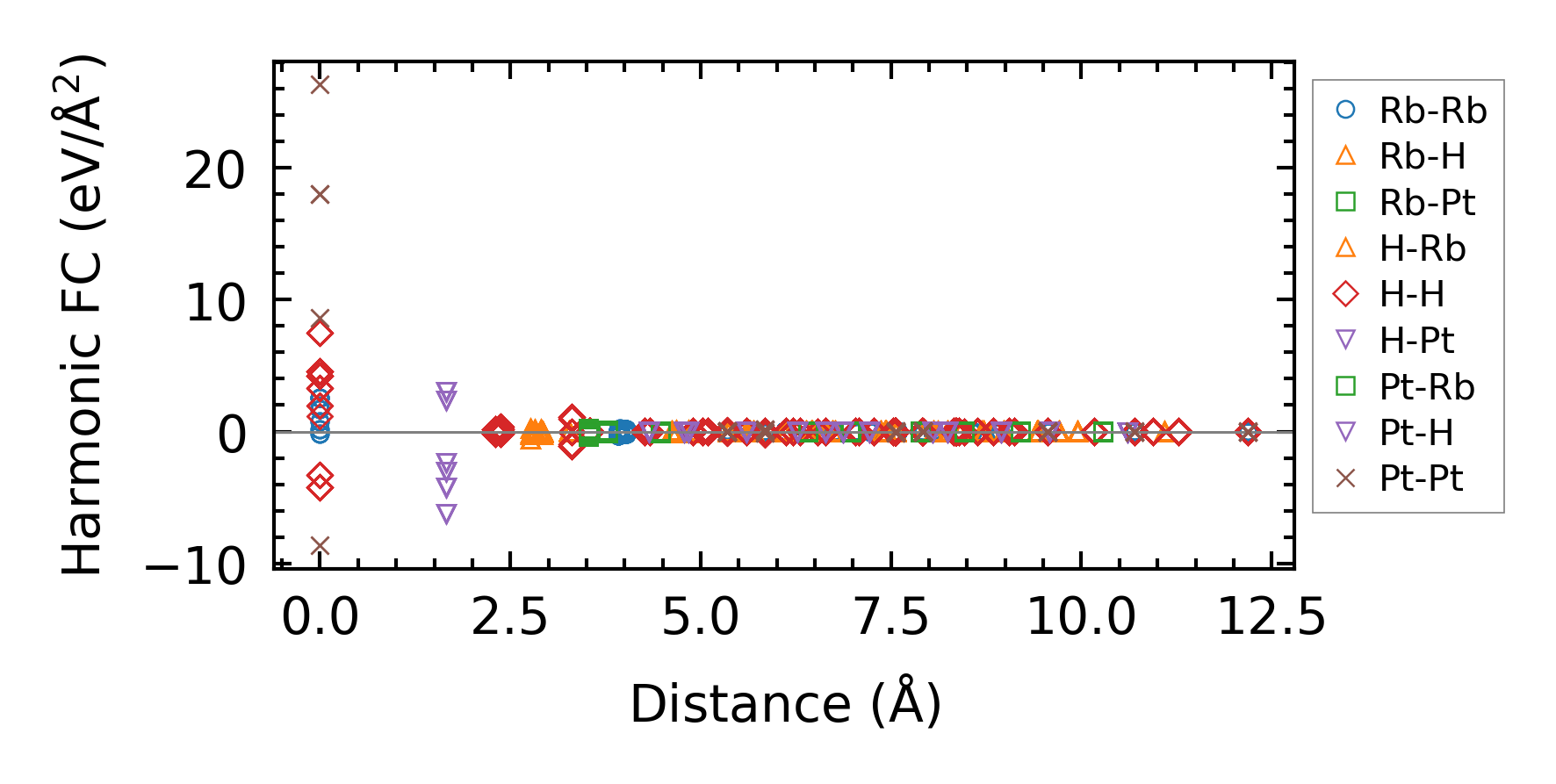

../../_images/fig_fc25254.png — (a) Force constants w.r.t atomic distance

Summary

../../_images/fig_kappa4333.png — (a) Temperature-dependent lattice thermal conductivity

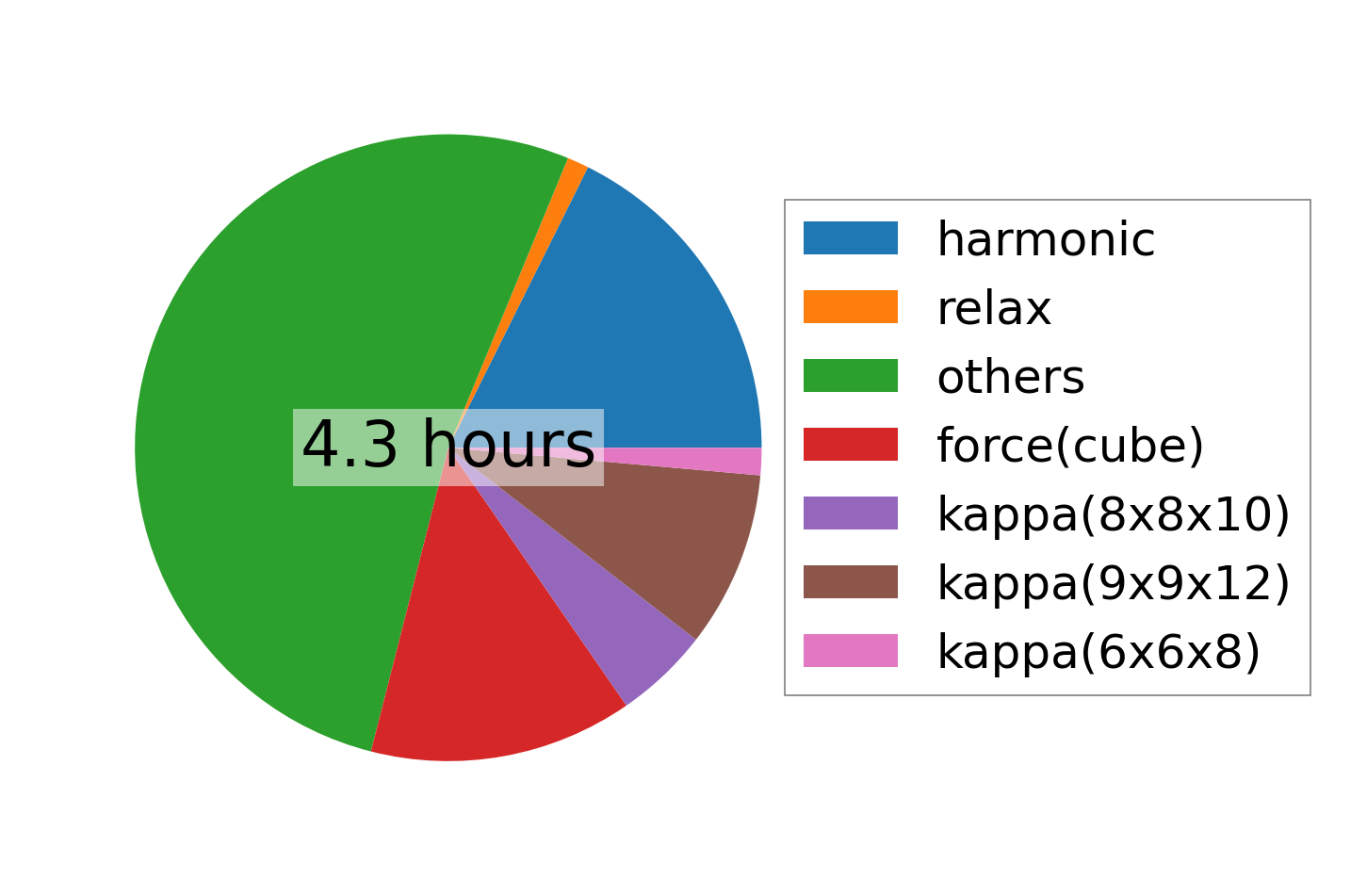

../../_images/fig_times9867.png — (b) Computation time
