mp-546266/DyBi2IO4/anharm

Space group: P4/mmm (123)
Link: Materials Project
Download: mp-546266.tar.gz

Harmonic properties

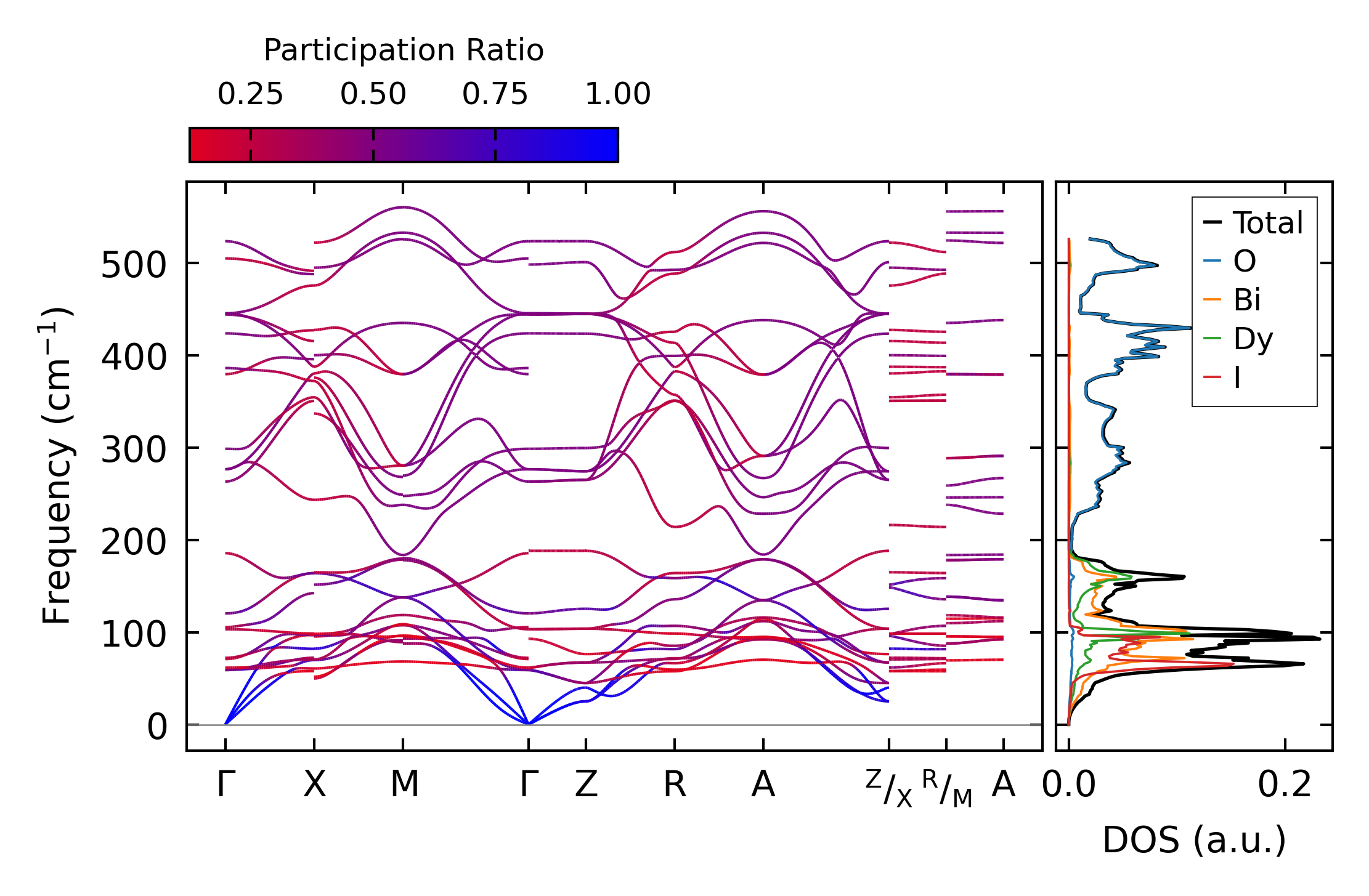

../../_images/fig_bandos_pr9406.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo9406.png — (b) Thermodynamic properties

Grüneisen parameters

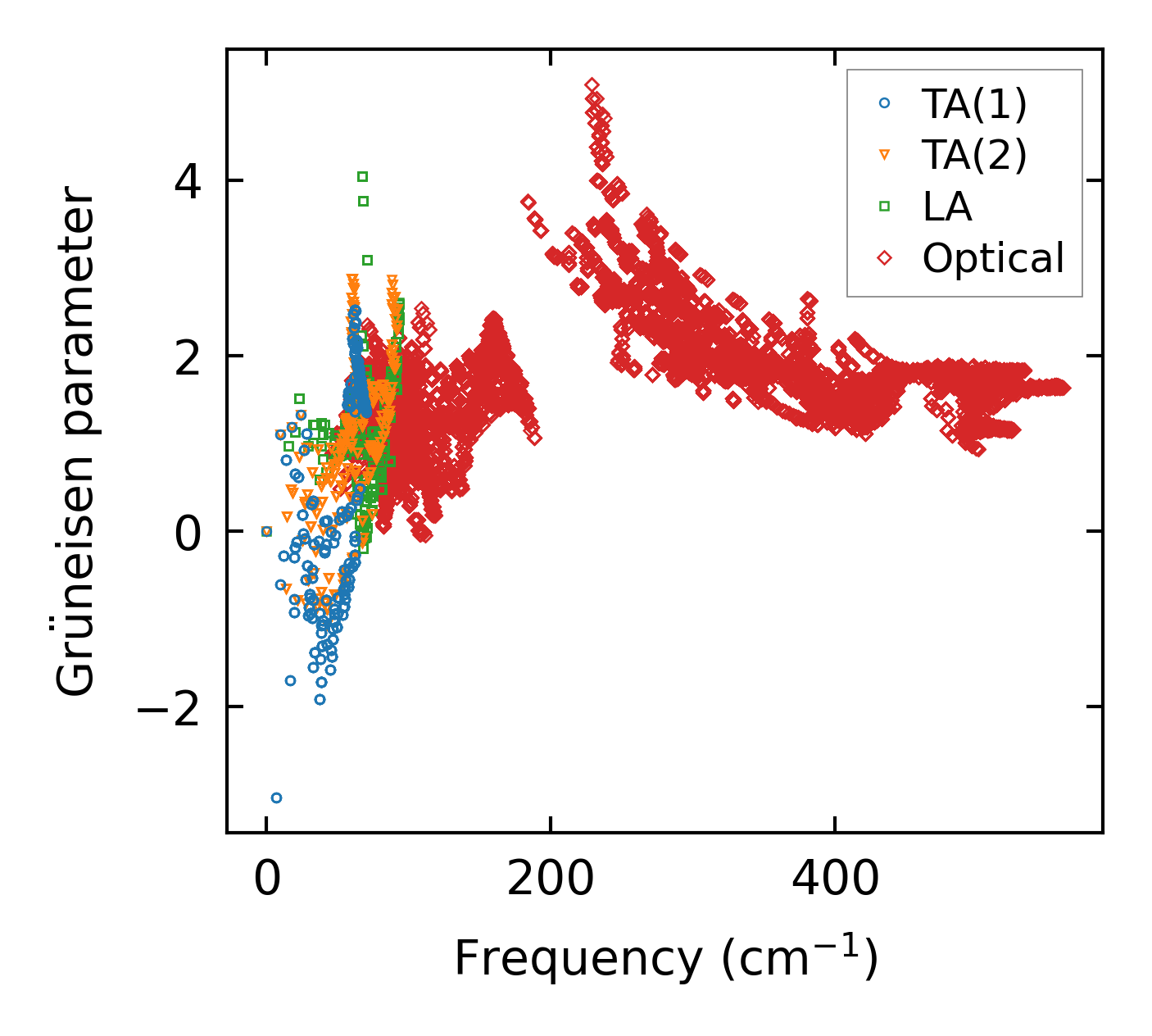

../../_images/fig_gru_all3742.png — (a) Grüneisen parameters

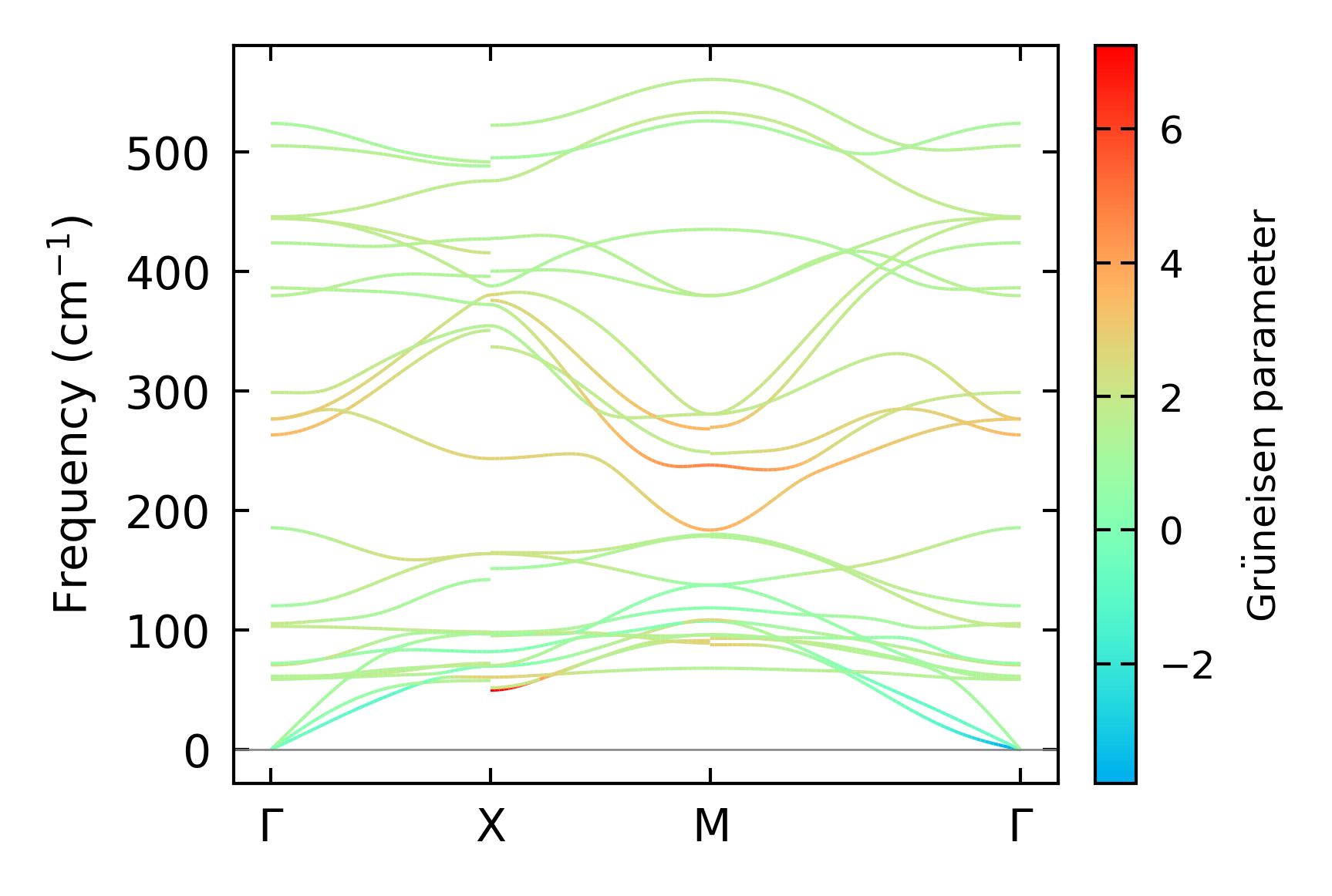

../../_images/fig_gruneisen3742.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 18x18x7, supercell: 3x3x2

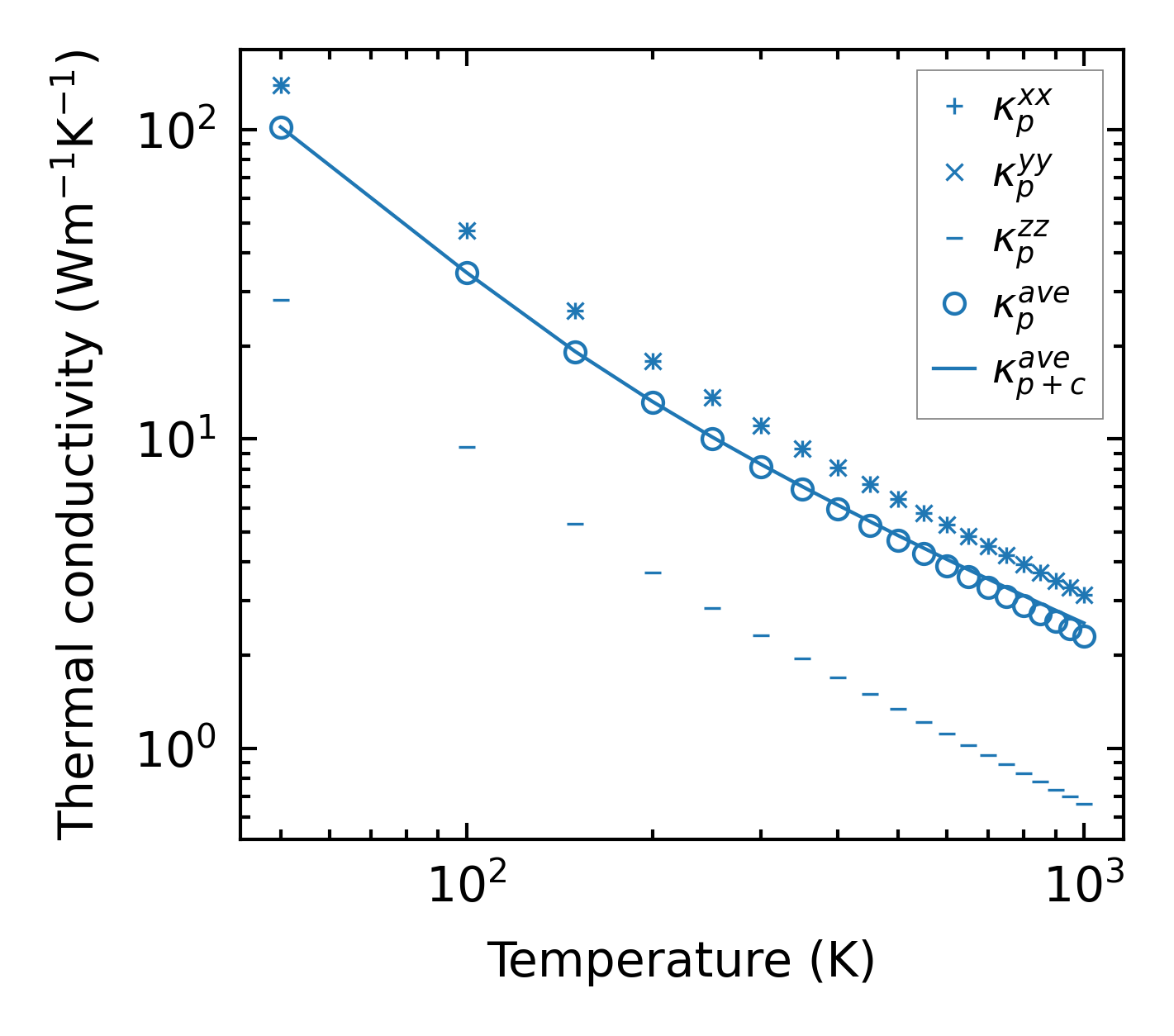

../../_images/fig_kappa7063.png — (a) Temperature-dependent lattice thermal conductivity

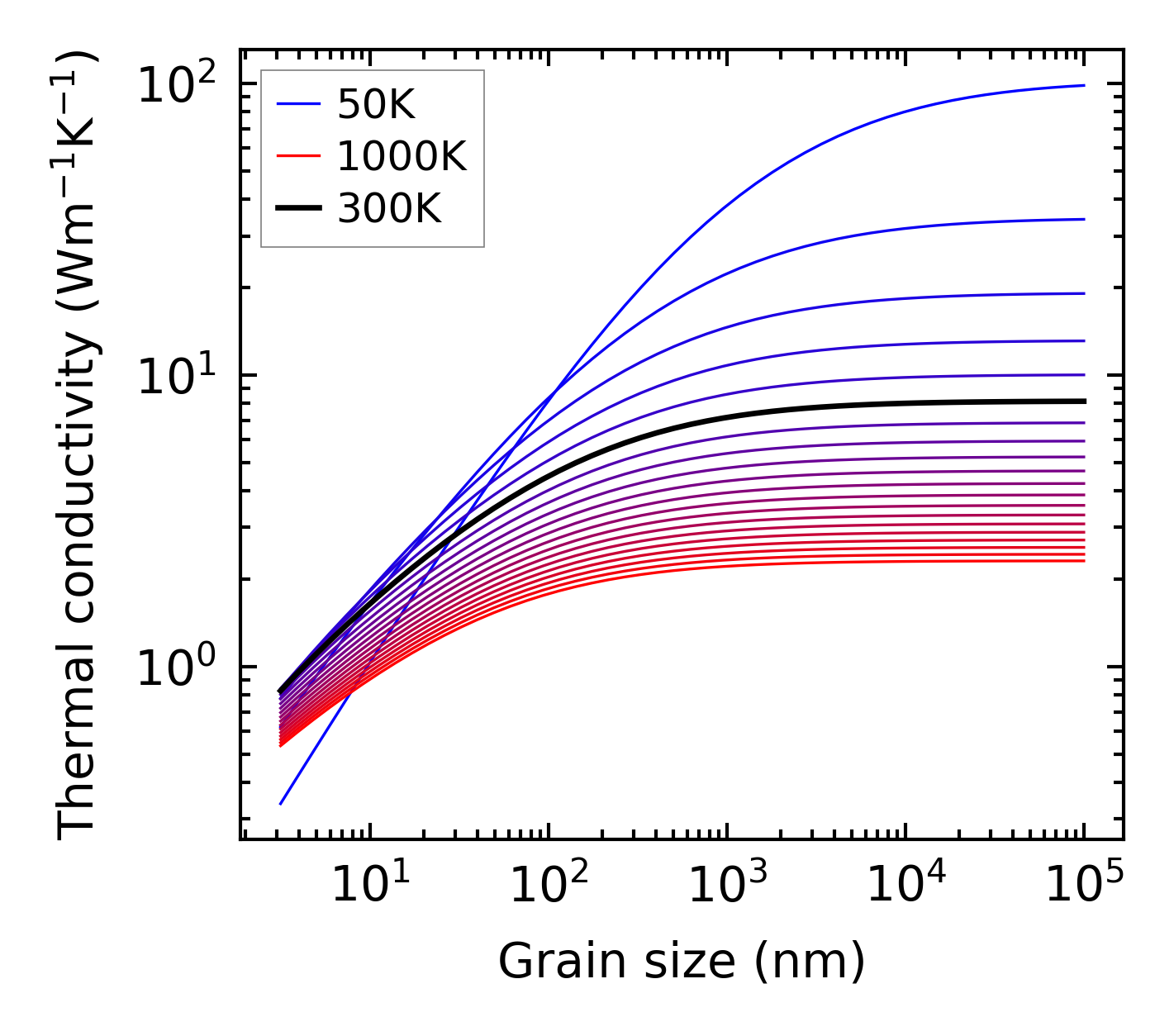

../../_images/fig_kappa_vs_grain_size3791.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

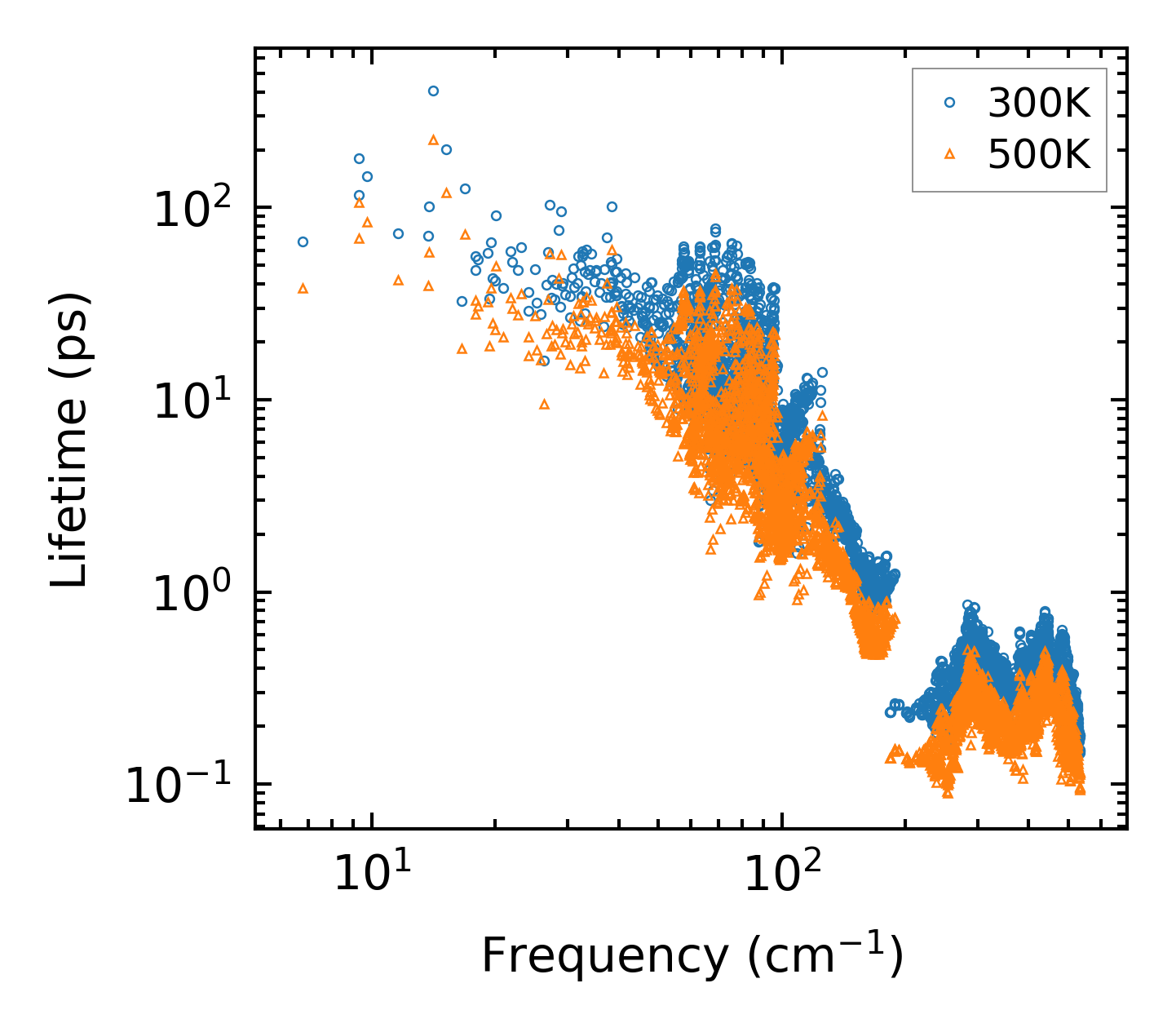

../../_images/fig_lifetime3707.png — (a) Phonon lifetime due to phonon-phonon scattering

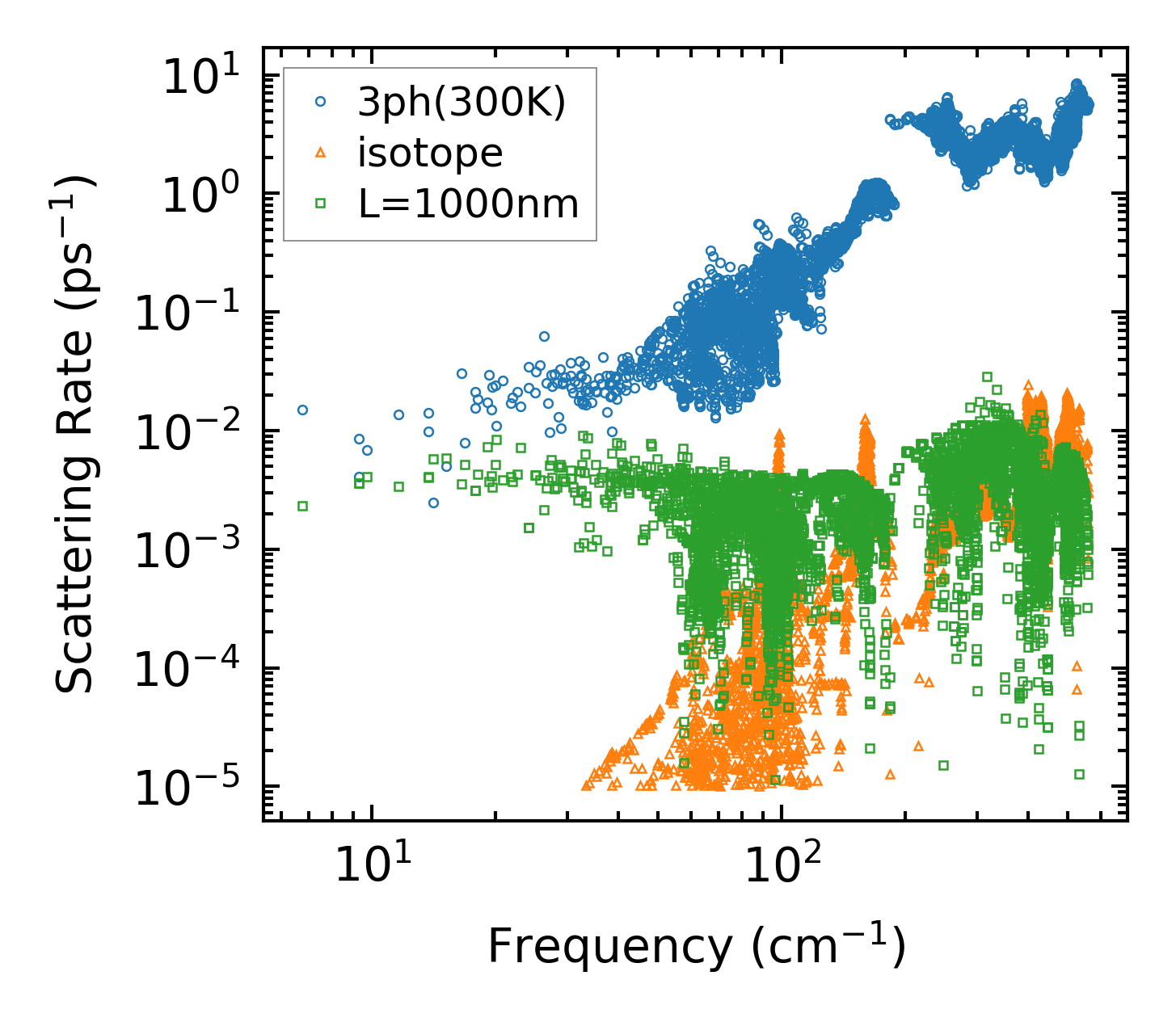

../../_images/fig_scat_rates3706.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

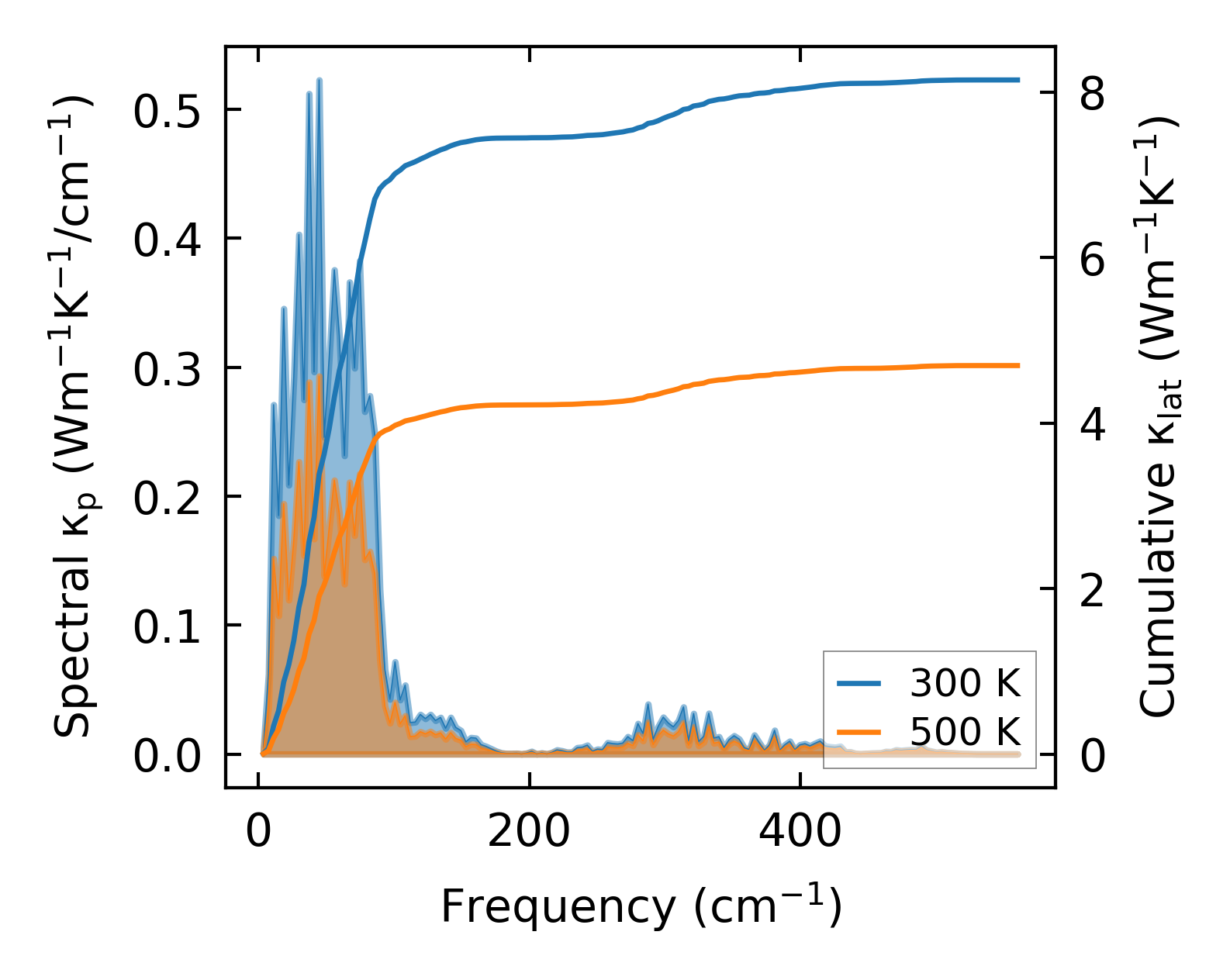

../../_images/fig_cumu_frequency3707.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

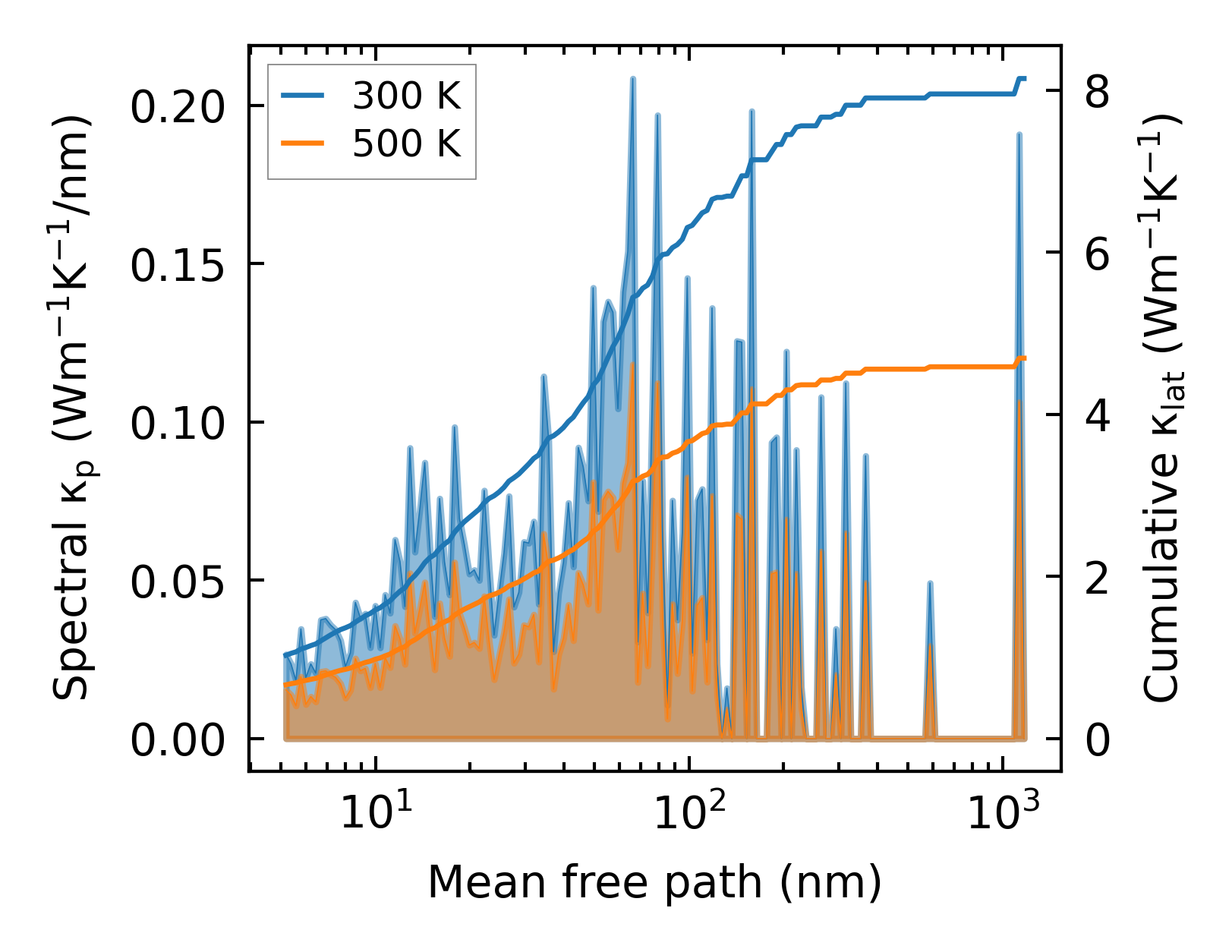

../../_images/fig_cumu_mfp3706.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

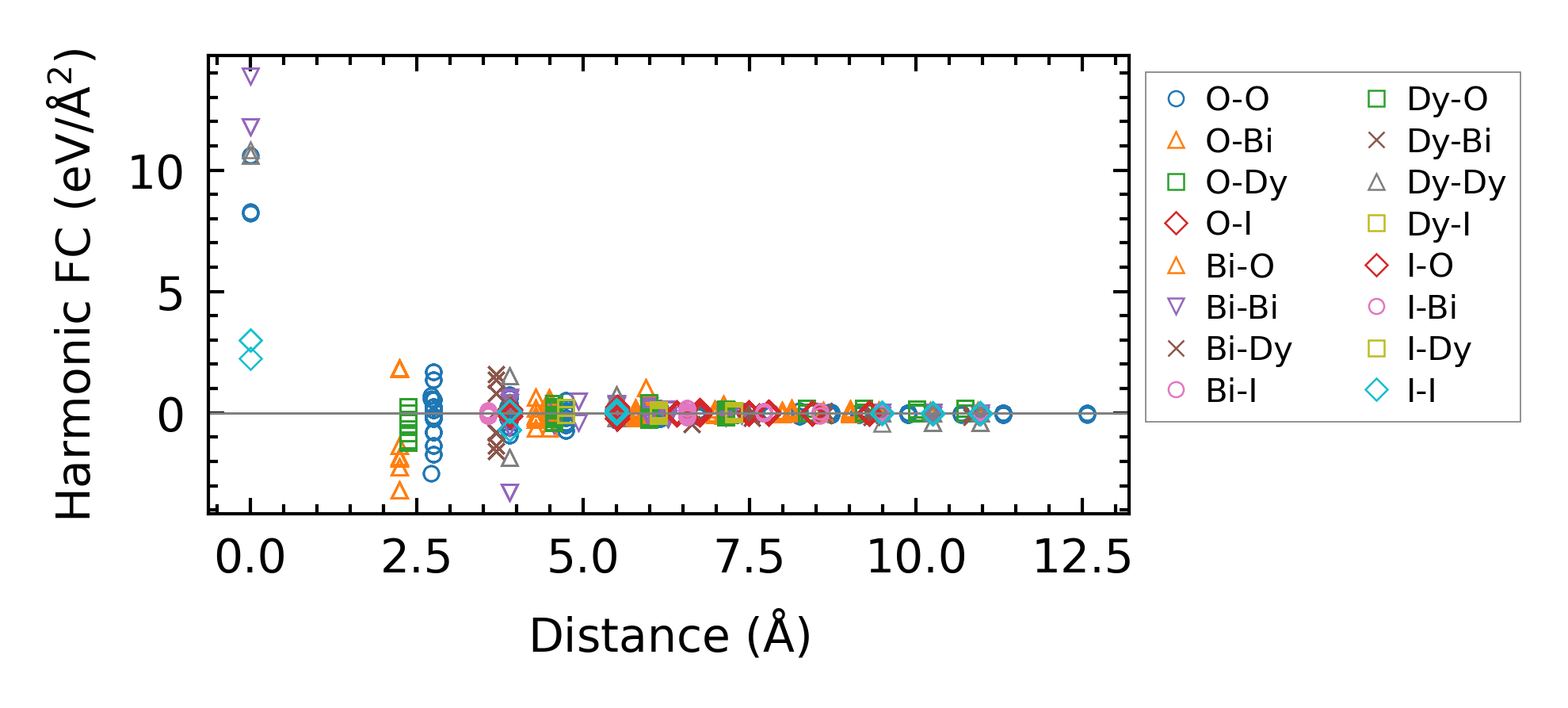

../../_images/fig_fc29168.png — (a) Force constants w.r.t atomic distance

Summary

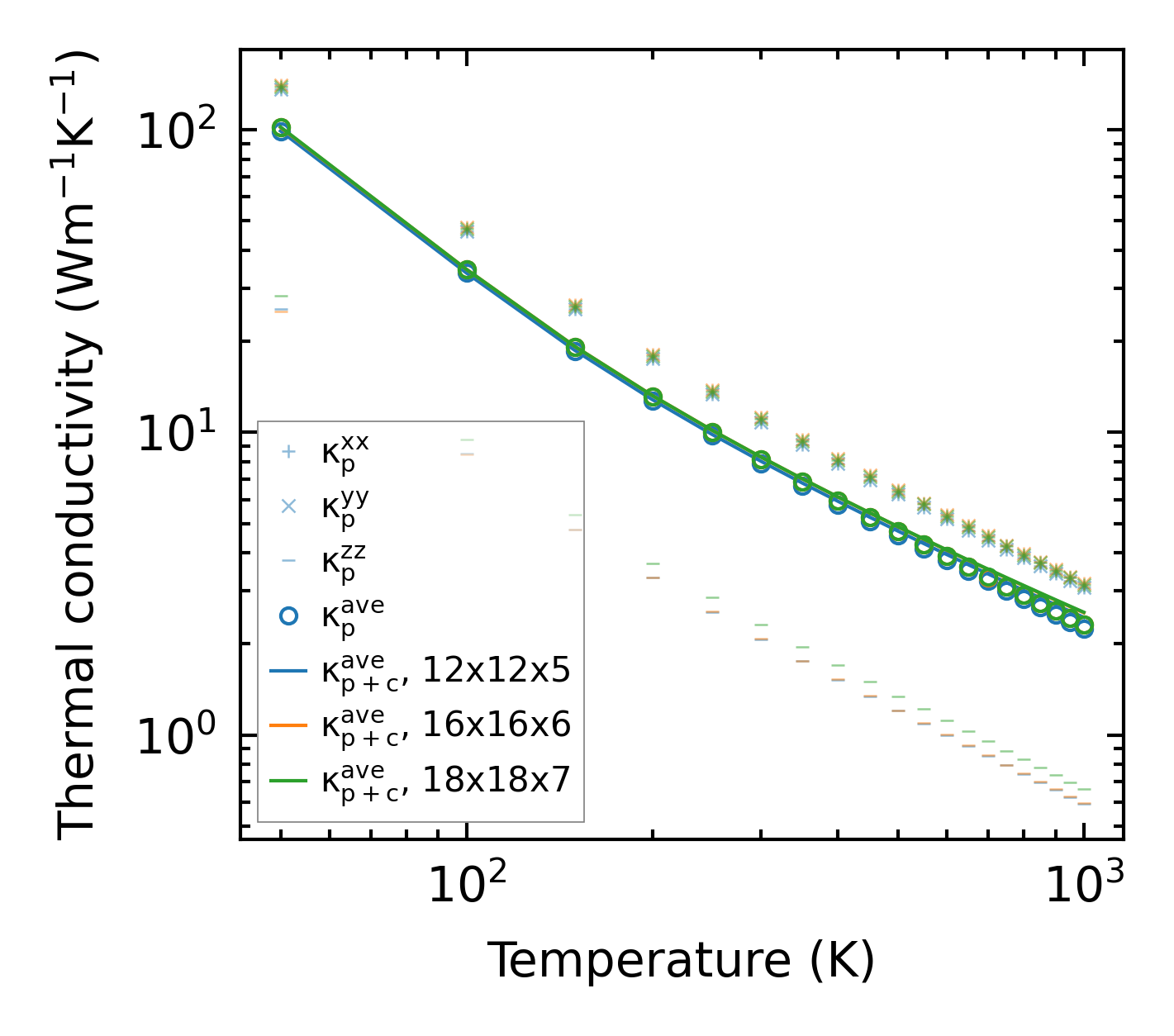

../../_images/fig_kappa7064.png — (a) Temperature-dependent lattice thermal conductivity

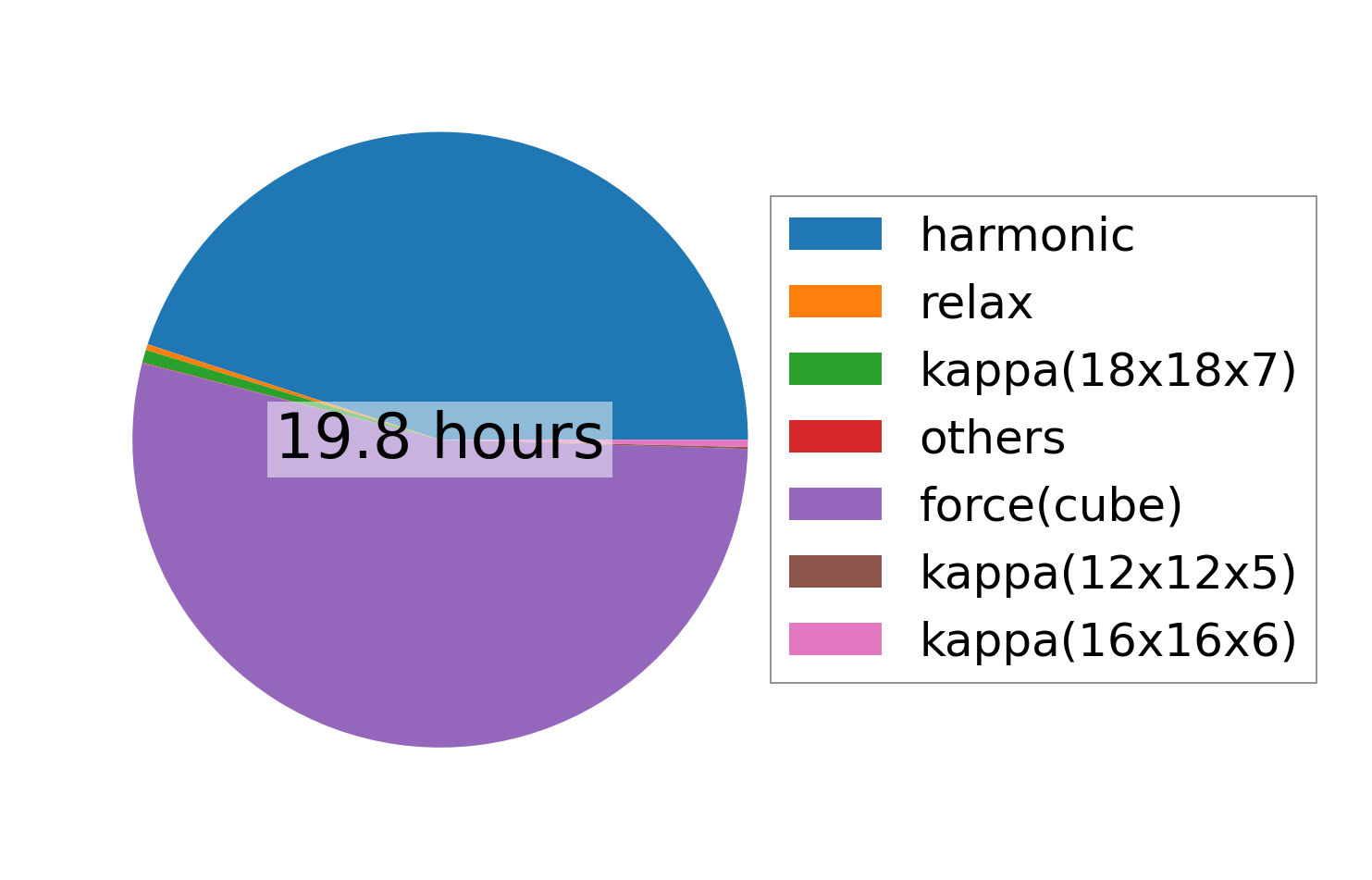

../../_images/fig_times16379.png — (b) Computation time
