mp-1215443-2/ZnGaPS/anharm

Space group: R3m (160)
Link: Materials Project
Download: mp-1215443-2.tar.gz

Equation of state

../../_images/fig_bm7582.png — (a) Equation of state

Harmonic properties

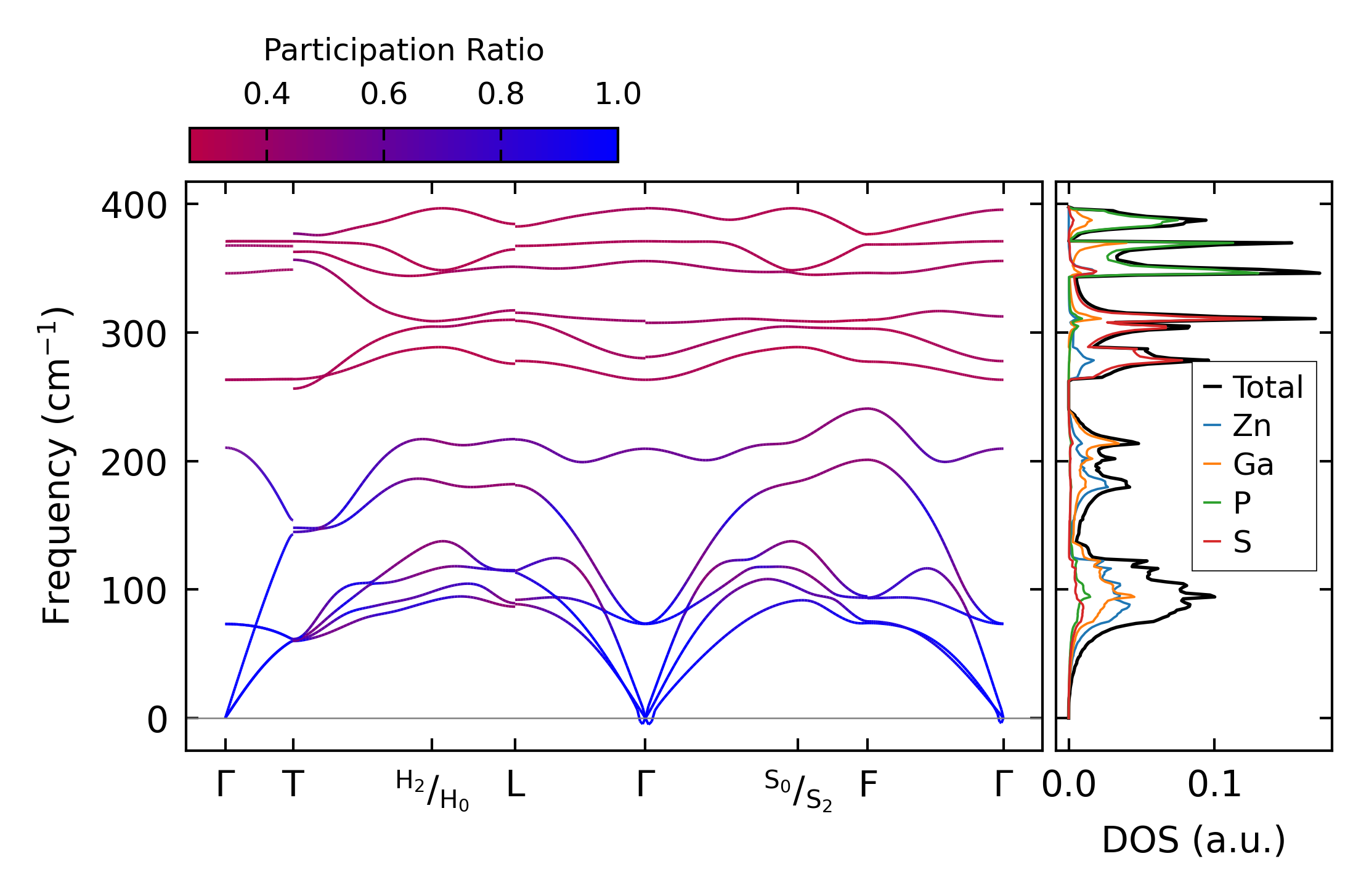

../../_images/fig_bandos_pr15506.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_bandos19890.png — (b) Phonon dispersion and DOS

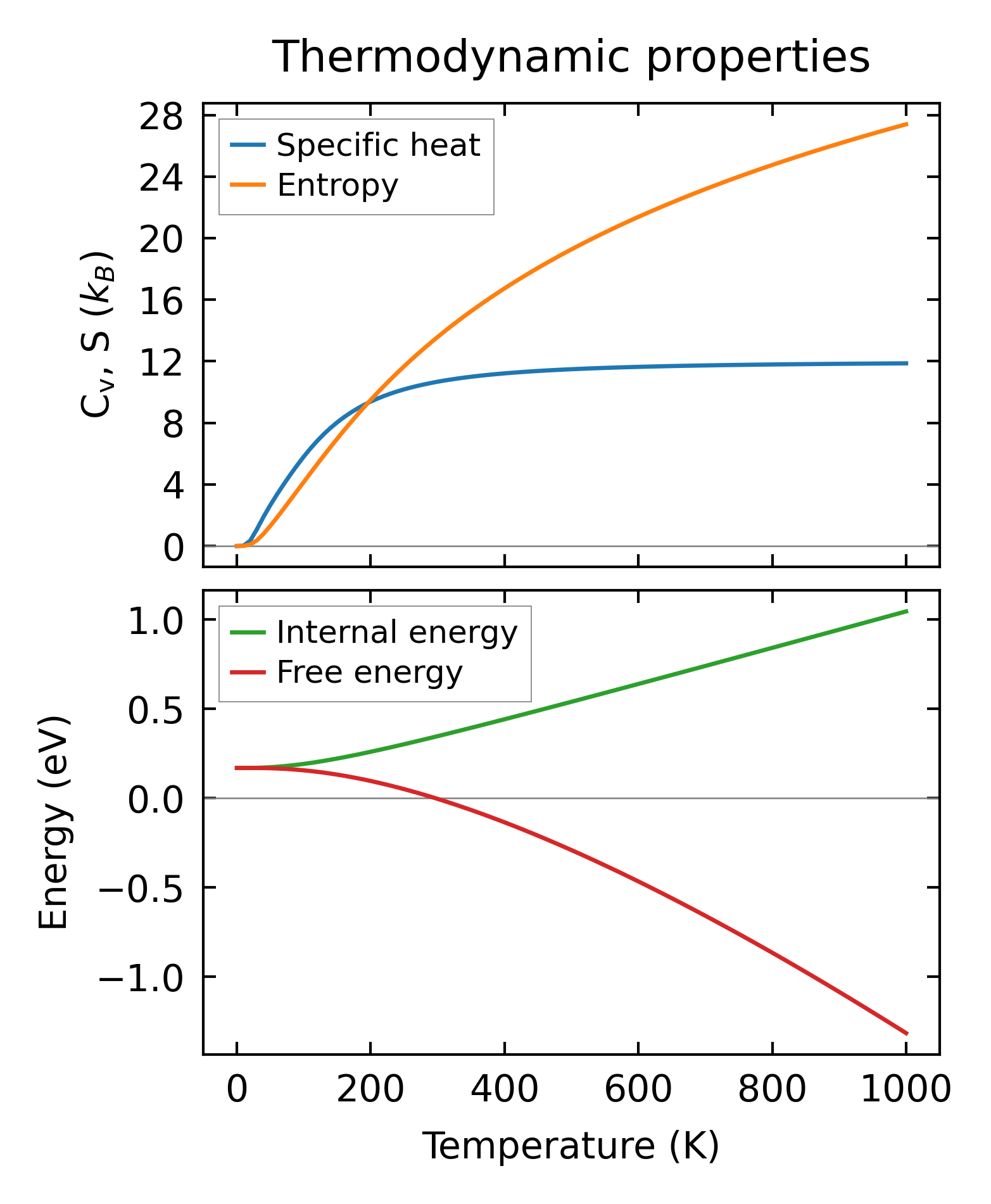

../../_images/fig_thermo15505.png — (c) Thermodynamic properties

Grüneisen parameters

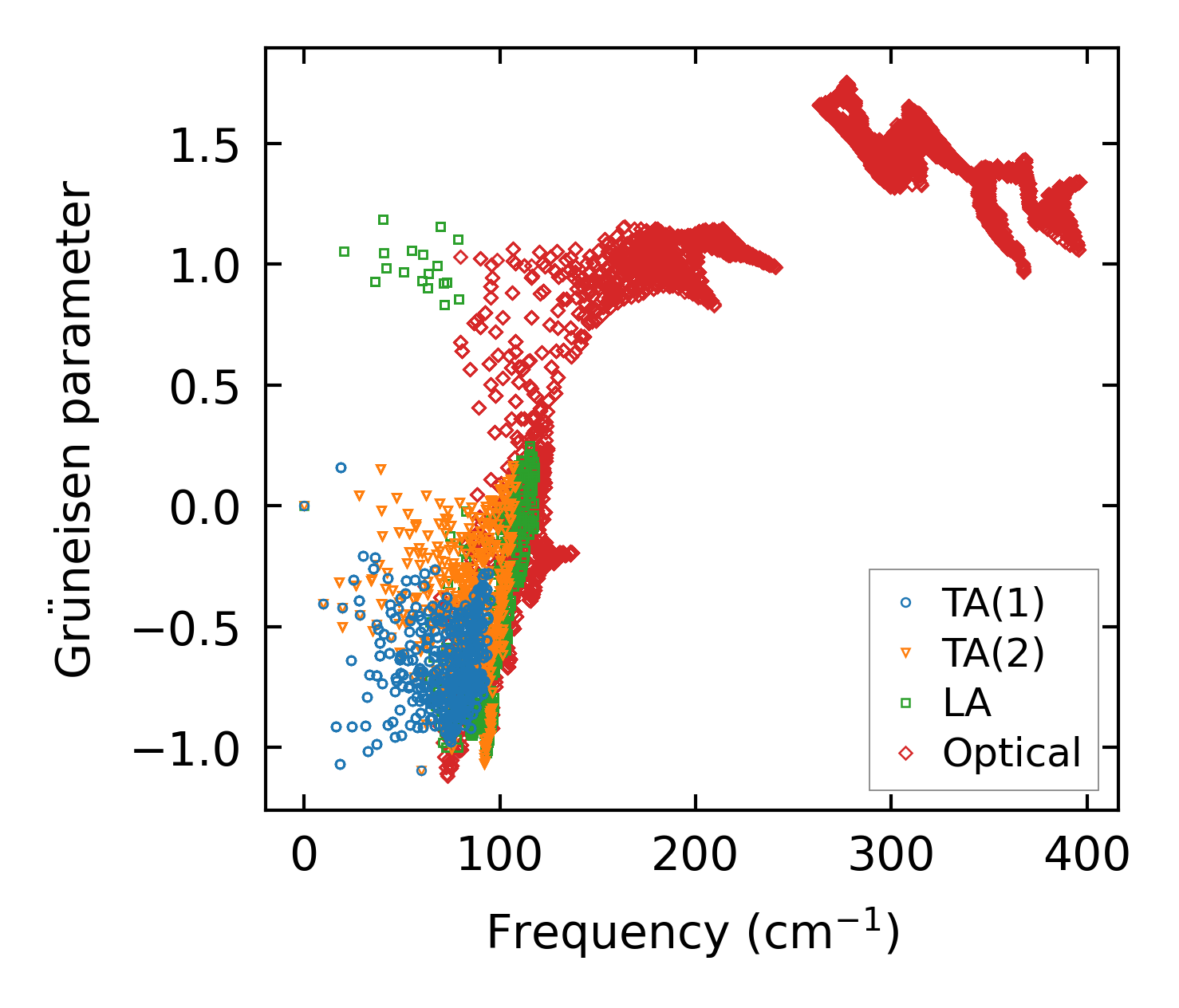

../../_images/fig_gru_all6711.png — (a) Grüneisen parameters

../../_images/fig_gruneisen6711.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO), supercell 4x4x1 — q-mesh: 16x16x16, supercell: 4x4x1

../../_images/fig_kappa12639.png — (a) Temperature-dependent lattice thermal conductivity

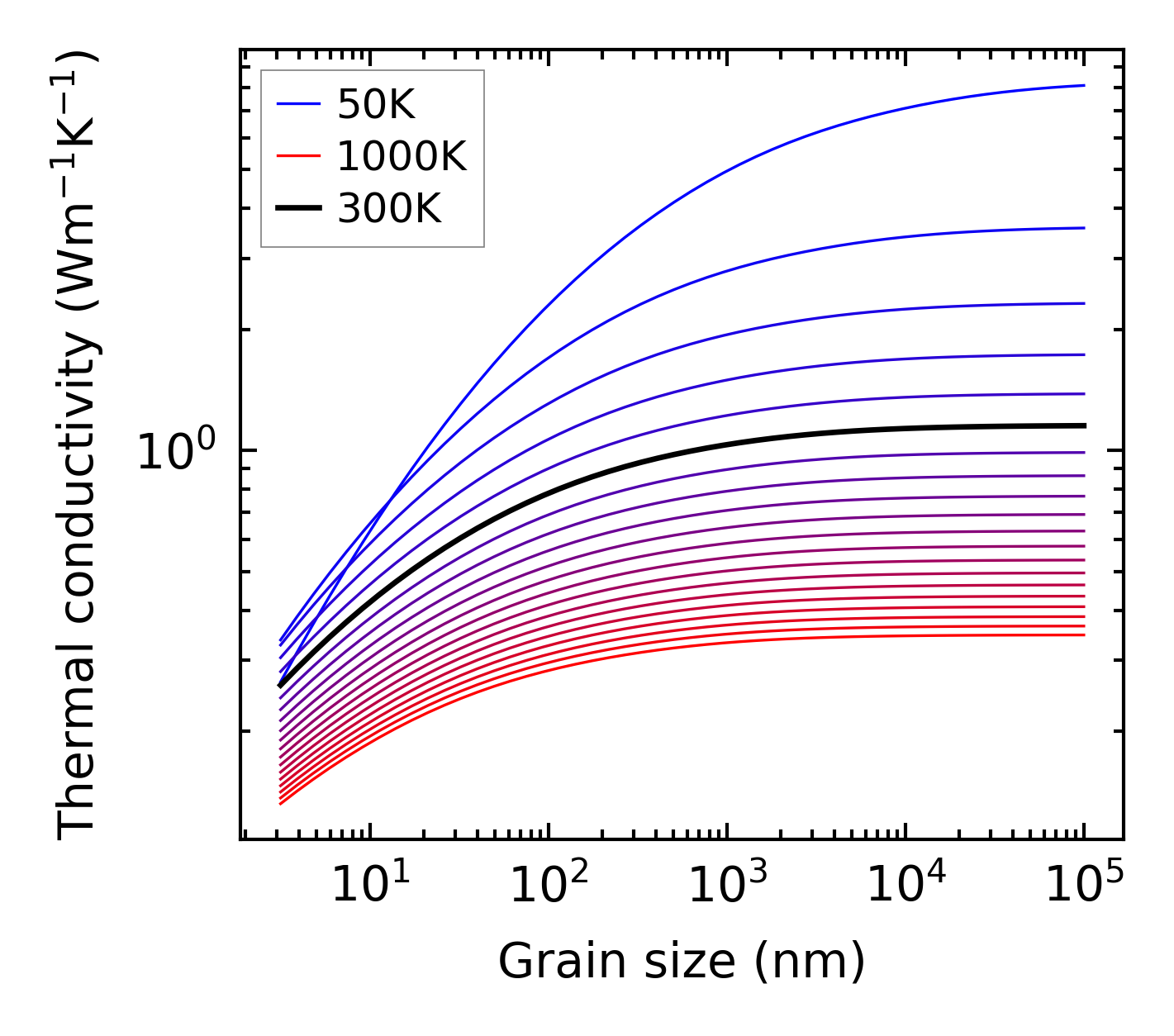

../../_images/fig_kappa_vs_grain_size6790.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

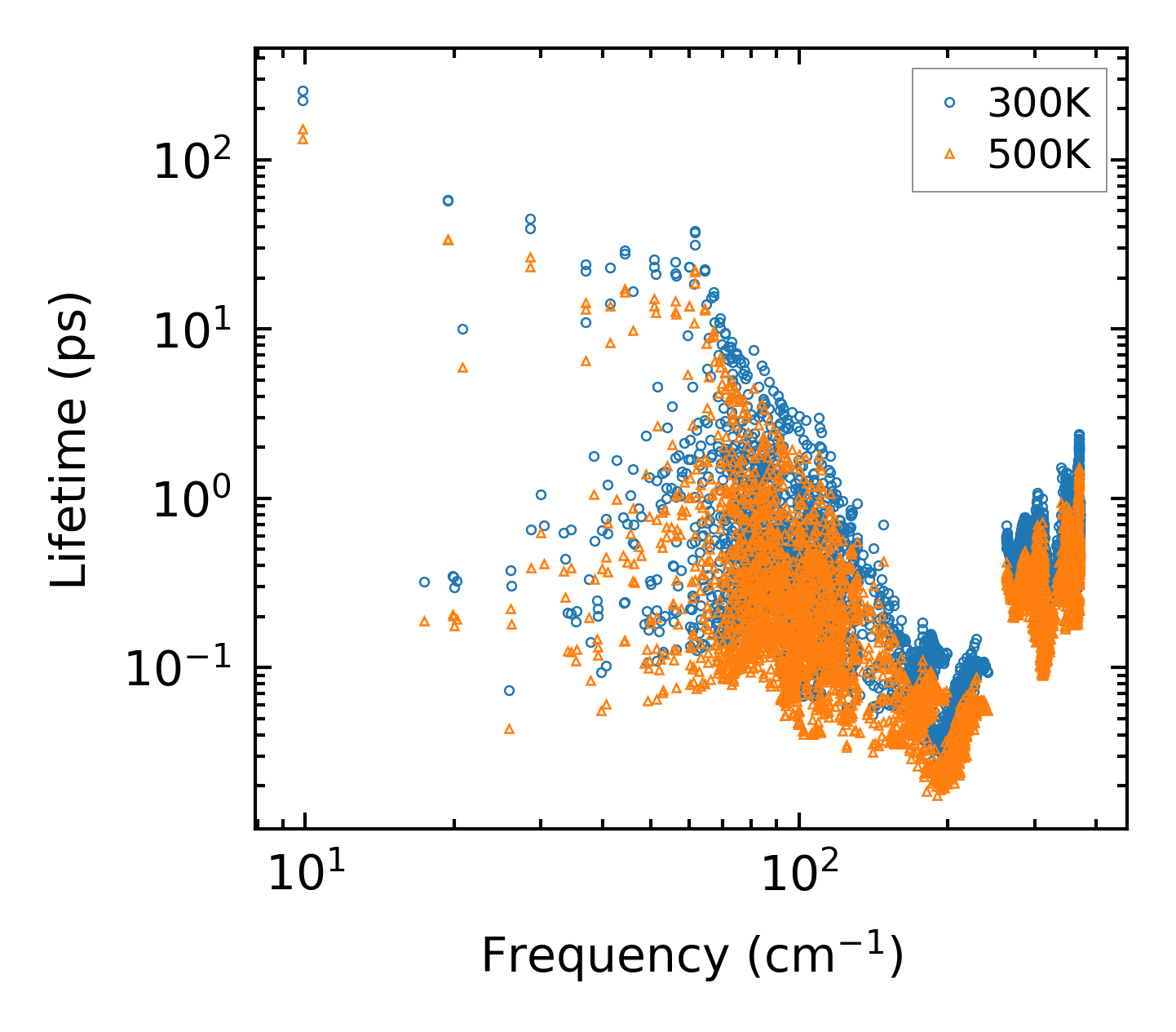

../../_images/fig_lifetime6645.png — (a) Phonon lifetime due to phonon-phonon scattering

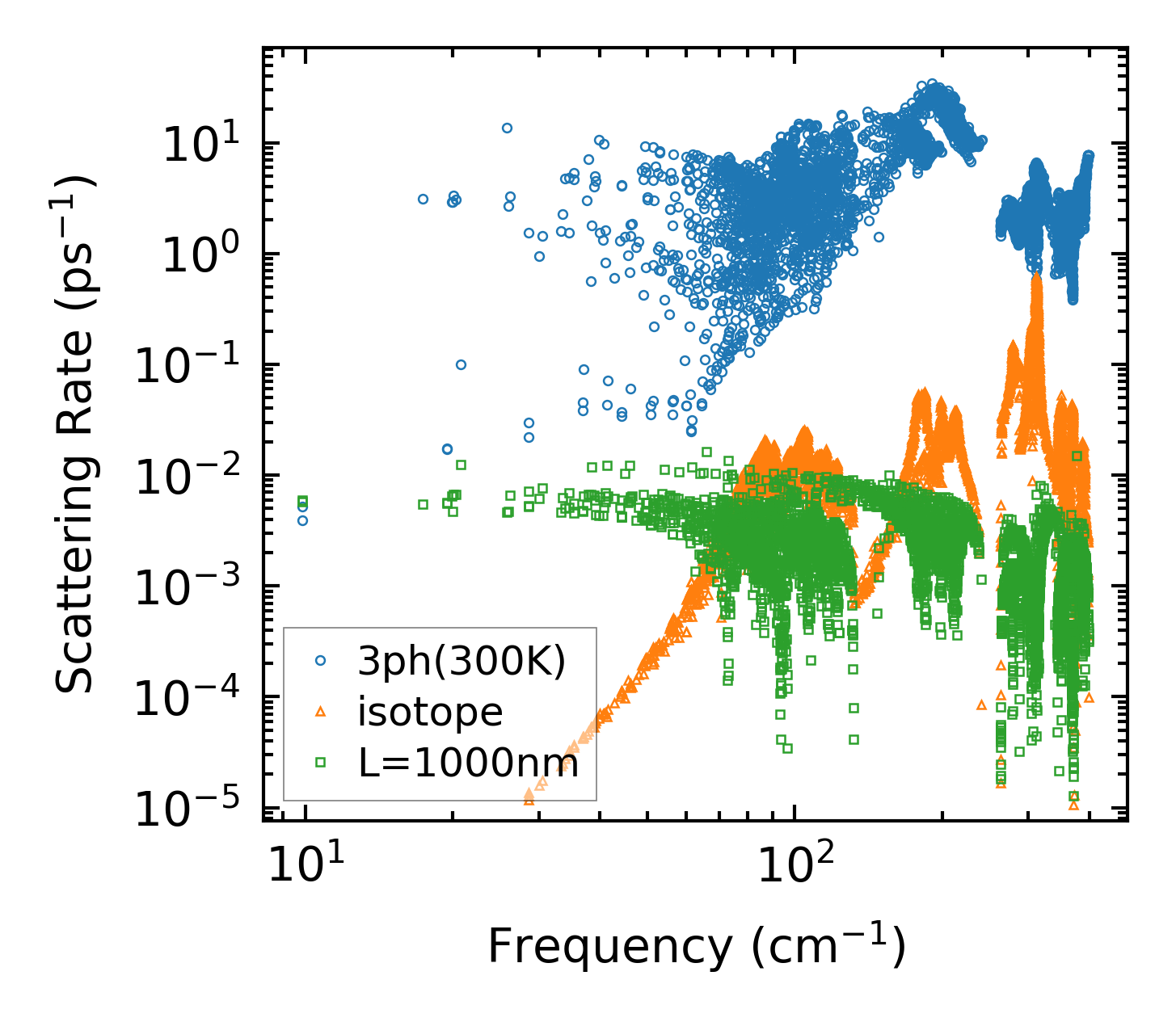

../../_images/fig_scat_rates6644.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

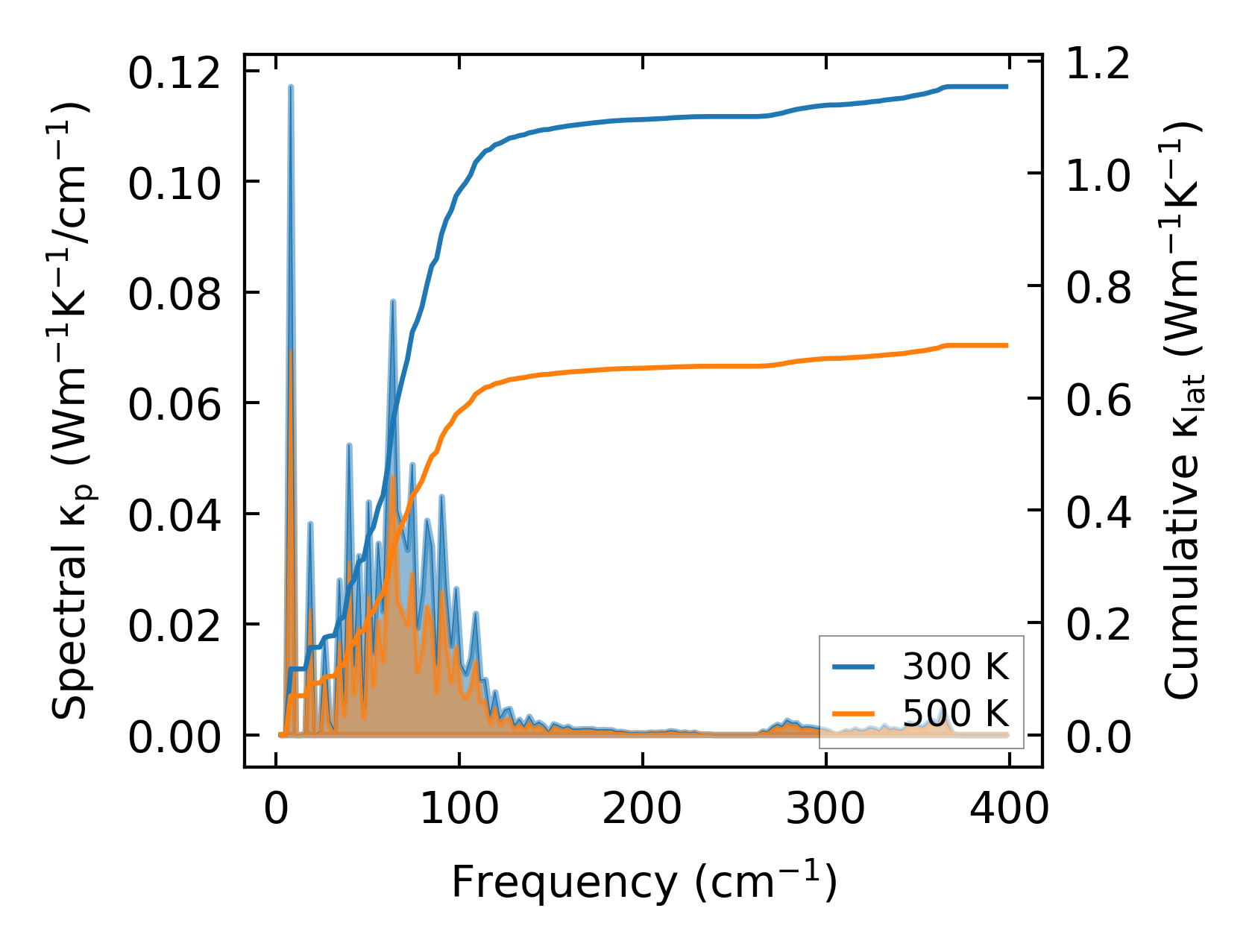

../../_images/fig_cumu_frequency6645.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

../../_images/fig_cumu_mfp6644.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

../../_images/fig_fc215101.png — (a) Force constants w.r.t atomic distance

Summary

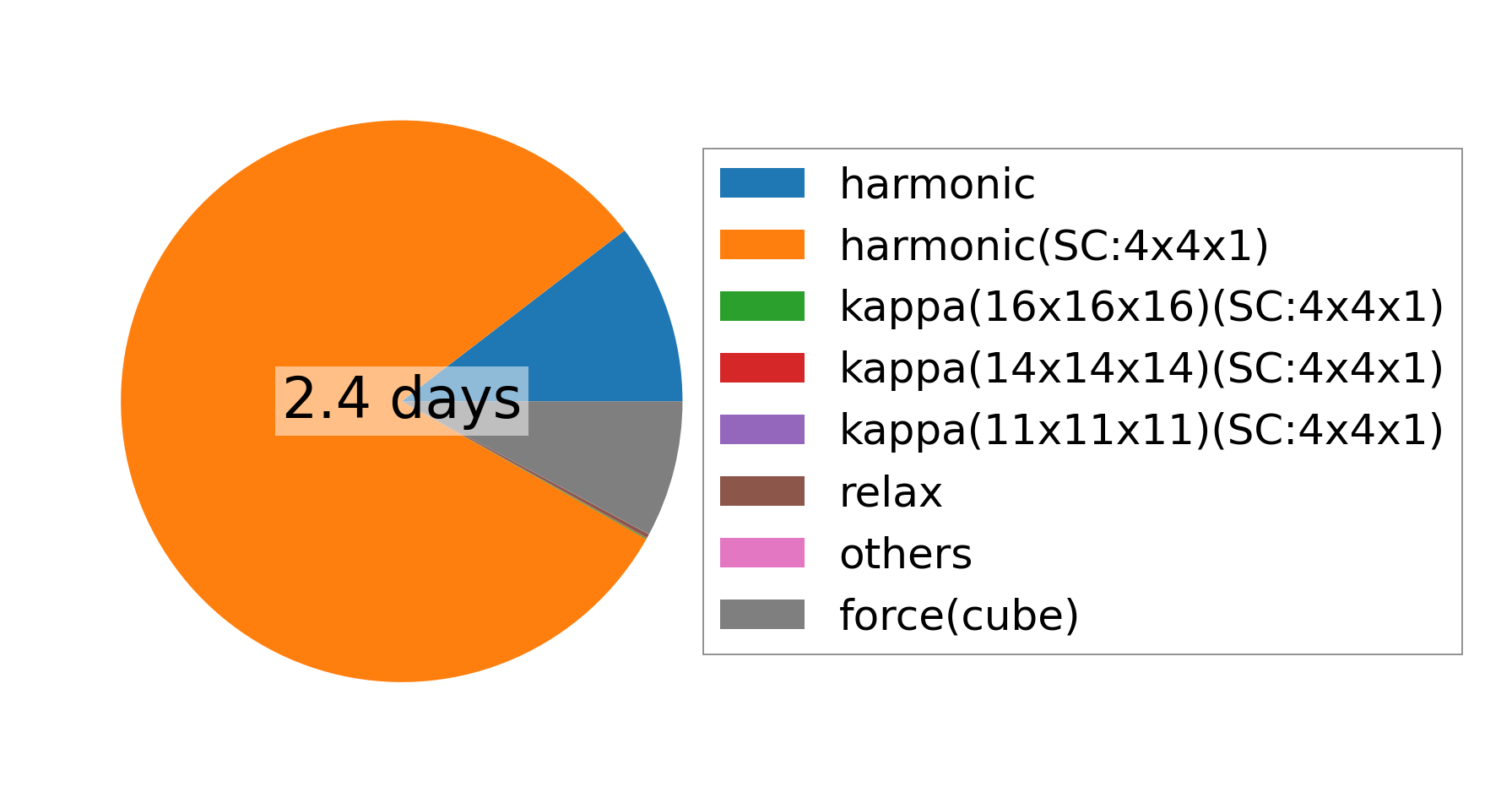

../../_images/fig_times25622.png — (a) Computation time
