mp-1080281/CeSe2/anharm

Space group: C2/m (12)
Link: Materials Project
Download: mp-1080281.tar.gz

Harmonic properties

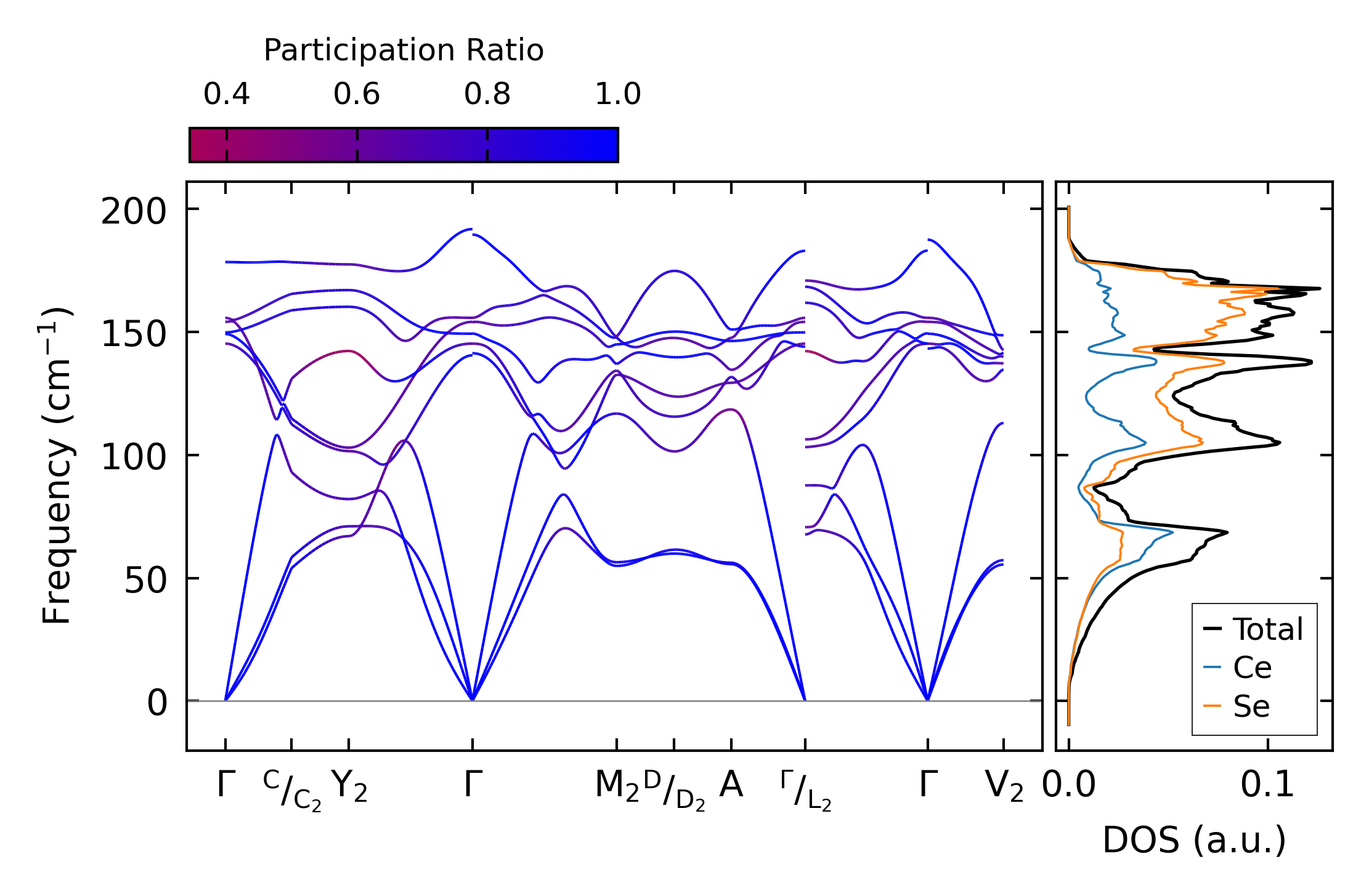

../../_images/fig_bandos_pr16982.png — (a) Phonon dispersion with participation ratio and DOS

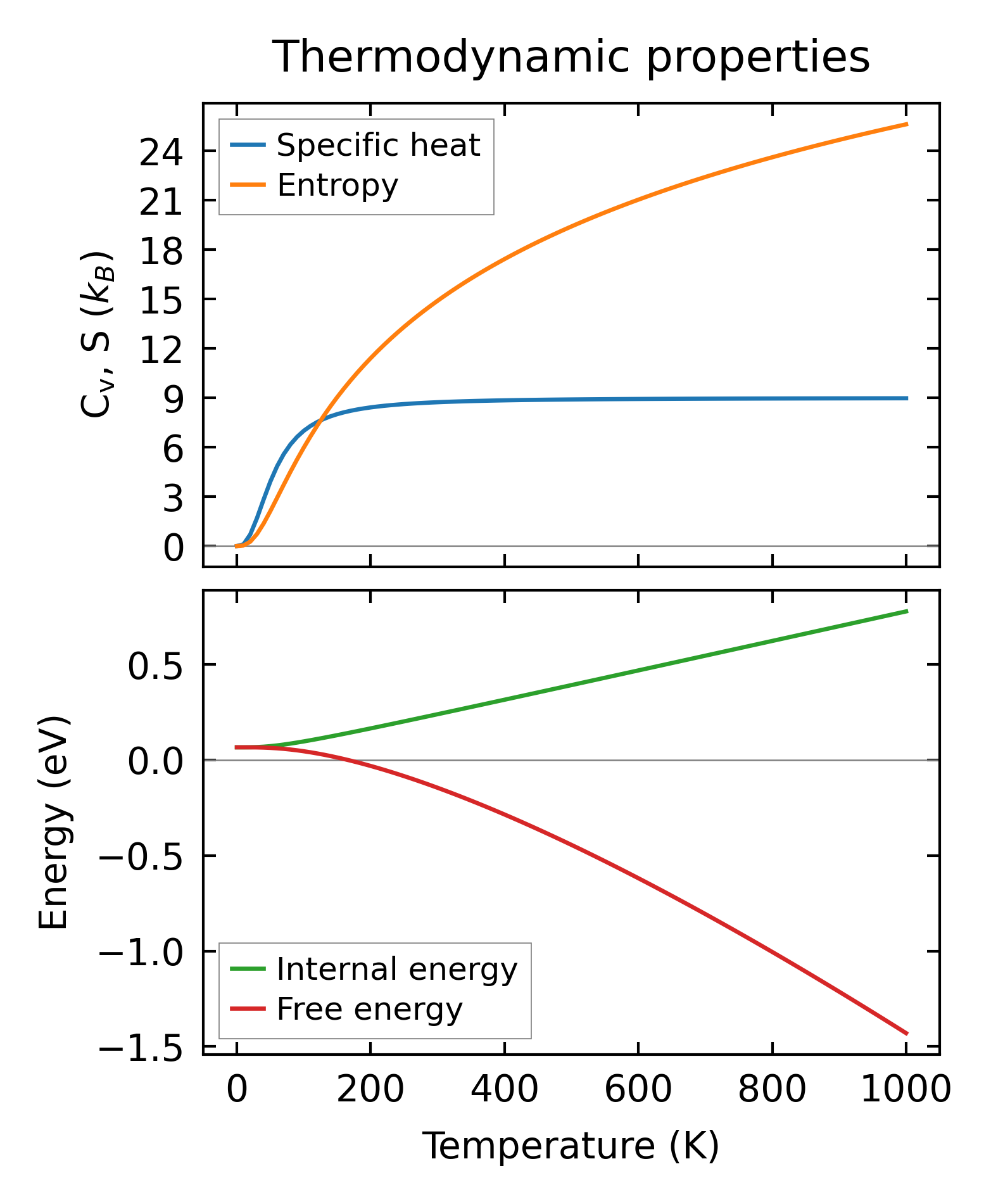

../../_images/fig_thermo16981.png — (b) Thermodynamic properties

Grüneisen parameters

../../_images/fig_gru_all7440.png — (a) Grüneisen parameters

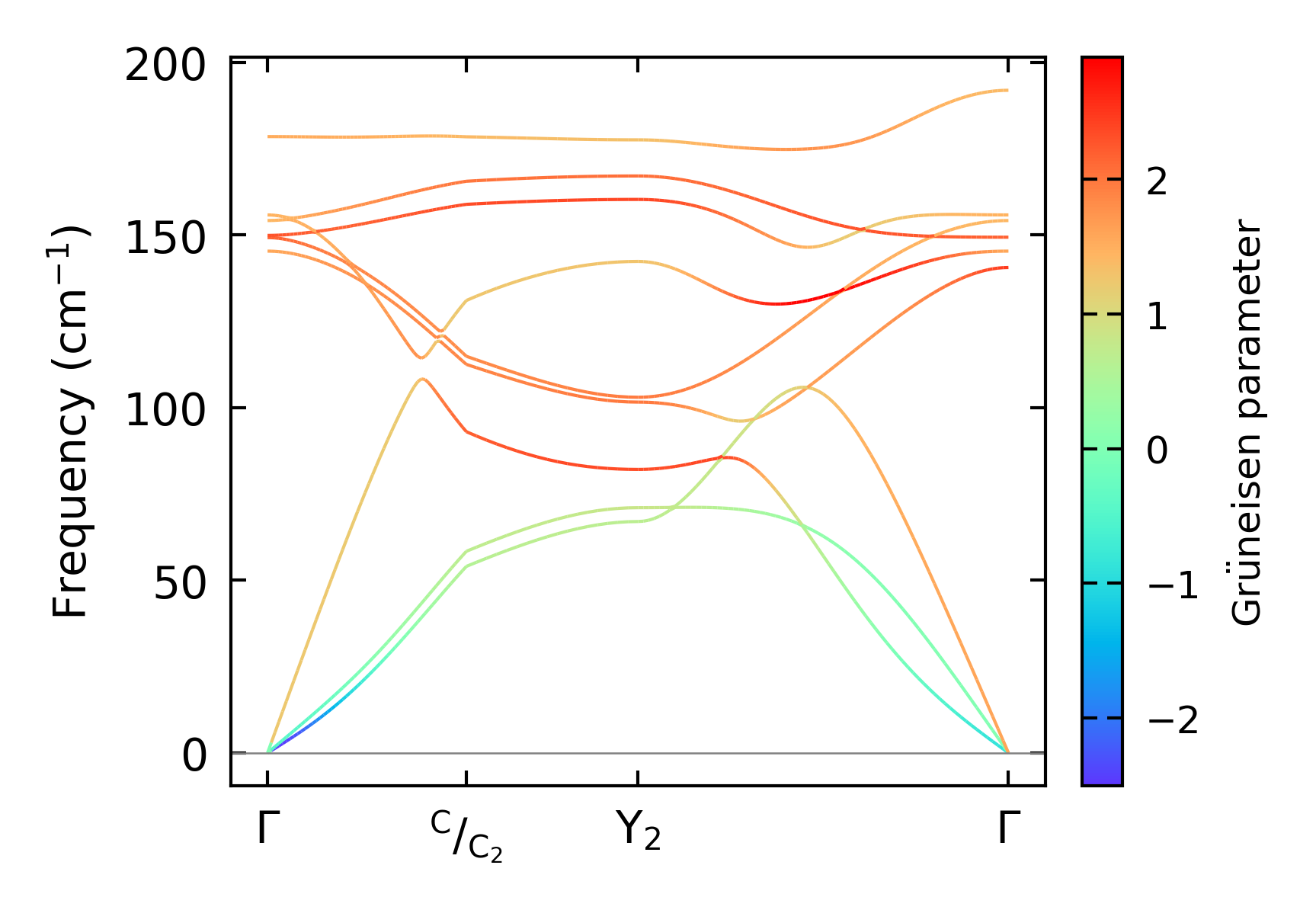

../../_images/fig_gruneisen7440.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 16x16x16, supercell: 3x4x2

../../_images/fig_kappa14031.png — (a) Temperature-dependent lattice thermal conductivity

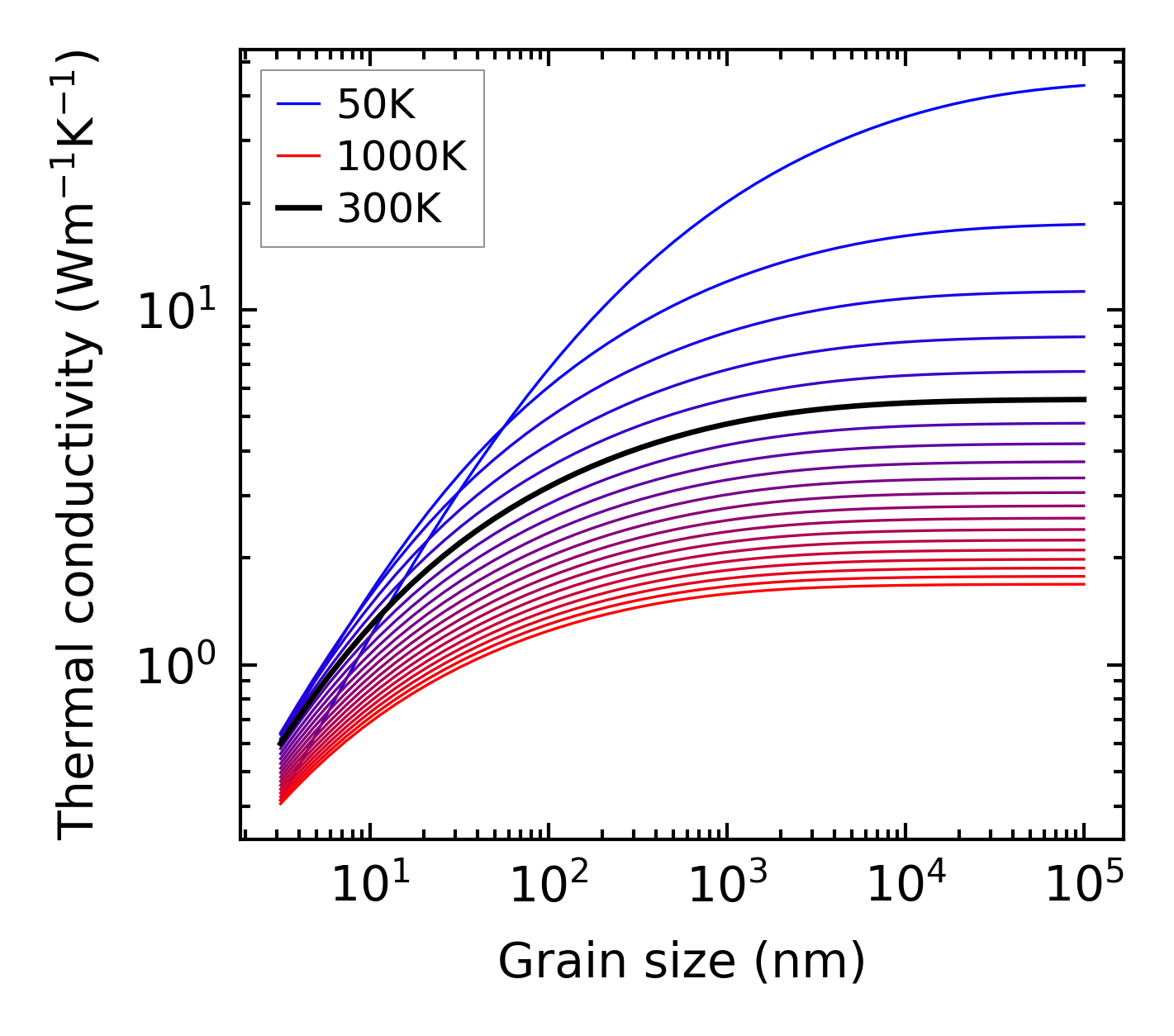

../../_images/fig_kappa_vs_grain_size7527.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

../../_images/fig_lifetime7373.png — (a) Phonon lifetime due to phonon-phonon scattering

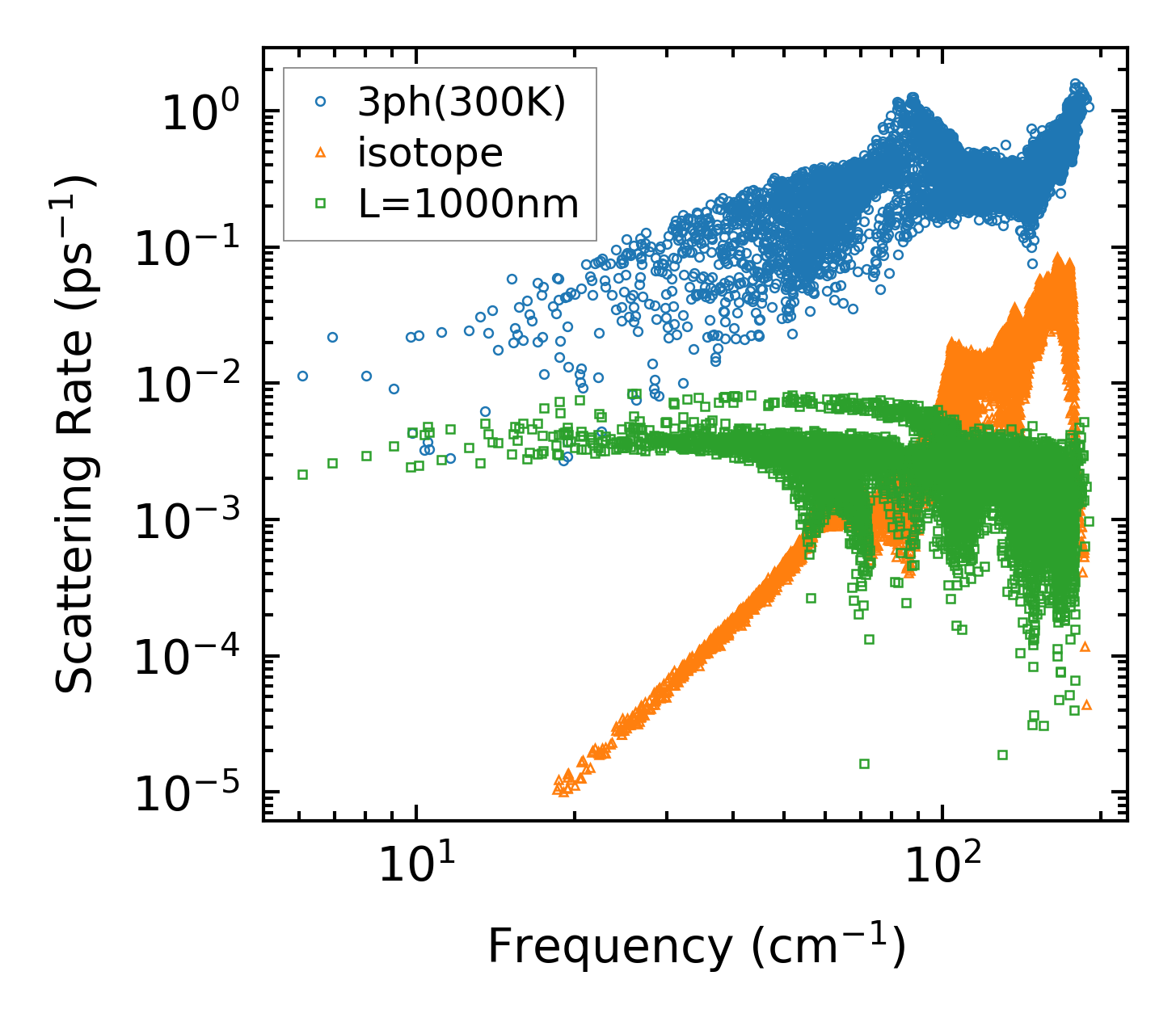

../../_images/fig_scat_rates7372.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

../../_images/fig_cumu_frequency7373.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

../../_images/fig_cumu_mfp7372.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

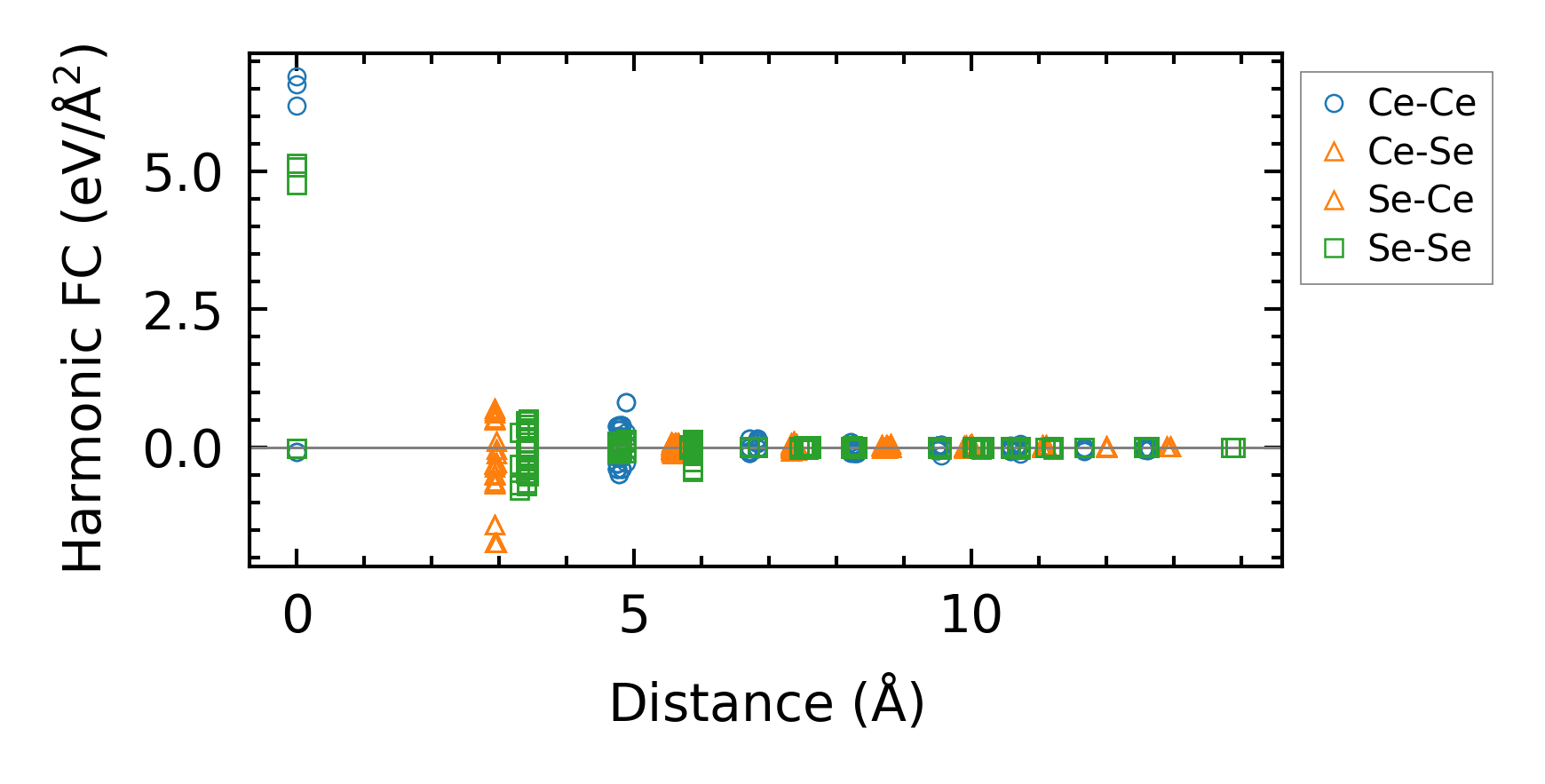

../../_images/fig_fc216534.png — (a) Force constants w.r.t atomic distance

Summary

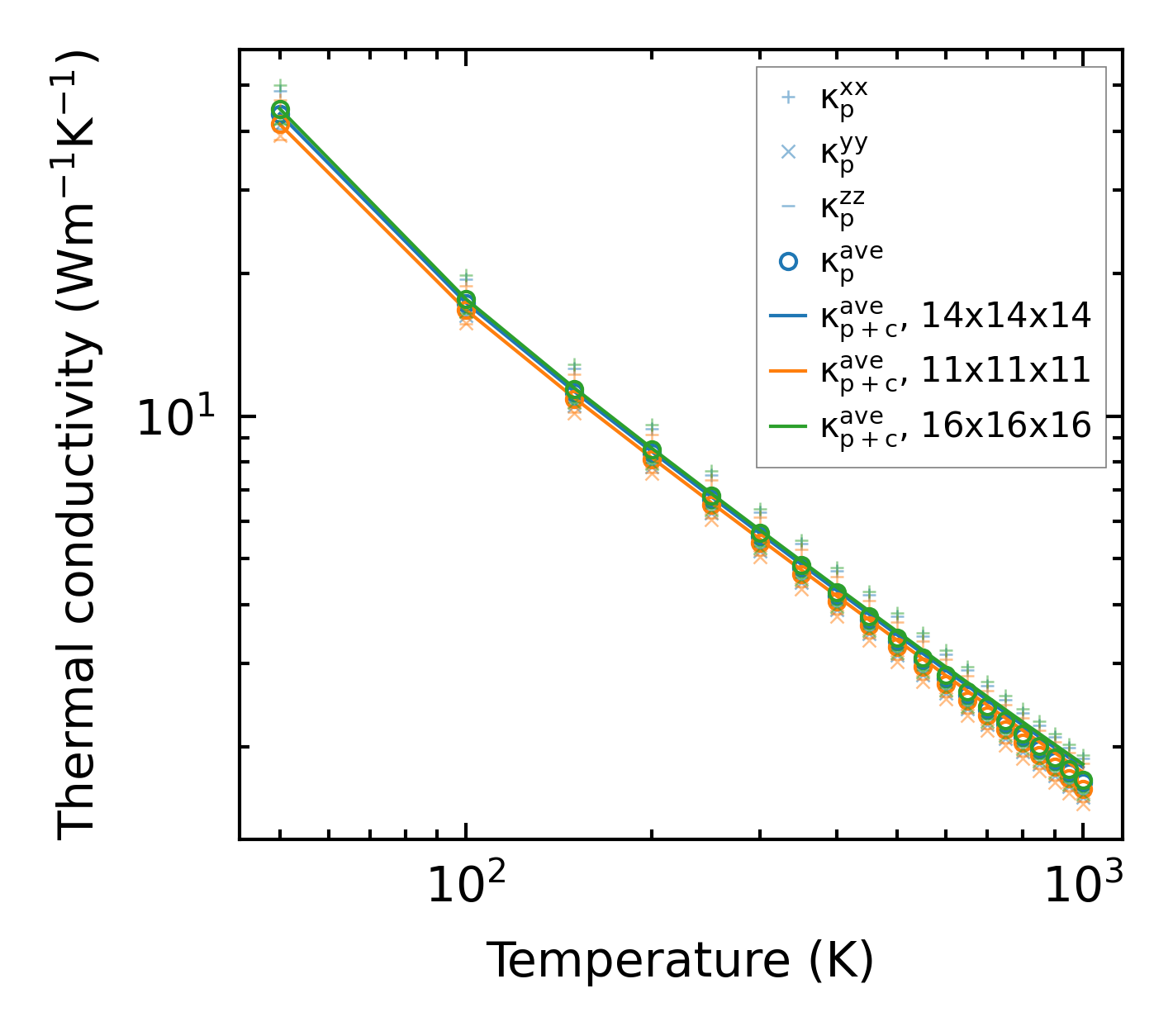

../../_images/fig_kappa14032.png — (a) Temperature-dependent lattice thermal conductivity

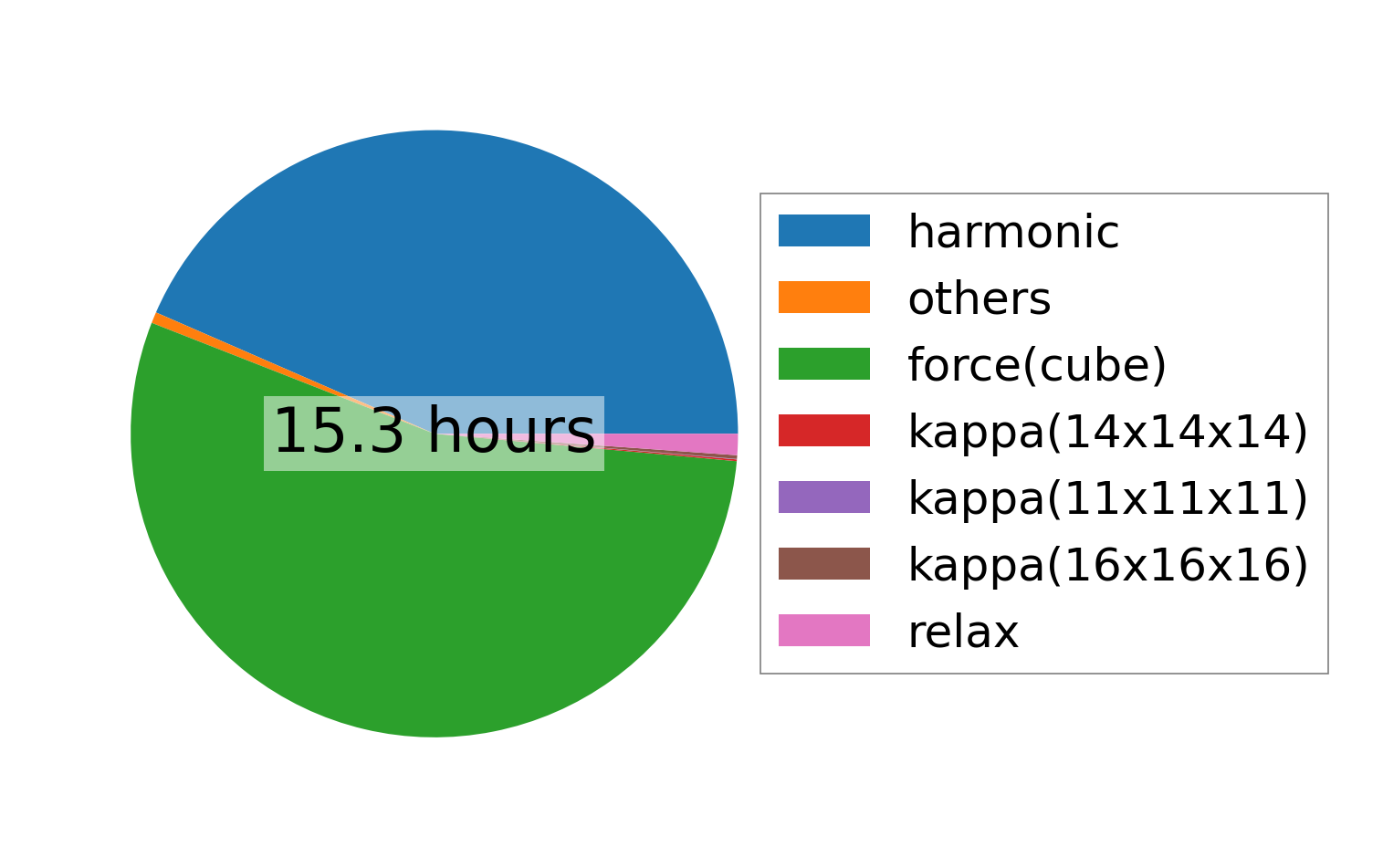

../../_images/fig_times27675.png — (b) Computation time
