mp-1080149/YbCu2S2/anharm

Space group: P-3m1 (164)
Link: Materials Project
Download: mp-1080149.tar.gz

Harmonic properties

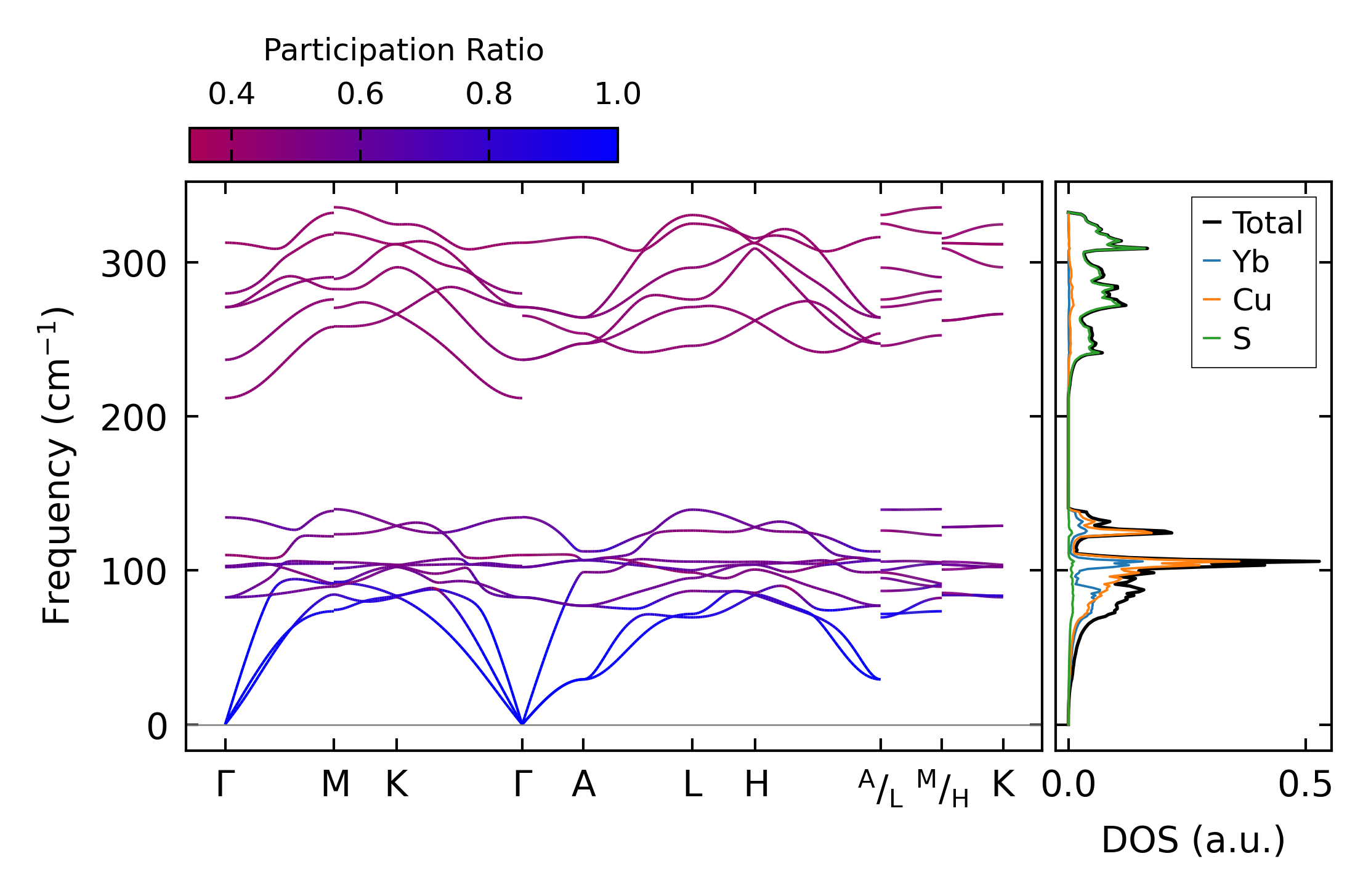

../../_images/fig_bandos_pr16973.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo16972.png — (b) Thermodynamic properties

Grüneisen parameters

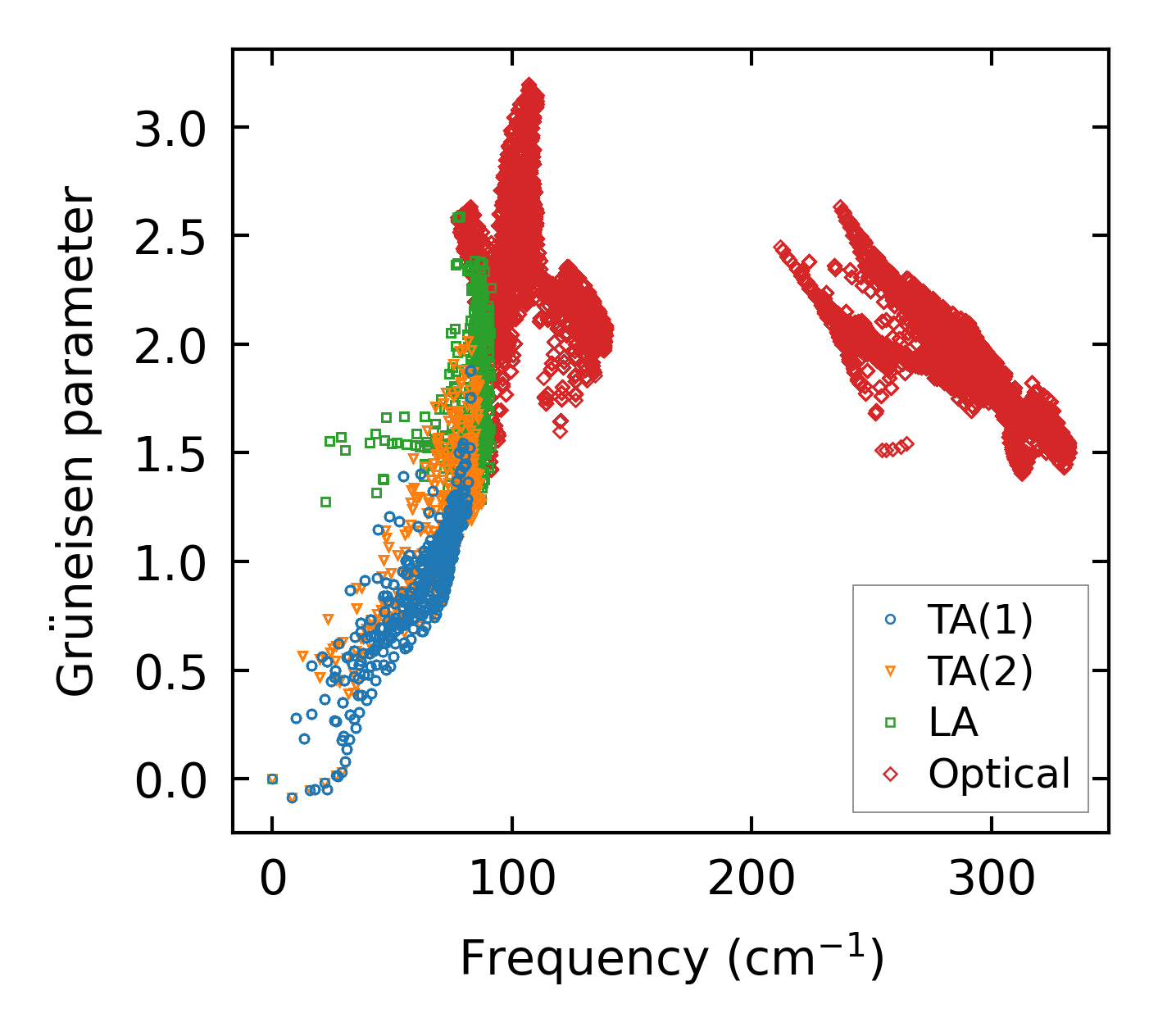

../../_images/fig_gru_all7437.png — (a) Grüneisen parameters

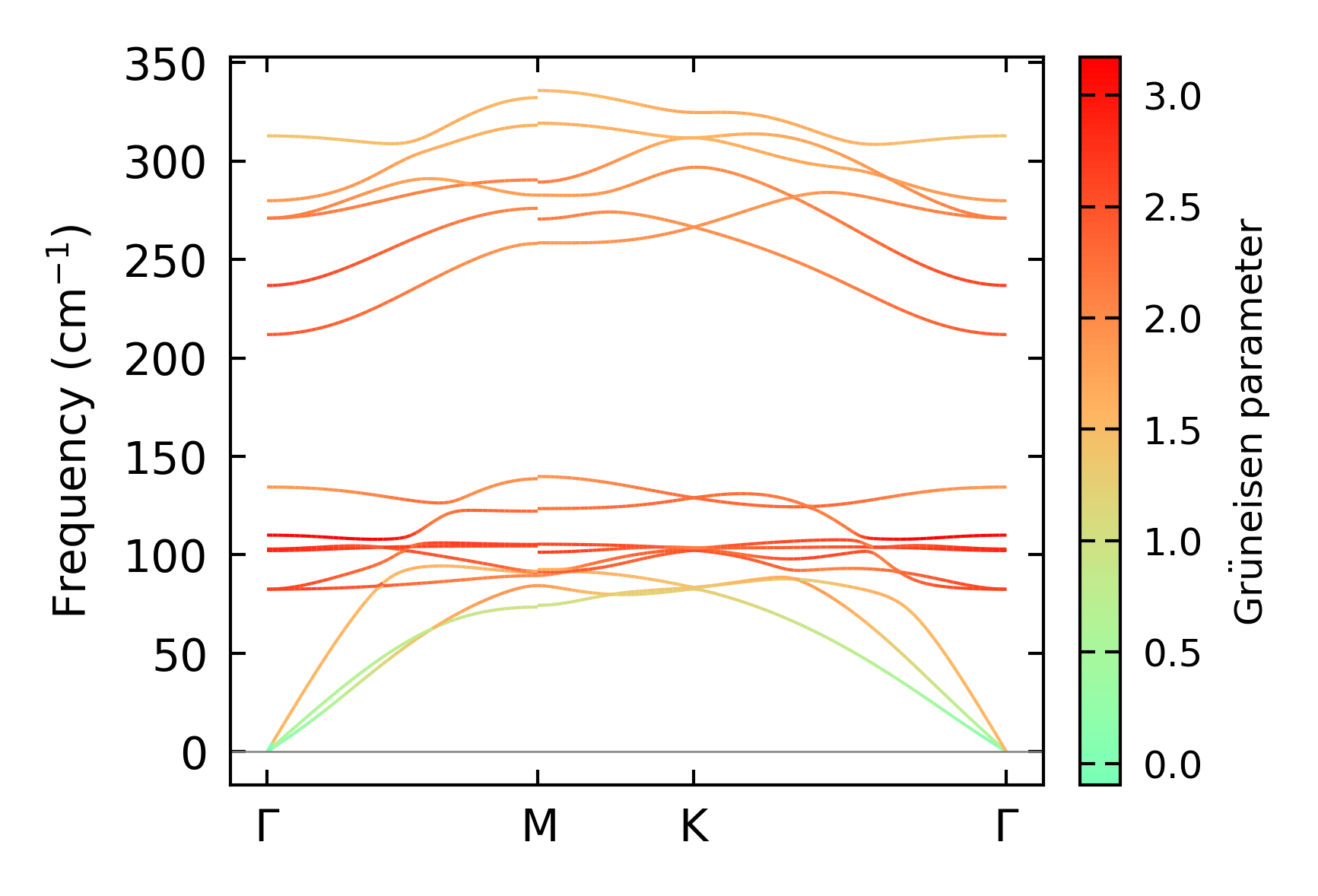

../../_images/fig_gruneisen7437.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 19x19x11, supercell: 3x3x2

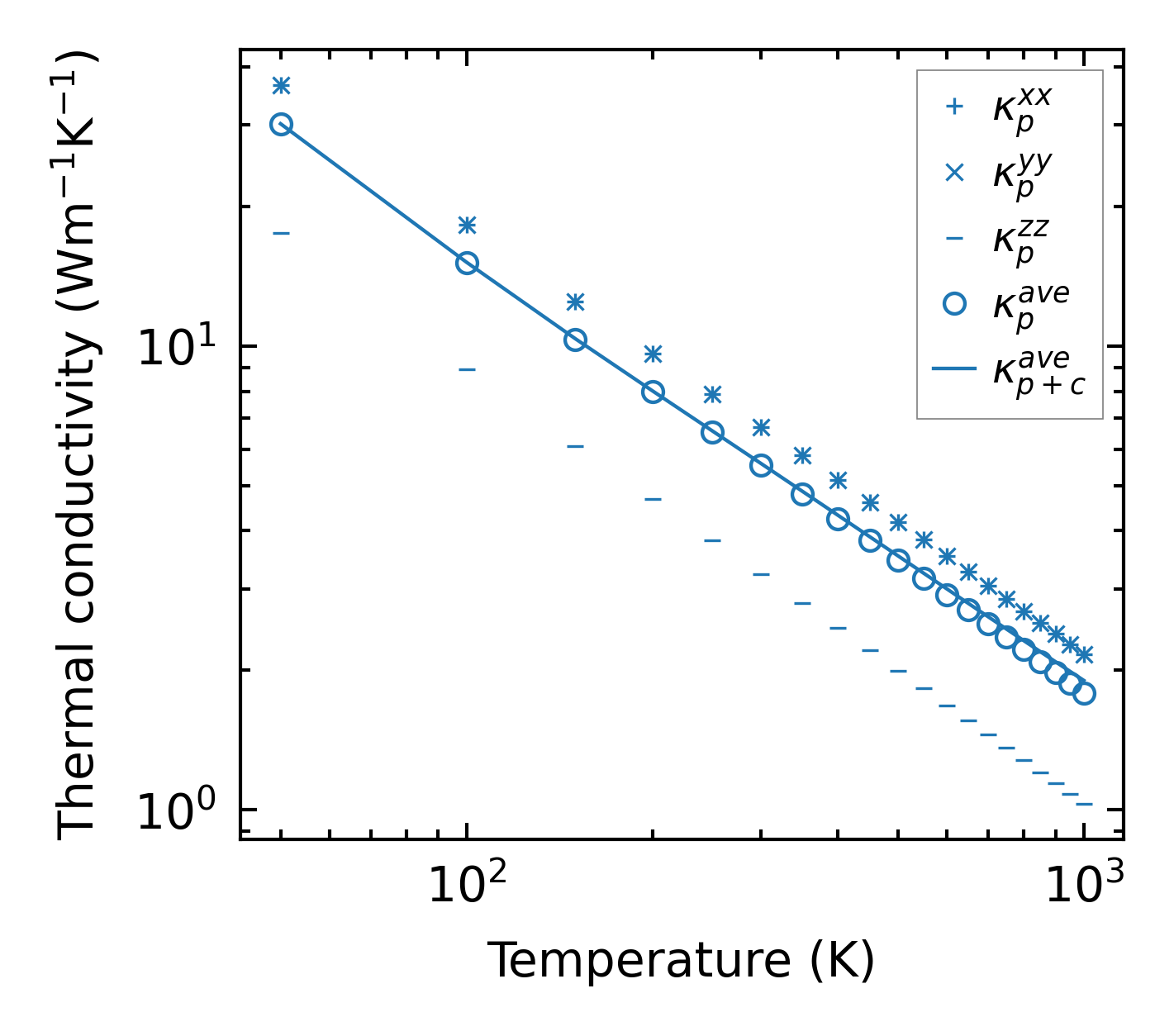

../../_images/fig_kappa14026.png — (a) Temperature-dependent lattice thermal conductivity

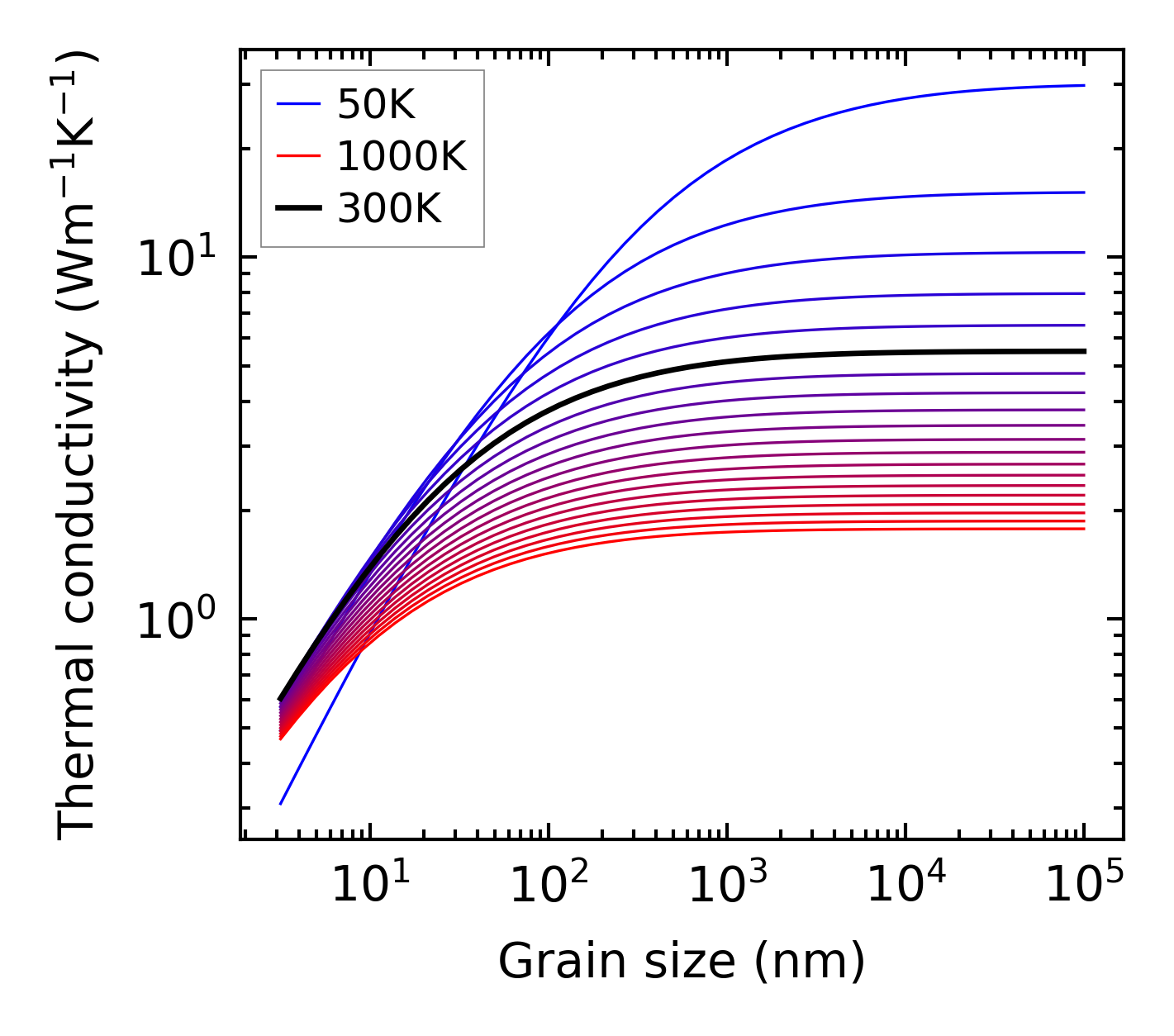

../../_images/fig_kappa_vs_grain_size7524.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

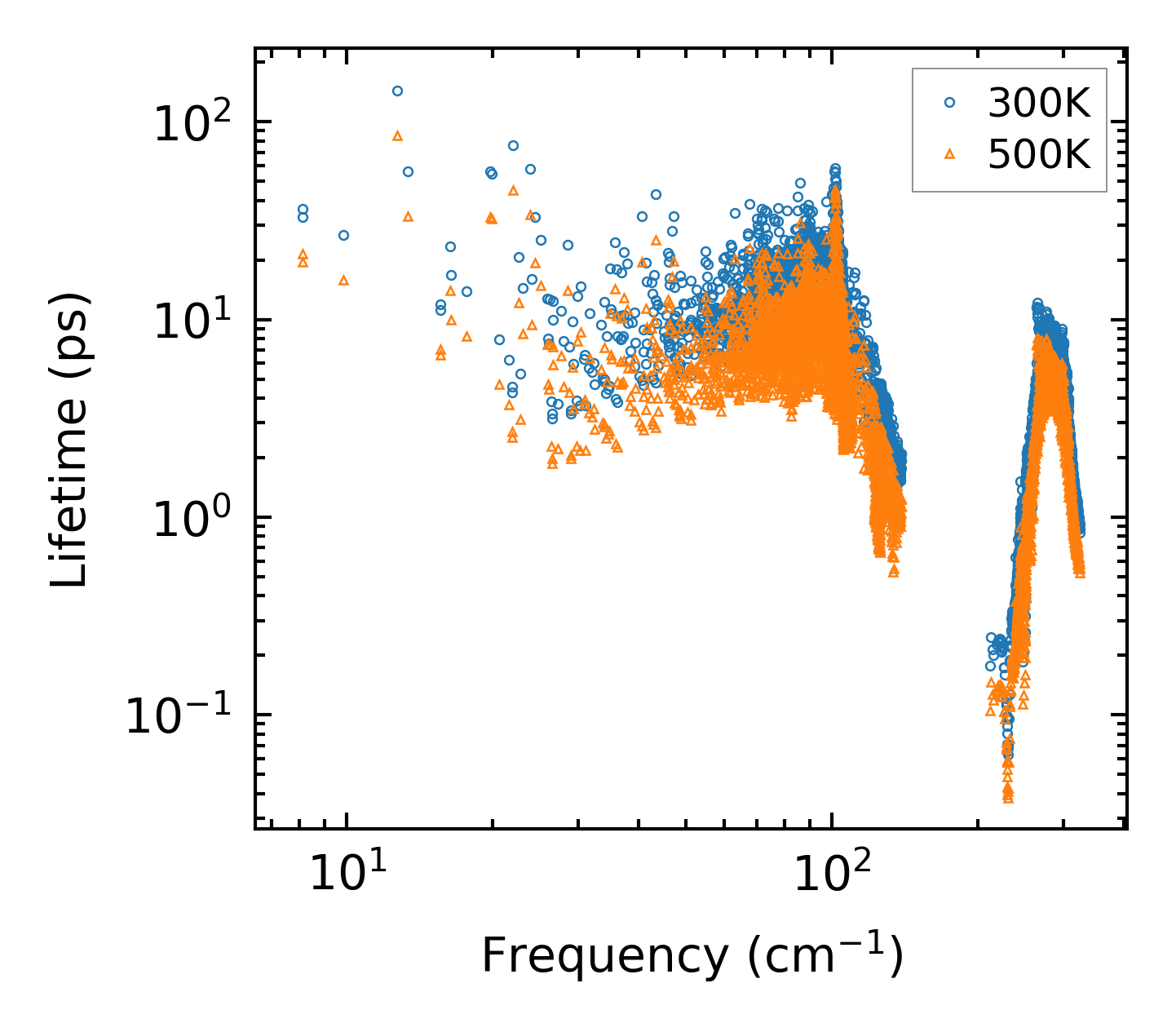

../../_images/fig_lifetime7370.png — (a) Phonon lifetime due to phonon-phonon scattering

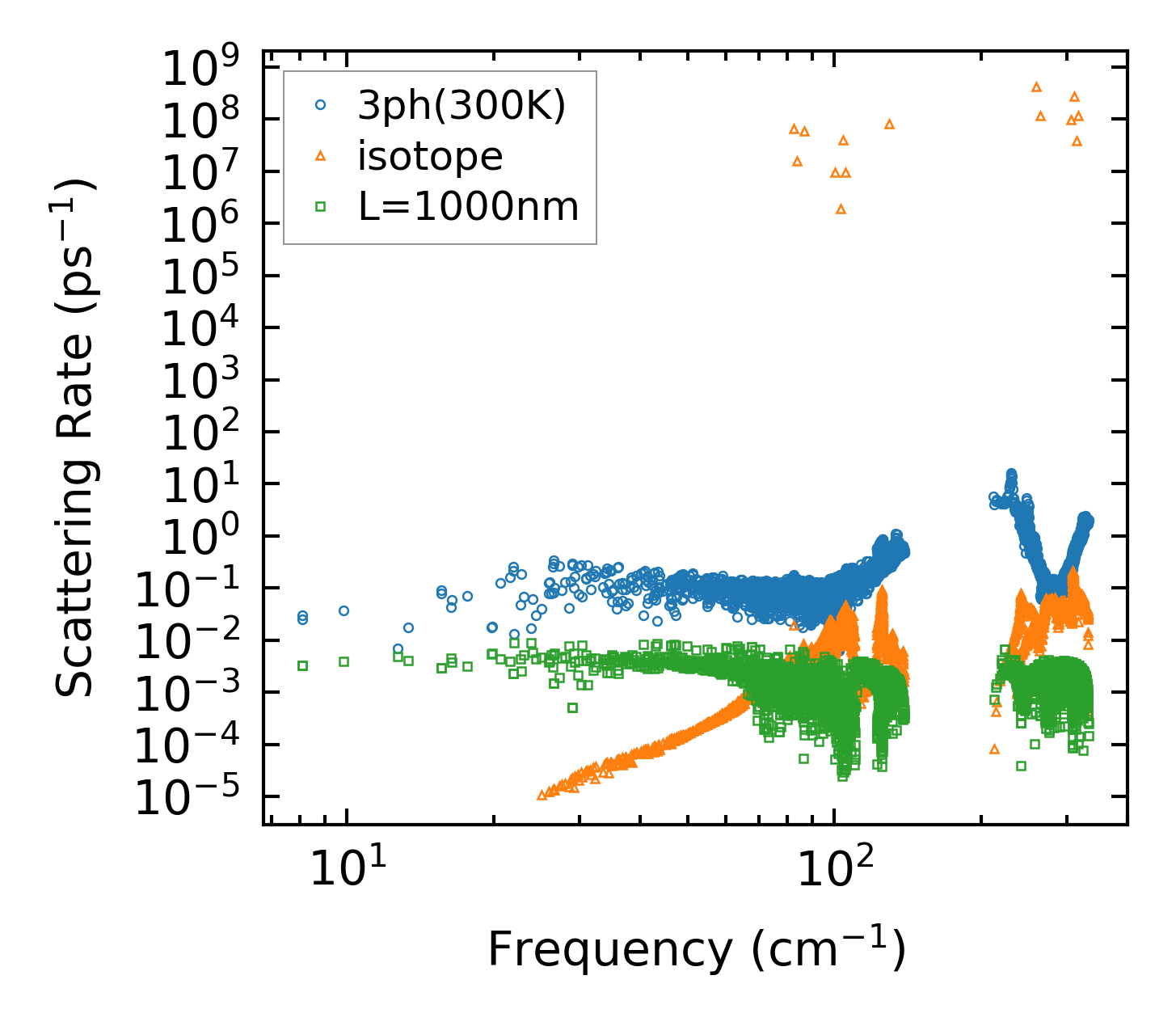

../../_images/fig_scat_rates7369.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

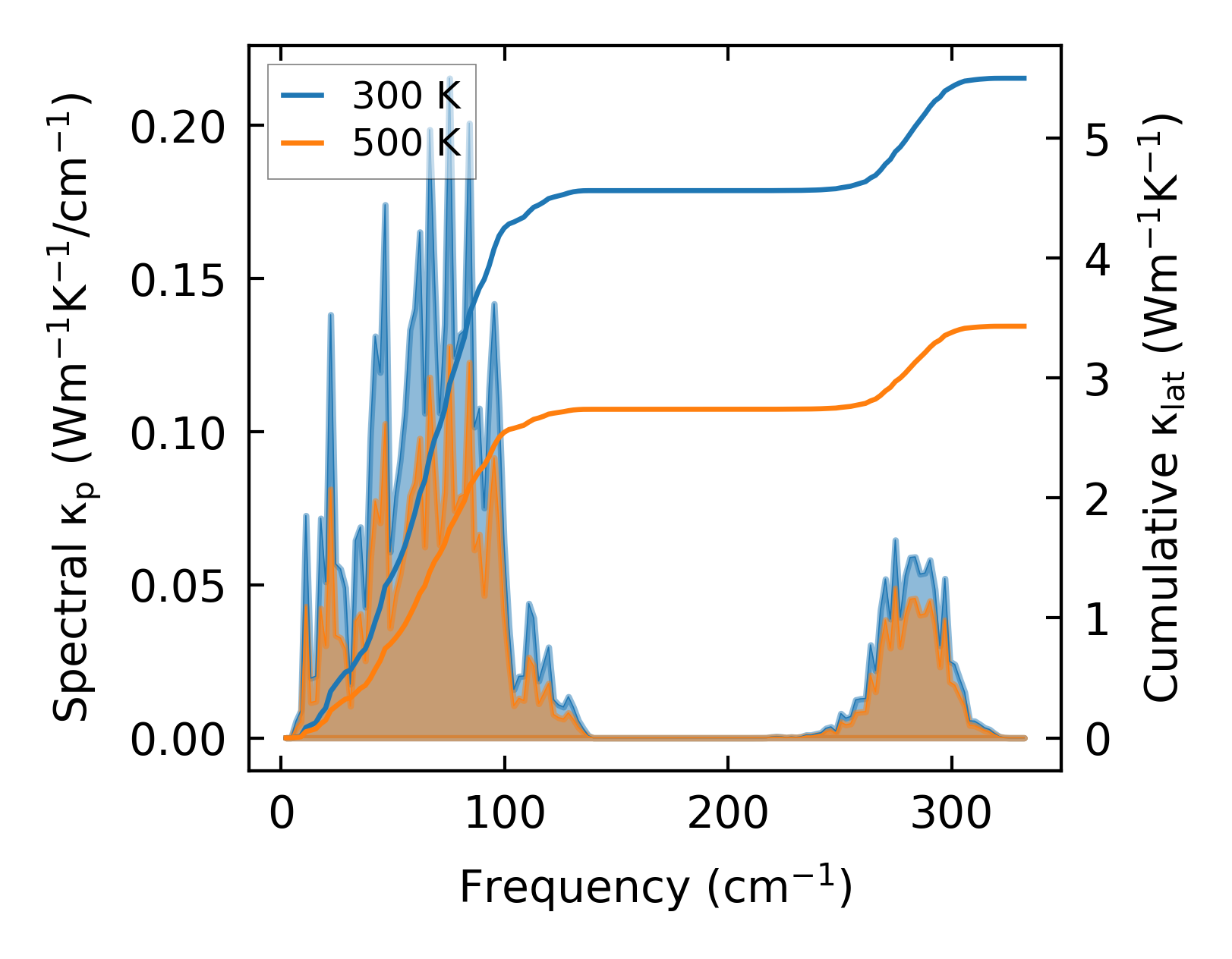

../../_images/fig_cumu_frequency7370.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

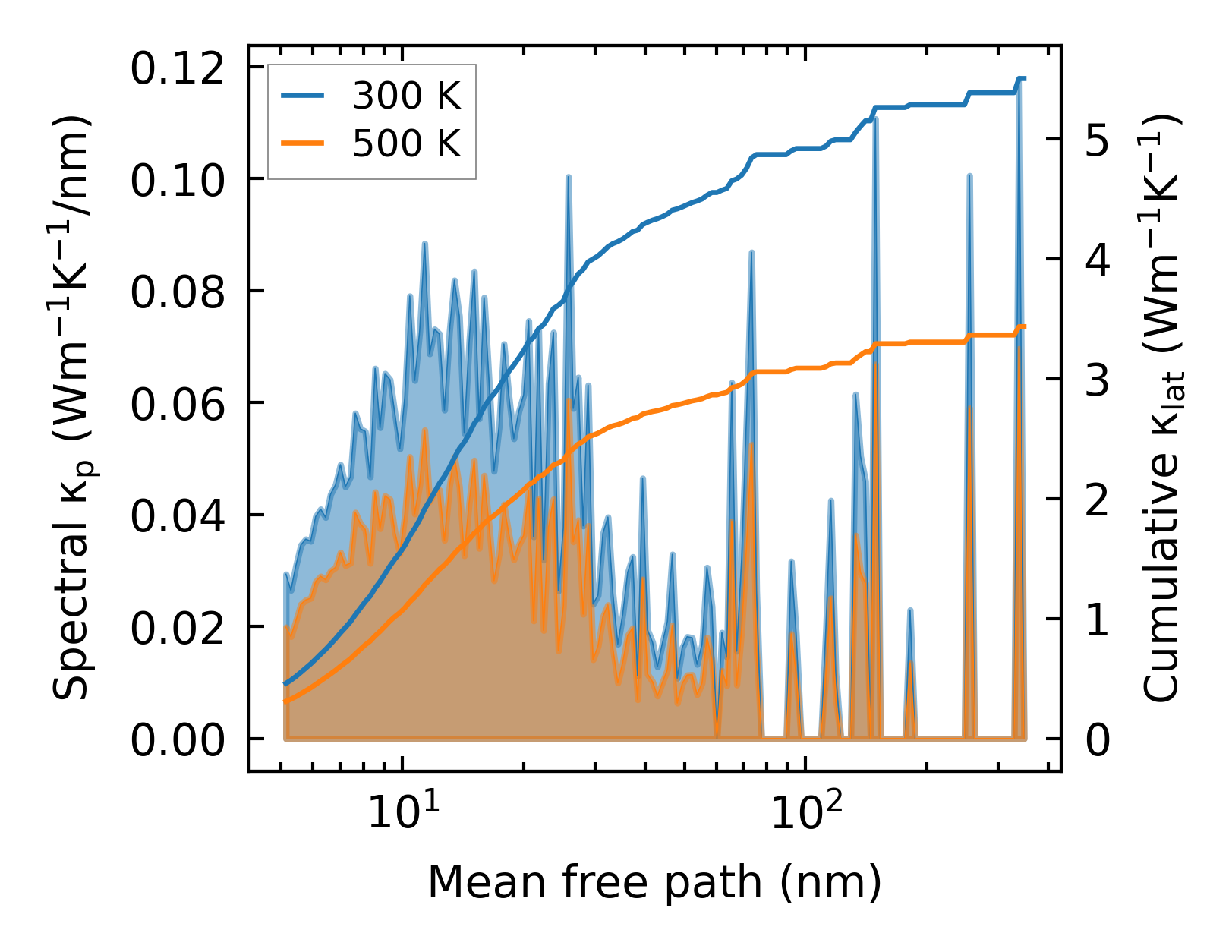

../../_images/fig_cumu_mfp7369.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

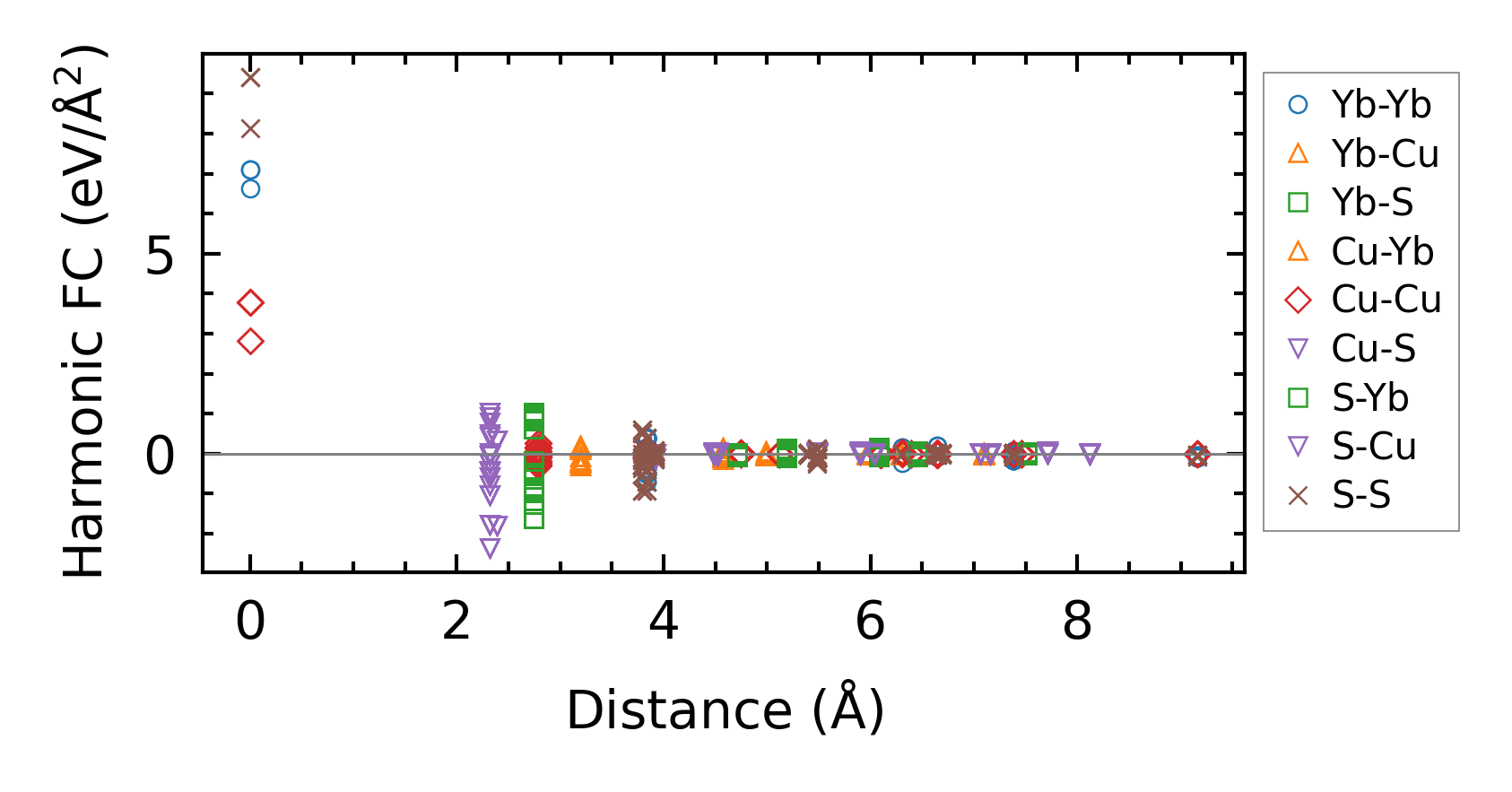

../../_images/fig_fc216525.png — (a) Force constants w.r.t atomic distance

Summary

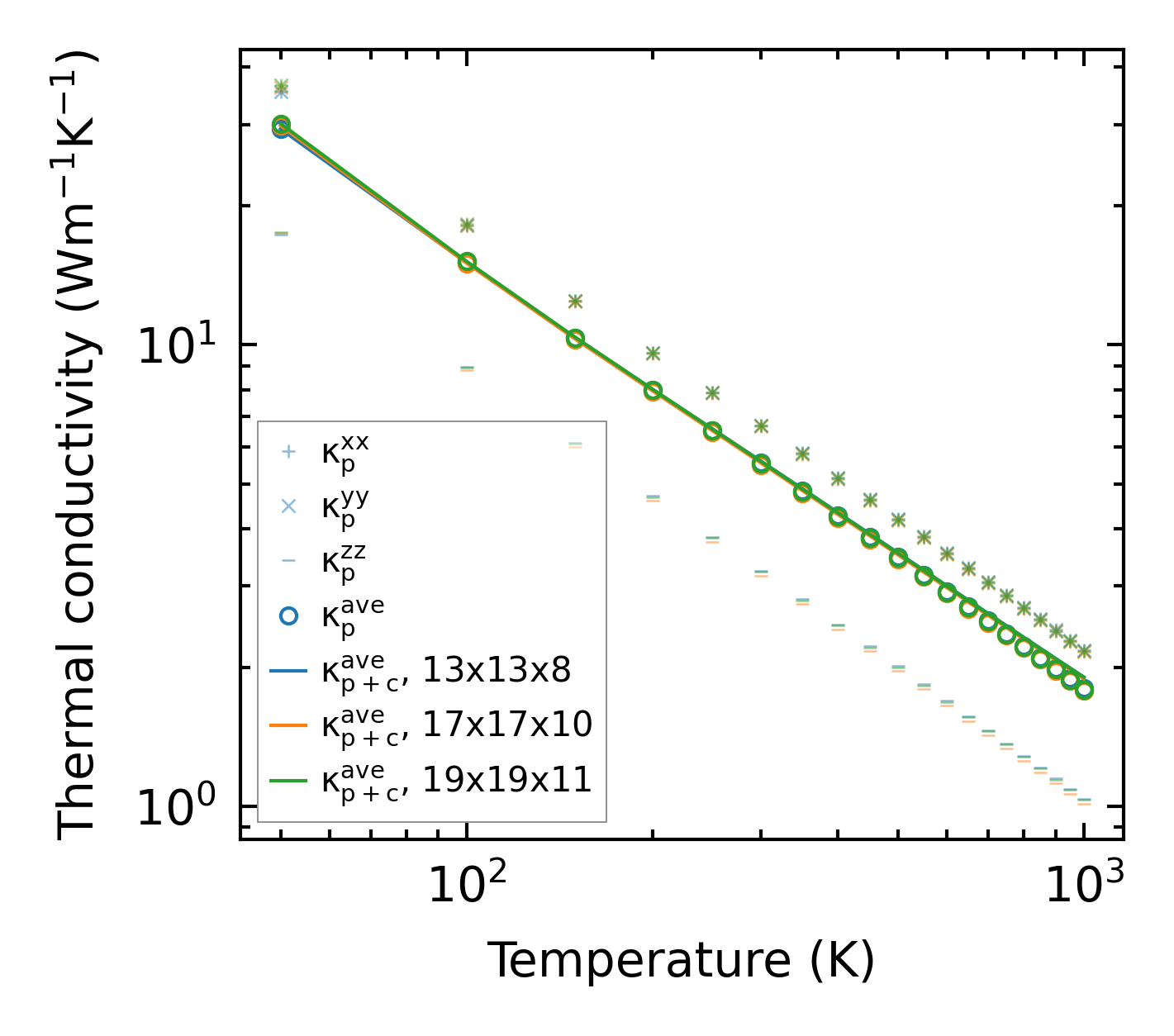

../../_images/fig_kappa14027.png — (a) Temperature-dependent lattice thermal conductivity

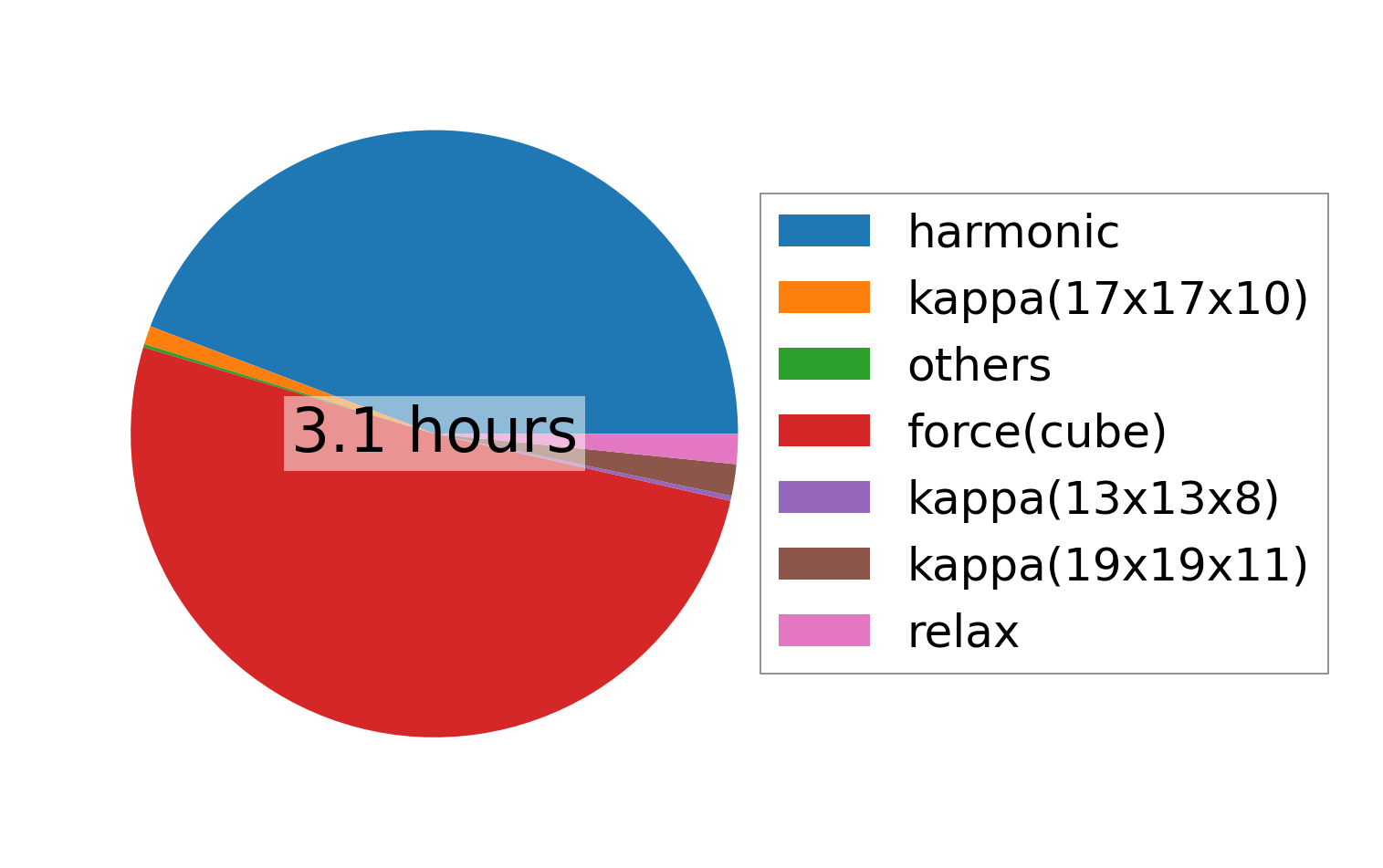

../../_images/fig_times27661.png — (b) Computation time
