mp-1080119/K2PtO6/anharm

Space group: R-3 (148)
Link: Materials Project
Download: mp-1080119.tar.gz

Harmonic properties

../../_images/fig_bandos_pr16970.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo16969.png — (b) Thermodynamic properties

Grüneisen parameters

../../_images/fig_gru_all7435.png — (a) Grüneisen parameters

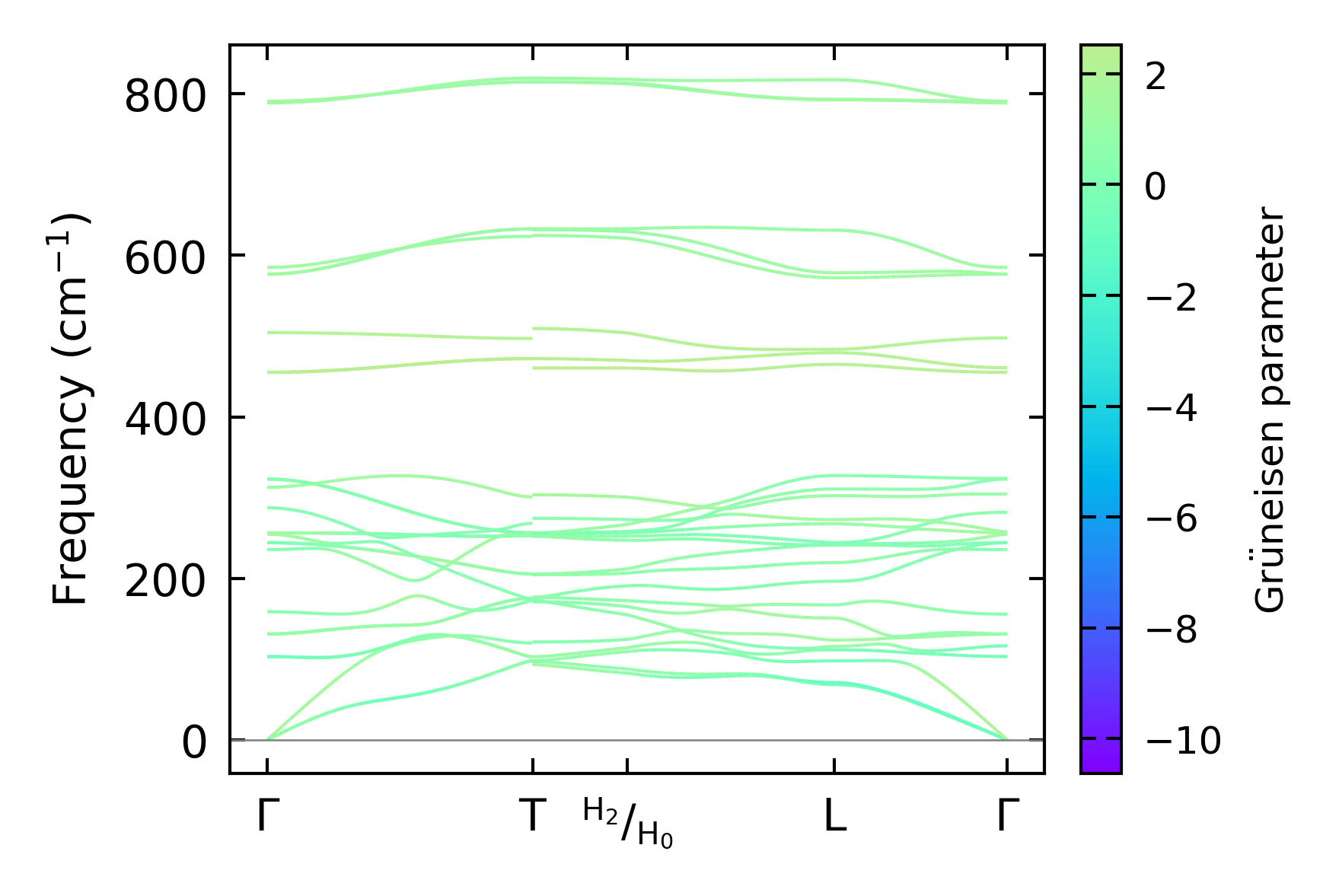

../../_images/fig_gruneisen7435.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 14x14x14, supercell: 2x2x1

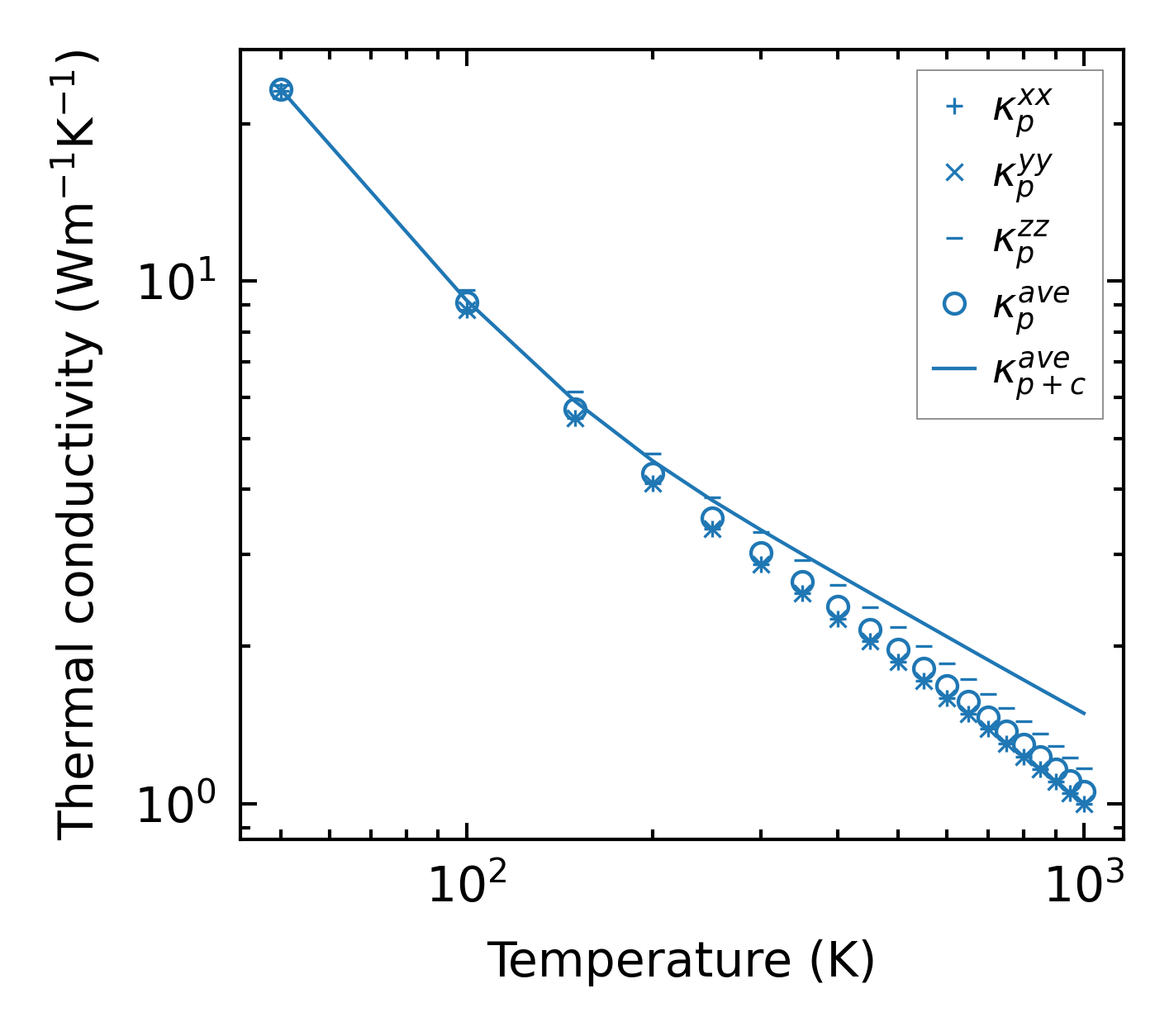

../../_images/fig_kappa14022.png — (a) Temperature-dependent lattice thermal conductivity

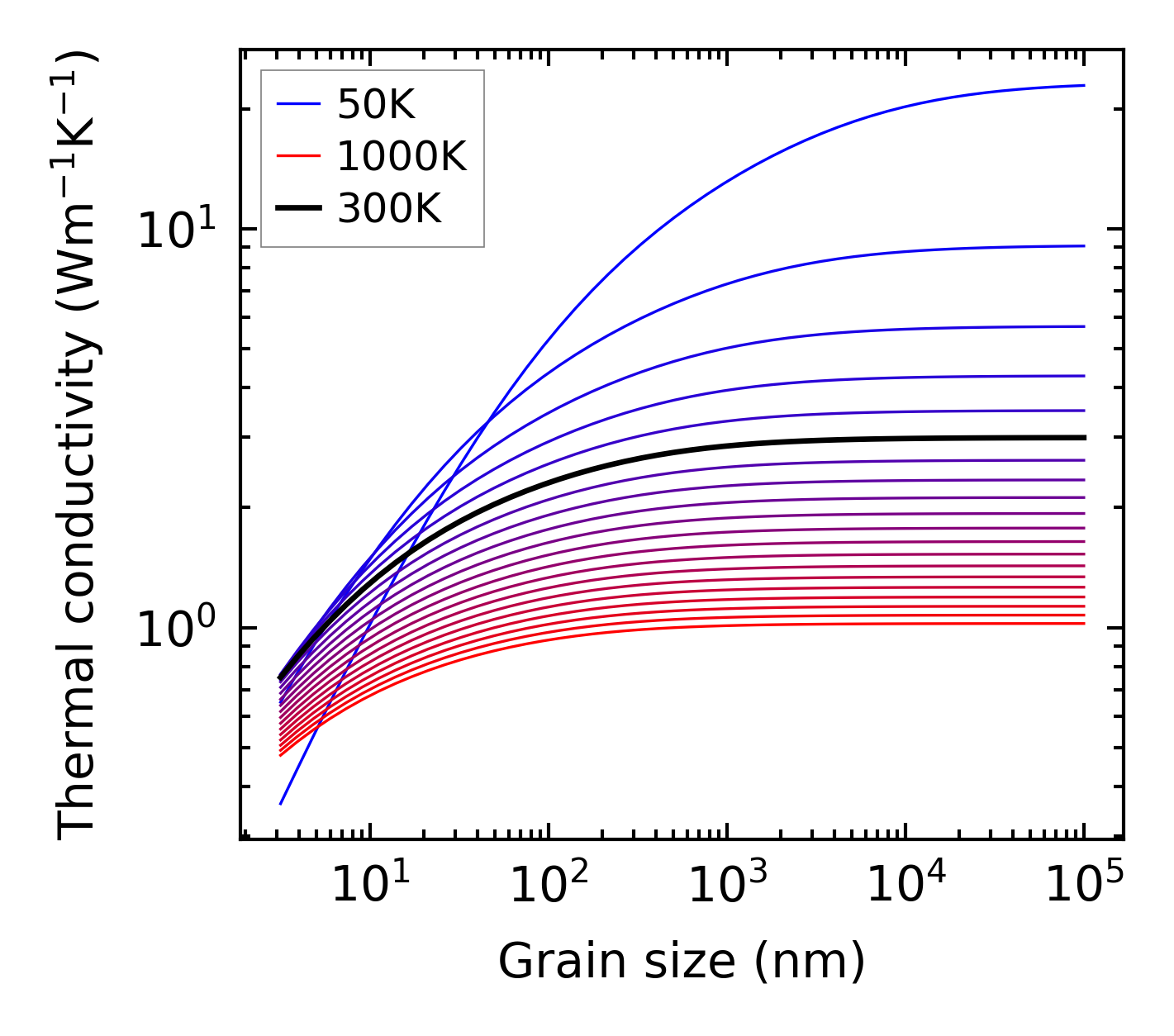

../../_images/fig_kappa_vs_grain_size7522.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

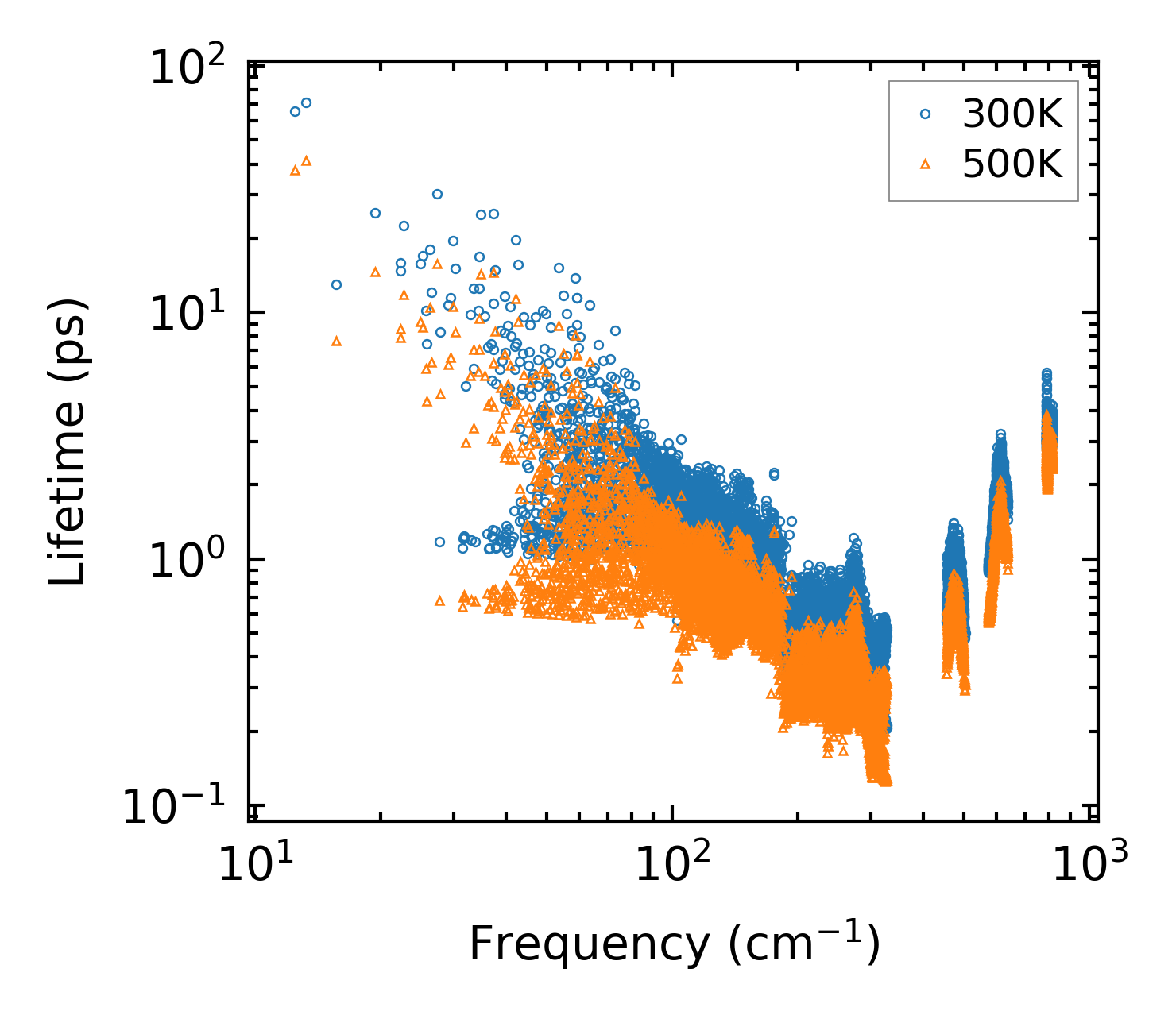

../../_images/fig_lifetime7368.png — (a) Phonon lifetime due to phonon-phonon scattering

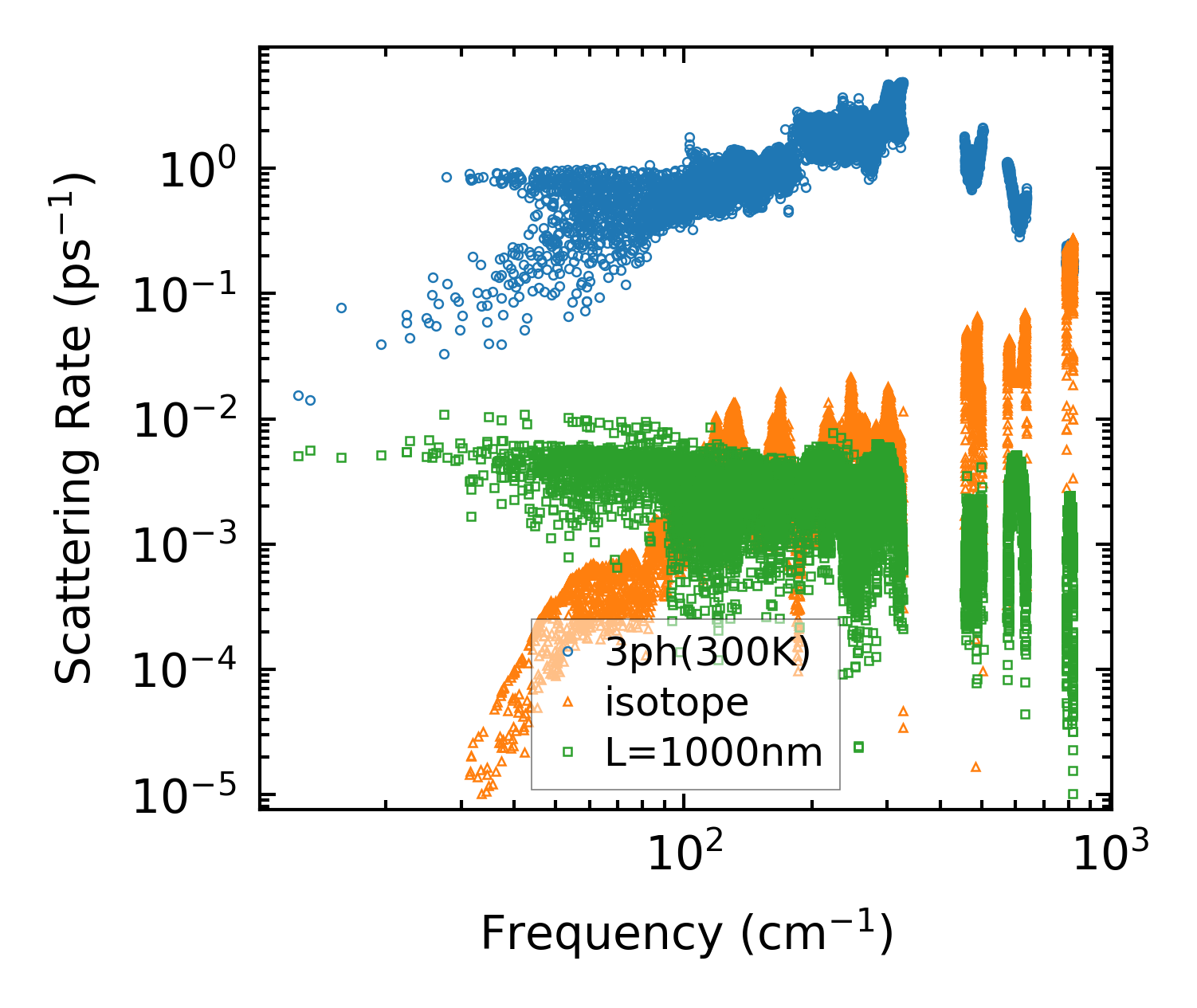

../../_images/fig_scat_rates7367.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

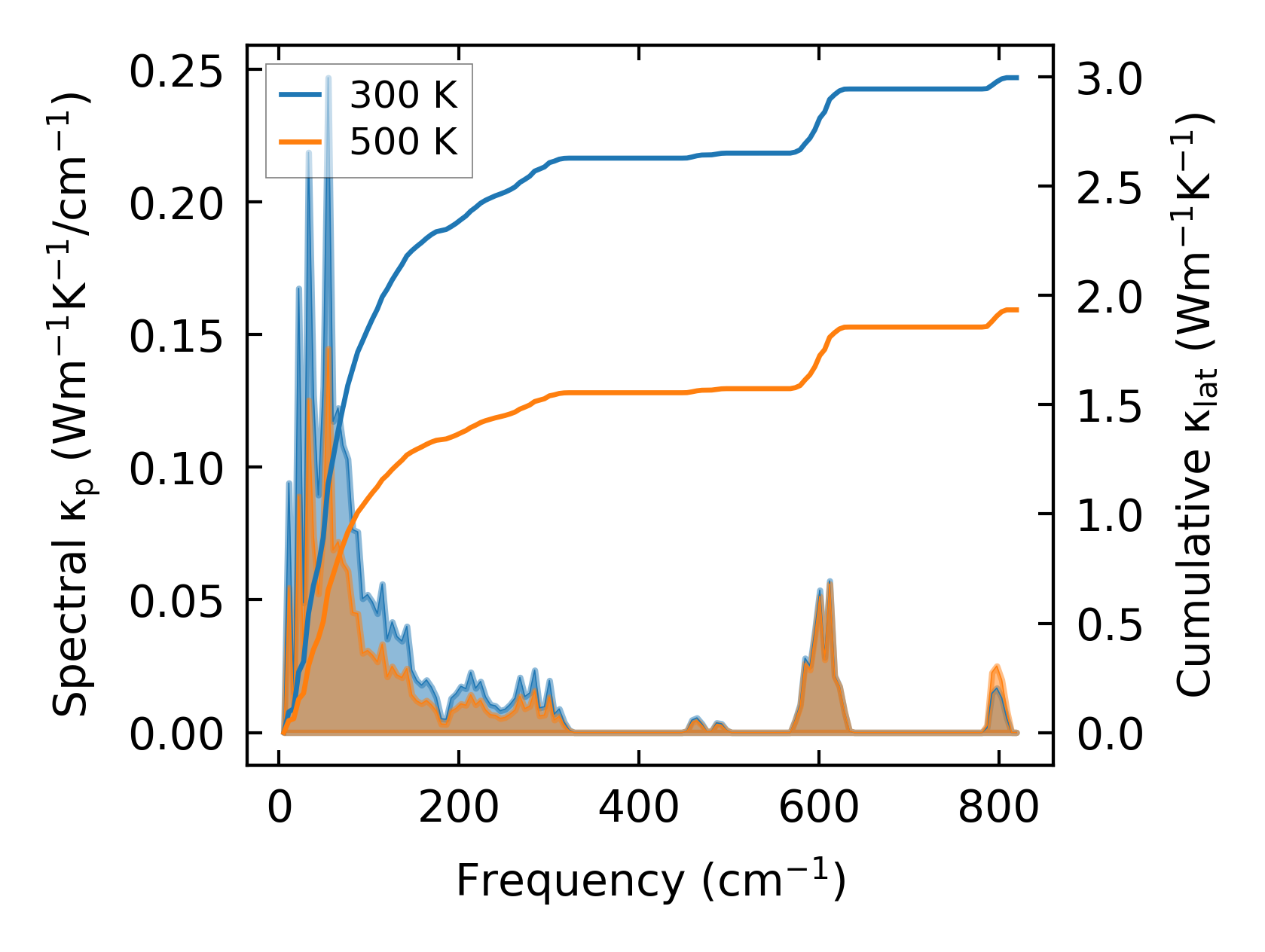

../../_images/fig_cumu_frequency7368.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

../../_images/fig_cumu_mfp7367.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

../../_images/fig_fc216522.png — (a) Force constants w.r.t atomic distance

Summary

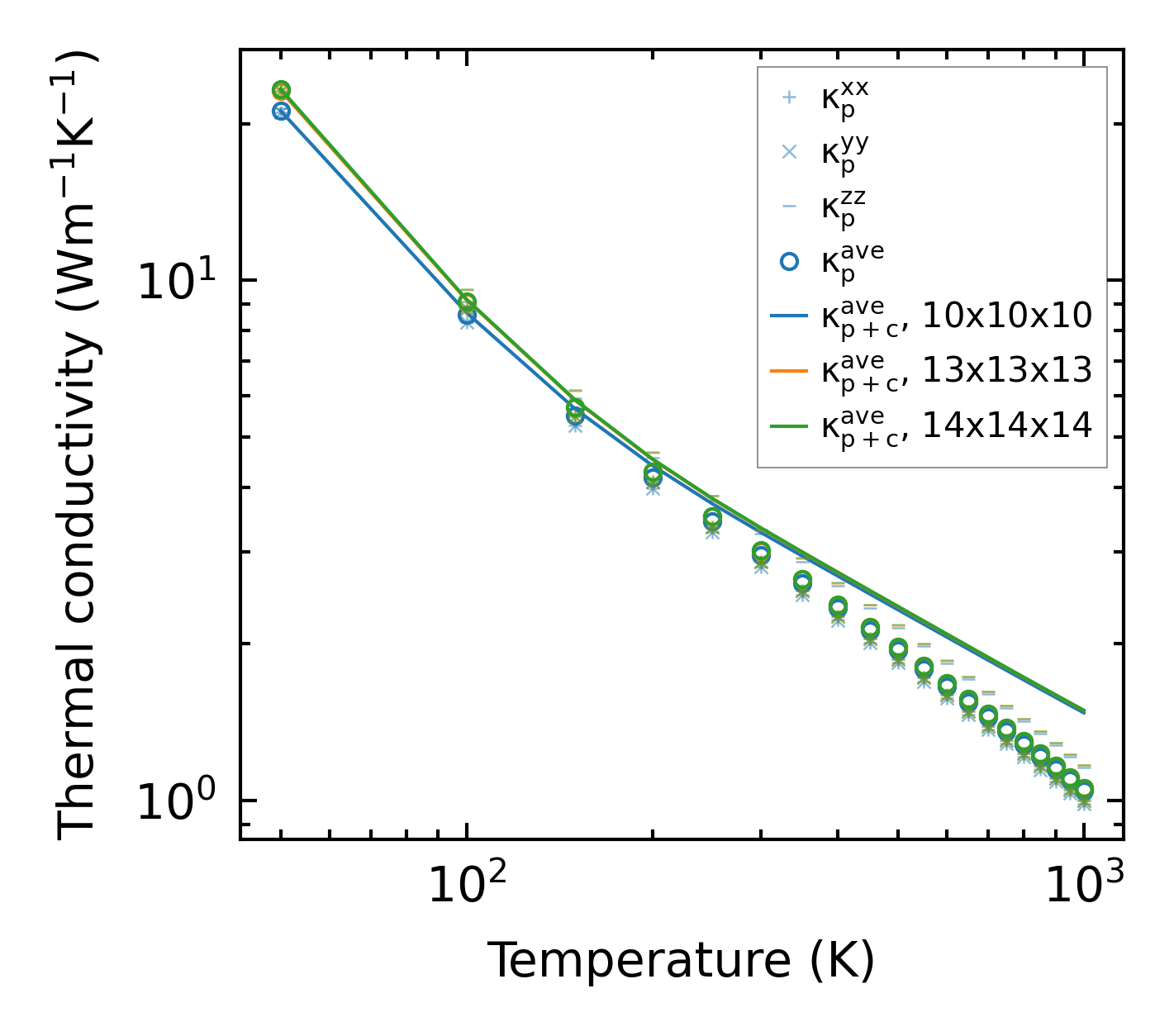

../../_images/fig_kappa14023.png — (a) Temperature-dependent lattice thermal conductivity

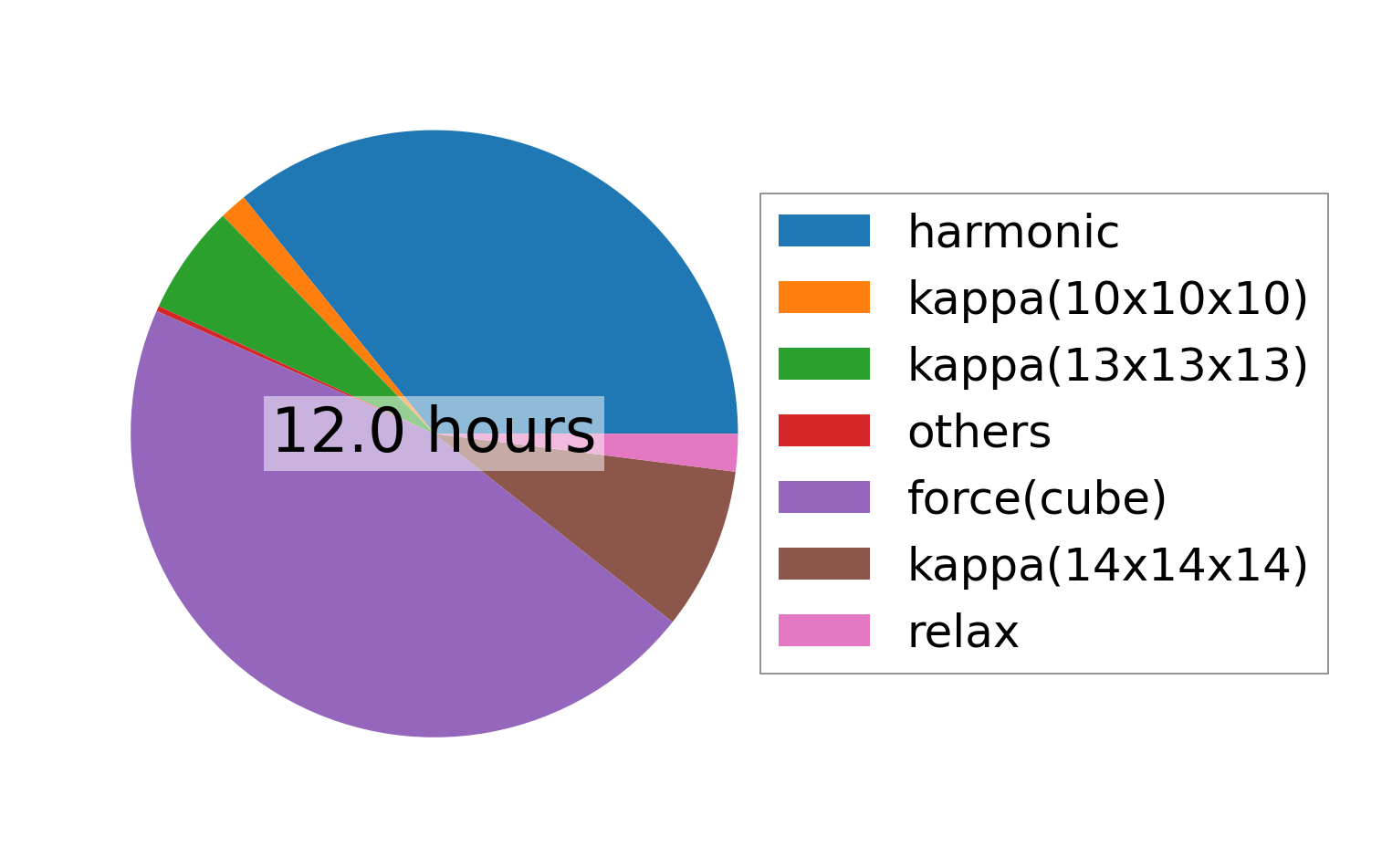

../../_images/fig_times27658.png — (b) Computation time
