mp-1019269/Sr2H3I/anharm

Space group: P-3m1 (164)
Link: Materials Project
Download: mp-1019269.tar.gz

Harmonic properties

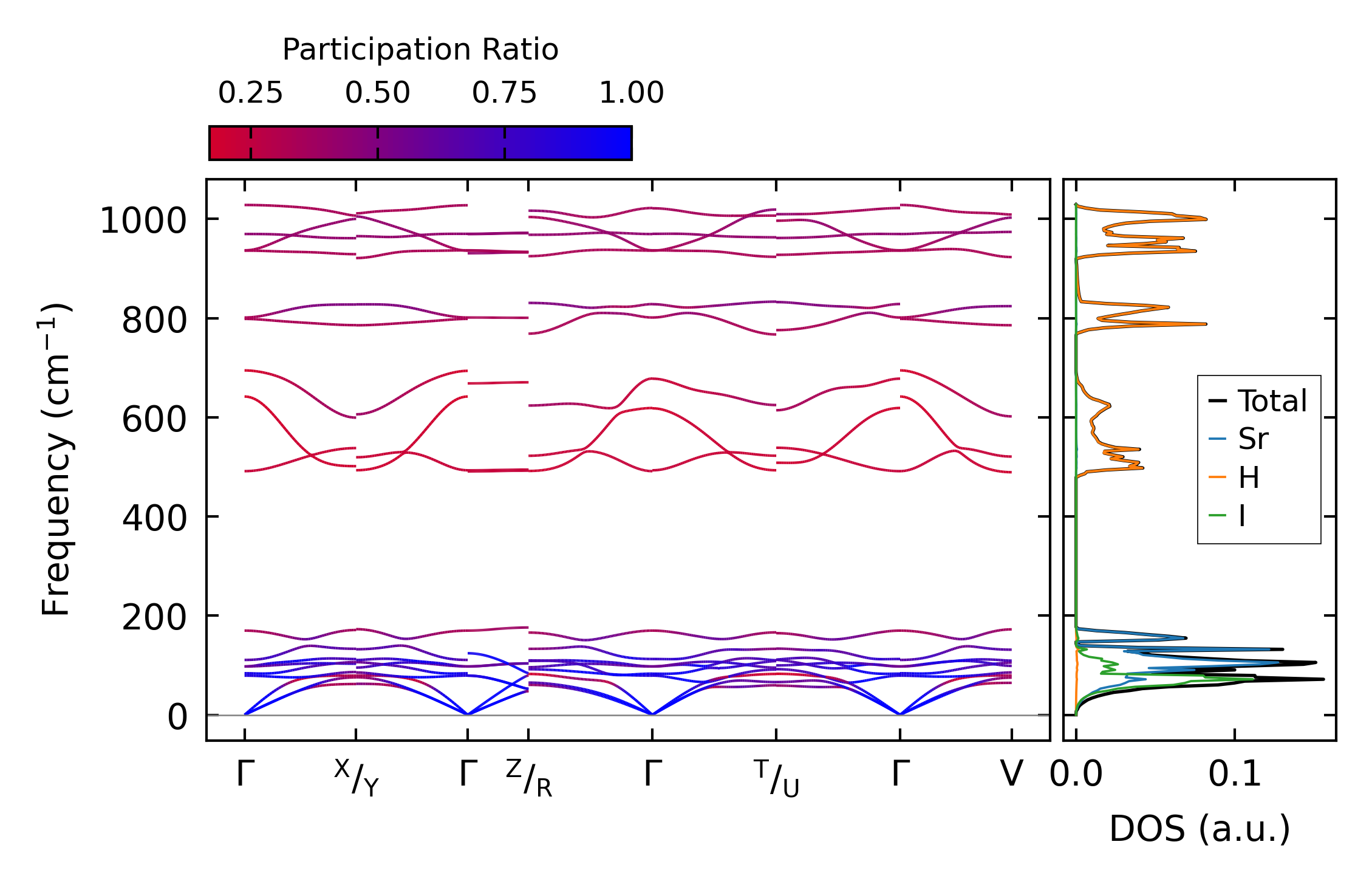

../../_images/fig_bandos_pr43.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo43.png — (b) Thermodynamic properties

Grüneisen parameters

../../_images/fig_gru_all36.png — (a) Grüneisen parameters

../../_images/fig_gruneisen36.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 18x18x10, supercell: 4x3x2

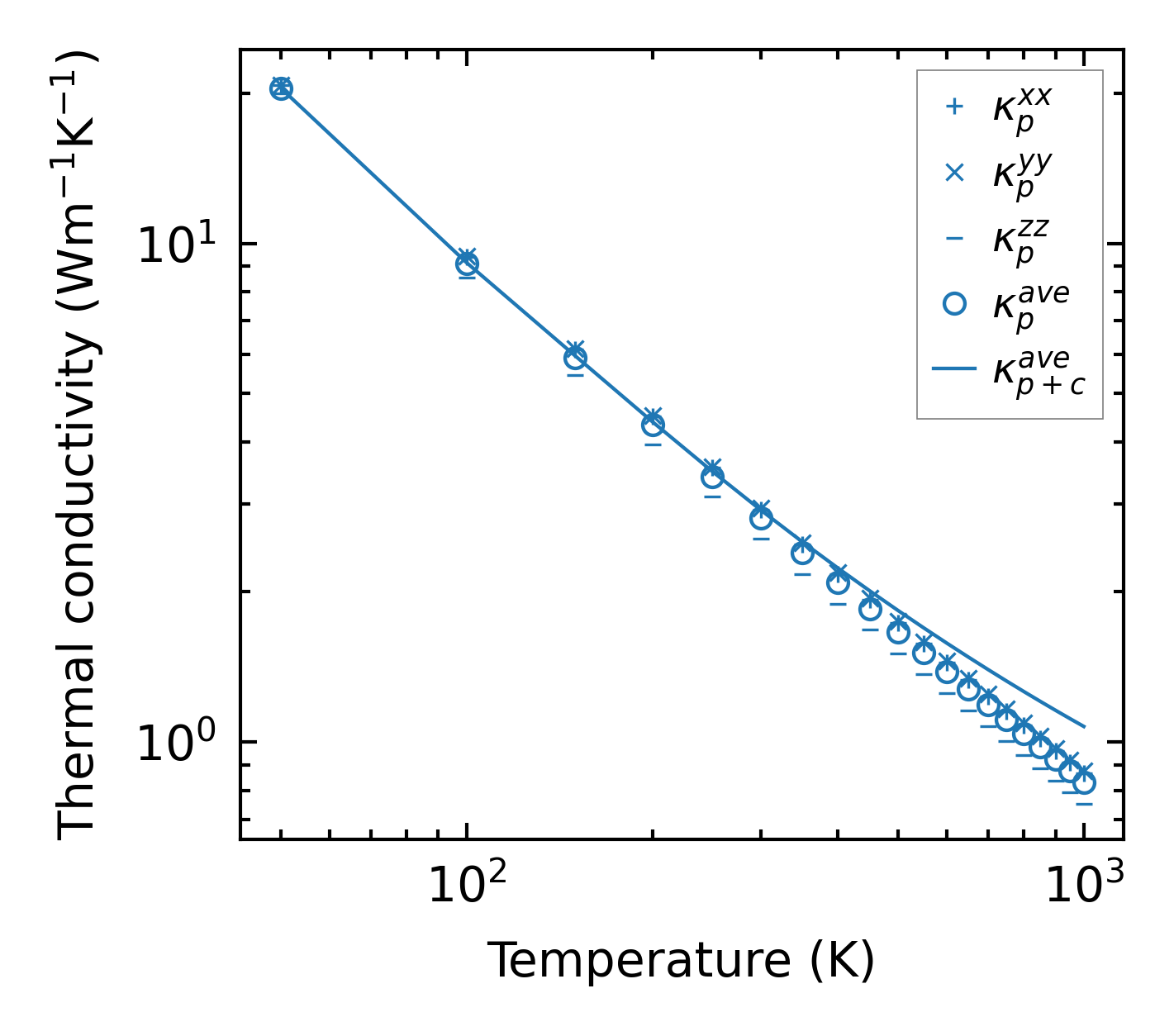

../../_images/fig_kappa69.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size37.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

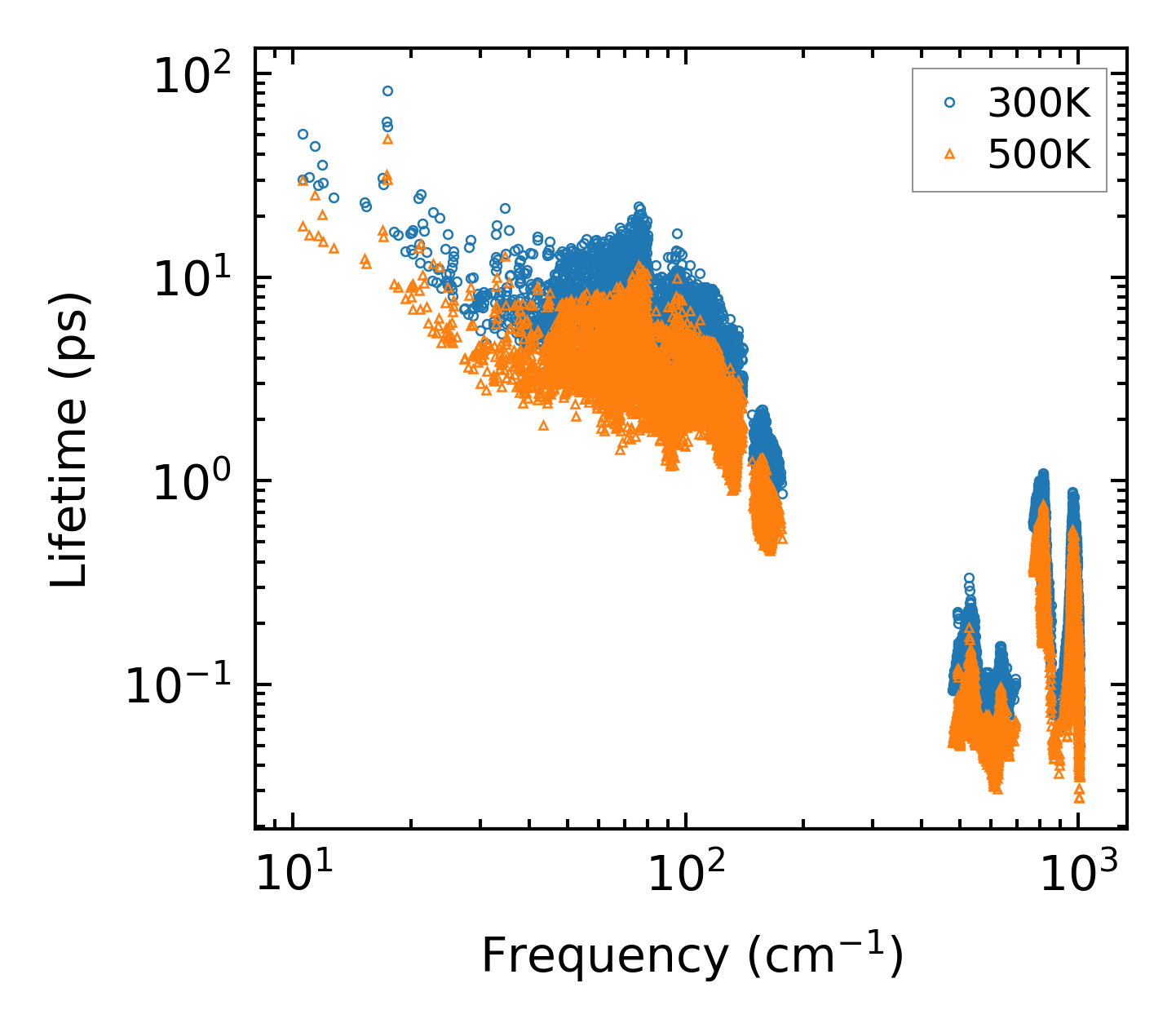

../../_images/fig_lifetime36.png — (a) Phonon lifetime due to phonon-phonon scattering

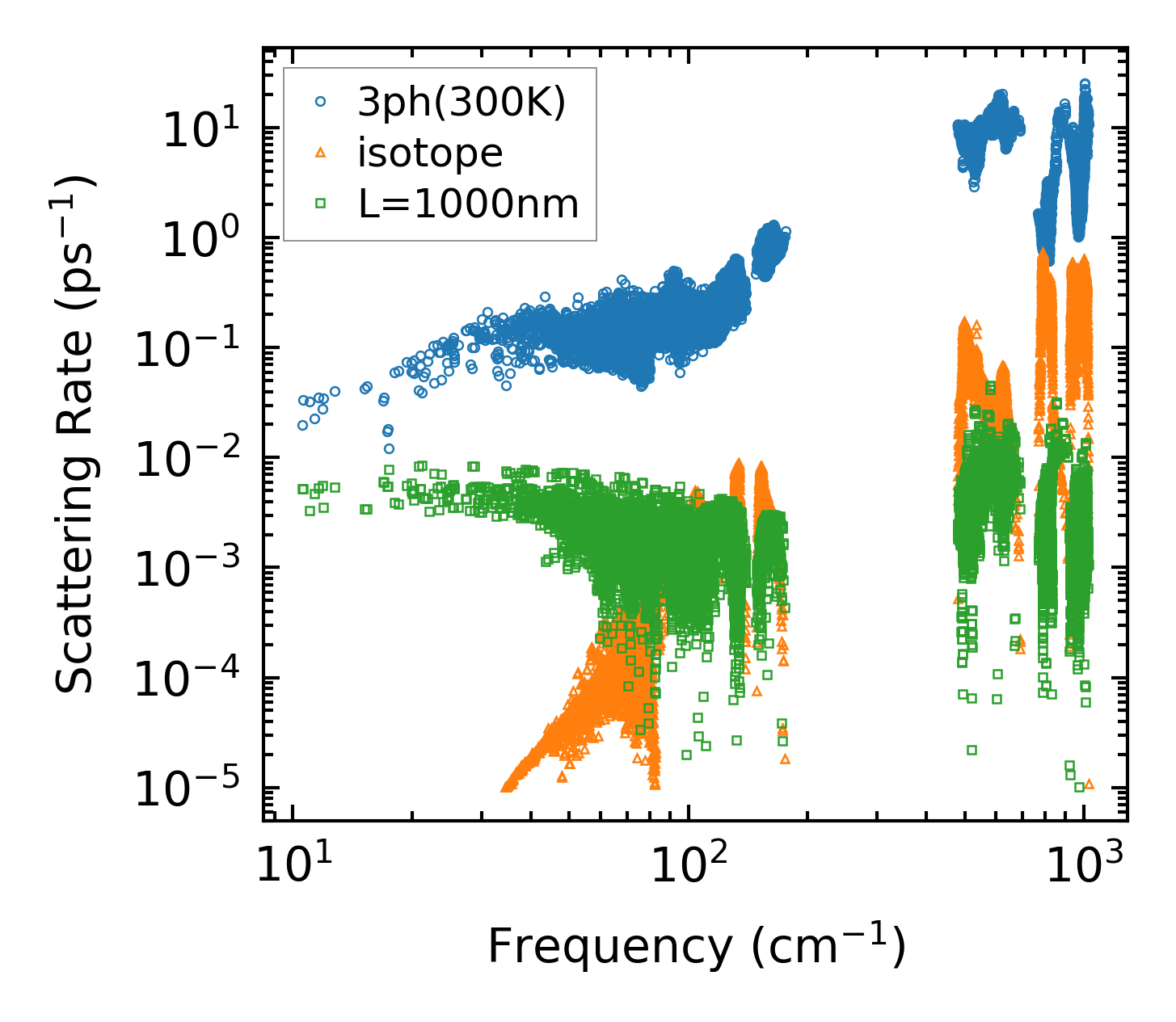

../../_images/fig_scat_rates36.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

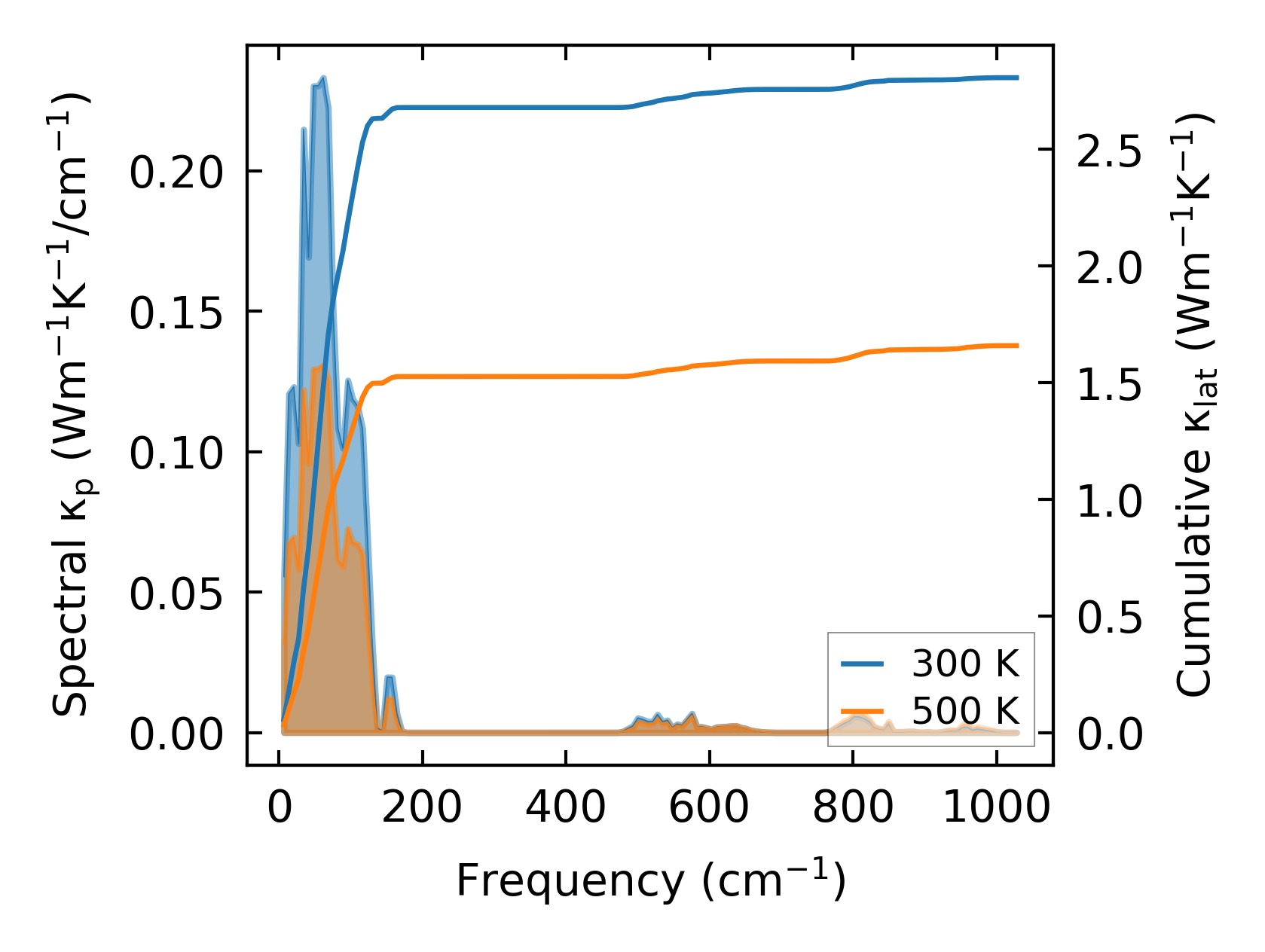

../../_images/fig_cumu_frequency36.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

../../_images/fig_cumu_mfp36.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

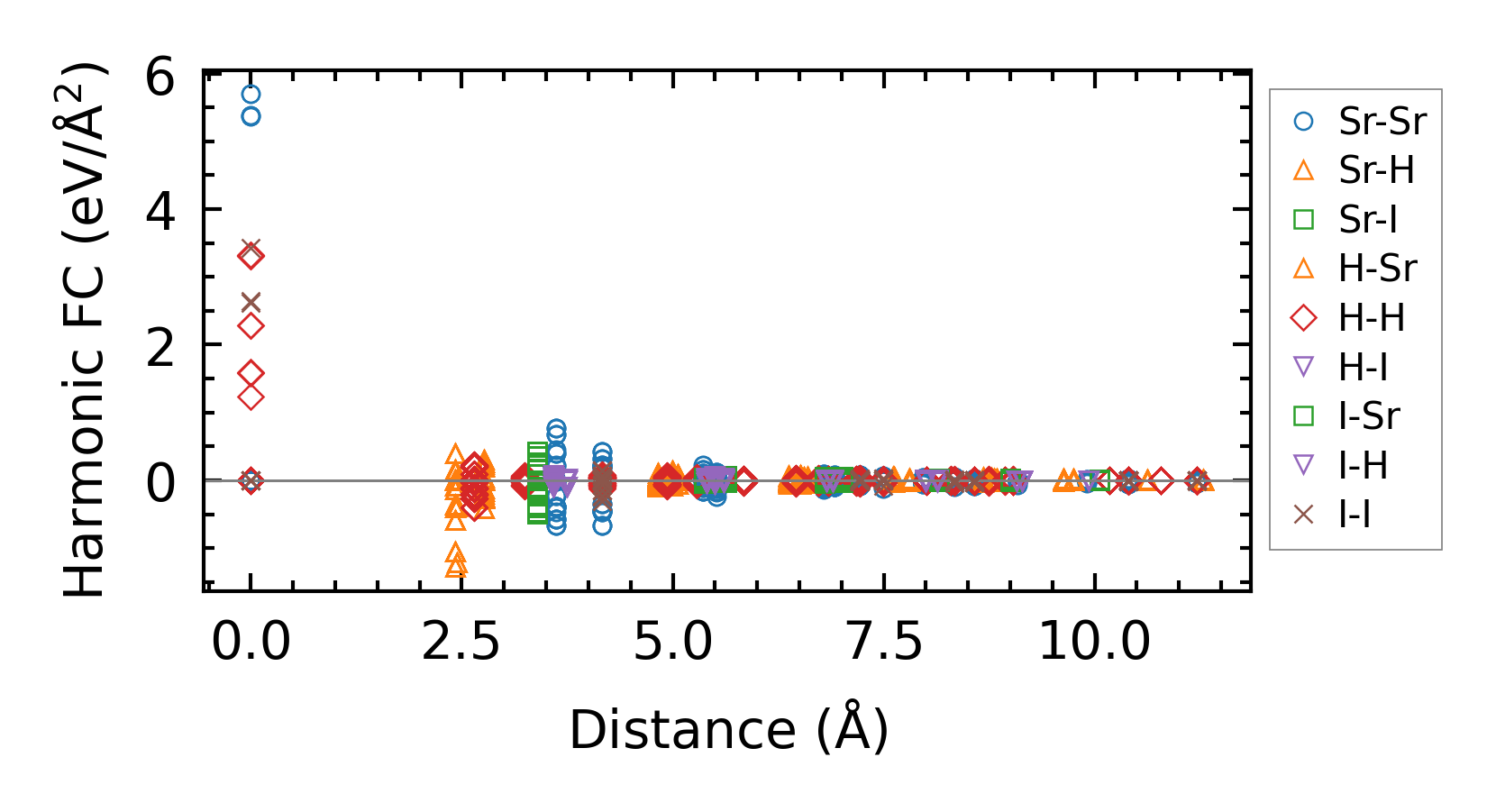

../../_images/fig_fc242.png — (a) Force constants w.r.t atomic distance

Summary

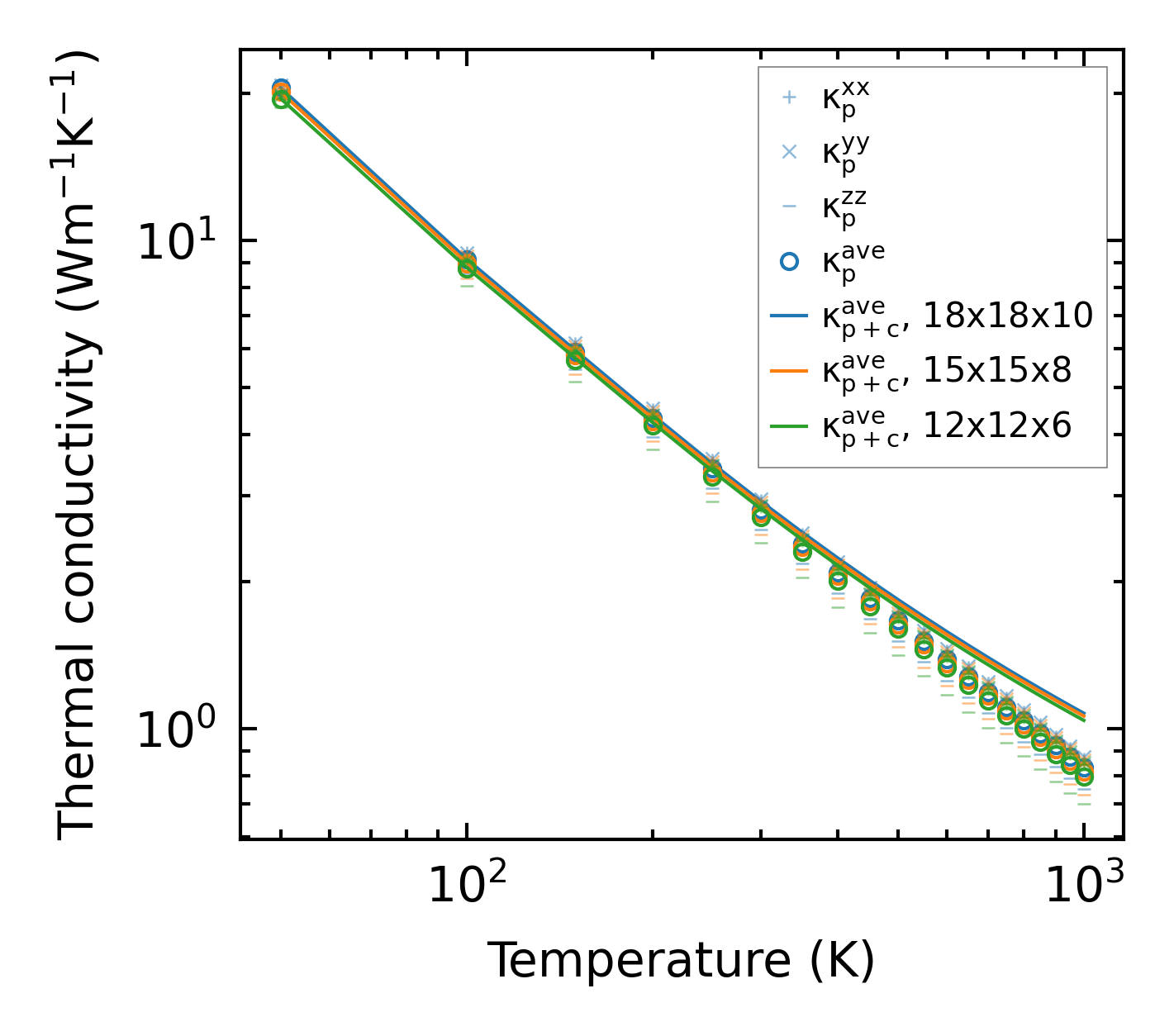

../../_images/fig_kappa70.png — (a) Temperature-dependent lattice thermal conductivity

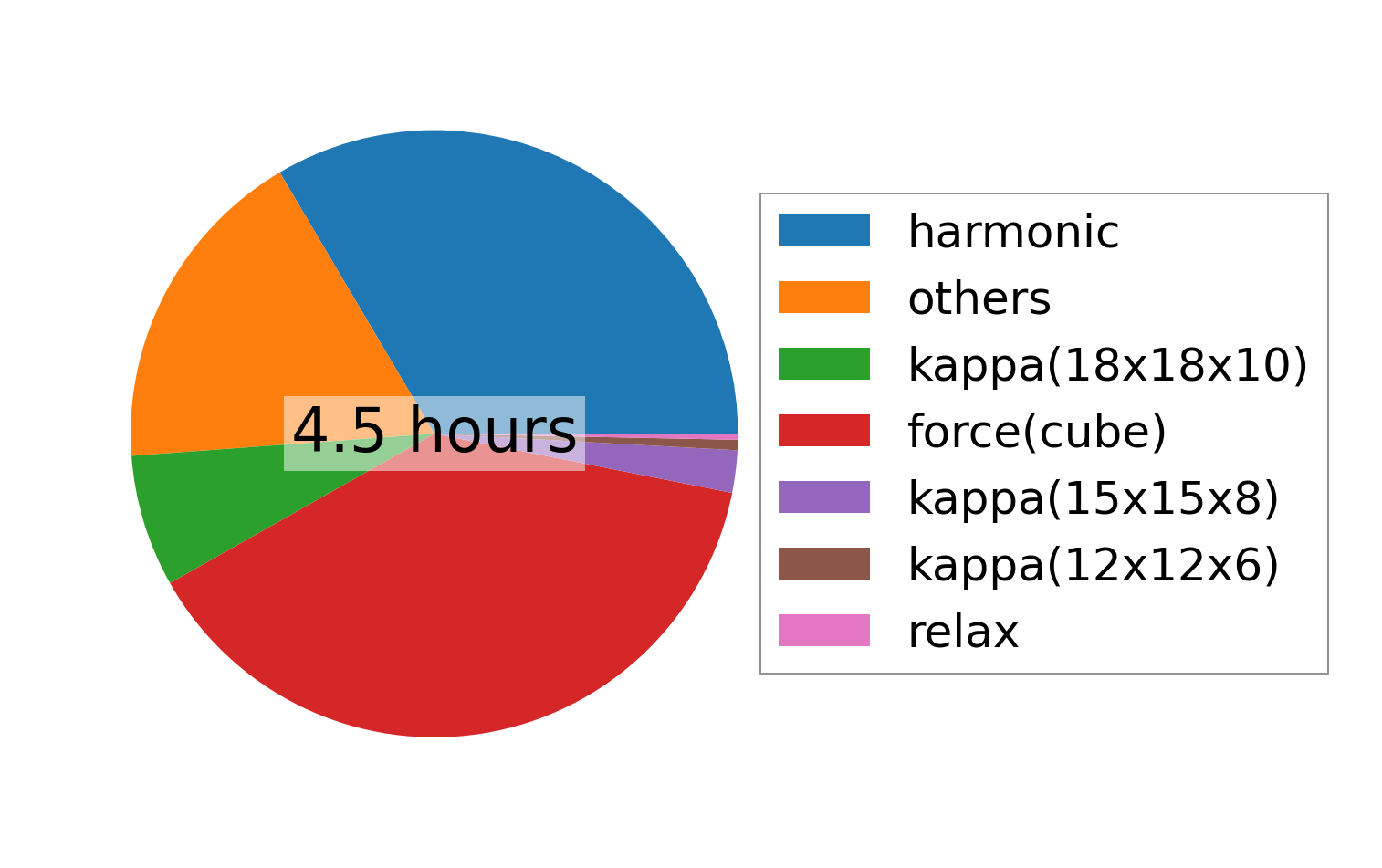

../../_images/fig_times76.png — (b) Computation time
