mp-985697/Ba3Si6N2O12/anharm

Space group: P-3 (147)
Link: Materials Project
Download: mp-985697.tar.gz

Harmonic properties

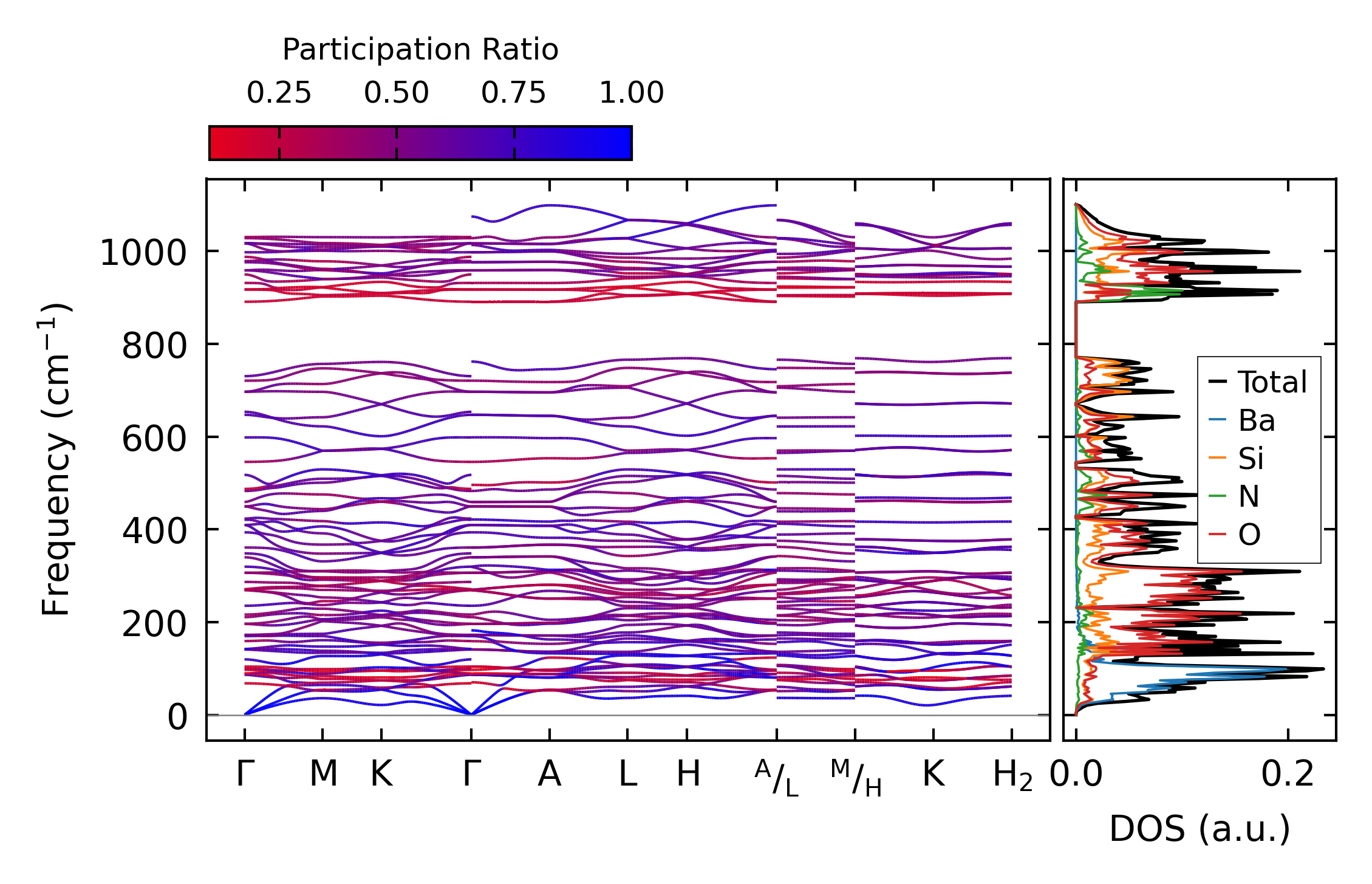

../../_images/fig_bandos_pr1116.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo1116.png — (b) Thermodynamic properties

Grüneisen parameters

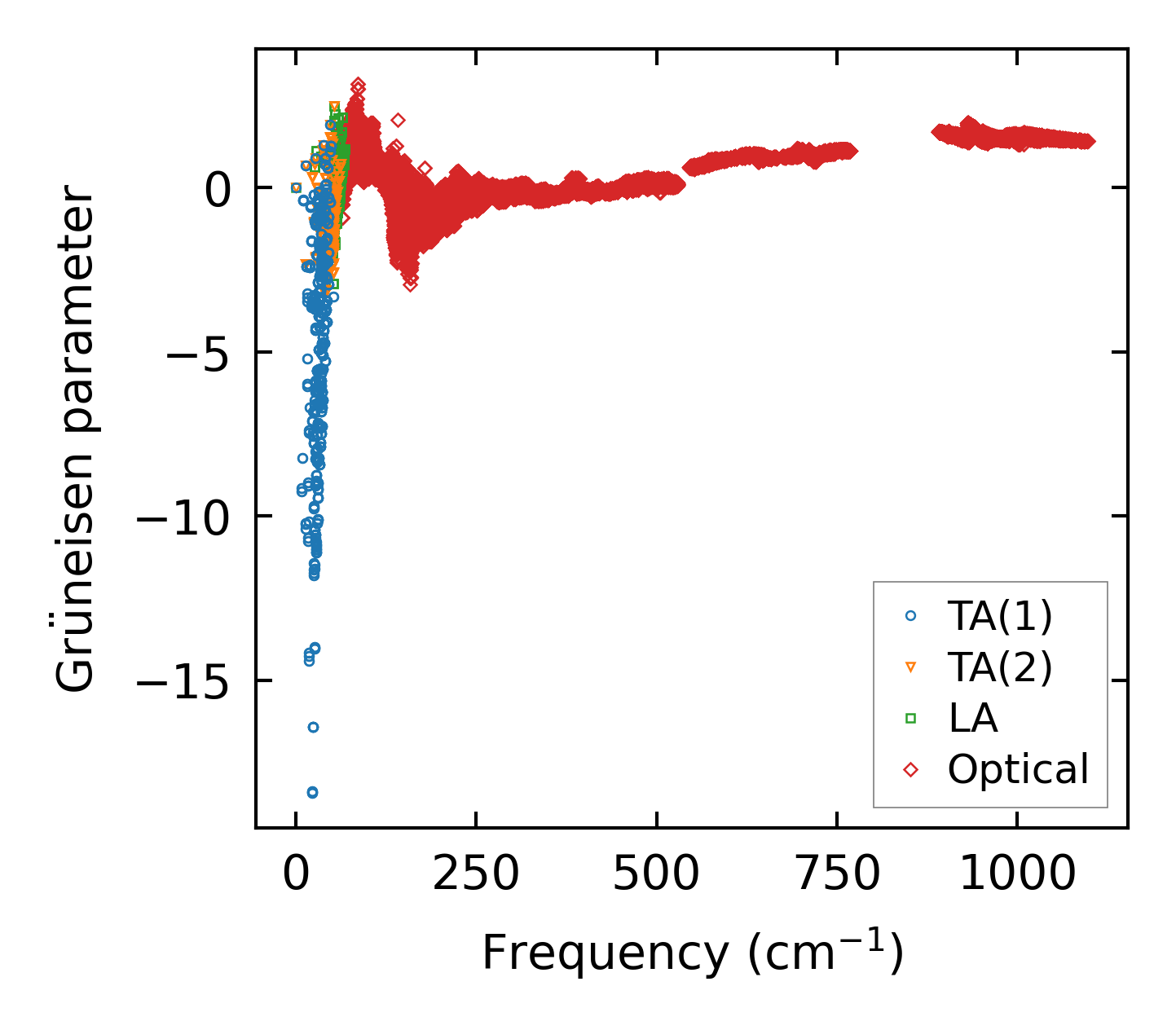

../../_images/fig_gru_all680.png — (a) Grüneisen parameters

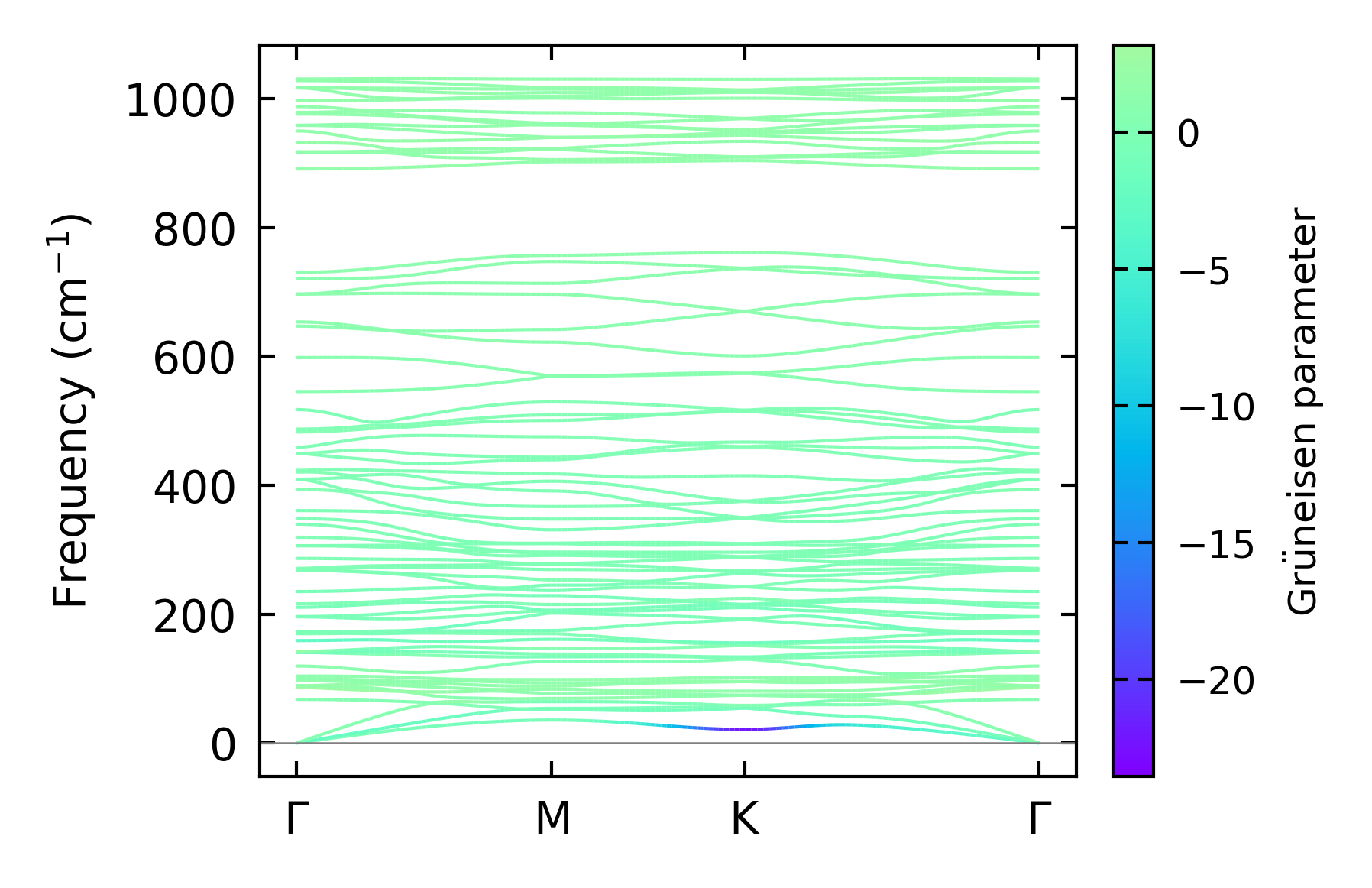

../../_images/fig_gruneisen680.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 10x10x11, supercell: 1x1x2

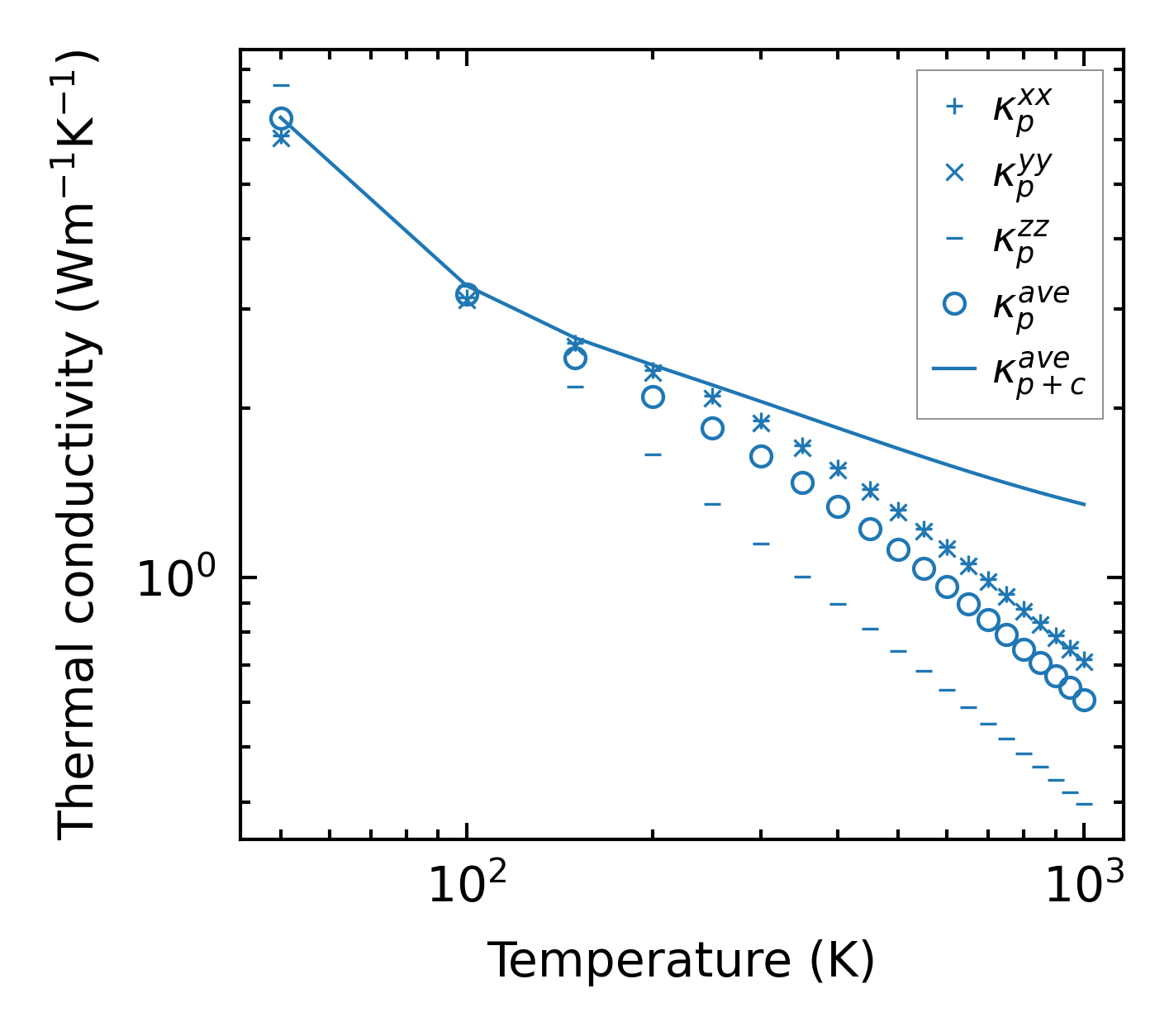

../../_images/fig_kappa1327.png — (a) Temperature-dependent lattice thermal conductivity

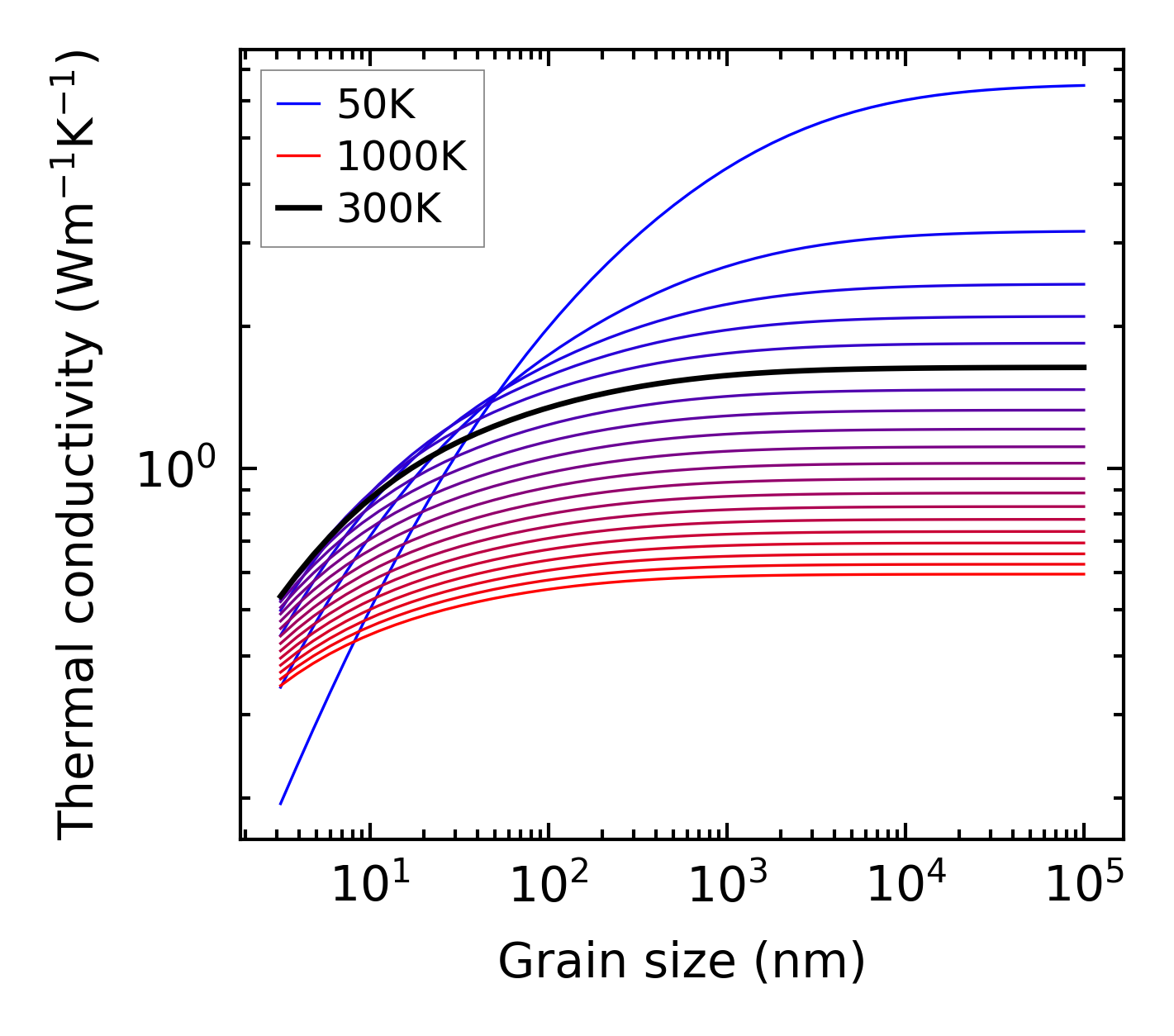

../../_images/fig_kappa_vs_grain_size689.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

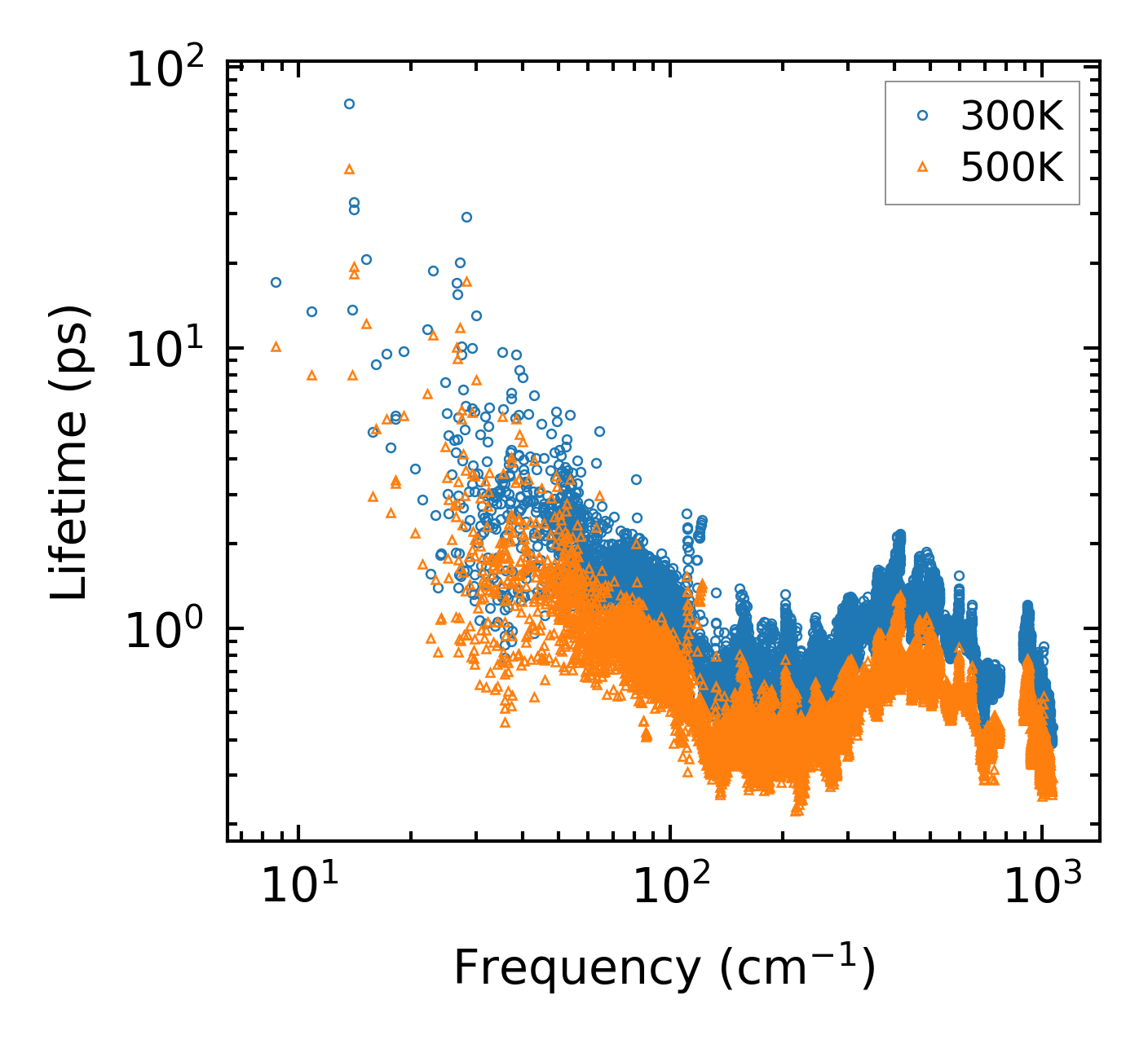

../../_images/fig_lifetime678.png — (a) Phonon lifetime due to phonon-phonon scattering

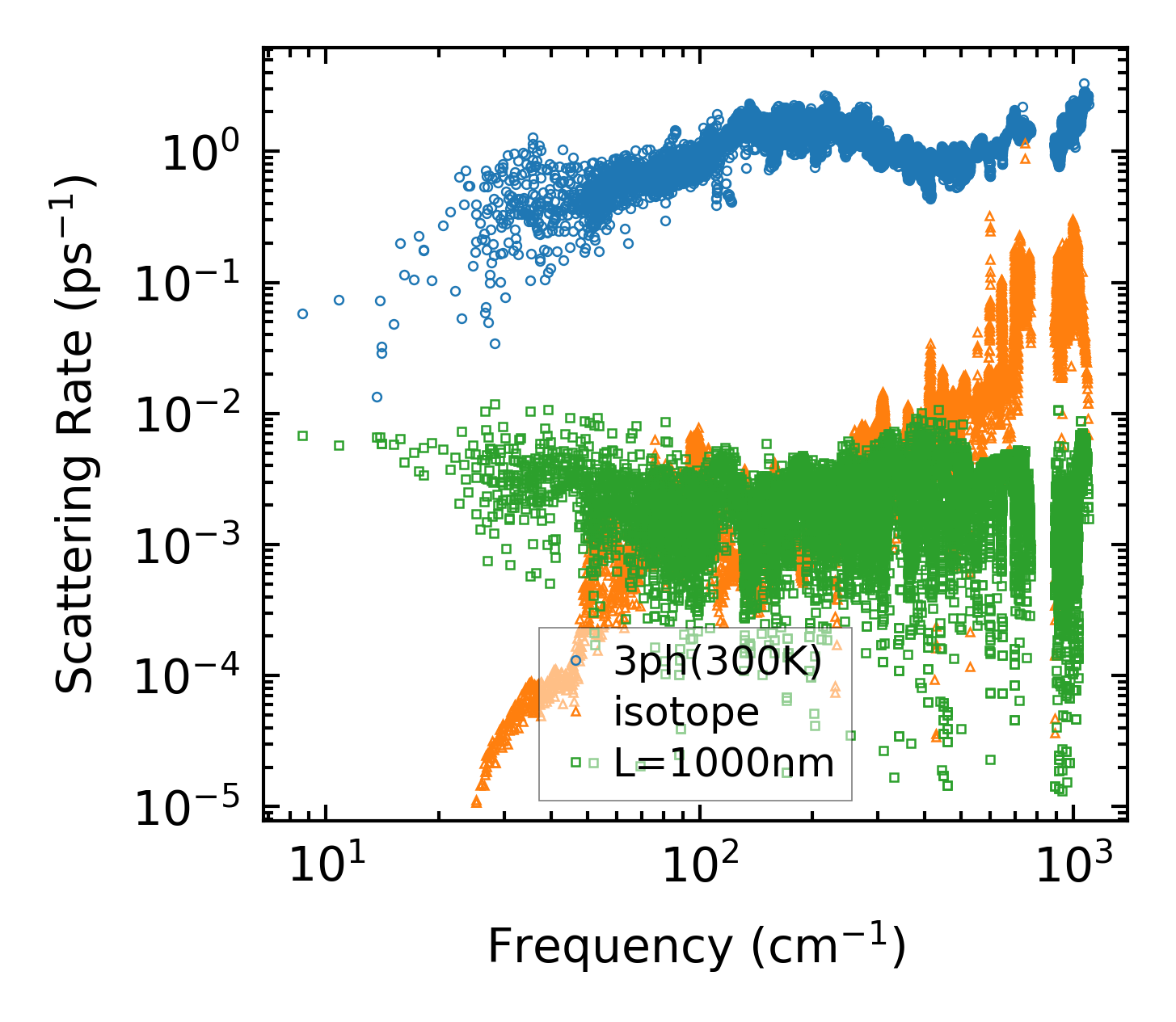

../../_images/fig_scat_rates677.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

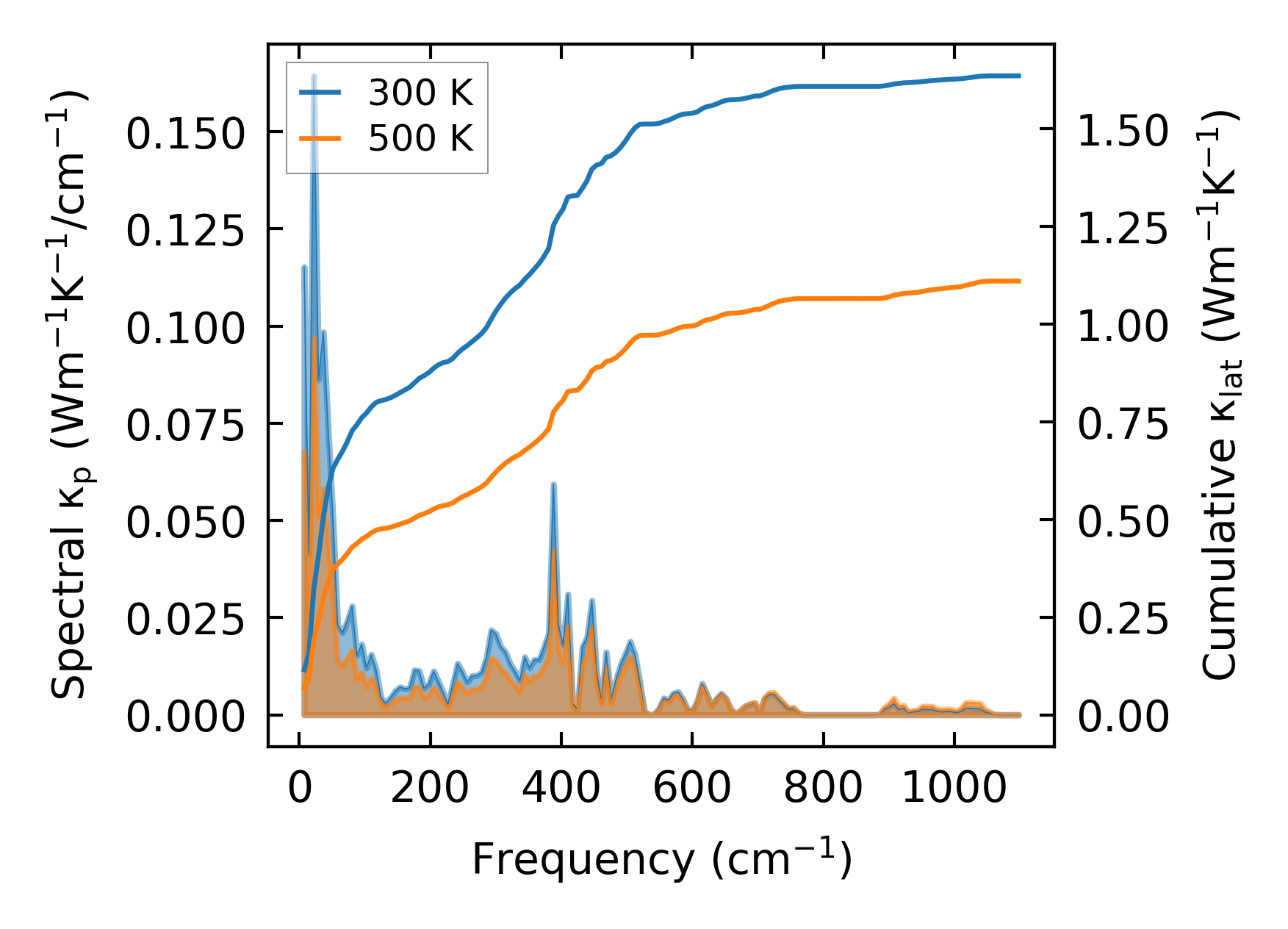

../../_images/fig_cumu_frequency678.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

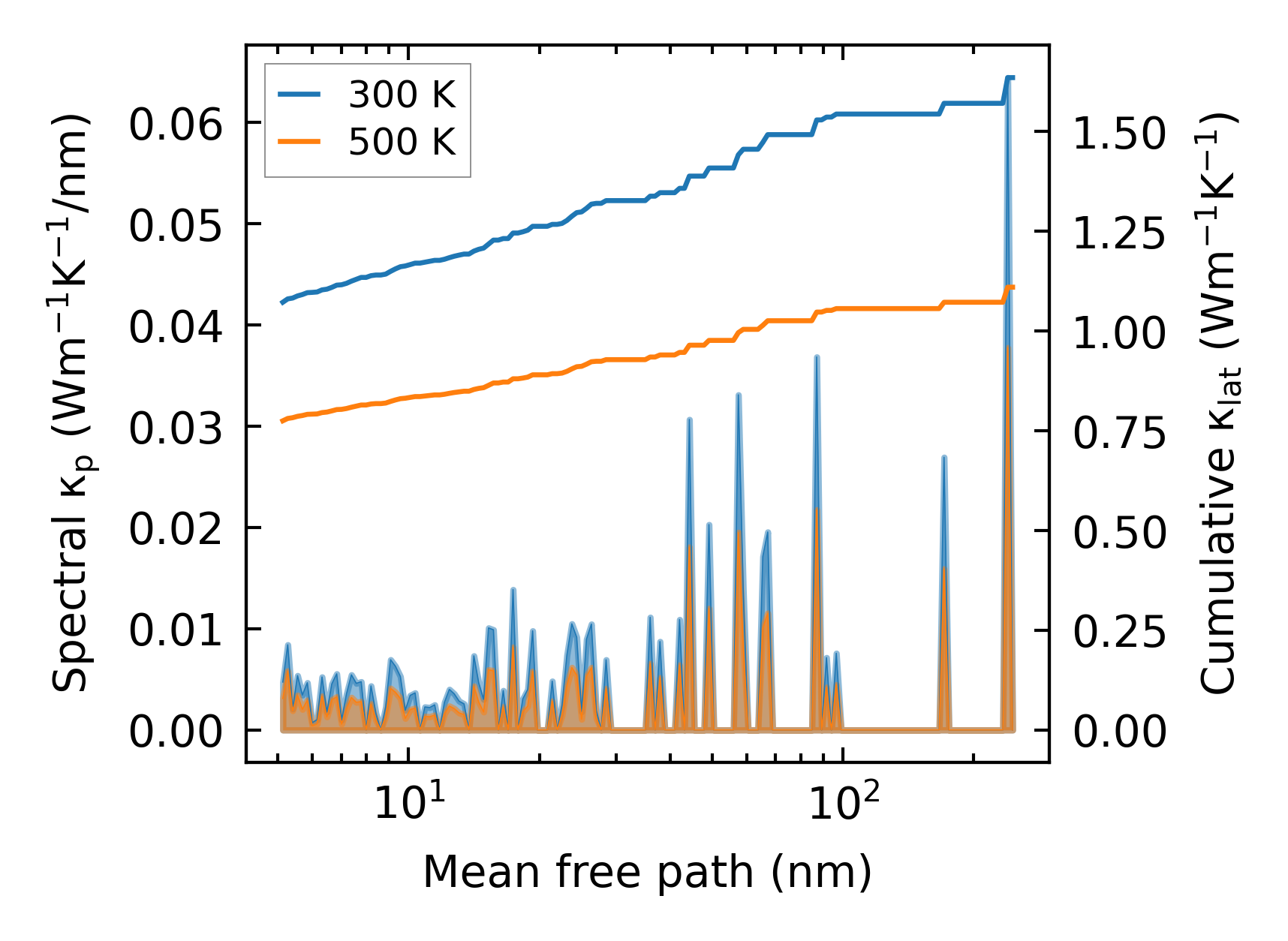

../../_images/fig_cumu_mfp678.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

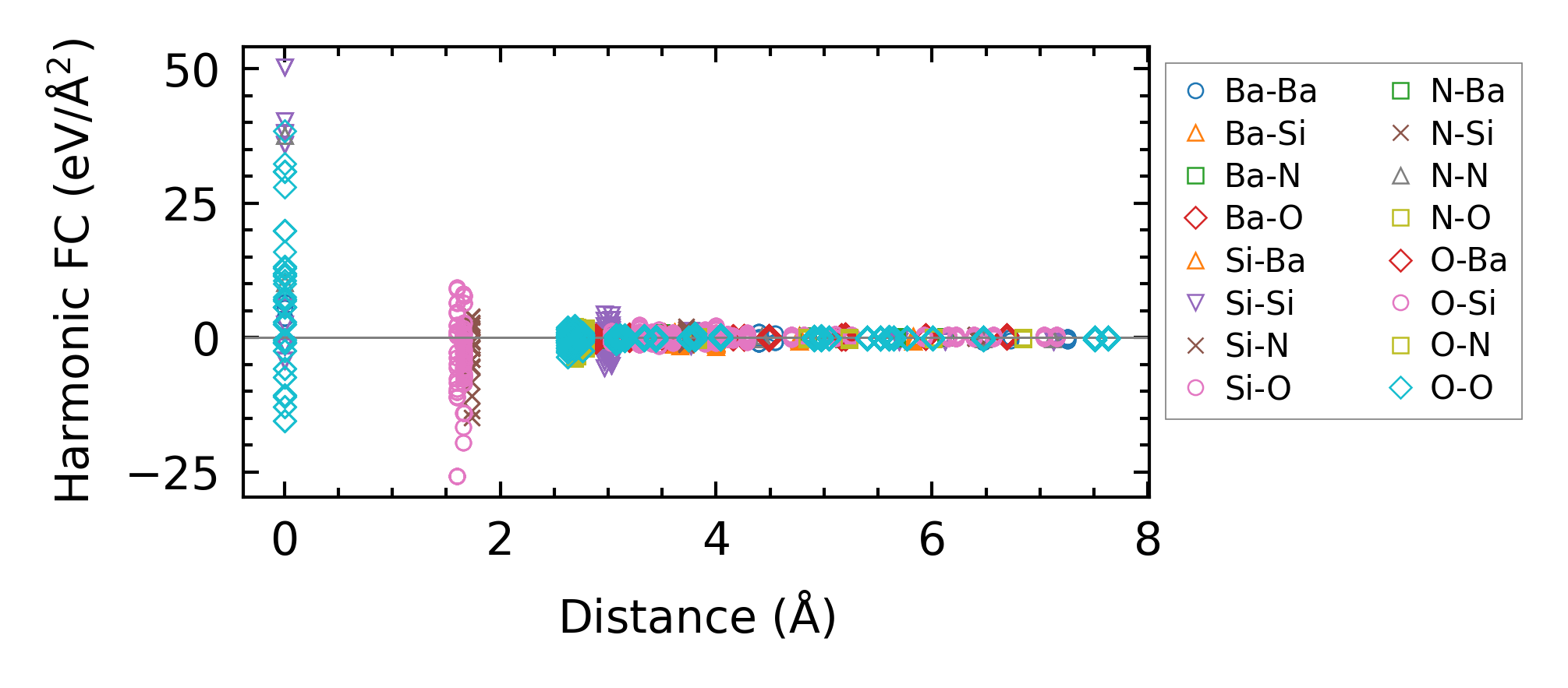

../../_images/fig_fc2982.png — (a) Force constants w.r.t atomic distance

Summary

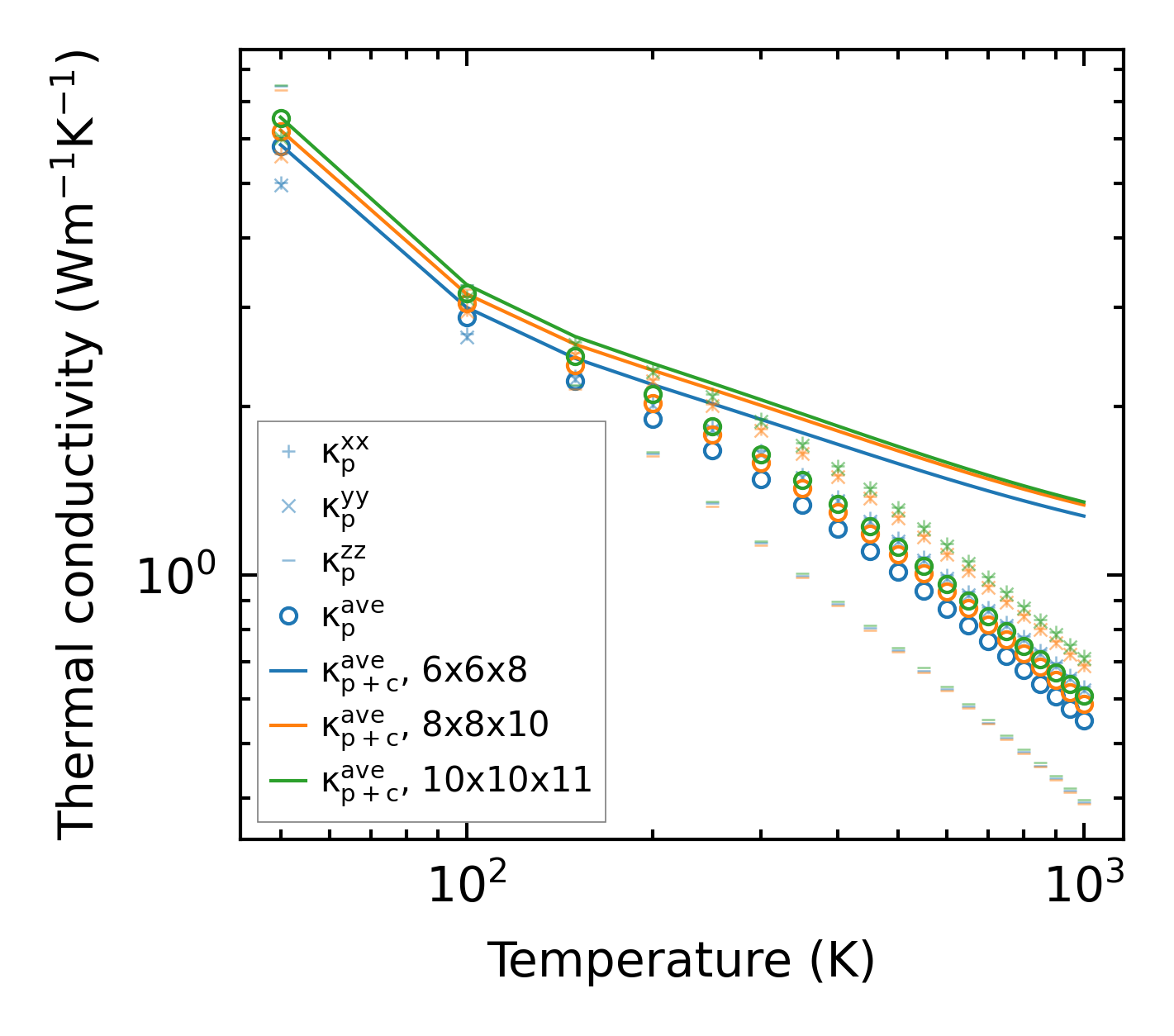

../../_images/fig_kappa1328.png — (a) Temperature-dependent lattice thermal conductivity

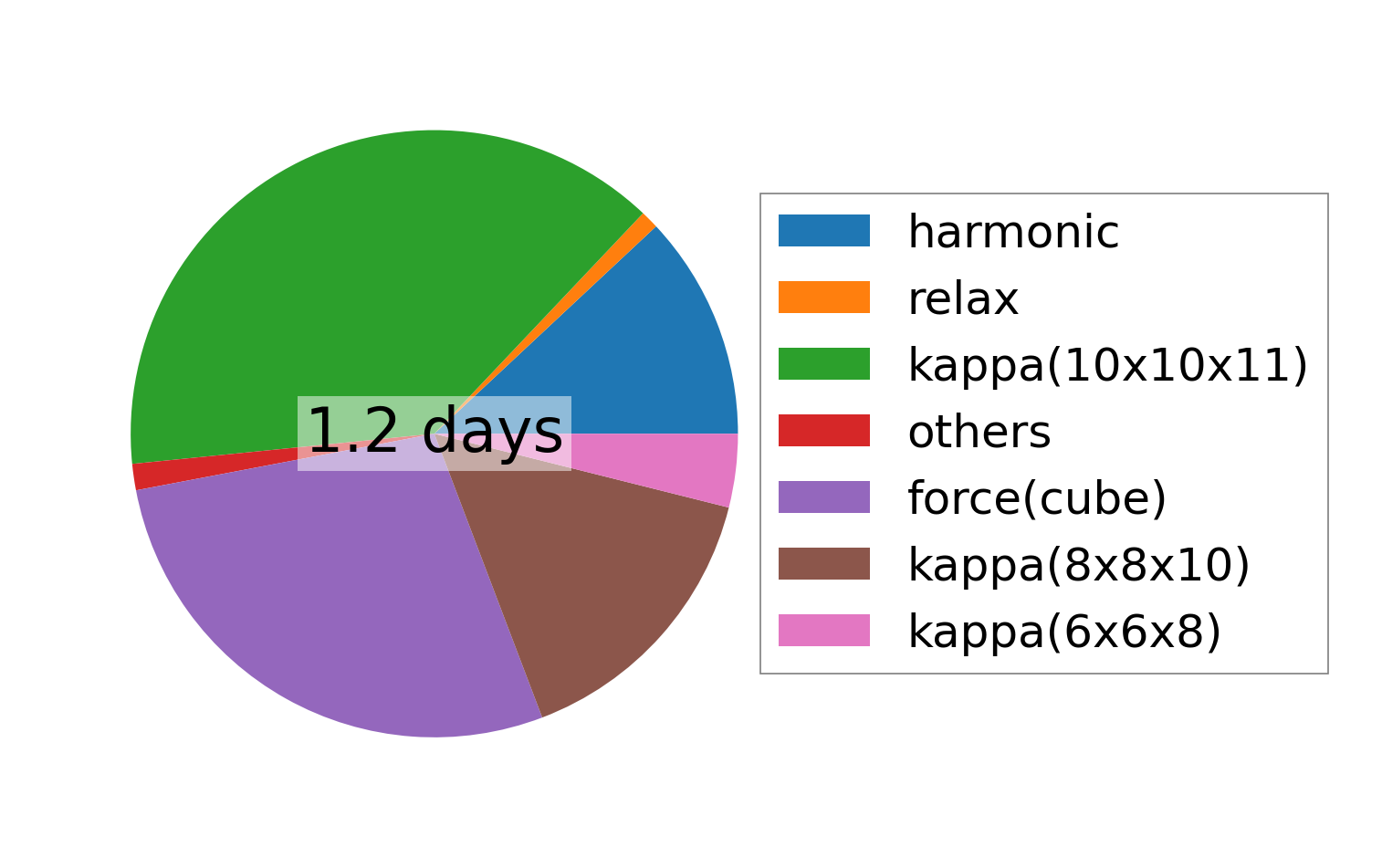

../../_images/fig_times1675.png — (b) Computation time
