mp-780420/Lu4Al2O9/anharm

Space group: P2_1/c (14)
Link: Materials Project
Download: mp-780420.tar.gz

Harmonic properties

../../_images/fig_bandos_pr1991.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo1991.png — (b) Thermodynamic properties

Grüneisen parameters

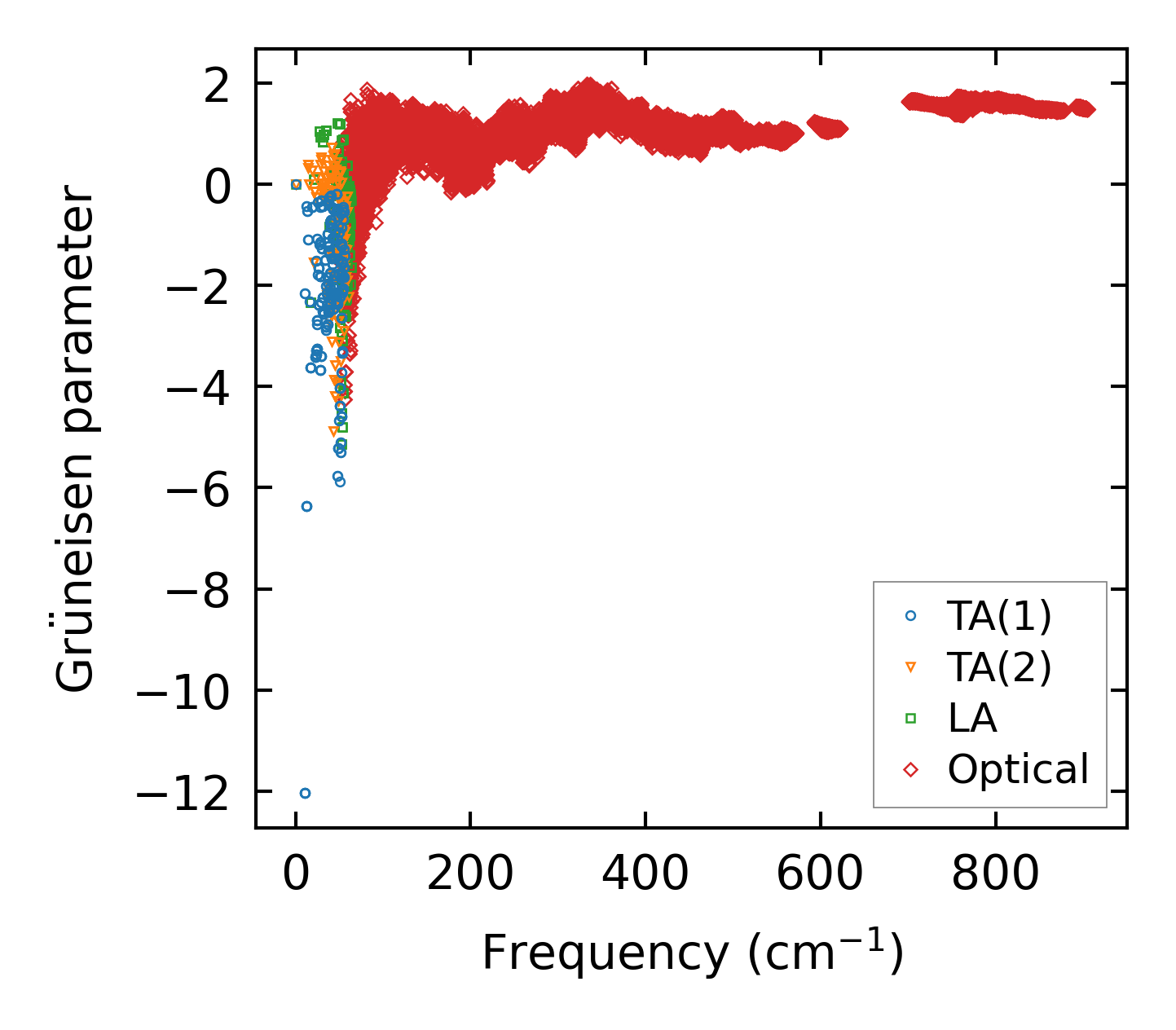

../../_images/fig_gru_all1140.png — (a) Grüneisen parameters

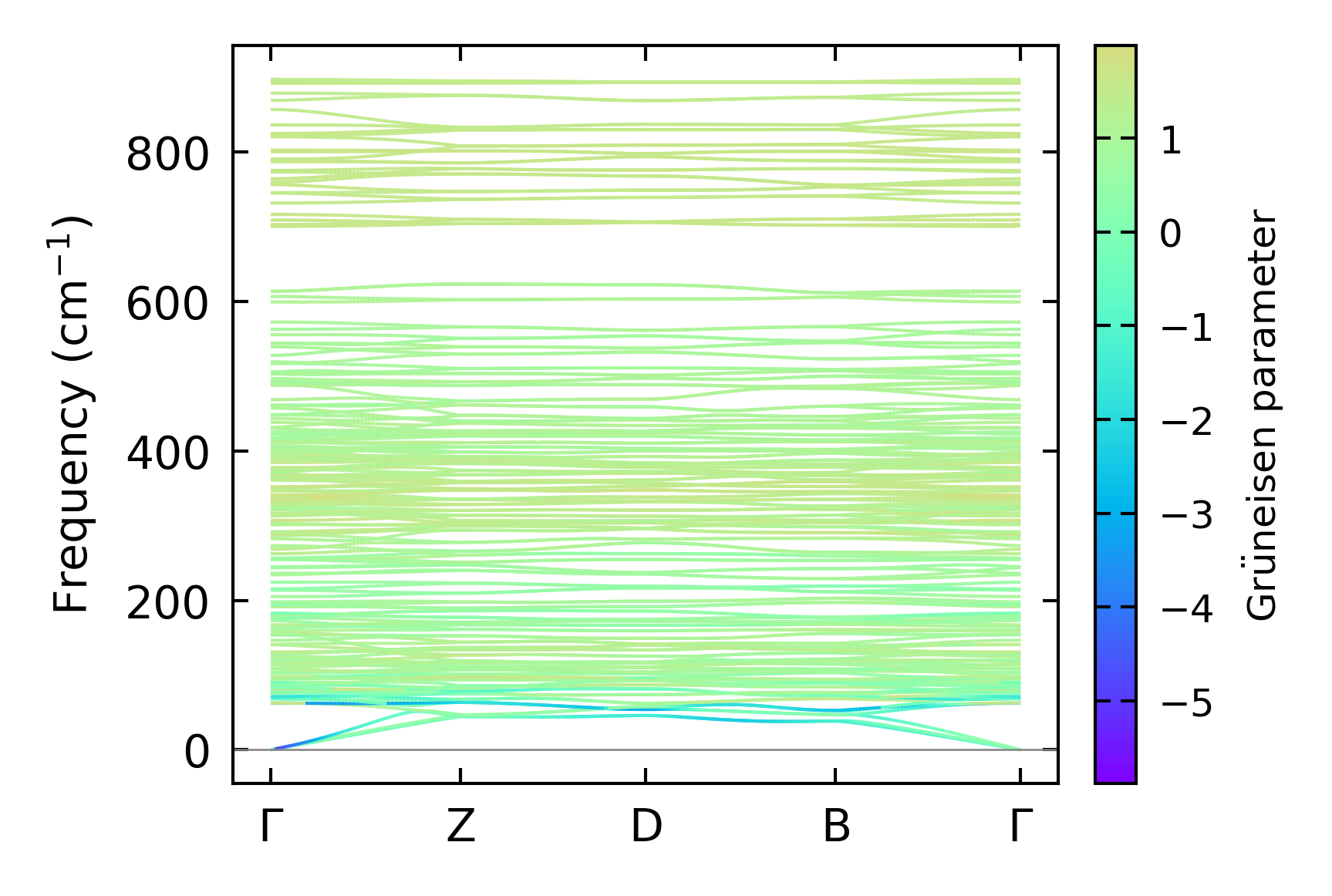

../../_images/fig_gruneisen1140.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 10x7x6, supercell: 2x1x1

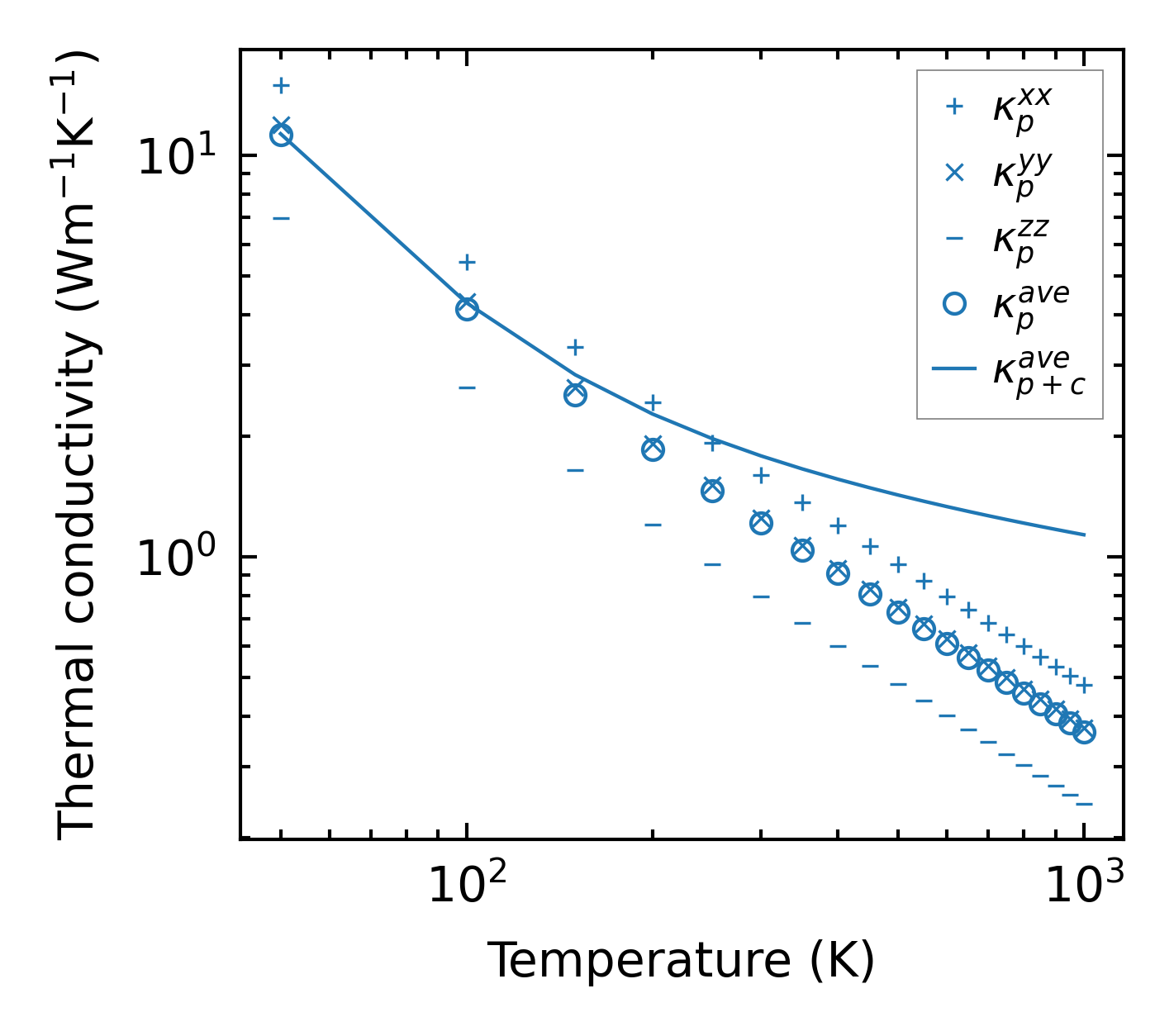

../../_images/fig_kappa2196.png — (a) Temperature-dependent lattice thermal conductivity

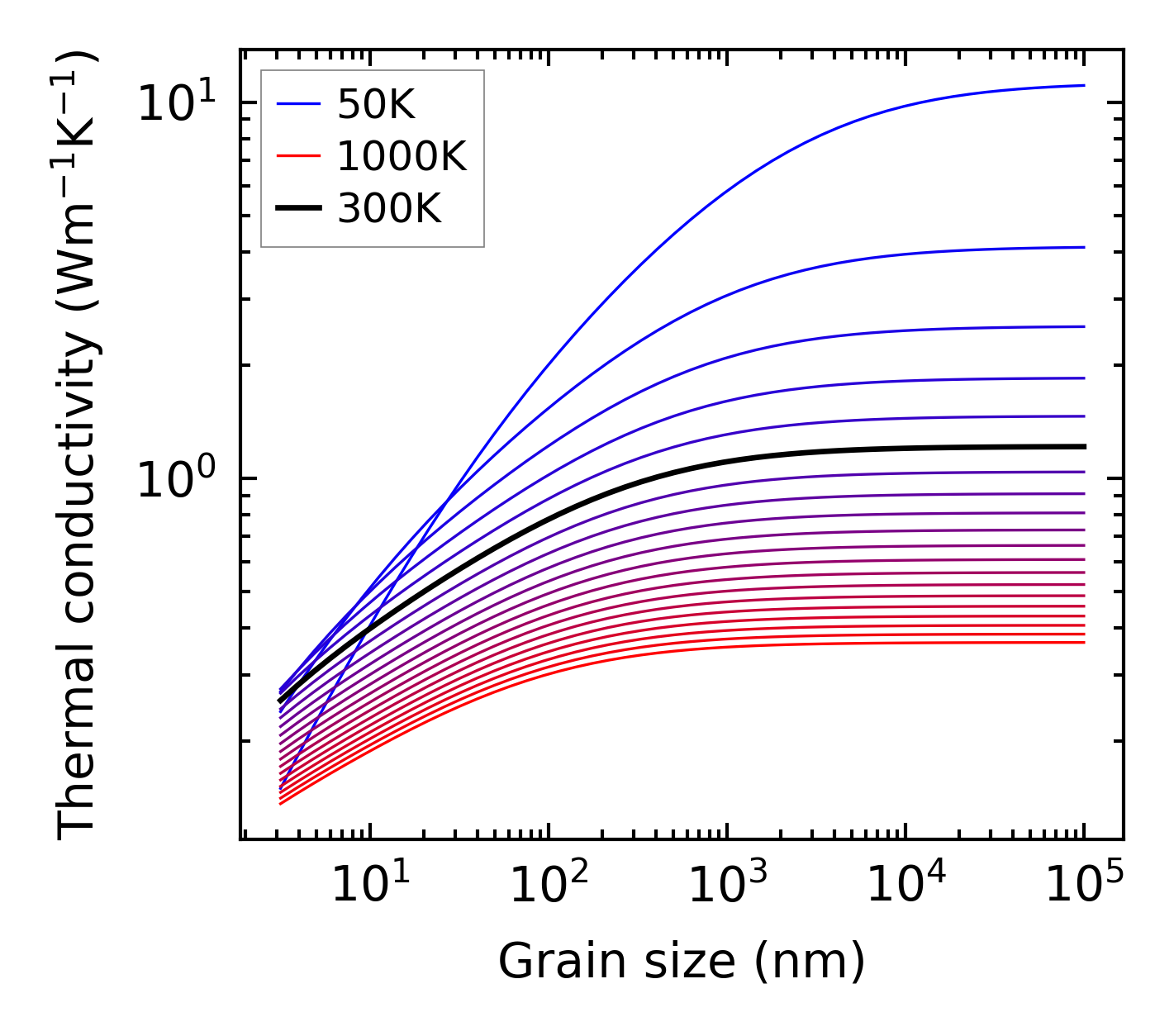

../../_images/fig_kappa_vs_grain_size1153.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

../../_images/fig_lifetime1131.png — (a) Phonon lifetime due to phonon-phonon scattering

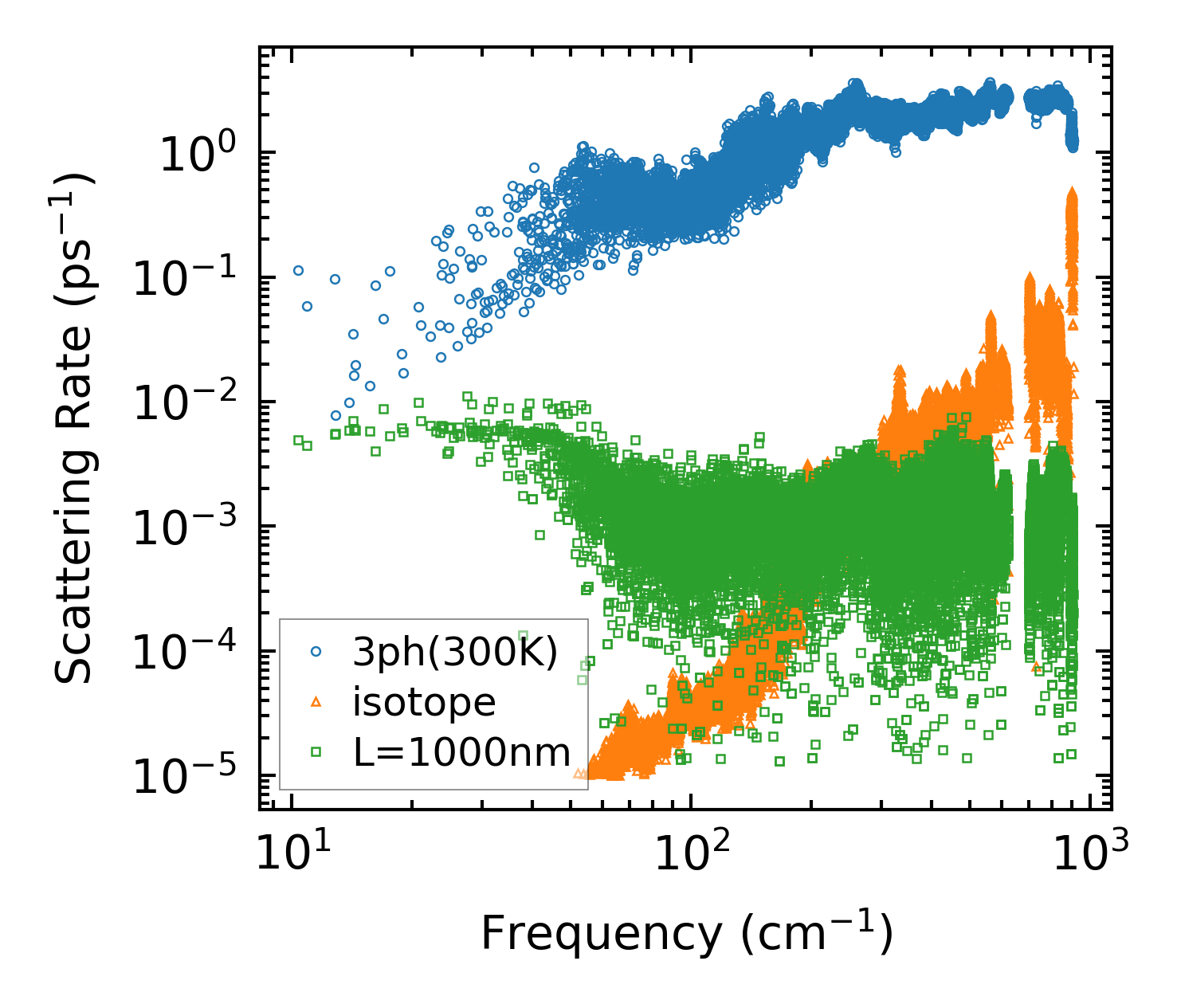

../../_images/fig_scat_rates1130.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

../../_images/fig_cumu_frequency1131.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

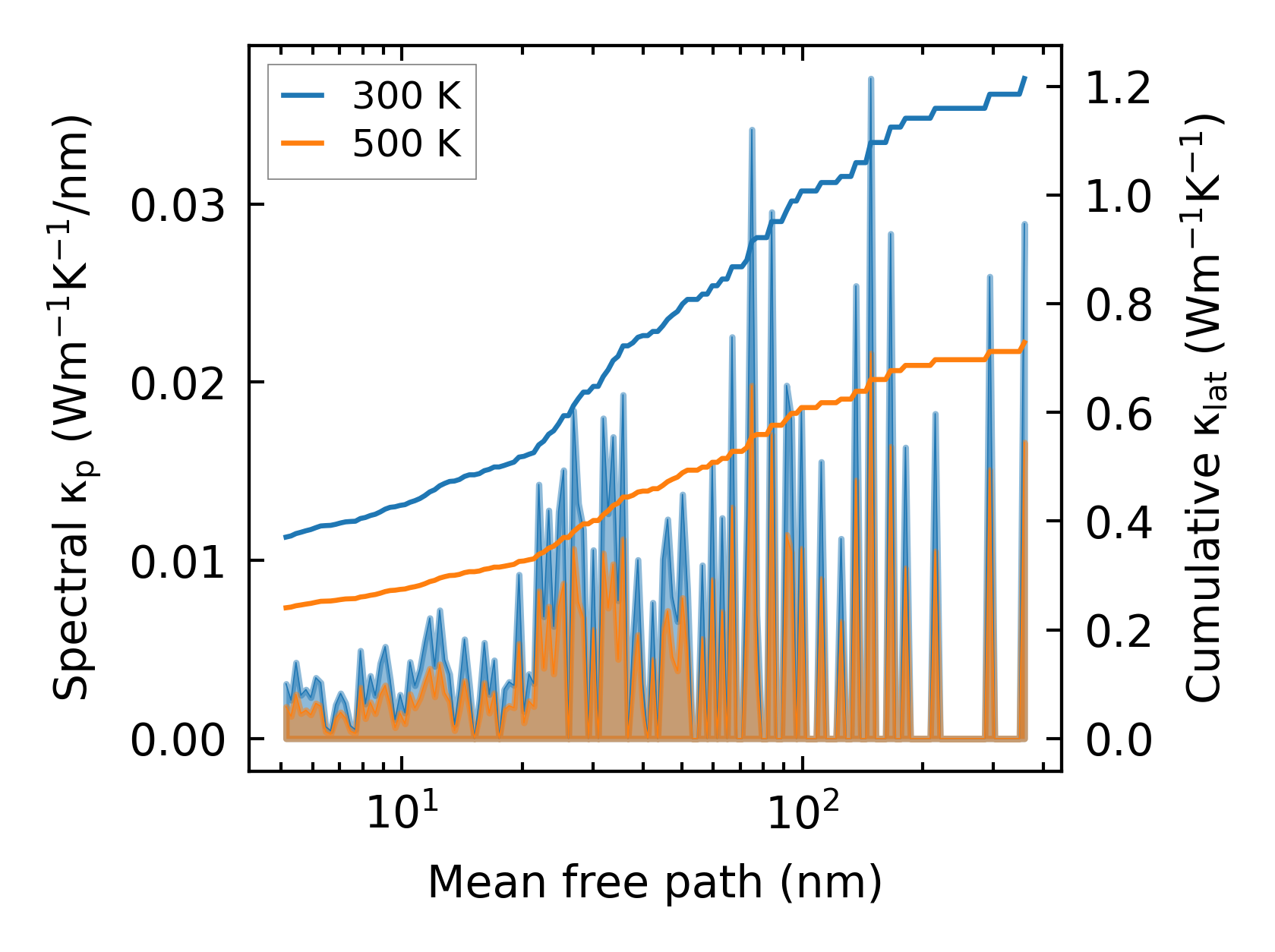

../../_images/fig_cumu_mfp1131.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

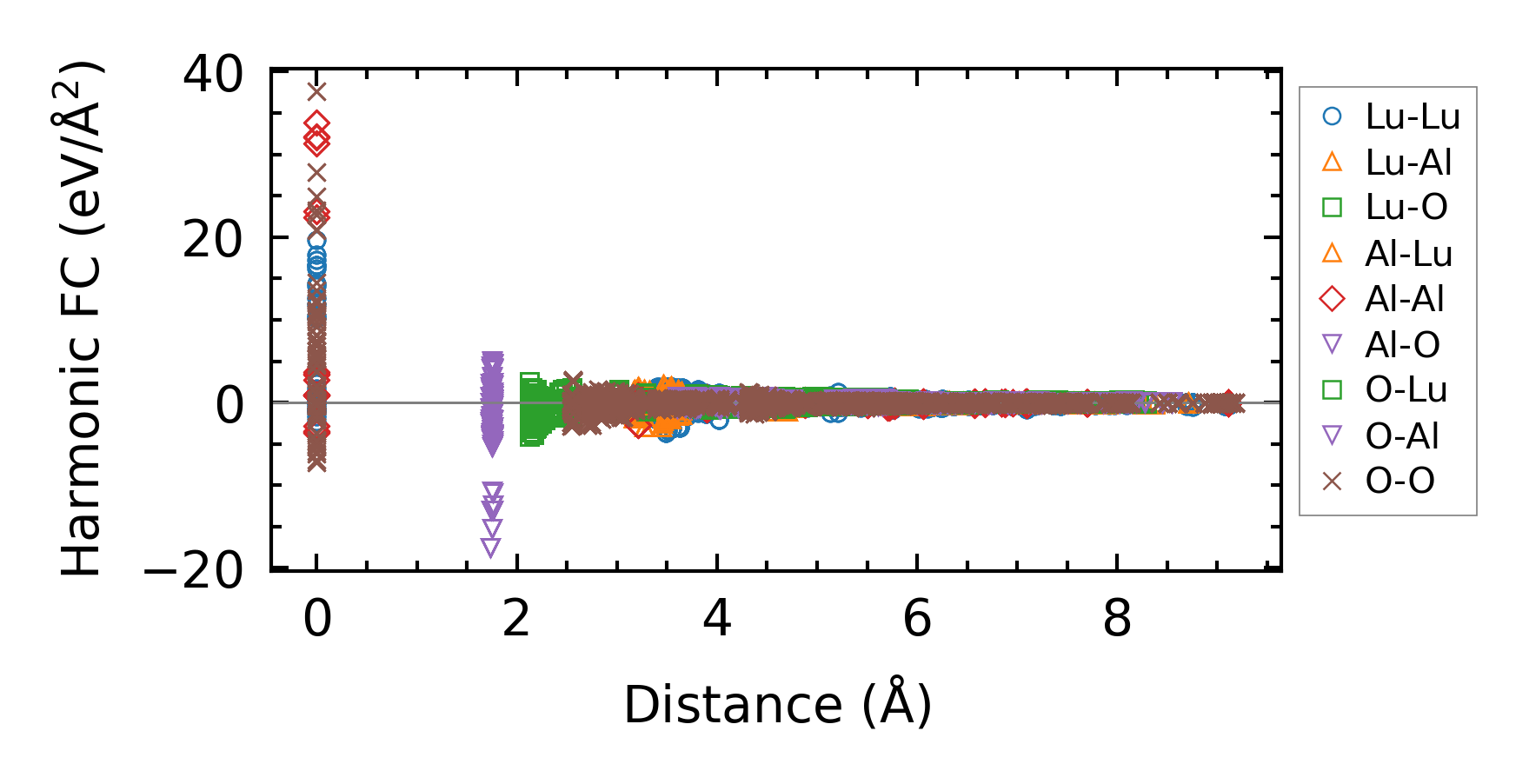

../../_images/fig_fc21814.png — (a) Force constants w.r.t atomic distance

Summary

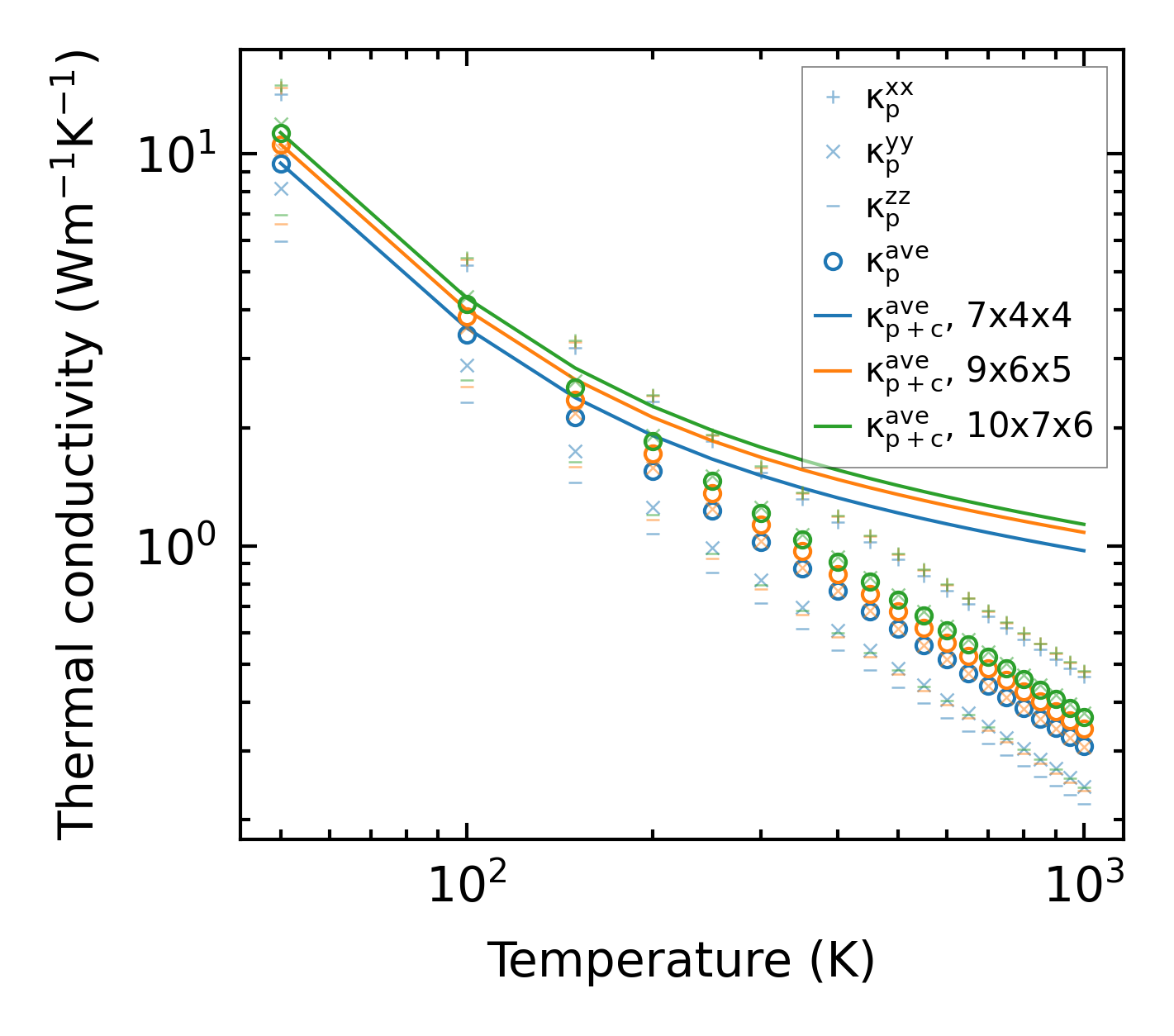

../../_images/fig_kappa2197.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_times3047.png — (b) Computation time
