mp-780387/YbHfO3/anharm

Space group: Pnma (62)
Link: Materials Project
Download: mp-780387.tar.gz

Harmonic properties

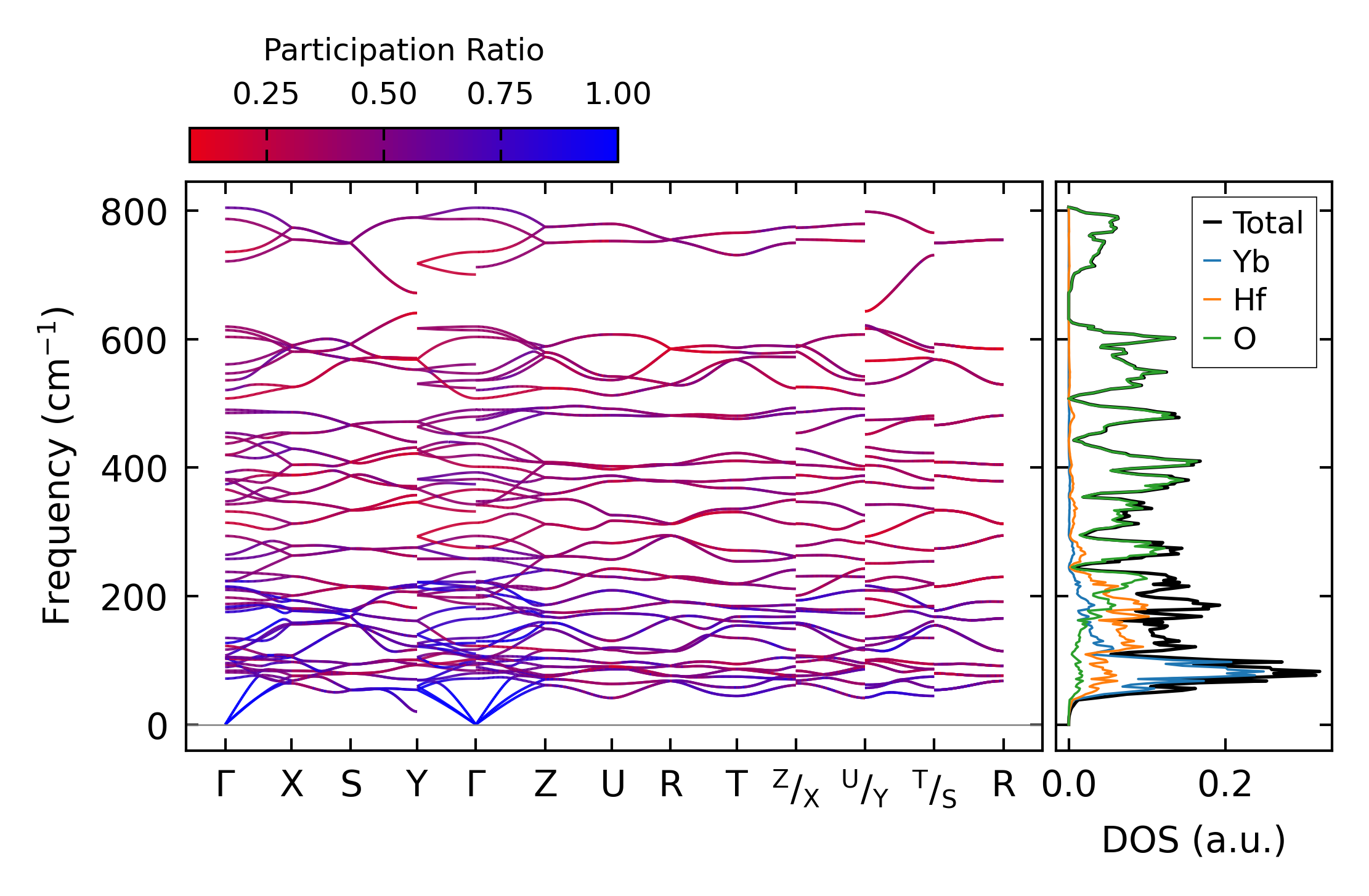

../../_images/fig_bandos_pr1984.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo1984.png — (b) Thermodynamic properties

Grüneisen parameters

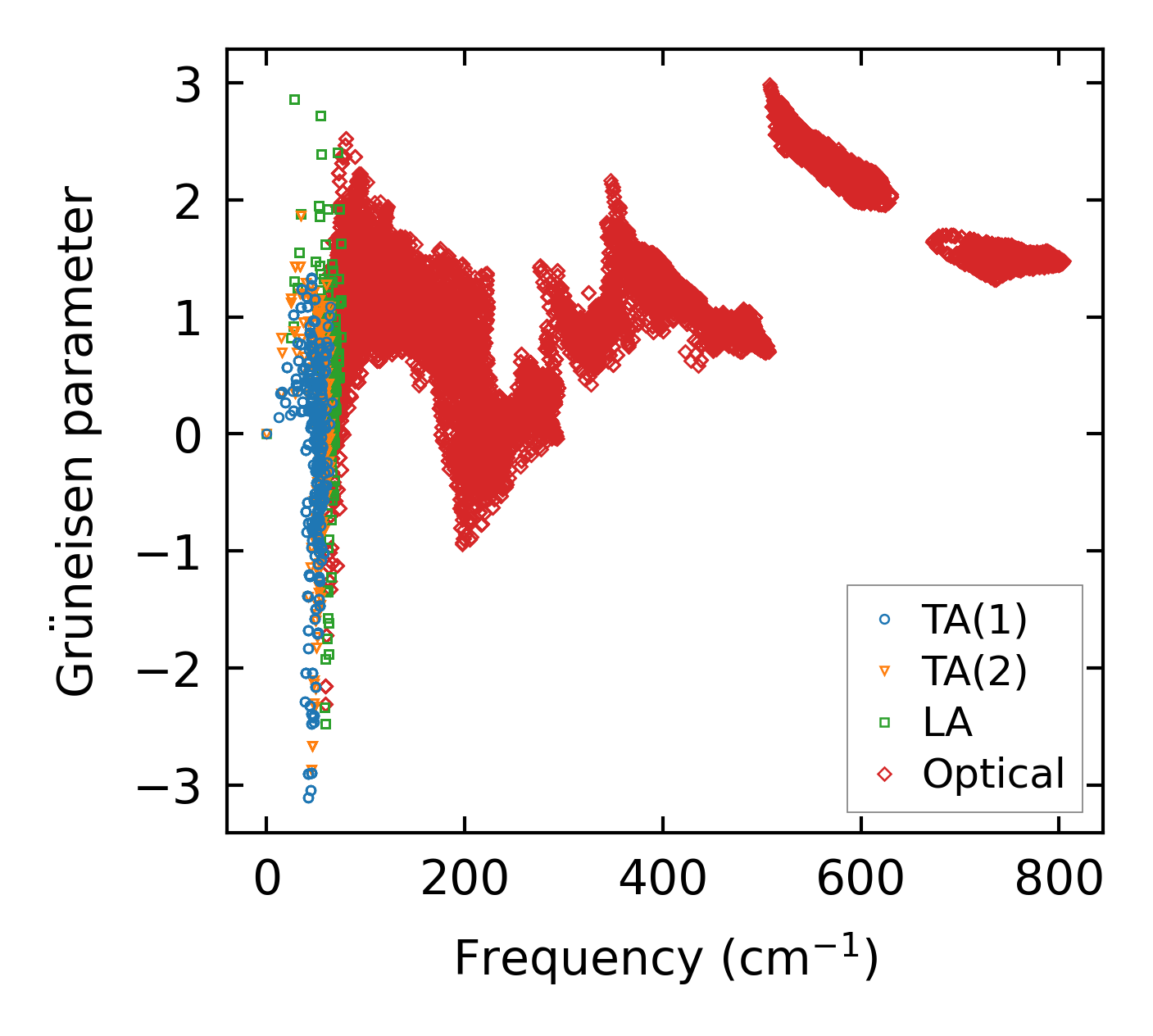

../../_images/fig_gru_all1137.png — (a) Grüneisen parameters

../../_images/fig_gruneisen1137.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 12x9x13, supercell: 2x1x2

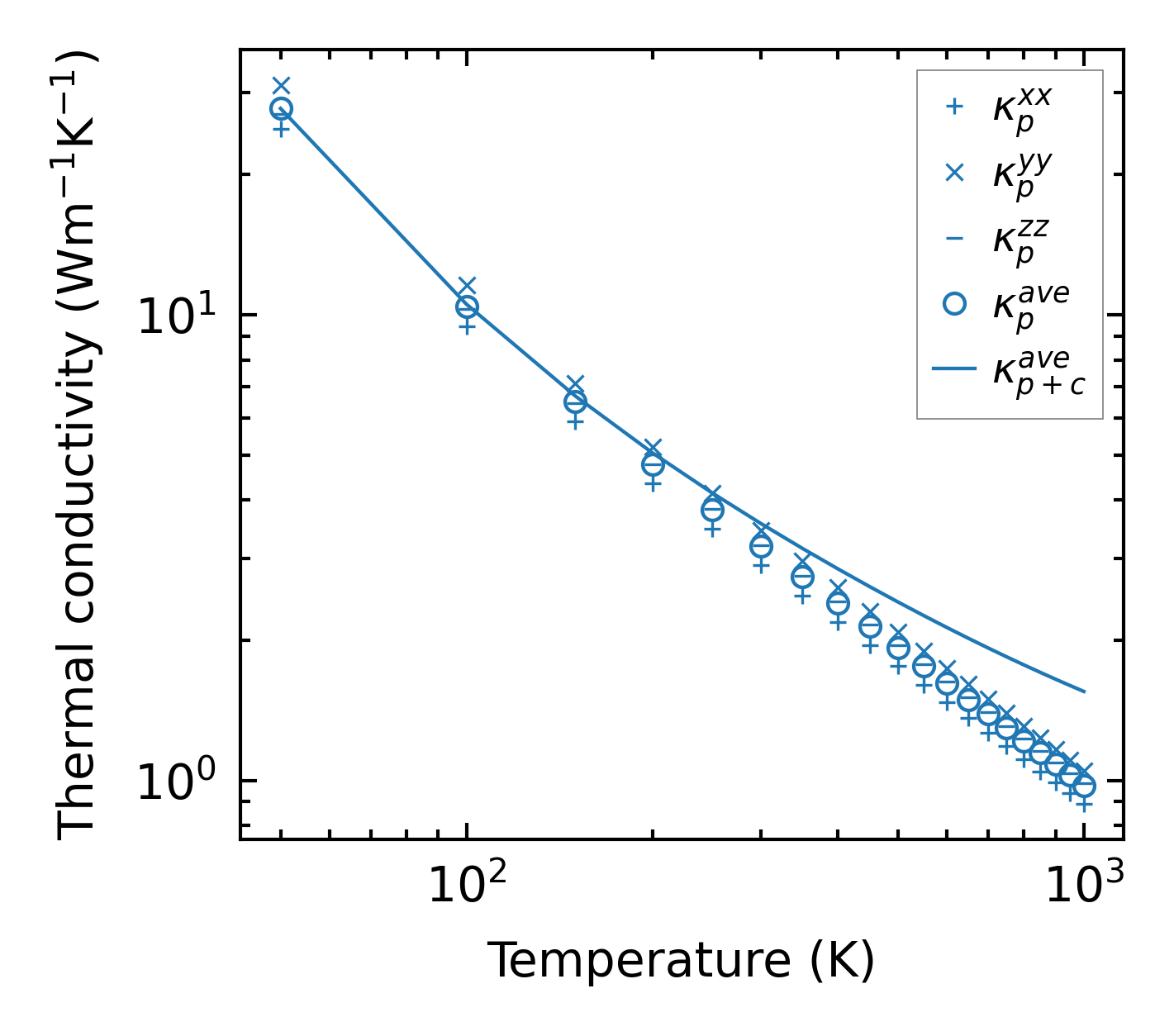

../../_images/fig_kappa2190.png — (a) Temperature-dependent lattice thermal conductivity

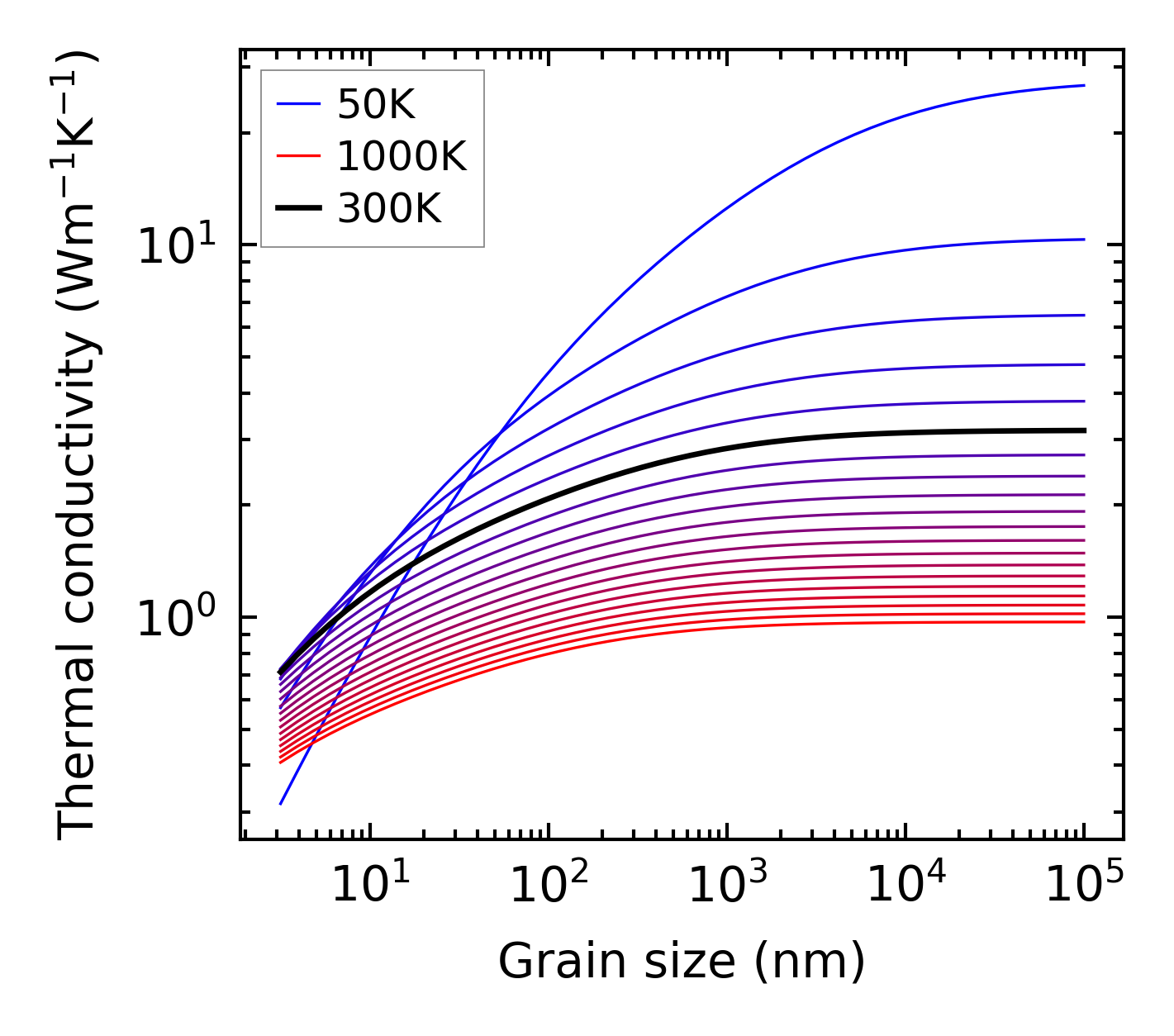

../../_images/fig_kappa_vs_grain_size1150.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

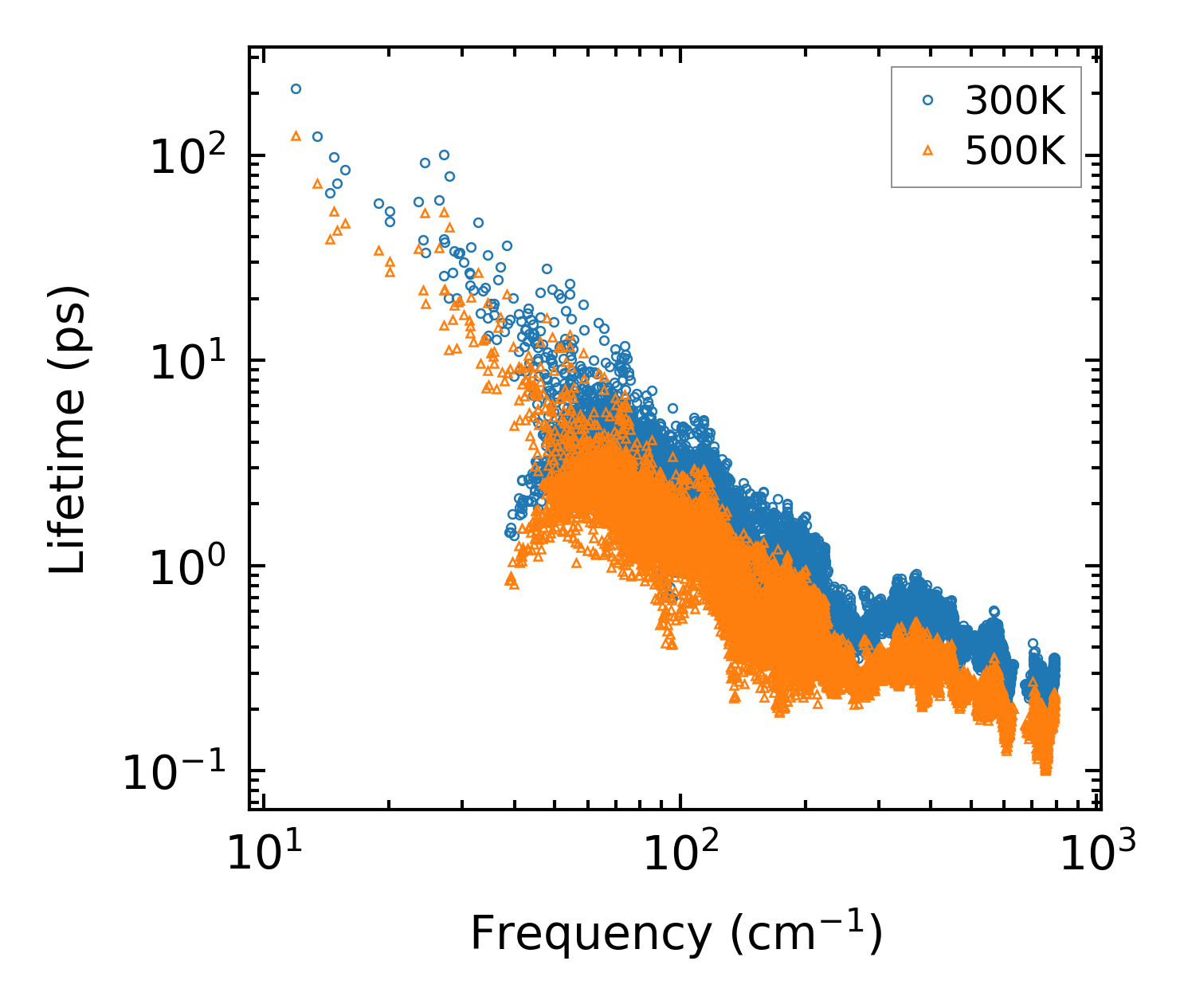

../../_images/fig_lifetime1128.png — (a) Phonon lifetime due to phonon-phonon scattering

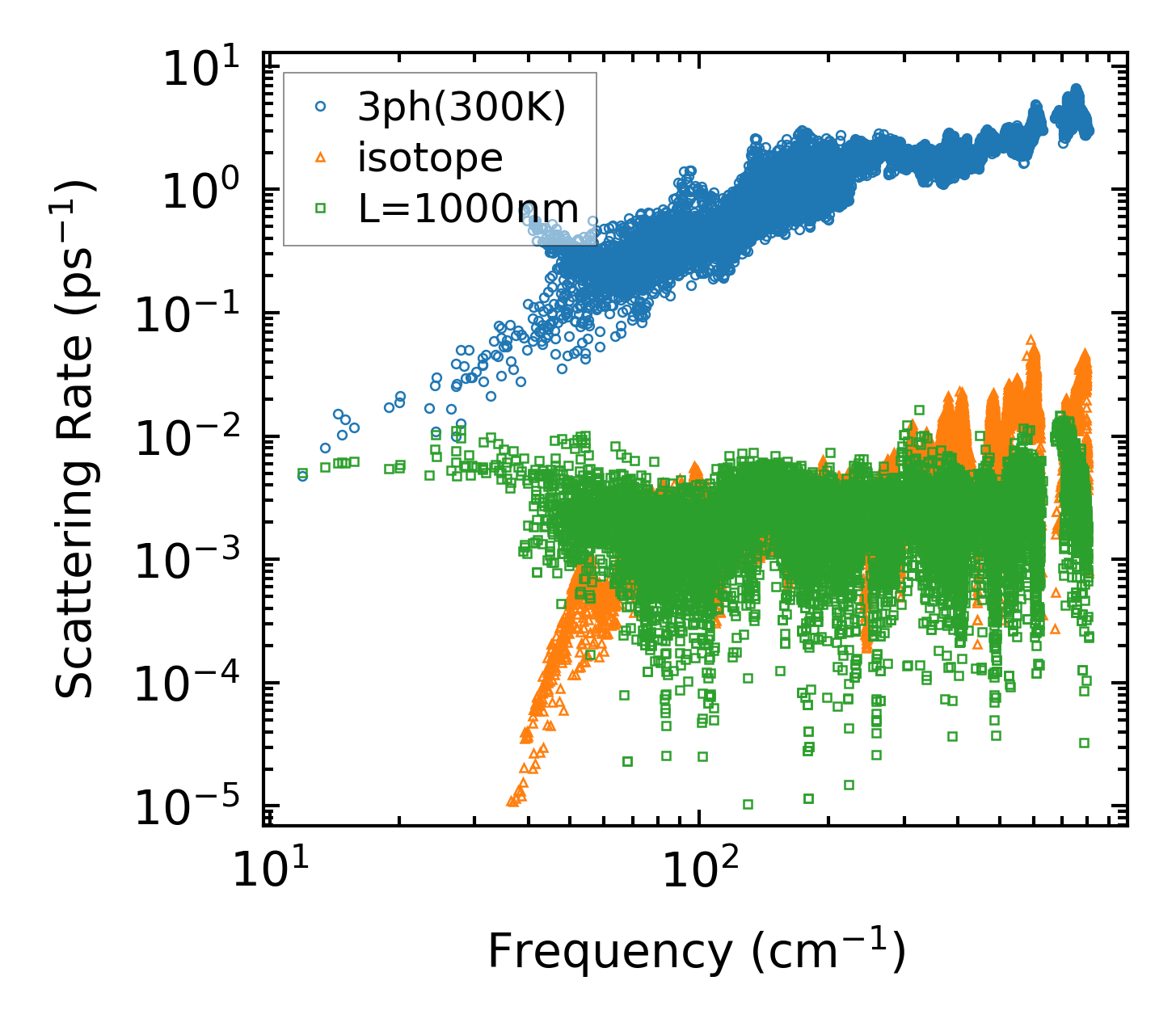

../../_images/fig_scat_rates1127.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

../../_images/fig_cumu_frequency1128.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

../../_images/fig_cumu_mfp1128.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

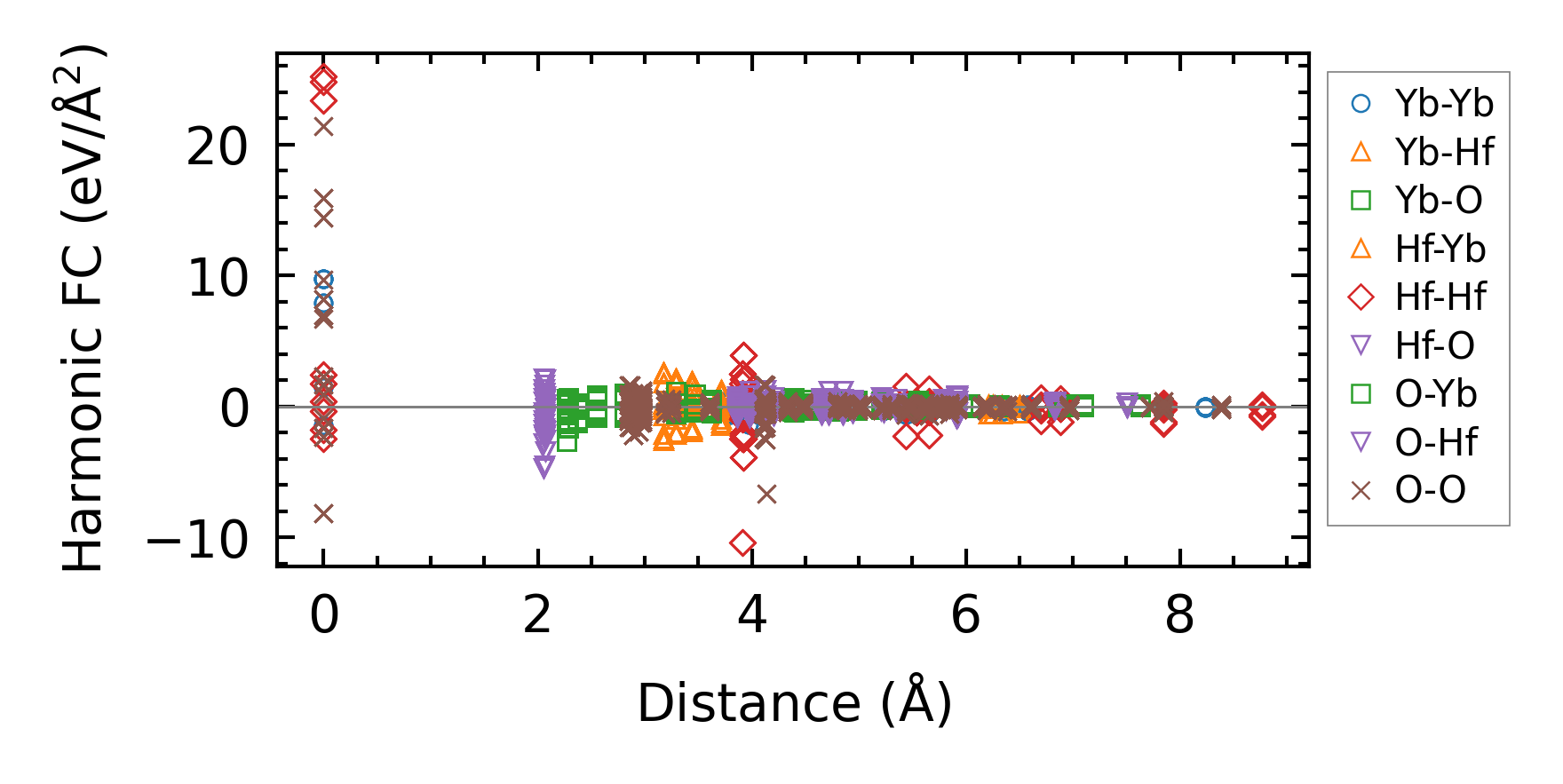

../../_images/fig_fc21807.png — (a) Force constants w.r.t atomic distance

Summary

../../_images/fig_kappa2191.png — (a) Temperature-dependent lattice thermal conductivity

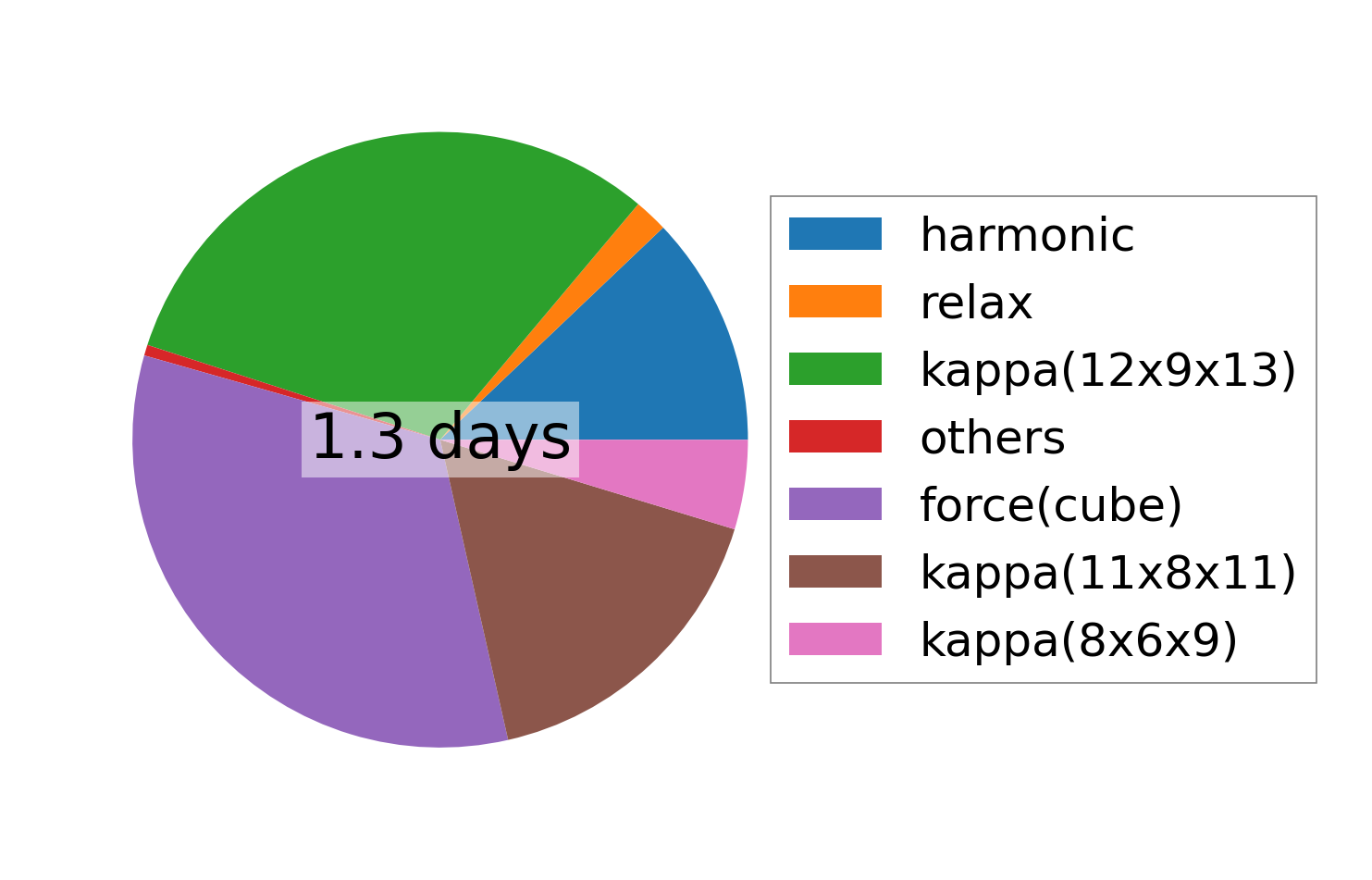

../../_images/fig_times3036.png — (b) Computation time
