mp-780403/NaCu3O2/anharm

Space group: Pbca (61)
Link: Materials Project
Download: mp-780403.tar.gz

Harmonic properties

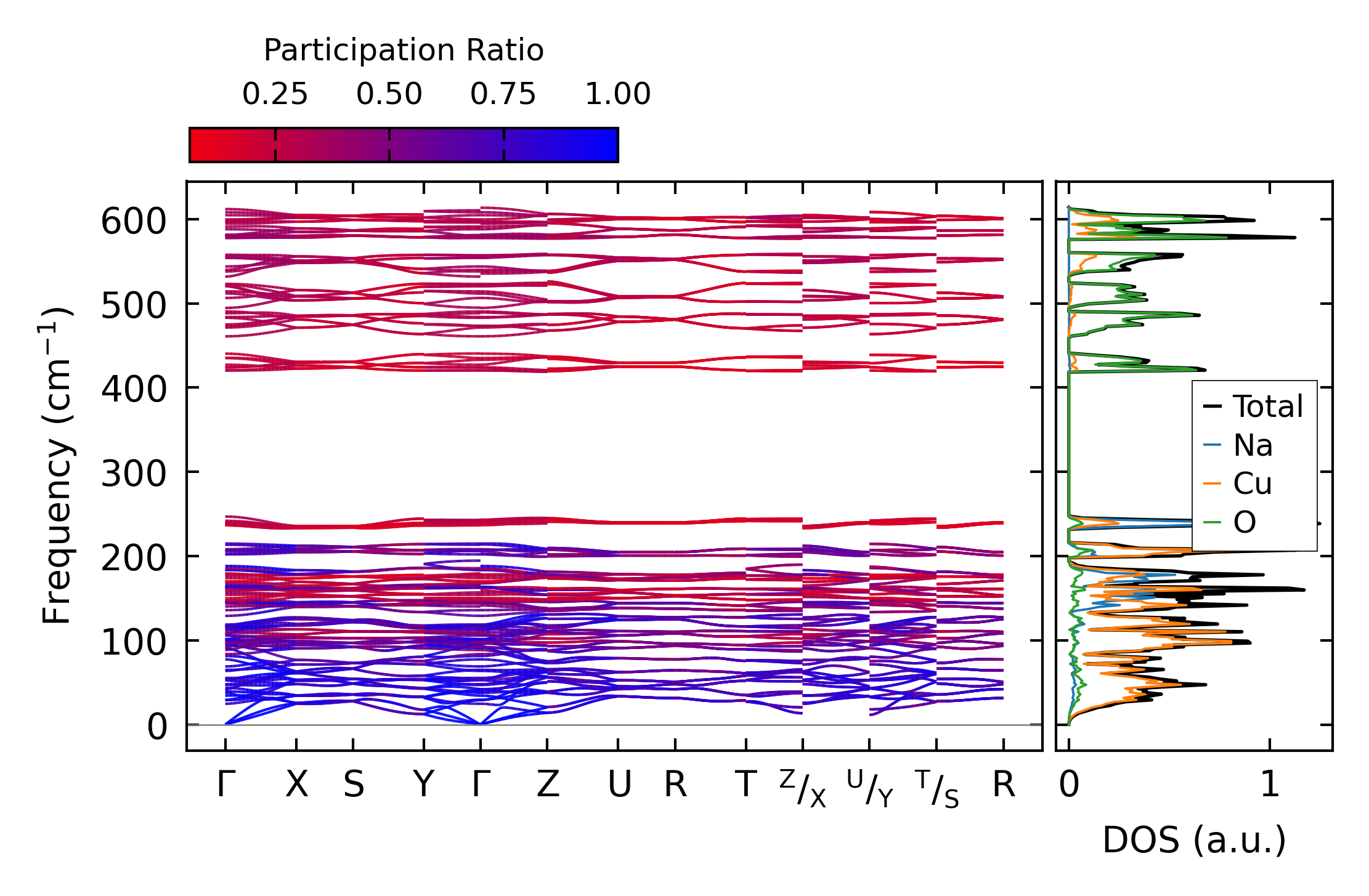

../../_images/fig_bandos_pr1990.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo1990.png — (b) Thermodynamic properties

Grüneisen parameters

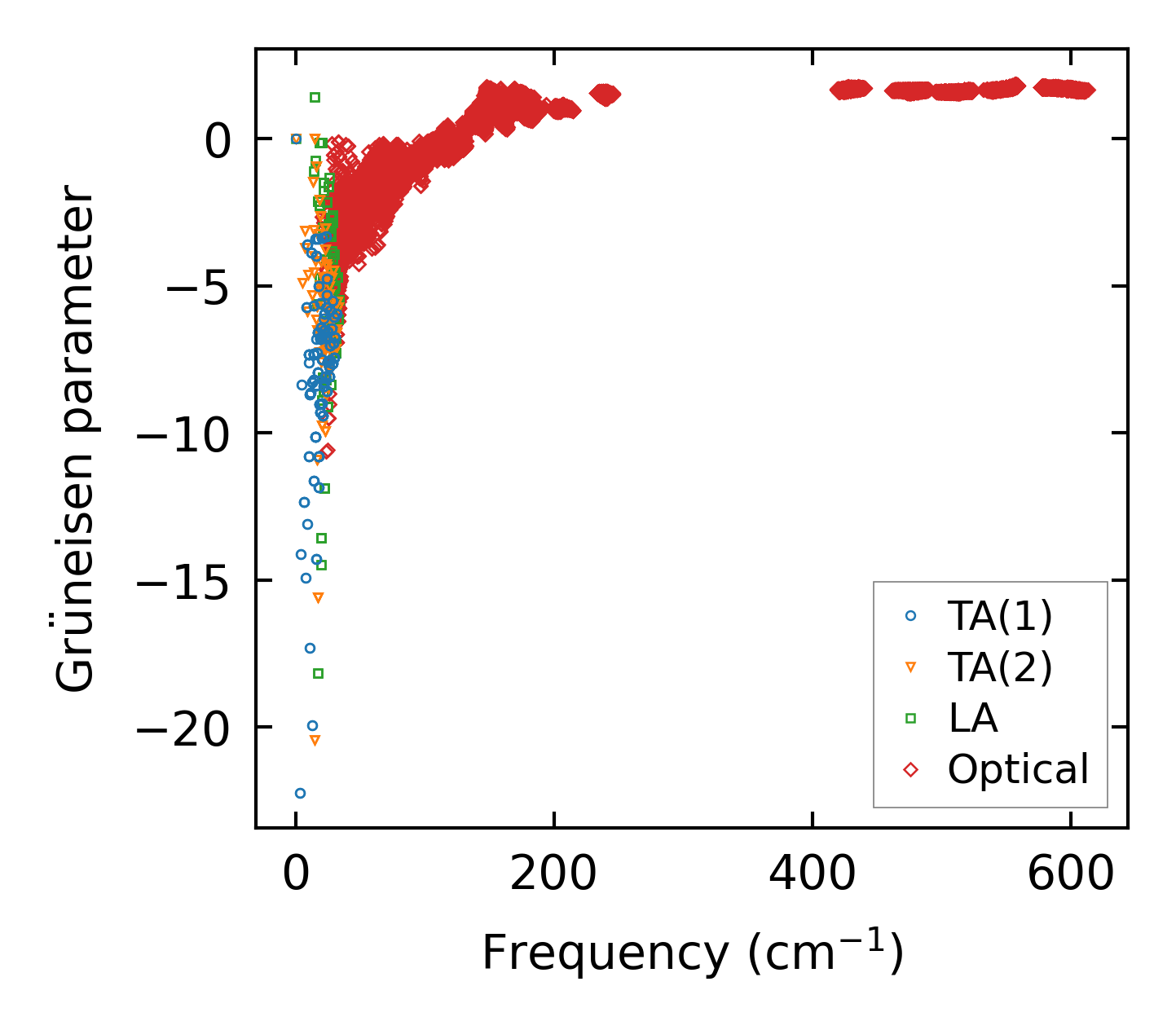

../../_images/fig_gru_all1139.png — (a) Grüneisen parameters

../../_images/fig_gruneisen1139.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 9x5x9, supercell: 2x1x1

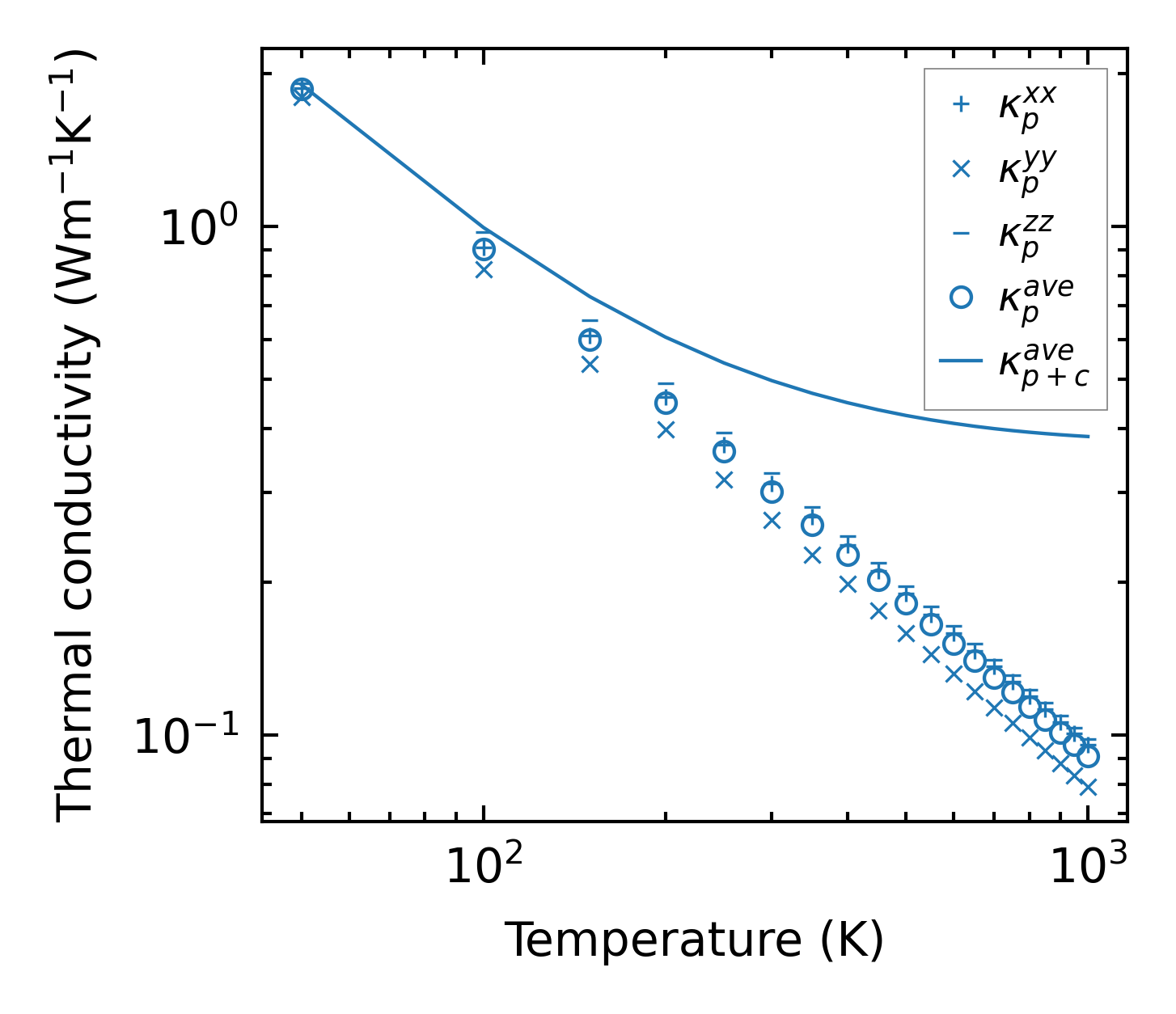

../../_images/fig_kappa2194.png — (a) Temperature-dependent lattice thermal conductivity

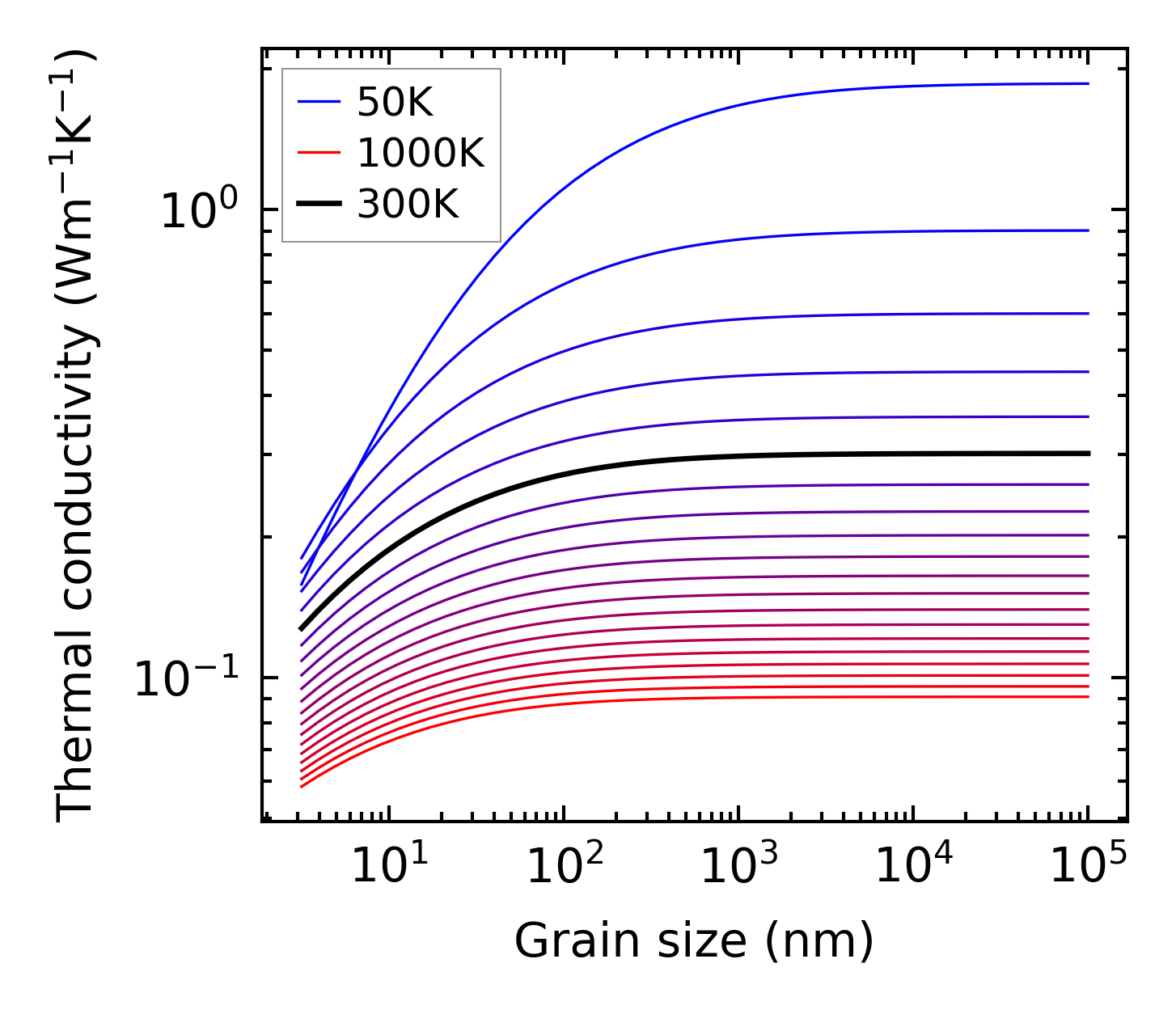

../../_images/fig_kappa_vs_grain_size1152.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

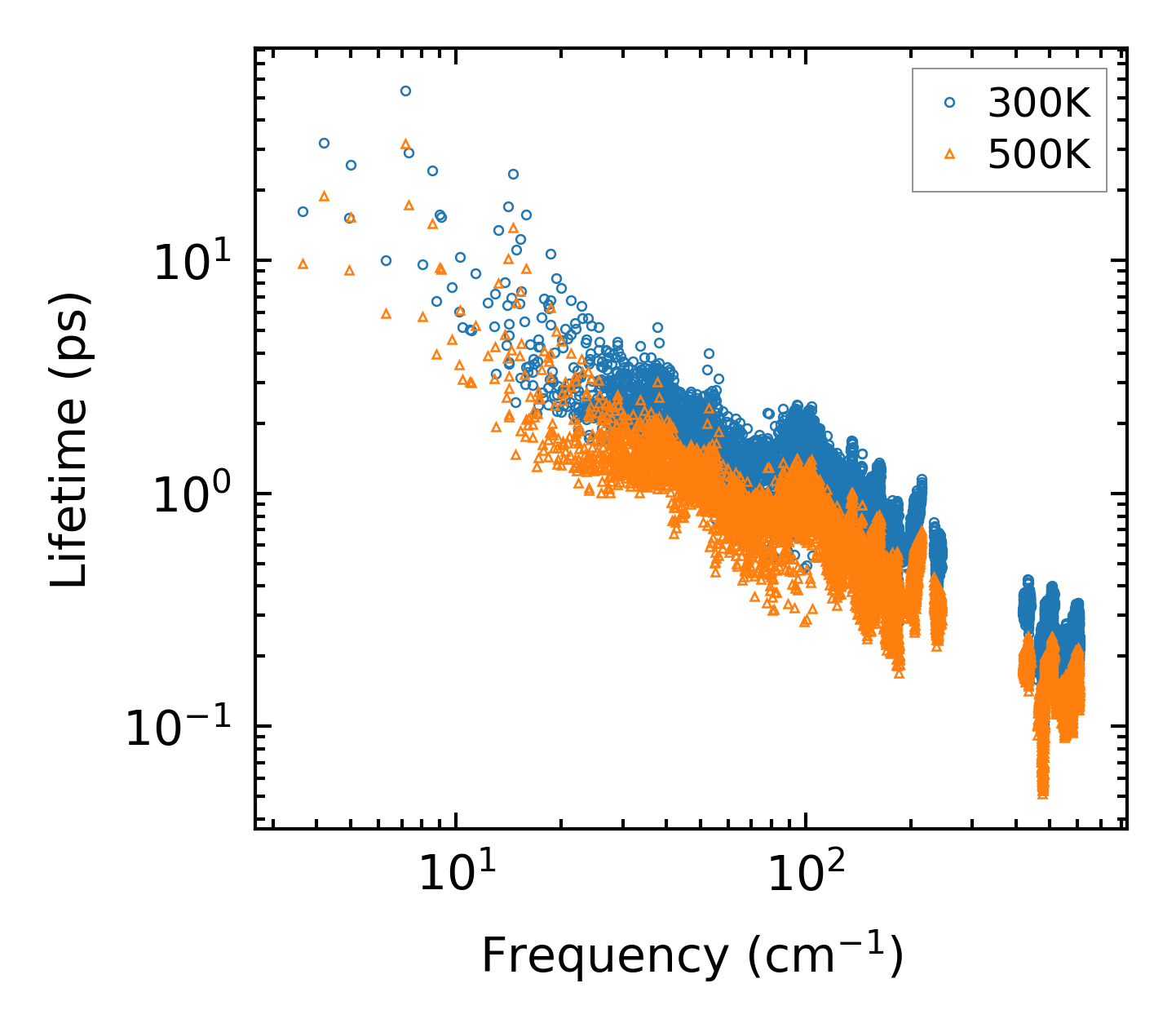

../../_images/fig_lifetime1130.png — (a) Phonon lifetime due to phonon-phonon scattering

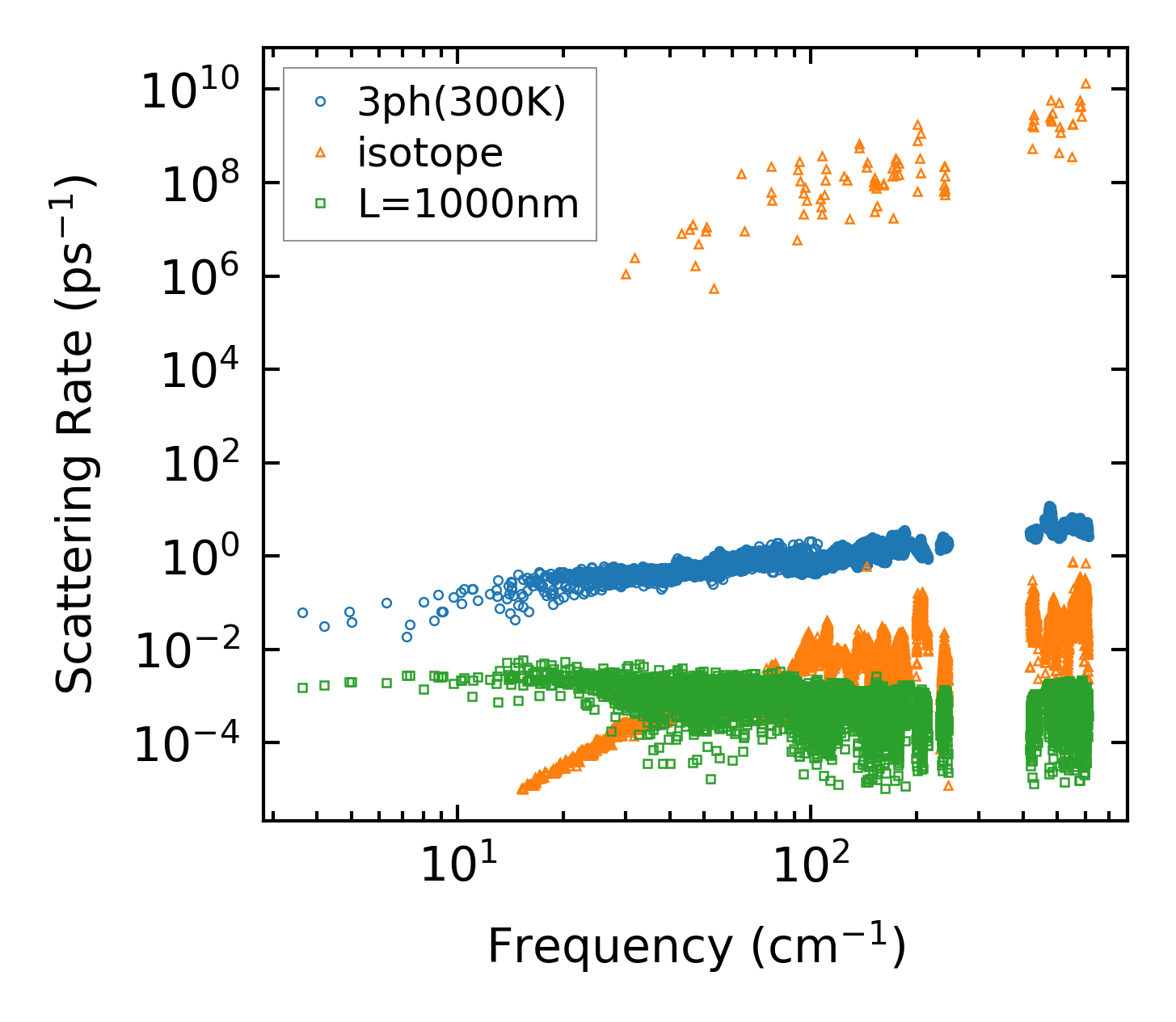

../../_images/fig_scat_rates1129.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

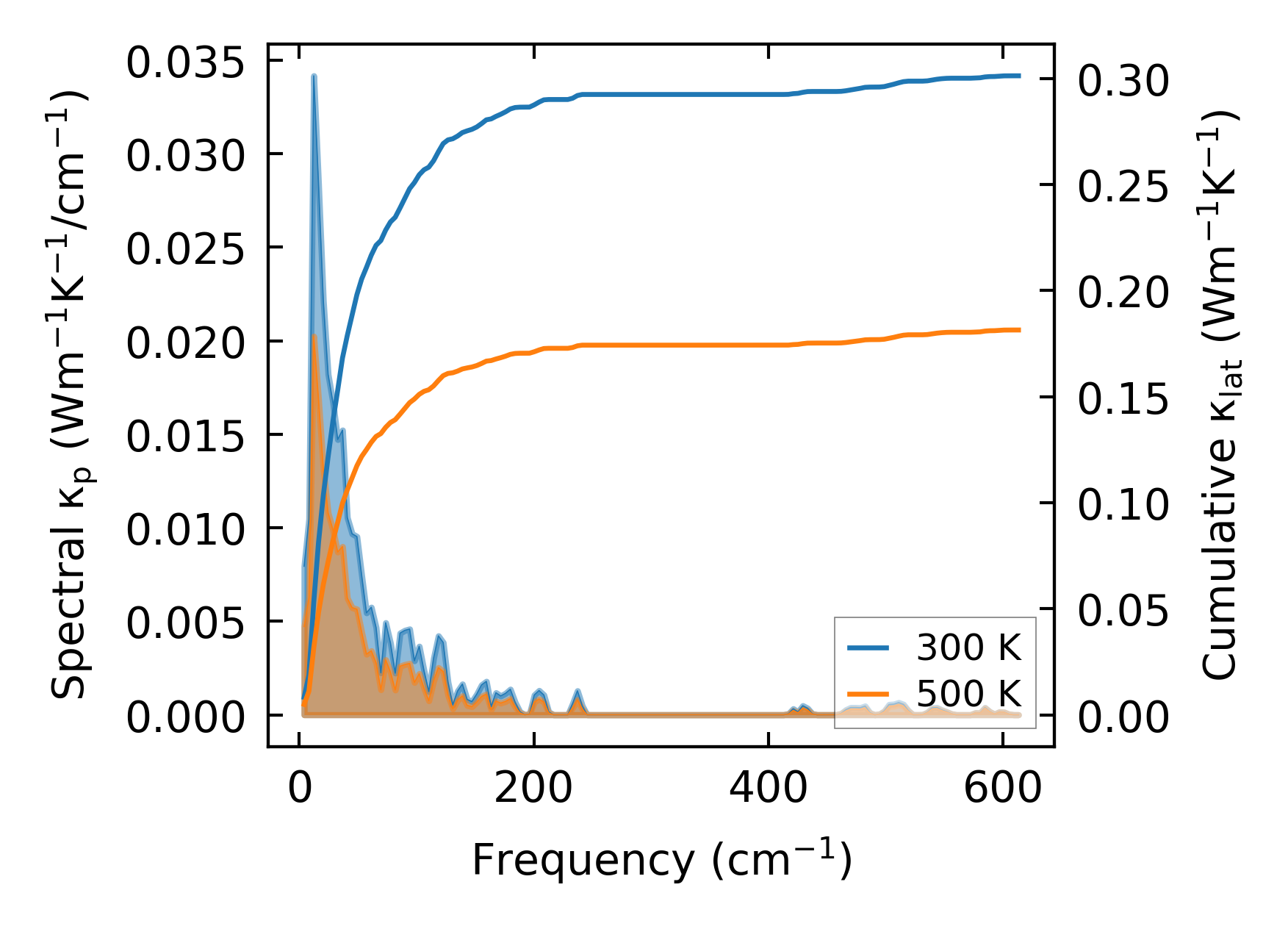

../../_images/fig_cumu_frequency1130.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

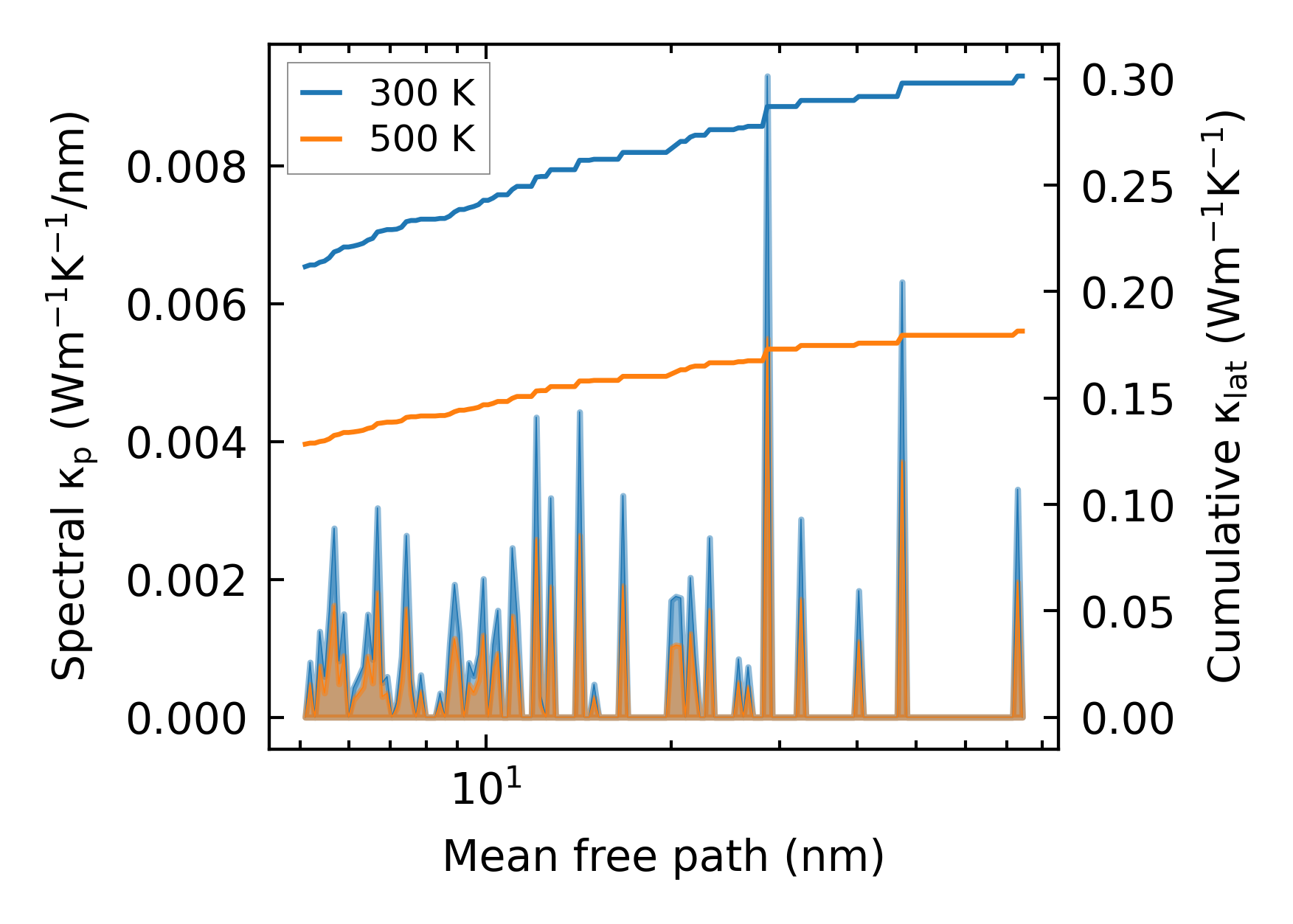

../../_images/fig_cumu_mfp1130.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

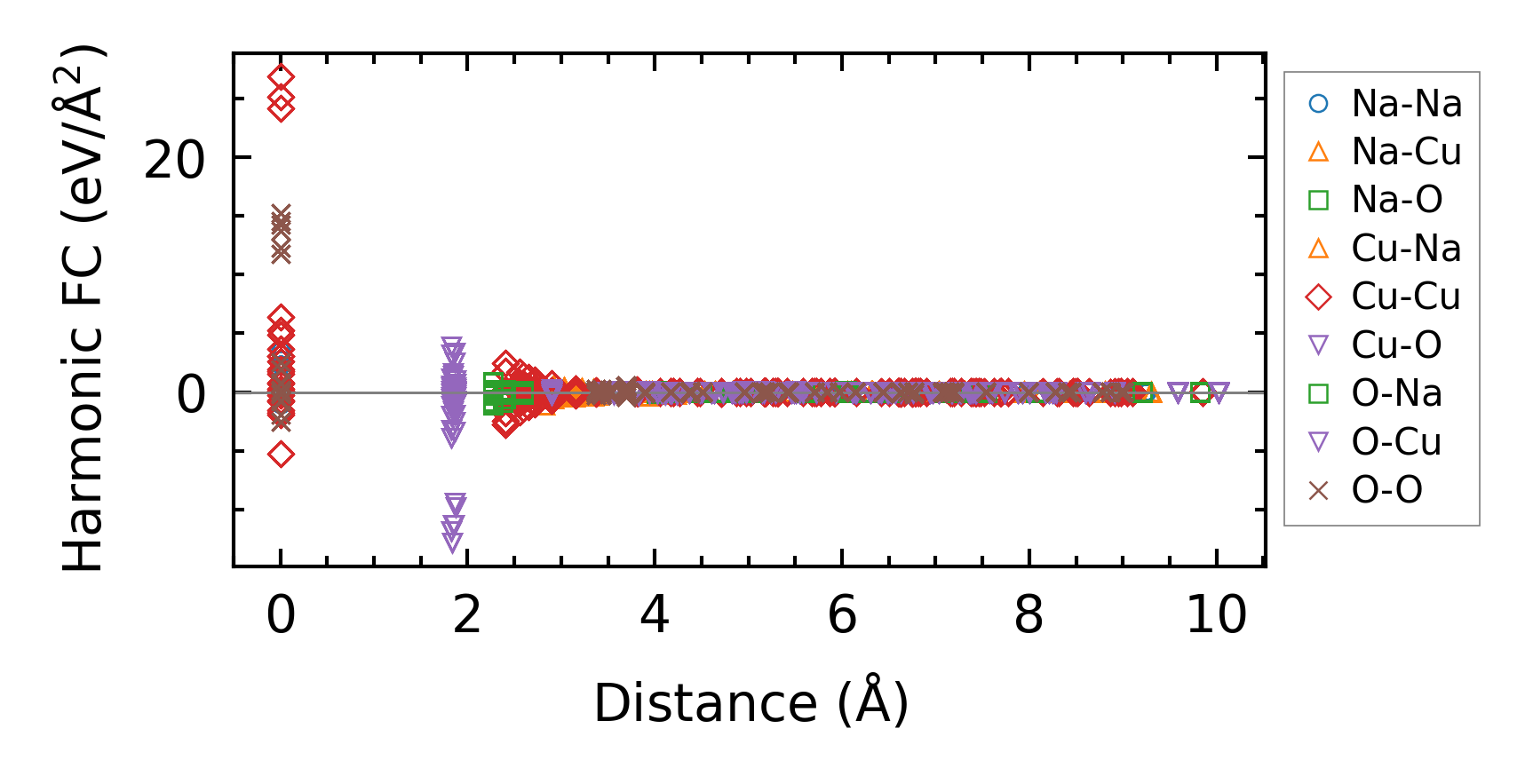

../../_images/fig_fc21813.png — (a) Force constants w.r.t atomic distance

Summary

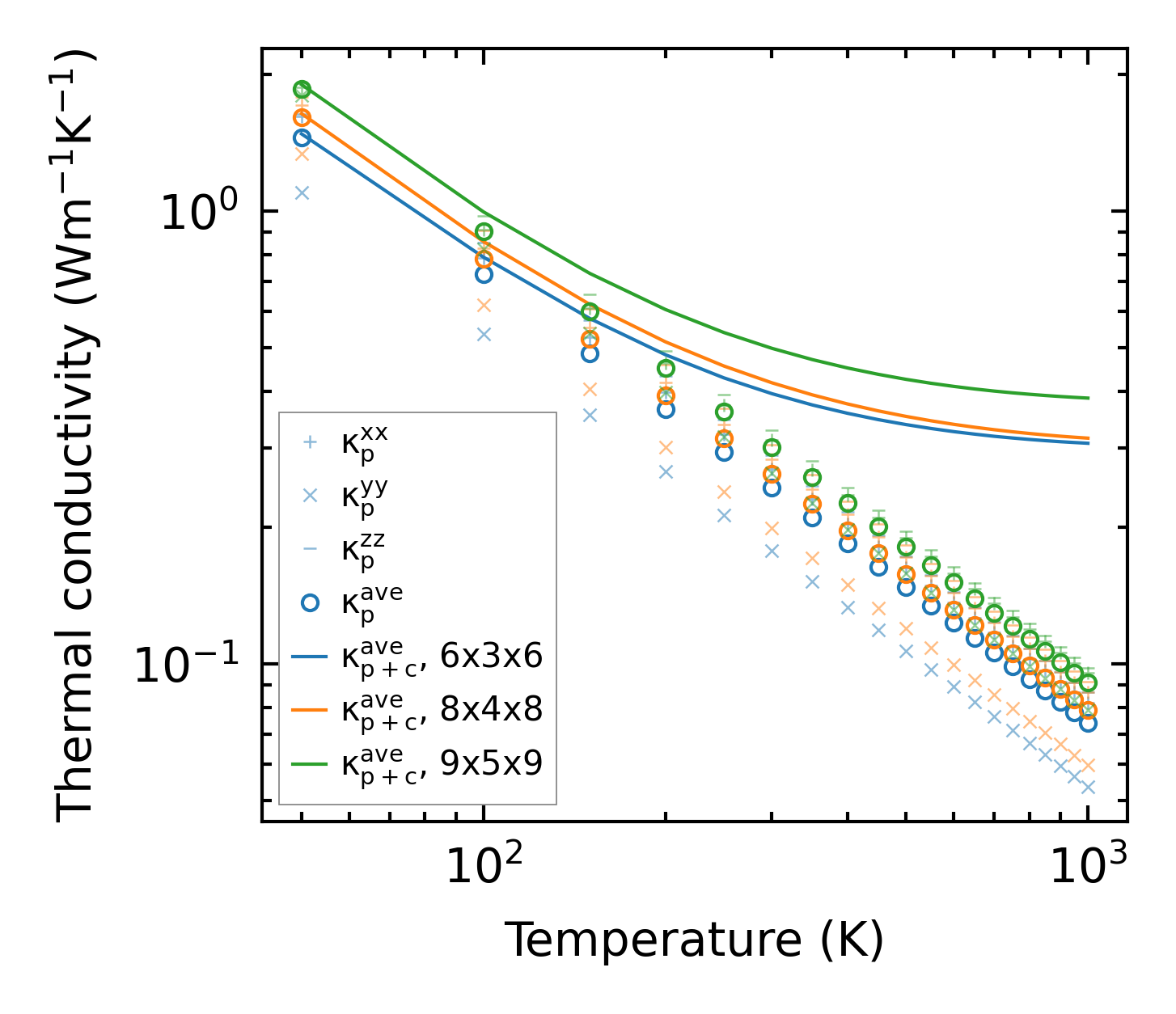

../../_images/fig_kappa2195.png — (a) Temperature-dependent lattice thermal conductivity

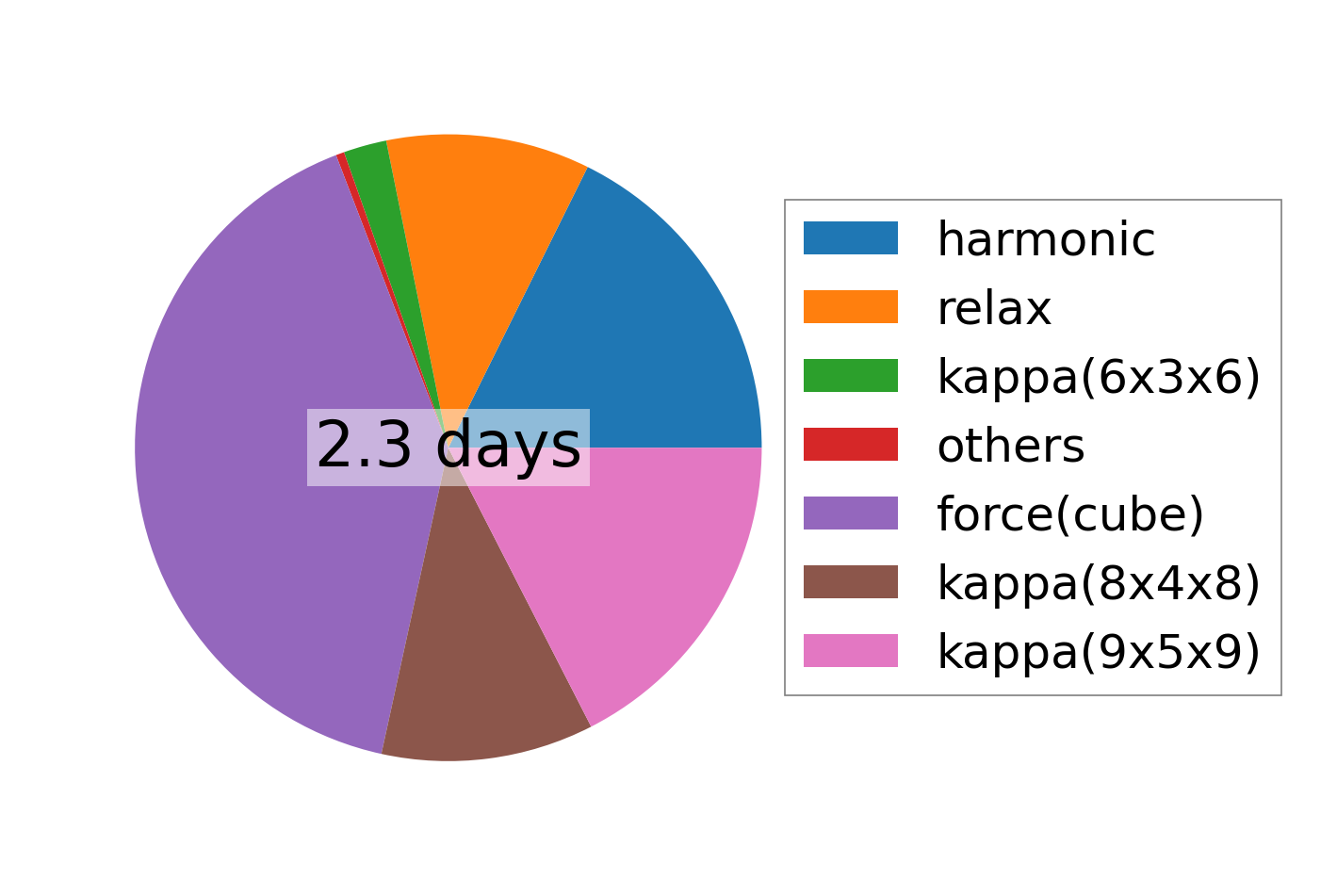

../../_images/fig_times3045.png — (b) Computation time
