mp-684969/Sc2S3/anharm

Space group: C2/m (12)
Link: Materials Project
Download: mp-684969.tar.gz

Harmonic properties

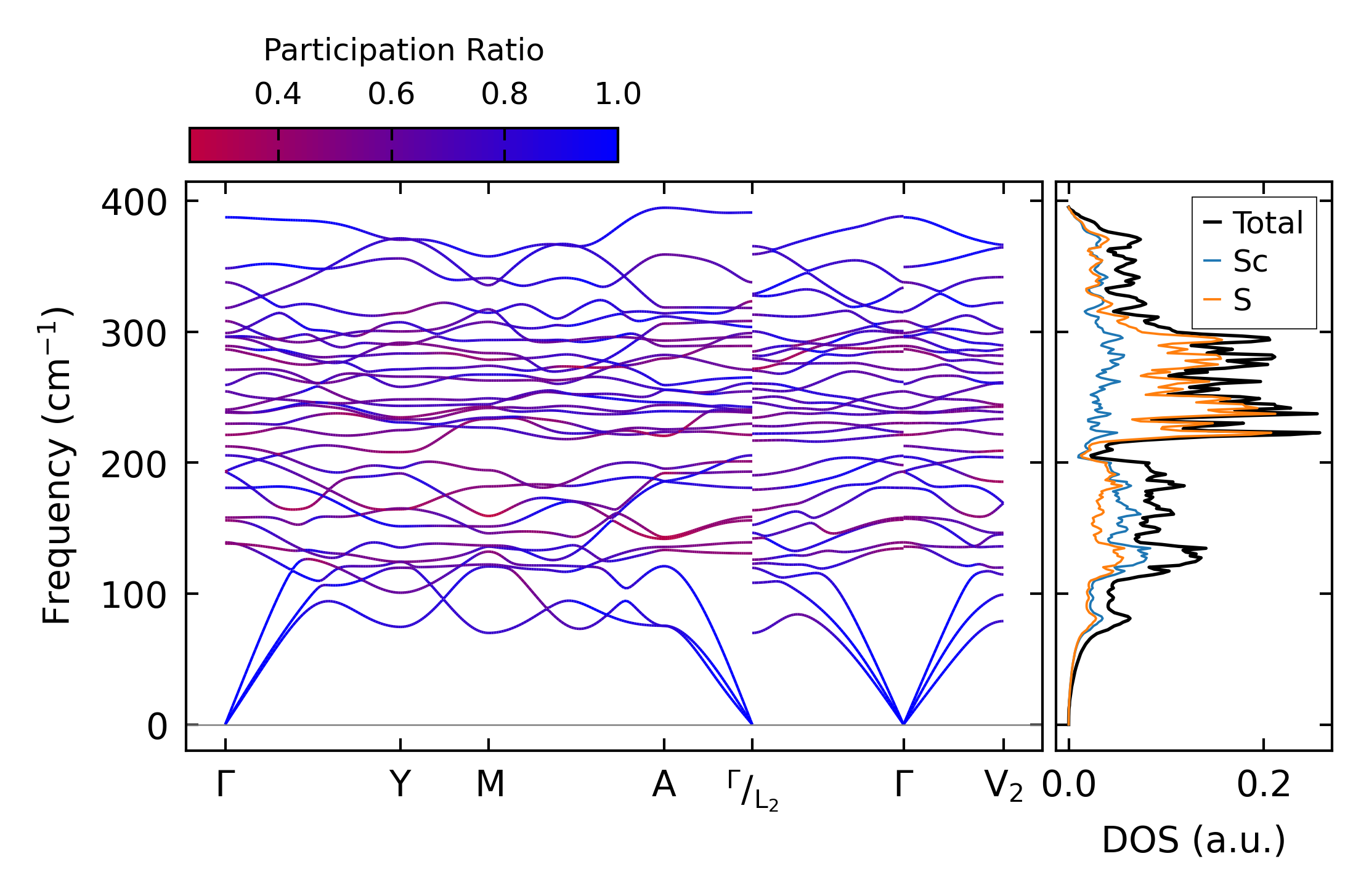

../../_images/fig_bandos_pr5000.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo5000.png — (b) Thermodynamic properties

Grüneisen parameters

../../_images/fig_gru_all2126.png — (a) Grüneisen parameters

../../_images/fig_gruneisen2126.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 12x12x12, supercell: 2x1x2

../../_images/fig_kappa4073.png — (a) Temperature-dependent lattice thermal conductivity

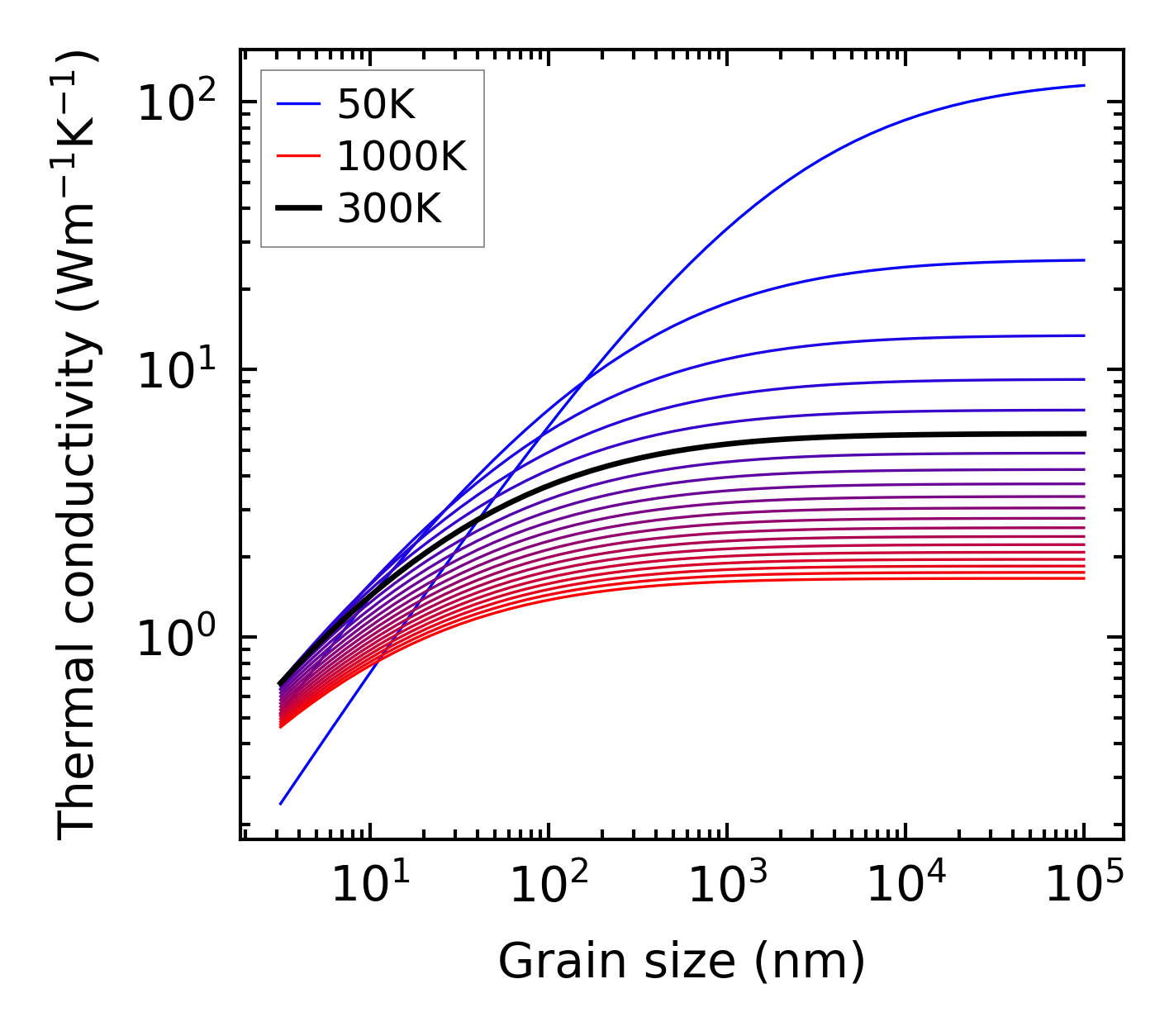

../../_images/fig_kappa_vs_grain_size2158.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

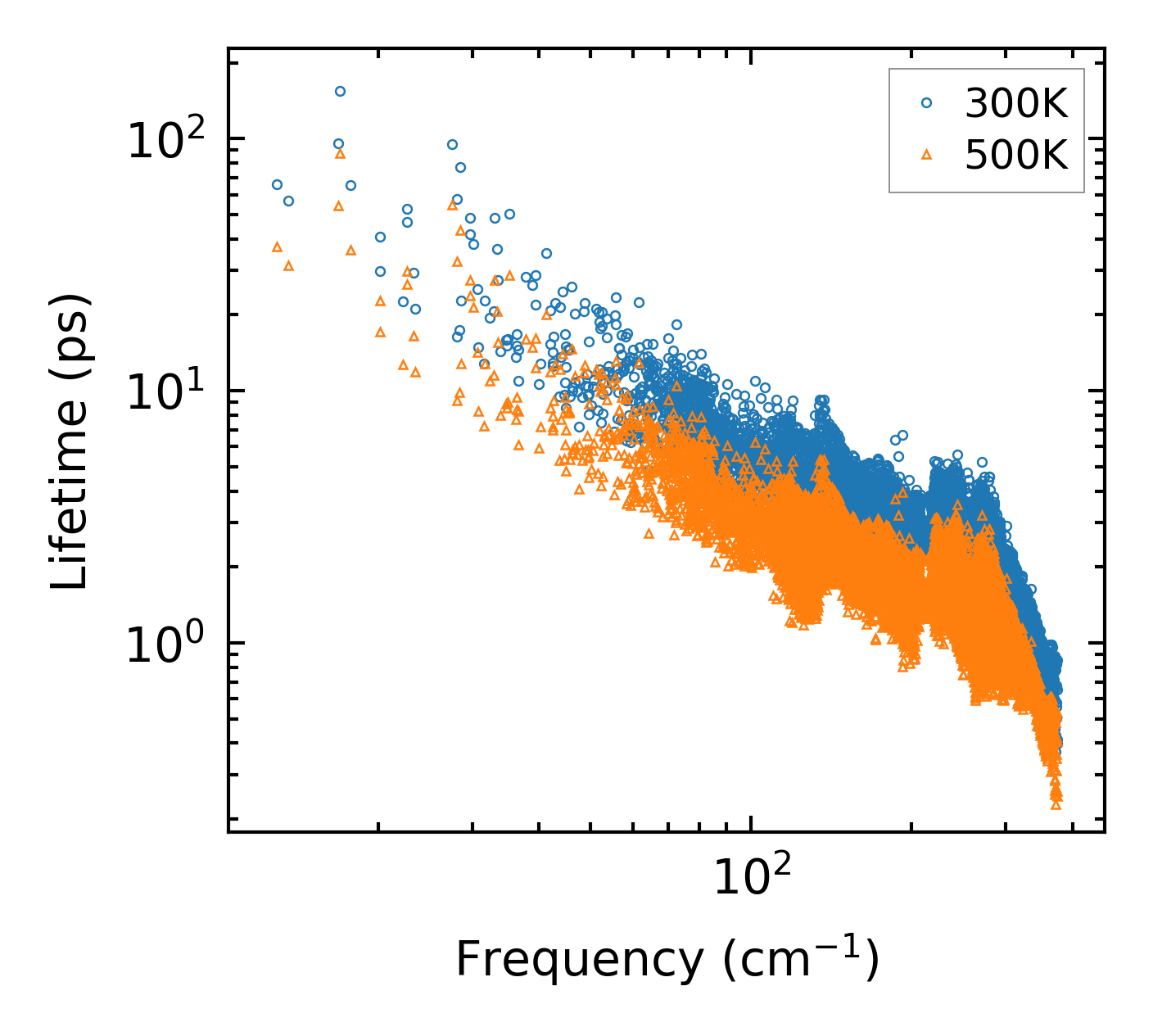

../../_images/fig_lifetime2113.png — (a) Phonon lifetime due to phonon-phonon scattering

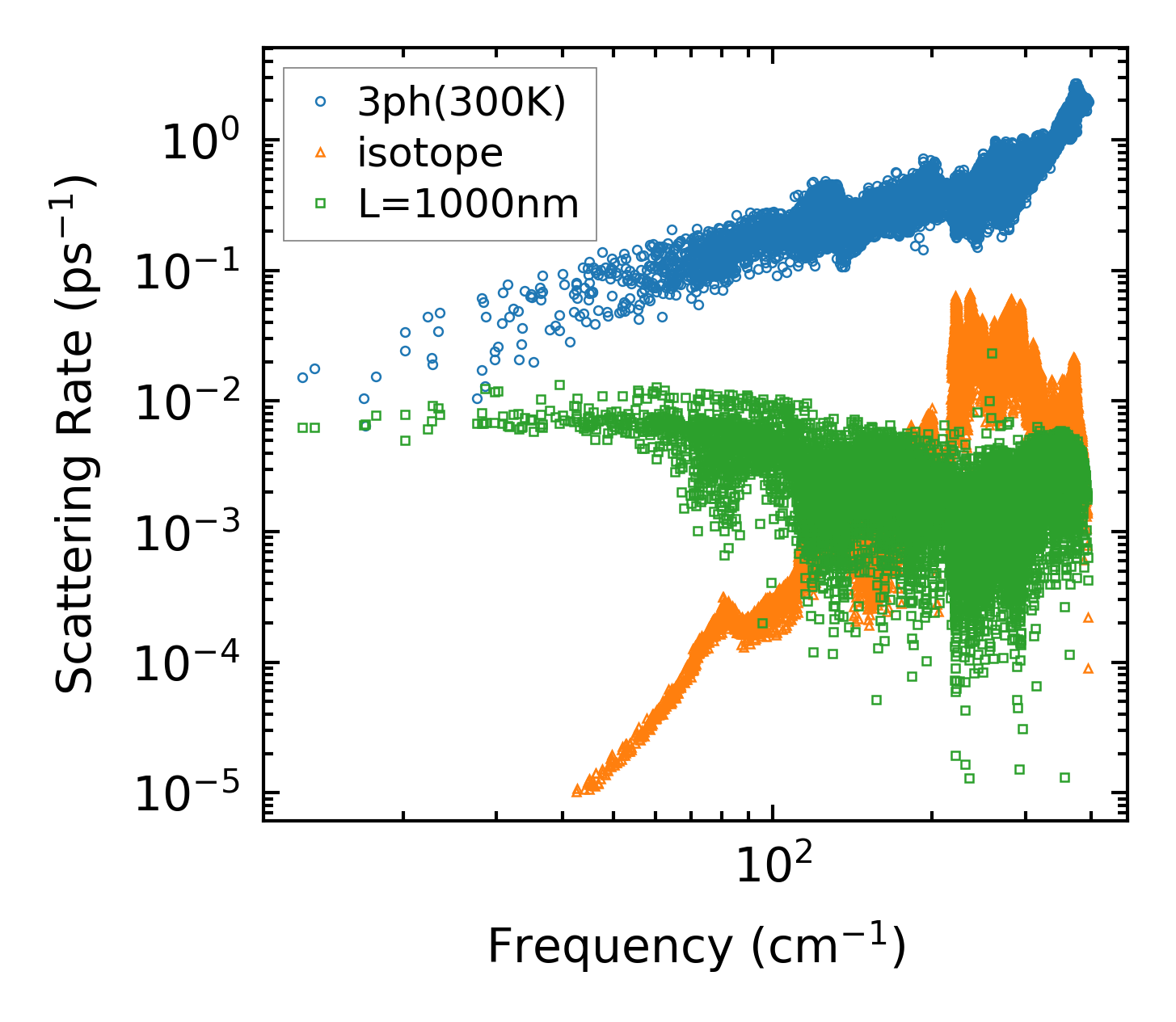

../../_images/fig_scat_rates2112.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

../../_images/fig_cumu_frequency2113.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

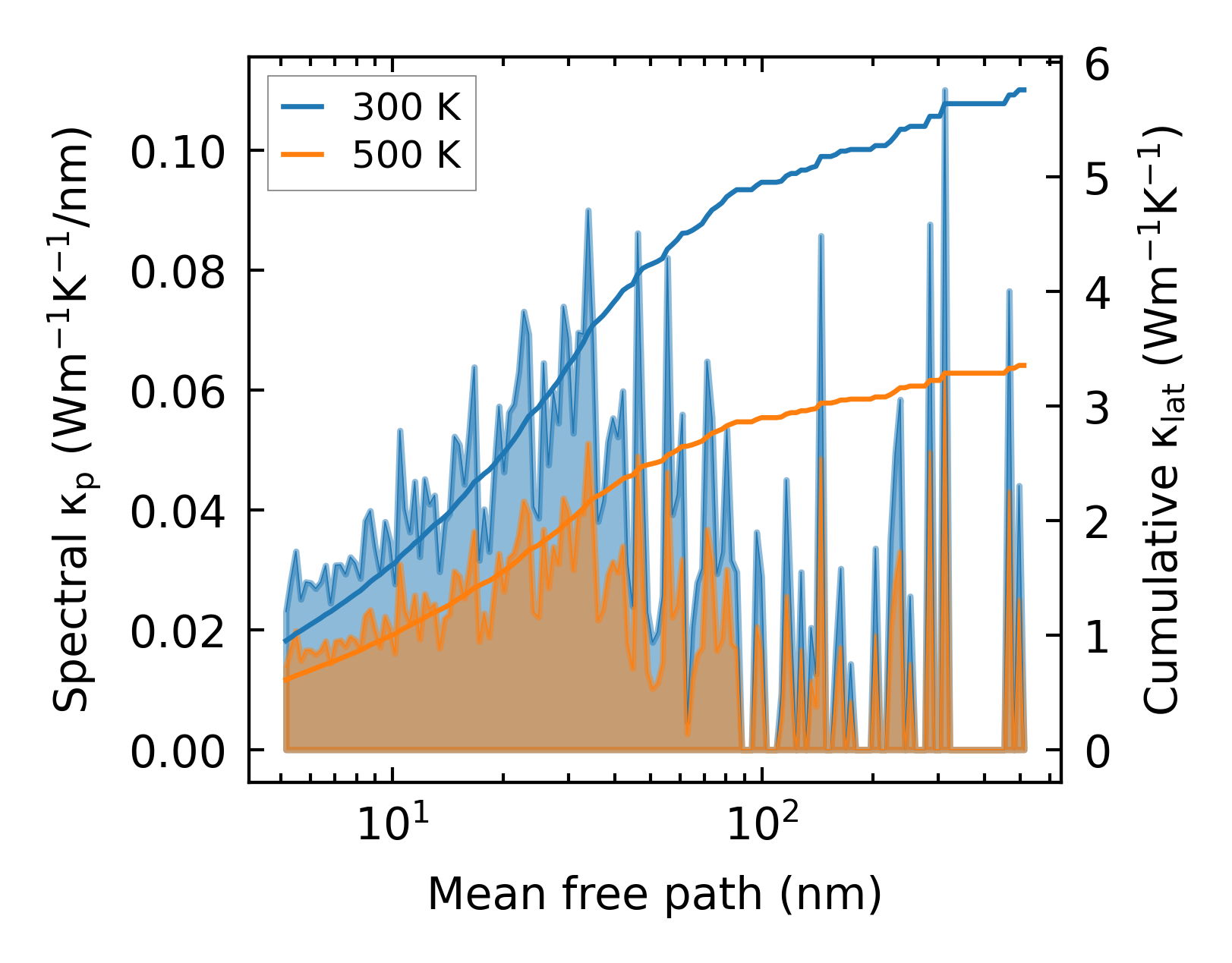

../../_images/fig_cumu_mfp2113.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

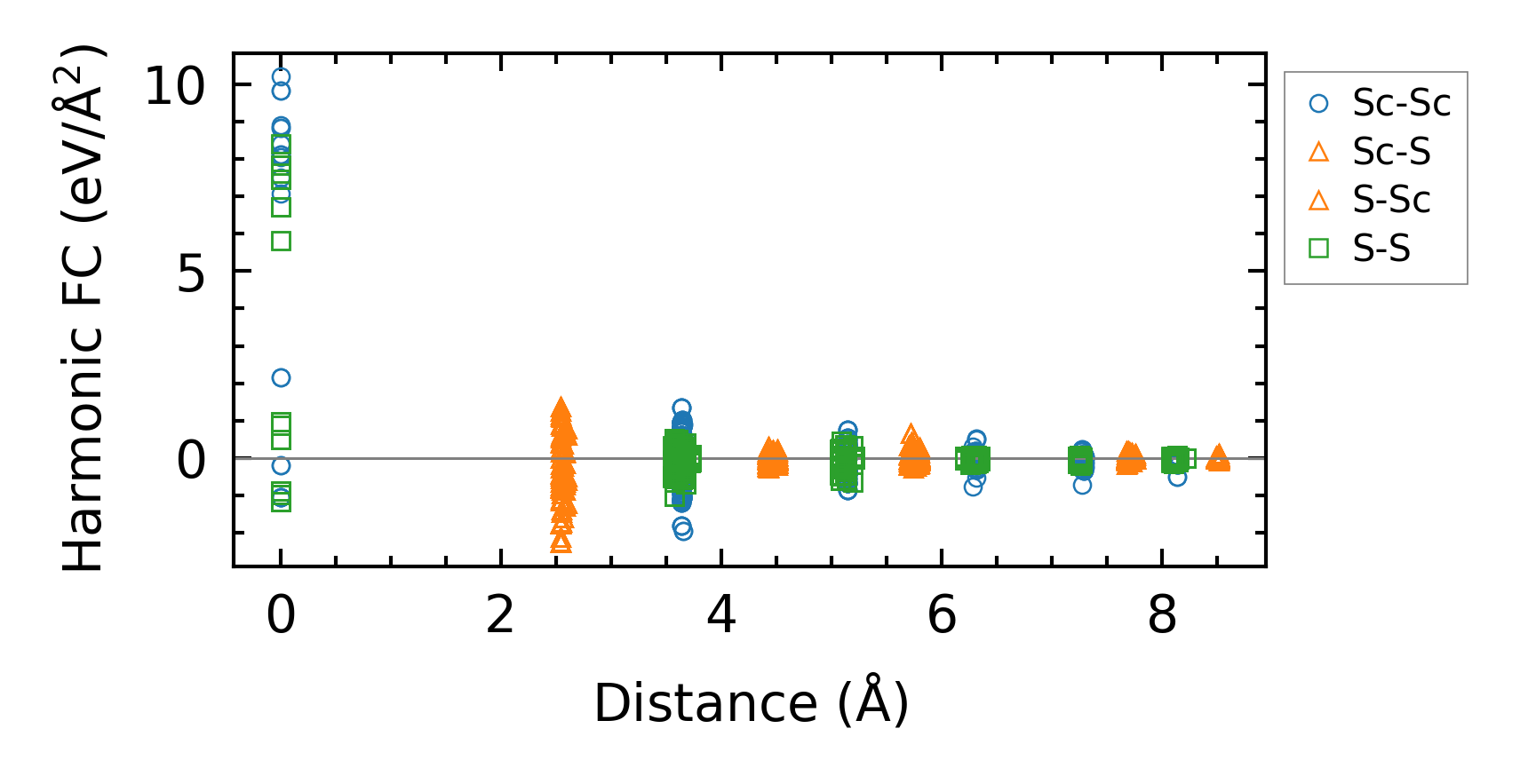

../../_images/fig_fc24805.png — (a) Force constants w.r.t atomic distance

Summary

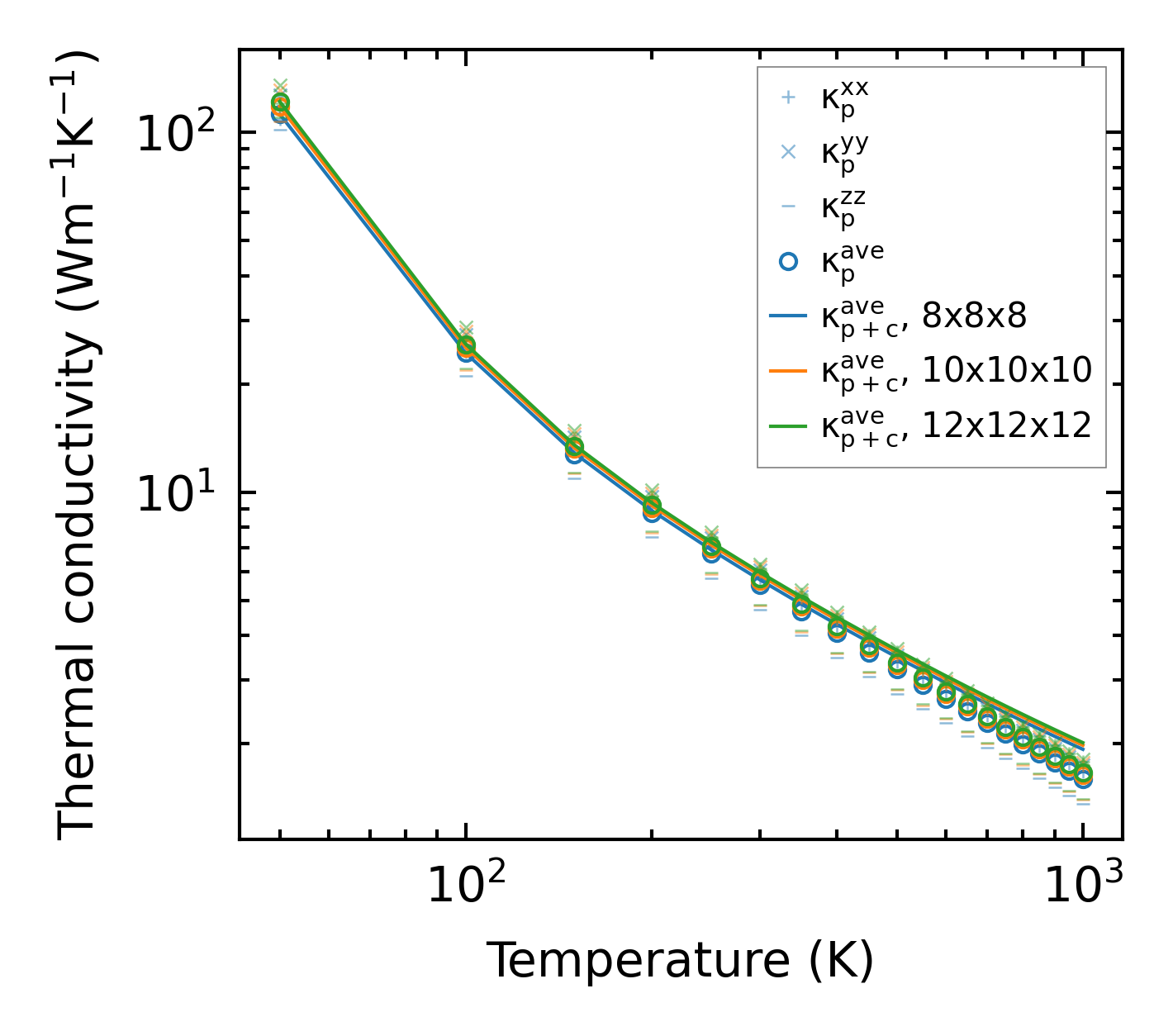

../../_images/fig_kappa4074.png — (a) Temperature-dependent lattice thermal conductivity

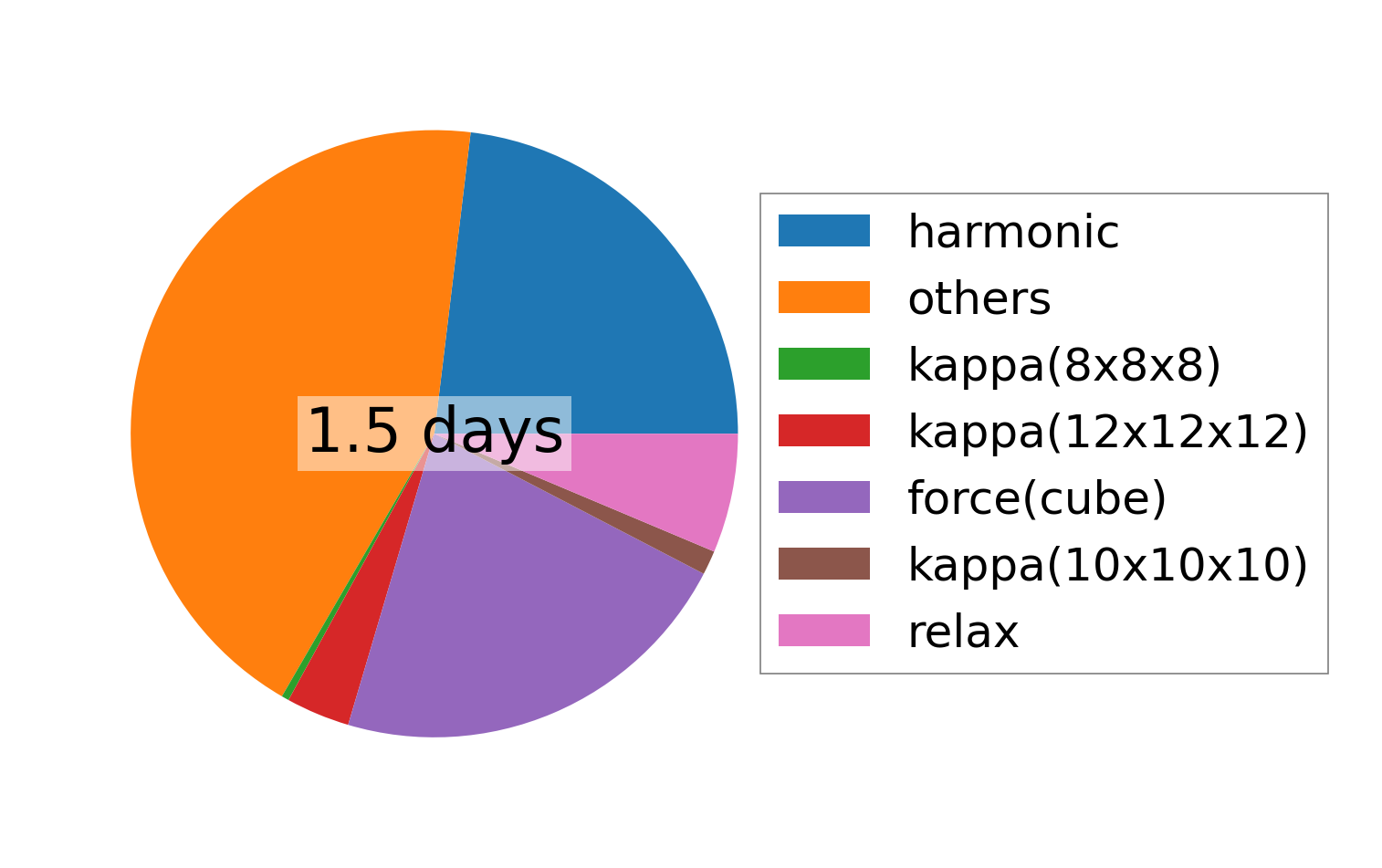

../../_images/fig_times8897.png — (b) Computation time
