mp-684580-2/AgI/anharm

Space group: I-4m2 (119)
Link: Materials Project
Download: mp-684580-2.tar.gz

Equation of state

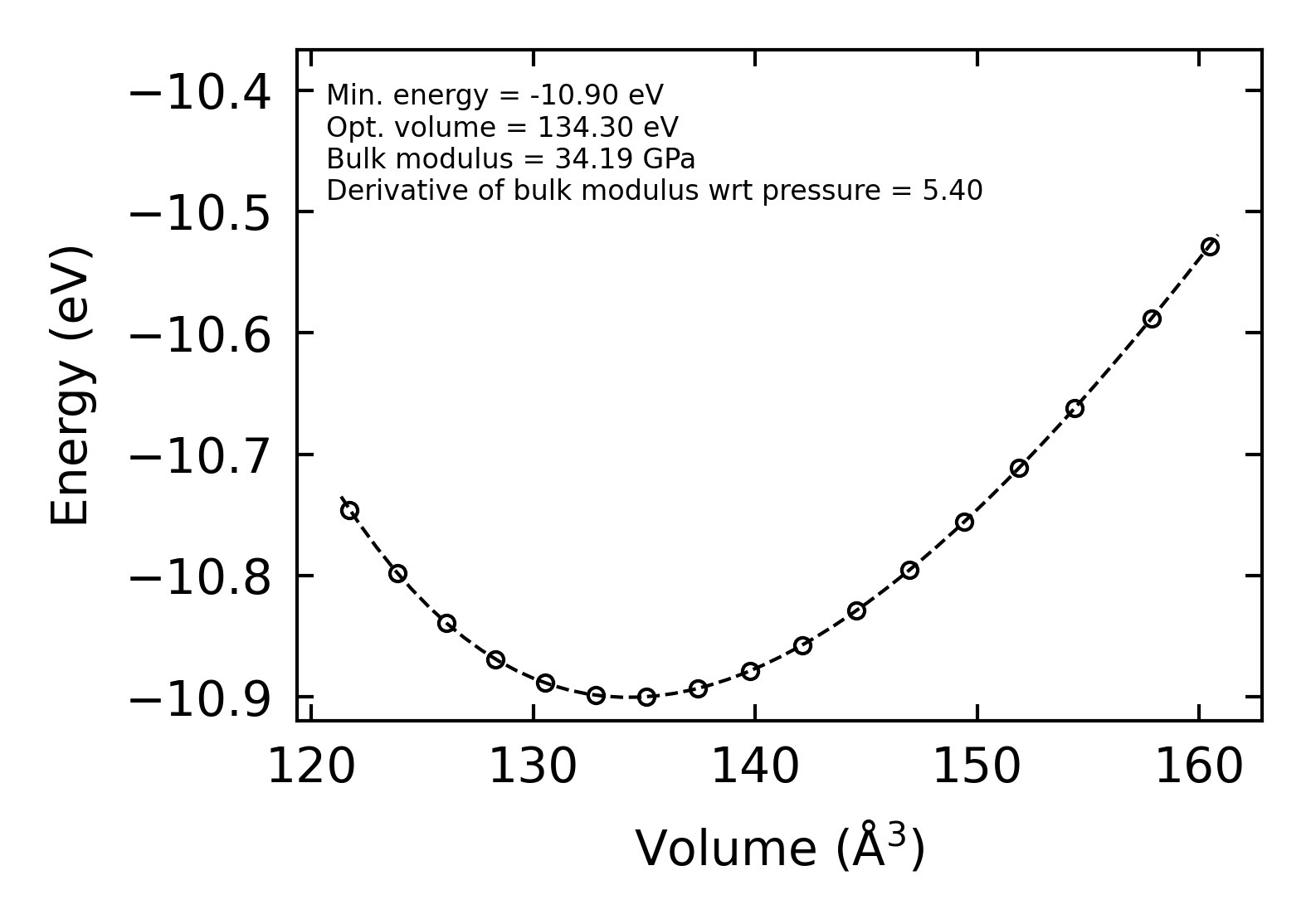

../../_images/fig_bm2465.png — (a) Equation of state

Harmonic properties

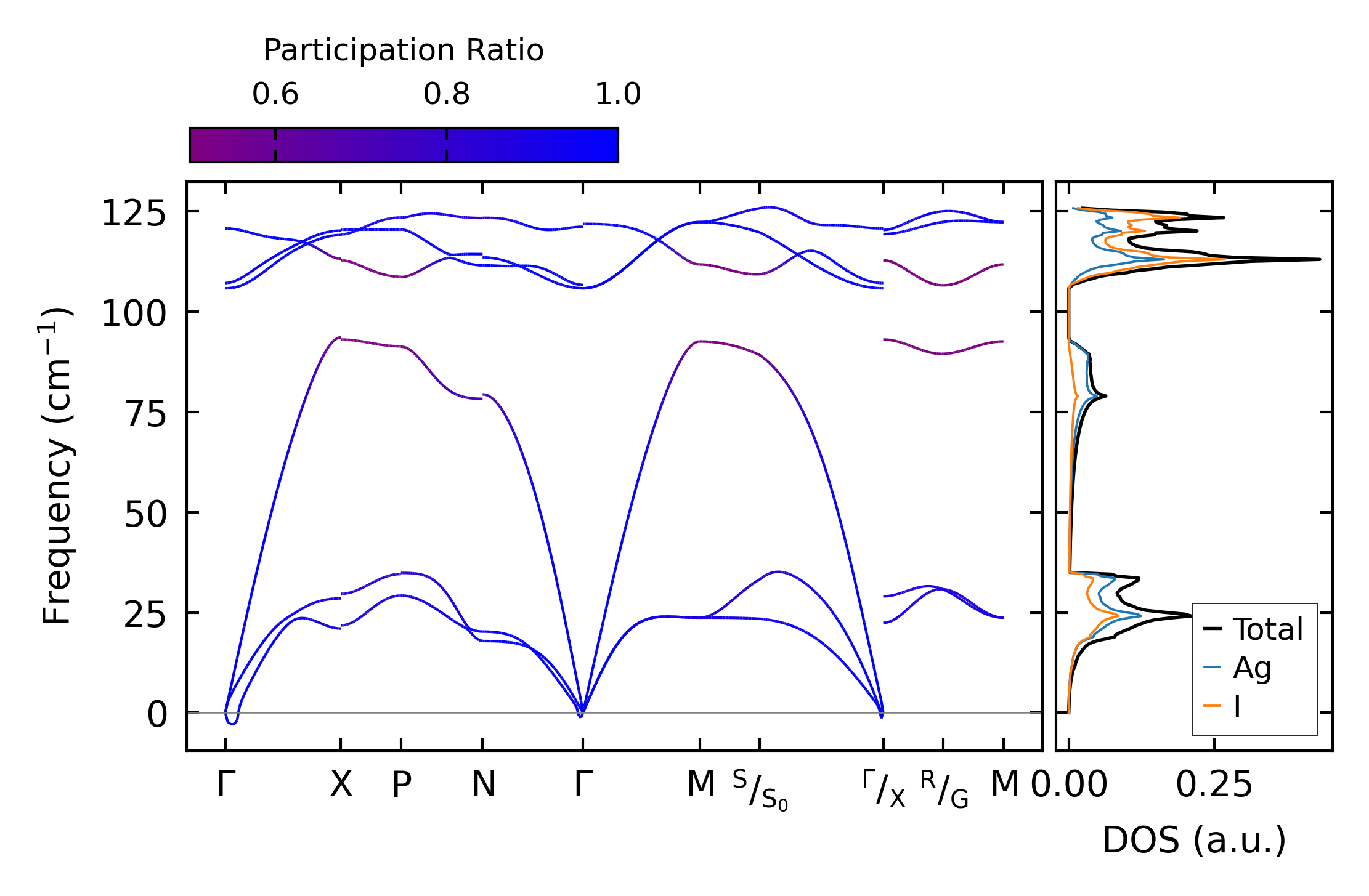

../../_images/fig_bandos_pr4984.png — (a) Phonon dispersion with participation ratio and DOS

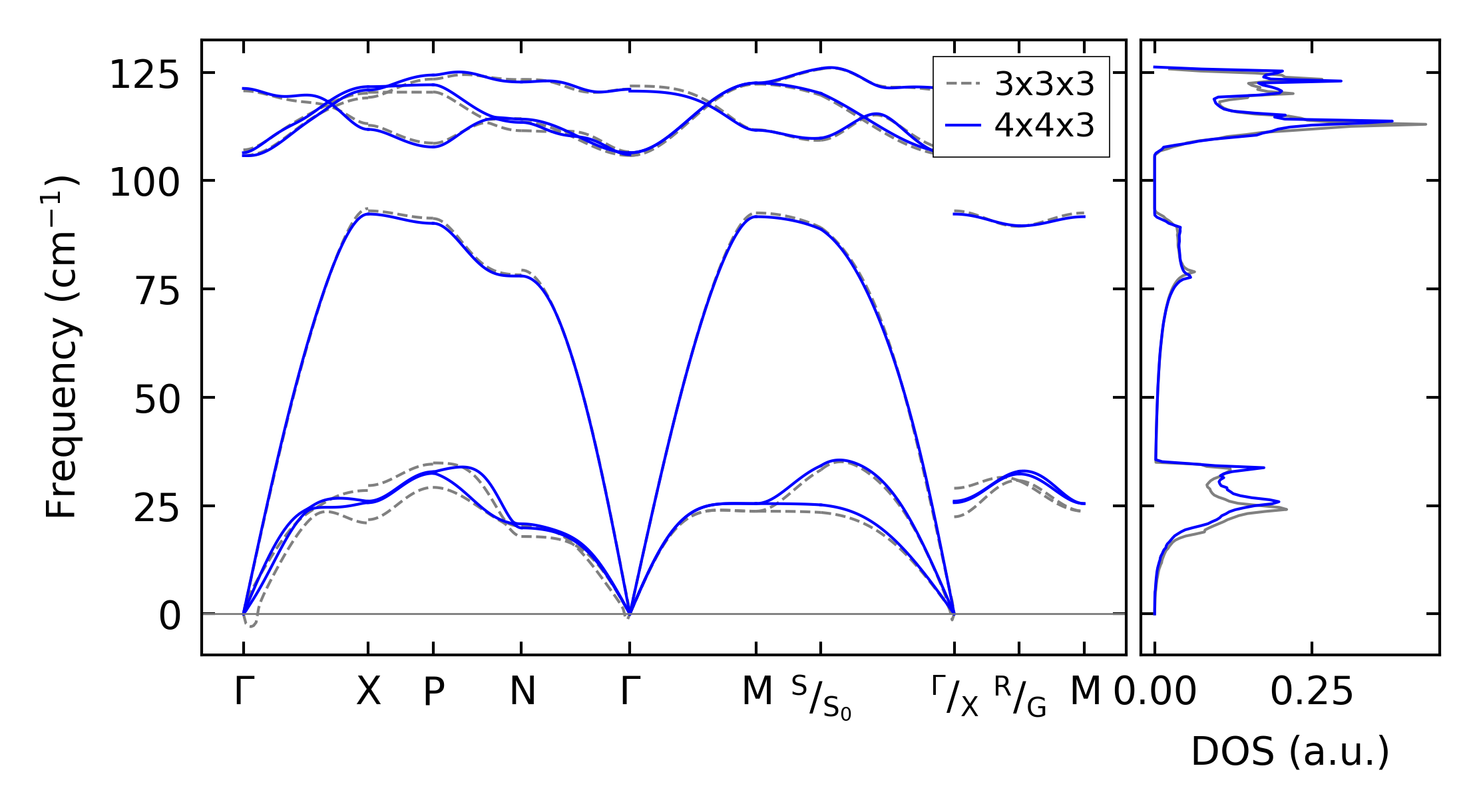

../../_images/fig_bandos6980.png — (b) Phonon dispersion and DOS

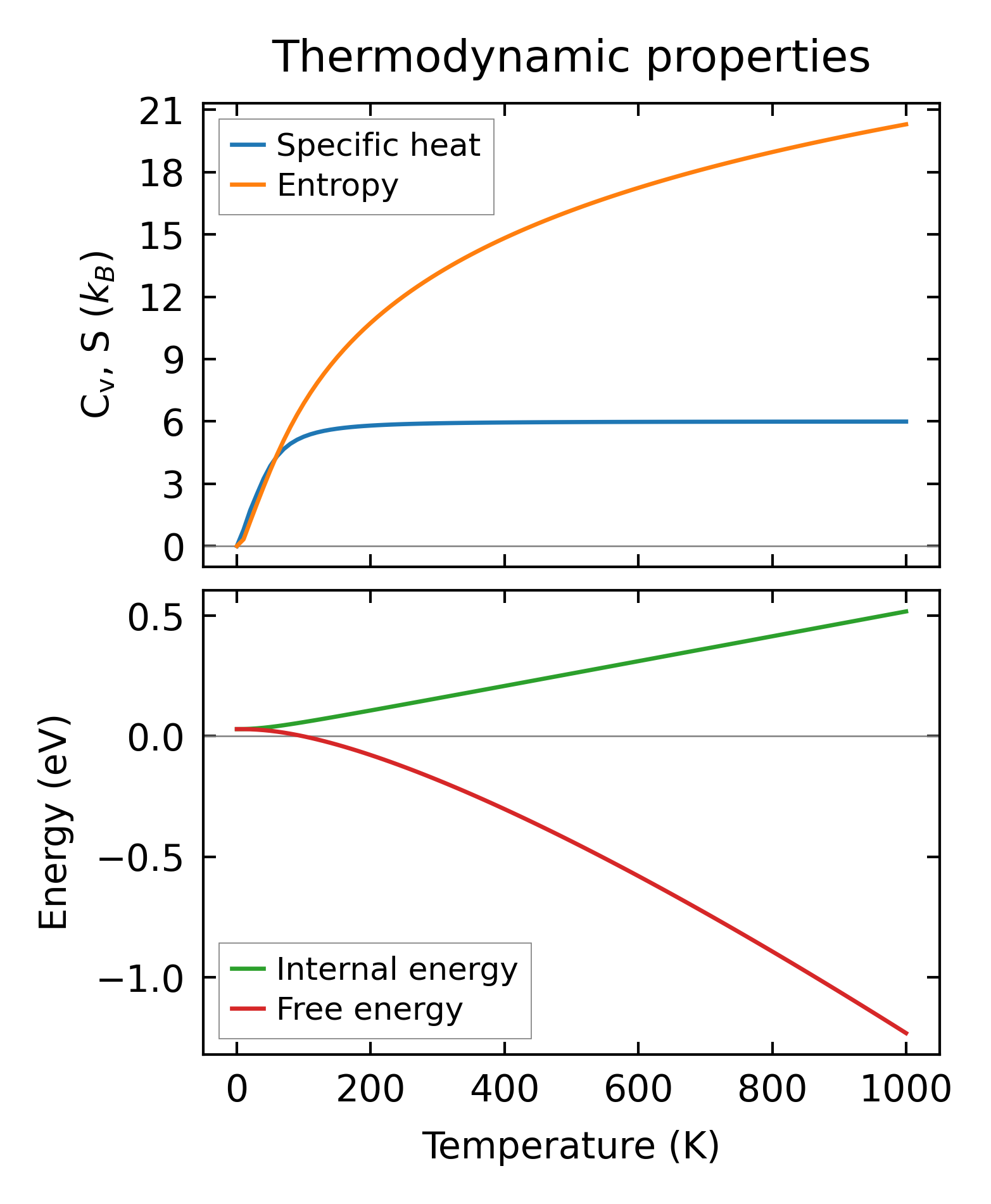

../../_images/fig_thermo4984.png — (c) Thermodynamic properties

Grüneisen parameters

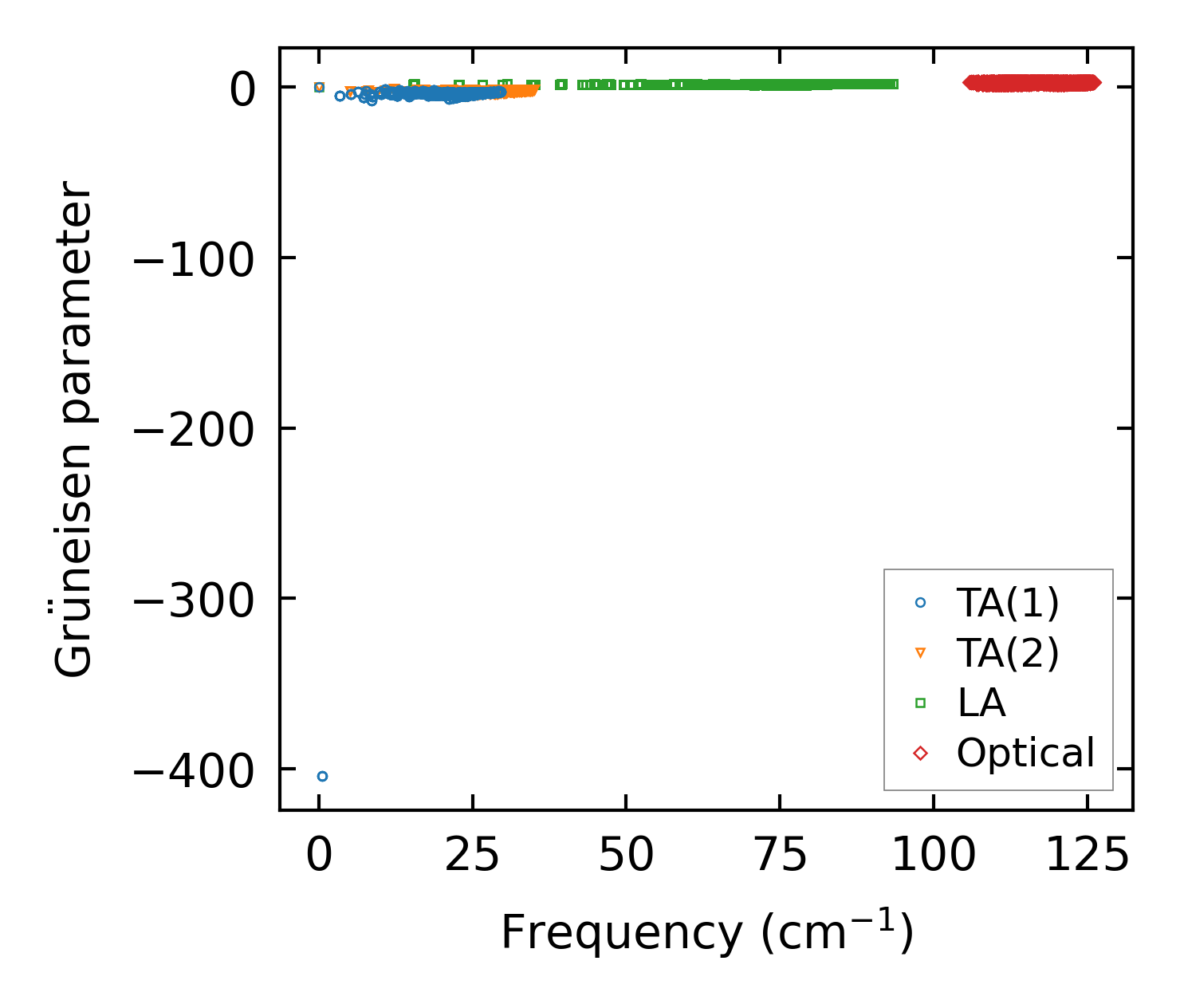

../../_images/fig_gru_all2117.png — (a) Grüneisen parameters

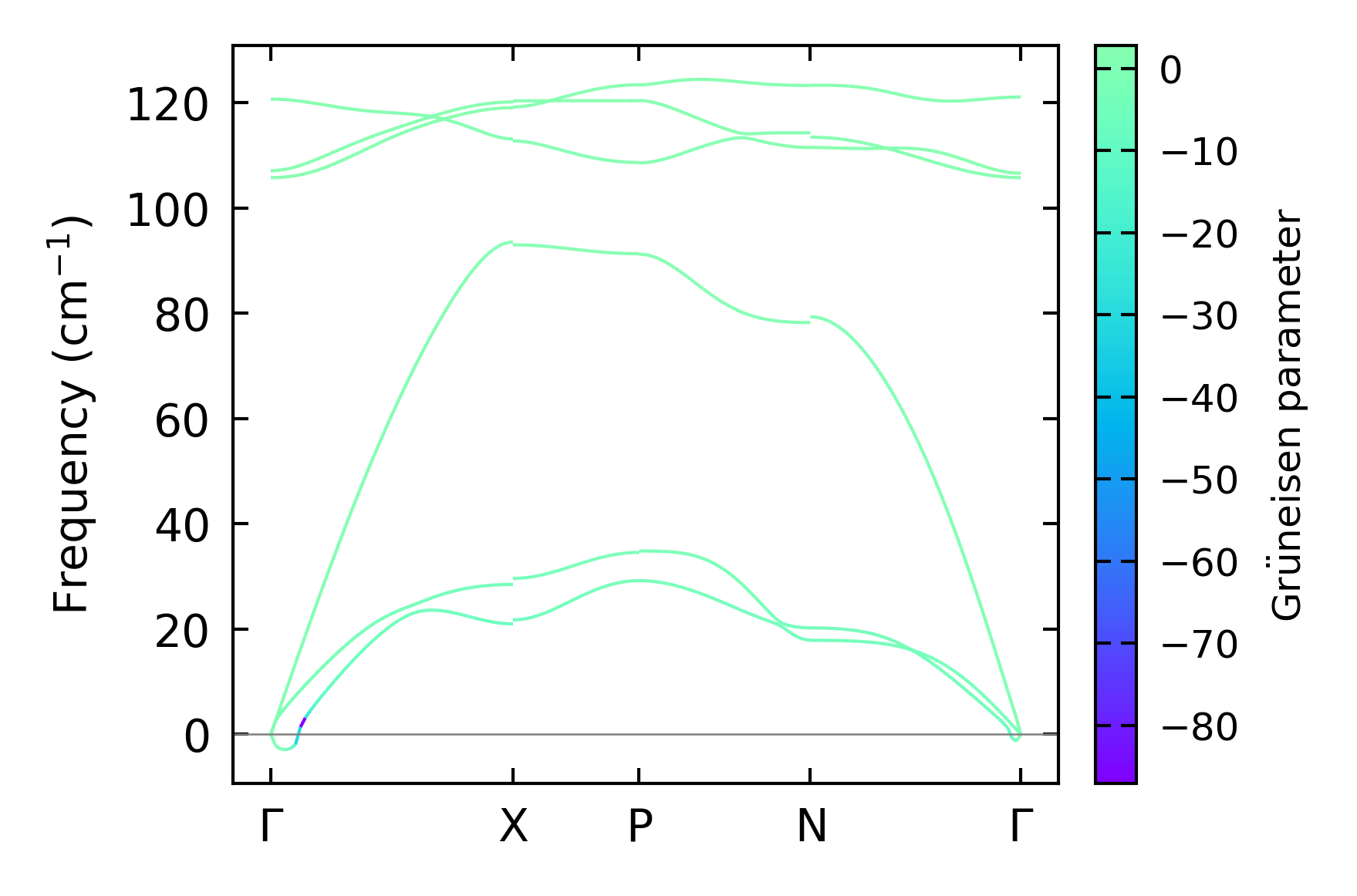

../../_images/fig_gruneisen2117.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon, supercell 4x4x3 — q-mesh: 17x17x17, supercell: 4x4x3

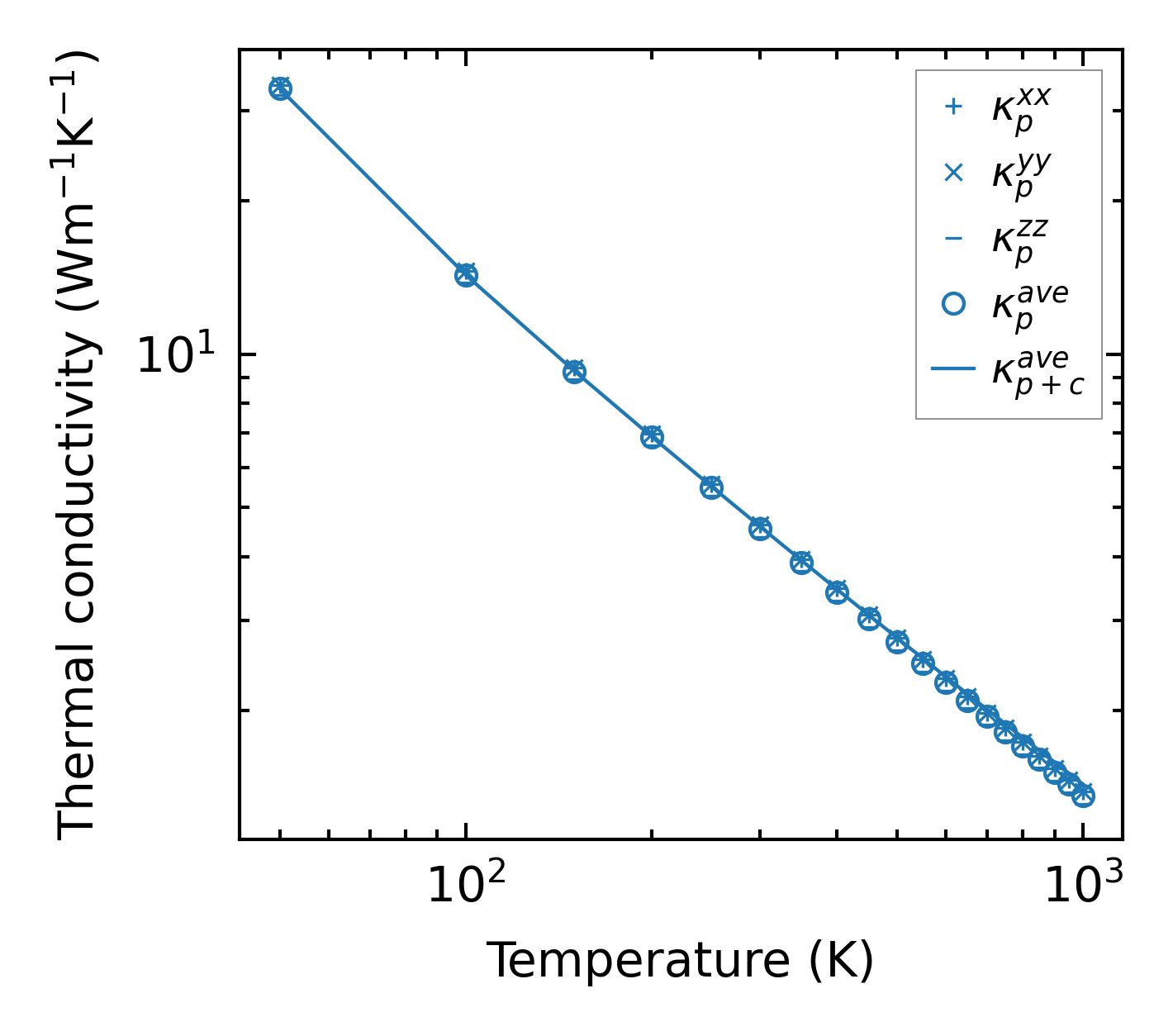

../../_images/fig_kappa4059.png — (a) Temperature-dependent lattice thermal conductivity

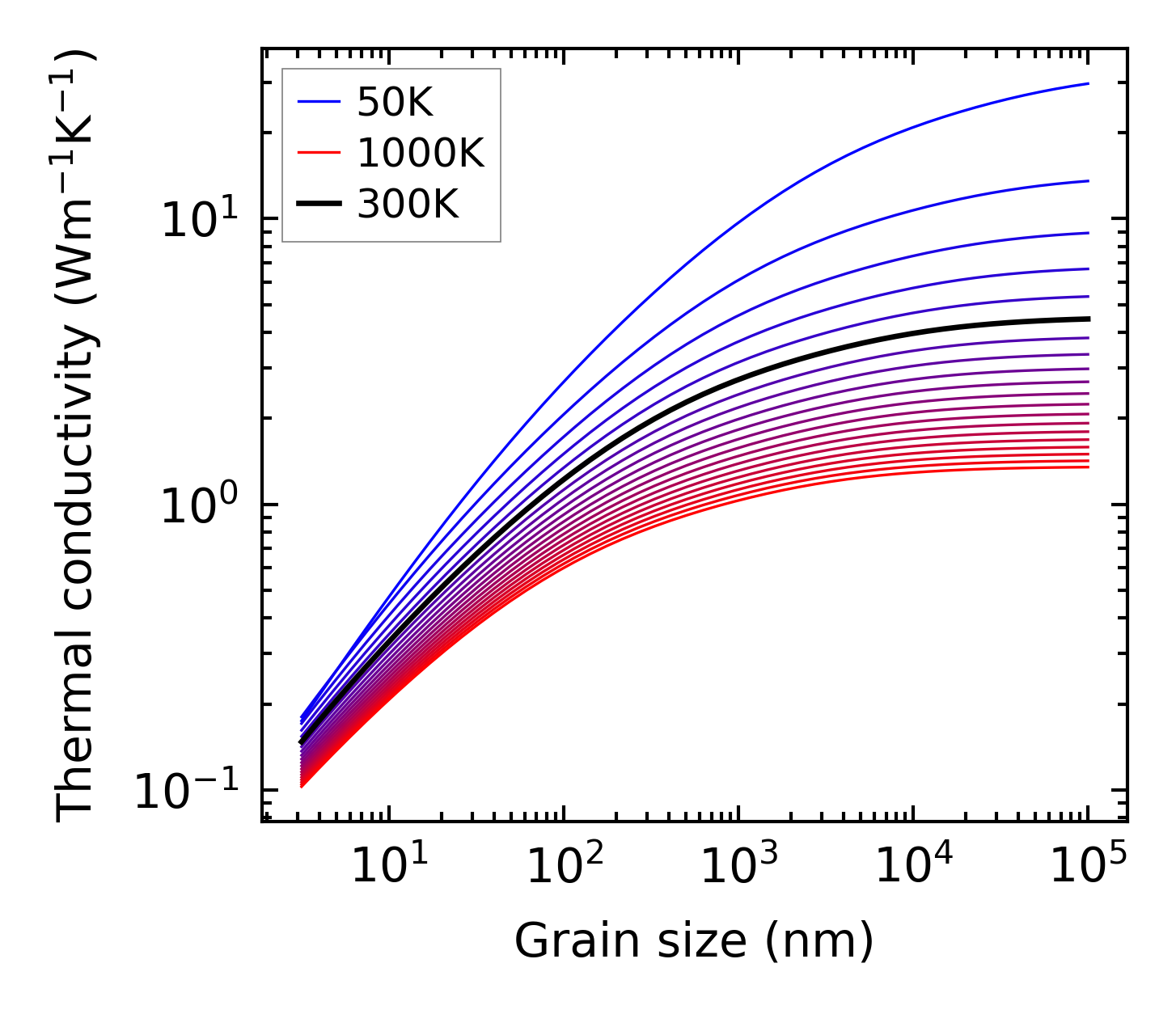

../../_images/fig_kappa_vs_grain_size2149.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

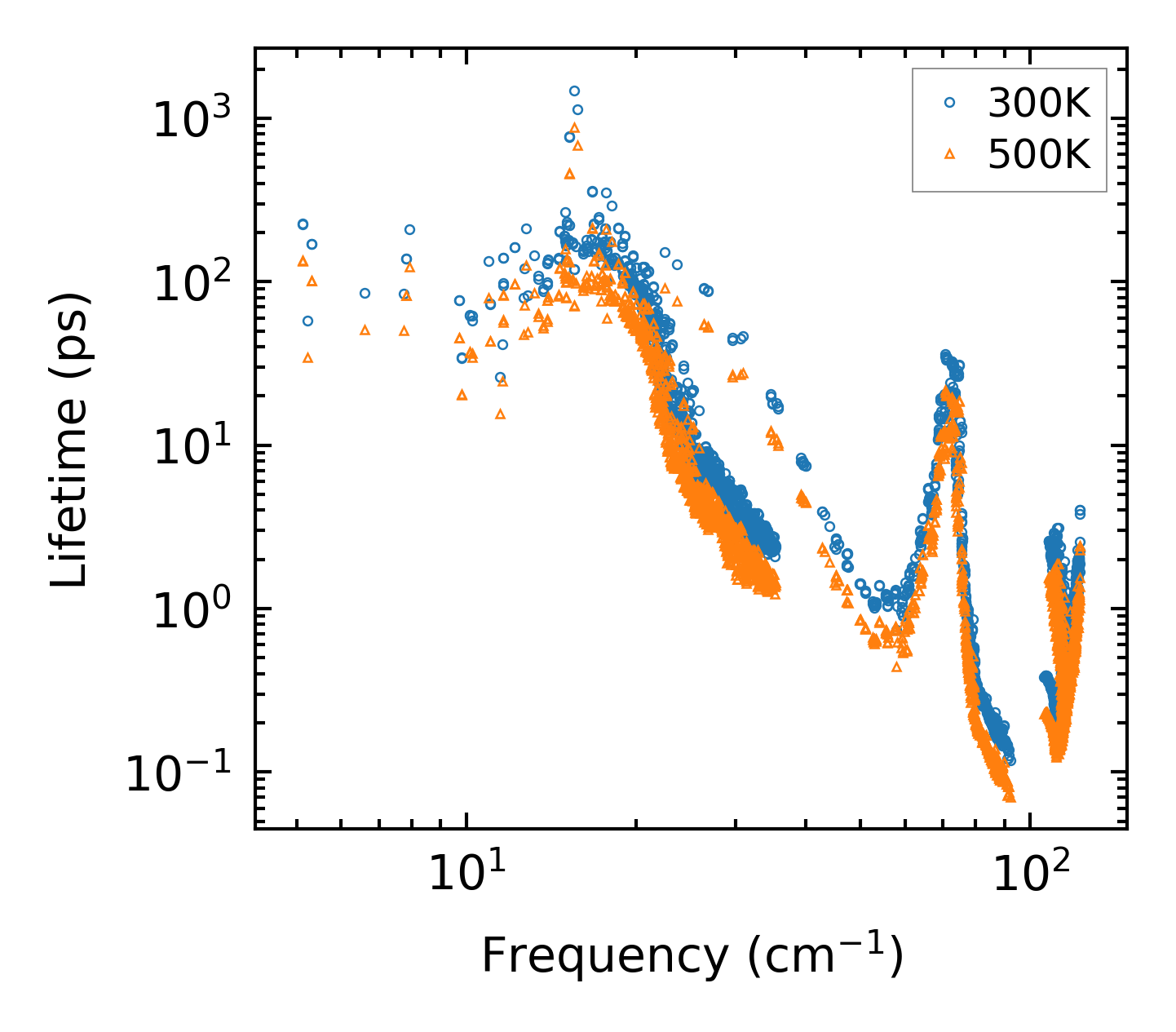

../../_images/fig_lifetime2104.png — (a) Phonon lifetime due to phonon-phonon scattering

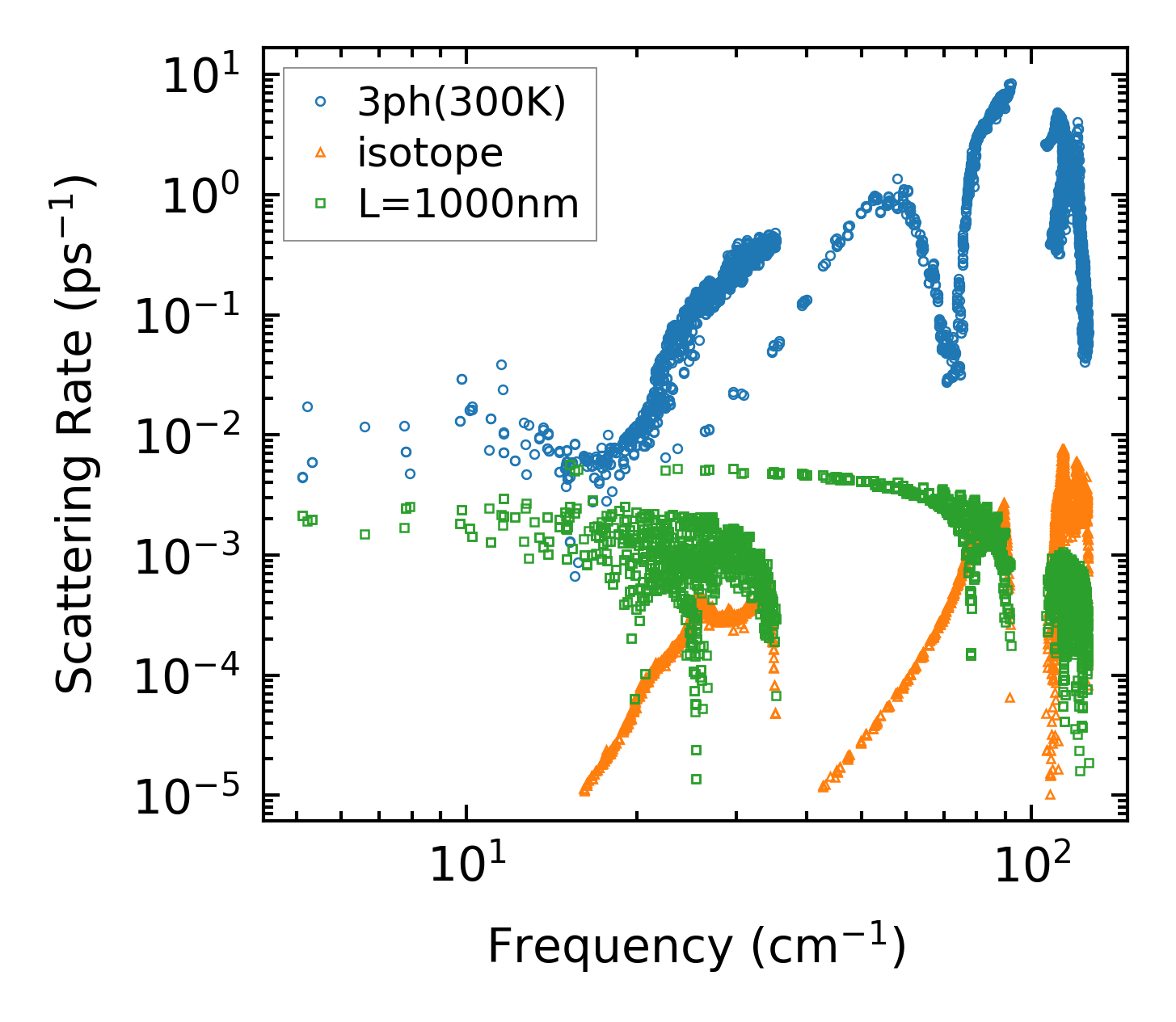

../../_images/fig_scat_rates2103.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

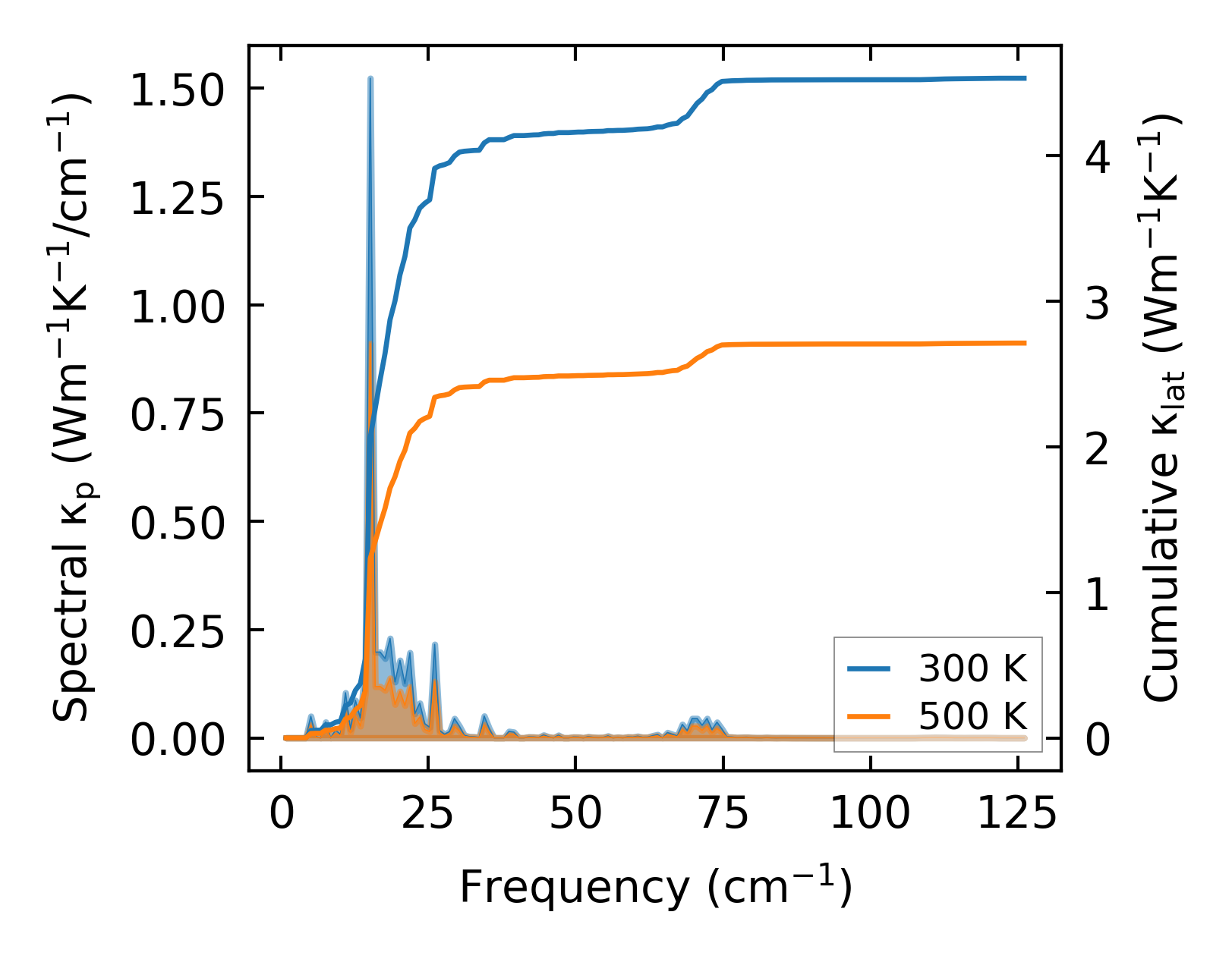

../../_images/fig_cumu_frequency2104.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

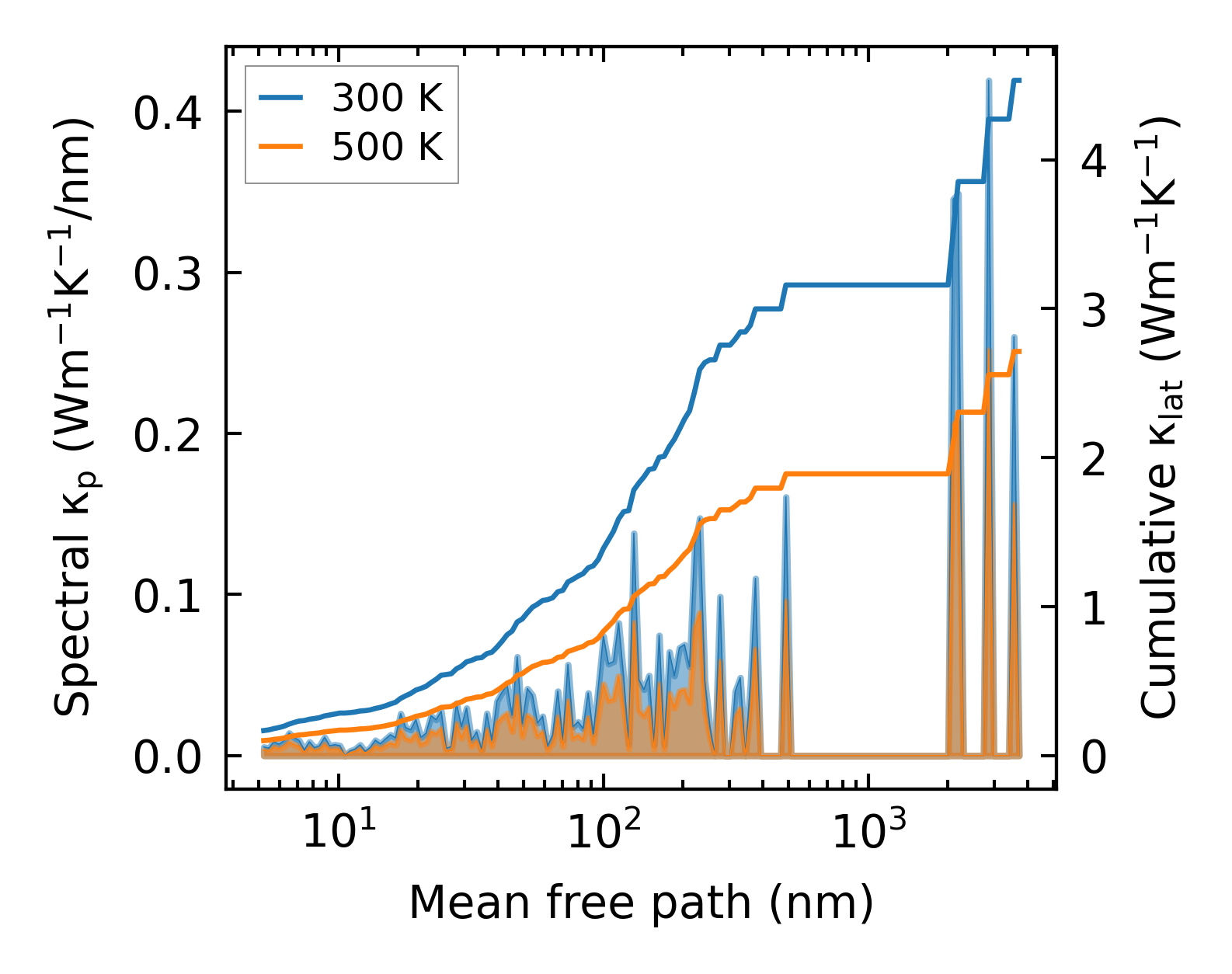

../../_images/fig_cumu_mfp2104.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

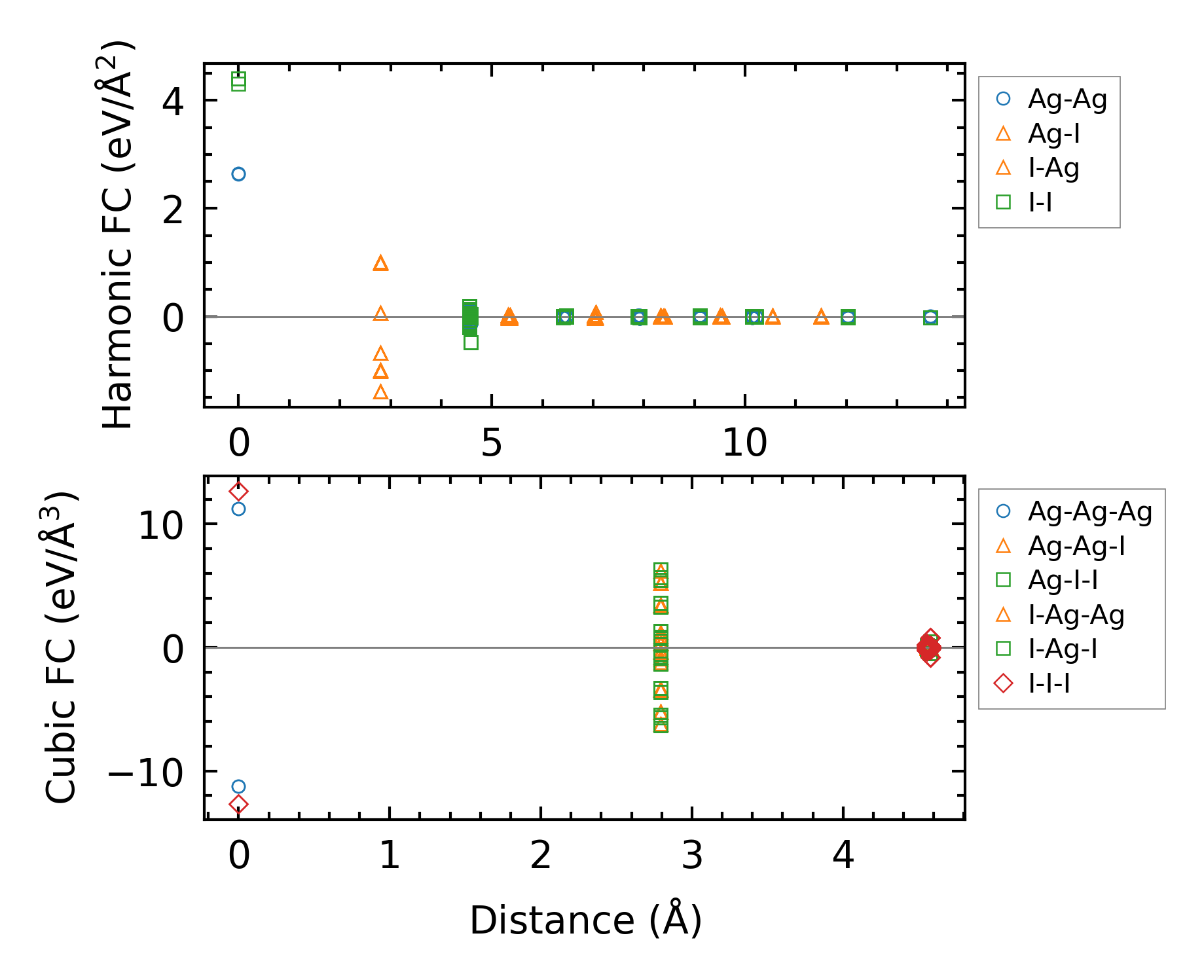

../../_images/fig_fc3193.png — (a) Force constants w.r.t atomic distance

Summary

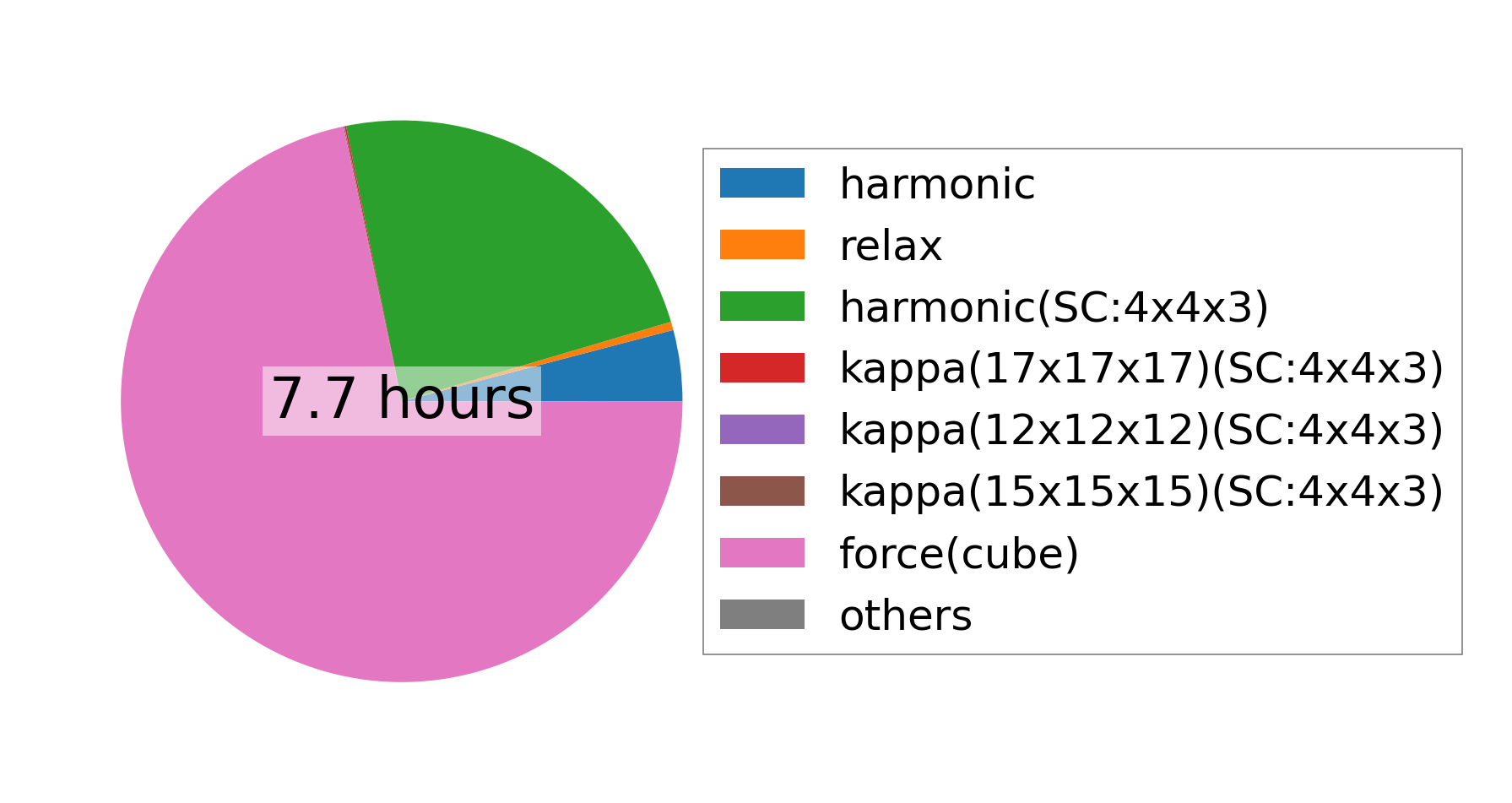

../../_images/fig_times8857.png — (a) Computation time
