mp-644607/CO2/anharm

Space group: P4_2/mnm (136)
Link: Materials Project
Download: mp-644607.tar.gz

Harmonic properties

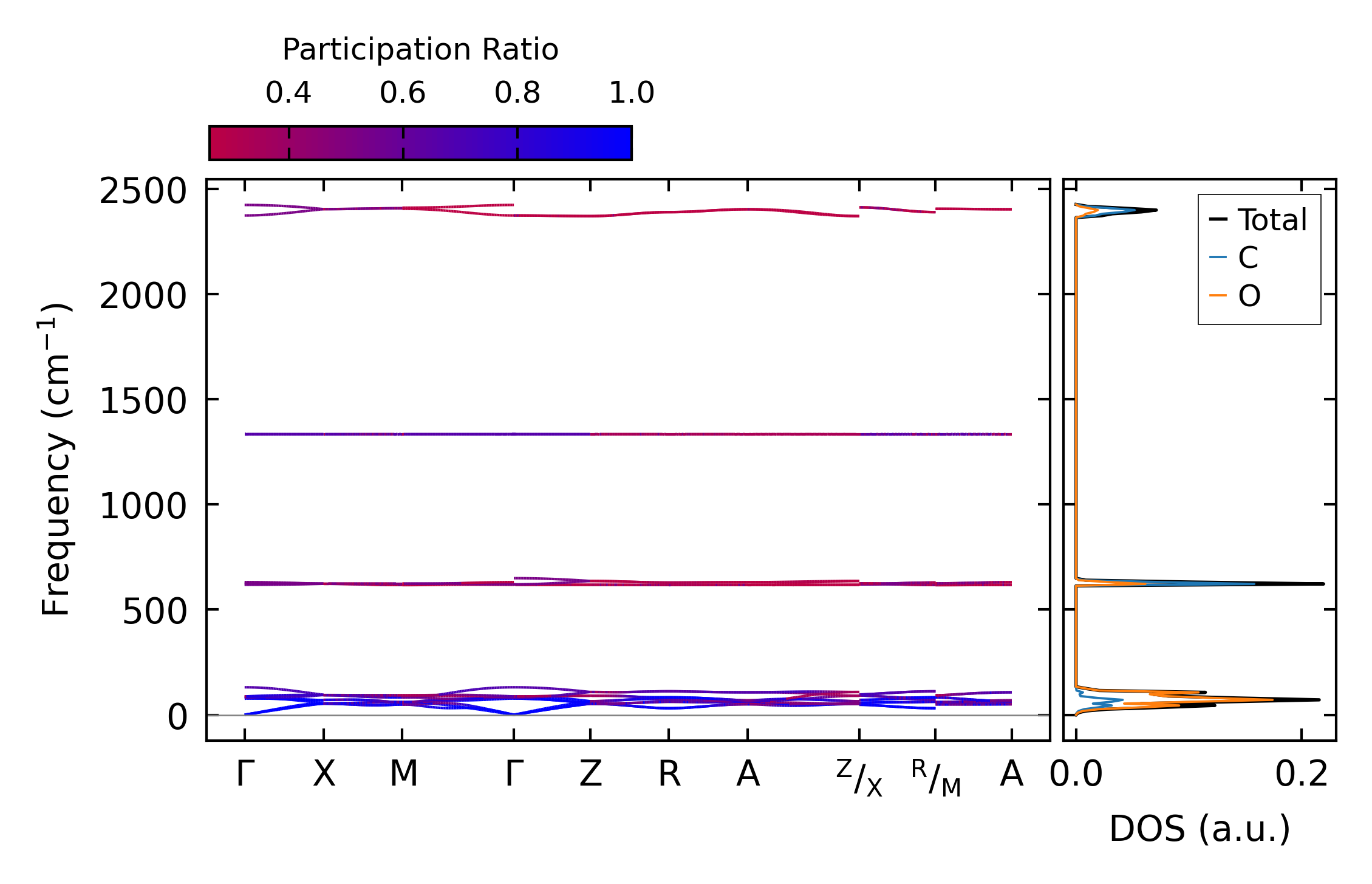

../../_images/fig_bandos_pr5573.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo5573.png — (b) Thermodynamic properties

Grüneisen parameters

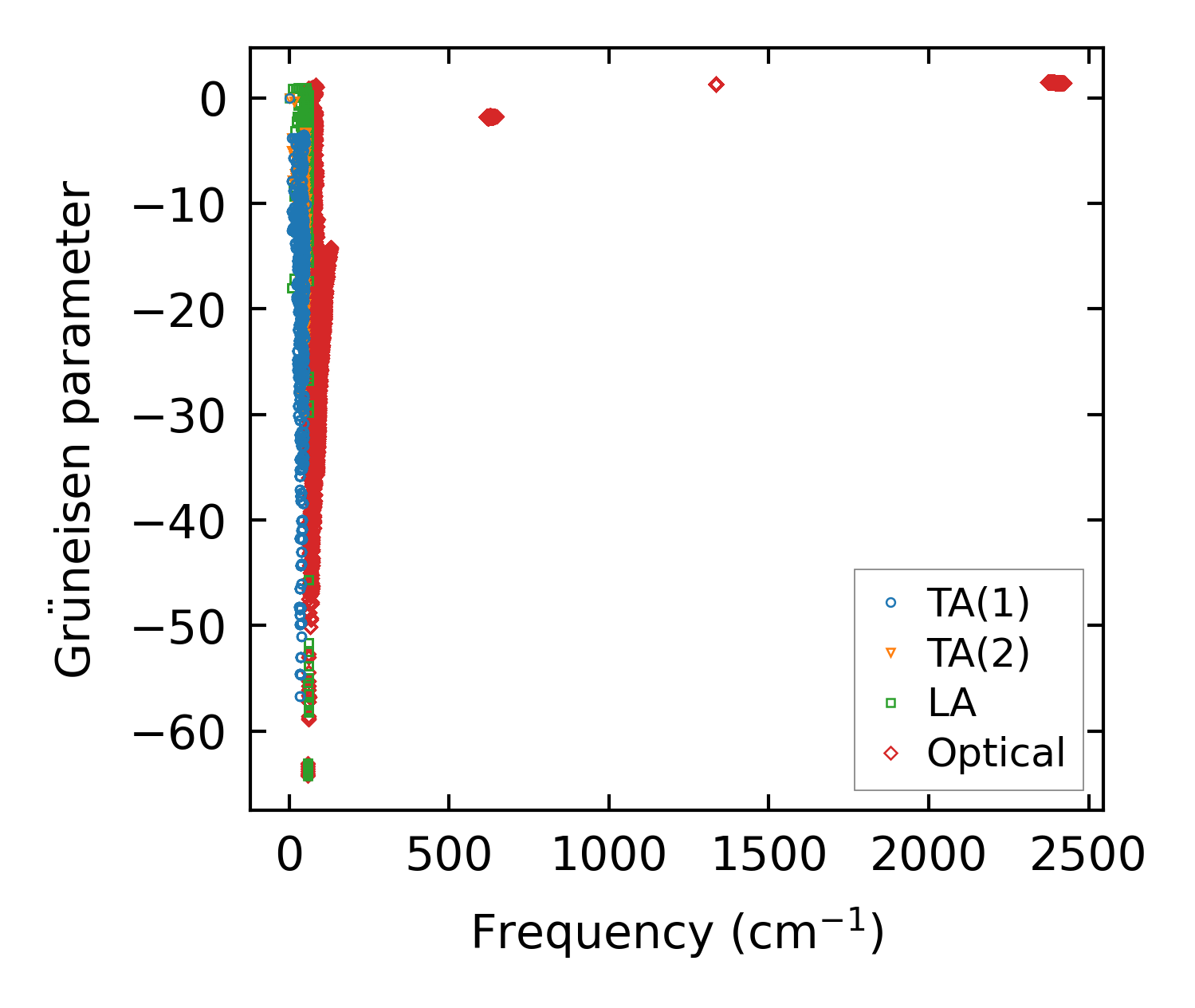

../../_images/fig_gru_all2330.png — (a) Grüneisen parameters

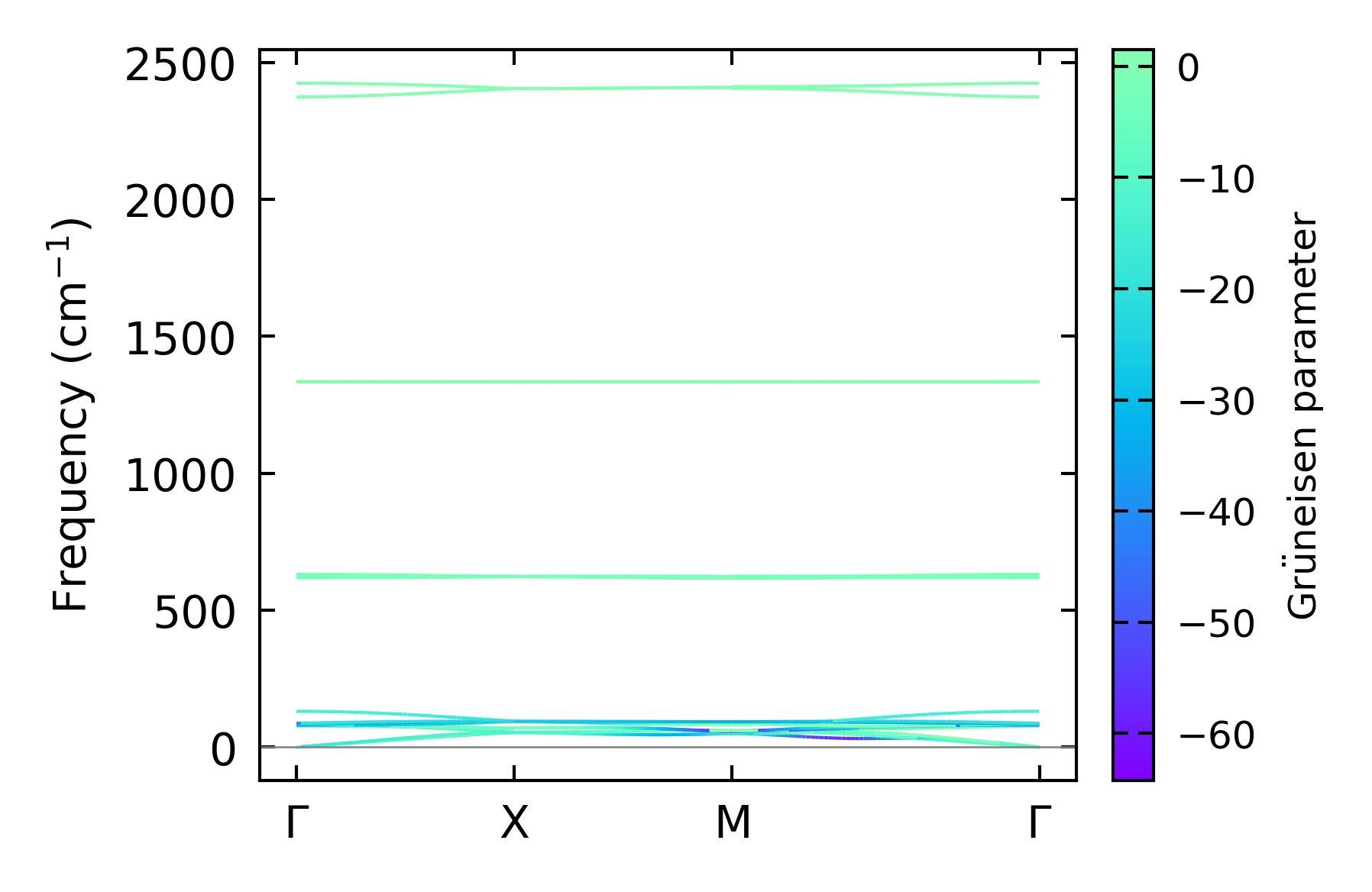

../../_images/fig_gruneisen2330.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 16x16x15, supercell: 3x3x2

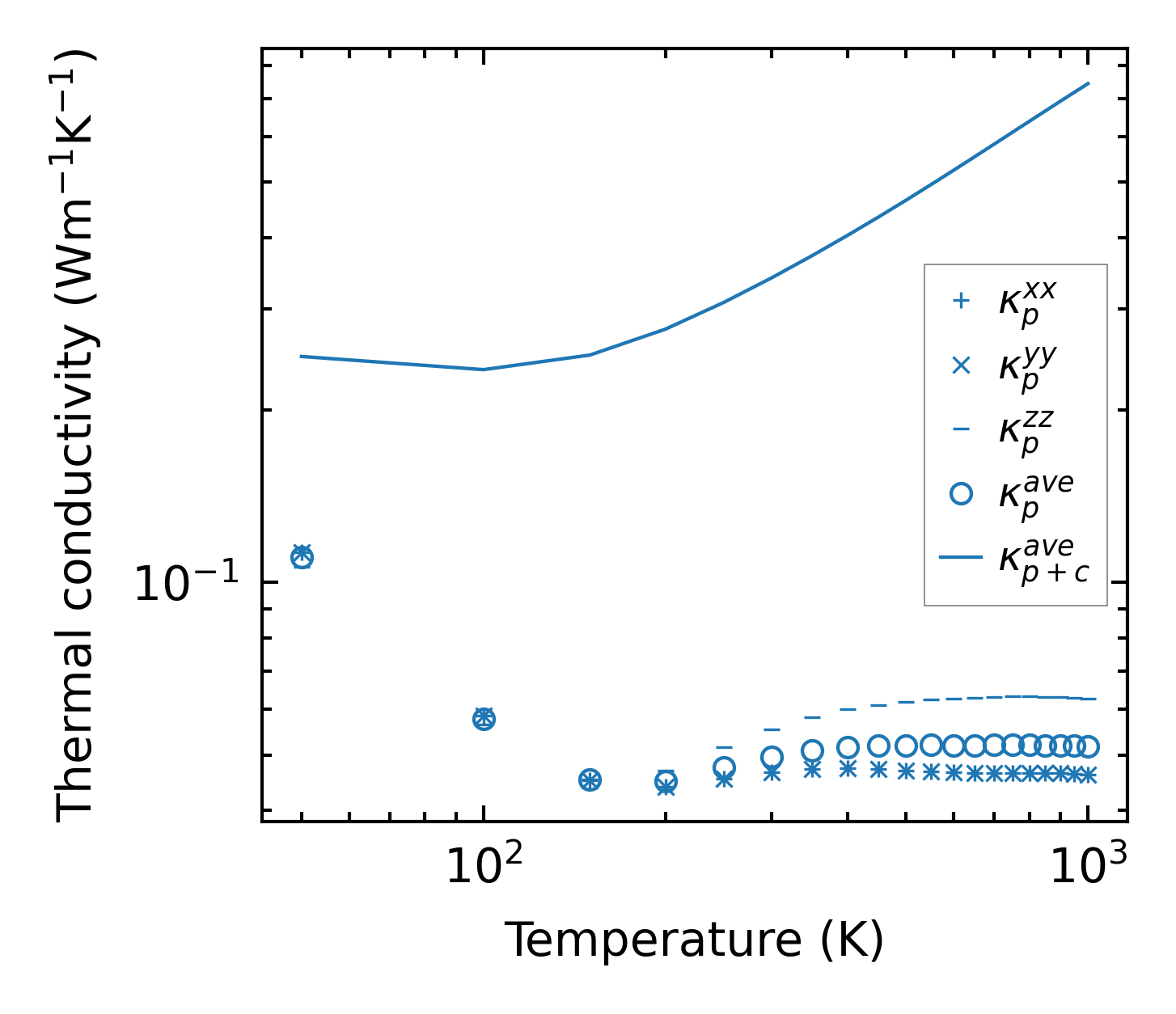

../../_images/fig_kappa4454.png — (a) Temperature-dependent lattice thermal conductivity

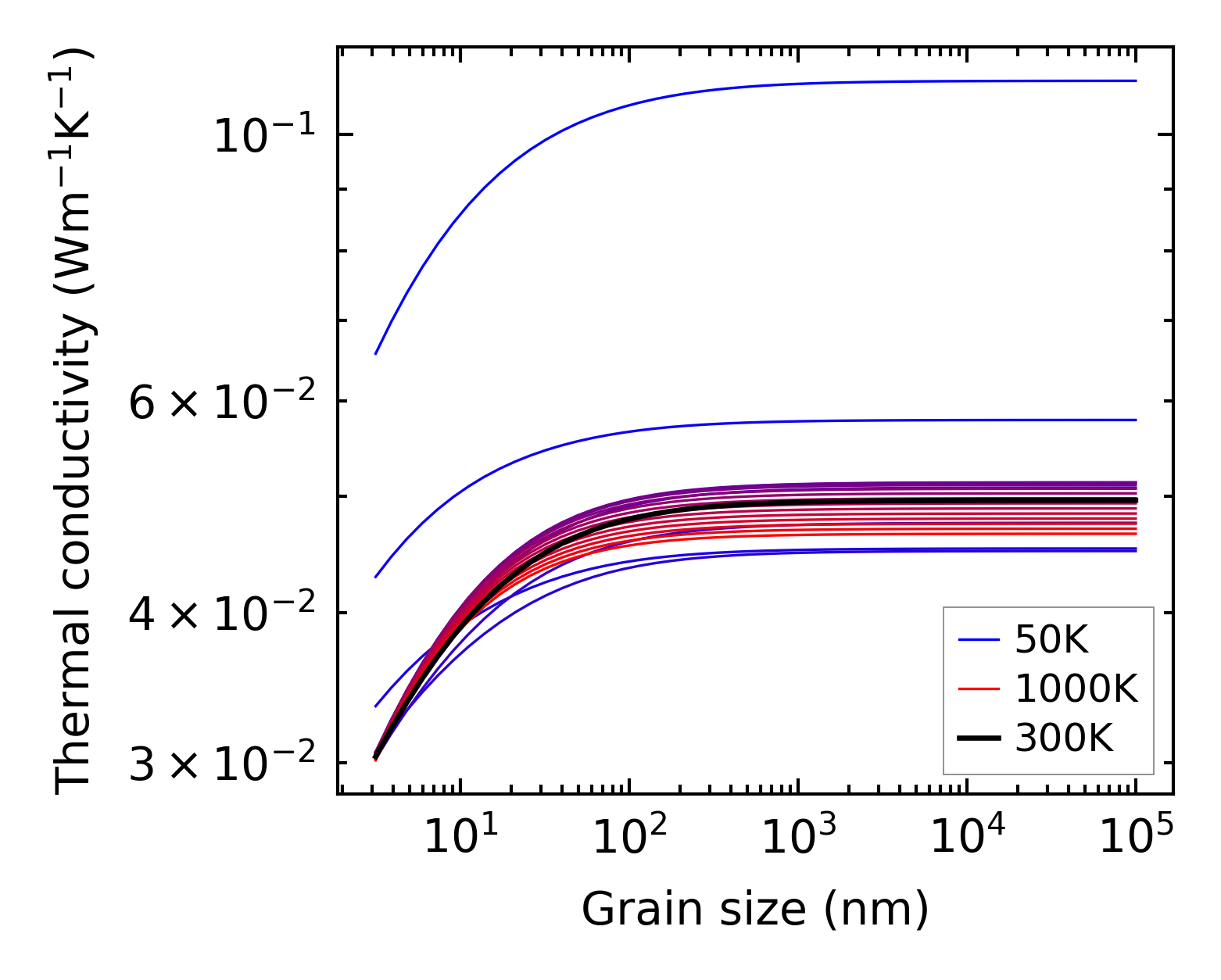

../../_images/fig_kappa_vs_grain_size2360.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

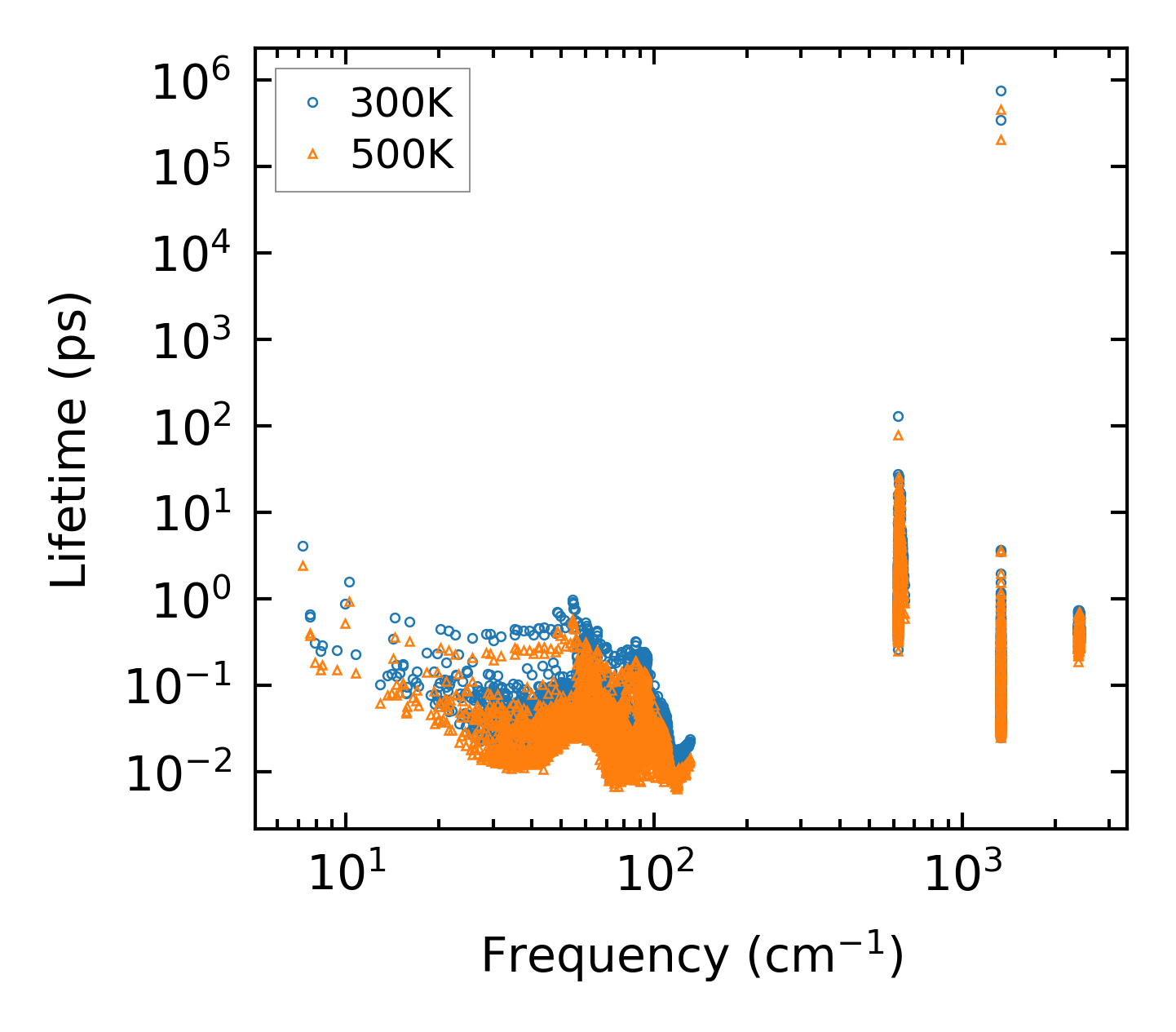

../../_images/fig_lifetime2315.png — (a) Phonon lifetime due to phonon-phonon scattering

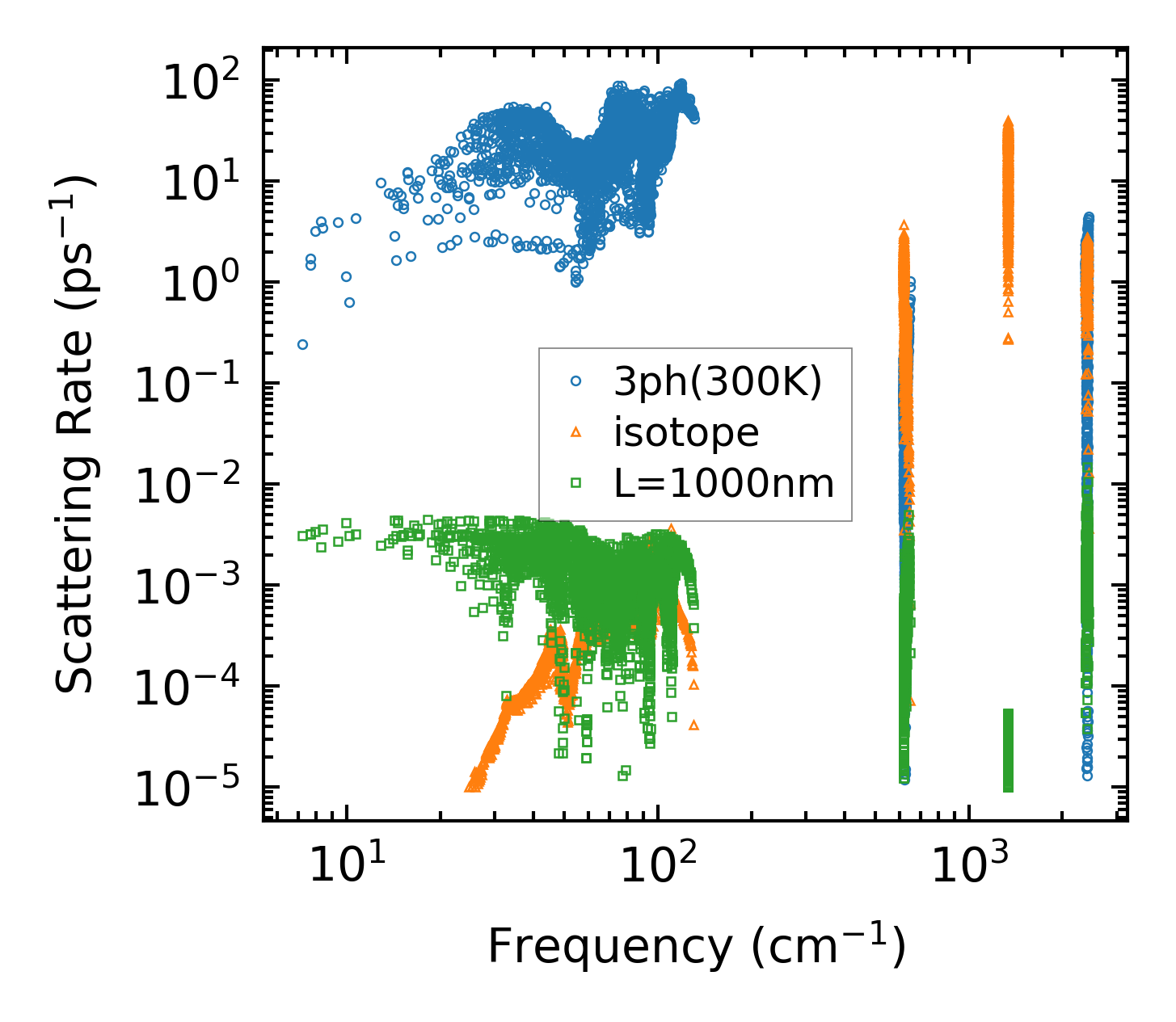

../../_images/fig_scat_rates2314.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

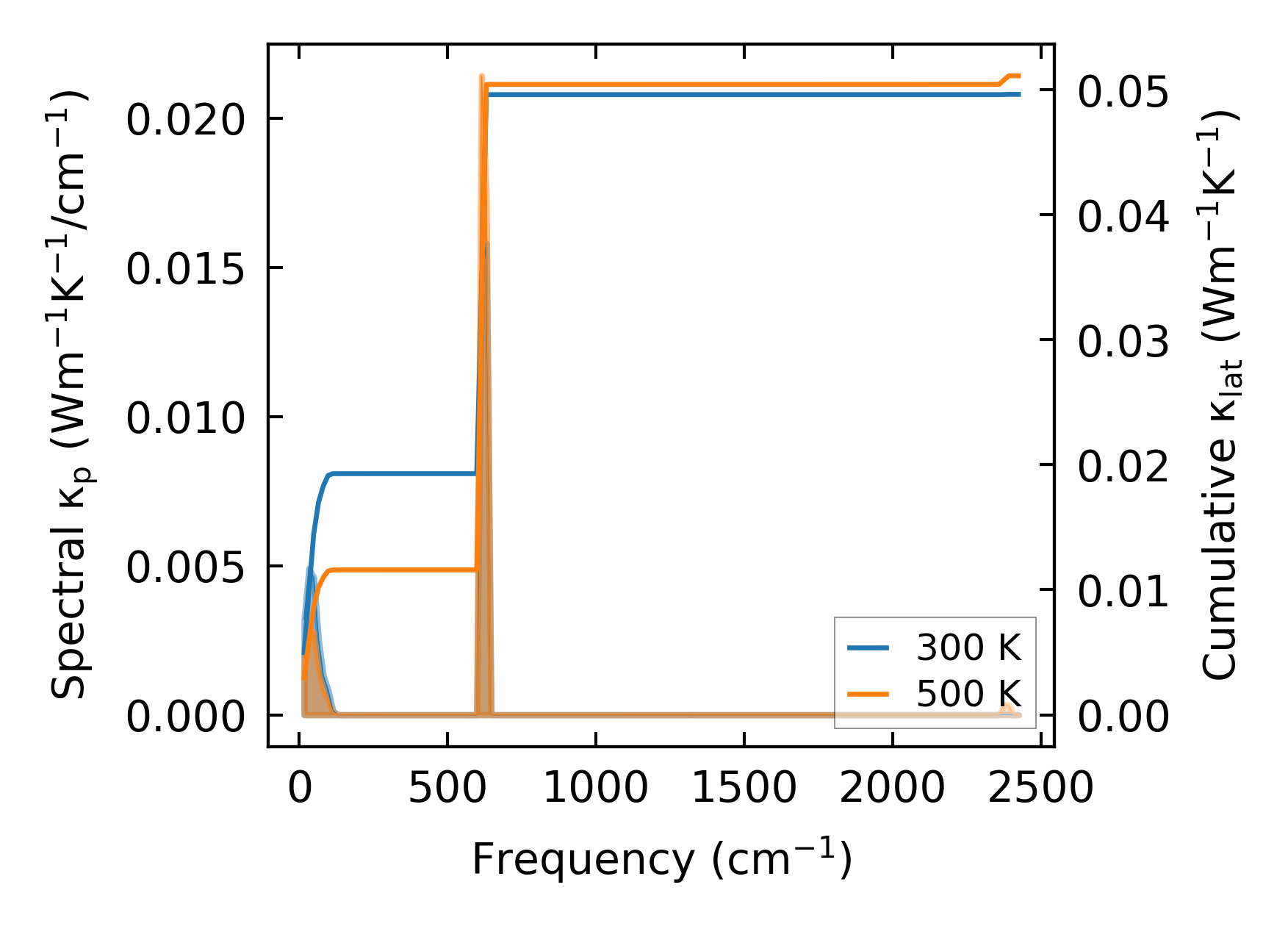

../../_images/fig_cumu_frequency2315.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

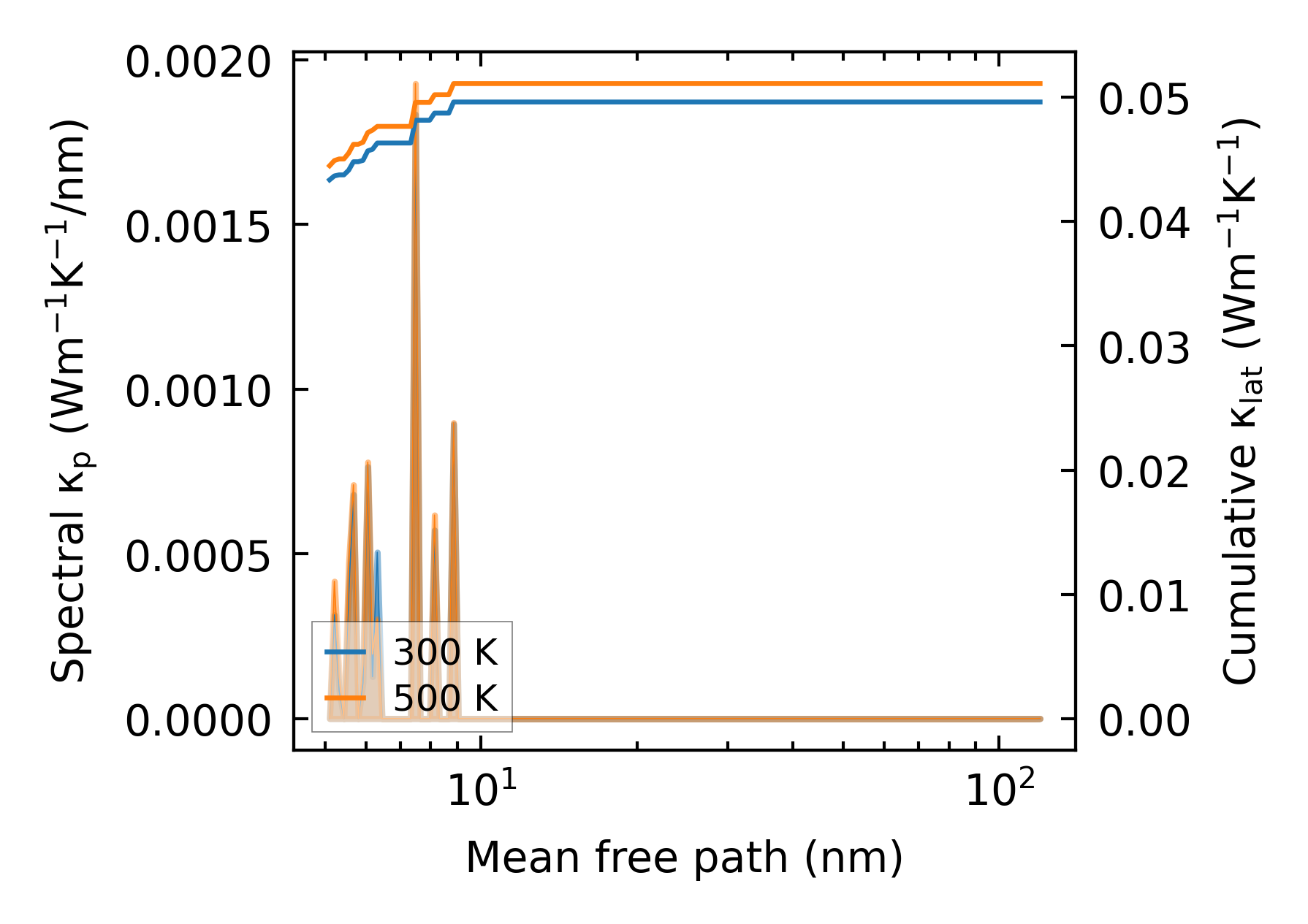

../../_images/fig_cumu_mfp2315.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

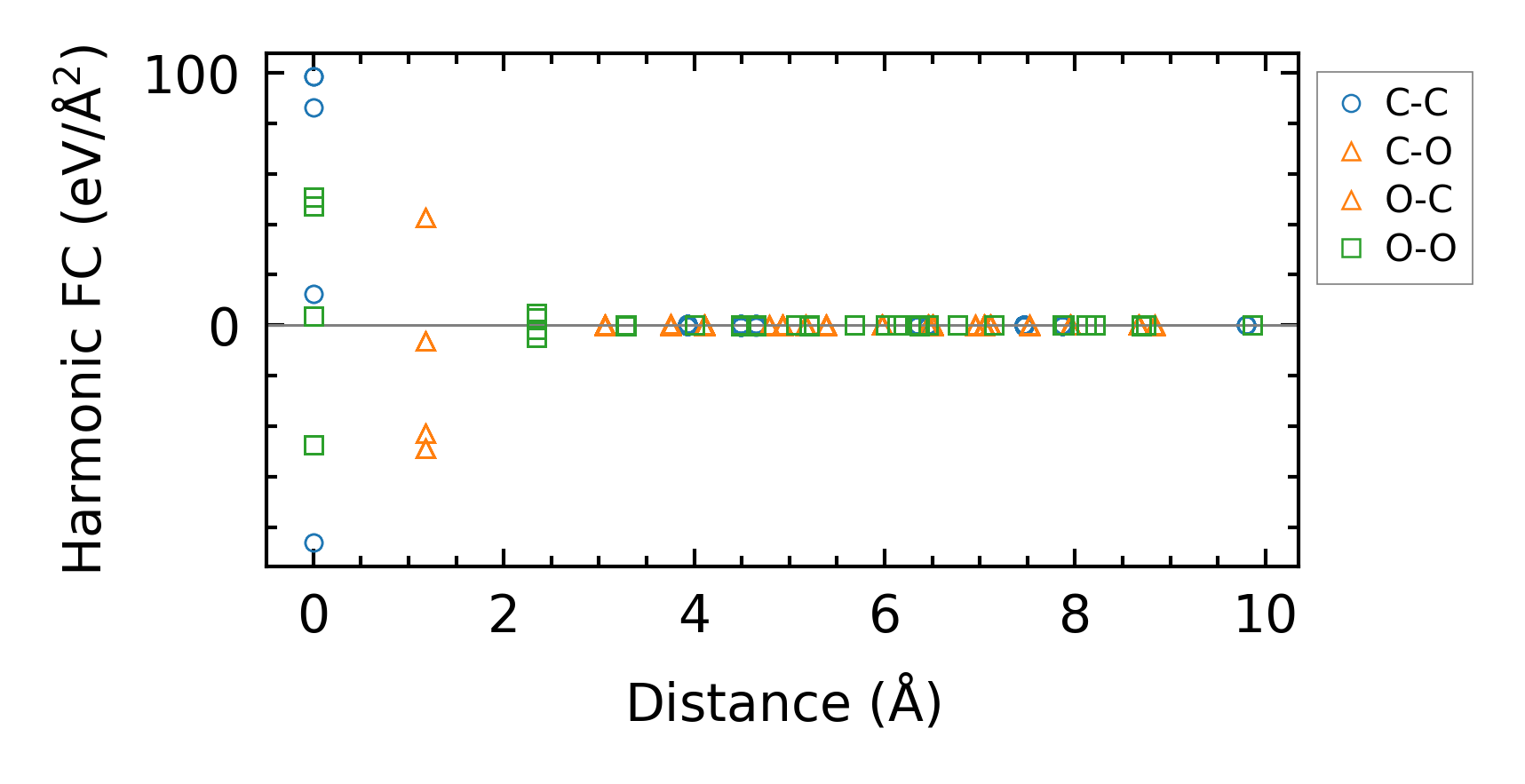

../../_images/fig_fc25374.png — (a) Force constants w.r.t atomic distance

Summary

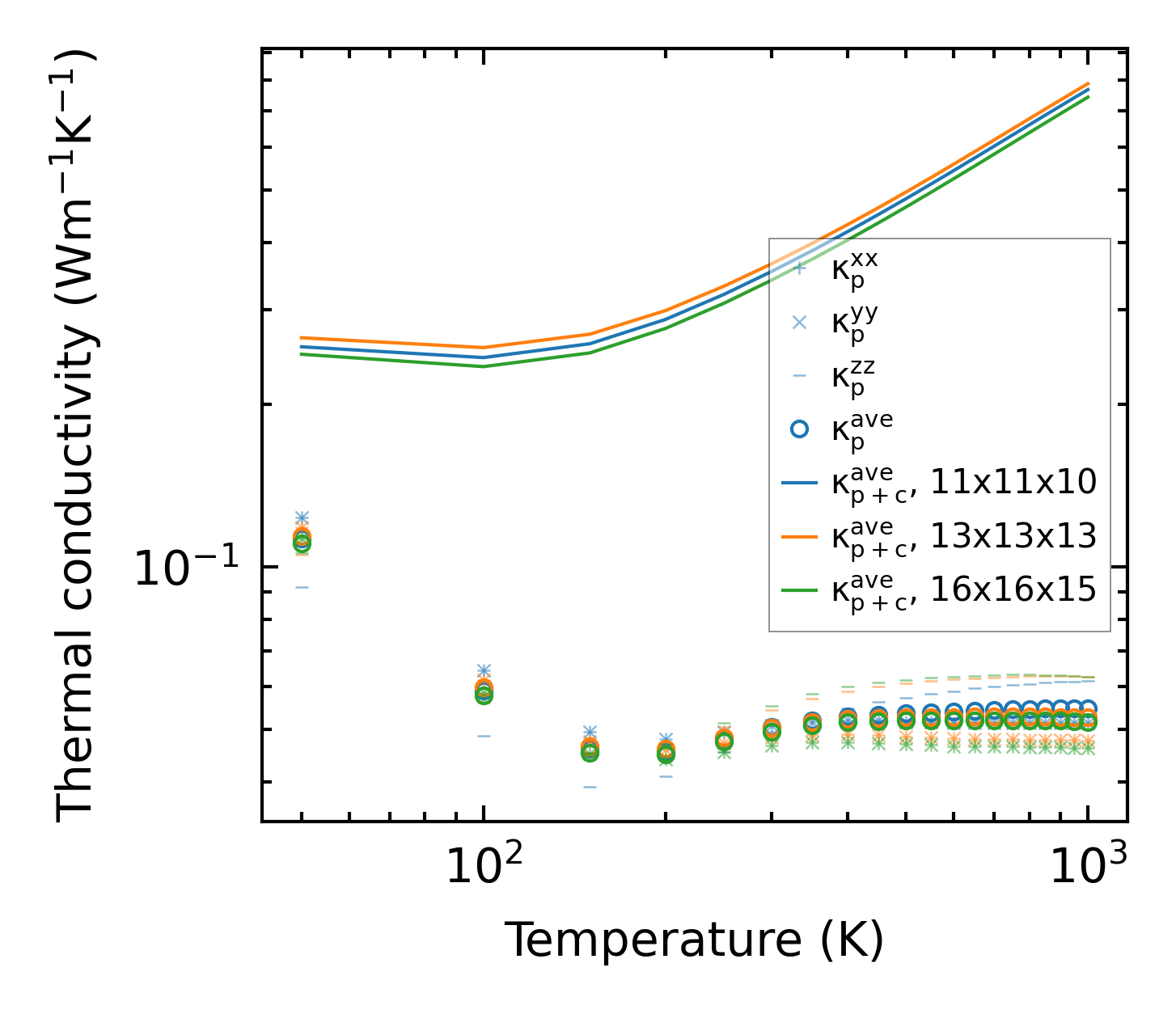

../../_images/fig_kappa4455.png — (a) Temperature-dependent lattice thermal conductivity

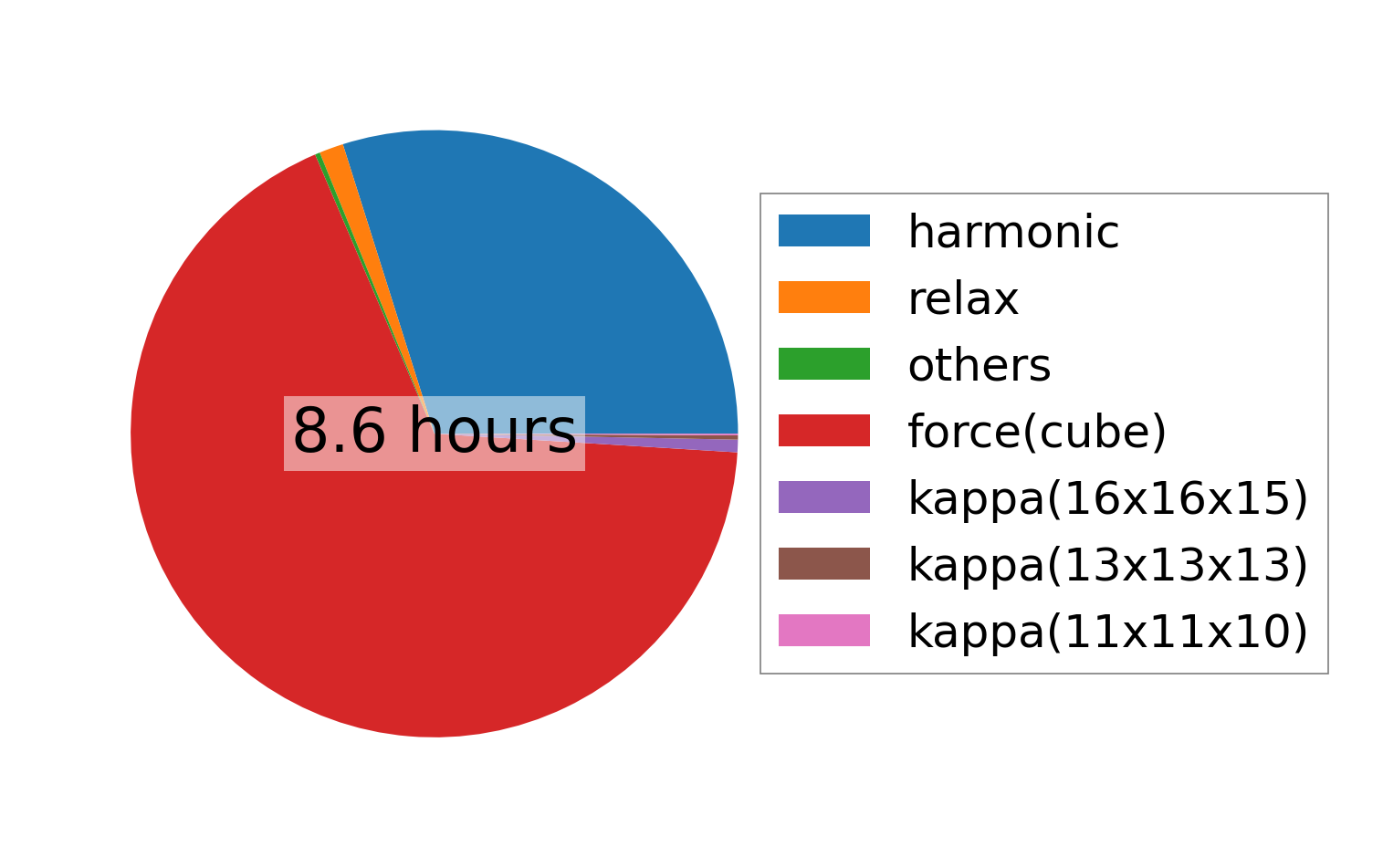

../../_images/fig_times10047.png — (b) Computation time
