mp-553958-2/Zn3P2O8/anharm

Space group: P2_1/c (14)
Link: Materials Project
Download: mp-553958-2.tar.gz

Equation of state

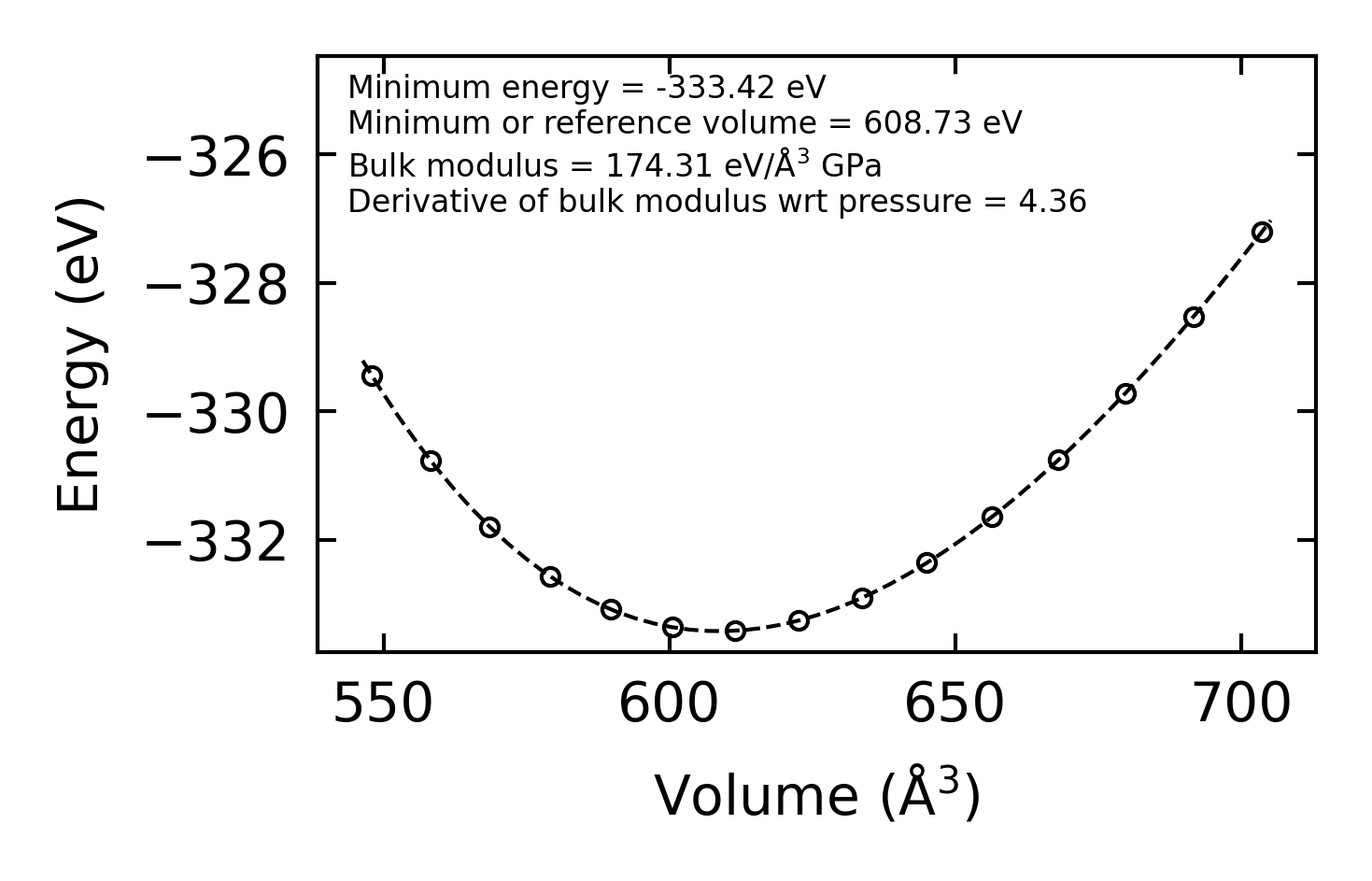

../../_images/fig_bm4633.png — (a) Equation of state

Harmonic properties

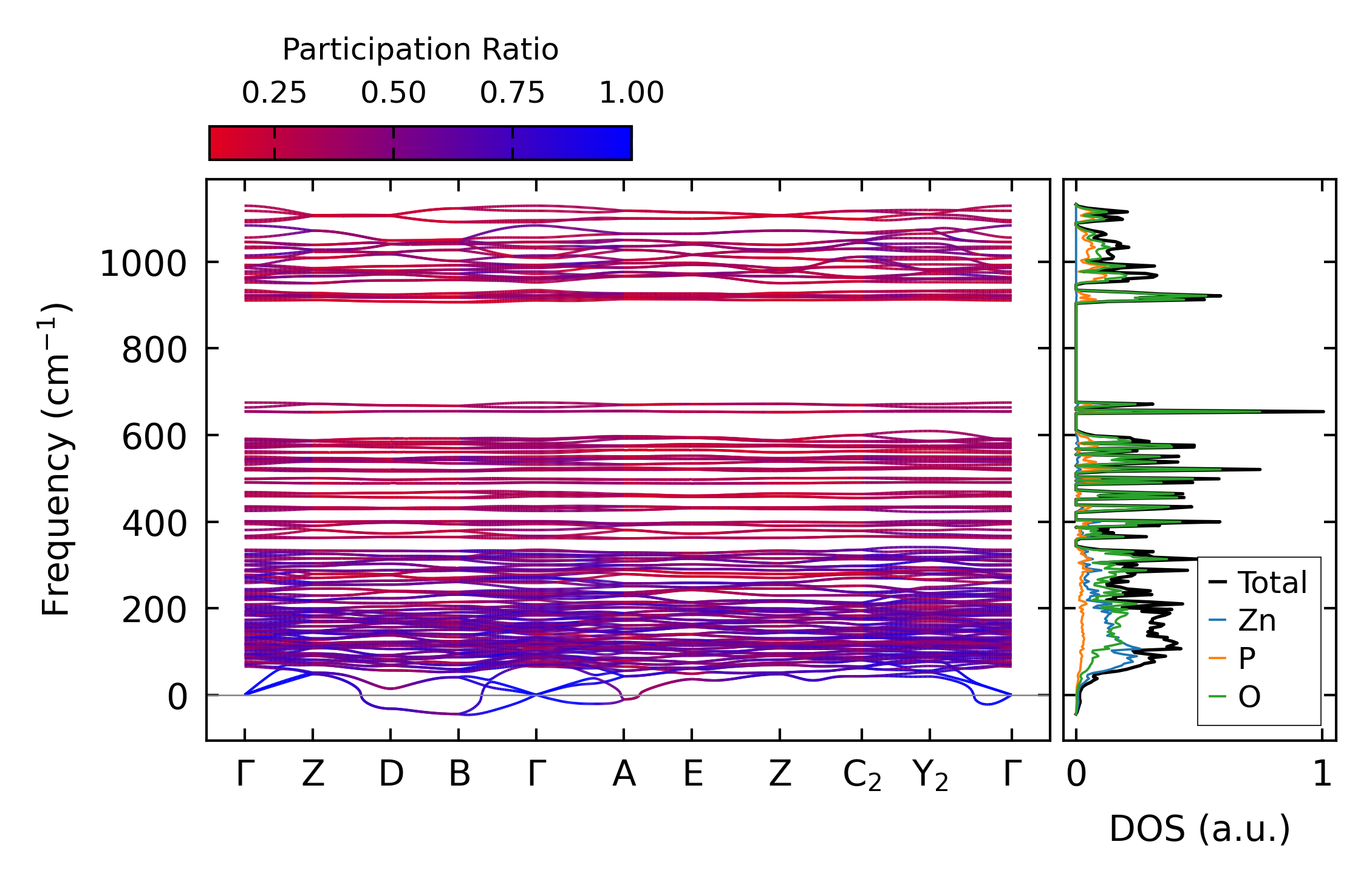

../../_images/fig_bandos_pr9222.png — (a) Phonon dispersion with participation ratio and DOS

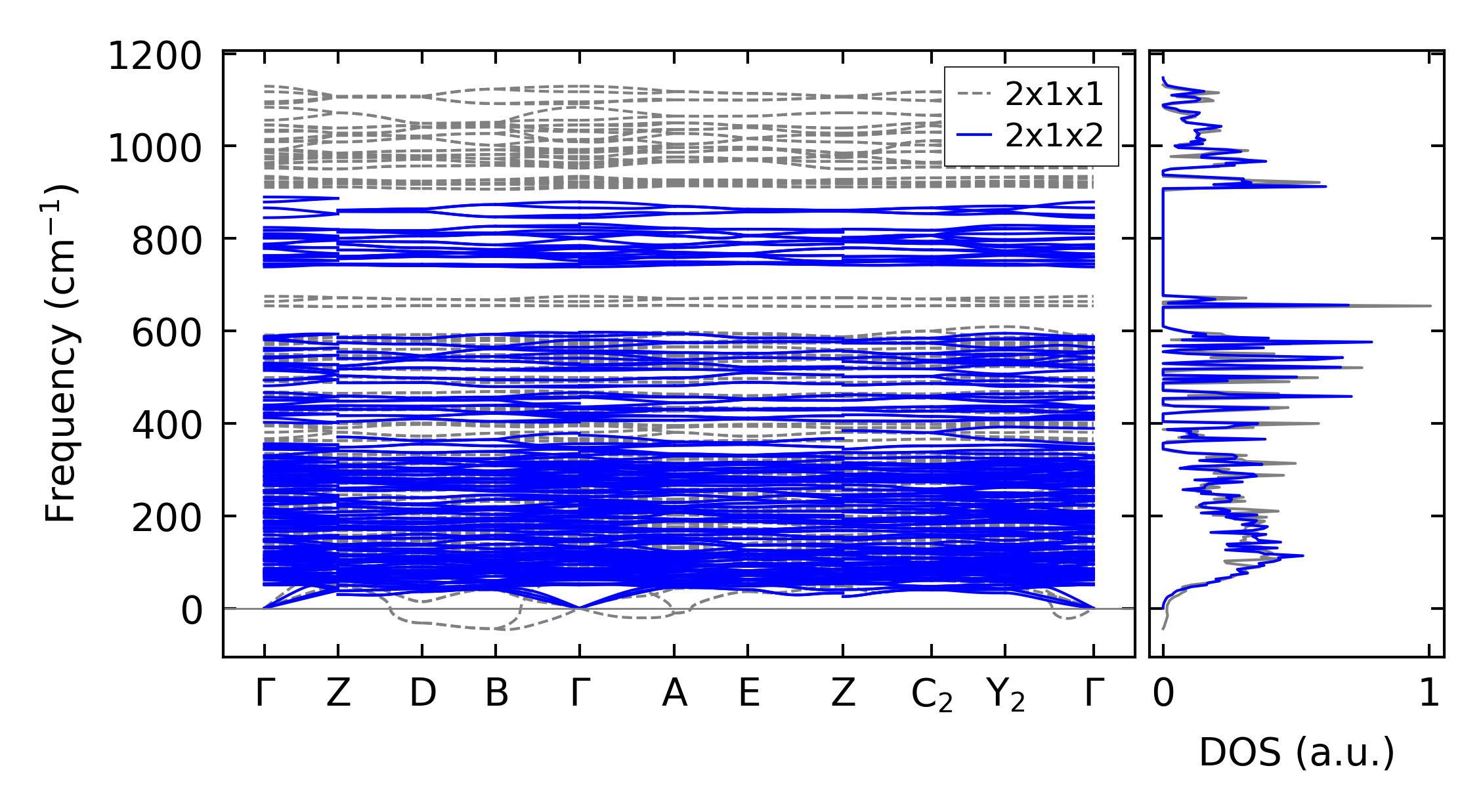

../../_images/fig_bandos12933.png — (b) Phonon dispersion and DOS

../../_images/fig_thermo9222.png — (c) Thermodynamic properties

Grüneisen parameters

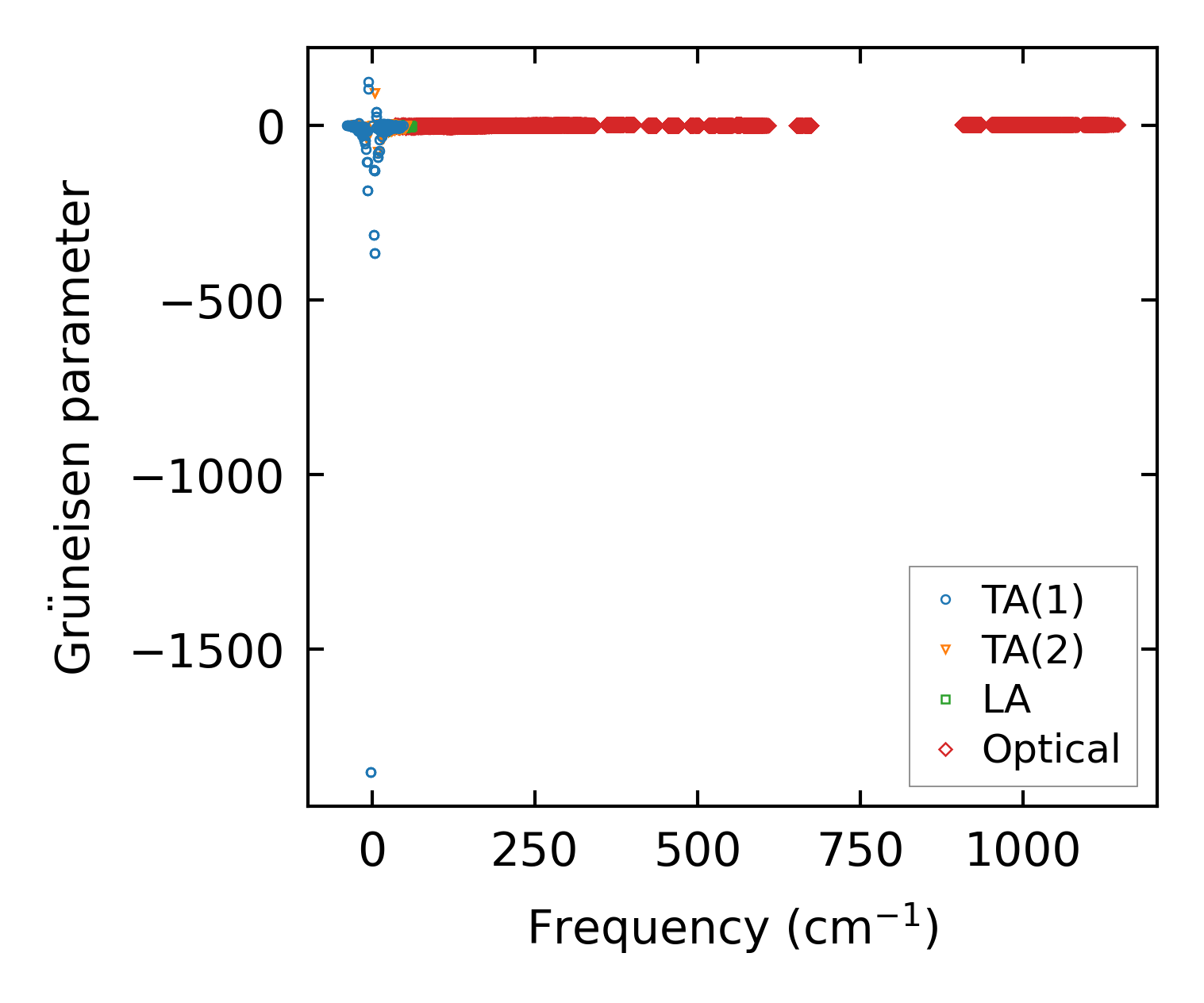

../../_images/fig_gru_all3676.png — (a) Grüneisen parameters

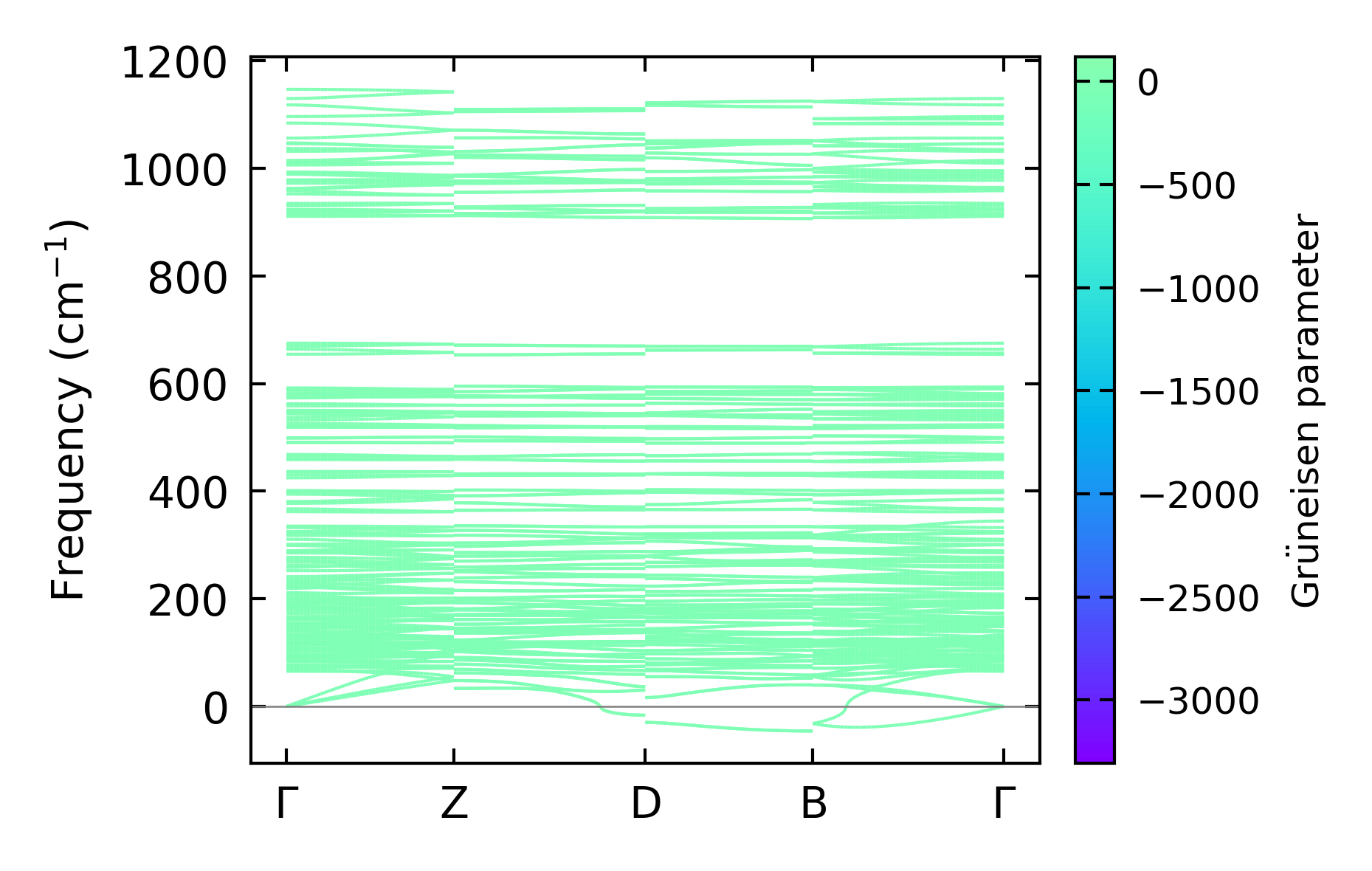

../../_images/fig_gruneisen3676.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO), supercell 2x1x2 — q-mesh: 8x8x8, supercell: 2x1x2

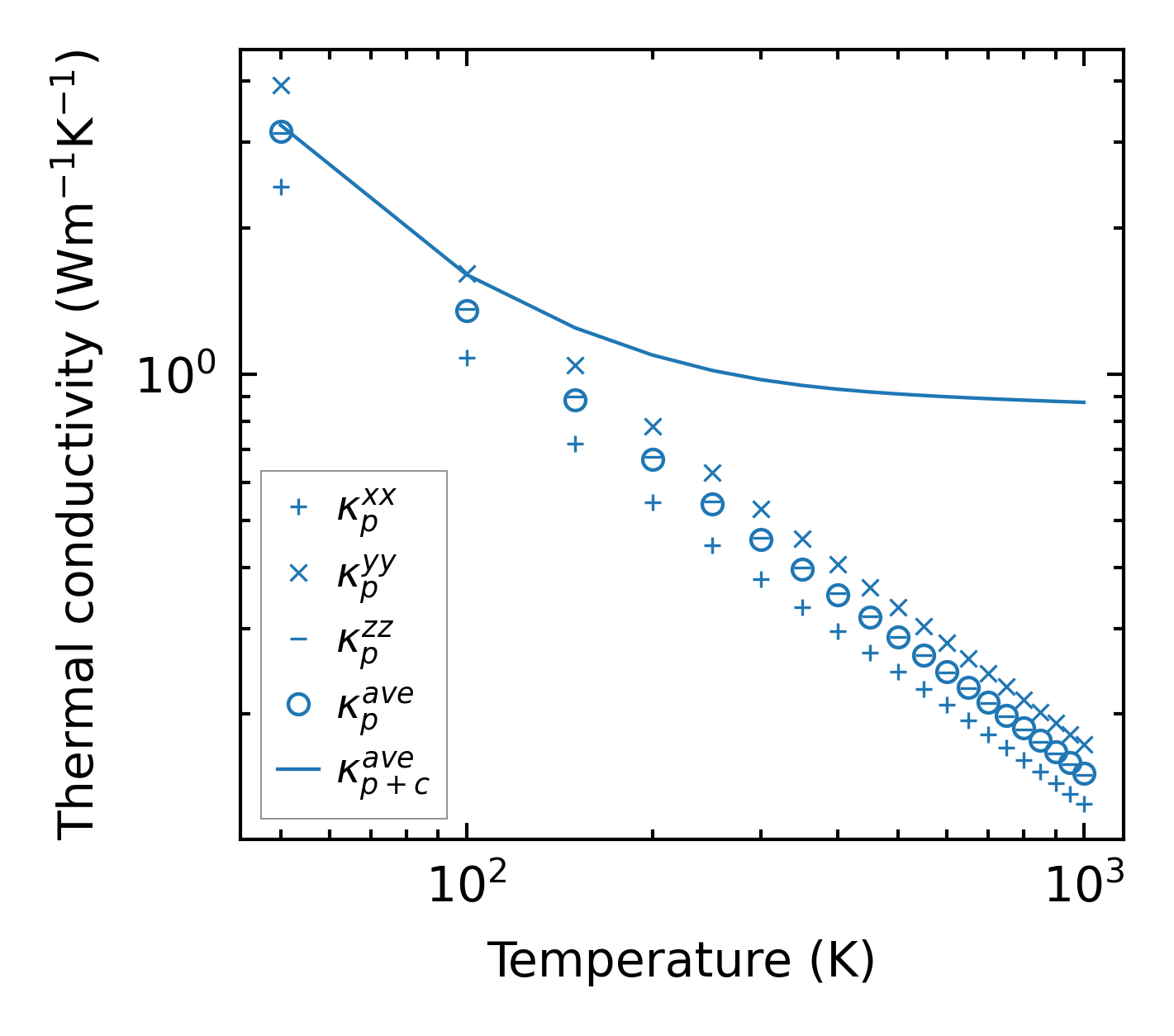

../../_images/fig_kappa6946.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size3724.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

../../_images/fig_lifetime3642.png — (a) Phonon lifetime due to phonon-phonon scattering

../../_images/fig_scat_rates3641.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

../../_images/fig_cumu_frequency3642.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

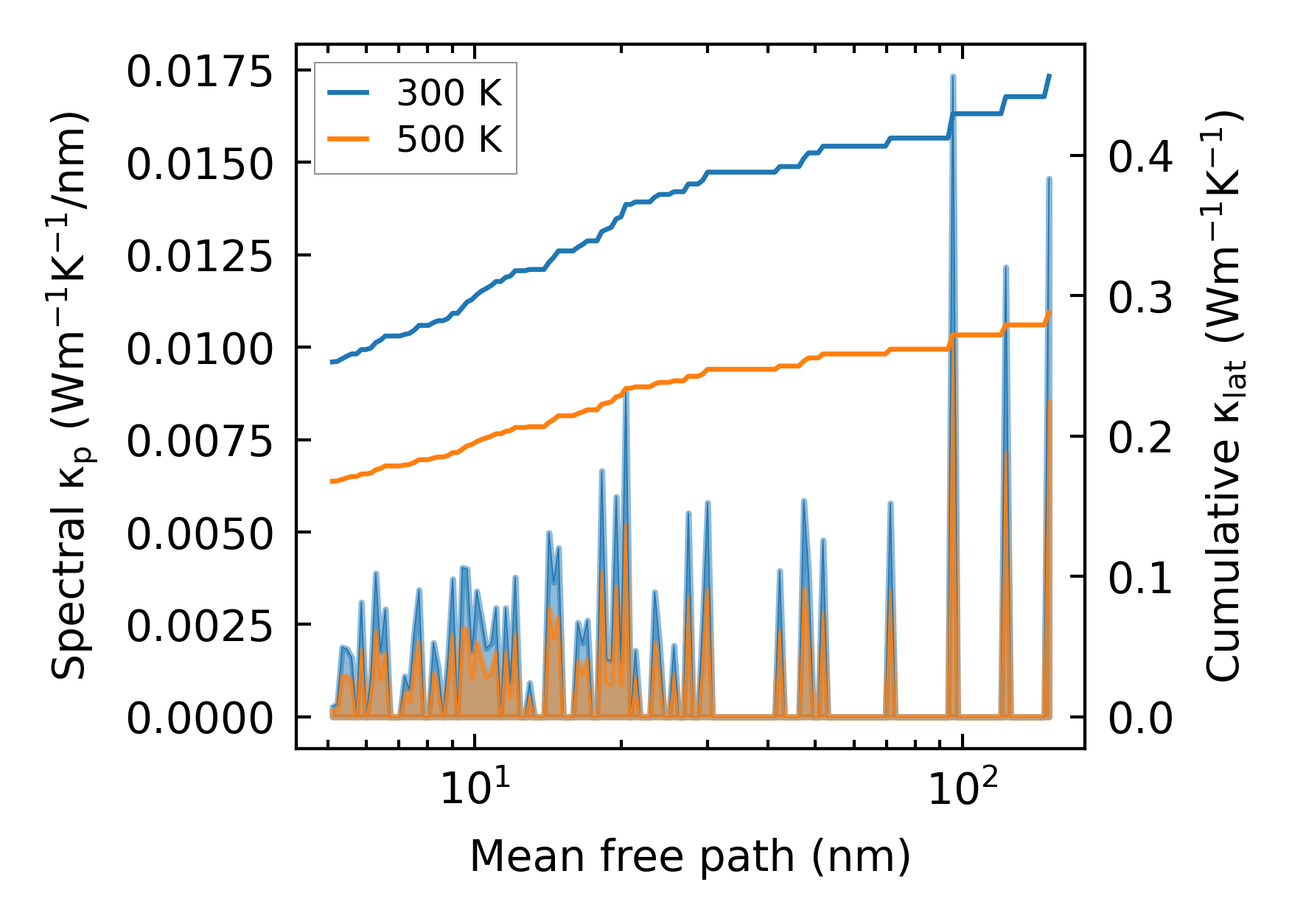

../../_images/fig_cumu_mfp3641.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

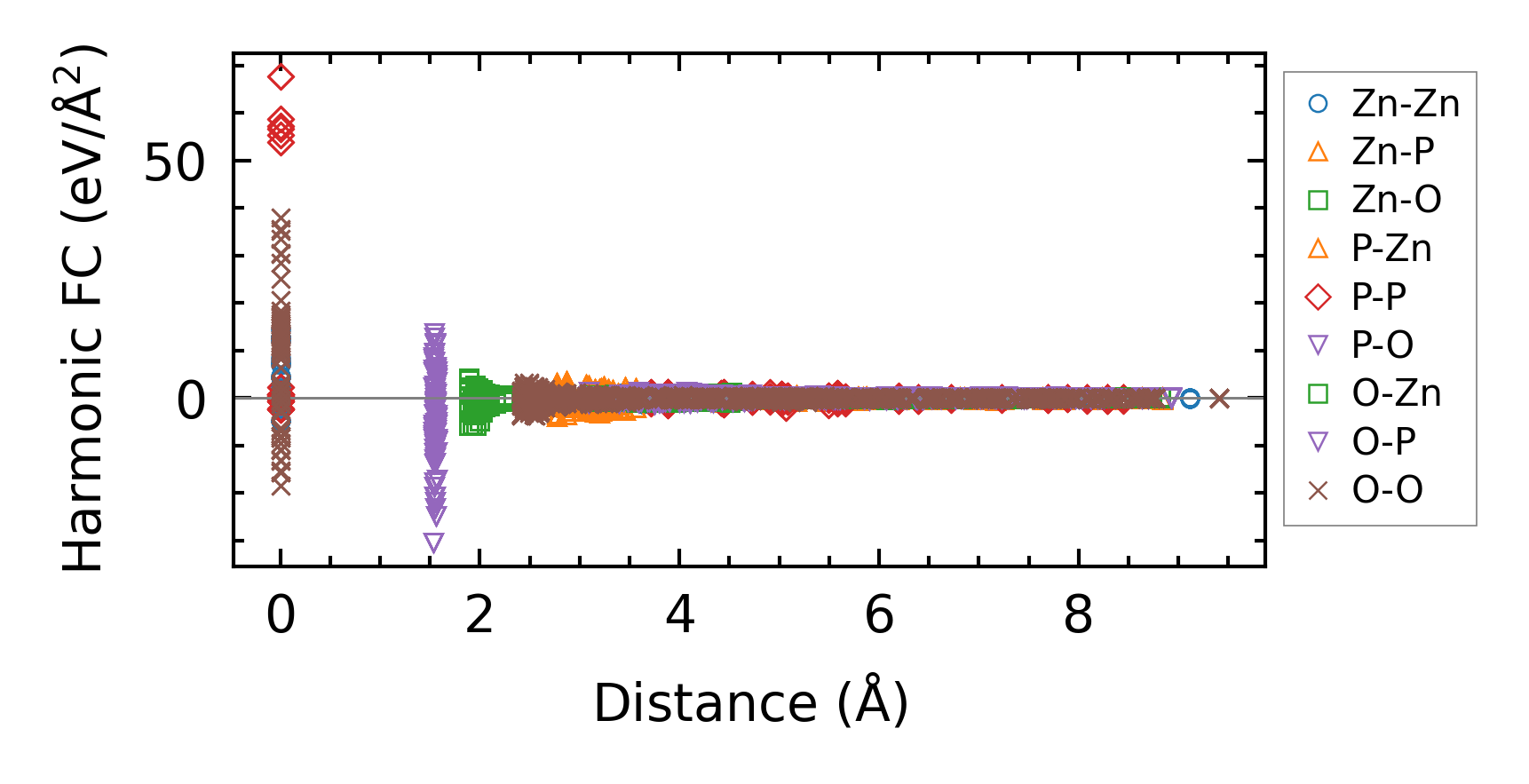

../../_images/fig_fc28984.png — (a) Force constants w.r.t atomic distance

Summary

../../_images/fig_times16081.png — (a) Computation time
