mp-553278-2/Nd4Se3O4/harm

Equation of state

../../_images/fig_bm4619.png

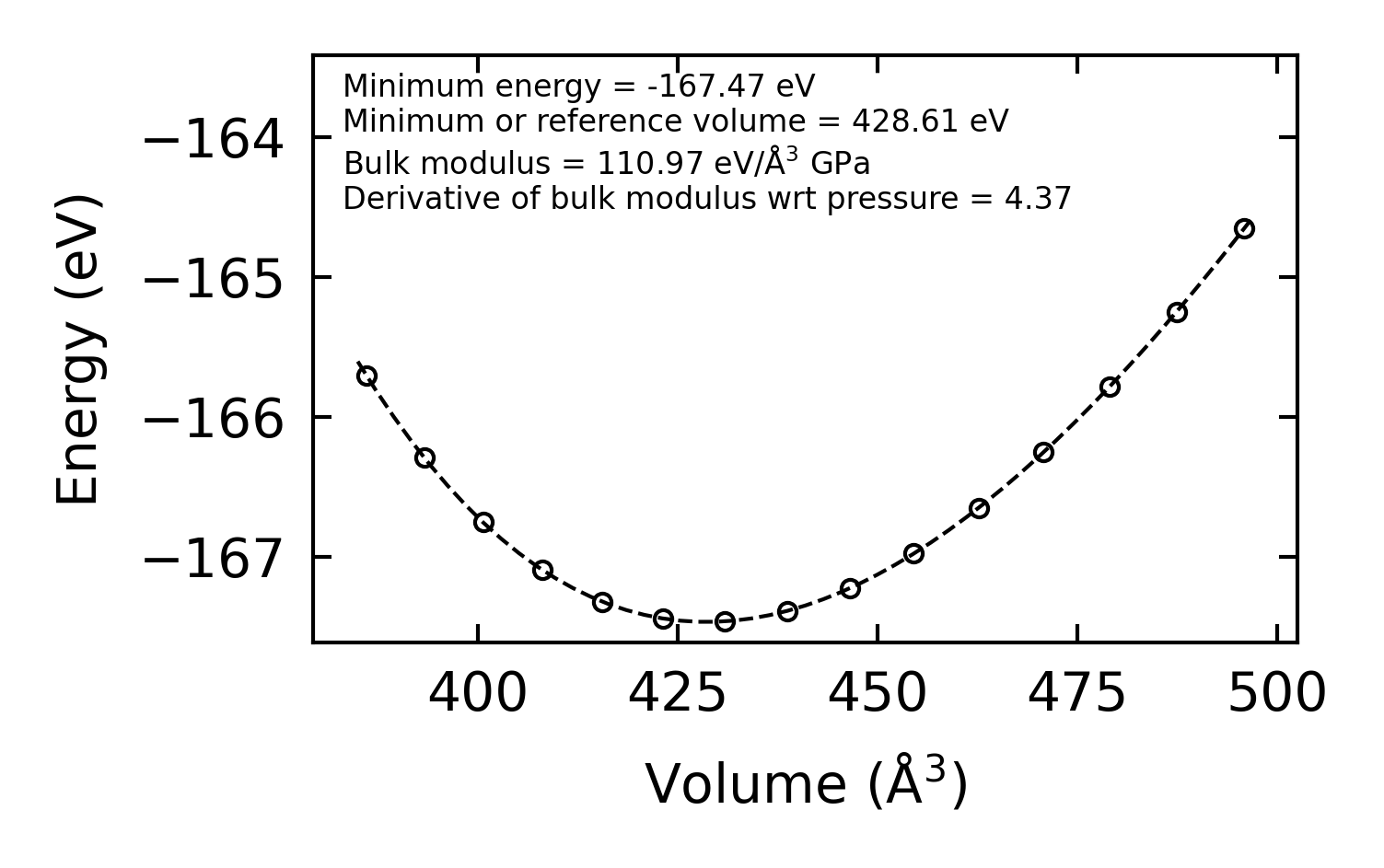

(a) Equation of state

Harmonic properties

../../_images/fig_bandos_pr9189.png

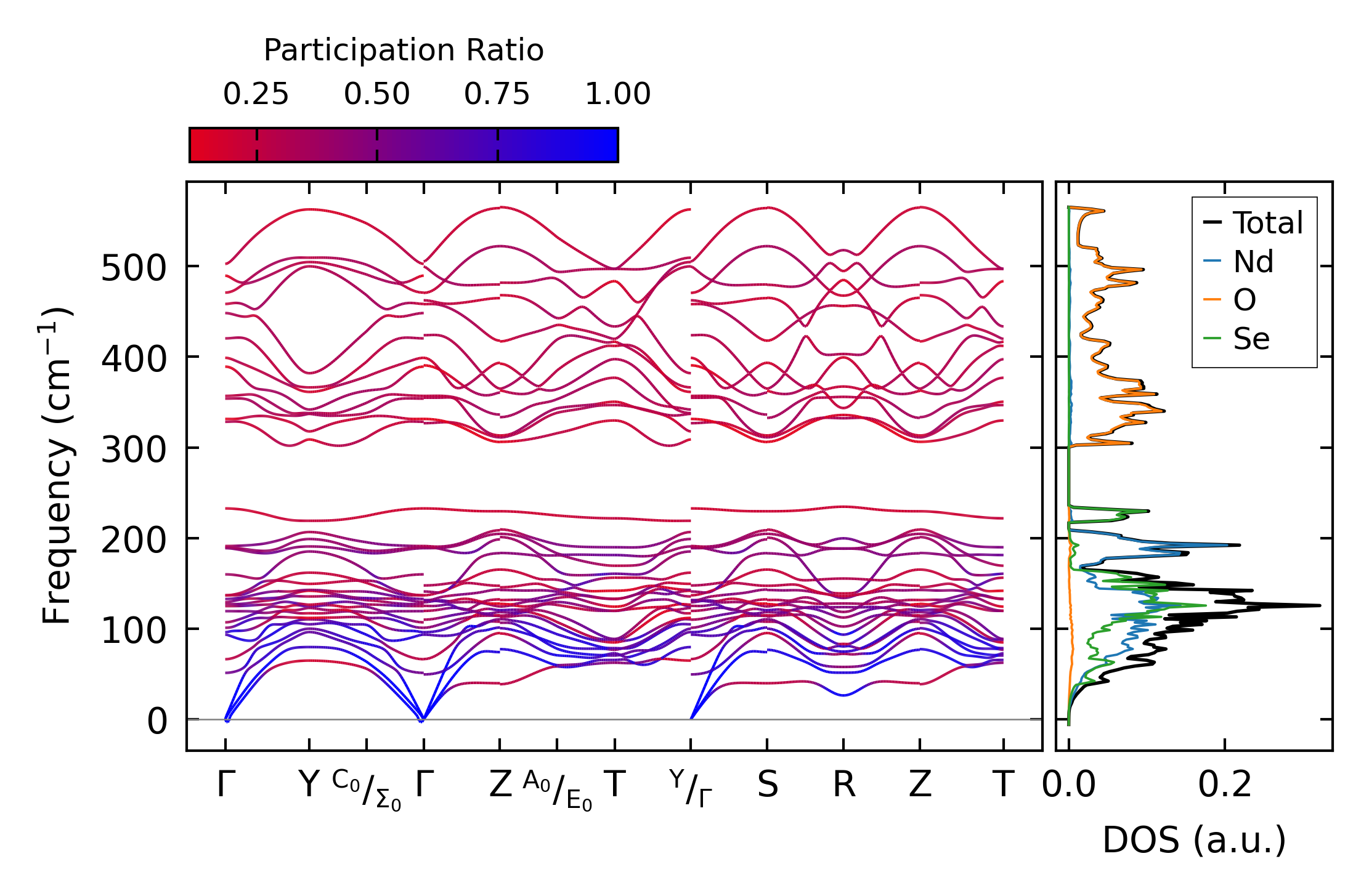

(a) Phonon dispersion with participation ratio and DOS

../../_images/fig_bandos12895.png

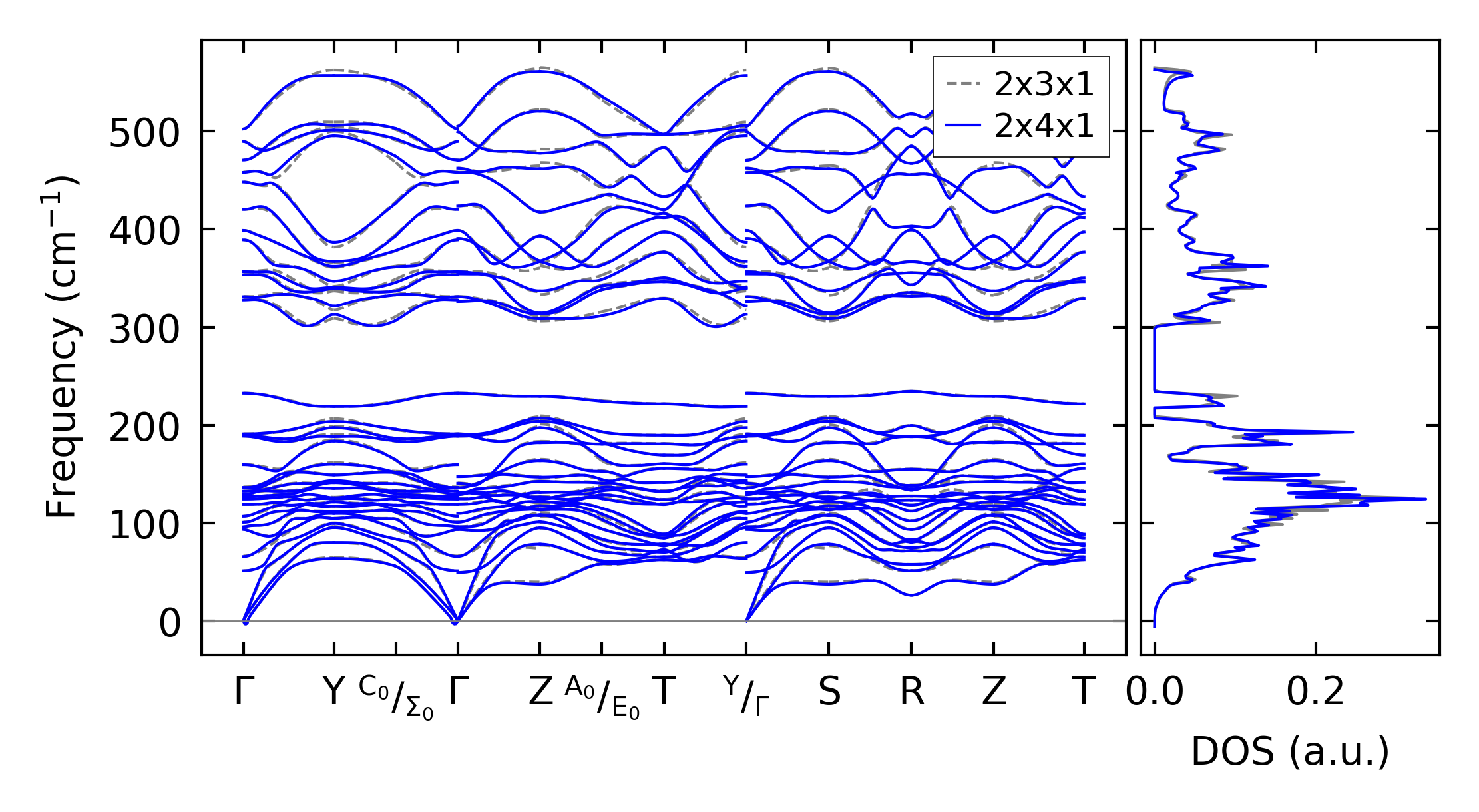

(b) Phonon dispersion and DOS

../../_images/fig_thermo9189.png

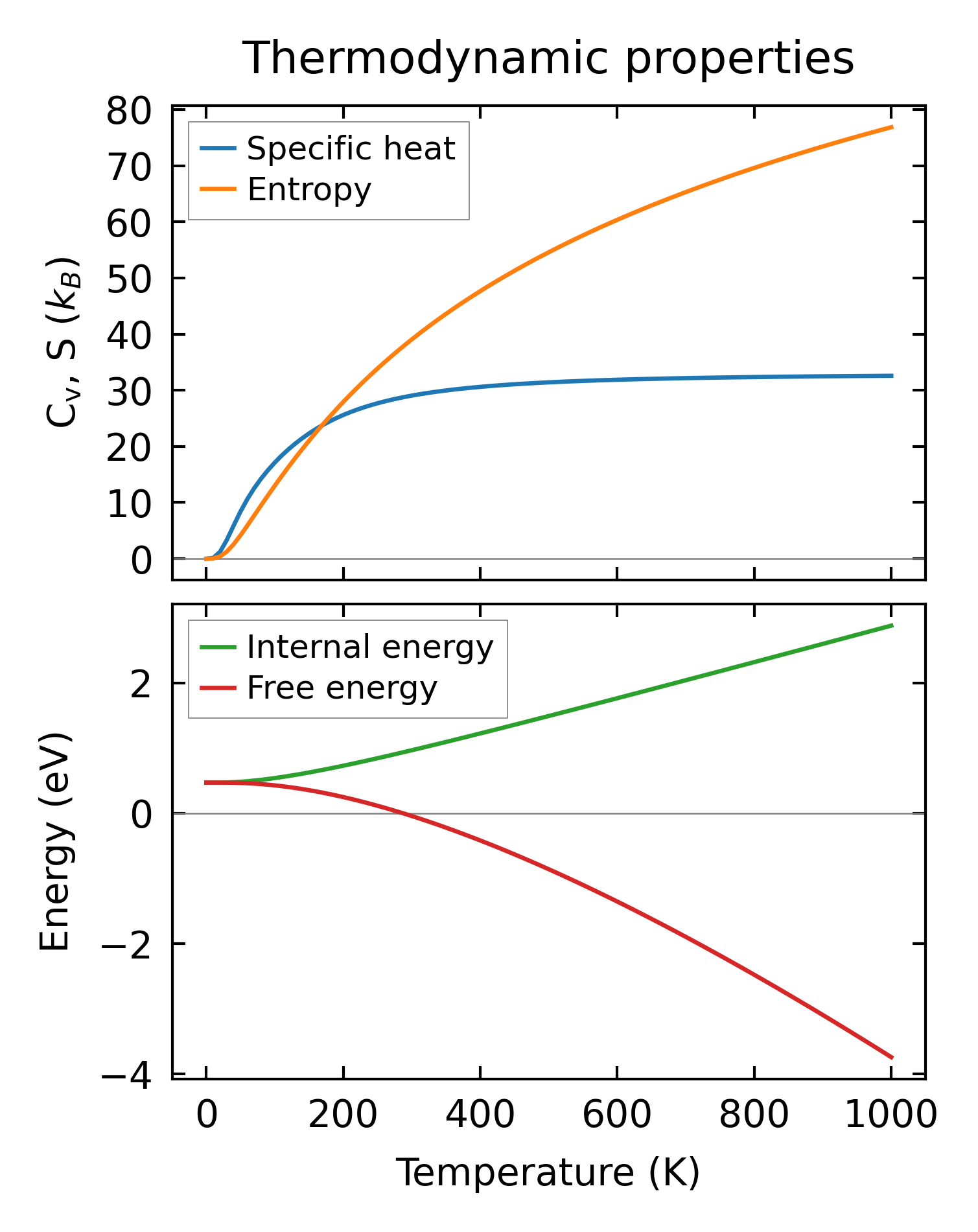

(c) Thermodynamic properties

Force constants

../../_images/fig_fc28951.png

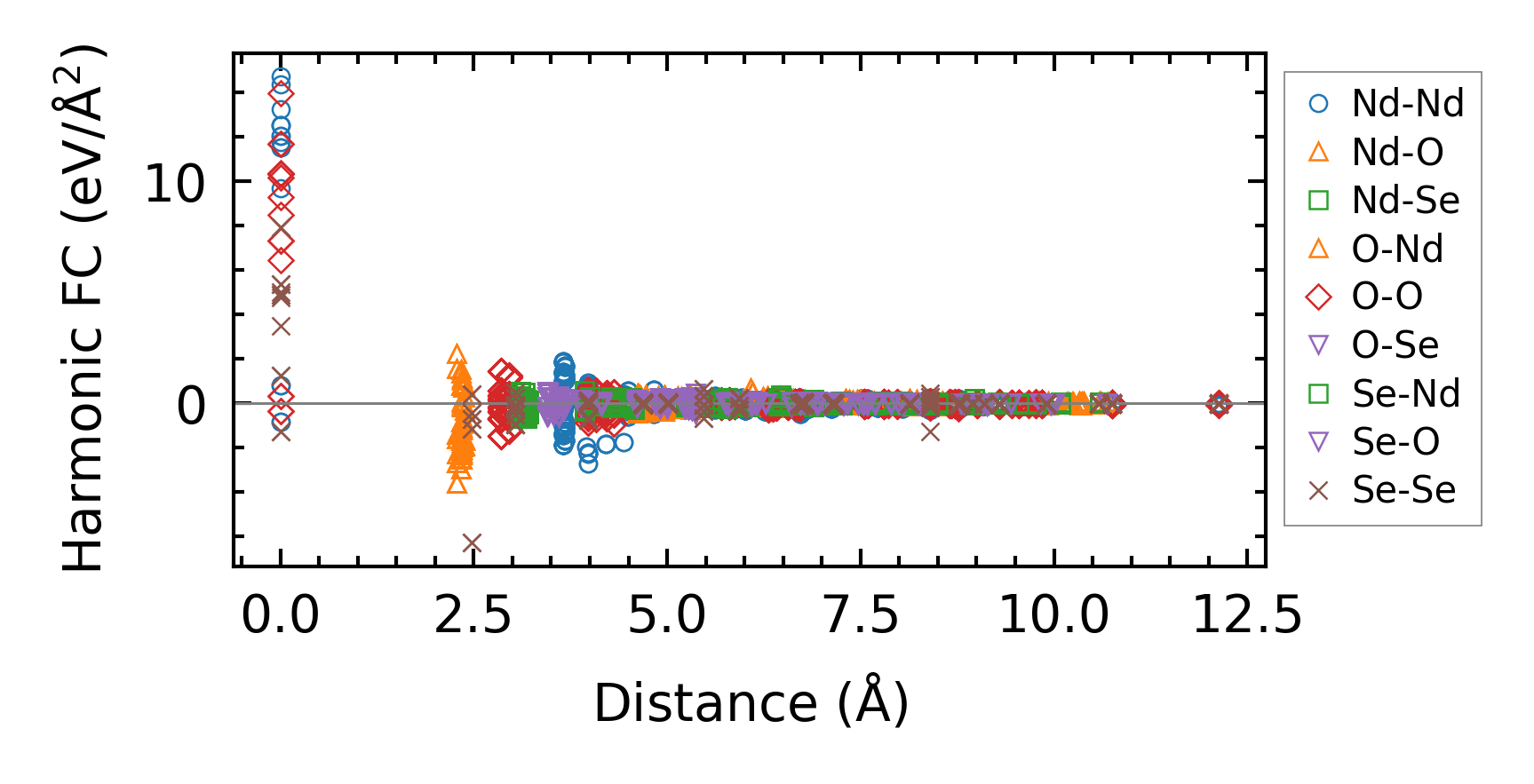

(a) Force constants w.r.t atomic distance

Summary

../../_images/fig_times16032.png

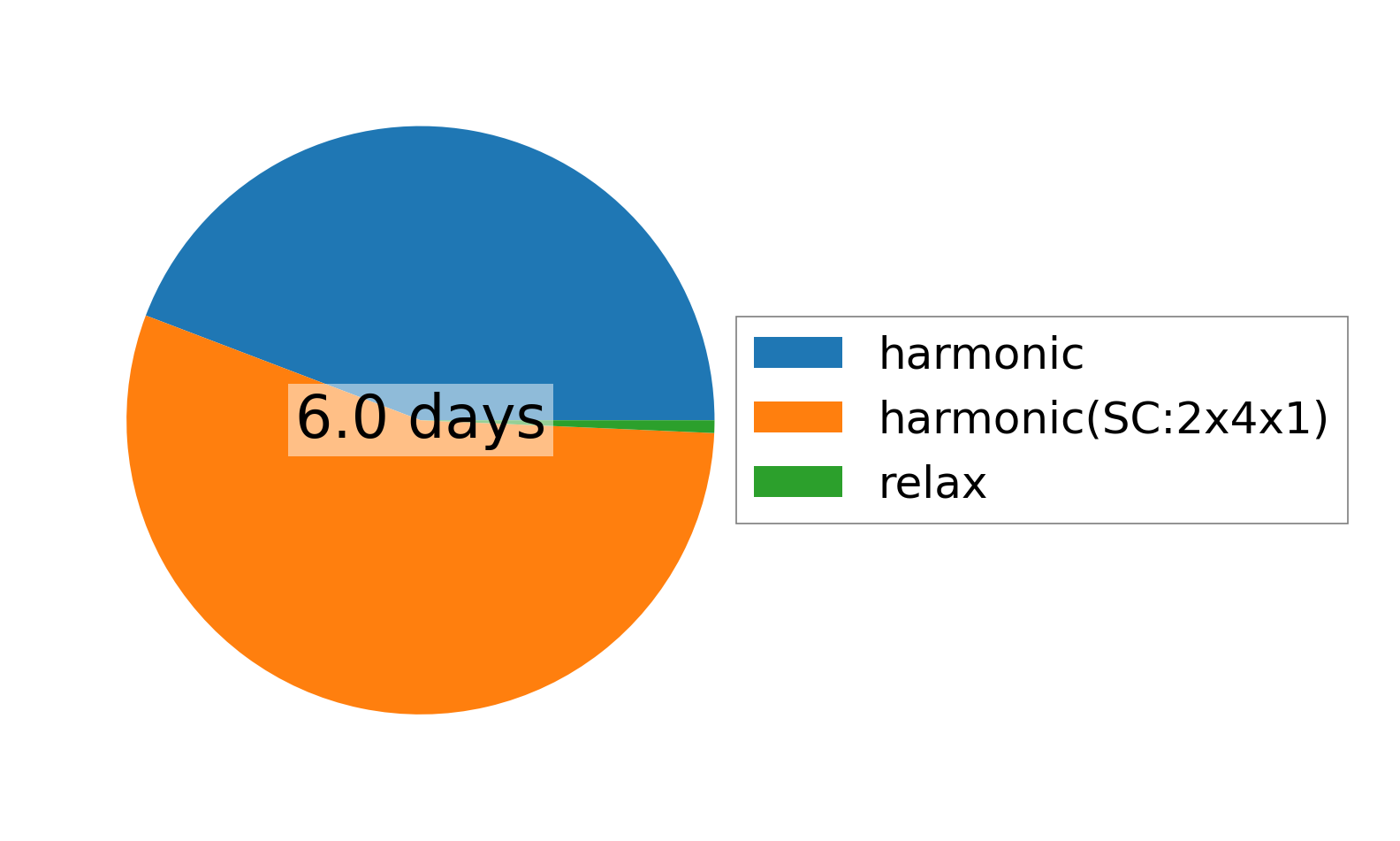

(a) Computation time
