mp-553903-2/KNa9In2O8/anharm

Space group: Pnma (62)
Link: Materials Project
Download: mp-553903-2.tar.gz

Equation of state

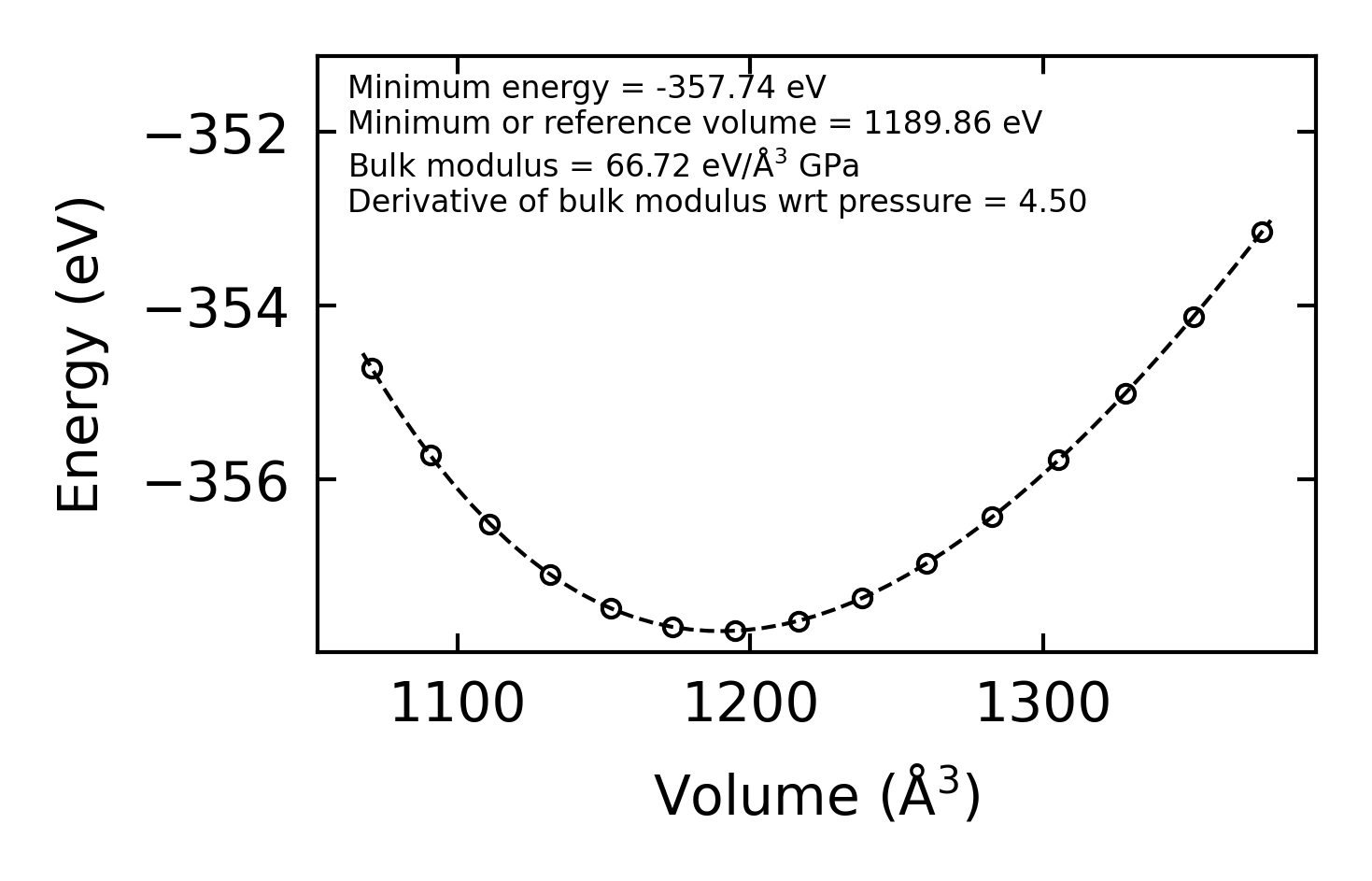

../../_images/fig_bm4625.png — (a) Equation of state

Harmonic properties

../../_images/fig_bandos_pr9208.png — (a) Phonon dispersion with participation ratio and DOS

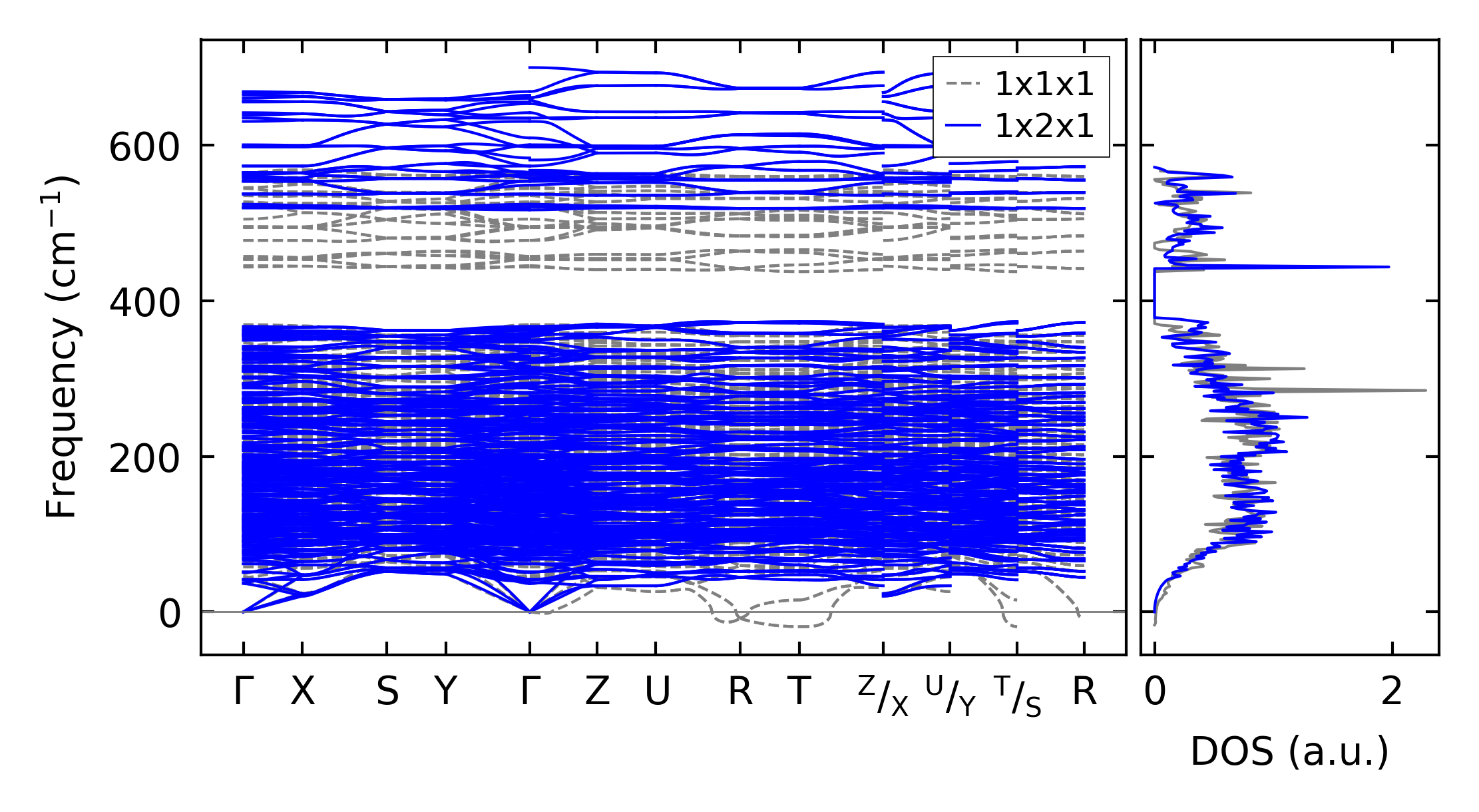

../../_images/fig_bandos12911.png — (b) Phonon dispersion and DOS

../../_images/fig_thermo9208.png — (c) Thermodynamic properties

Grüneisen parameters

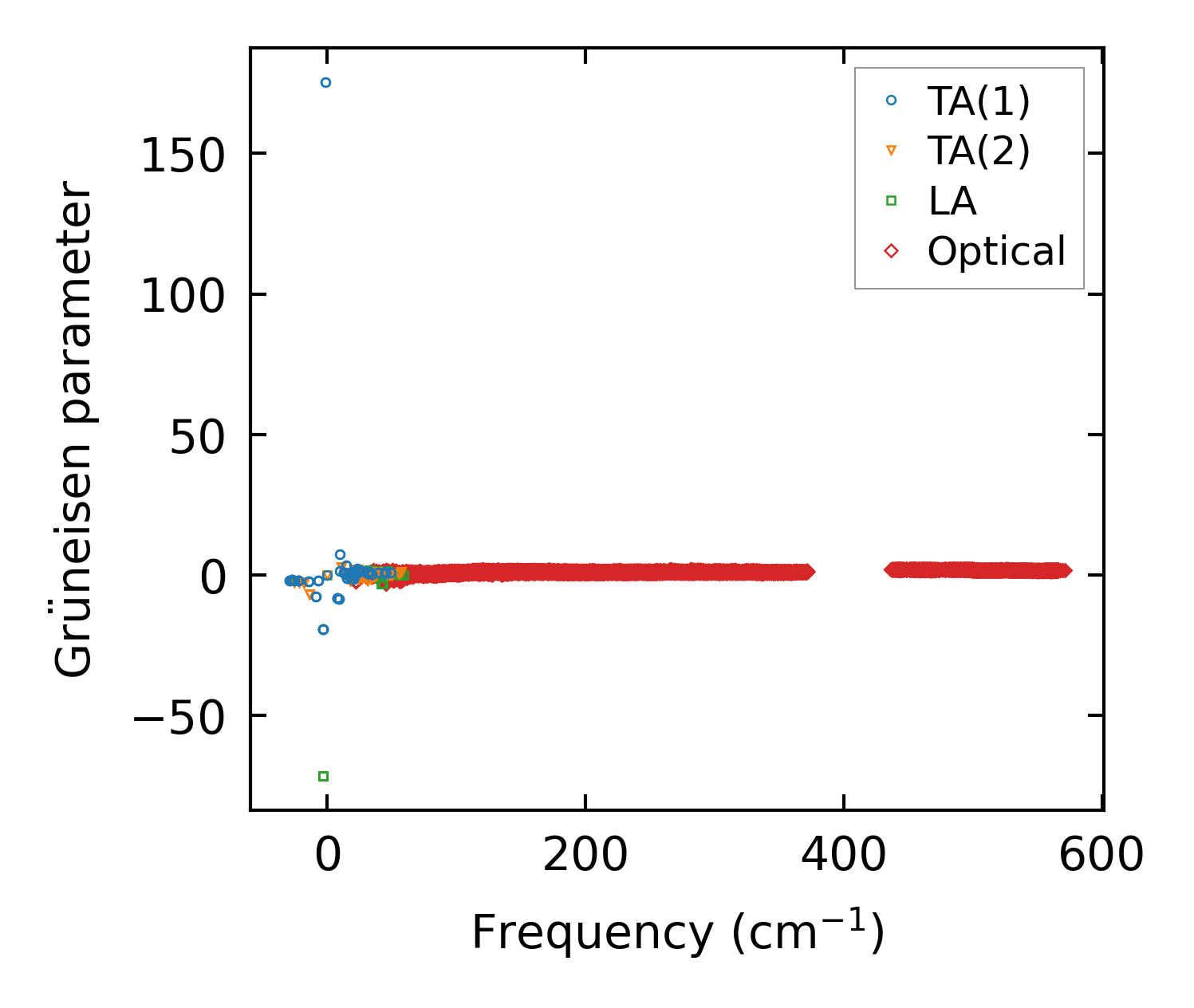

../../_images/fig_gru_all3674.png — (a) Grüneisen parameters

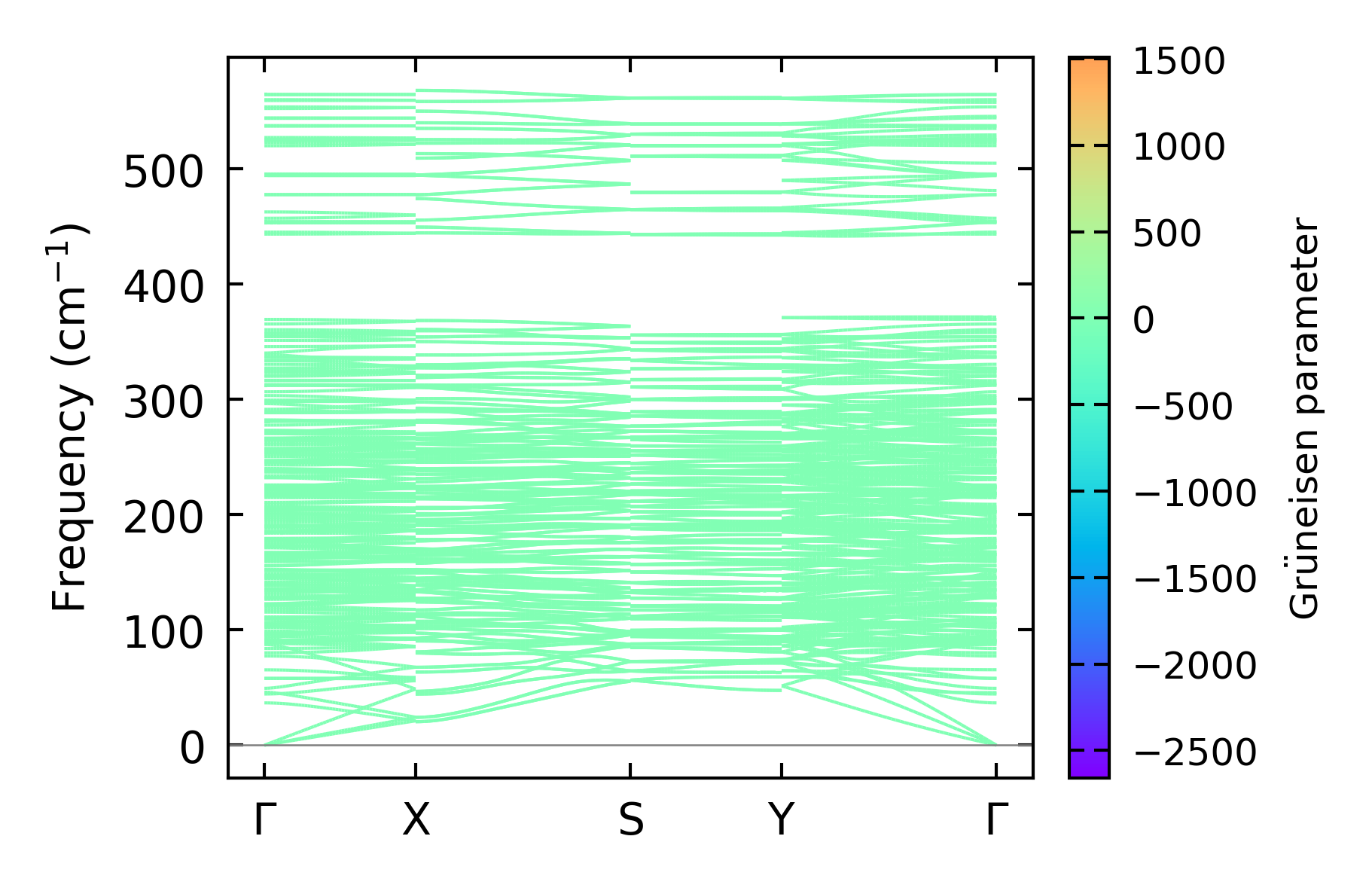

../../_images/fig_gruneisen3674.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO), supercell 1x2x1 — q-mesh: 3x9x7, supercell: 1x2x1

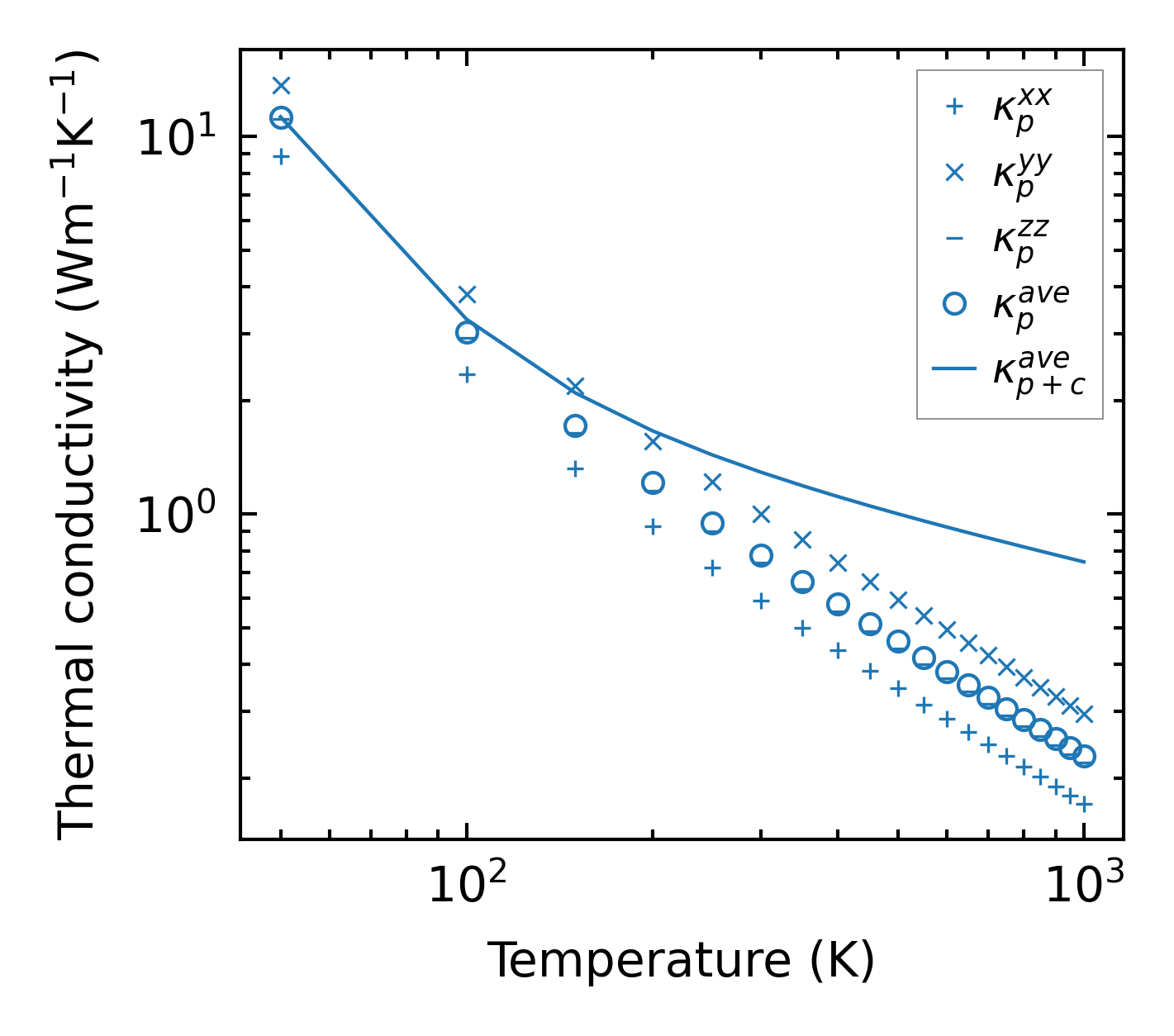

../../_images/fig_kappa6943.png — (a) Temperature-dependent lattice thermal conductivity

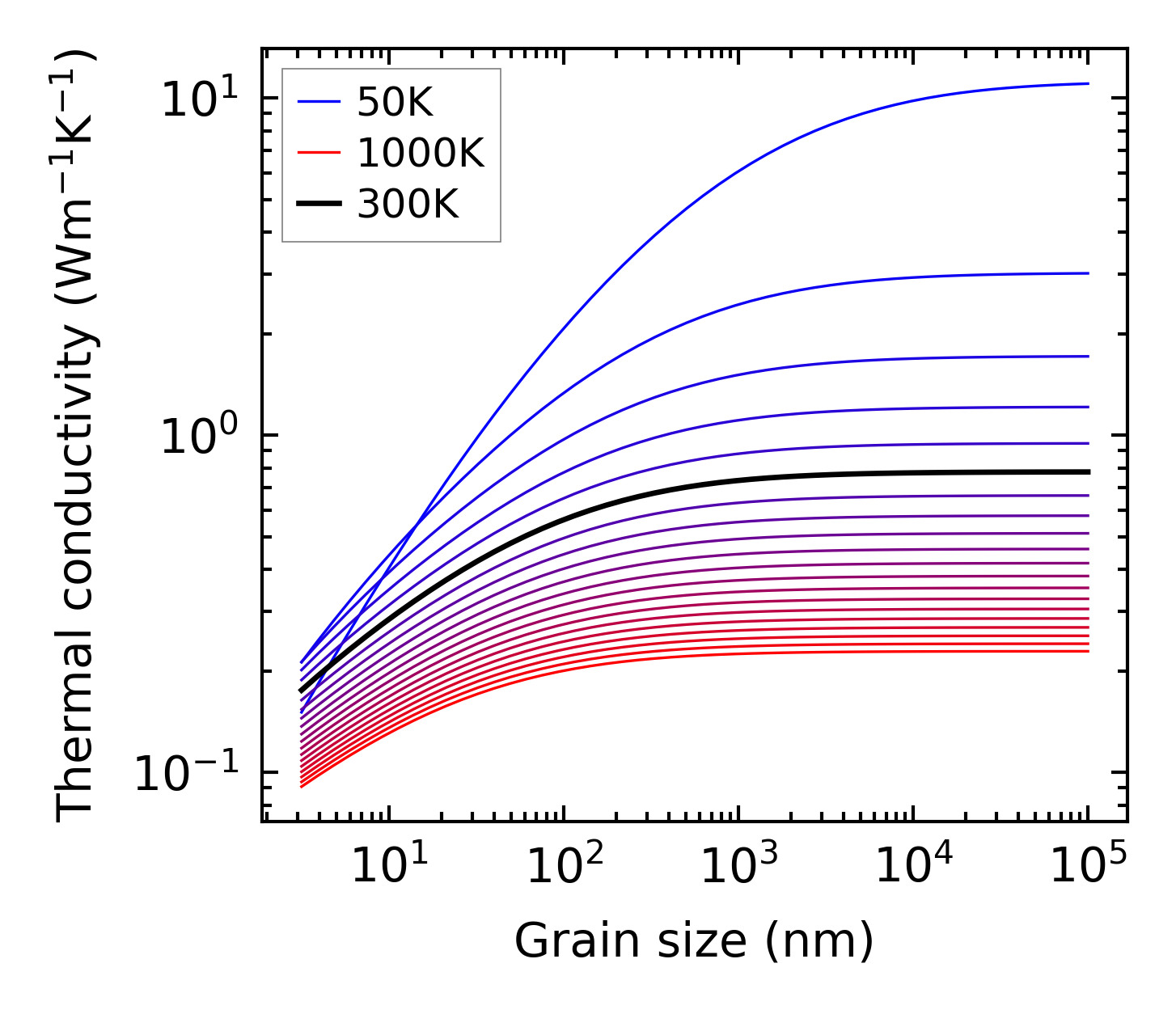

../../_images/fig_kappa_vs_grain_size3722.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

../../_images/fig_lifetime3640.png — (a) Phonon lifetime due to phonon-phonon scattering

../../_images/fig_scat_rates3639.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

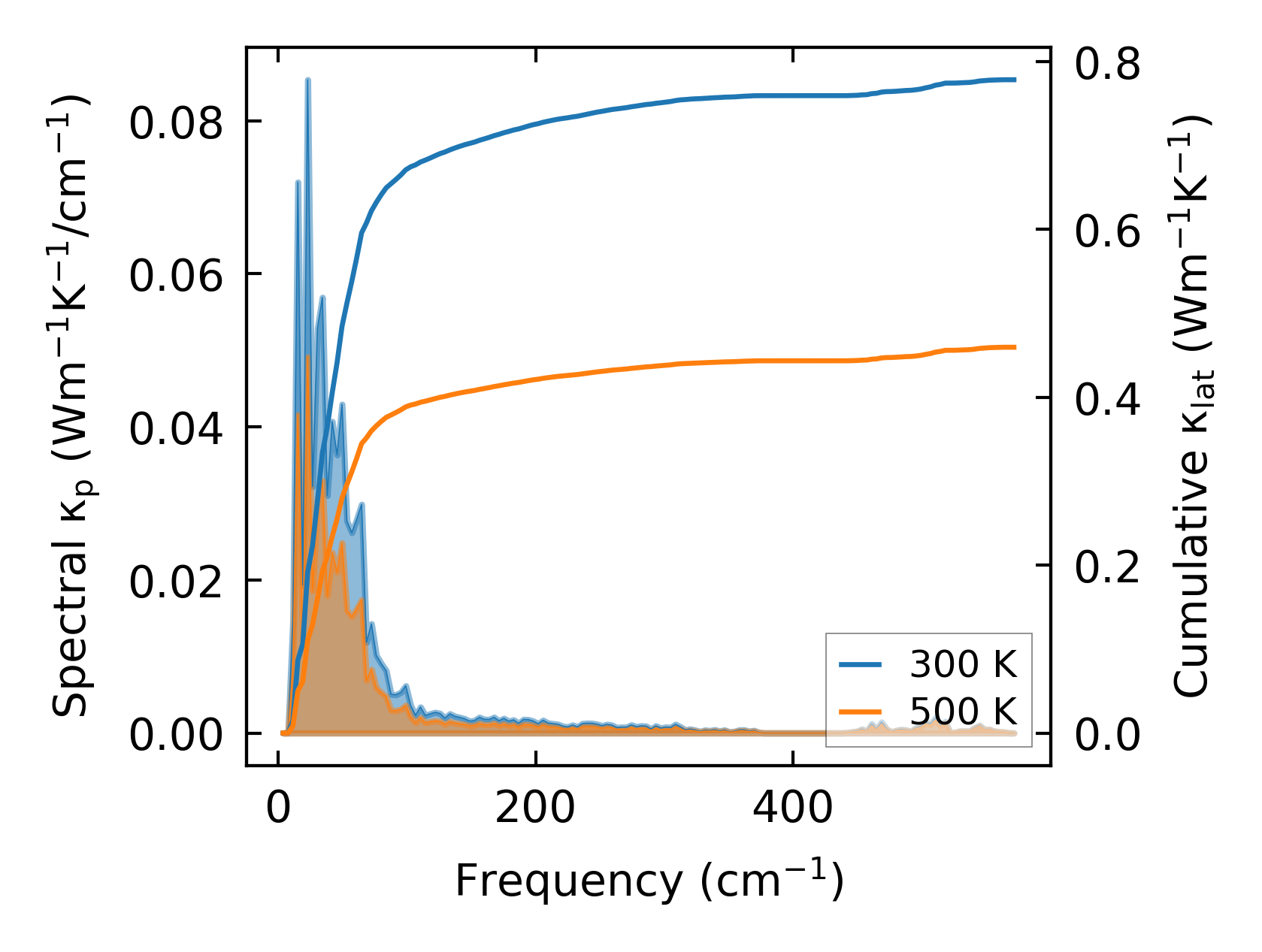

../../_images/fig_cumu_frequency3640.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

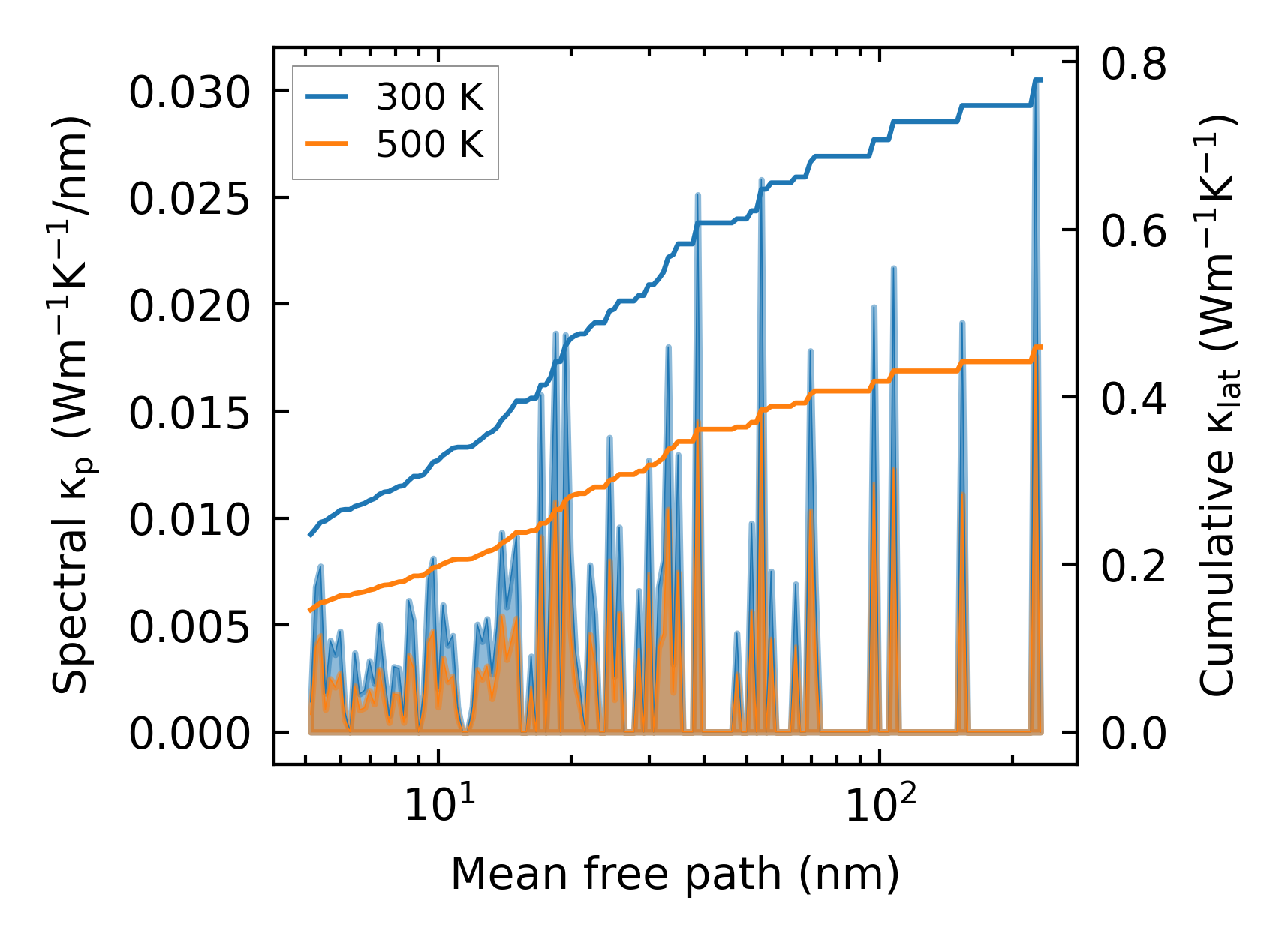

../../_images/fig_cumu_mfp3639.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

../../_images/fig_fc28970.png — (a) Force constants w.r.t atomic distance

Summary

../../_images/fig_times16058.png — (a) Computation time
