mp-32959/H2O/anharm

Space group: P4_2nm (102)
Link: Materials Project
Download: mp-32959.tar.gz

Equation of state

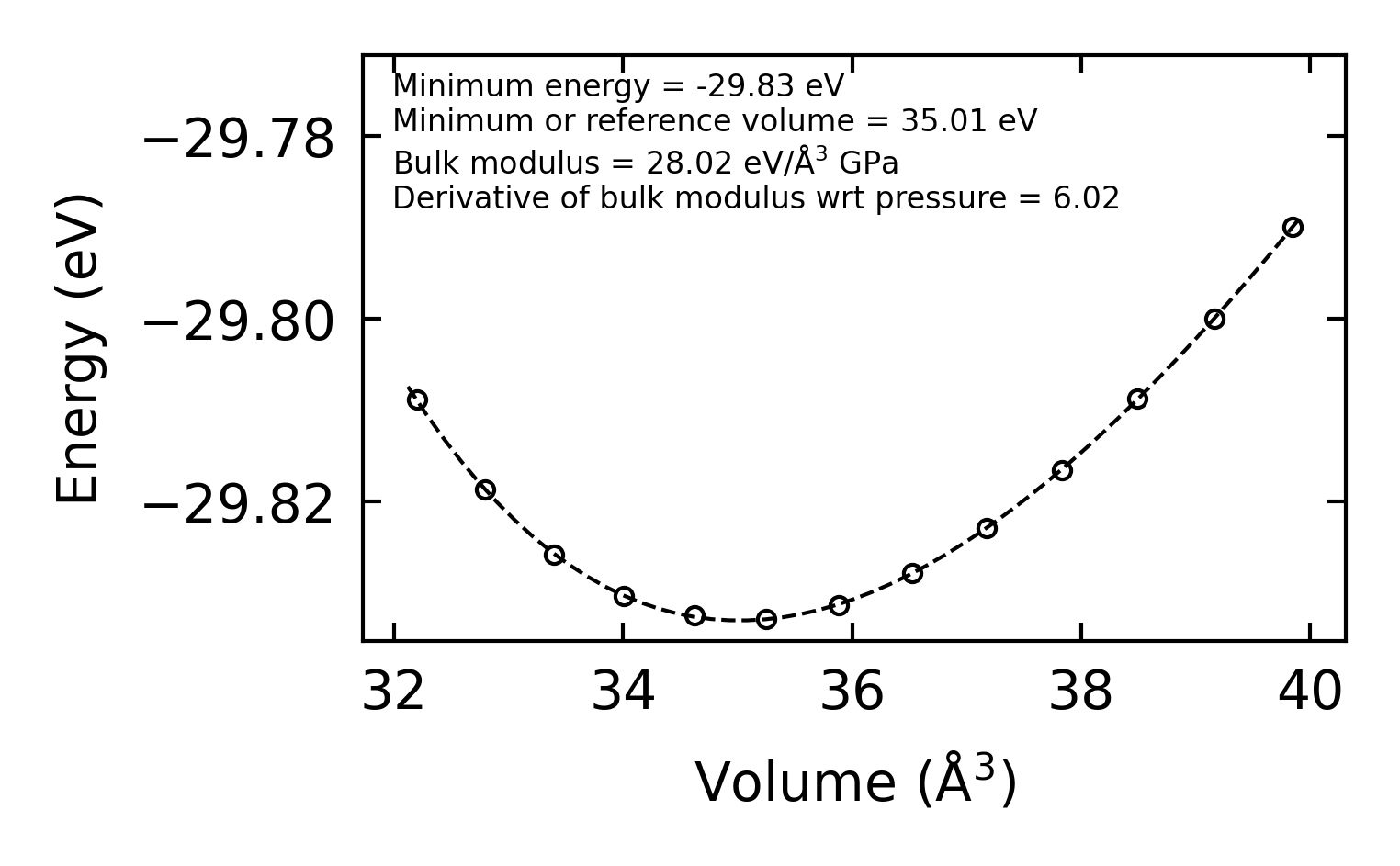

../../_images/fig_bm5310.png — (a) Equation of state

Harmonic properties

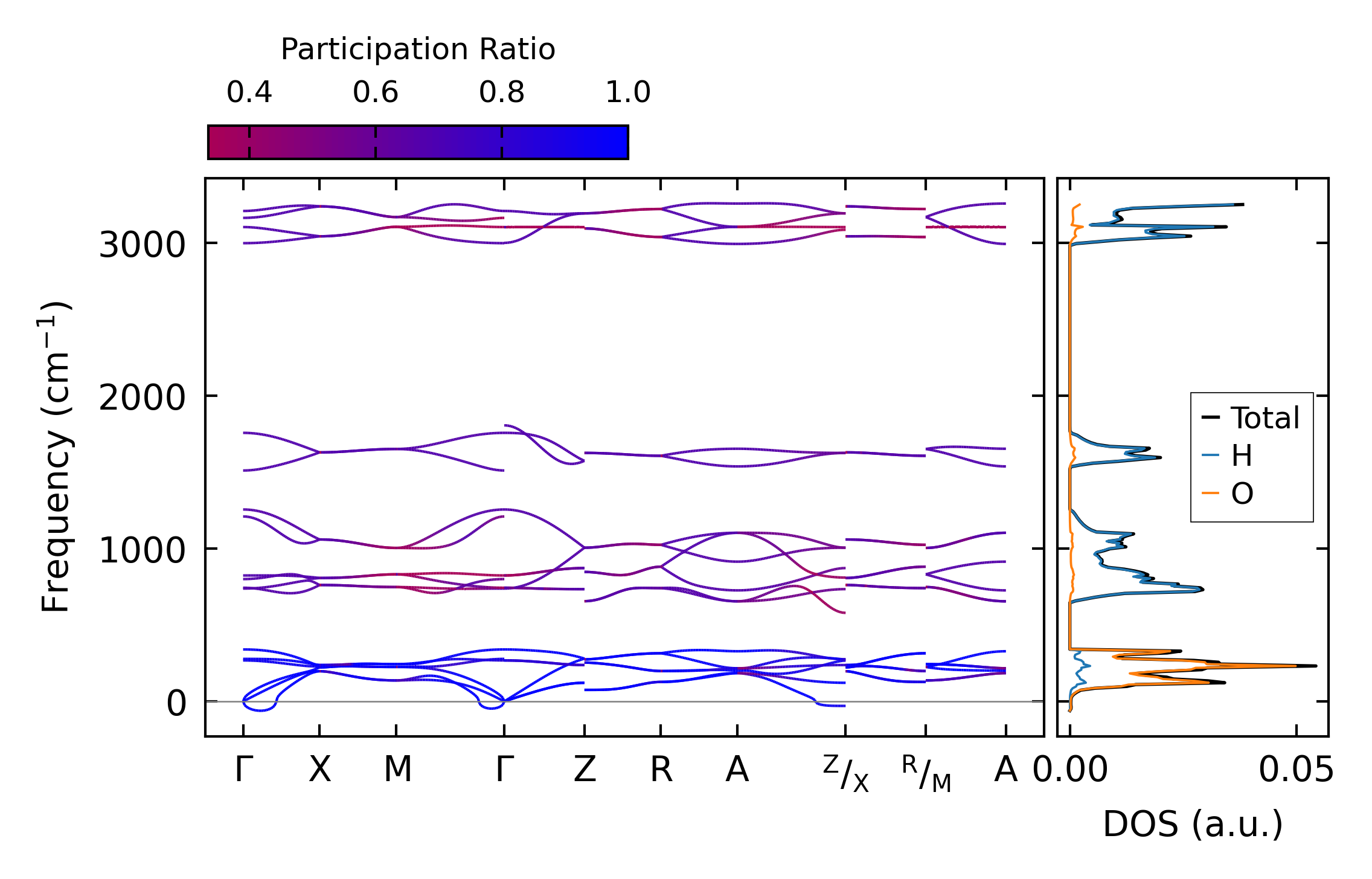

../../_images/fig_bandos_pr10798.png — (a) Phonon dispersion with participation ratio and DOS

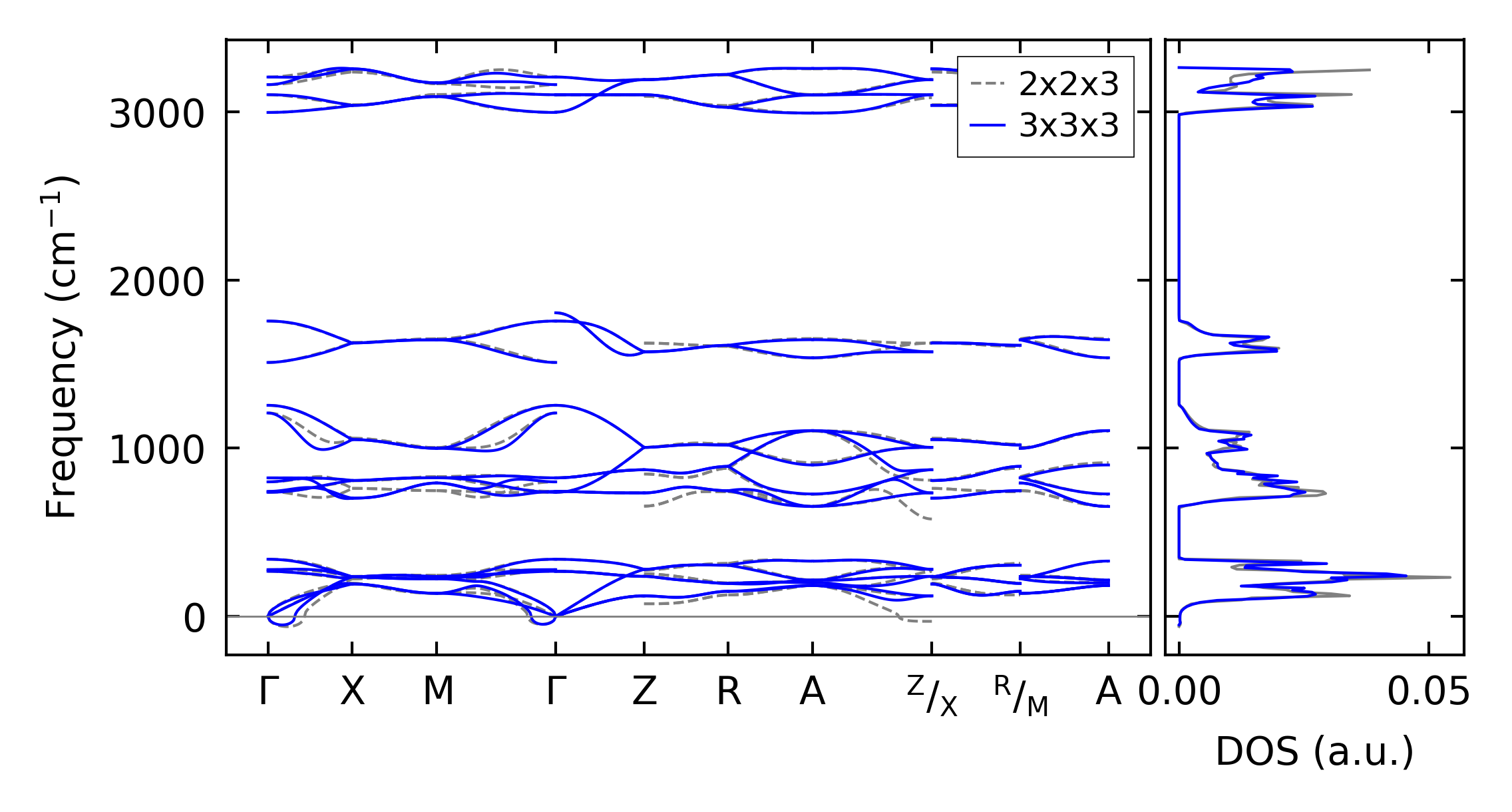

../../_images/fig_bandos14717.png — (b) Phonon dispersion and DOS

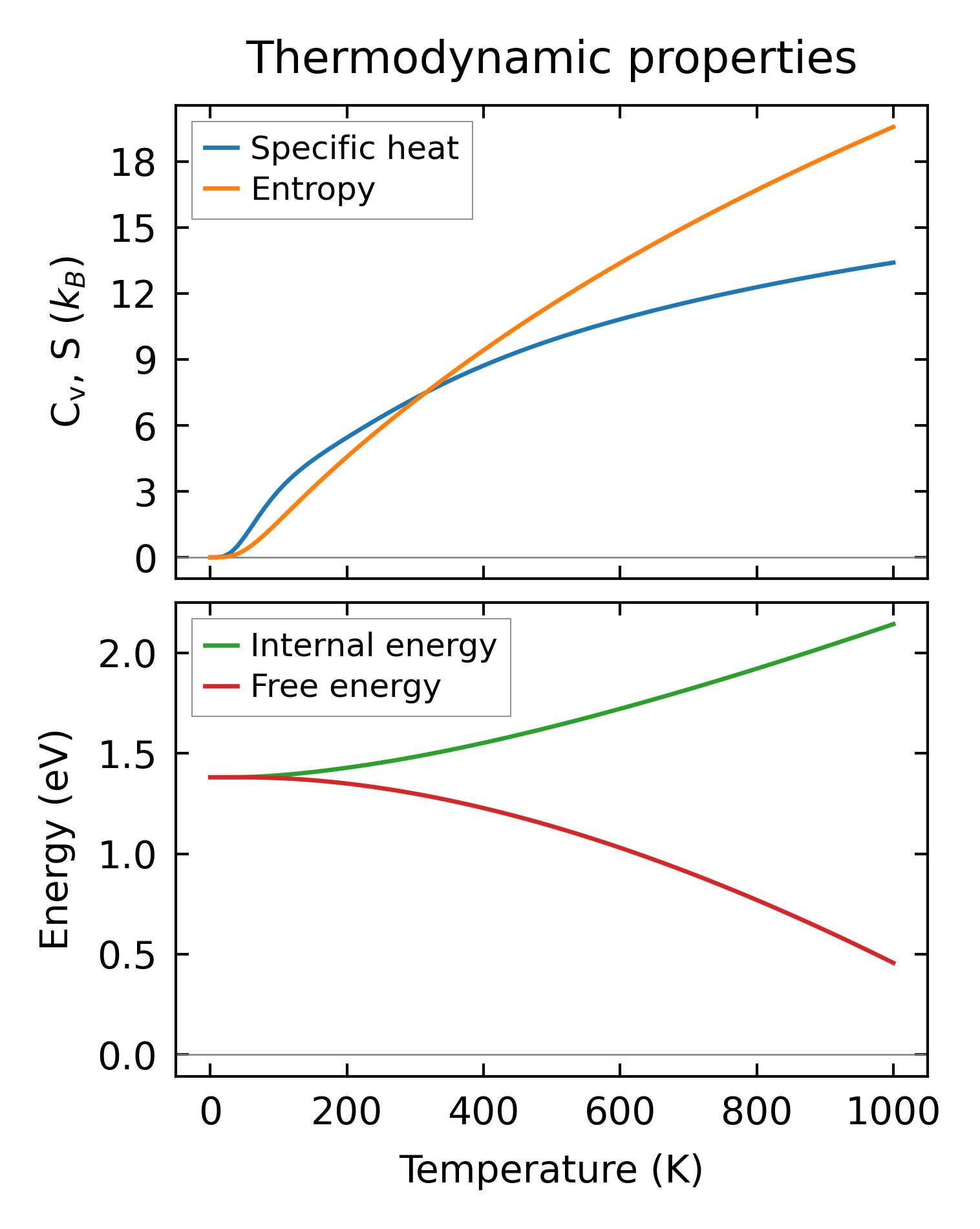

../../_images/fig_thermo10798.png — (c) Thermodynamic properties

Grüneisen parameters

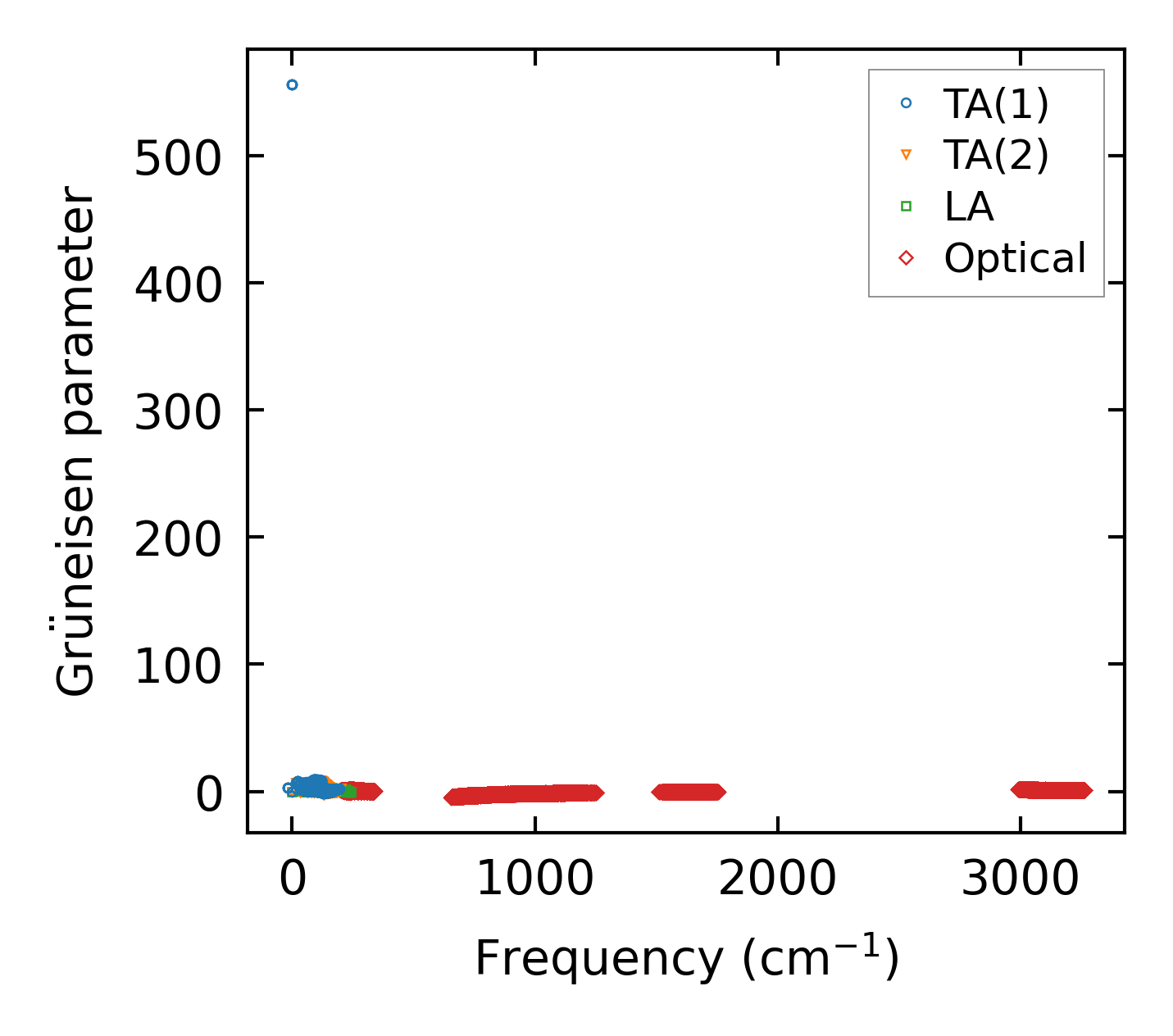

../../_images/fig_gru_all4405.png — (a) Grüneisen parameters

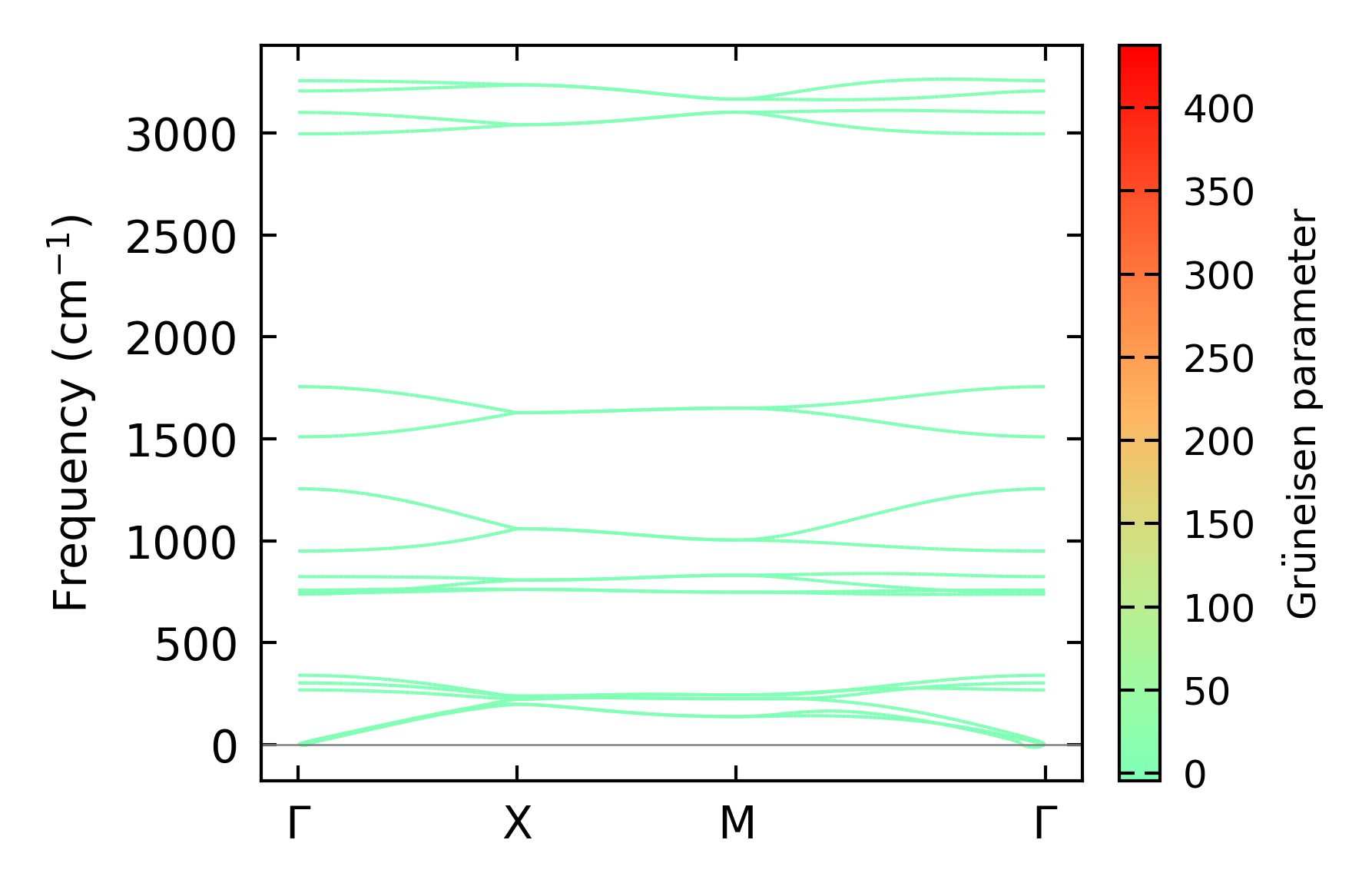

../../_images/fig_gruneisen4405.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO), supercell 3x3x3 — q-mesh: 21x21x22, supercell: 3x3x3

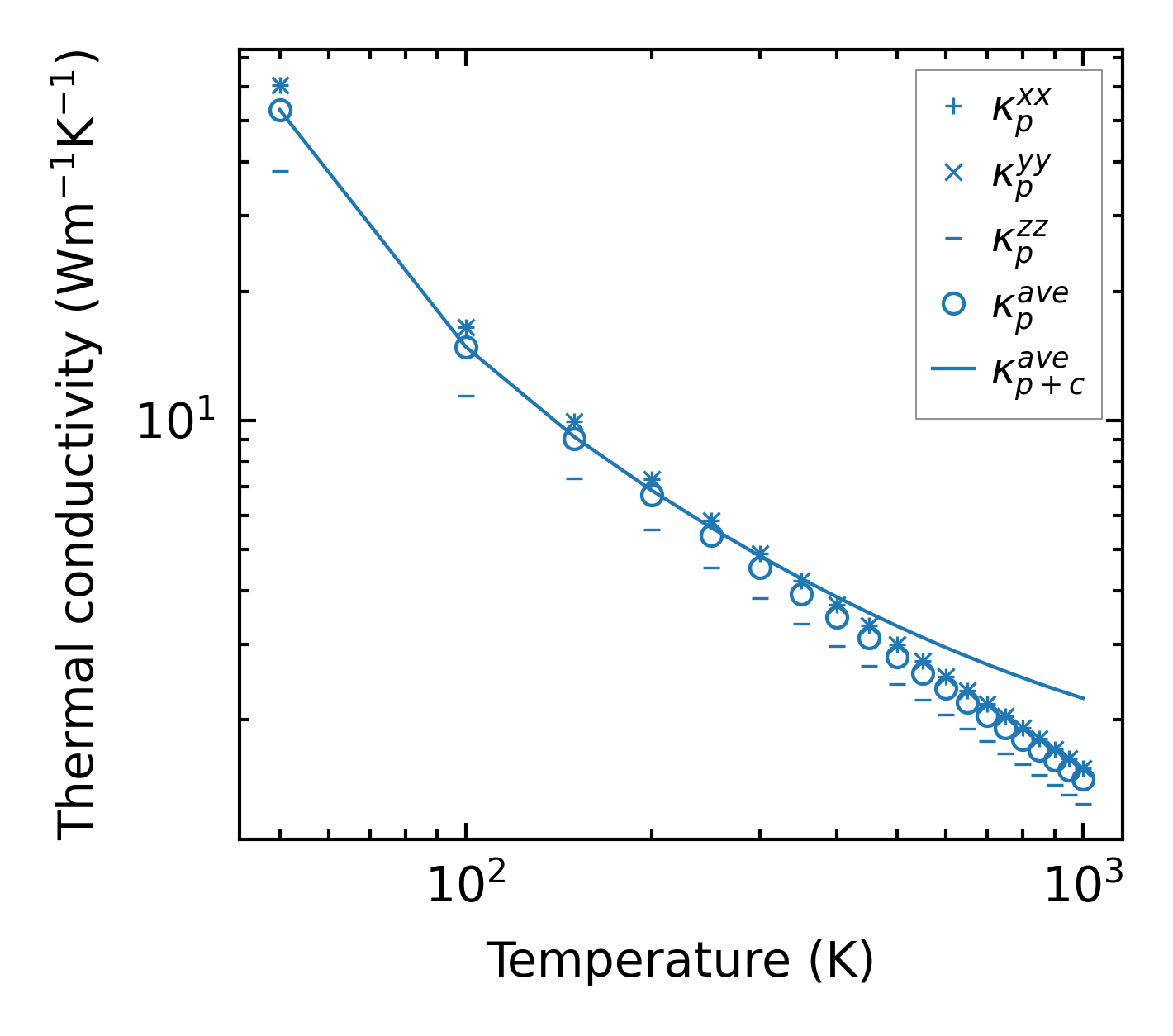

../../_images/fig_kappa8317.png — (a) Temperature-dependent lattice thermal conductivity

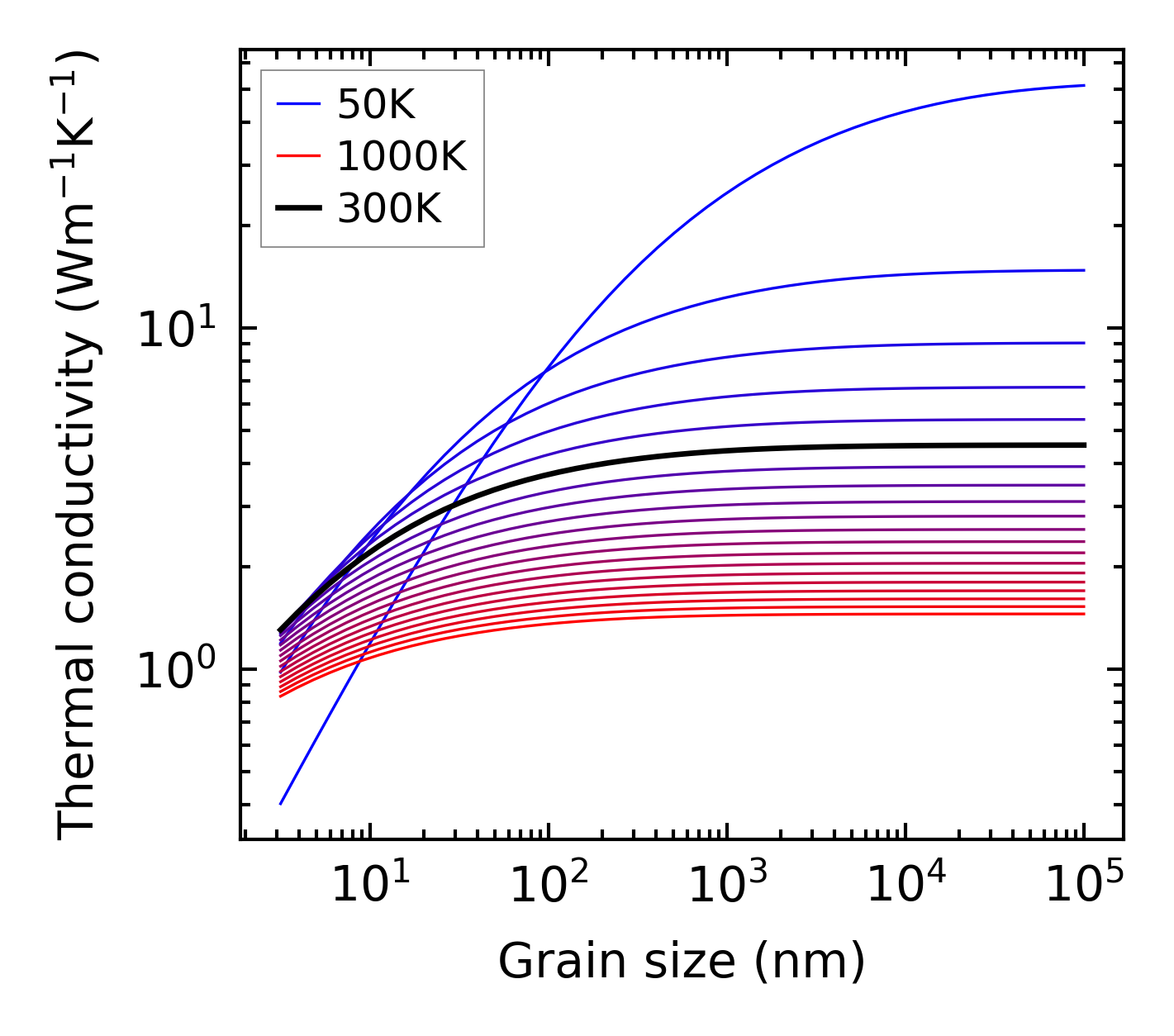

../../_images/fig_kappa_vs_grain_size4458.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

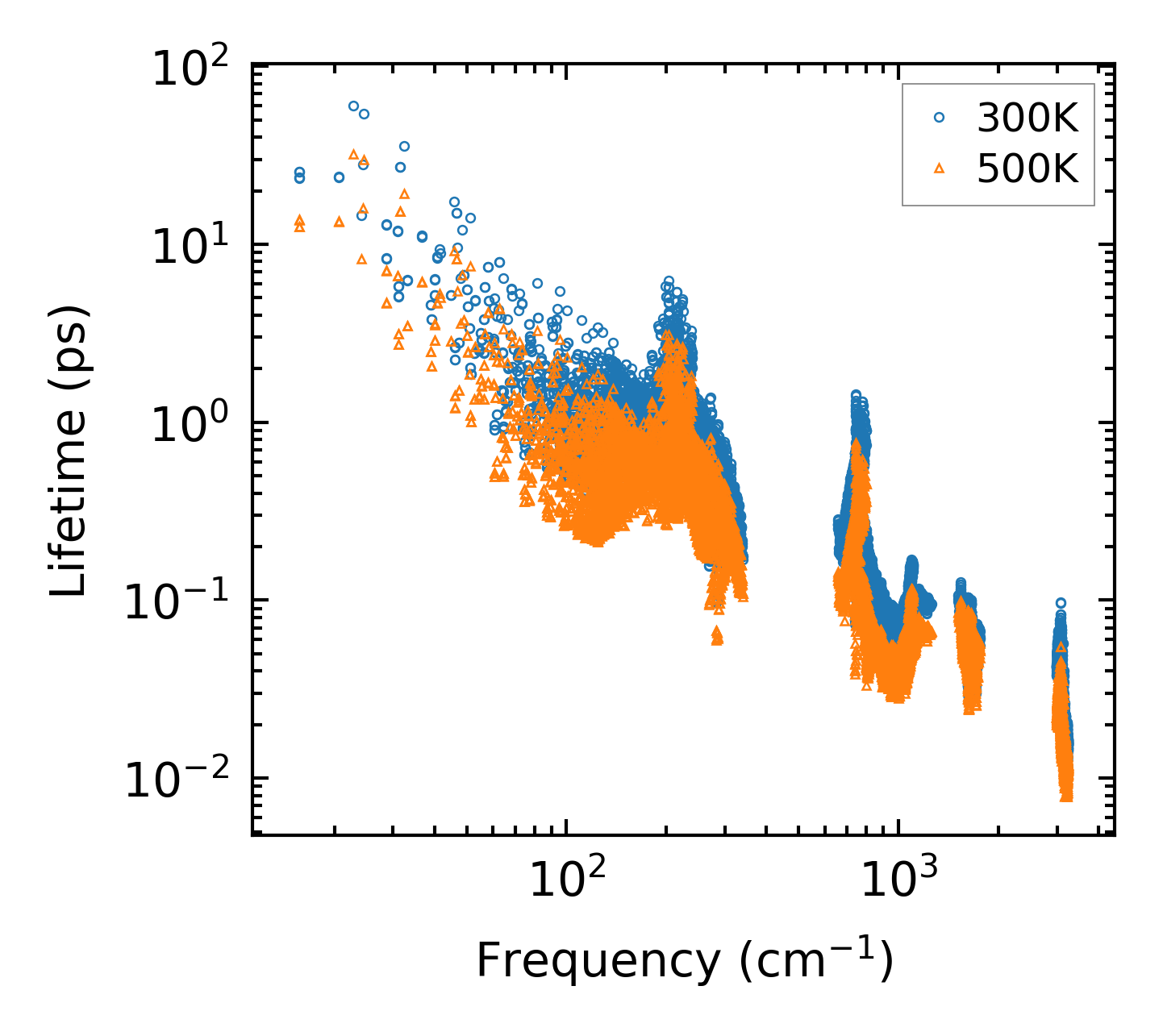

../../_images/fig_lifetime4362.png — (a) Phonon lifetime due to phonon-phonon scattering

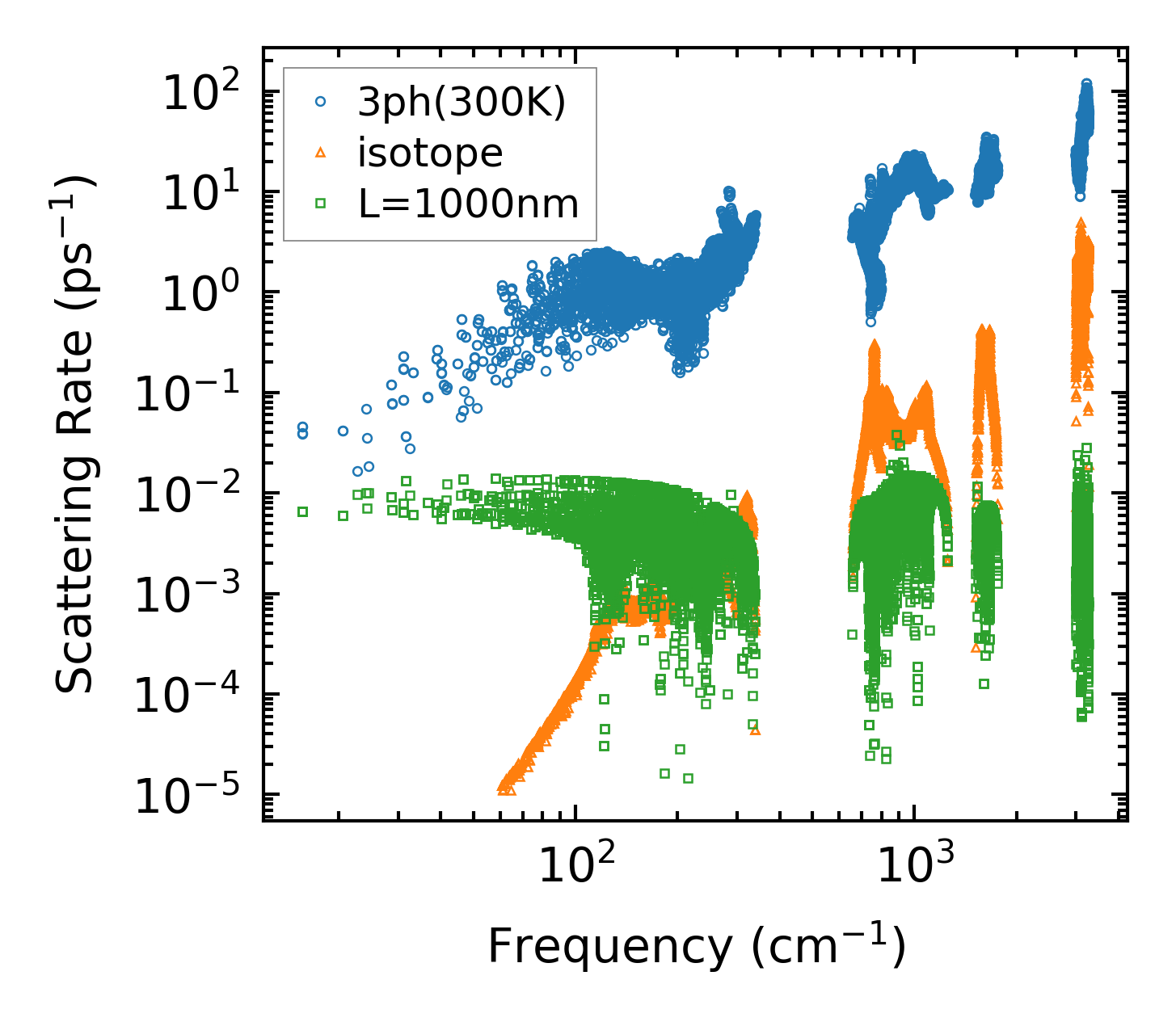

../../_images/fig_scat_rates4361.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

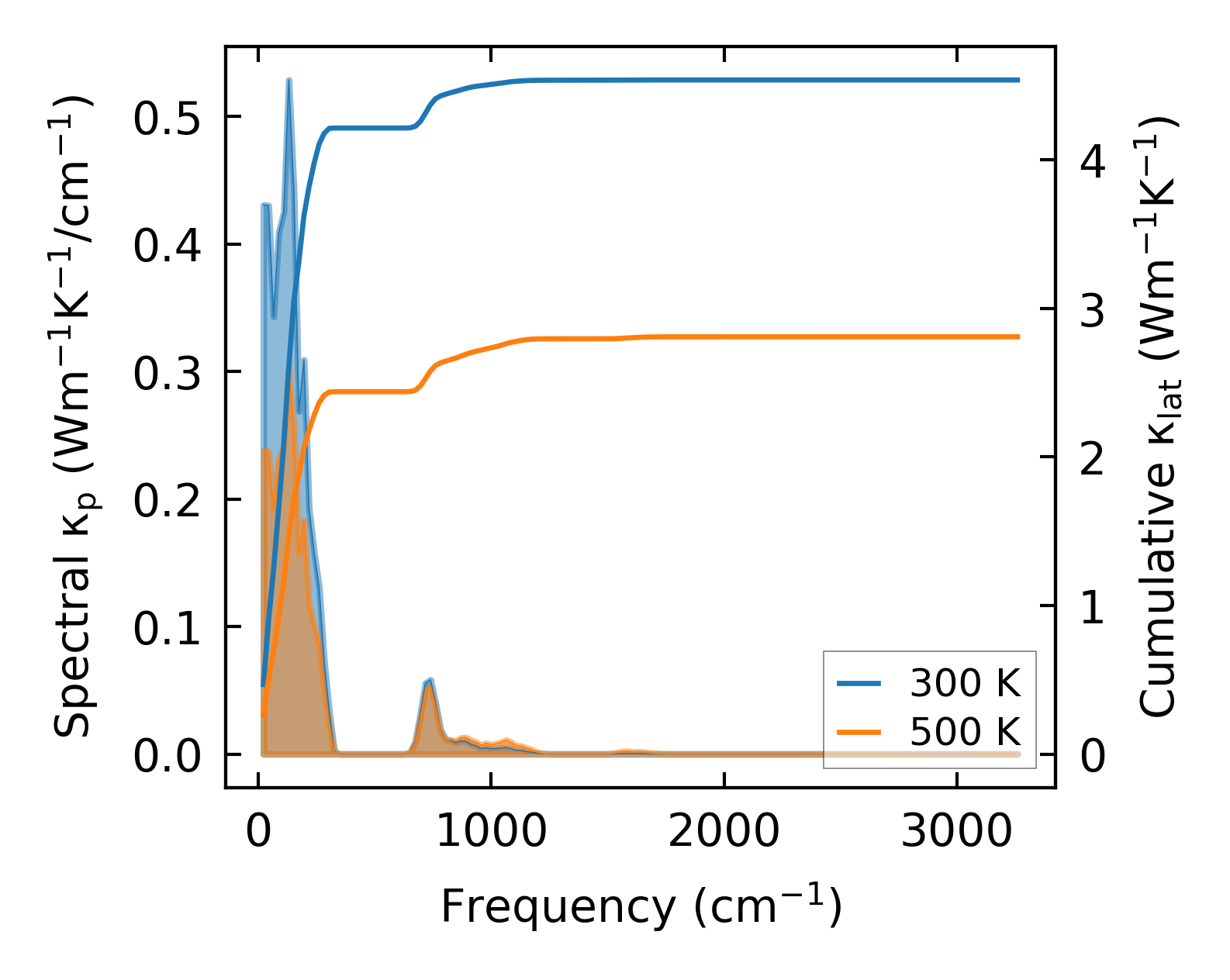

../../_images/fig_cumu_frequency4362.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

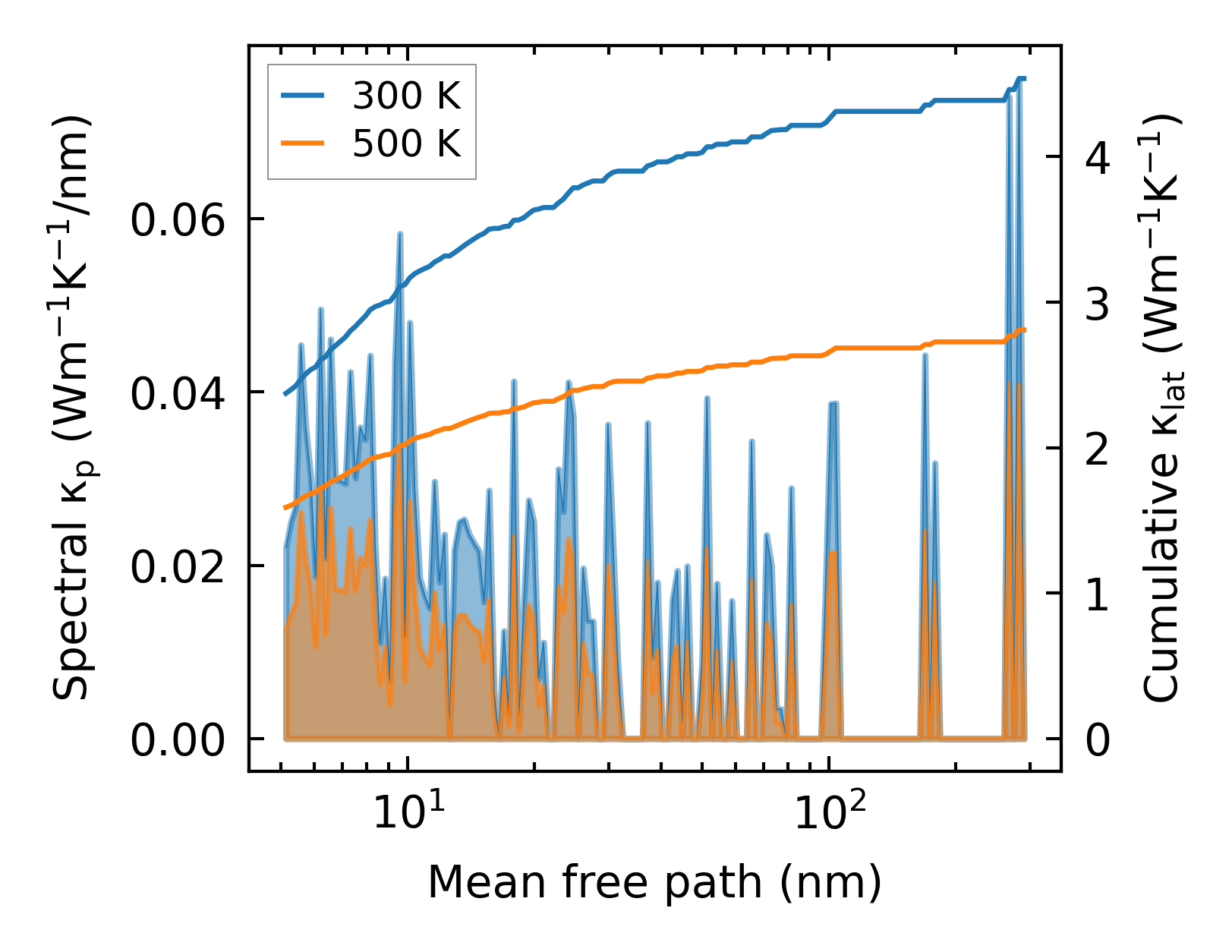

../../_images/fig_cumu_mfp4361.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

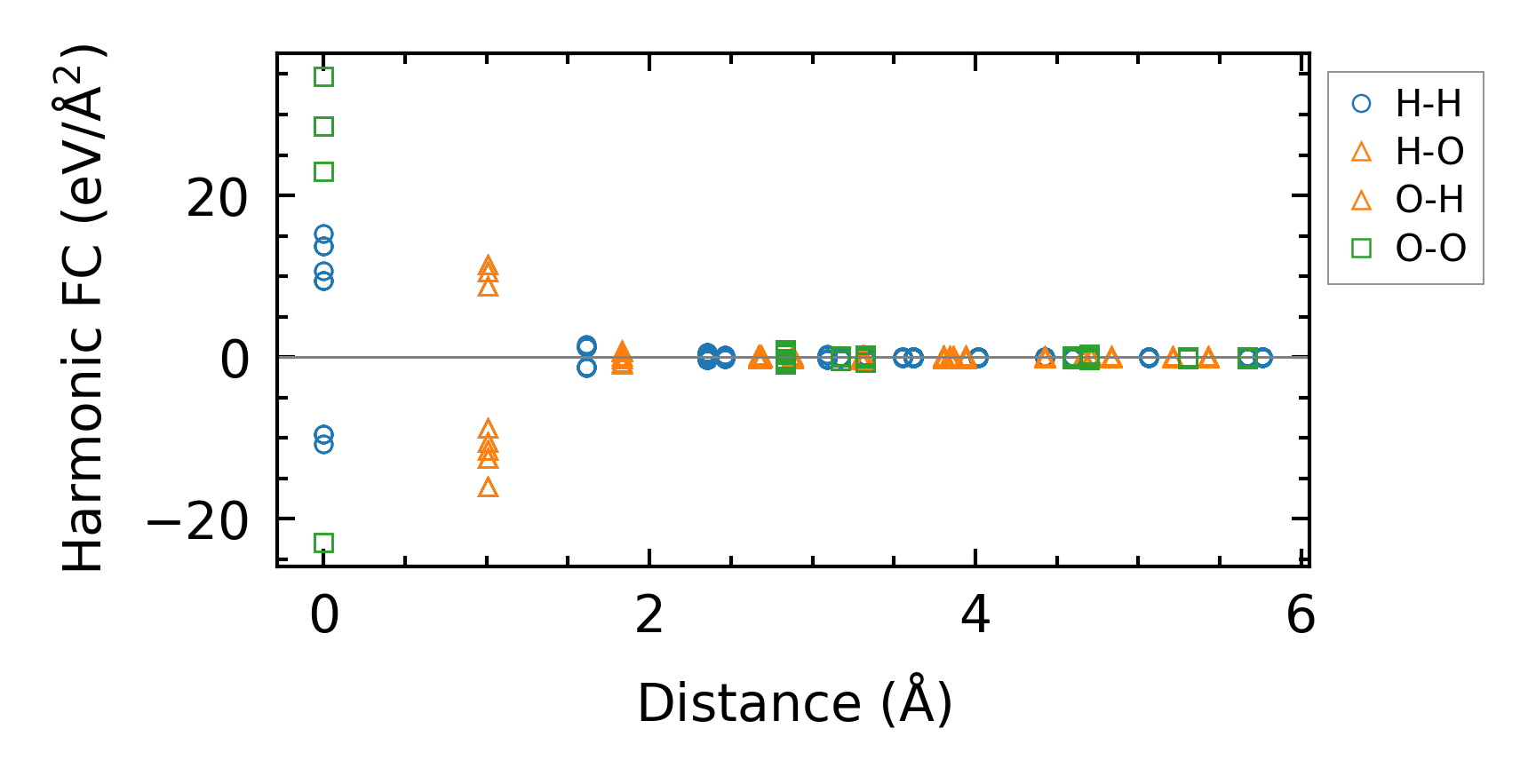

../../_images/fig_fc210527.png — (a) Force constants w.r.t atomic distance

Summary

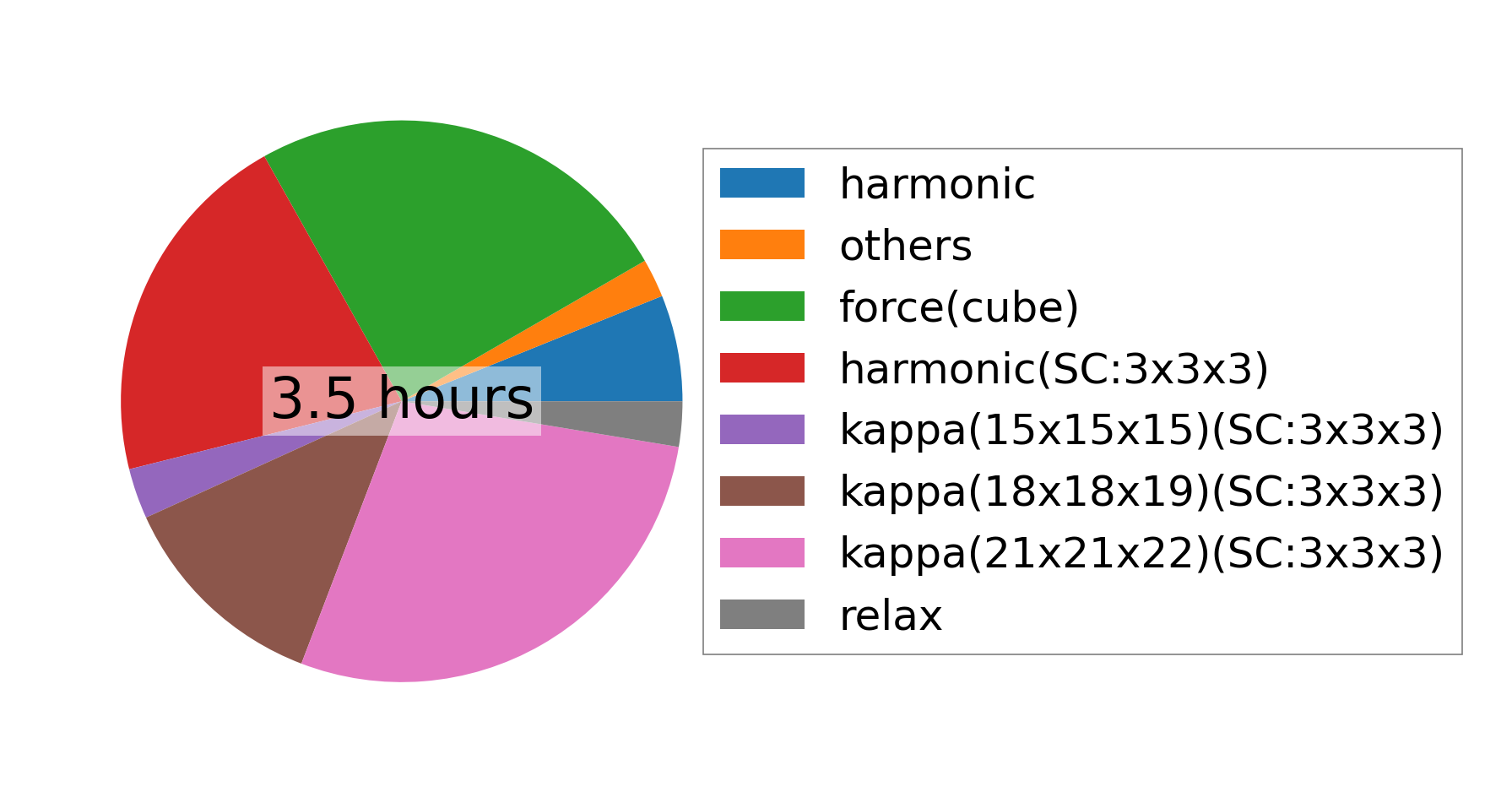

../../_images/fig_times18505.png — (a) Computation time
