mp-32667-2/SiO2/anharm

Space group: P2_1/c (14)
Link: Materials Project
Download: mp-32667-2.tar.gz

Harmonic properties

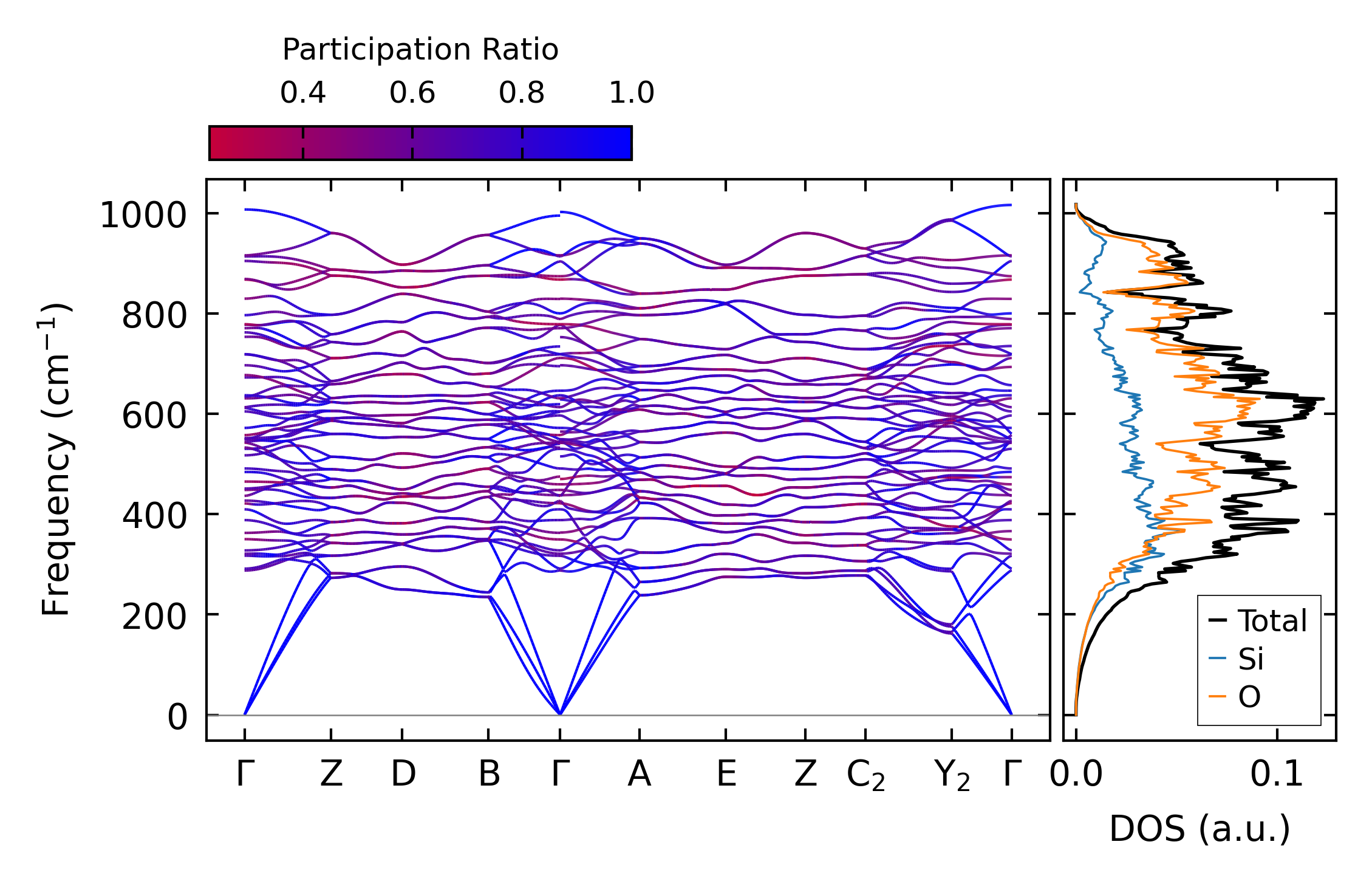

../../_images/fig_bandos_pr10779.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo10779.png — (b) Thermodynamic properties

Grüneisen parameters

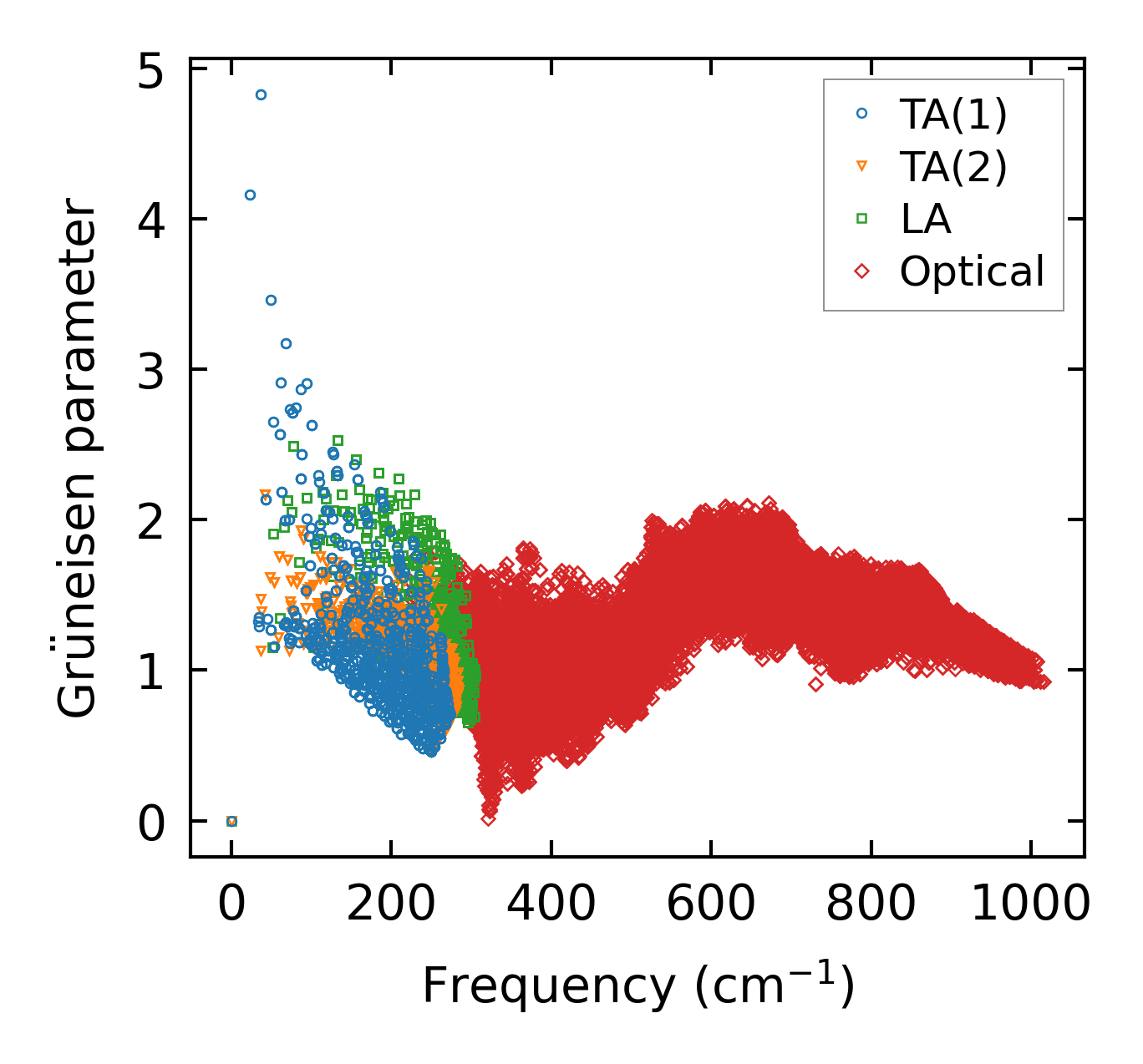

../../_images/fig_gru_all4394.png — (a) Grüneisen parameters

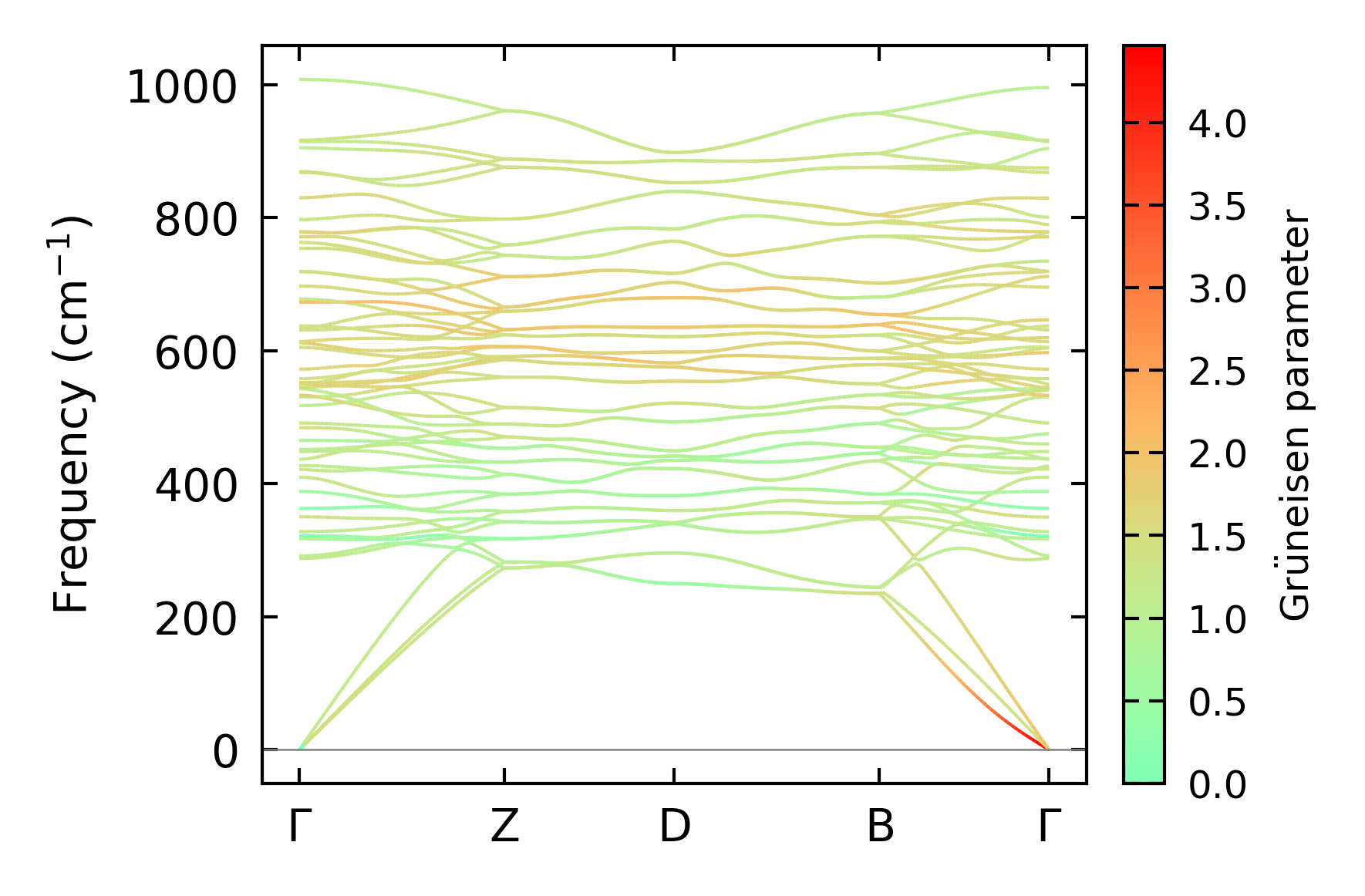

../../_images/fig_gruneisen4394.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 10x17x14, supercell: 2x2x2

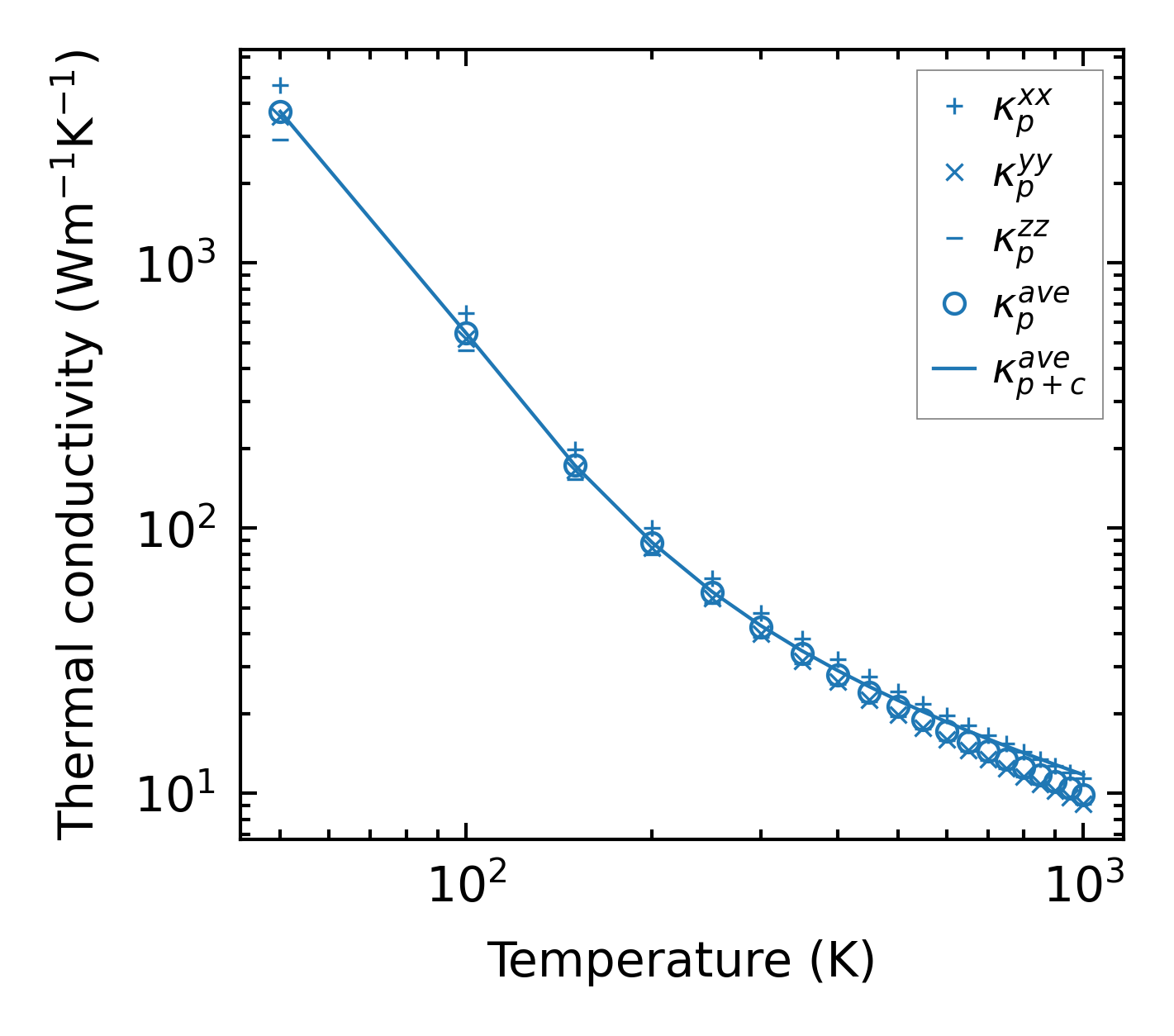

../../_images/fig_kappa8298.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size4447.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

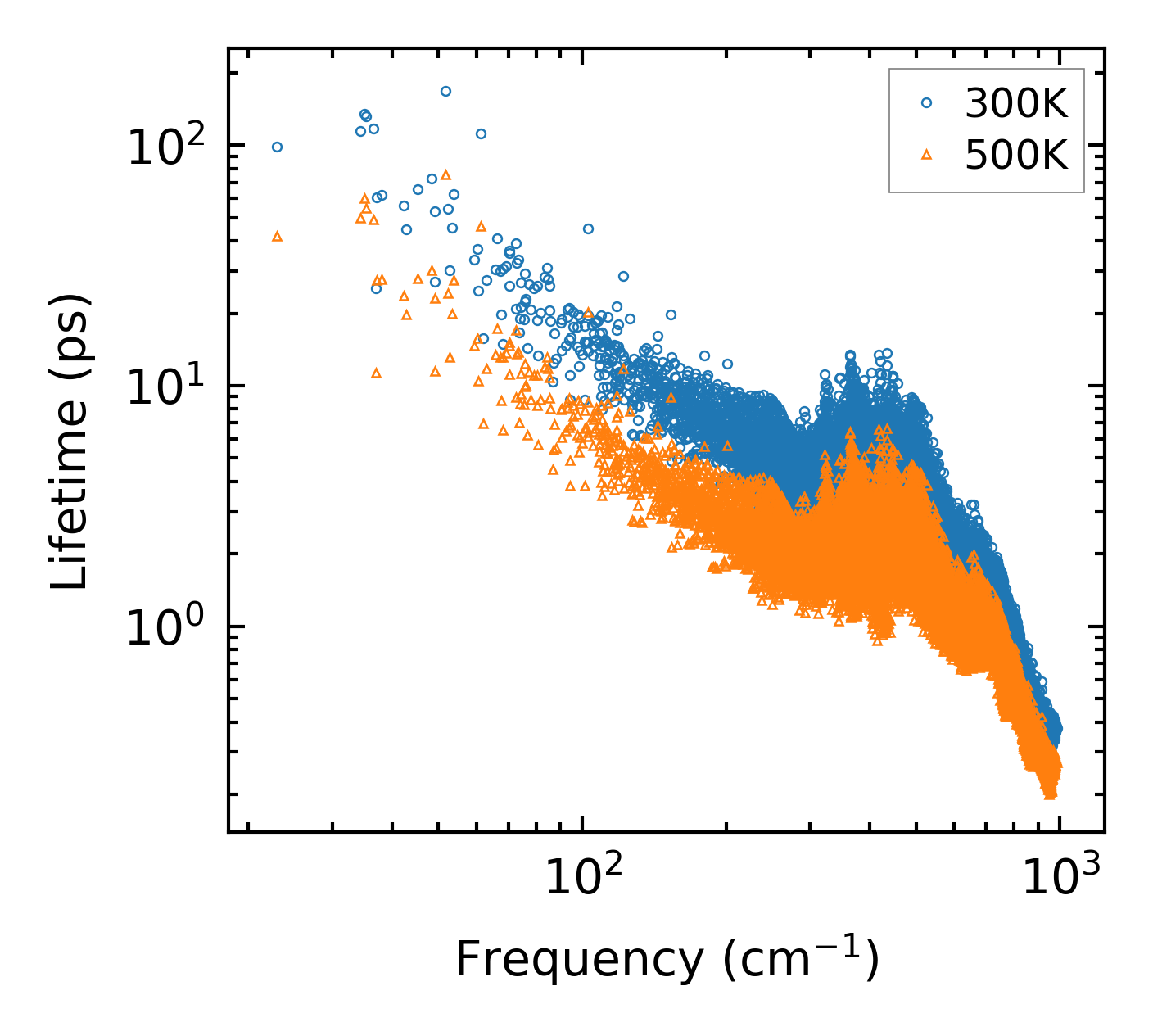

../../_images/fig_lifetime4351.png — (a) Phonon lifetime due to phonon-phonon scattering

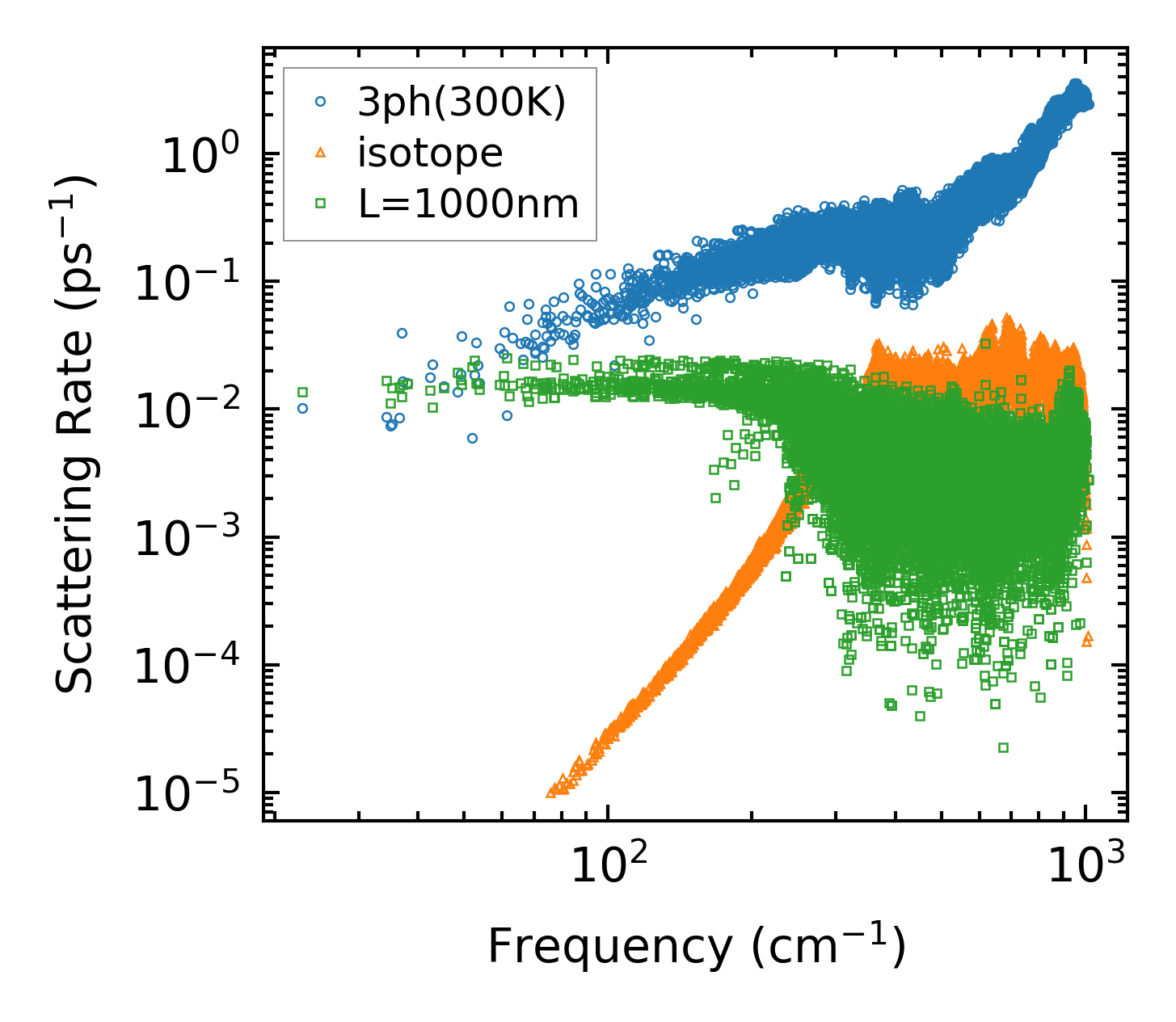

../../_images/fig_scat_rates4350.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

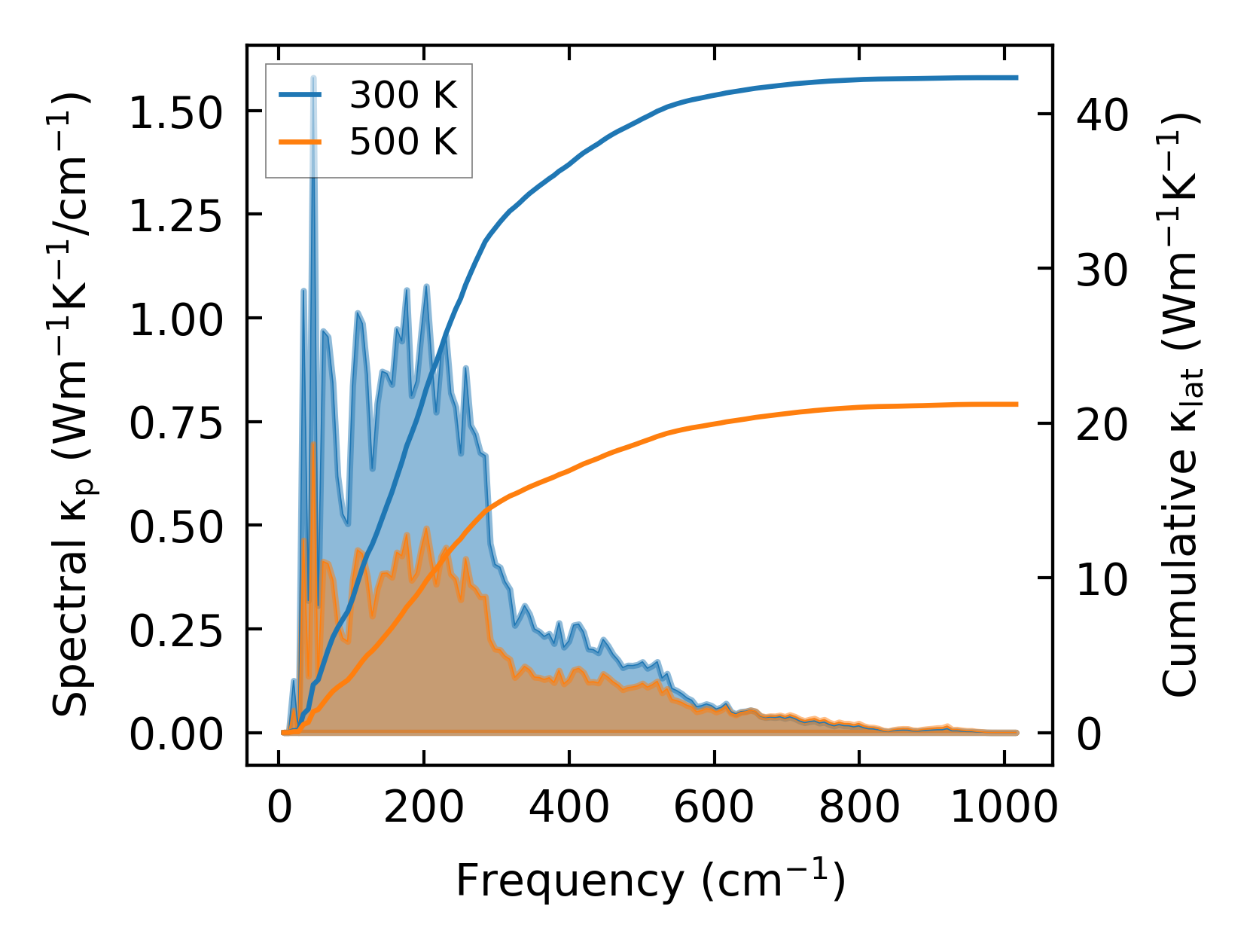

../../_images/fig_cumu_frequency4351.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

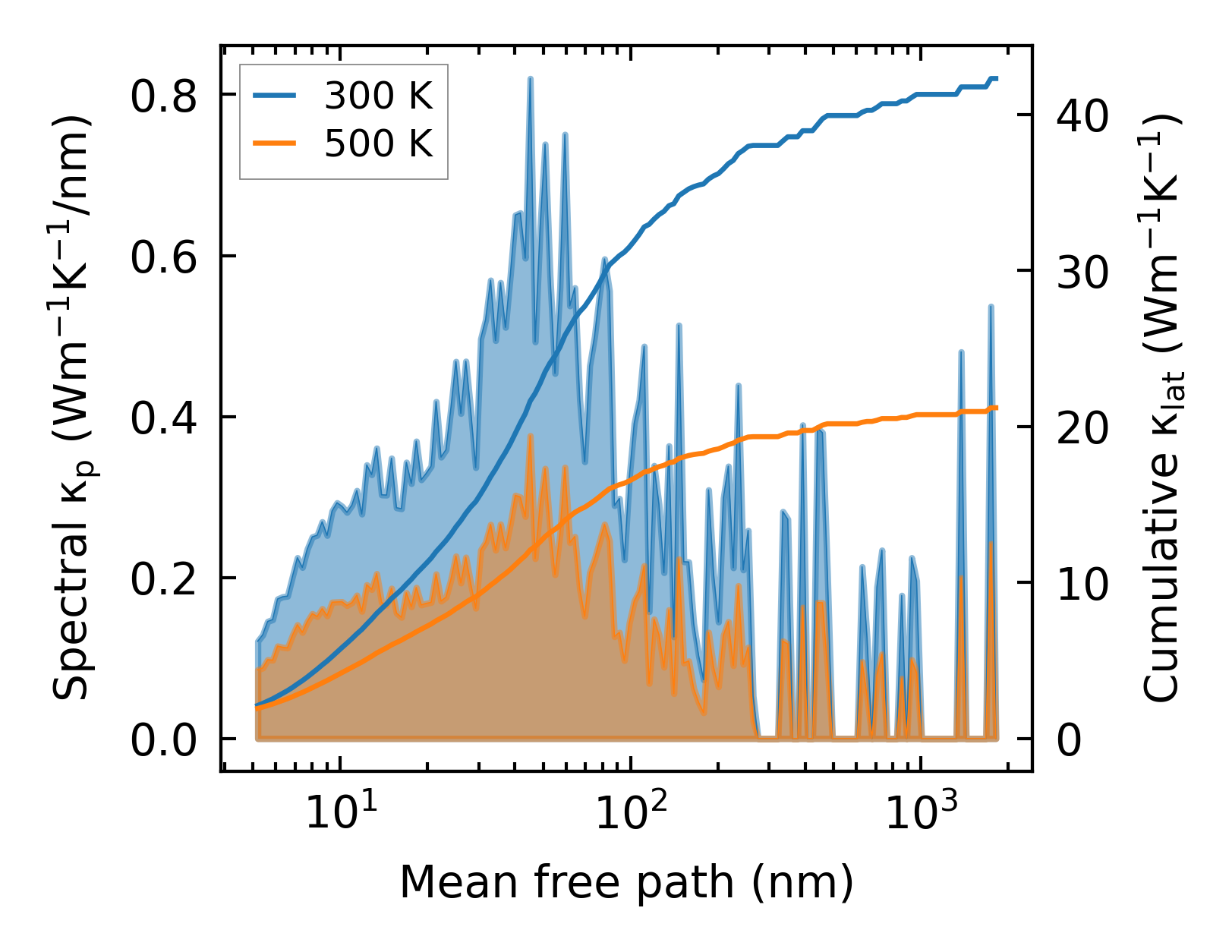

../../_images/fig_cumu_mfp4350.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

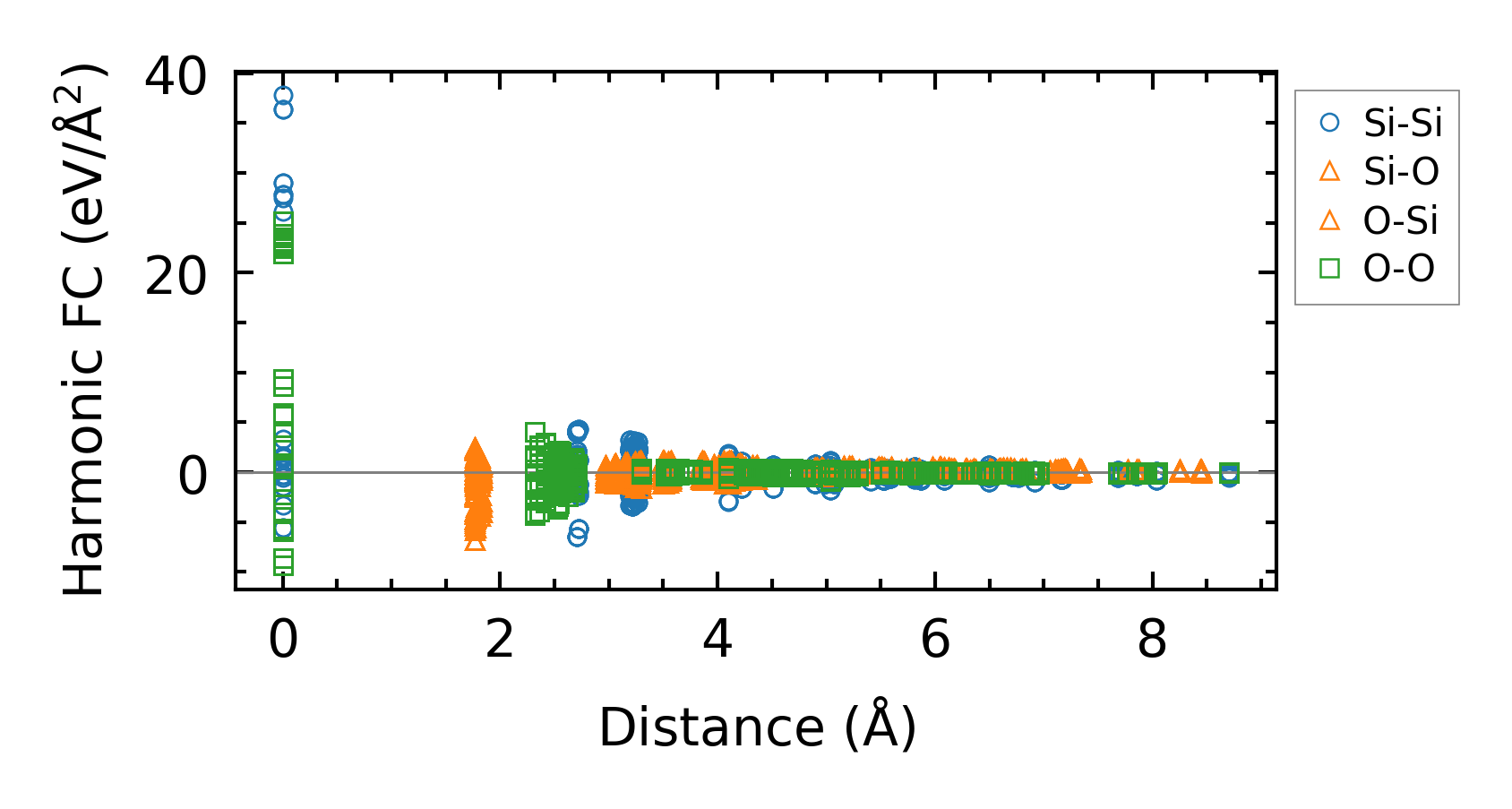

../../_images/fig_fc210508.png — (a) Force constants w.r.t atomic distance

Summary

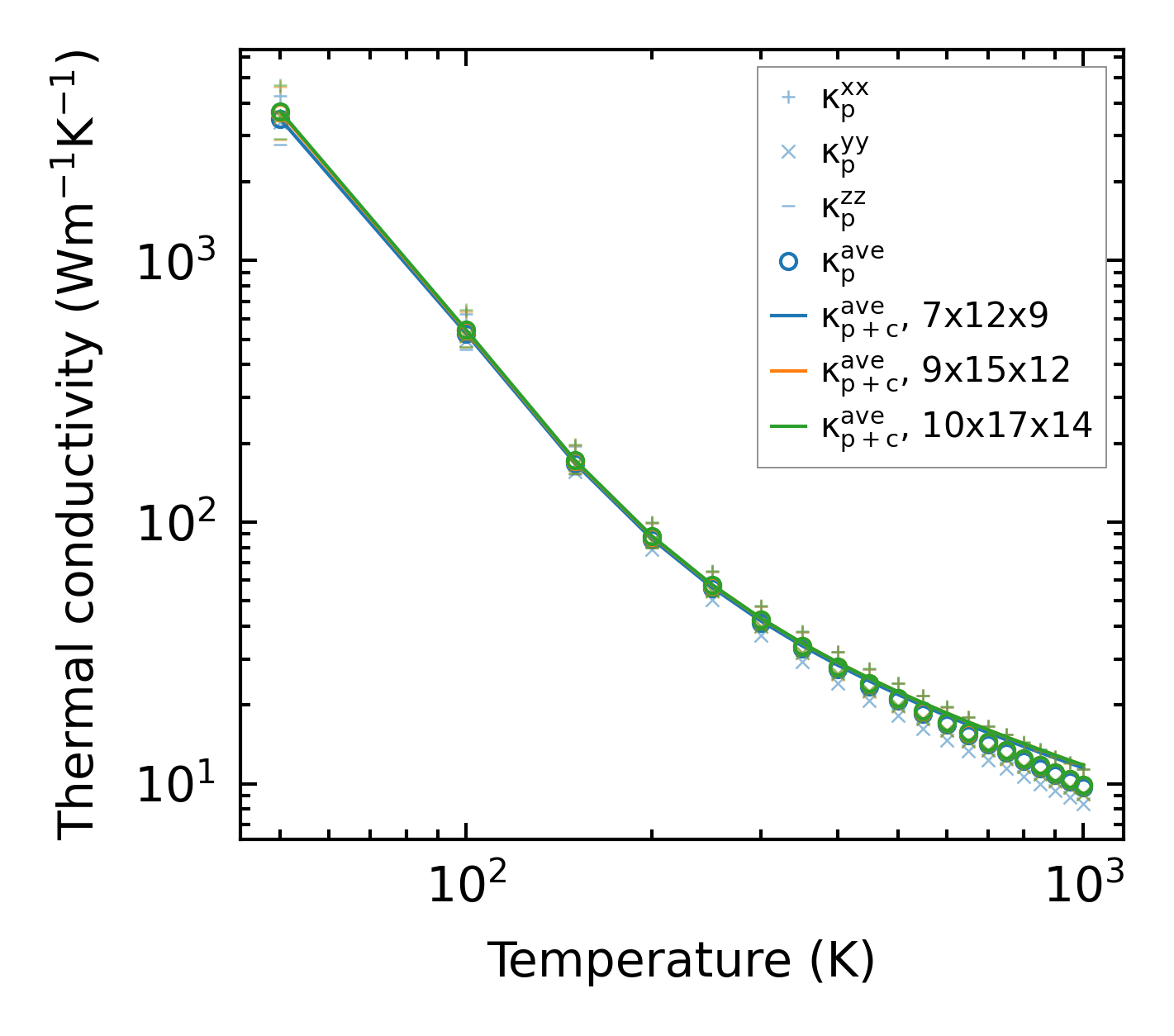

../../_images/fig_kappa8299.png — (a) Temperature-dependent lattice thermal conductivity

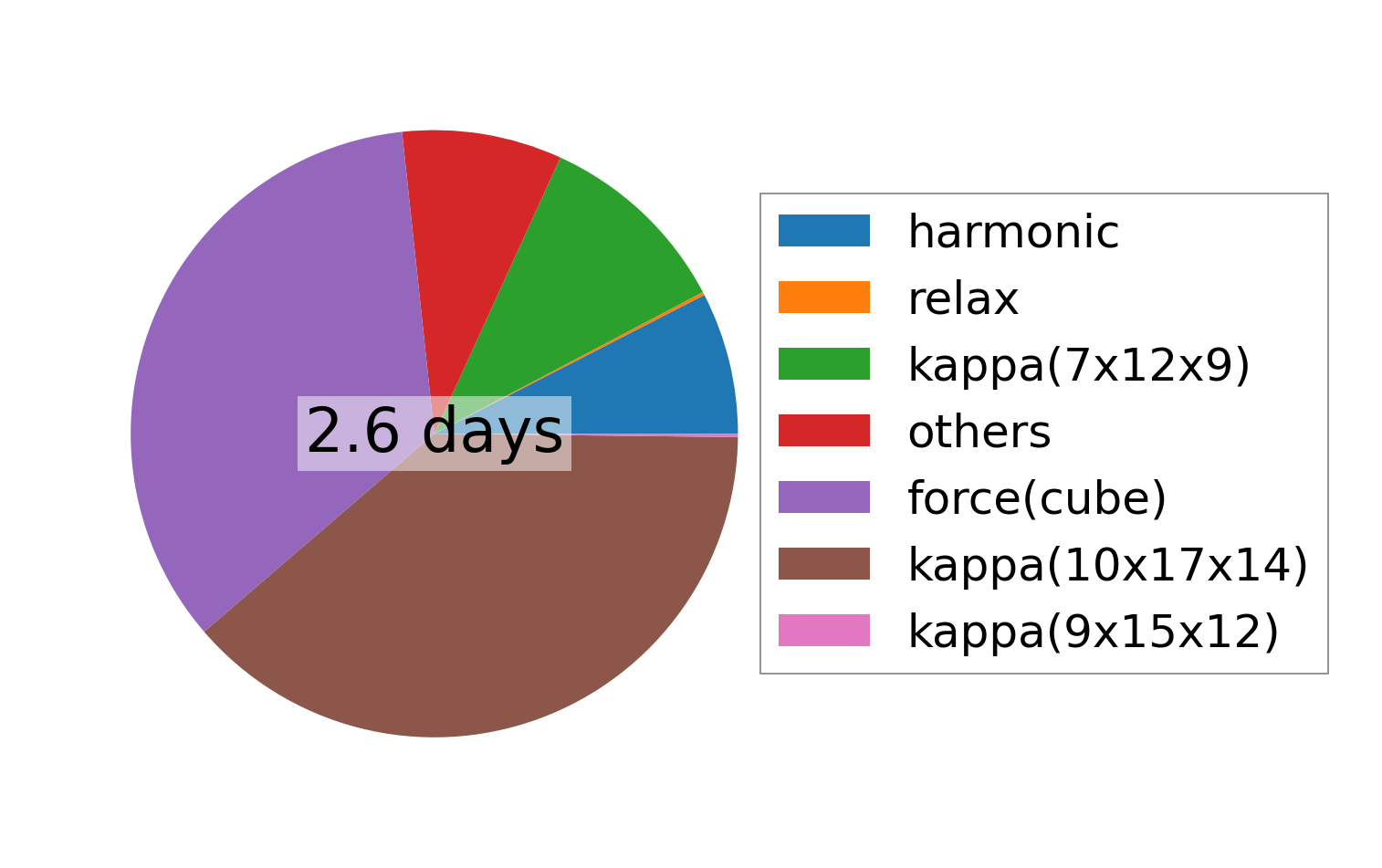

../../_images/fig_times18481.png — (b) Computation time
