mp-1228817/AlReGe/anharm

Space group: I4mm (107)
Link: Materials Project
Download: mp-1228817.tar.gz

Harmonic properties

../../_images/fig_bandos_pr15147.png — (a) Phonon dispersion with participation ratio and DOS

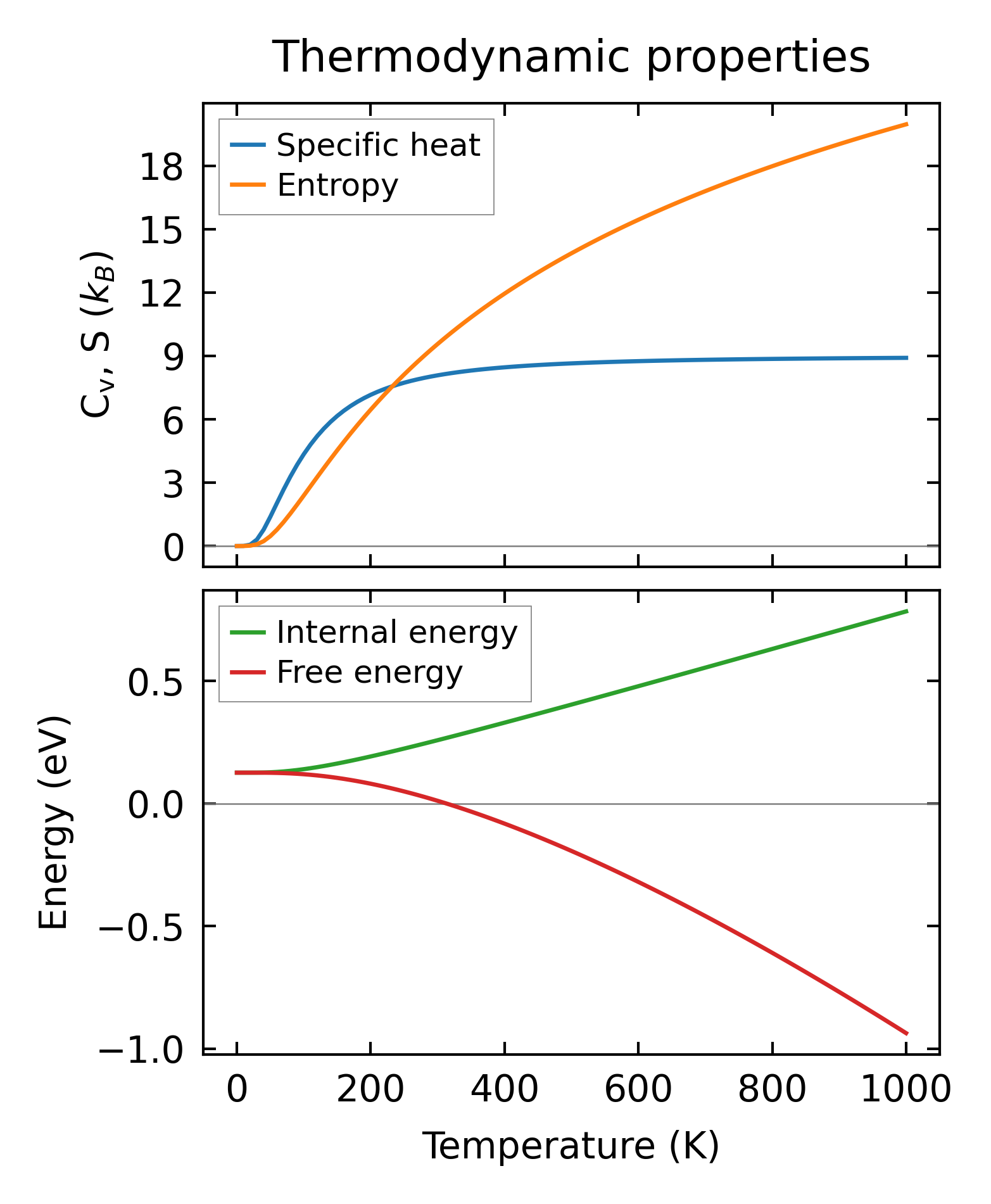

../../_images/fig_thermo15146.png — (b) Thermodynamic properties

Grüneisen parameters

../../_images/fig_gru_all6503.png — (a) Grüneisen parameters

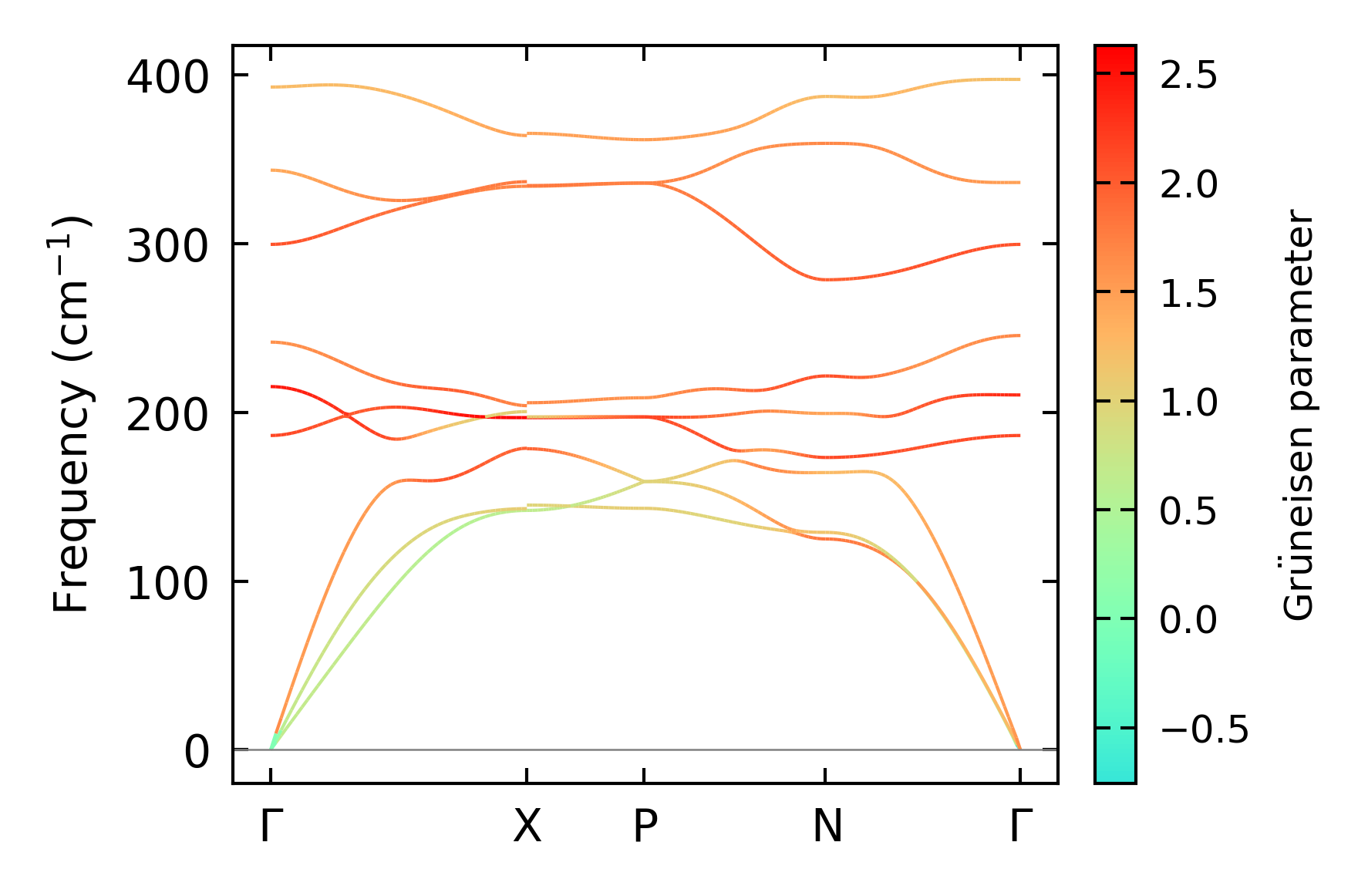

../../_images/fig_gruneisen6503.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 20x20x20, supercell: 3x3x2

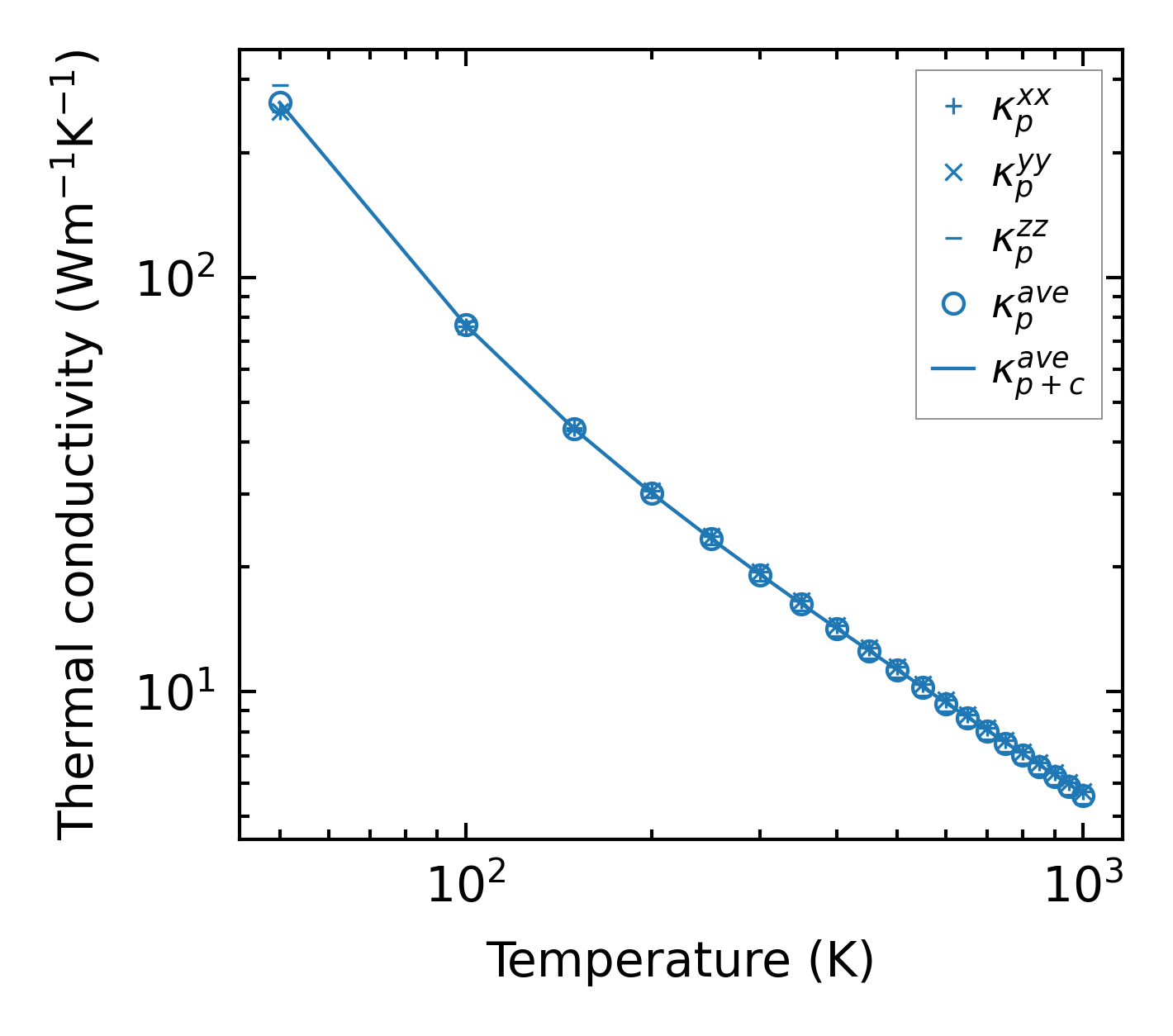

../../_images/fig_kappa12236.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size6580.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

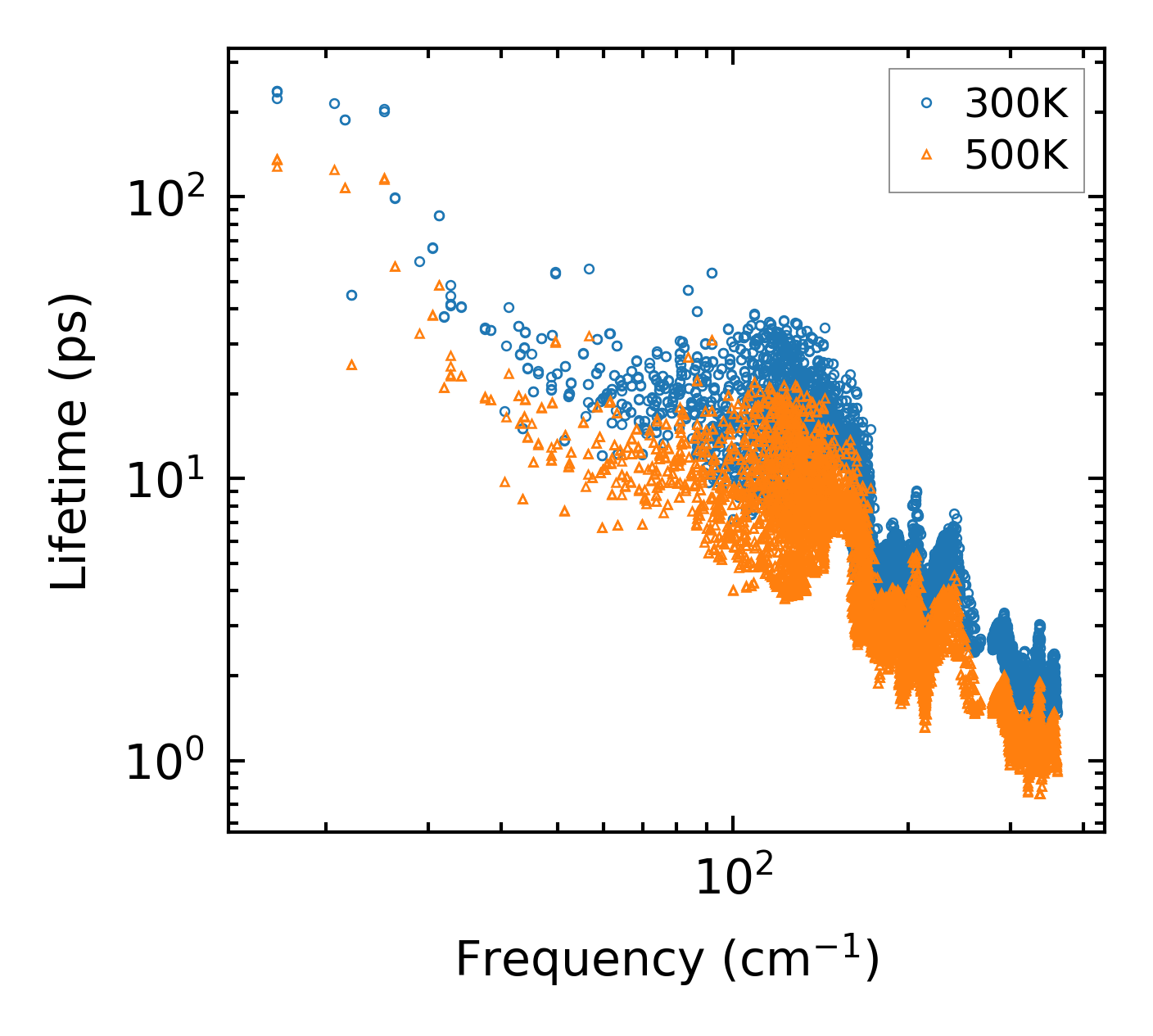

../../_images/fig_lifetime6437.png — (a) Phonon lifetime due to phonon-phonon scattering

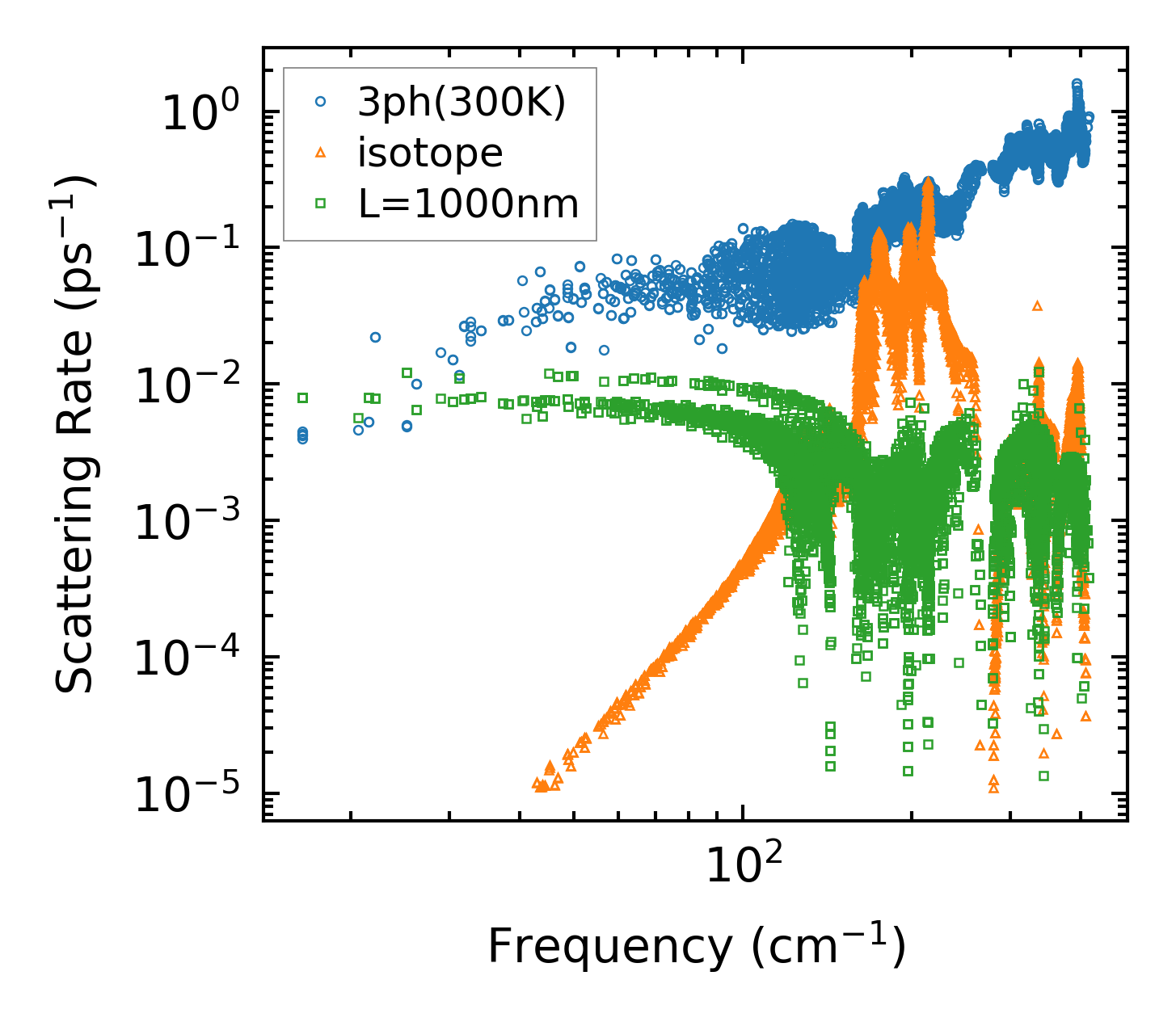

../../_images/fig_scat_rates6436.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

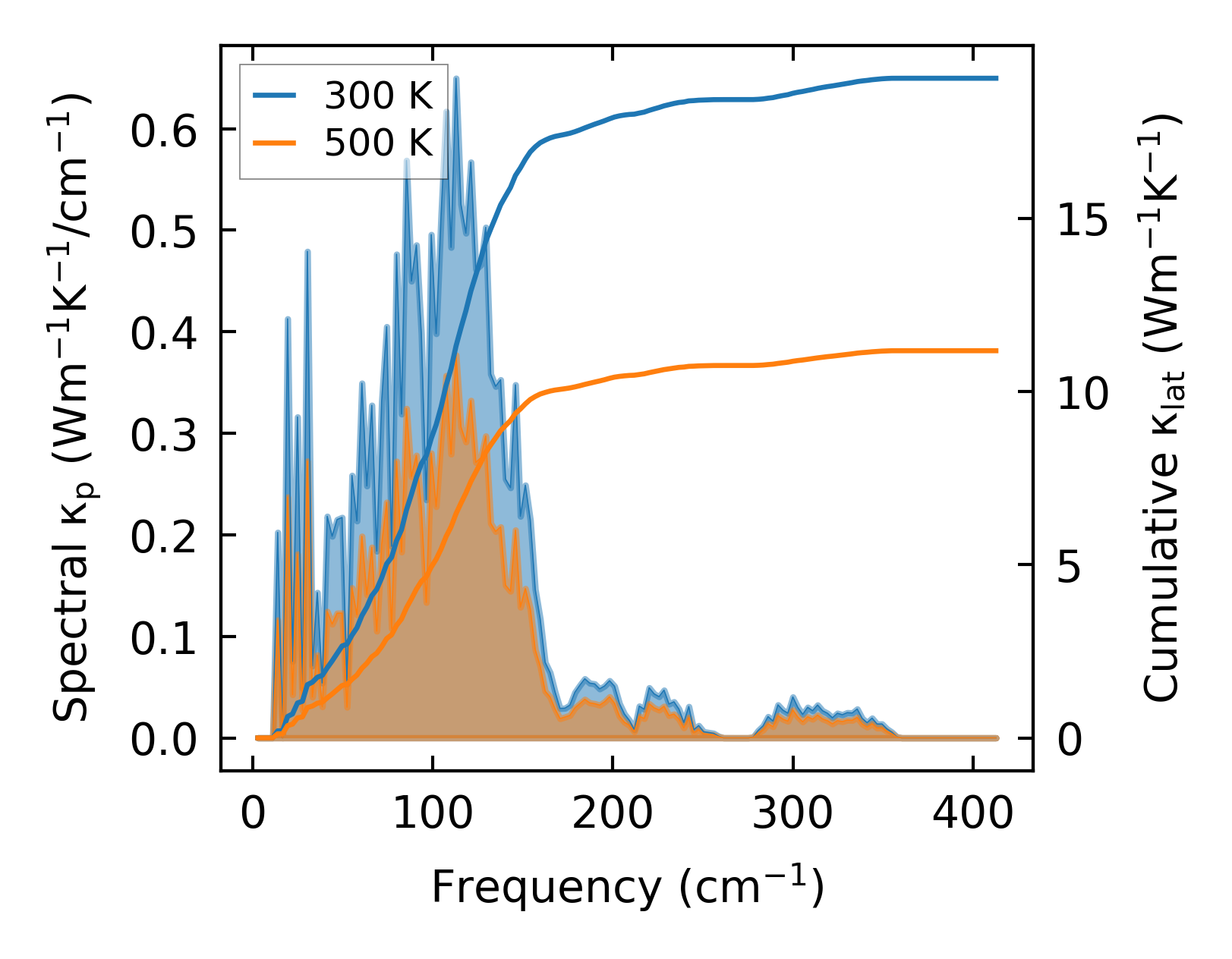

../../_images/fig_cumu_frequency6437.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

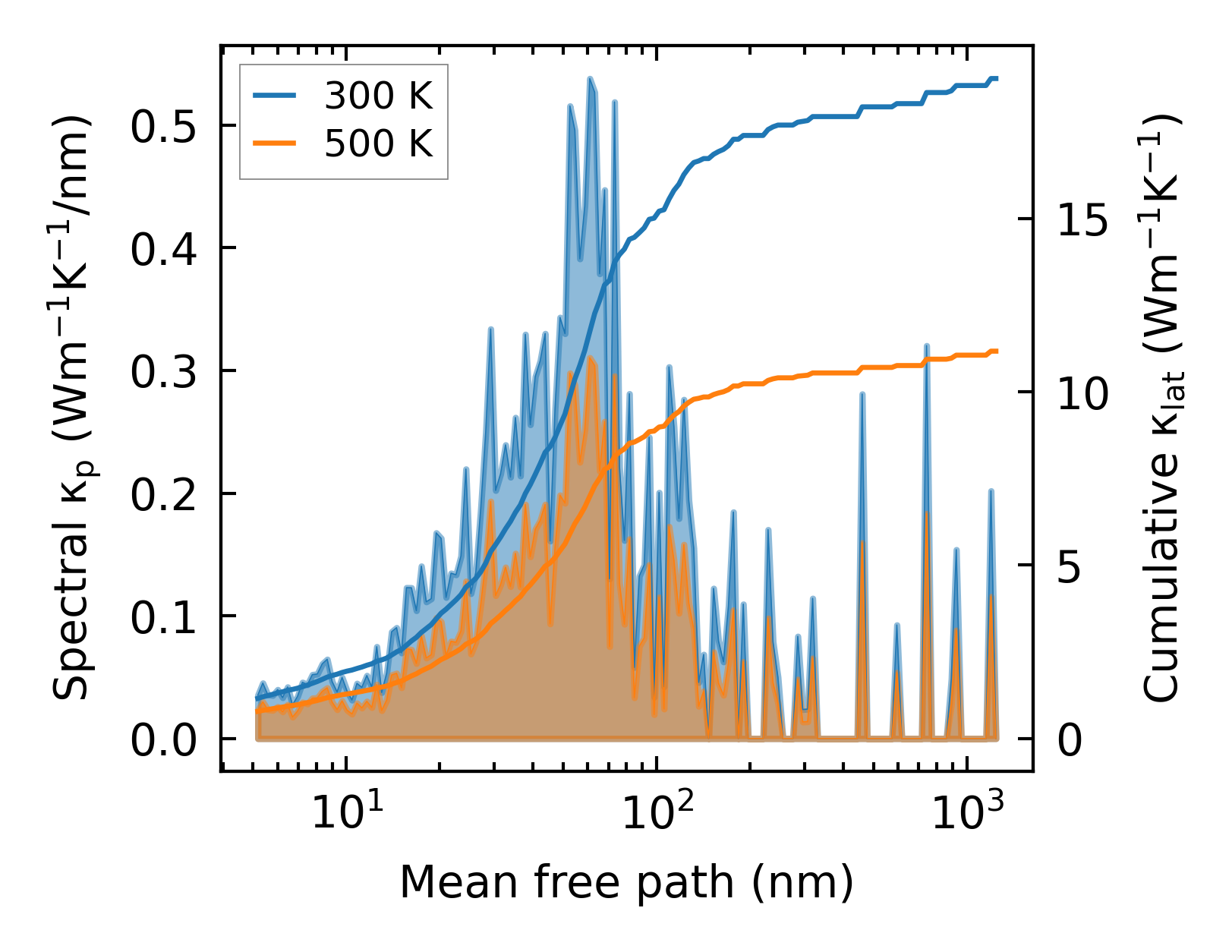

../../_images/fig_cumu_mfp6436.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

../../_images/fig_fc214762.png — (a) Force constants w.r.t atomic distance

Summary

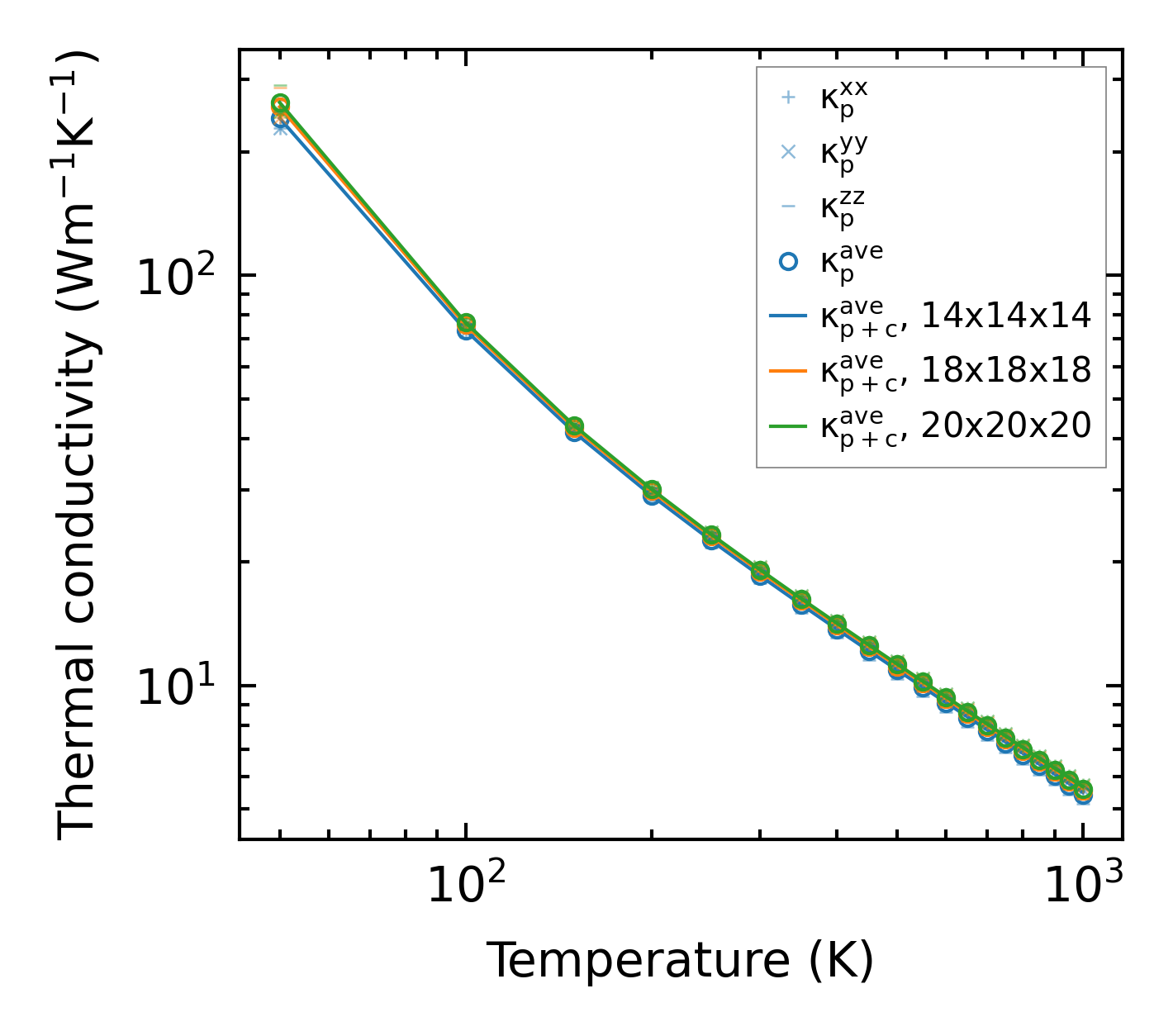

../../_images/fig_kappa12237.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_times25072.png — (b) Computation time
